Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

7 part groups · 4 illustrations

Illustrations

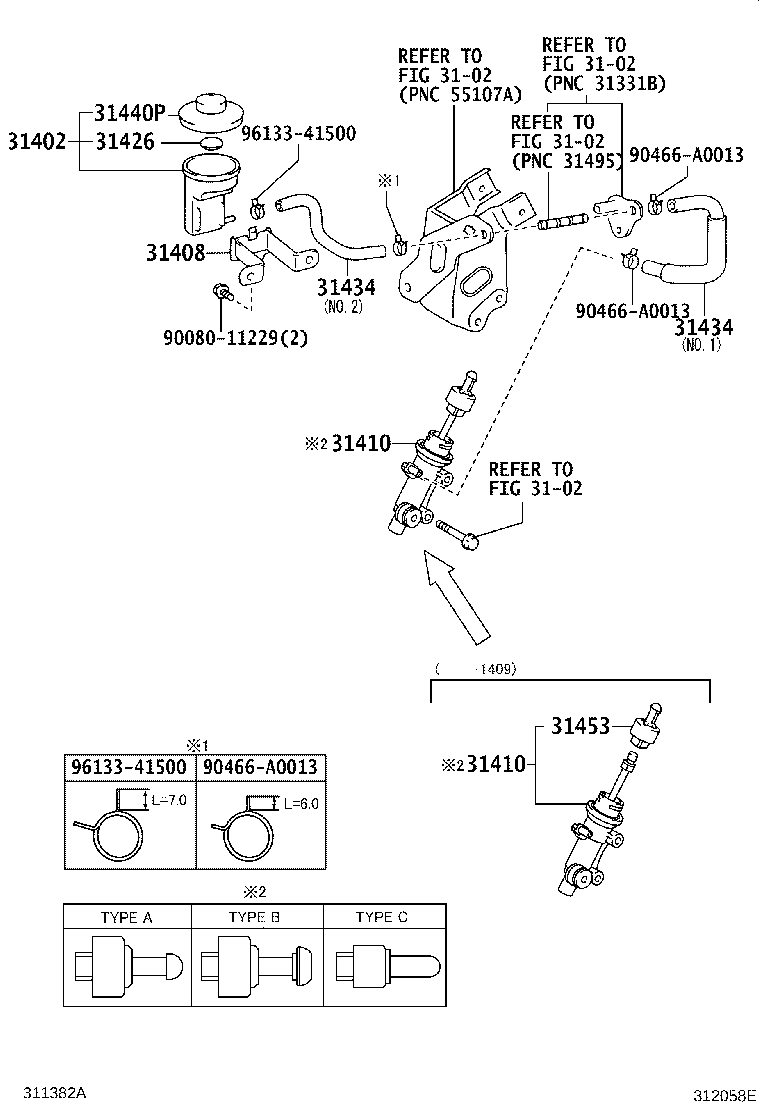

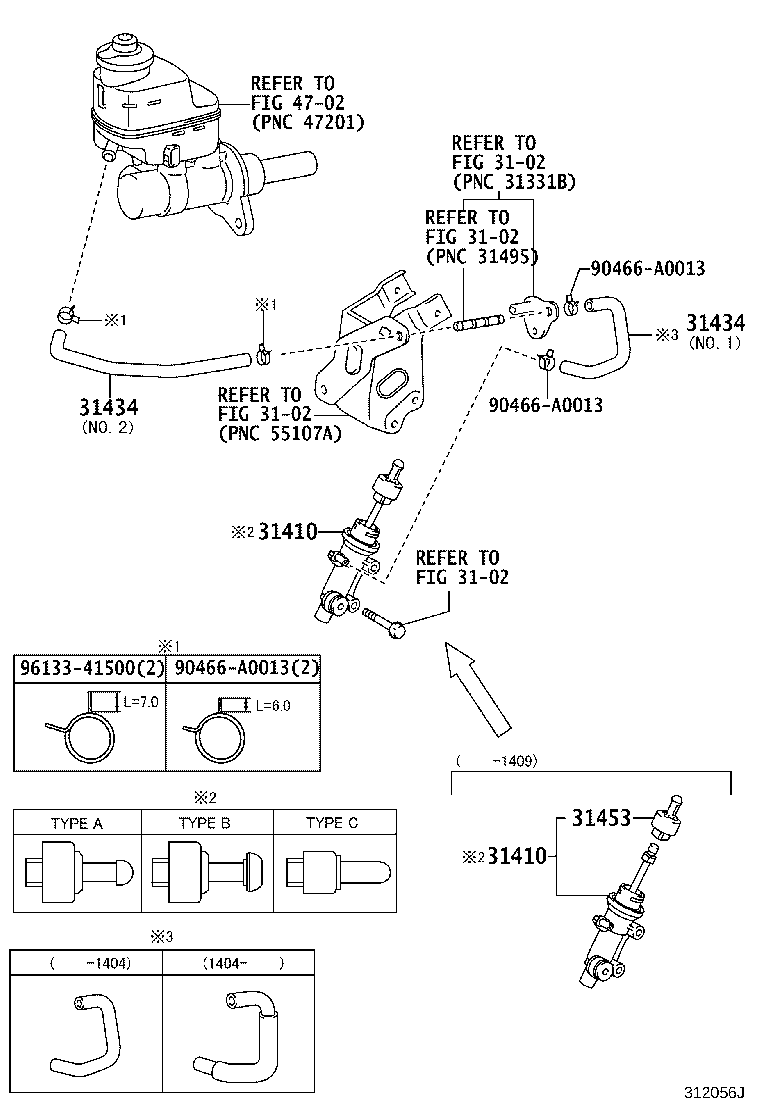

Figure 311383C 311383C 2004-09 → 2008-05 Figure 311382C 311382C 2004-09 → 2008-05 Figure 312056J 312056J 2008-05 → — Figure 312058E 312058E 2008-05 → —

Part groups

PNCDescription
31402 Reservoir Sub-assy, Clutch Master Cylinder
31408 Holder Sub-assy, Clutch Reservoir
31410 Cylinder Assy, Clutch Master
31426 Float, Clutch Master Cylinder Reservoir
31434 Tube, Clutch Reservoir
31440P Cap Assy, Clutch Master Cylinder Reservoir Filler
31453 Clevis, Clutch Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
