Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

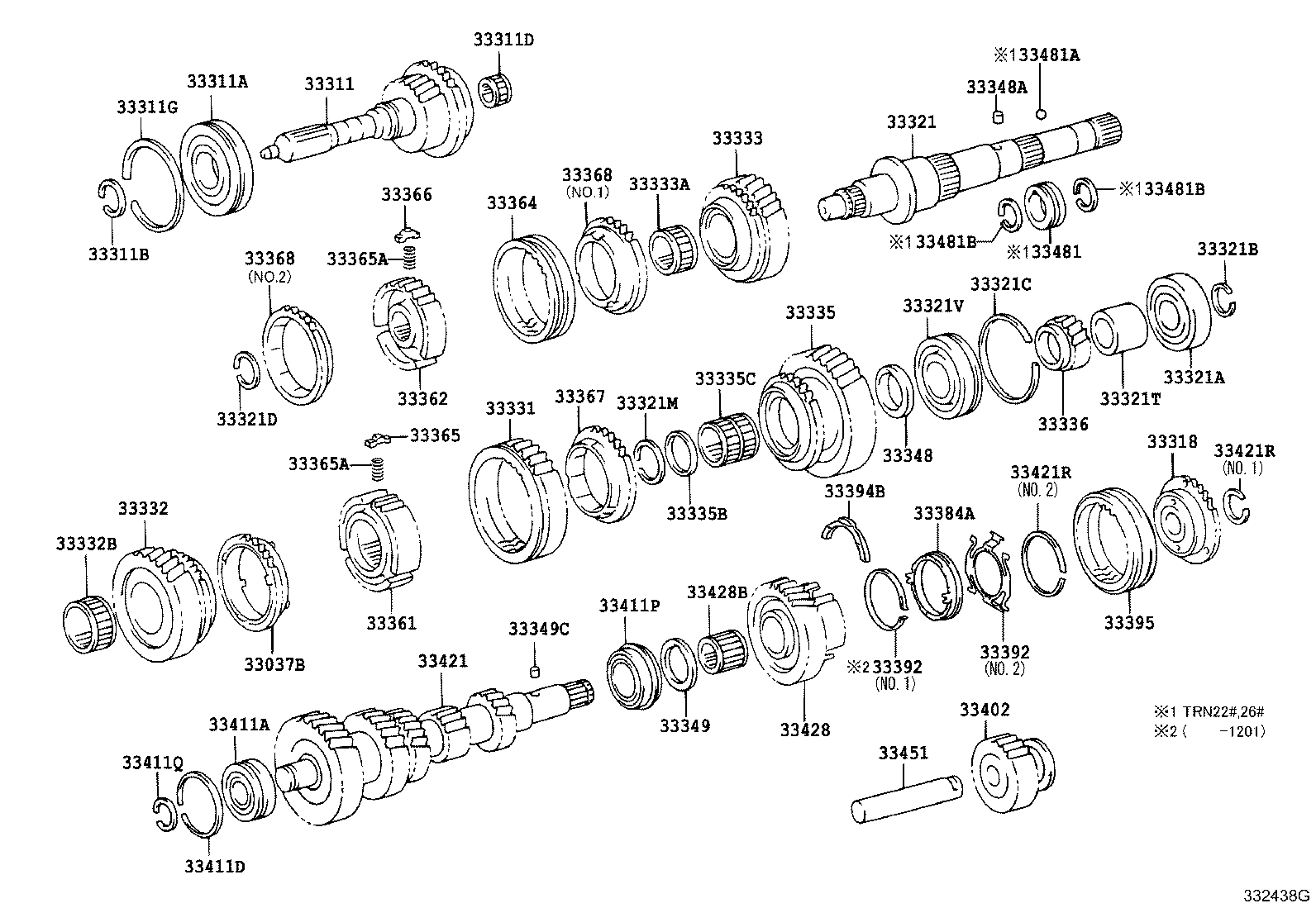

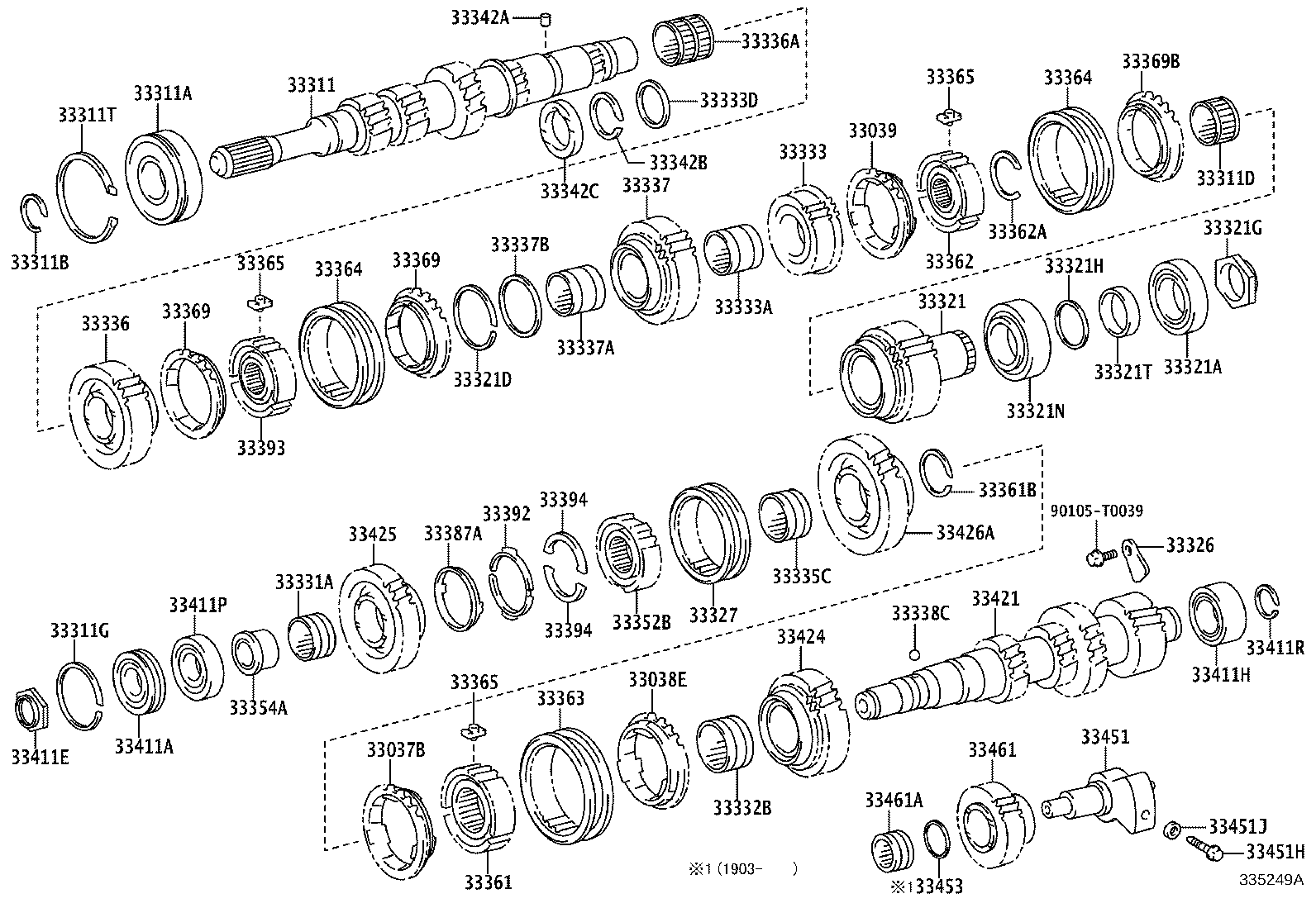

Transmission Gear (MTM)
103 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33037B | Ring Set, Synchronizer, NO.1 |
| 33038E | Ring Set, Synchronizer, NO.2 |
| 33039 | Ring Set, Synchronizer, NO.3 |
| 33311 | Shaft, Input |
| 33311A | Bearing (FOR INPUT SHAFT FRONT) |
| 33311B | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33311D | Bearing, Input Shaft |
| 33311F | Spacer (FOR INPUT SHAFT) |
| 33311G | Ring, Shaft Snap (FOR FRONT BEARING) |
| 33311T | Ring, Shaft Snap (FOR INPUT SHAFT) |
| 33313 | Piece, Reverse Gear Spline |
| 33318 | Piece, Gear Spline, NO.5 |
| 33321 | Shaft, Output |
| 33321A | Bearing (FOR OUTPUT SHAFT REAR) |
| 33321B | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321C | Ring, Shaft Snap (FOR OUTPUT SHAFT BEARING) |
| 33321D | Ring, Shaft Snap (FOR CLUTCH HUB SET) |
| 33321G | Nut (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET) |
| 33321H | Shim (FOR OUTPUT SHAFT REAR BEARING) |
| 33321M | Ring, Shaft Snap (FOR BEARING) |
| 33321N | Bearing (FOR OUTPUT SHAFT FRONT) |
| 33321T | Spacer (FOR OUTPUT SHAFT) |
| 33321V | Bearing (FOR OUTPUT SHAFT CENTER) |
| 33326 | Plate, Bearing Lock |
| 33326A | Bolt (FOR BEARING LOCK PLATE) |
| 33327 | Sleeve, Transmission Hub, NO.4 |
| 33331 | Gear, Reverse |
| 33331A | Bearing (FOR REVERSE GEAR) |
| 33332 | Gear, 2ND |
| 33332B | Bearing, Needle Roller (FOR 2ND GEAR) |
| 33333 | Gear, 3RD |
| 33333A | Bearing, Needle Roller (FOR 3RD GEAR) |
| 33333D | Spacer (FOR 3RD GEAR) |
| 33334 | Gear, 4TH |
| 33334A | Bearing, Needle Roller (FOR 4TH GEAR) |
| 33335 | Gear, 1ST |
| 33335B | Spacer(FOR 1ST GEAR BEARING) |
| 33335C | Bearing, Needle Roller(FOR 1ST GEAR) |
| 33336 | Gear, 5TH |
| 33336A | Bearing, Needle Roller (FOR 5TH GEAR) |
| 33337 | Gear Sub-assy, 6TH |
| 33337A | Bearing, Needle Roller (FOR 6TH GEAR) |
| 33337B | Spacer (FOR 6TH GEAR) |
| 33338C | Ball, Reverse Shift Restrict |
| 33342A | Pin, Straight (FOR GEAR THRUST WASHER) |
| 33342B | Ring, Shaft Snap (FOR GEAR THRUST WASHER) |
| 33342C | Washer, 3RD Gear Thrust |
| 33348 | Washer, 1ST Gear Thrust |
| 33348A | Pin OR Ball (FOR 1ST GEAR THRUST WASHER) |
| 33349 | Washer, 5TH Gear Thrust |
| 33349C | Pin (FOR 5TH GEAR THRUST WASHER) |
| 33352B | Hub, Transmission Clutch, NO.4 |
| 33354A | Race, Reverse Gear Bearing, Inner |
| 33358A | Key, Synchromesh Shifting, NO.4 |
| 33361 | Hub, Transmission Clutch, NO.1 |
| 33361B | Ring, Shaft Snap (FOR CLUTCH HUB NO.1) |
| 33362 | Hub, Transmission Clutch, NO.2 |
| 33362A | Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING) |
| 33363 | Sleeve, Transmission Hub, NO.1 |
| 33364 | Sleeve, Transmission Hub, NO.2 |
| 33365 | Key, Synchromesh Shifting, NO.1 |
| 33365A | Spring, Compression |
| 33365C | Ball(FOR SYNCHROMESH SHIFTING KEY) |
| 33366 | Key, Synchromesh Shifting, NO.2 |
| 33367 | Ring, Synchronizer, NO.1 |
| 33368 | Ring, Synchronizer, NO.2 |
| 33369 | Ring, Synchronizer, NO.3 |
| 33369B | Ring, Synchronizer, NO.4 |
| 33371 | Spring, Synchromesh Shifting Key, NO.1 |
| 33384A | Ring, Synchronizer, Outer NO.3 |
| 33387A | Ring, Reverse Synchronizer |
| 33392 | Spring, Synchromesh Shifting Key, NO.3 |
| 33393 | Hub, Transmission Clutch, NO.3 |
| 33393A | Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3) |
| 33394 | Key, Synchromesh Shifting, NO.3 |
| 33394B | Key, Synchromesh Shifting, NO.3 |
| 33395 | Sleeve, Transmission Hub, NO.3 |
| 33402 | Gear Sub-assy, Reverse Idler |
| 33411A | Bearing OR Roller(FOR COUNTER GEAR FRONT) |
| 33411D | Ring, Counter Gear Front Bearing Snap, NO.1 |
| 33411E | Nut(FOR COUNTER GEAR SHAFT) |
| 33411H | Bearing OR Roller(FOR COUNTER GEAR REAR) |
| 33411P | Bearing, Countershaft Center |
| 33411Q | Ring, Counter Gear Front Bearing Snap, NO.2 |
| 33411R | Ring, Snap, Counter Gear Rear Bearing |
| 33421 | Gear, Counter |
| 33421G | Bearing, Radial Ball(FOR COUNTER GEAR REAR) |
| 33421R | Ring, Shaft Snap(FOR COUNTER GEAR REAR) |
| 33424 | Gear, Countershaft 2ND Speed |
| 33425 | Gear, Countershaft Reverse |
| 33426A | Gear, Countershaft, 1ST Speed |
| 33428 | Gear, Countershaft 5TH |
| 33428B | Bearing (FOR COUNTER 5TH GEAR) |
| 33429A | Ring, Shaft Snap |
| 33451 | Shaft, Reverse Idler Gear |
| 33451H | Bolt (FOR REVERSE IDLER GEAR SHAFT) |
| 33451J | Gasket (FOR REVERSE IDLER GEAR SHAFT) |
| 33453 | Spacer, Reverse Idler Gear Shaft |
| 33461 | Gear, Reverse Idler |
| 33461A | Bearing, Reverse Idler Gear |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481A | Key OR Ball, Speedometer Drive Gear (MTM) |
| 33481B | Ring OR Spacer (FOR MTM SPEEDOMETER DRIVE GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
