Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09

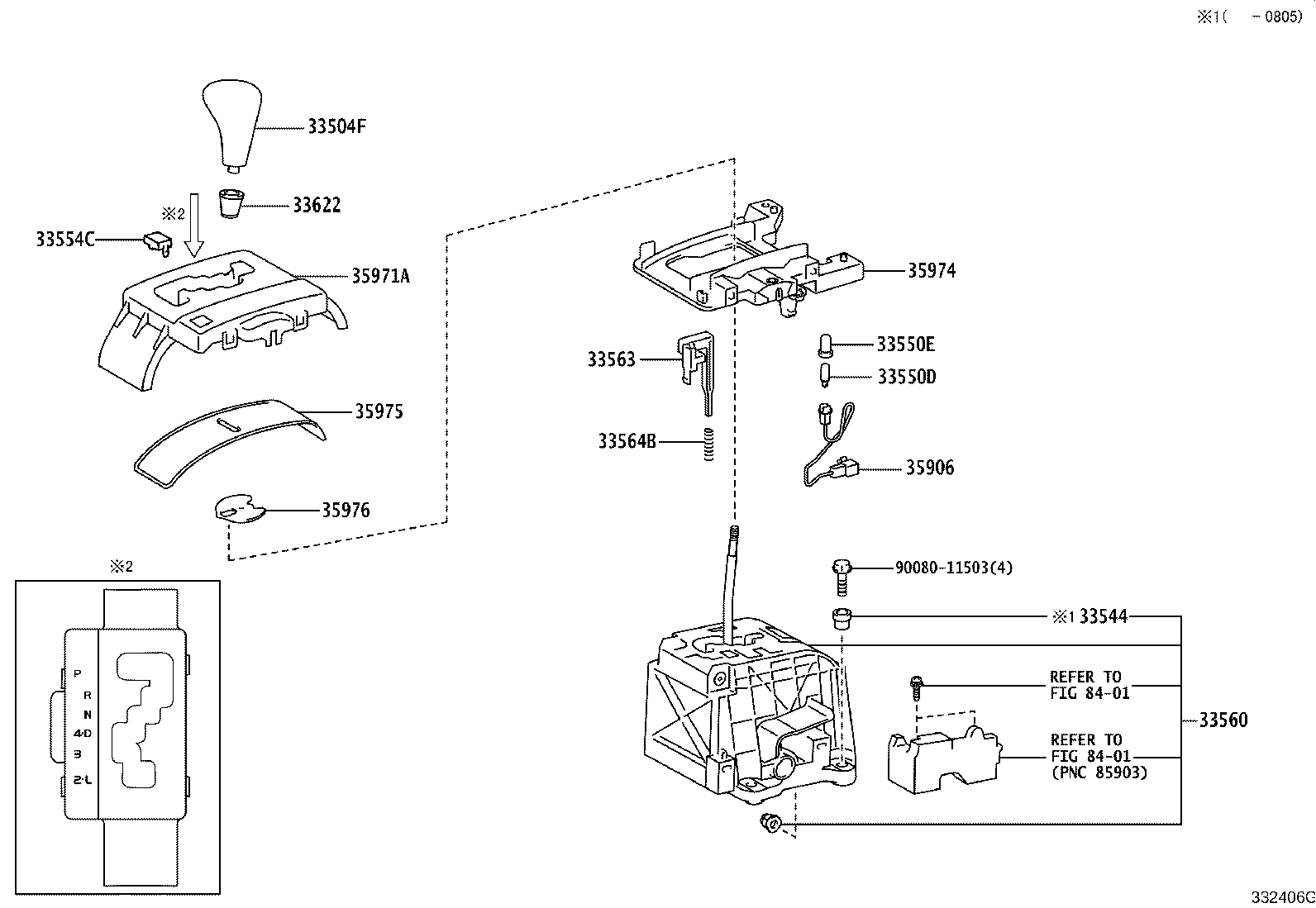

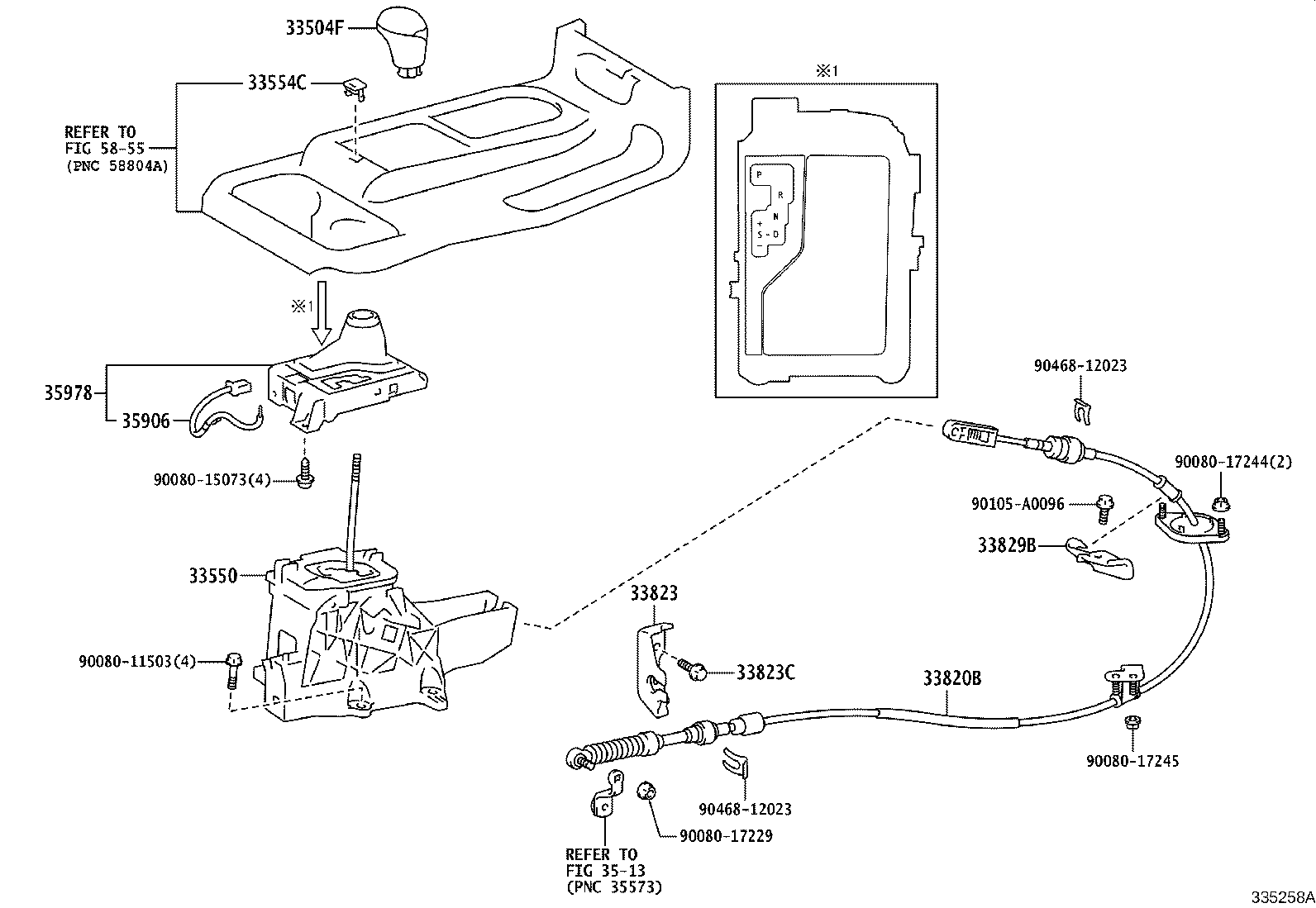

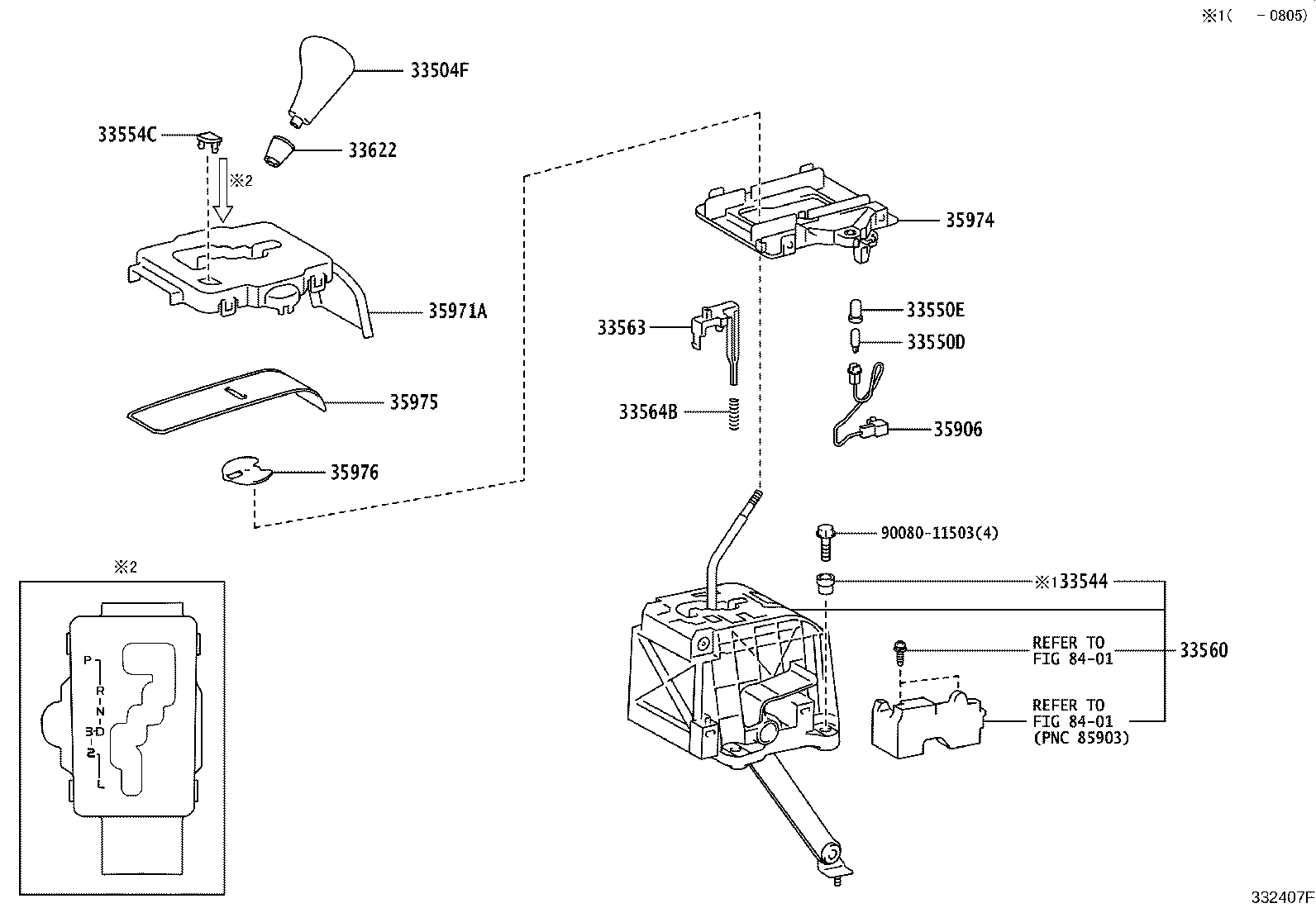

Shift Lever & Retainer

35 part groups · 10 illustrations

PNC	Description
33105A	Deflector Sub-assy, Extension Housing Oil(MTM)
33504F	Knob Sub-assy, Shift Lever
33505B	Seat Sub-assy, Shift Lever
33506C	Pin, Shift Lever Retainer Ring
33506F	Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33506W	Plug, Breather (FOR SHIFT LEVER RETAINER)
33530F	Lever Assy, Shift (FOR FLOOR SHIFT)
33544	Insert, Shift Lever, NO.1
33548F	Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33550	Floor Shift Assy, Transmission
33550D	Bulb, Position Indicator Lamp
33550E	Cap, Position Indicator Lamp
33554	Cap, Shift Lever
33554C	Cover, Shift Lock Release Button
33555	Boot, Shift Lever
33560	Unit Assy, Shift Lock Control
33563	Button, Shift Lock Release
33564B	Spring, Compression (FOR SHIFT LOCK RELEASE LINK)
33584F	Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
33622	Cover, Shift Lever Knob, NO.1
33675A	Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33675B	Bush (FOR TRANSMISSION CONTROL ROD)
33675C	Grommet (FOR TRANSMISSION CONTROL ROD)
33702B	Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33820B	Cable Assy, Transmission Control
33823	Bracket, Transmission Control Cable, NO.1
33823C	Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33826A	Bracket, Transmission Control Cable, NO.2
33829B	Clamp, Transmission Control Cable
35906	Wire Sub-assy, Indicator Lamp
35971A	Housing, Position Indicator, Upper
35974	Housing, Position Indicator, Lower
35975	Cover, Slide (FOR POSITION INDICATOR)
35976	Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978	Indicator, Shift Position

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
