Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

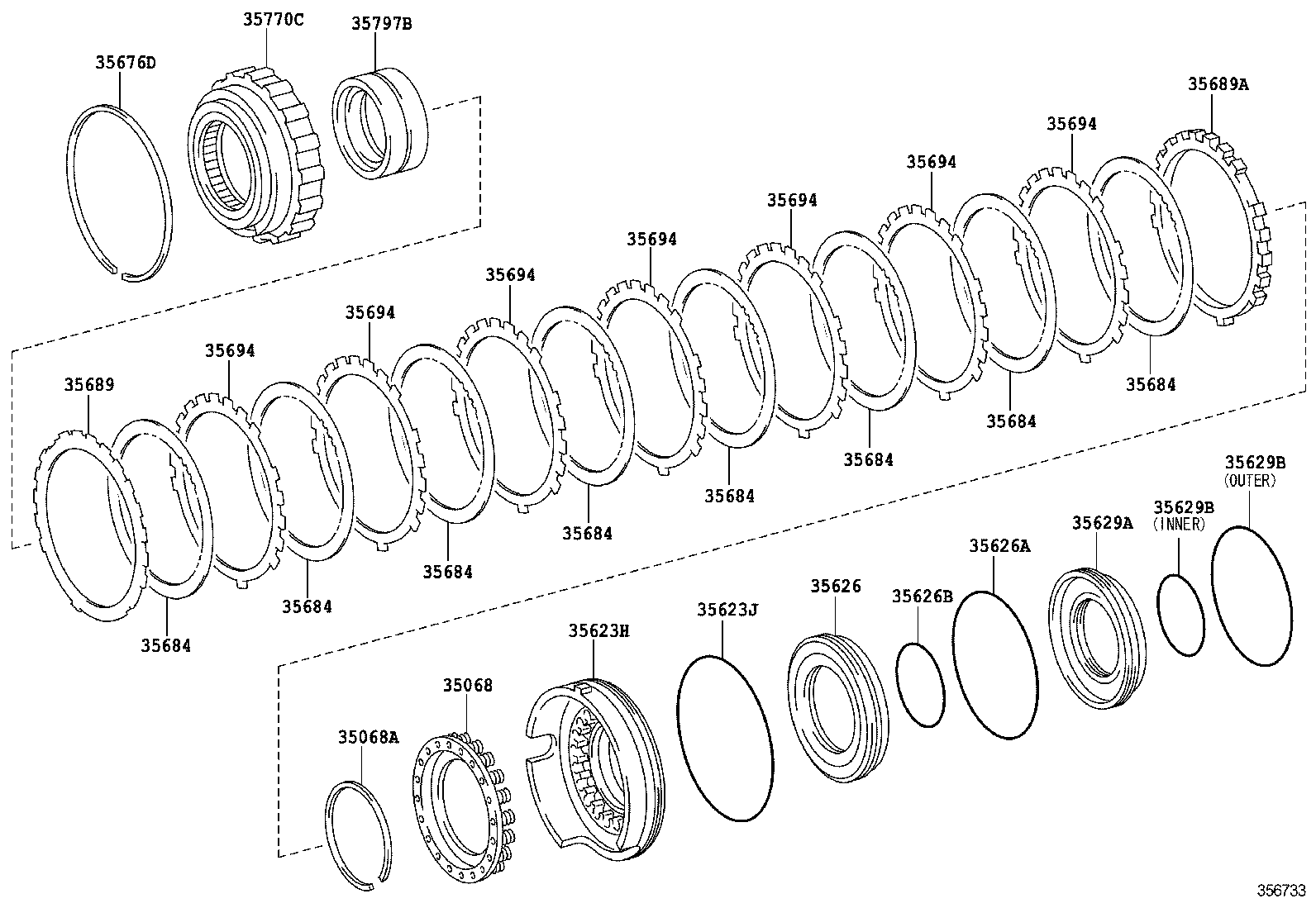

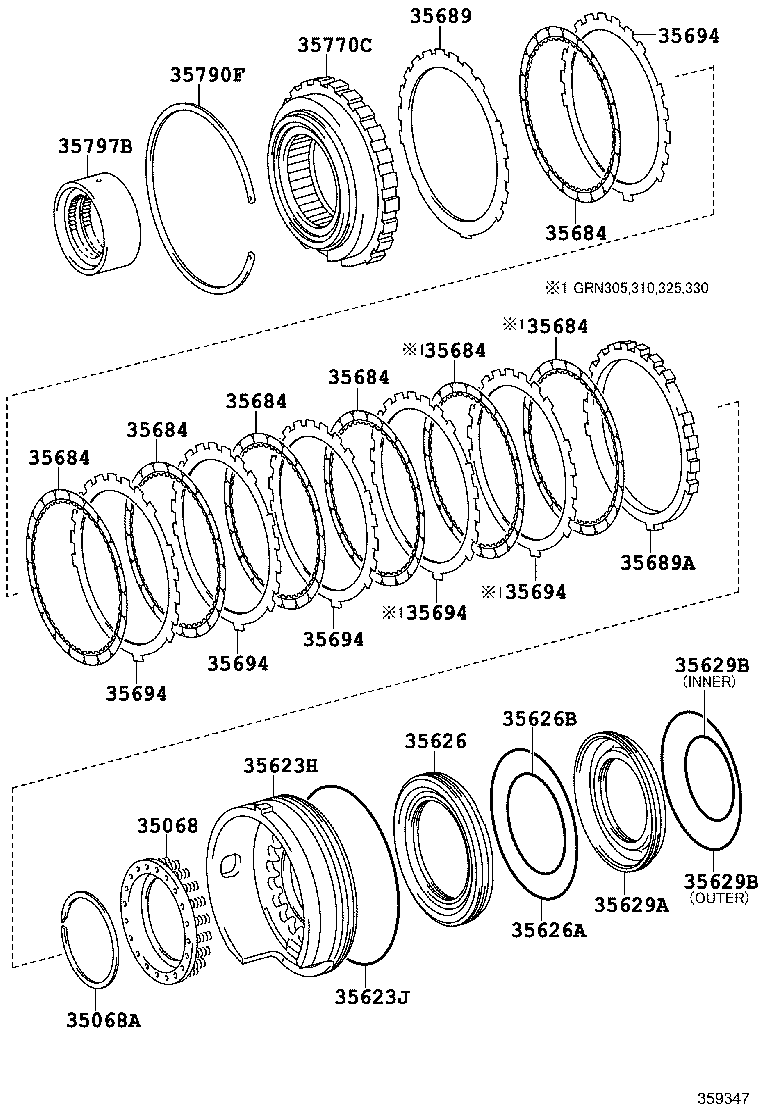

Brake NO.3, 1ST & Reverse Brake (ATM)
25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35068 | Spring Sub-assy, 1ST & Reverse Brake Return |
| 35068A | Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING) |
| 35622 | Piston, Brake, NO.2 |
| 35622A | Ring (FOR BRAKE PISTON OUTER) |
| 35622B | Ring (FOR BRAKE PISTON INNER) |
| 35623H | Piston, 1ST & Reverse Brake |
| 35623J | Ring, O (FOR 1ST & REVERSE BRAKE) |
| 35623P | Piston, 1ST & Reverse Brake, NO.2 |
| 35626 | Sleeve, Brake Reaction |
| 35626A | Ring (FOR BRAKE REACTION SLEEVE OUTER) |
| 35626B | Ring (FOR BRAKE REACTION SLEEVE INNER) |
| 35629 | Spring (1ST & REVS BRAKE PLATE STOPPER) |
| 35629A | Piston, Brake, NO.4 |
| 35629B | Ring, O (FOR BRAKE PISTON NO.4) |
| 35648A | Plate, Clutch (FOR 1ST & REVERSE BRAKE) |
| 35676A | Flange, Brake (FOR 1ST & REVERSE BRAKE) |
| 35676D | Ring, Hole Snap (FOR 1ST & REVERSE BRAKE FLANGE) |
| 35677A | Disc, Clutch (FOR 1ST & REVERSE BRAKE) |
| 35684 | Disc, Brake, NO.4 |
| 35689 | Flange, Brake, NO.4 |
| 35689A | Flange, Brake, NO.4 |
| 35694 | Plate, Brake, NO.4 |
| 35770C | Clutch Assy, 1Way NO.3 |
| 35790F | Ring, Hole Snap(FOR 1WAY CLUTCH) |
| 35797B | Race, 1 Way Clutch, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
