Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

18 part groups · 2 illustrations

Illustrations

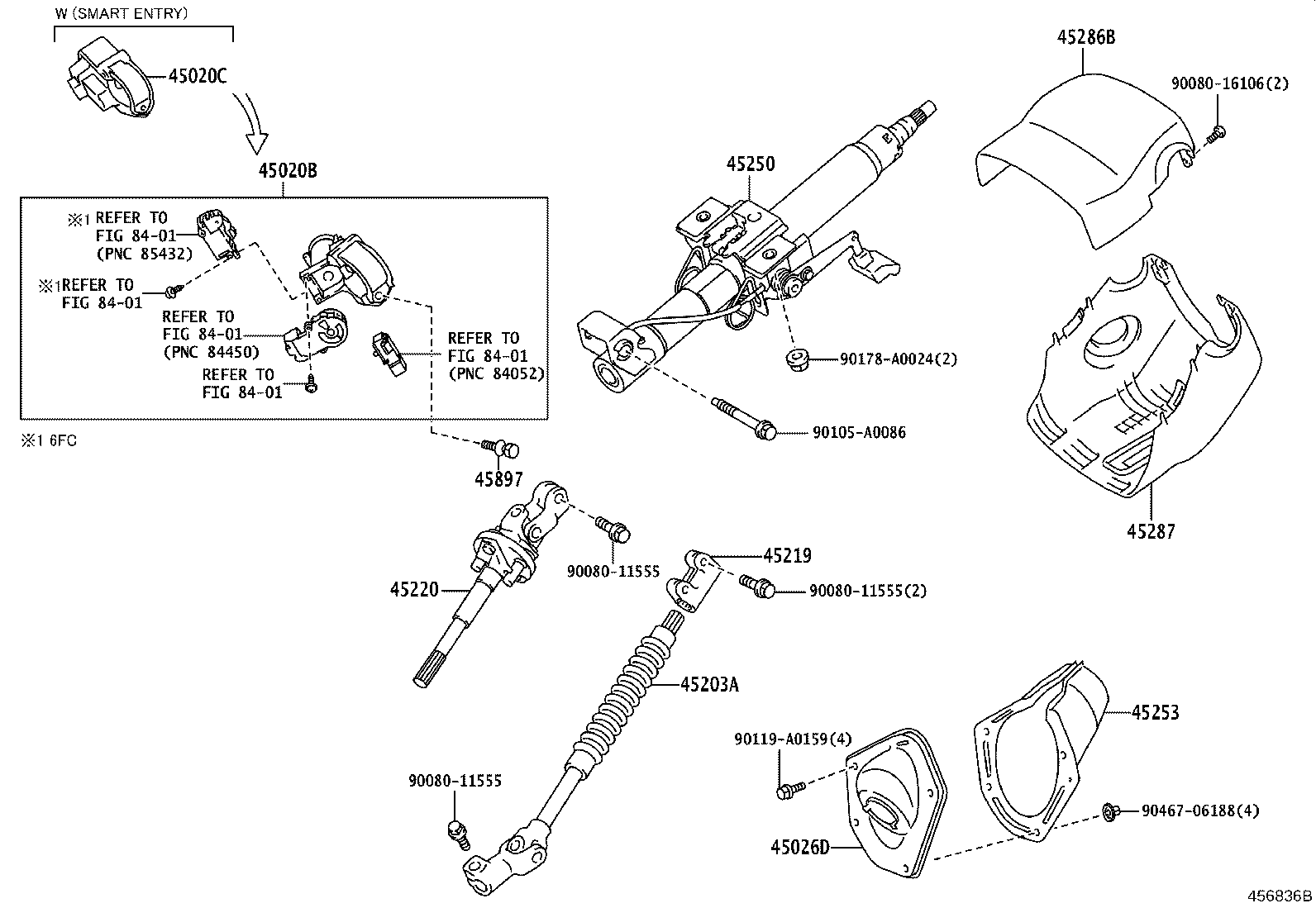

Figure 453972J 453972J 2004-09 → 2015-08 Figure 456836B 456836B 2015-08 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45026D Cover Sub-assy, Steering Column Hole
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45203A Shaft, Steering Intermediate, NO.2
45210 Shaft Assy, Steering Main
45219 Yoke, Steering Sliding
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45253 Cover, Steering Column Hole
45262A Spring, Tilt Lever Return
45263 Ring, Steering Column, NO.1
45271 Clamp, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45813 Collar, Tilt Steering Support, NO.1
45832 Cable, Tilt Steering Support Bond
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
