Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 5 illustrations

Illustrations

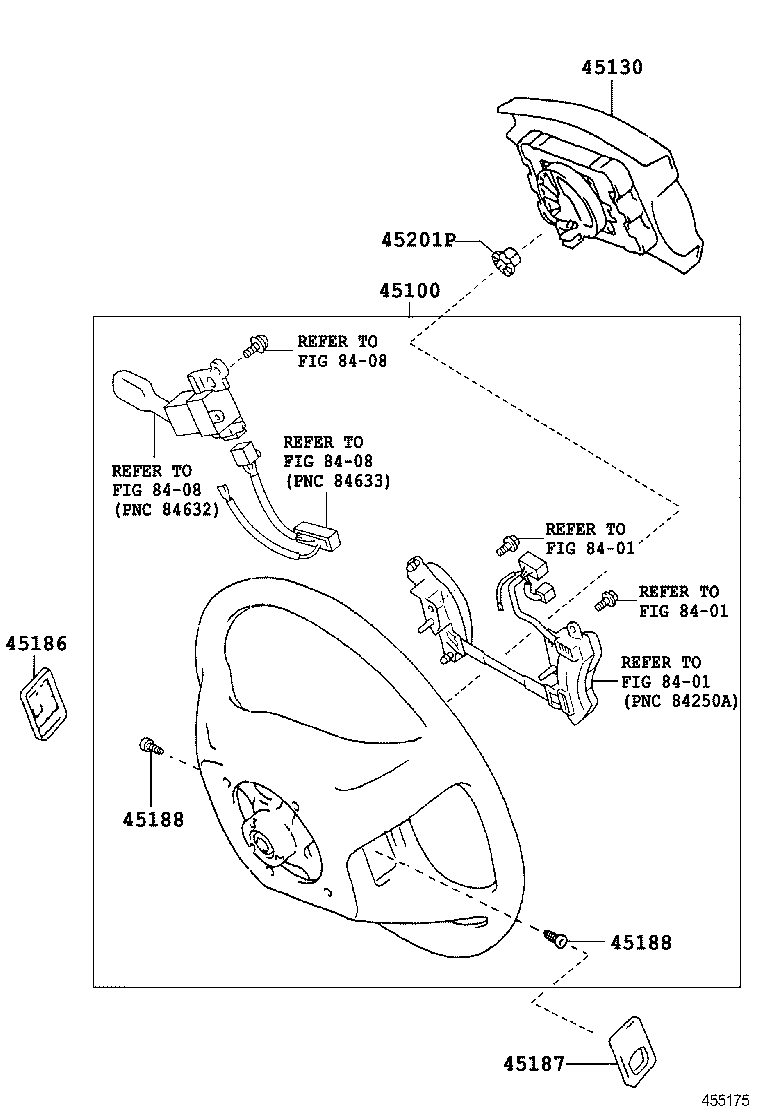

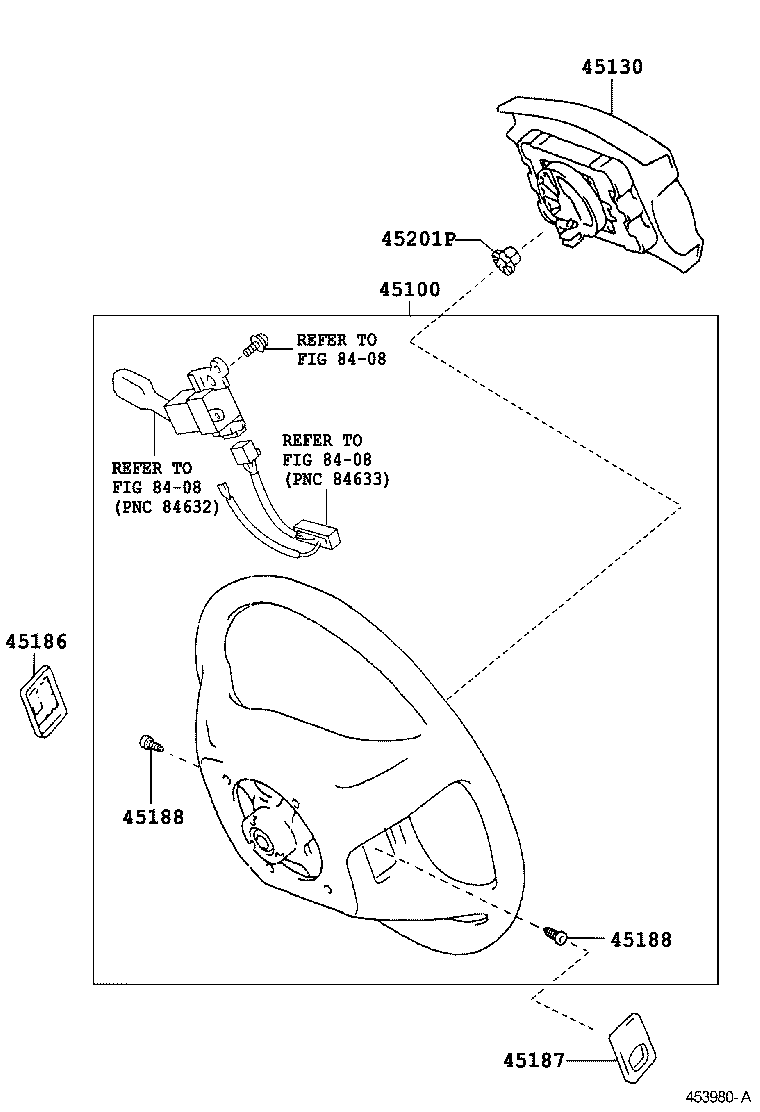

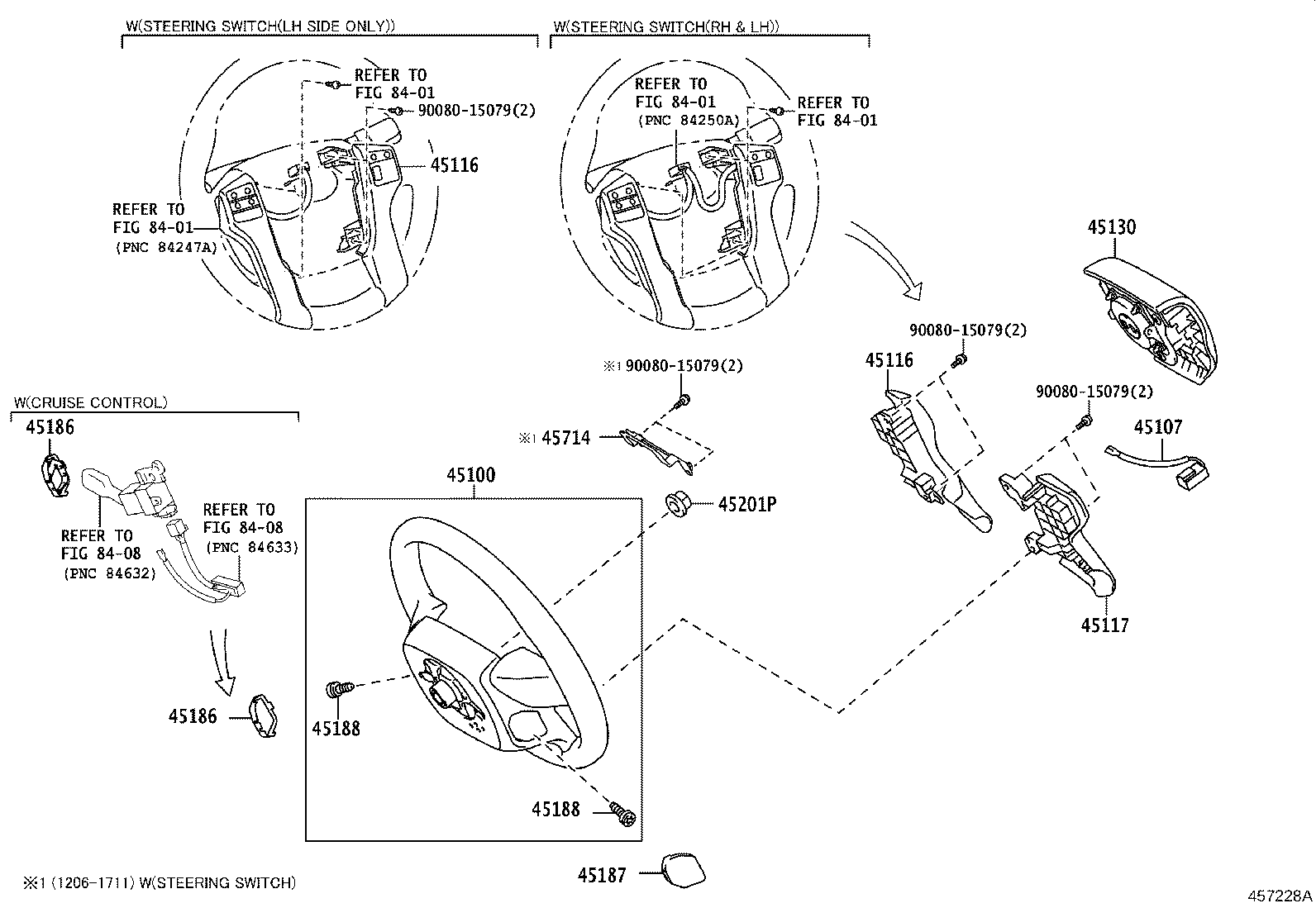

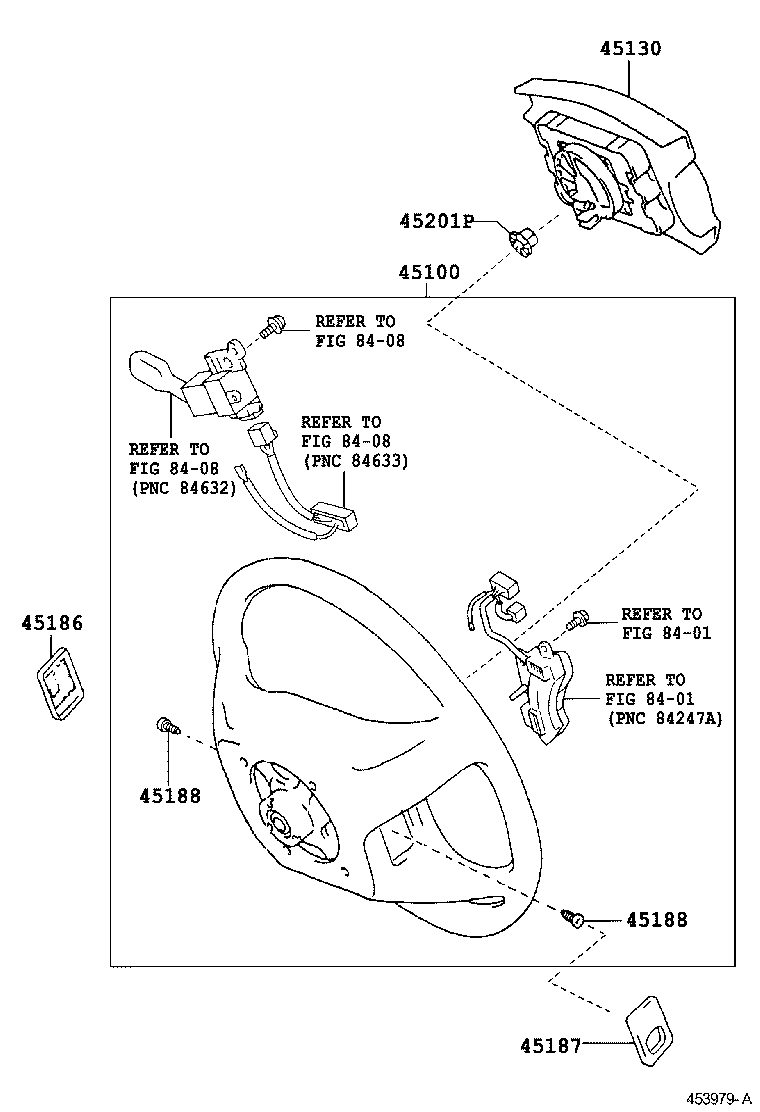

Figure 453405A 453405A 2004-09 → 2011-09 Figure 453979A 453979A 2004-09 → 2011-09 Figure 453980A 453980A 2004-09 → 2008-05 Figure 455175 455175 2008-05 → 2011-09 Figure 457228A 457228A 2011-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
45714 Bracket, Steering Shake Dumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
