Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

24 part groups · 2 illustrations

Illustrations

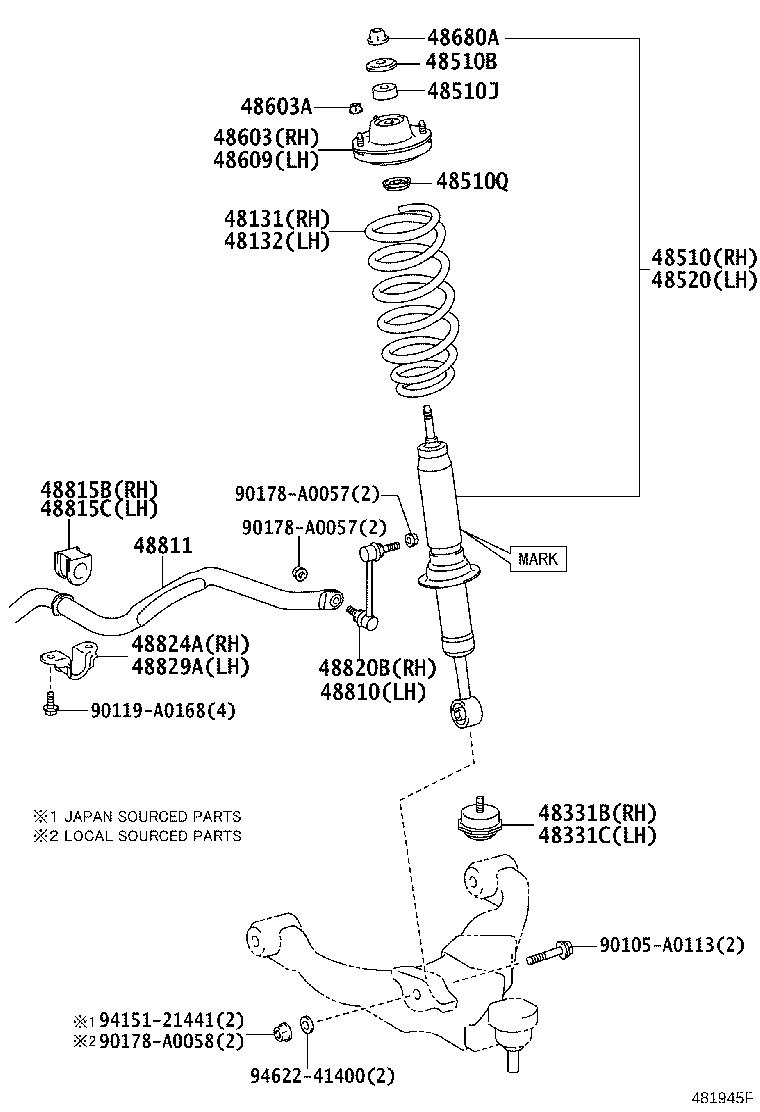

Figure 481944E 481944E 2004-09 → 2015-08 Figure 481945F 481945F 2004-09 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510J Cushion, Front Shock Absorber, NO.1
48510Q Retainer, Cushion, NO.3(FOR FRONT SHOCK ABSORBER)
48520 Absorber Assy, Shock, Front LH
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48609 Support Sub-assy, Front Suspension, LH
48680A Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815B Bush, Front Stabilizer Lower Bracket, RH
48815C Bush, Front Stabilizer Lower Bracket, LH
48817 Cushion, Front Stabilizer
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48829A Bracket, Front Stabilizer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
