Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

25 part groups · 3 illustrations

Illustrations

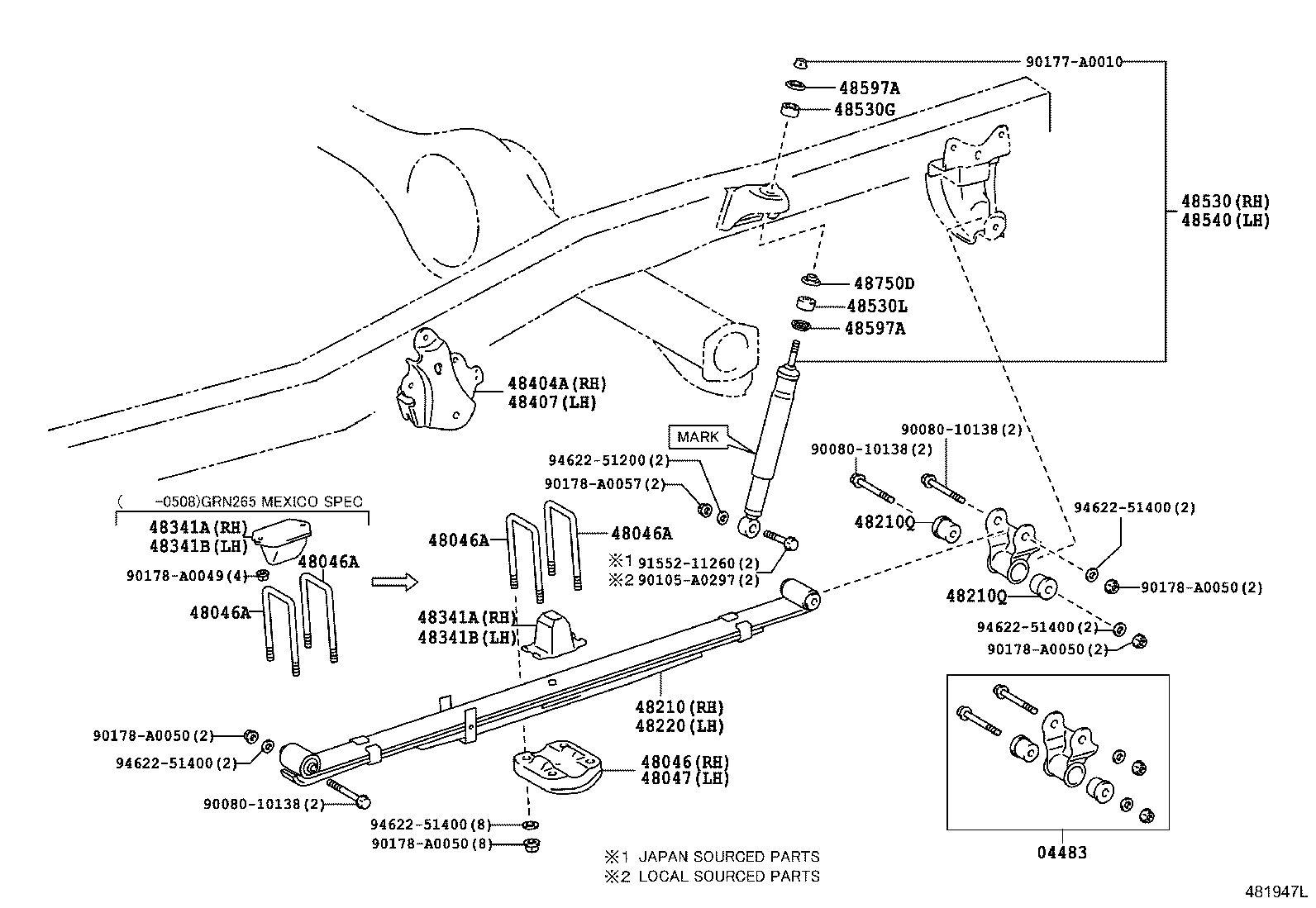

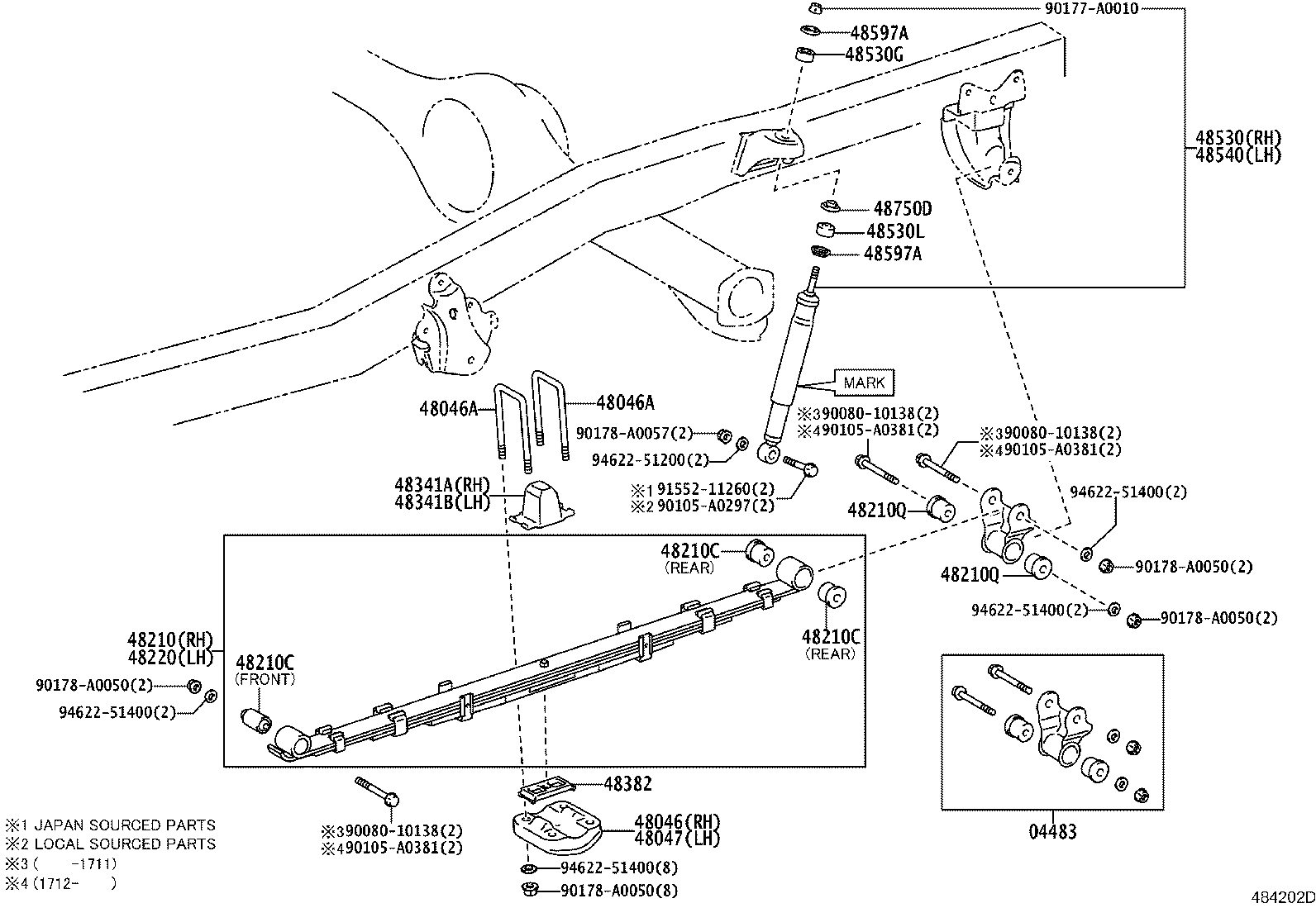

Figure 481946J 481946J 2004-09 → 2015-08 Figure 481947L 481947L 2004-09 → 2015-08 Figure 484202D 484202D 2015-08 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210C Bush(FOR REAR SPRING LEAF)
48210Q Bush(FOR REAR SPRING SHACKLE)
48220 Spring Assy, Rear LH
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48382 Spacer, Bumper Block
48404A Bracket Sub-assy, Spring, NO.3 RH
48407 Bracket Sub-assy, Spring, NO.3 LH
48530 Absorber Assy, Shock, Rear RH
48530G Cushion, Rear Shock Absorber, NO.1
48530L Cushion, Rear Shock Absorber, NO.3
48540 Absorber Assy, Shock, Rear LH
48597A Retainer, Rear Shock Absorber Cushion
48750D Retainer(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48812 Bar, Stabilizer, Rear
48818 Bush, Stabilizer, Rear
48823C Cover, Rear Stabilizer Bracket
48824R Bracket, Stabilizer(FOR REAR)
48830D Link Assy, Rear Stabilizer, RH
48840A Link Assy, Rear Stabilizer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
