Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09

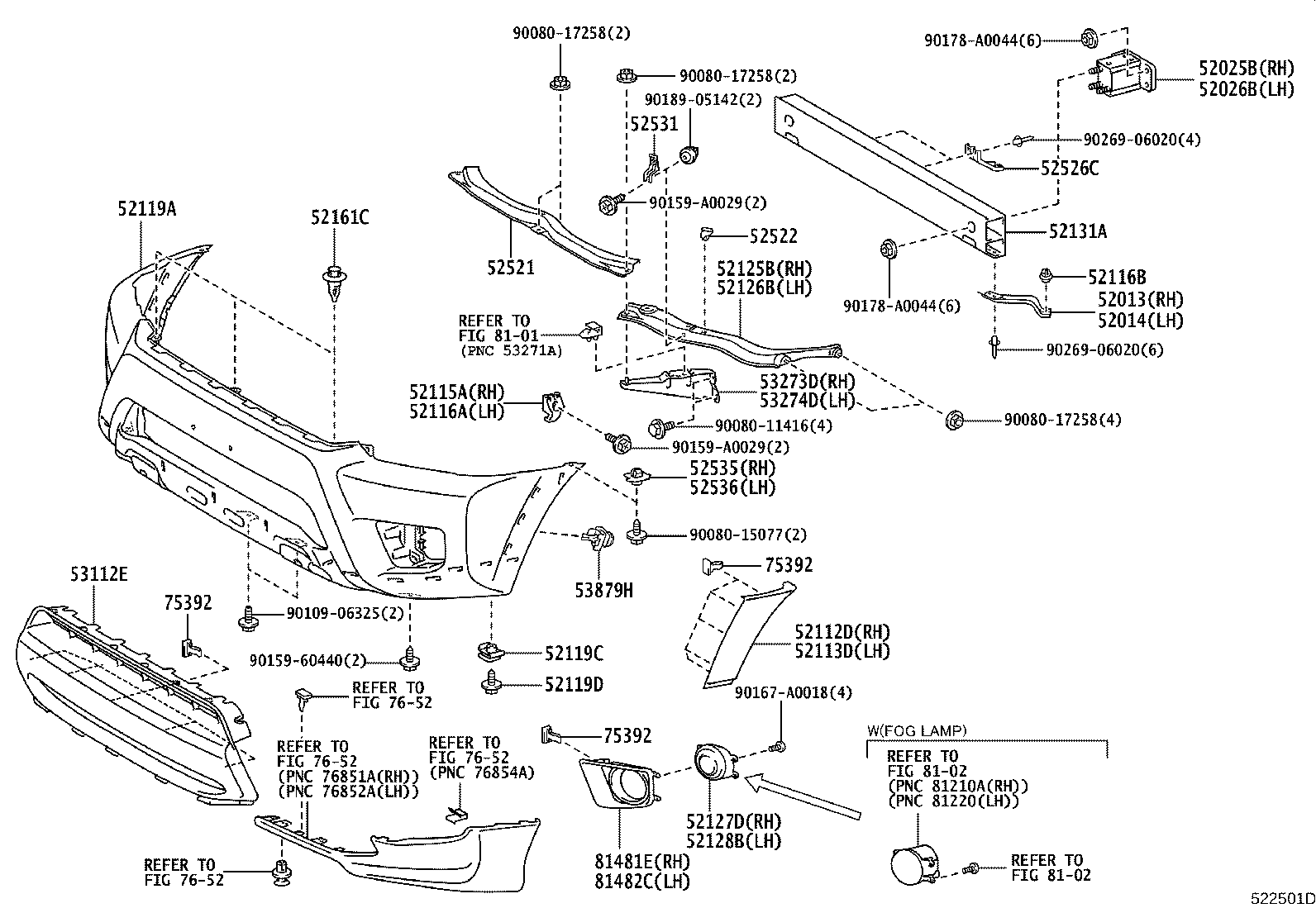

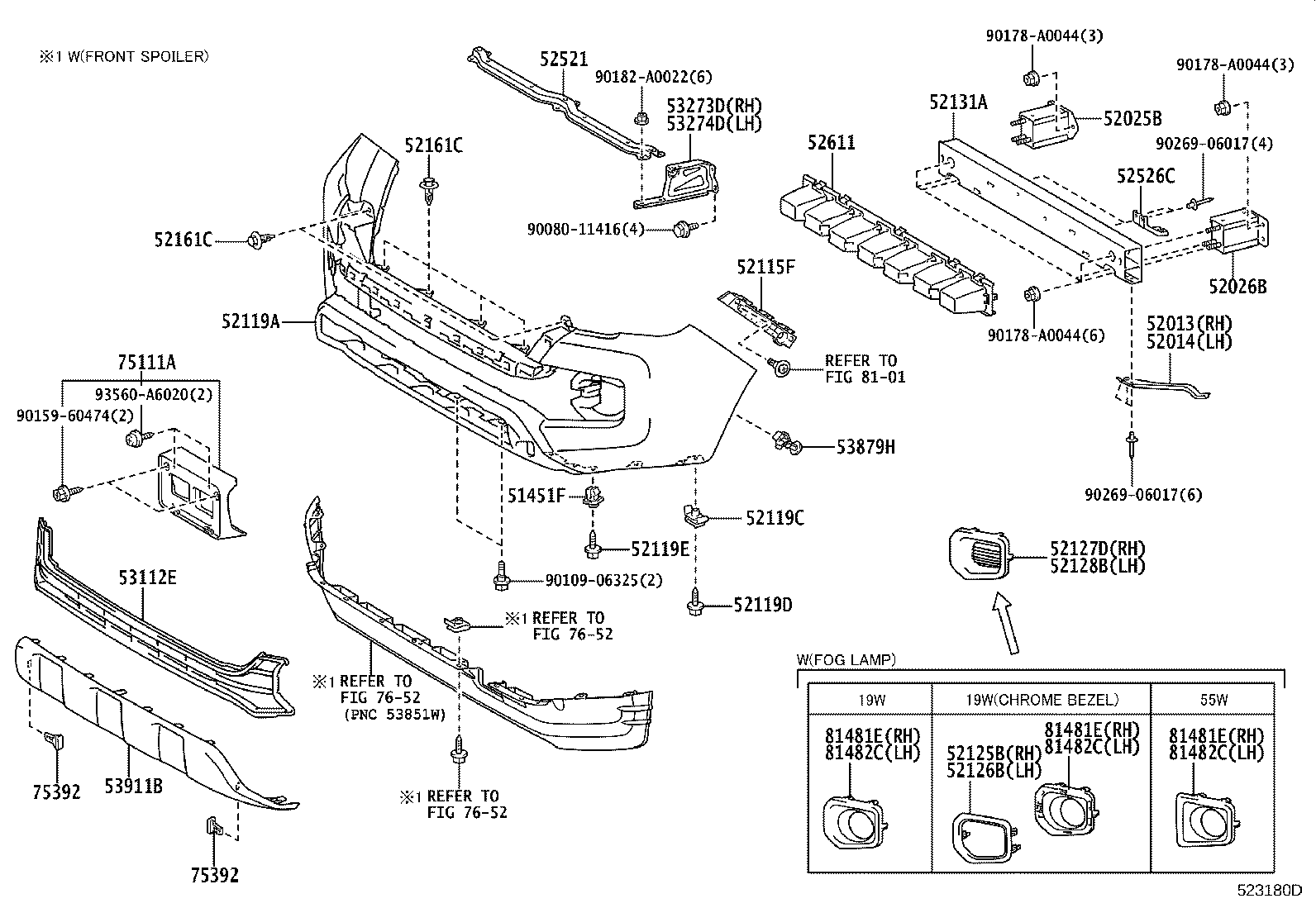

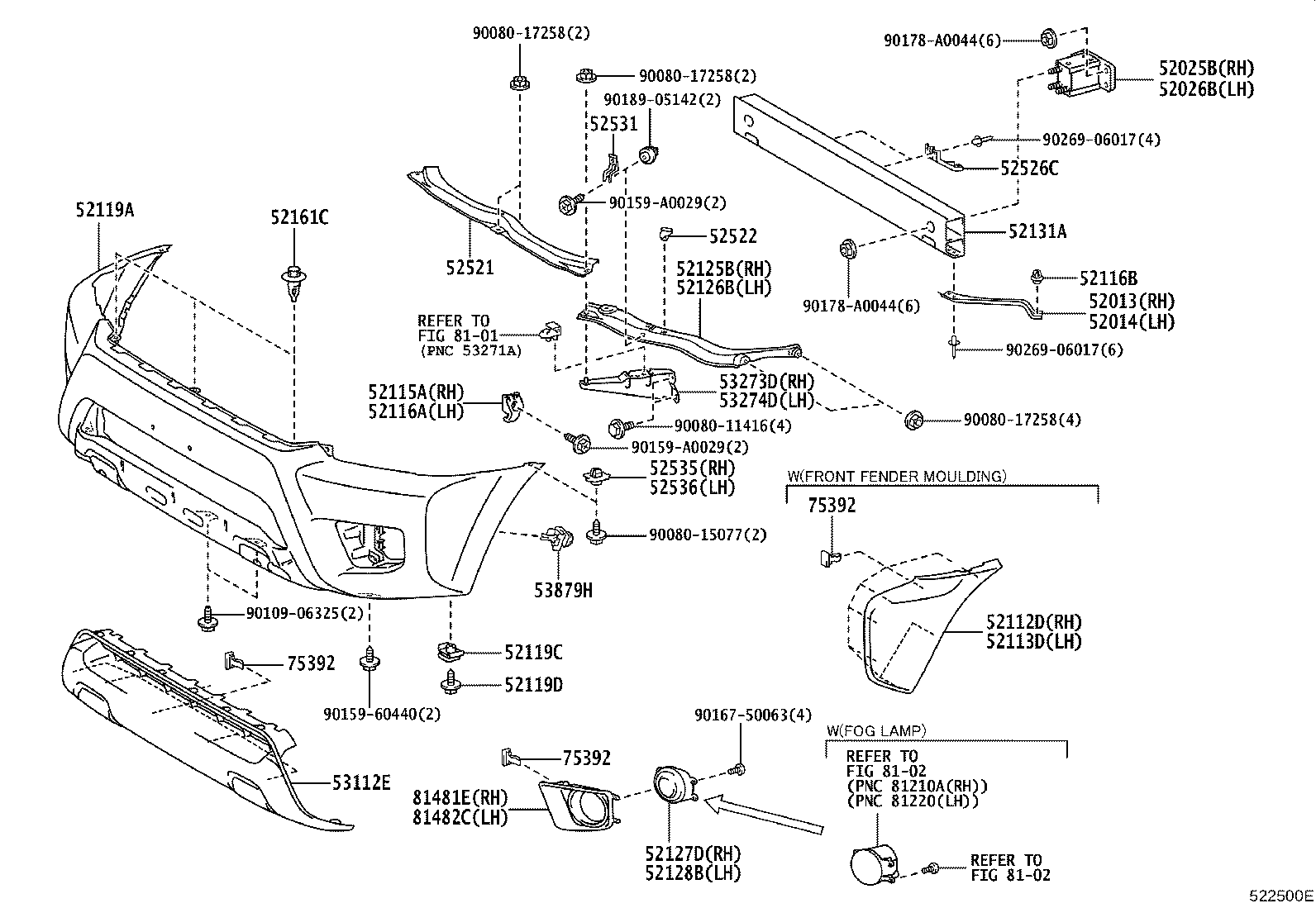

Front Bumper & Bumper Stay

42 part groups · 4 illustrations

PNC	Description
51451F	Grommet, NO.1
52013	Arm Sub-assy, Front Bumper, Inner RH
52014	Arm Sub-assy, Front Bumper, Inner LH
52021	Reinforcement Sub-assy, Front Bumper
52025B	Extension Sub-assy, Front Bumper, NO.2 RH
52026B	Extension Sub-assy, Front Bumper, NO.2 LH
52112D	Extension, Front Bumper, RH
52113D	Extension, Front Bumper, LH
52115A	Support, Front Bumper Side, RH
52115F	Insert, Front Bumper Cover
52116A	Support, Front Bumper Side, LH
52116B	Retainer, Front Bumper
52119A	Cover, Front Bumper
52119C	Clip, Front Bumper Cover
52119D	Screw, NO.1
52119E	Screw, NO.2
52125B	Extension, Front Bumper Reinforcement, RH
52126B	Extension, Front Bumper Reinforcement, LH
52127D	Cover, Front Bumper Hole, RH
52128B	Cover, Front Bumper Hole, LH
52131A	Reinforcement, Front Bumper
52137F	Bracket, Front Bumper Arm Mounting, NO.3
52138D	Bracket, Front Bumper Arm Mounting, NO.4
52161C	Piece, Front Bumper
52521	Retainer, Front Bumper, Upper Center
52522	Retainer, Front Bumper Upper Side
52525	Retainer, Front Bumper, Lower Center
52526C	Retainer, Front Bumper, Lower
52531	Retainer, Bumper Filler
52535	Retainer, Front Bumper Side, RH
52536	Retainer, Front Bumper Side, LH
52611	Absorber, Front Bumper Energy
53112E	Grille, Radiator, Lower NO.1
53273D	Bracket, Front Bumper Arm Mounting, RH
53274D	Bracket, Front Bumper Arm Mounting, LH
53851E	Pad, Front Wheel Opening Extension, NO.1
53879H	Retainer, Front Fender Liner
53911B	Panel, Front Valance
75111A	Bracket, Front License Plate
75392	Retainer, Outside Moulding
81481E	Cover, Fog Lamp, RH
81482C	Cover, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
