Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 12 illustrations

Illustrations

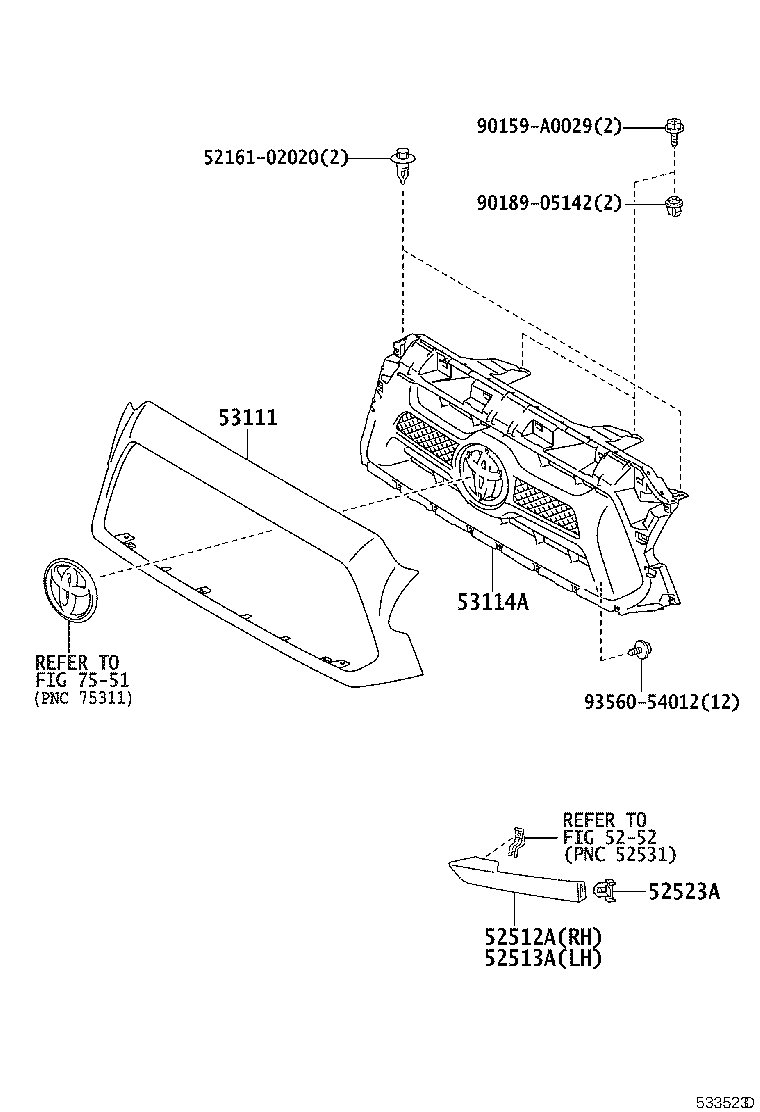

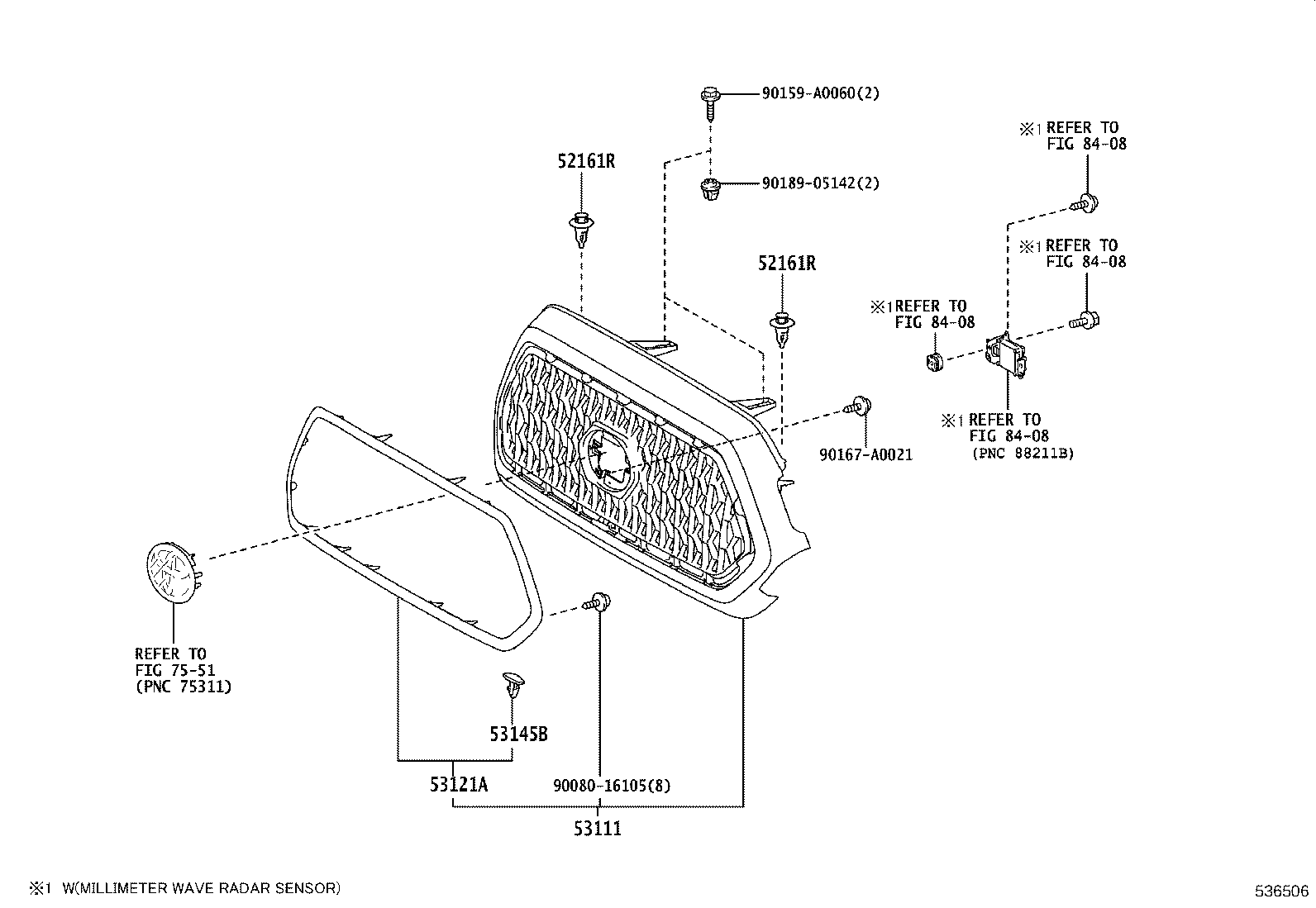

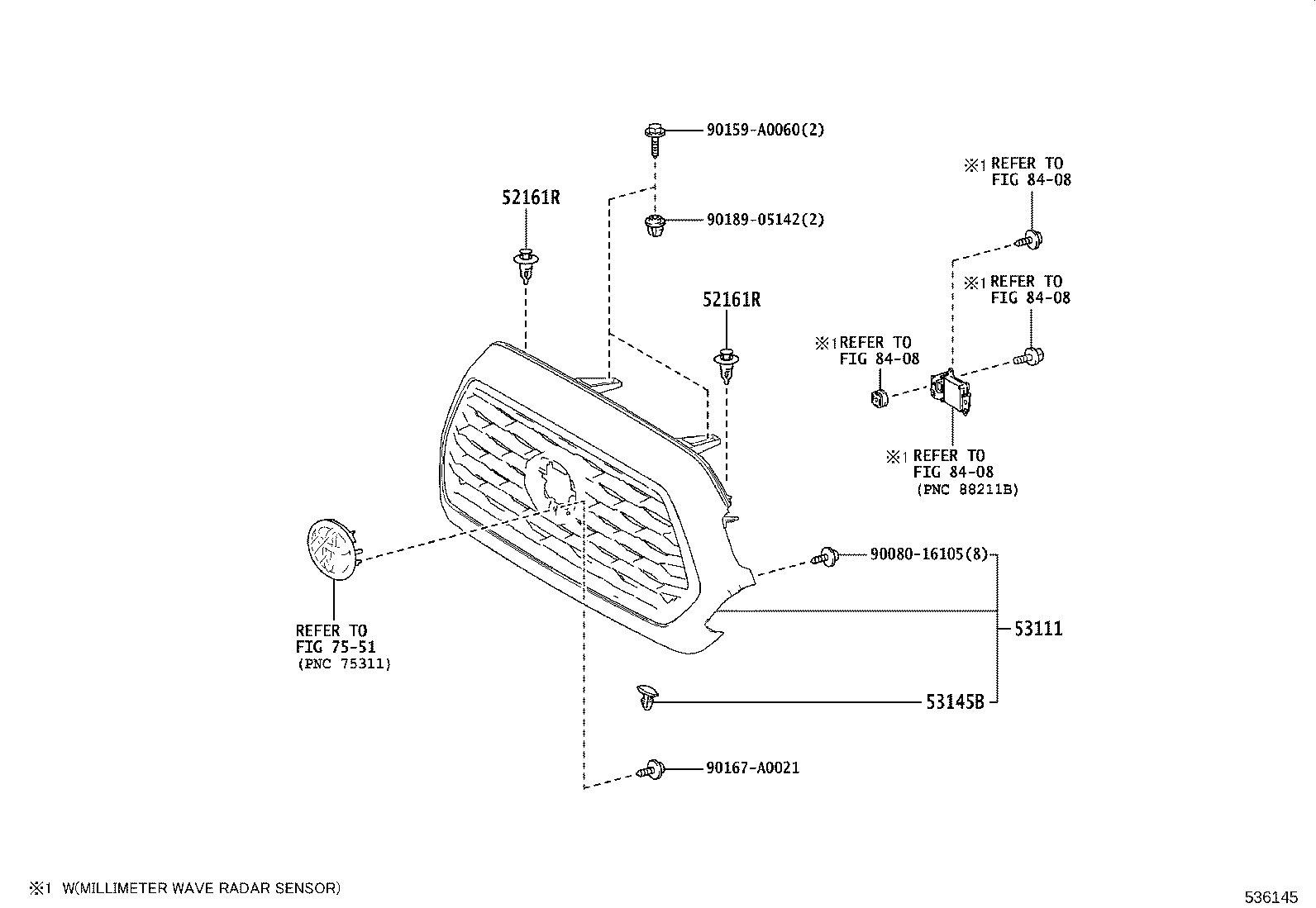

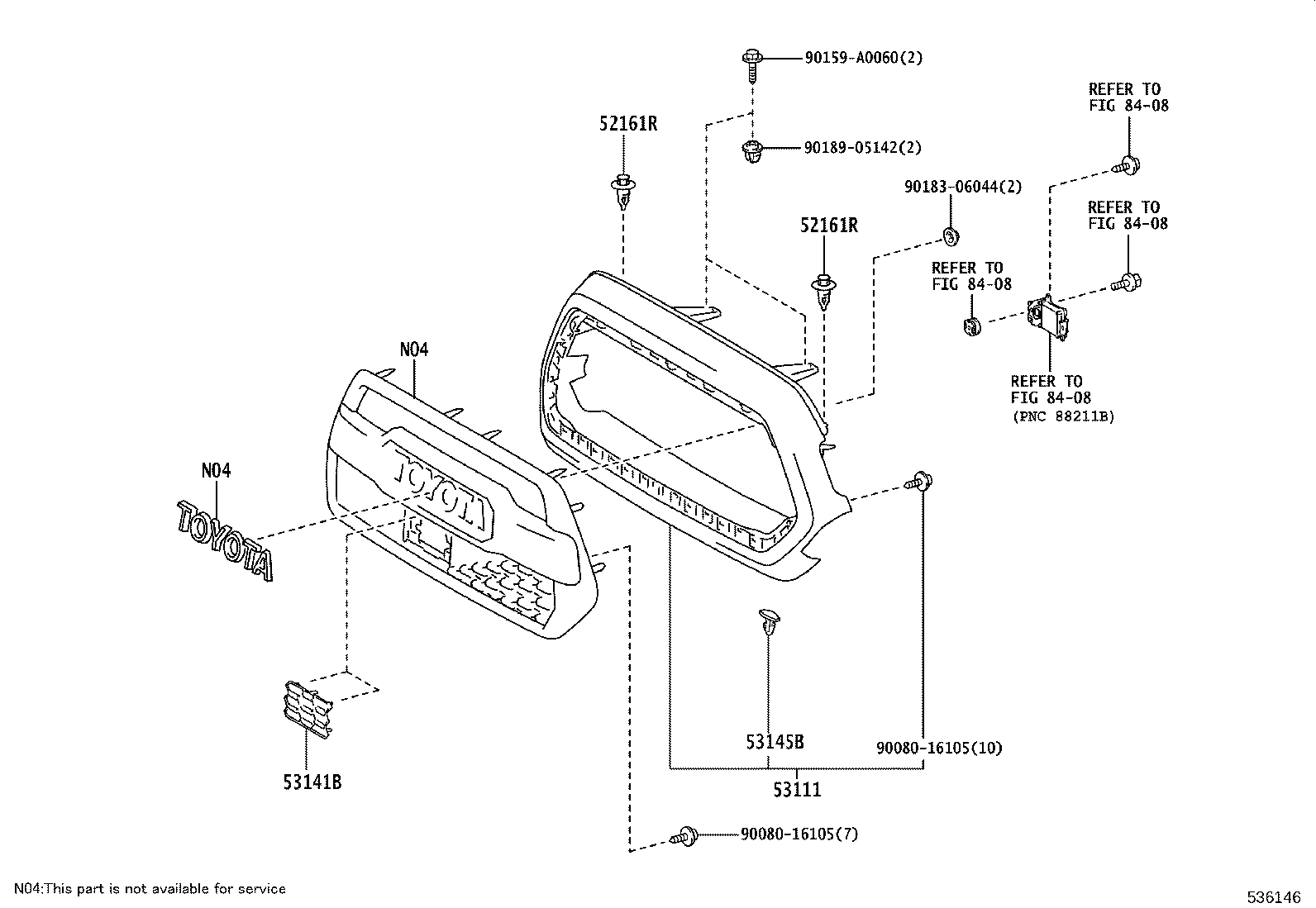

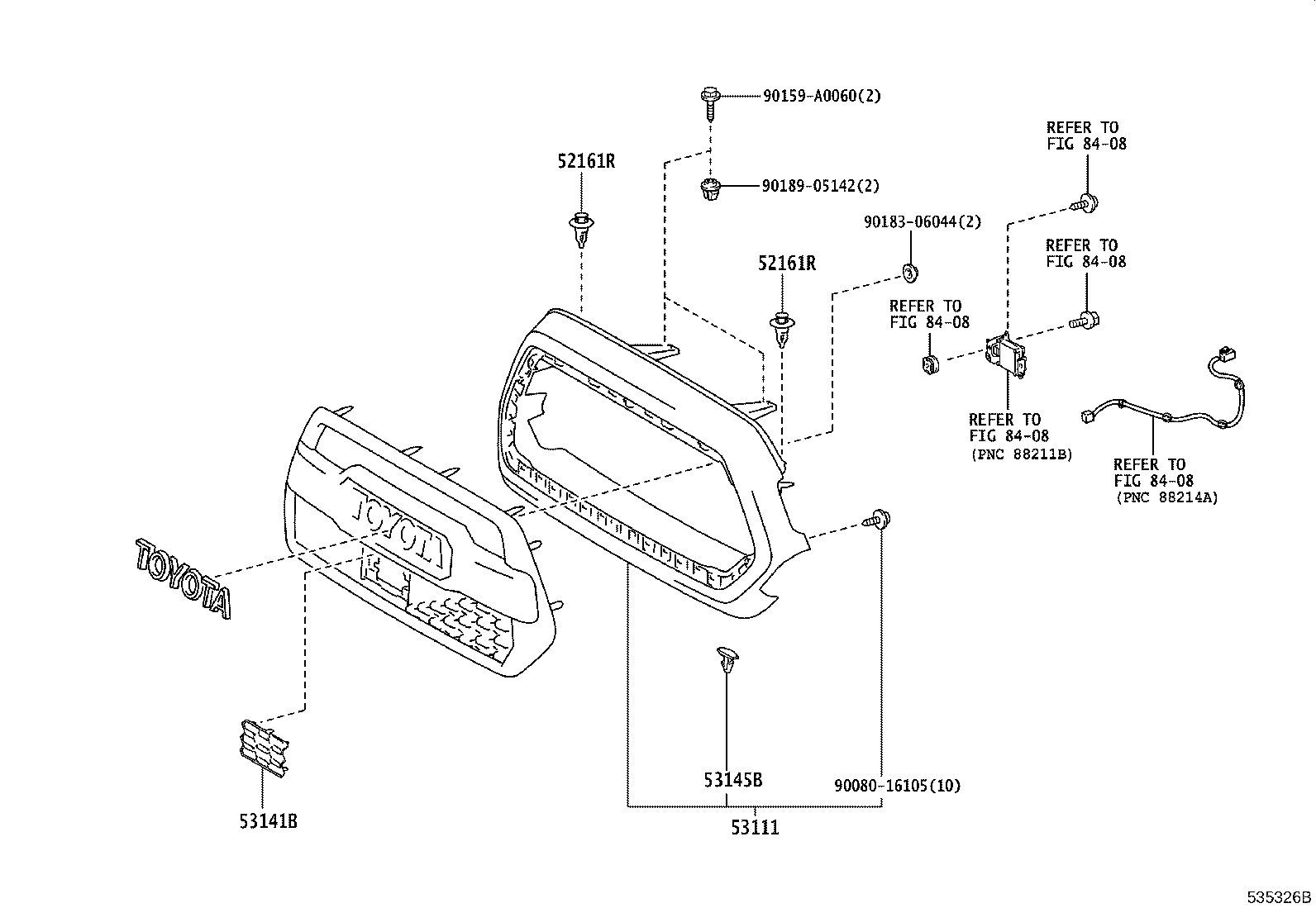

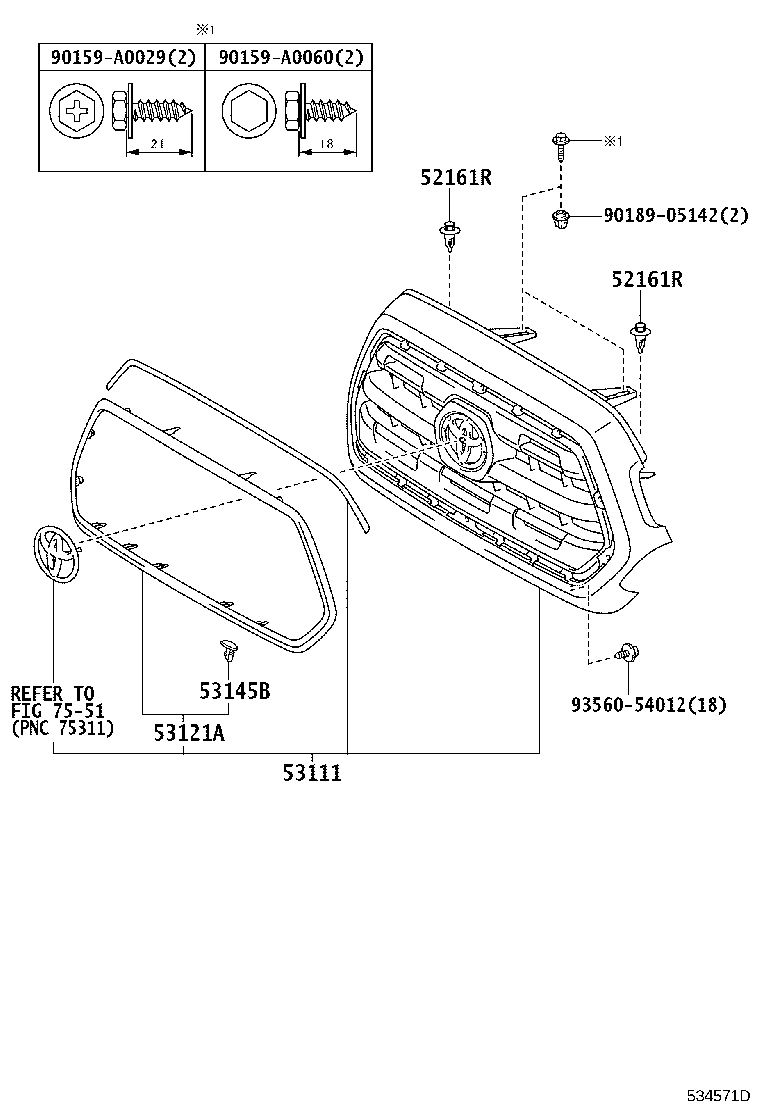

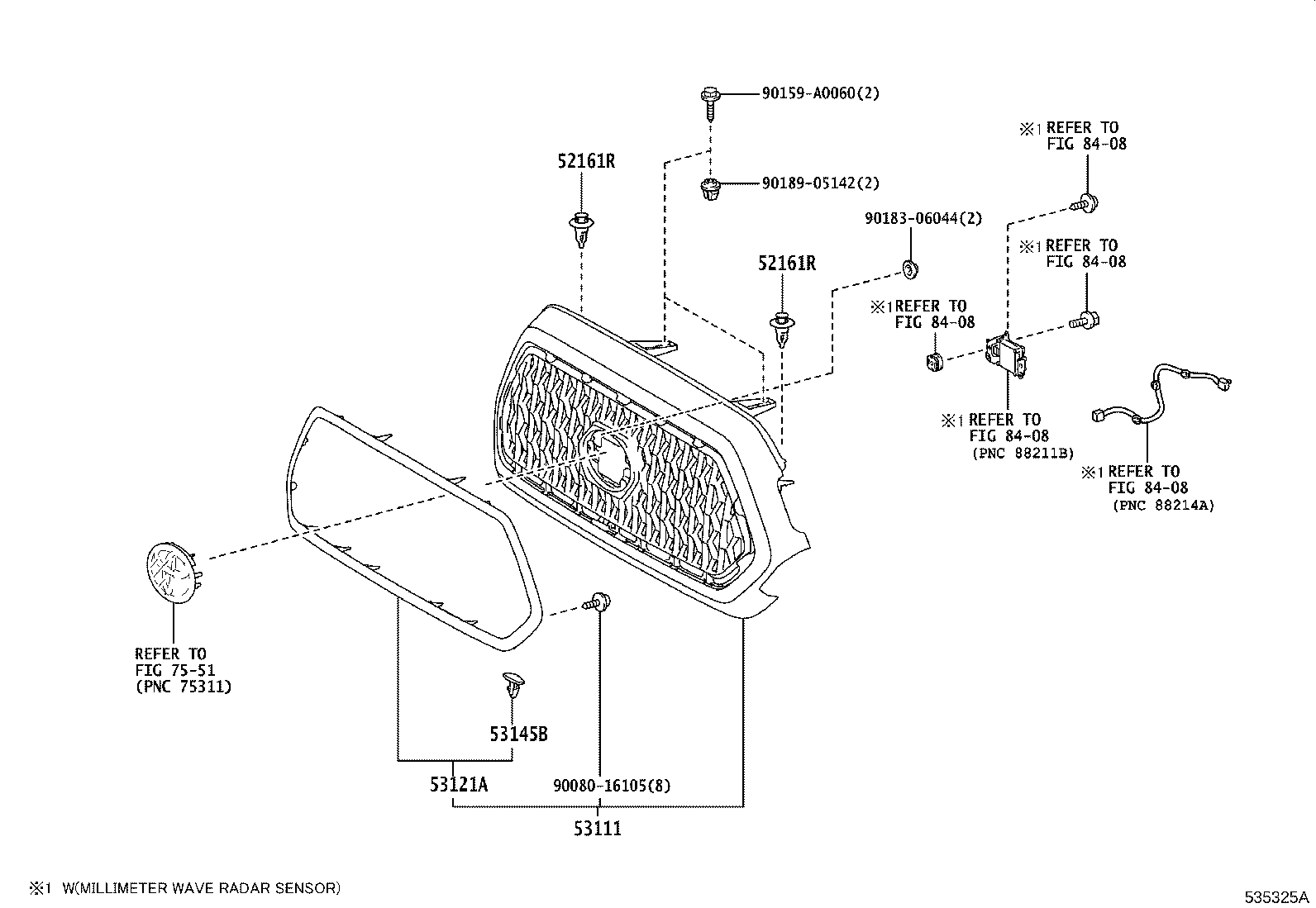

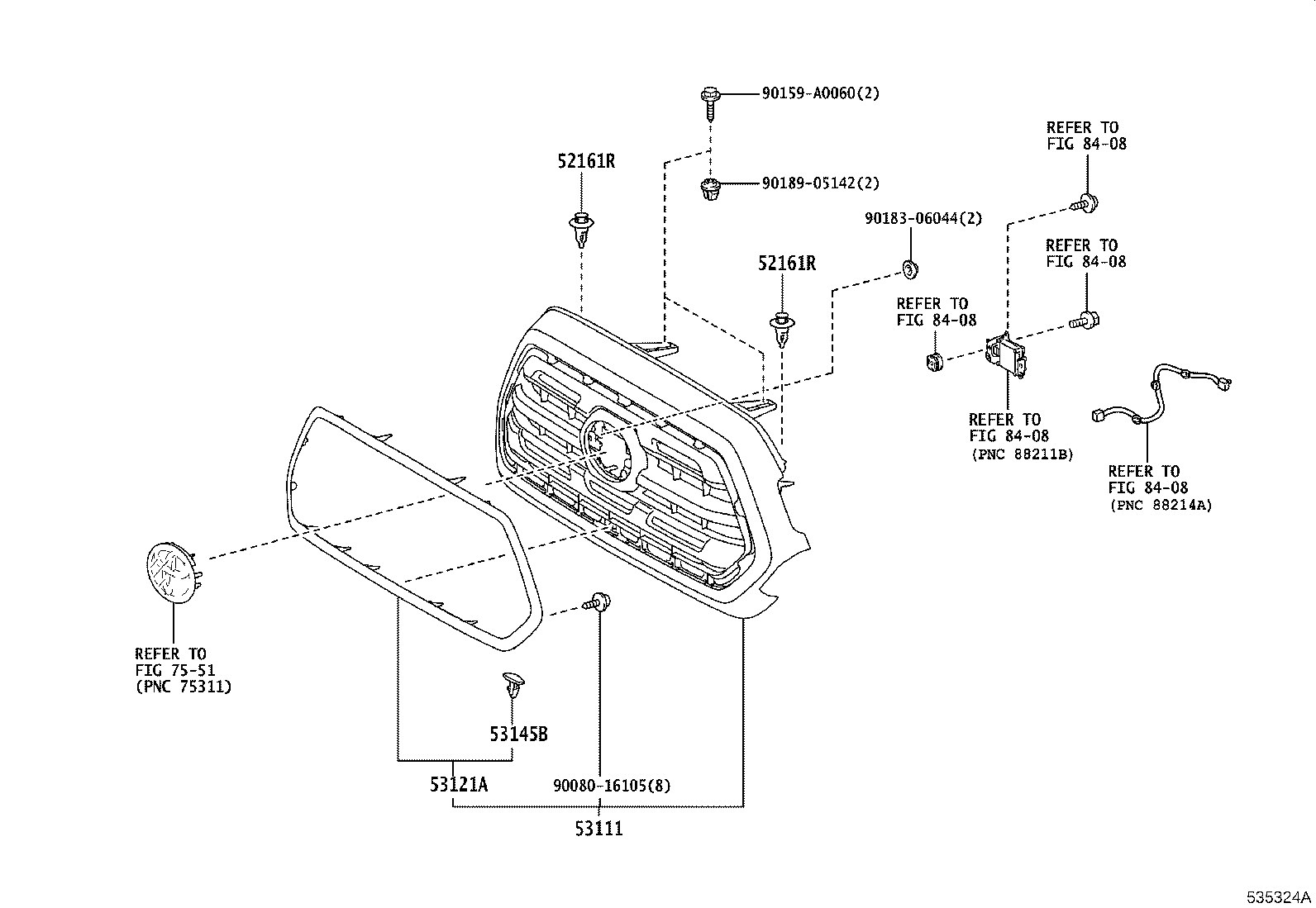

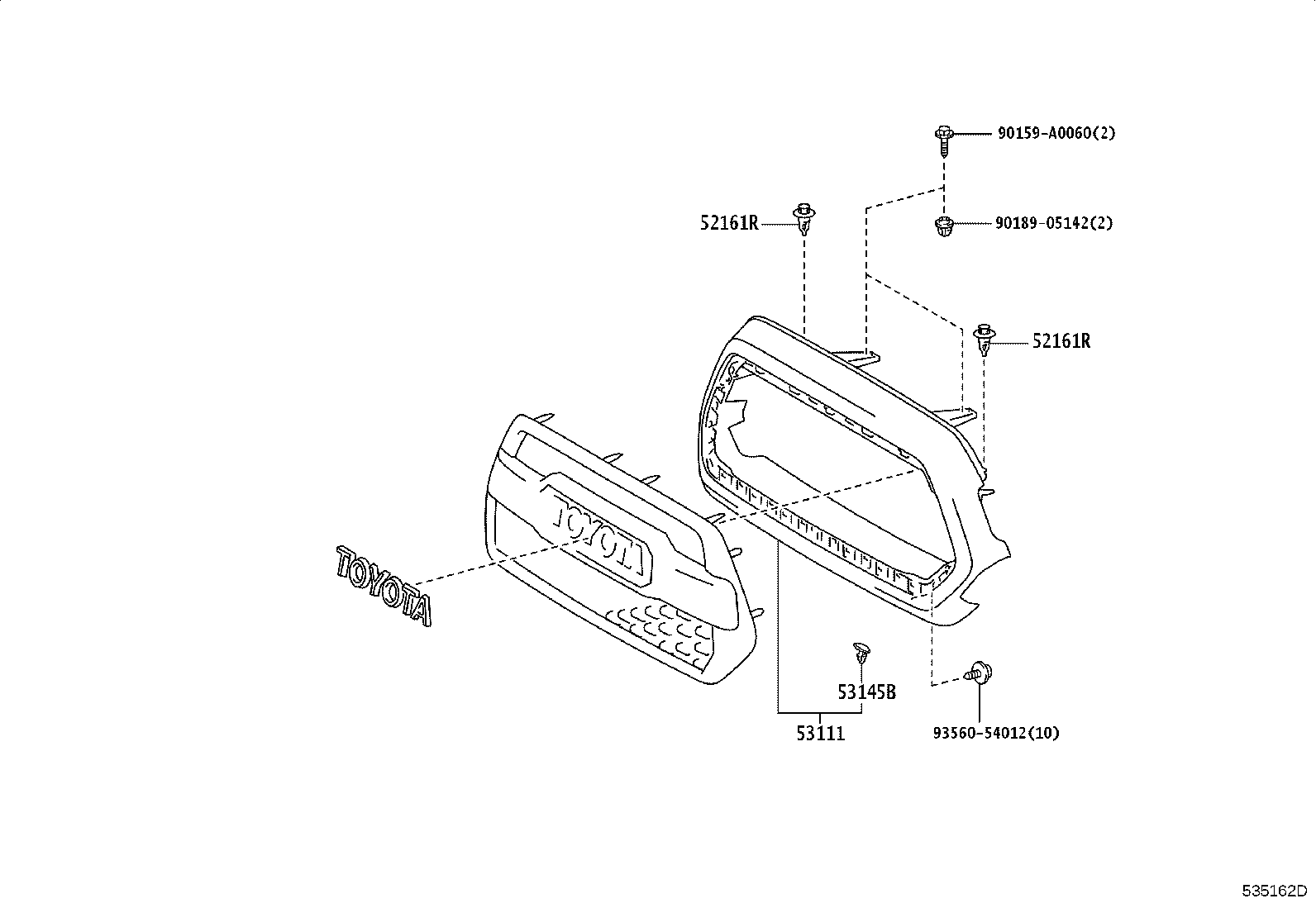

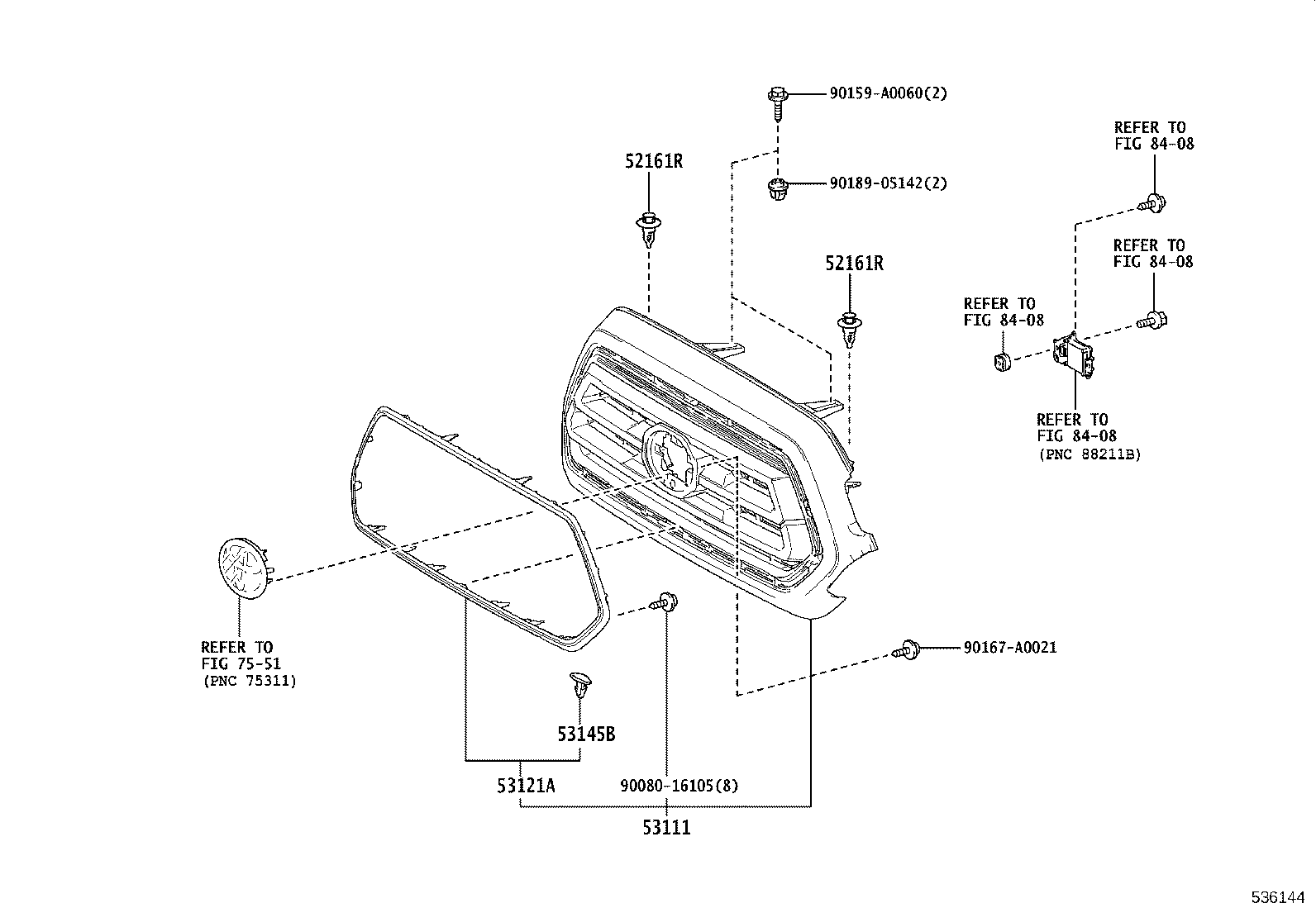

Figure 531794A 531794A 2004-09 → 2011-09 Figure 533523D 533523D 2011-09 → 2015-08 Figure 534571D 534571D 2015-08 → 2017-11 Figure 535162D 535162D 2016-08 → 2017-11 Figure 535324A 535324A 2017-11 → 2019-09 Figure 535325A 535325A 2017-11 → 2019-09 Figure 535326B 535326B 2017-11 → 2019-09 Figure 535326B 535326B 2018-09 → 2019-09 Figure 536144 536144 2019-09 → — Figure 536145 536145 2019-09 → — Figure 536146 536146 2019-09 → — Figure 536506 536506 2020-09 → —

Part groups

PNCDescription
52161R Piece, Front Bumper
52512A Filler, Front Bumper, RH
52513A Filler, Front Bumper, LH
52523A Retainer, Front Bumper Filler, NO.3
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53117C Retainer, Radiator Grille, NO.1
53121A Moulding, Radiator Grille
53141B Garnish, Radiator Grille, NO.1
53145B Clip, Radiator Grille Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
