Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

27 part groups · 6 illustrations

Illustrations

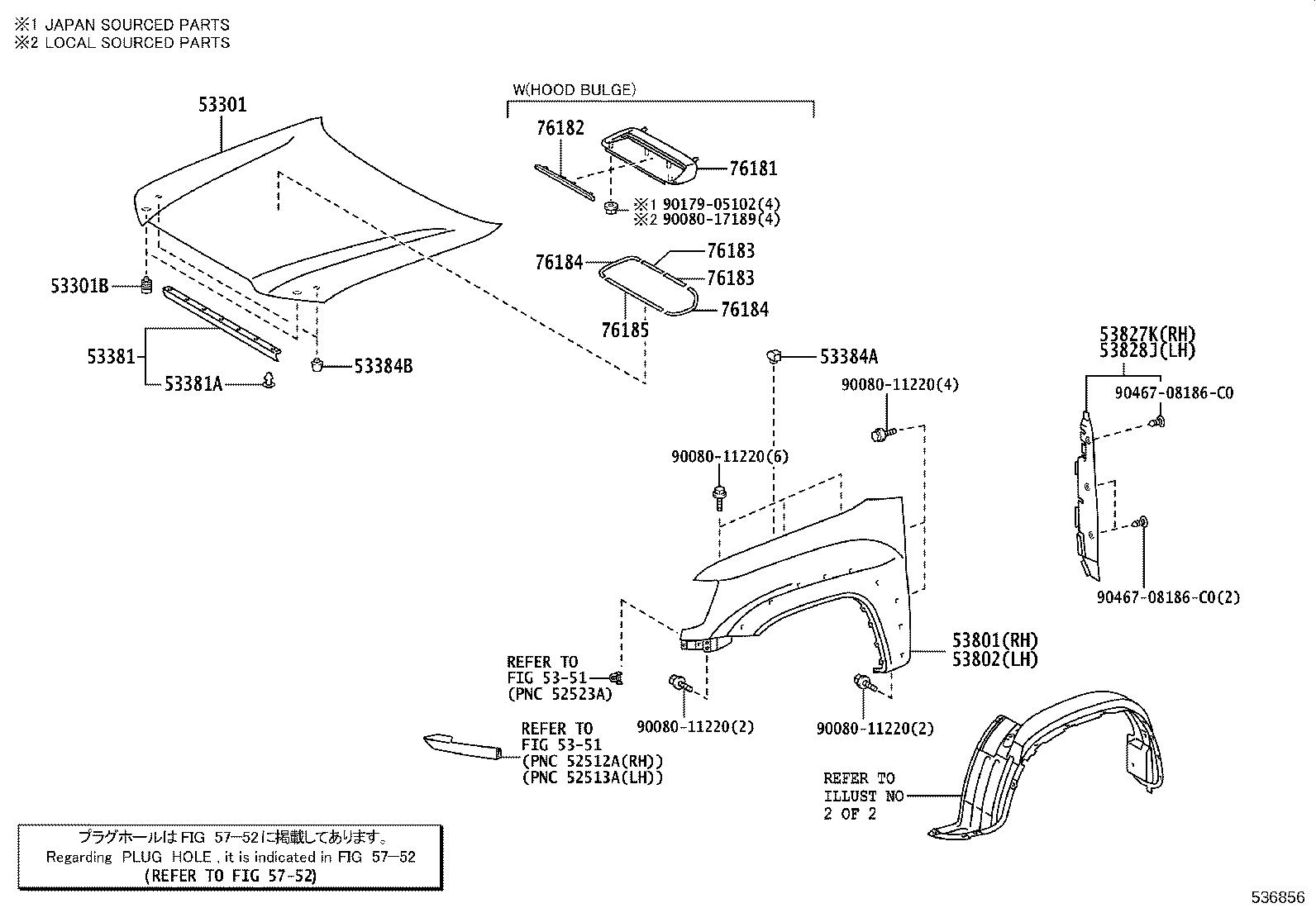

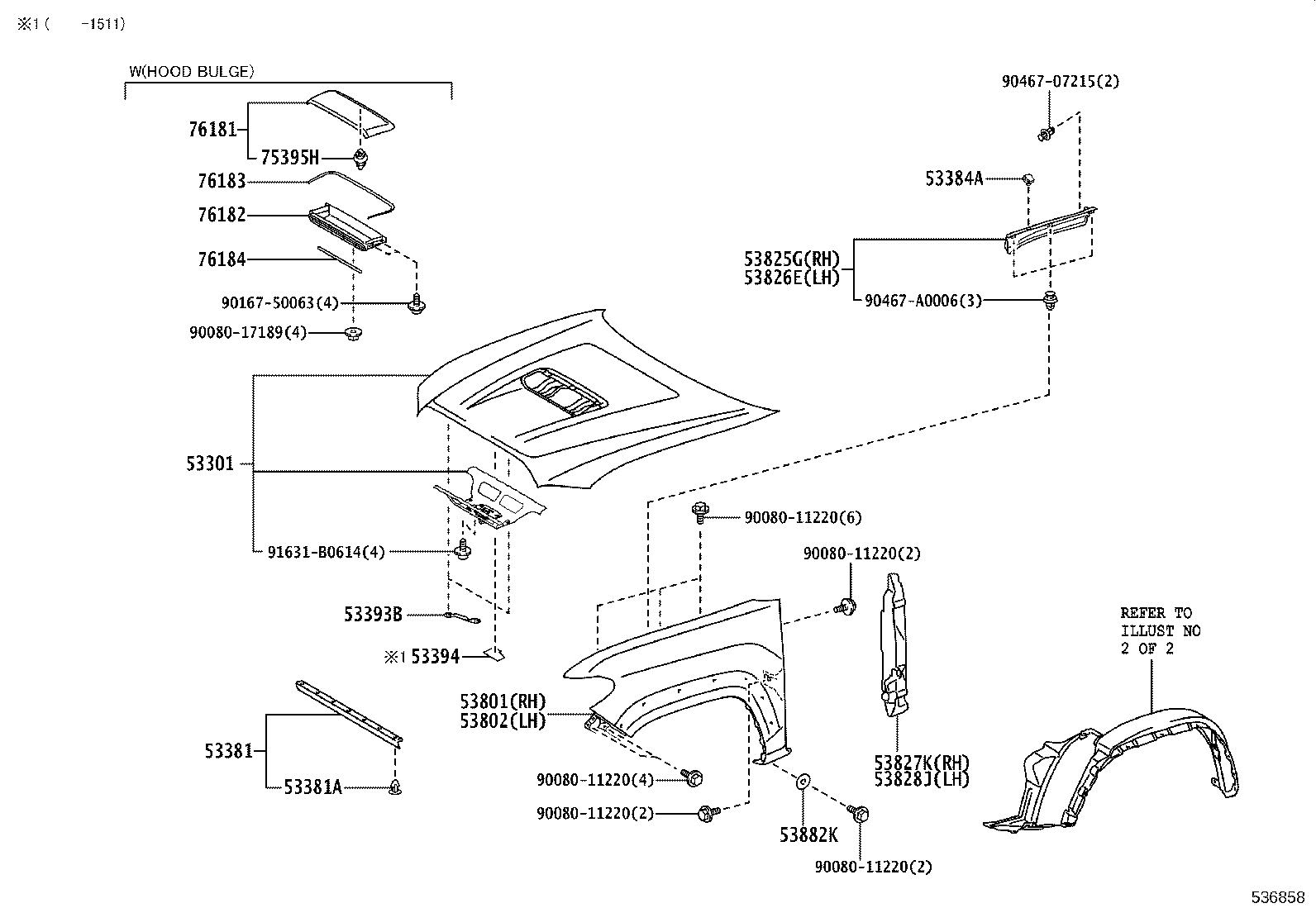

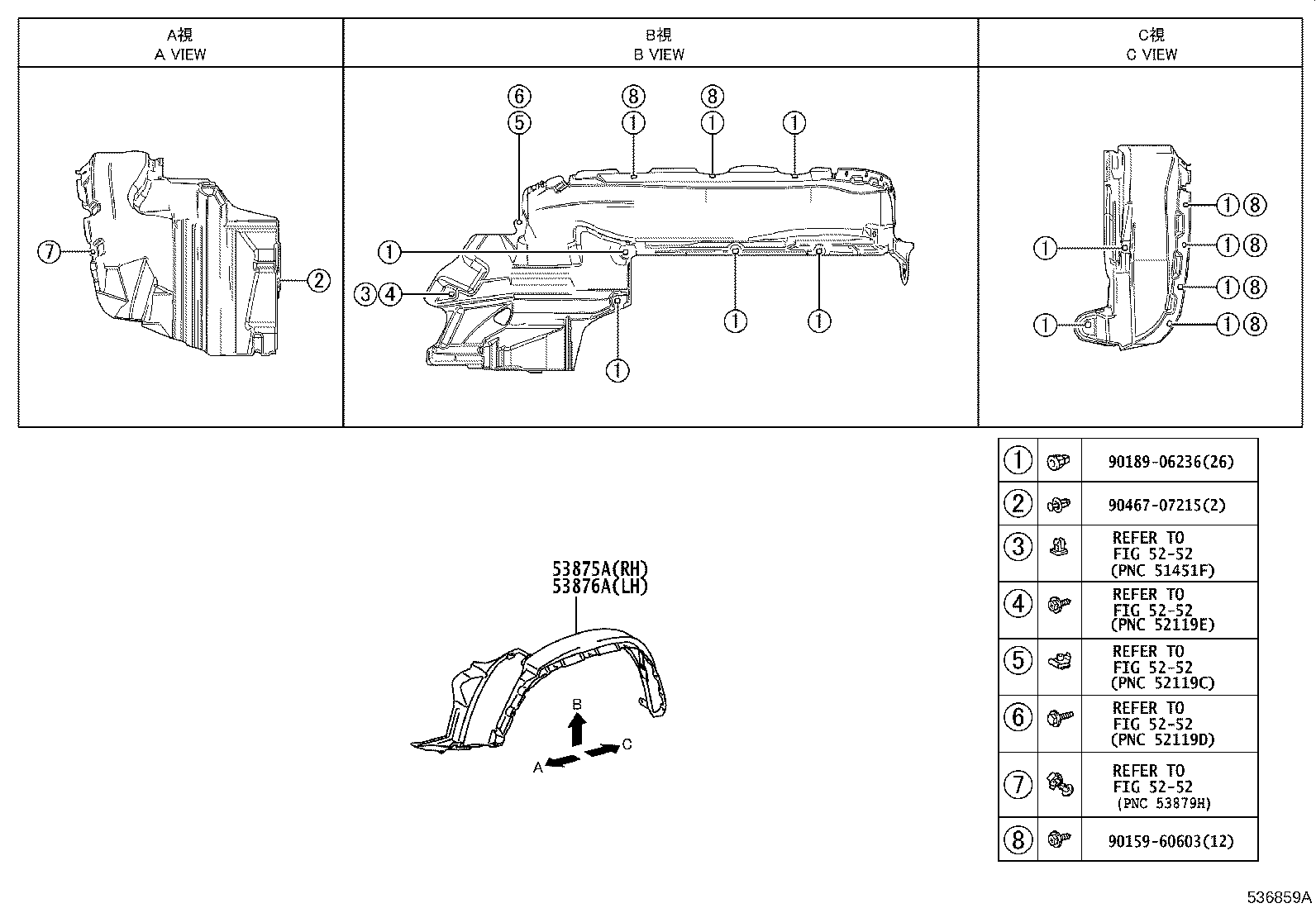

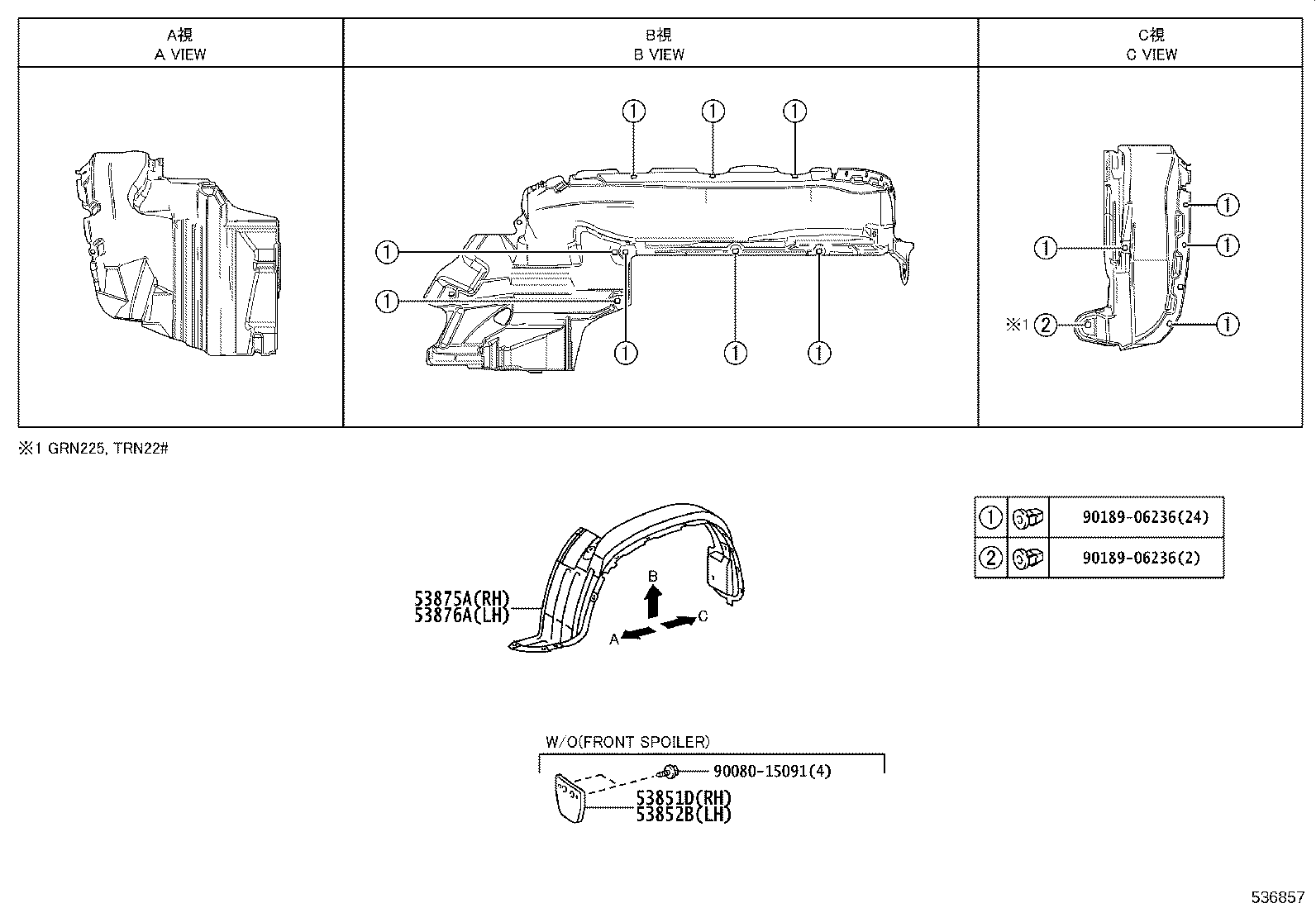

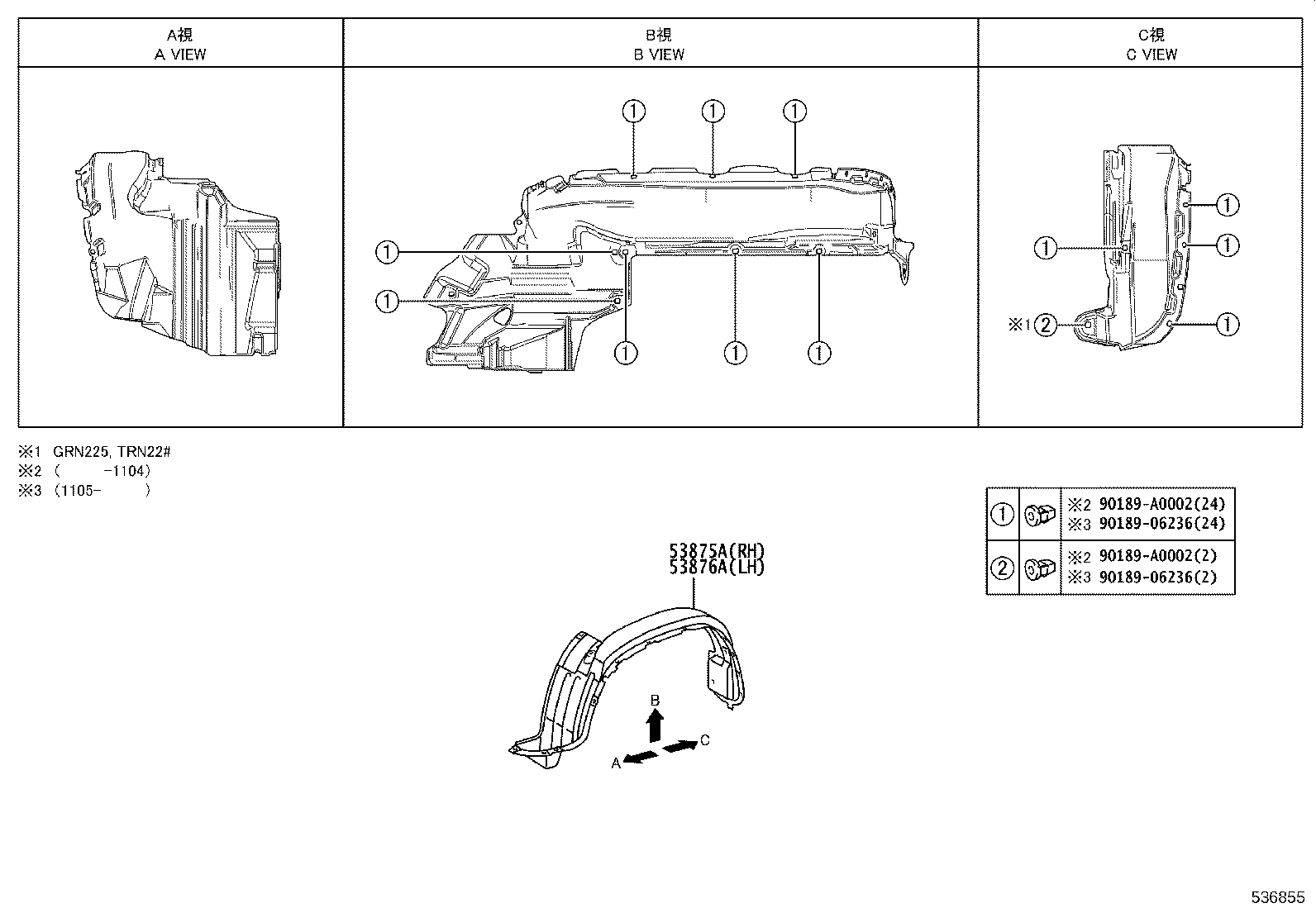

Figure 536854 536854 2004-09 → 2011-09 Figure 536855 536855 2004-09 → 2011-09 Figure 536856 536856 2011-09 → 2015-08 Figure 536857 536857 2011-09 → 2015-08 Figure 536858 536858 2015-08 → — Figure 536859A 536859A 2015-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53301B Cushion, Hood Bumper
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384A Bumper, Fender TO Hood
53384B Cushion, Hood, Center
53393B Protector, Hood, Front
53394 Protector, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53825G Protector, Front Fender, Upper RH
53826E Protector, Front Fender, Upper LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53882K Seal, Front Fender
75395H Clip, Outside Moulding, NO.1
76181 Bulge, Hood
76182 Guide, Hood Air Intake
76183 Protector, Hood Bulge, NO.1
76184 Protector, Hood Bulge, NO.2
76185 Protector, Hood Bulge, NO.3
76187 Retainer, Hood Air Intake Guide, NO.1
76192 Plate, Hood Bulge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
