Toyota Tacoma
2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States
Supported model
Data version 2019-09

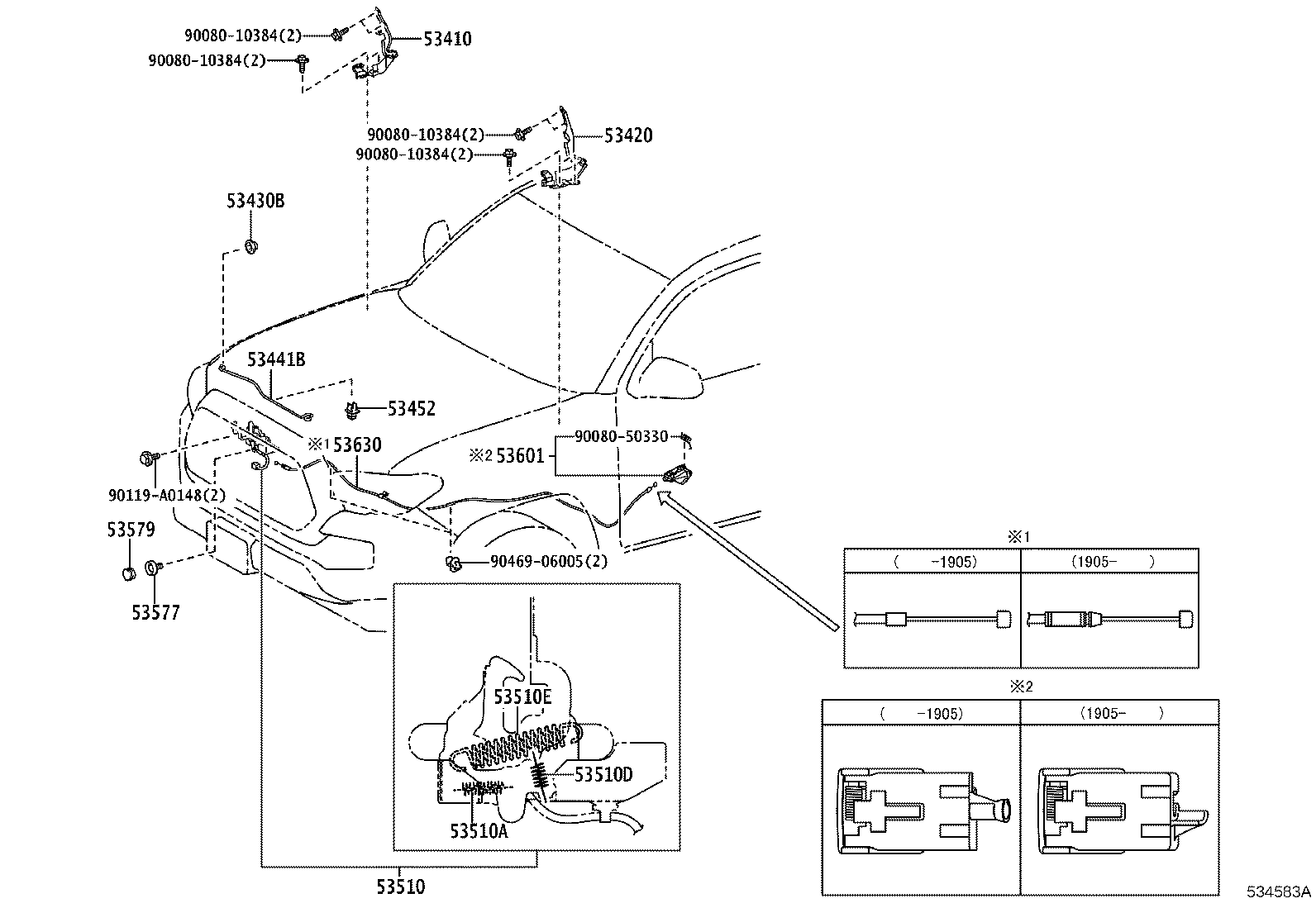

Hood Lock & Hinge
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53430B | Grommet(FOR HOOD SUPPORT) |
| 53441B | Support, Hood |
| 53452 | Holder, Hood Stay |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53510D | Spring, Tension(FOR HOOD LOCK) |
| 53510E | Spring, Tension(FOR HOOD LOCK) |
| 53526 | Protector, Hood Lock Release Lever, NO.2 |
| 53577 | Bolt, Hood Lock |
| 53579 | Cap, Hood Lock Nut |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53602 | Protector Sub-assy, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
