Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

68 part groups · 14 illustrations

Illustrations

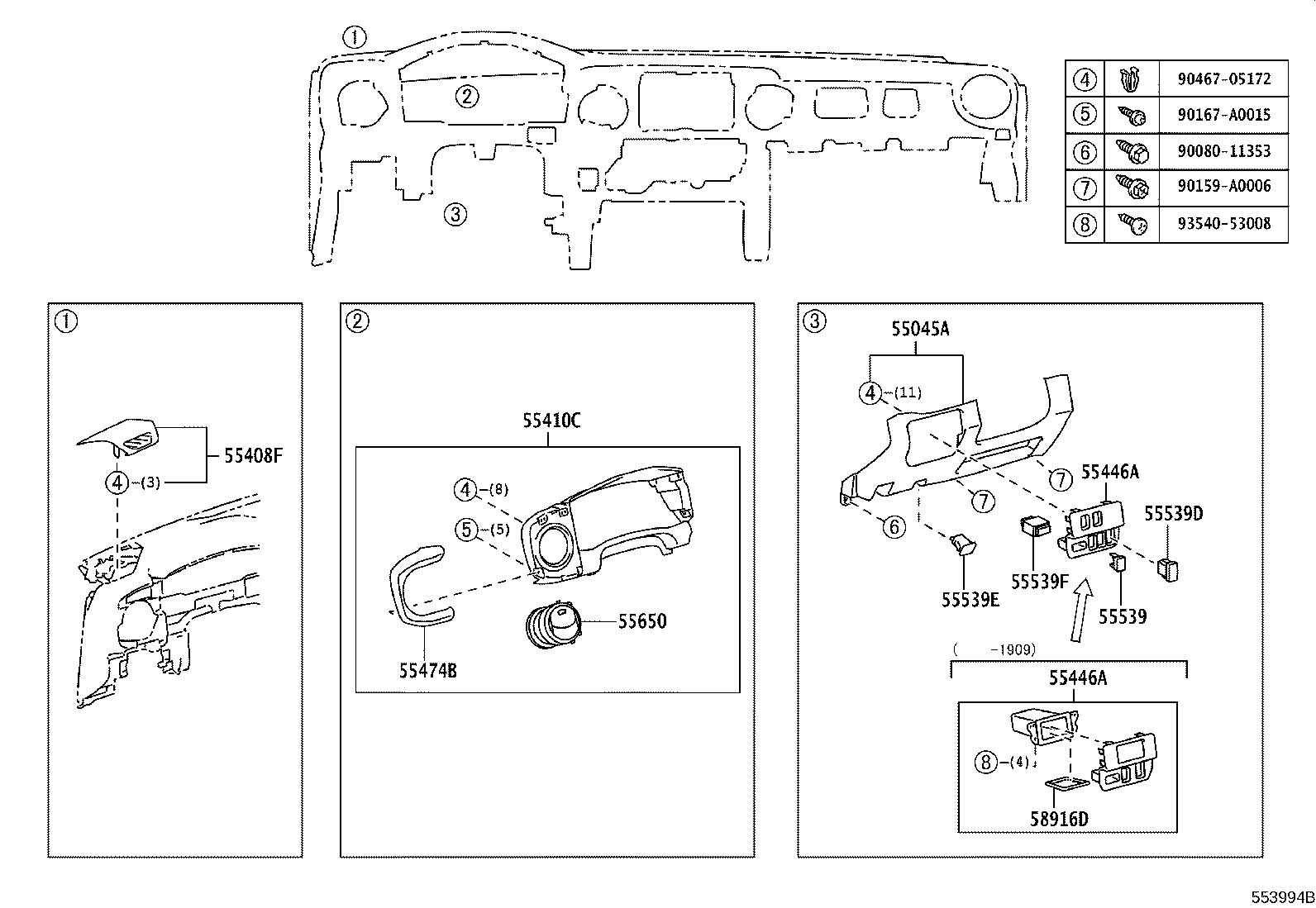

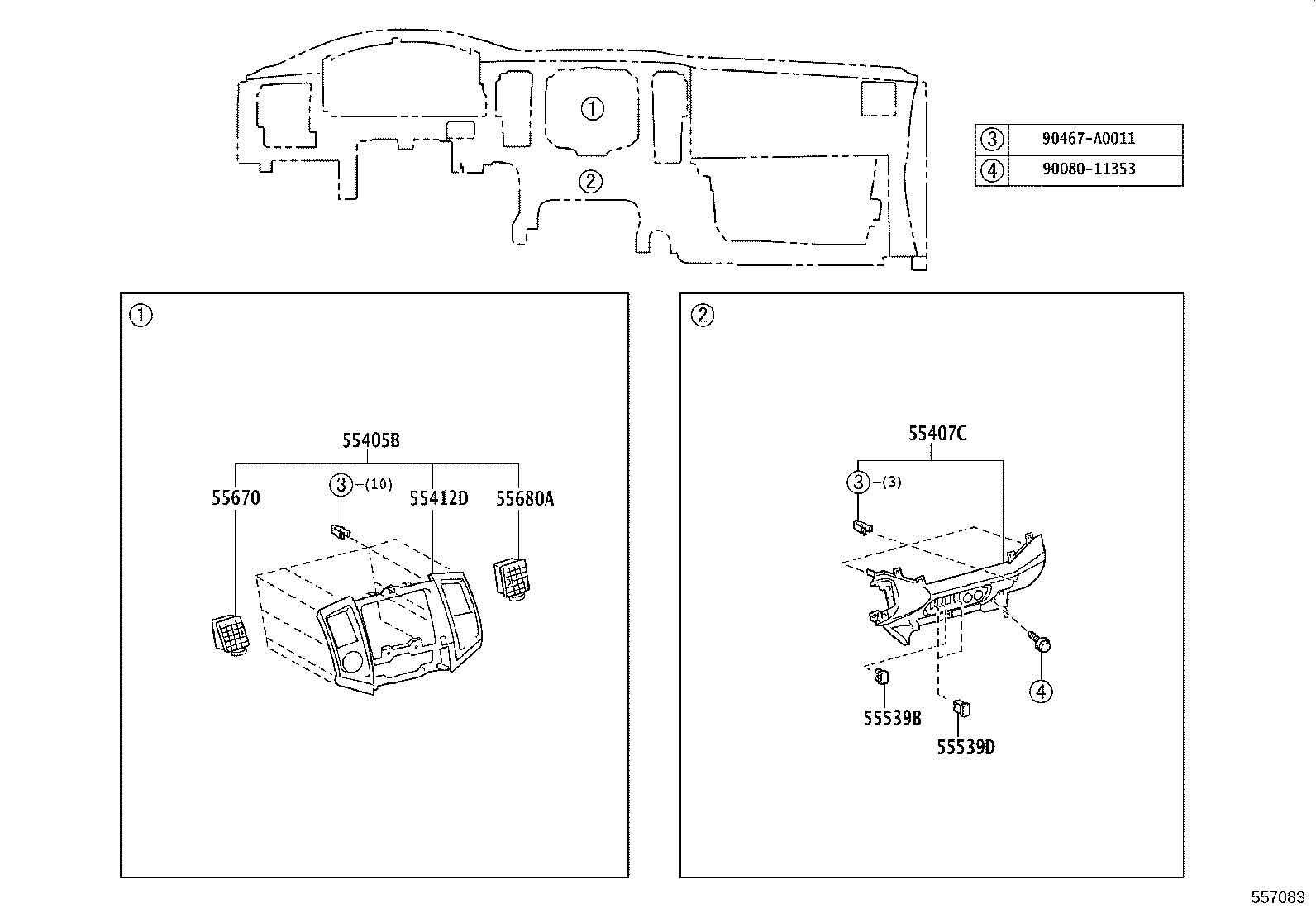

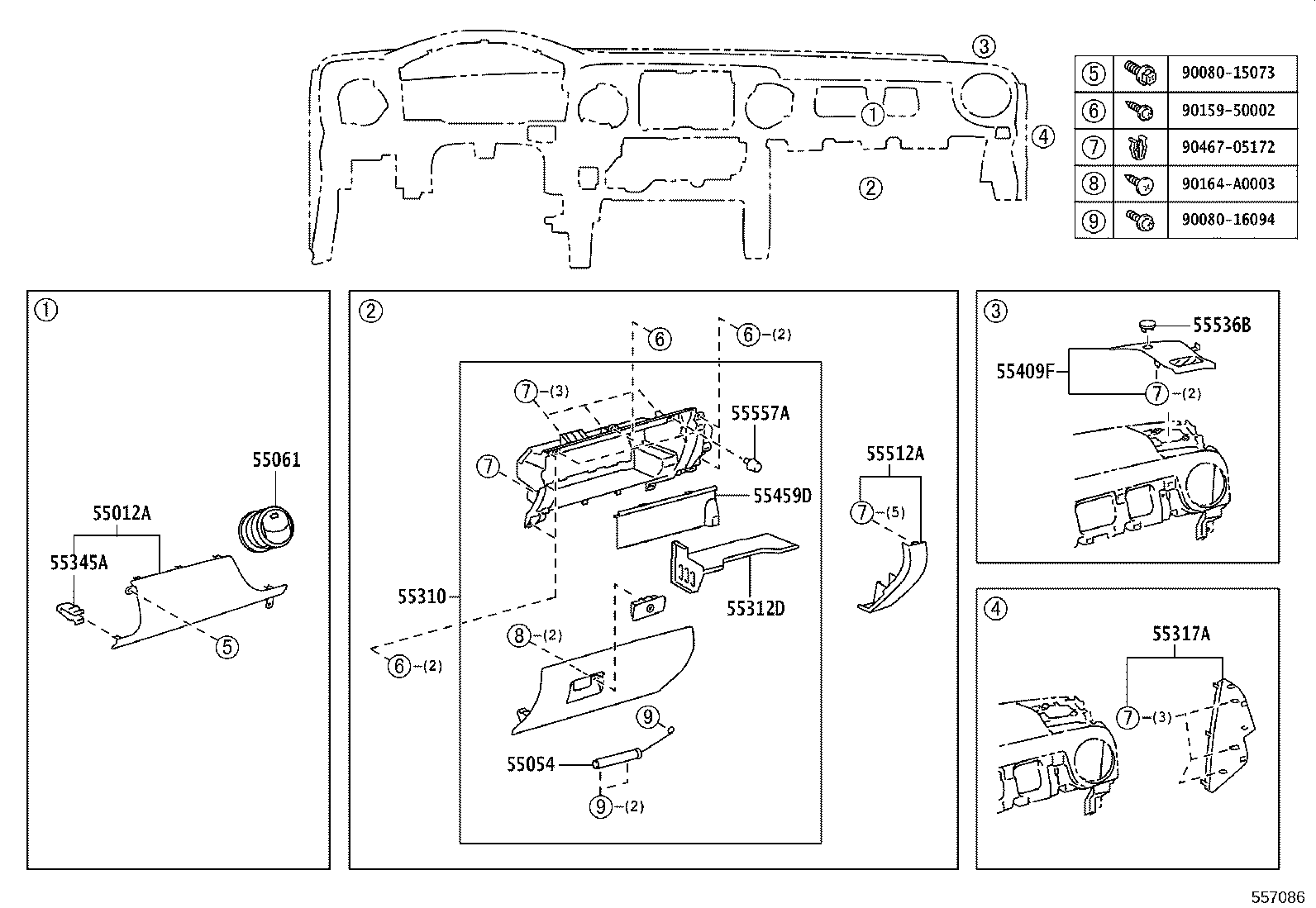

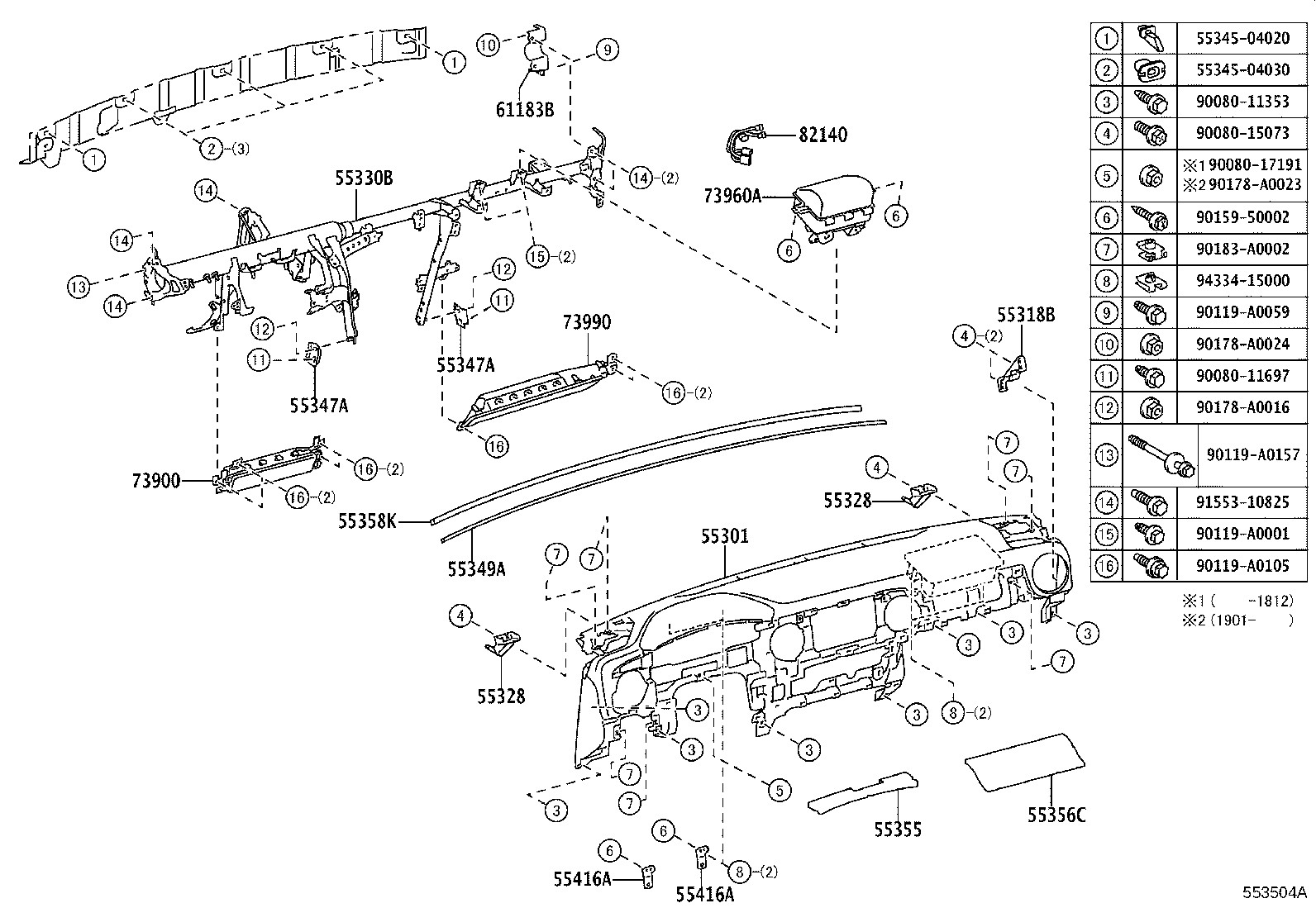

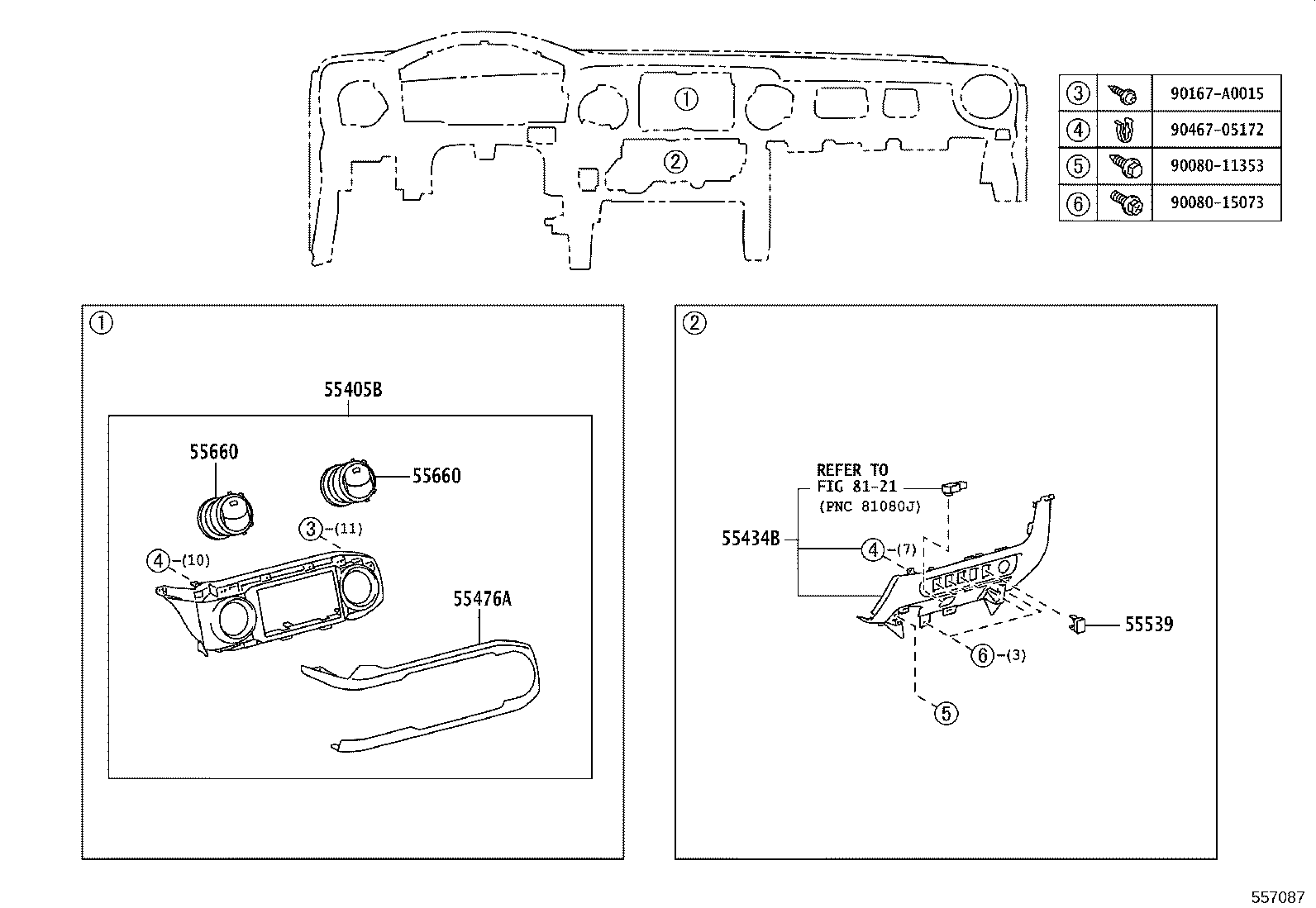

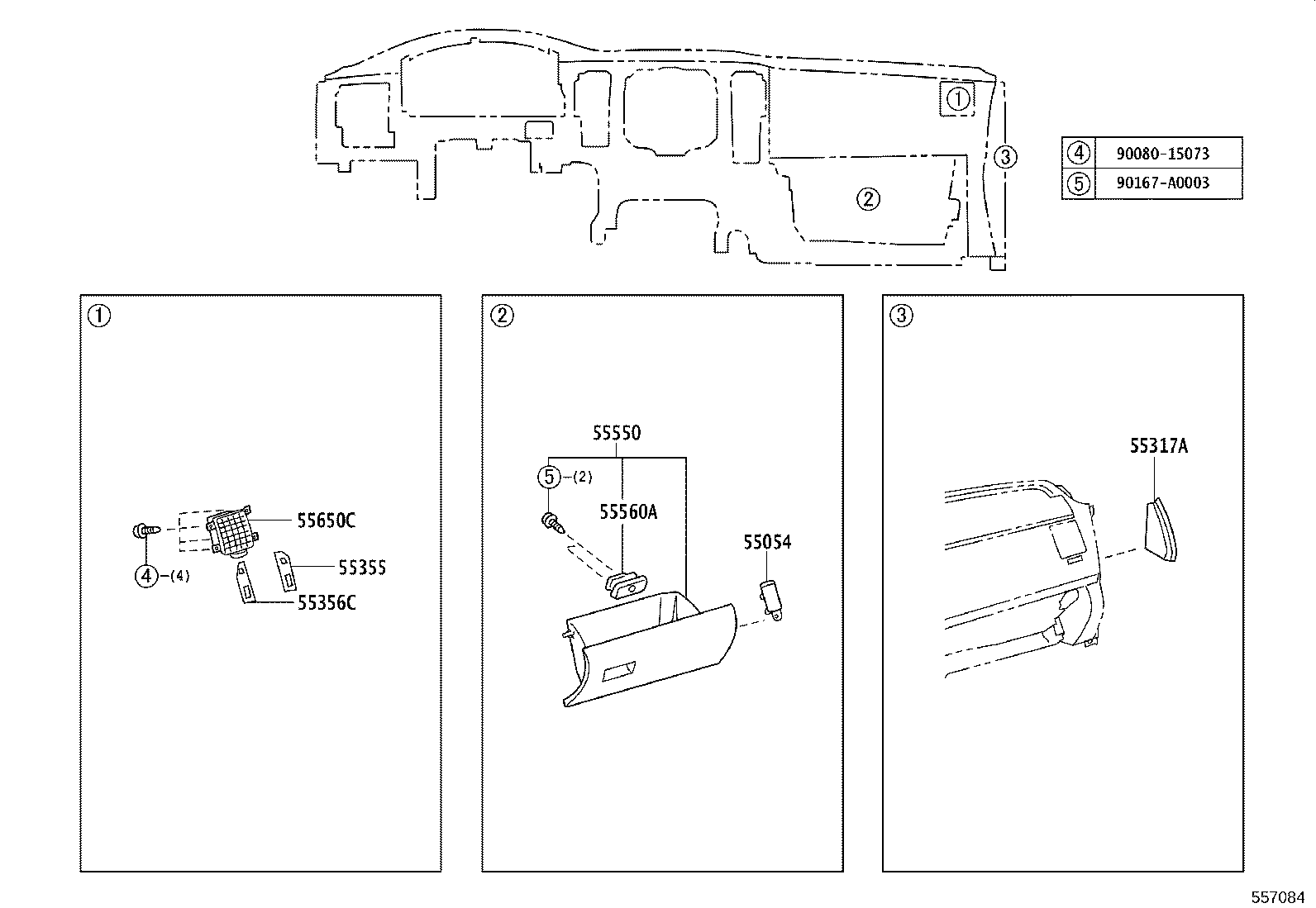

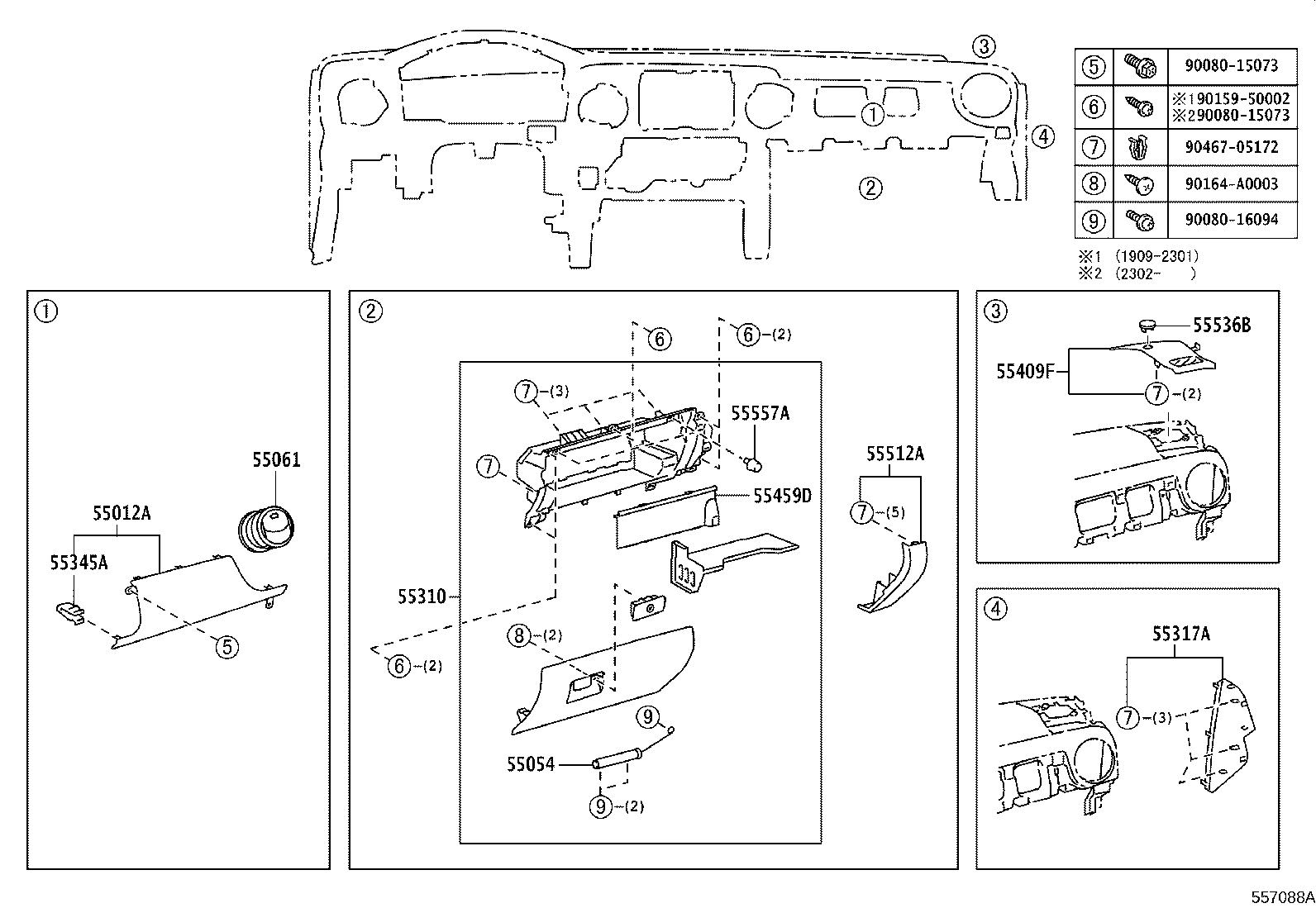

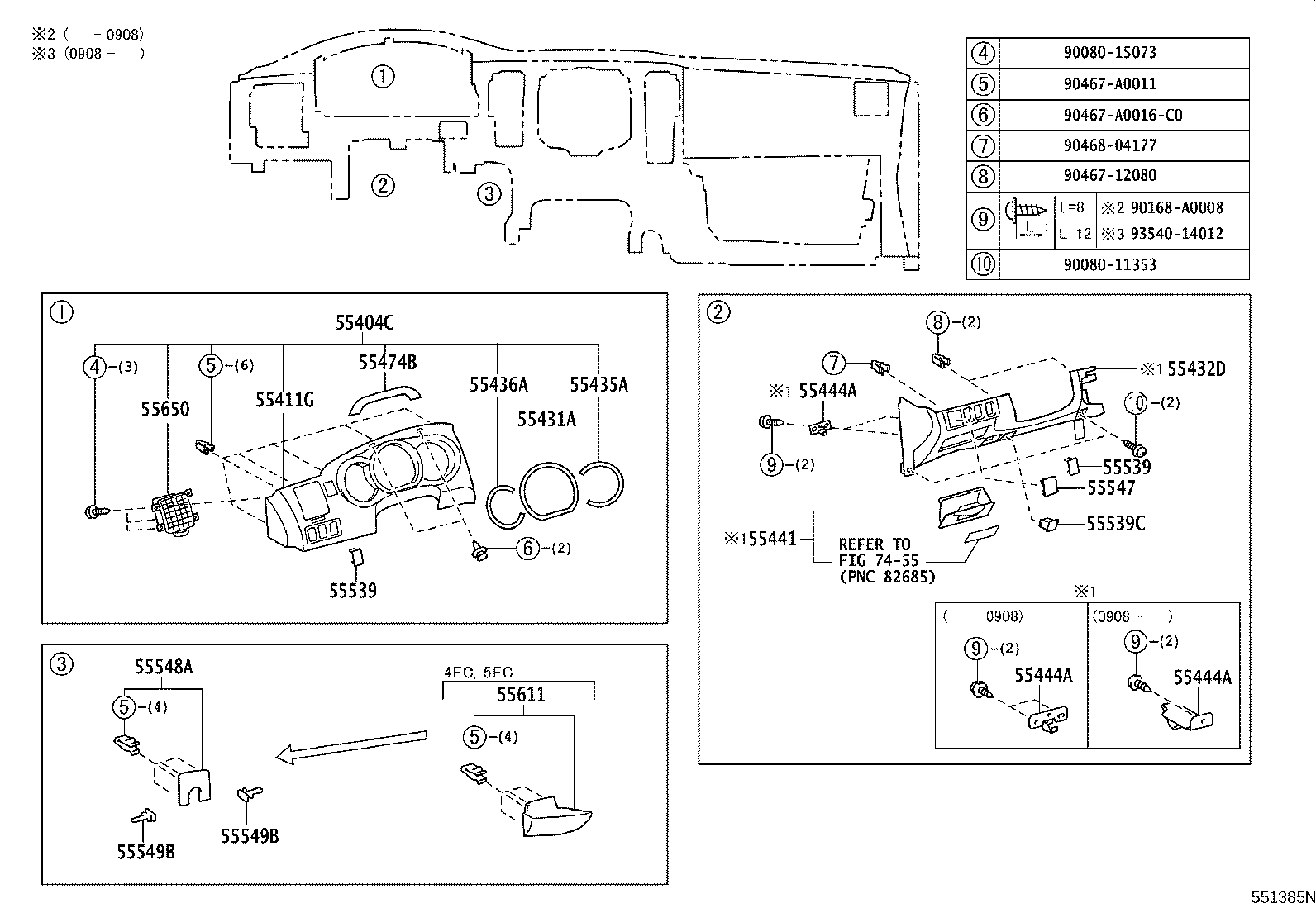

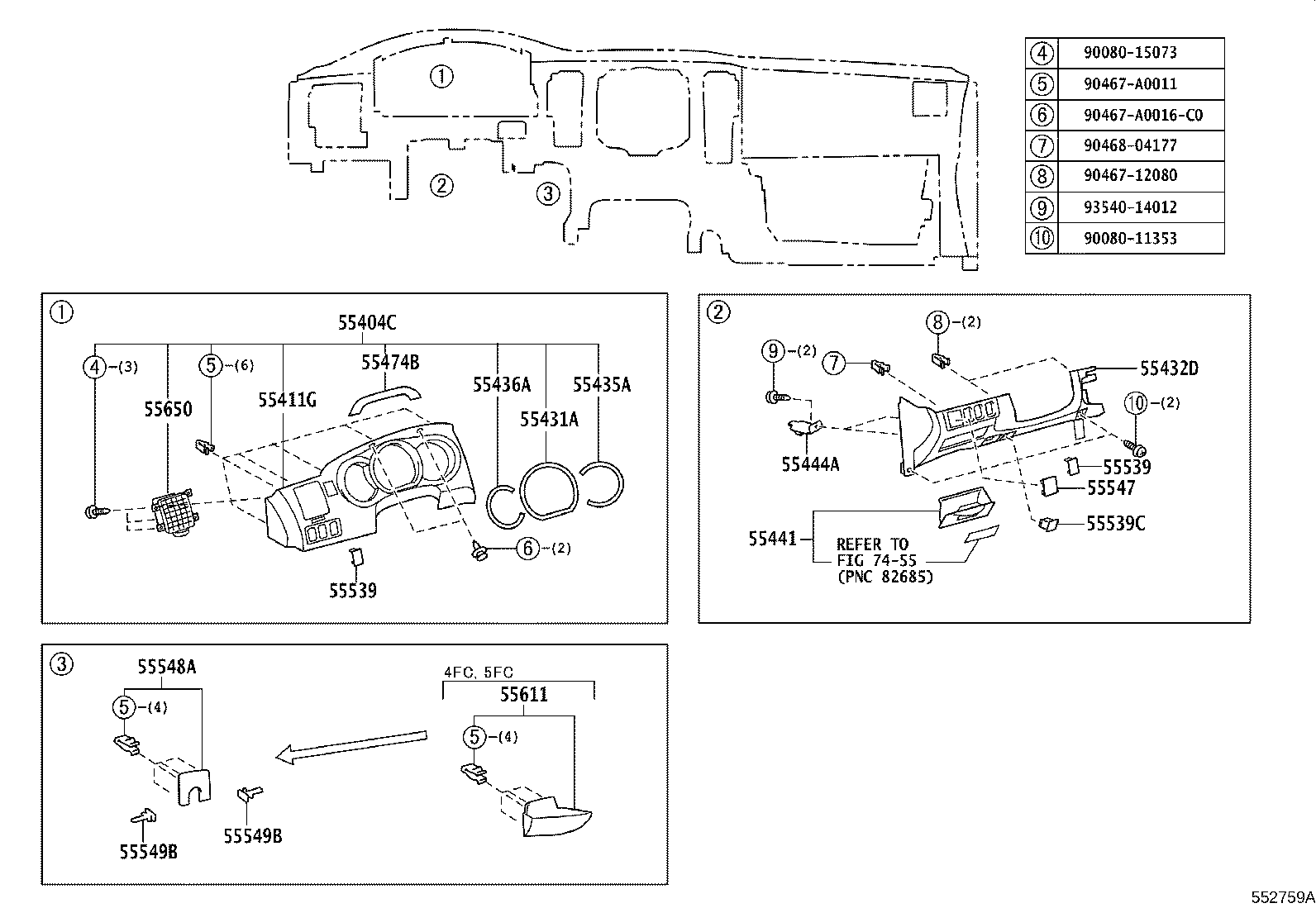

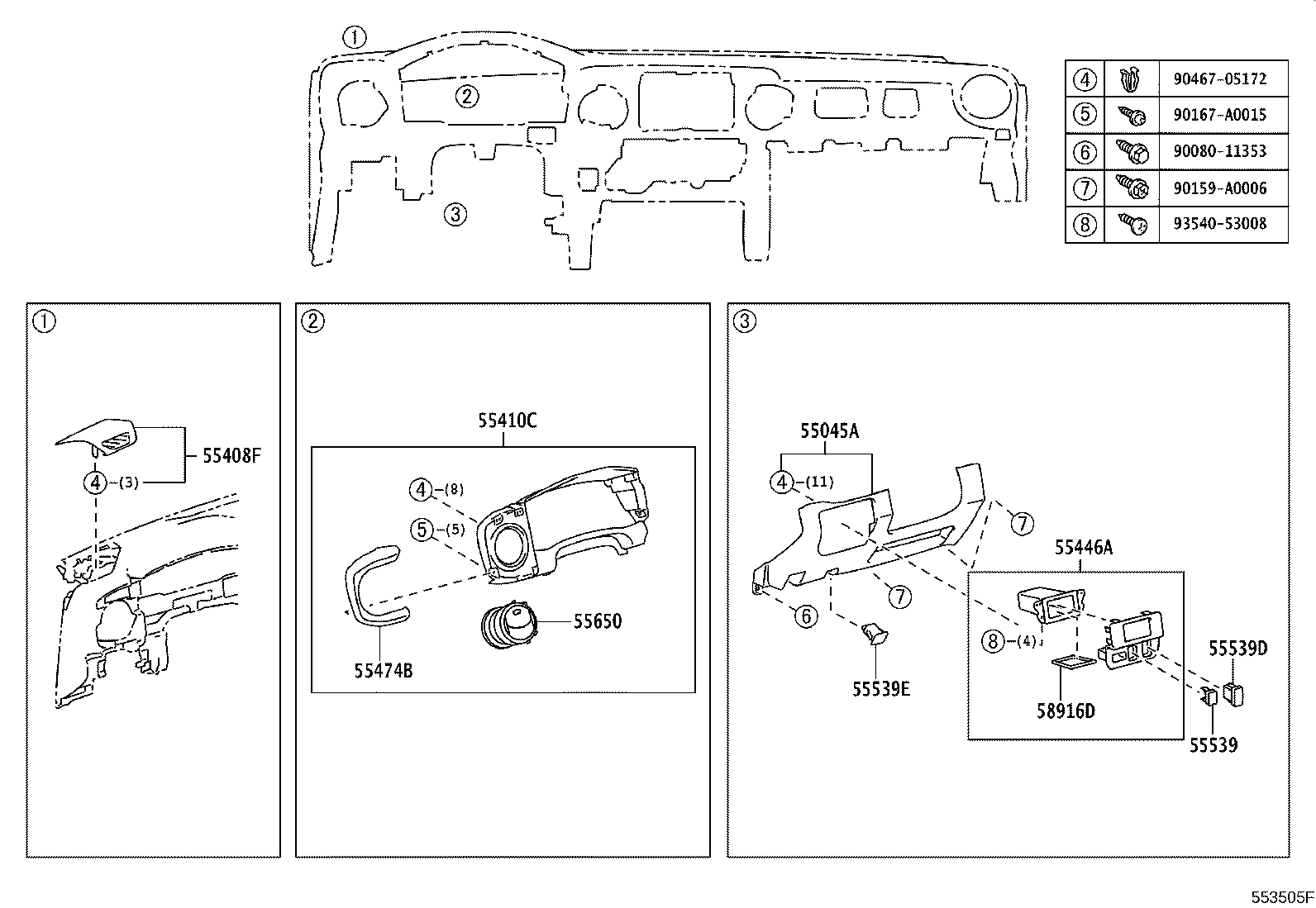

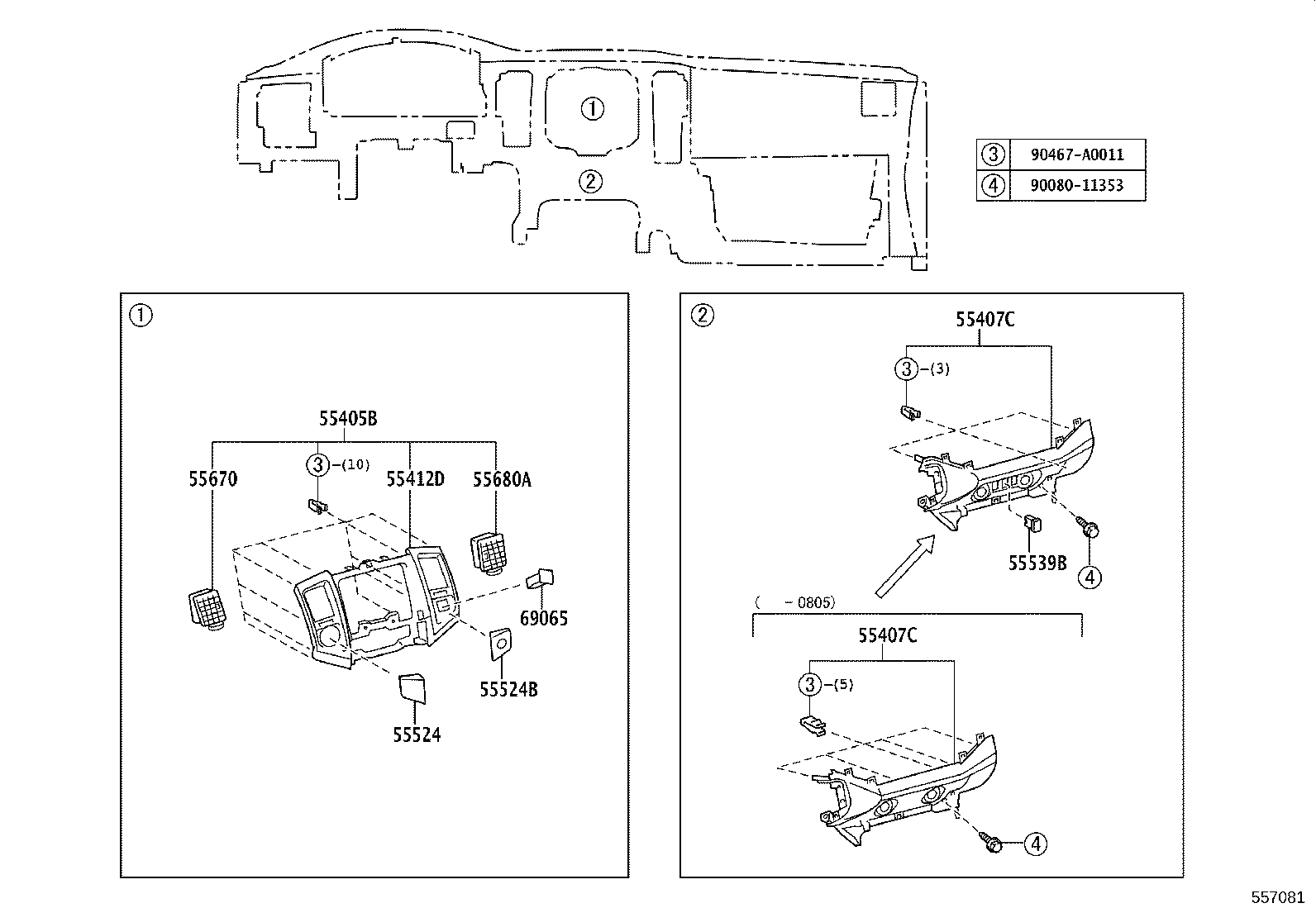

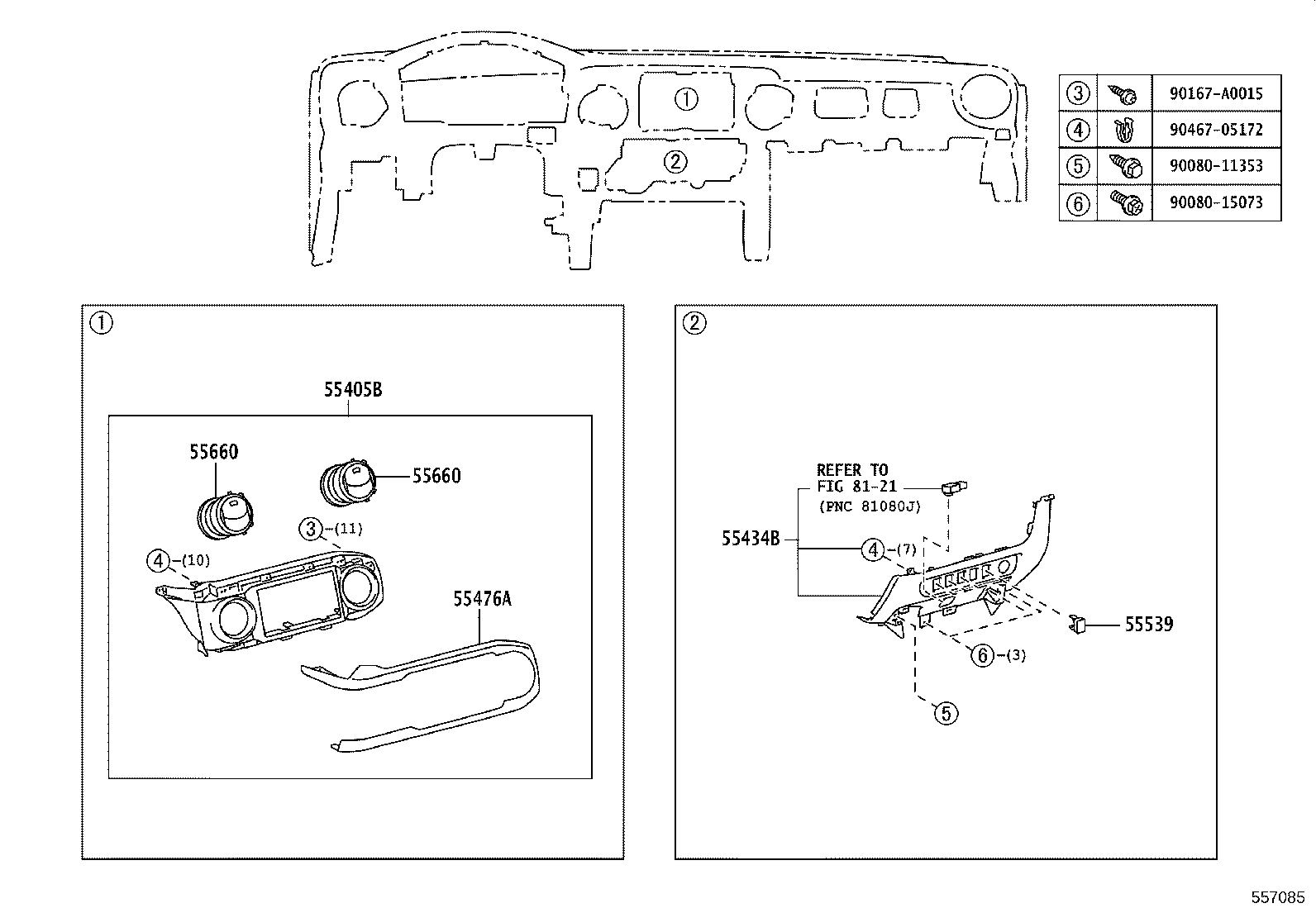

Figure 551384E 551384E 2004-09 → 2015-08 Figure 553504A 553504A 2015-08 → — Figure 551385N 551385N 2004-09 → 2011-09 Figure 557081 557081 2004-09 → 2011-09 Figure 557082 557082 2004-09 → 2011-09 Figure 552759A 552759A 2011-09 → 2015-08 Figure 557083 557083 2011-09 → 2015-08 Figure 557084 557084 2011-09 → 2015-08 Figure 553505F 553505F 2015-08 → 2017-11 Figure 557085 557085 2015-08 → 2017-11 Figure 557086 557086 2015-08 → 2017-11 Figure 553994B 553994B 2017-11 → — Figure 557087 557087 2017-11 → — Figure 557088A 557088A 2017-11 → —

Part groups

PNCDescription
55012A Garnish Sub-assy, Instrument Panel, NO.2
55045A Panel Sub-assy, Instrument Panel Finish, Lower RH
55054 Stopper Sub-assy, Glove Compartment Door
55061 Register Sub-assy, Instrument Panel, NO.1
55301 Panel Sub-assy, Instrument
55308C Bracket Sub-assy, Instrument Panel, Center
55310 Panel Assy, Instrument, Lower
55312D Plate, Glove Compartment
55313 Panel, Instrument, Lower LH
55317A Panel, Instrument Side, RH
55318B Extension, Instrument Panel
55328 Pin, Instrument Panel, NO.1
55330B Reinforcement Assy, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55347A Bracket, Instrument Panel Brace Mounting, NO.1
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55358K Cushion, Instrument Panel, NO.4
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55407C Cover Sub-assy, Instrument, Lower
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55411G Panel, Instrument Cluster Finish, NO.1
55412D Panel, Instrument Cluster Finish, Center
55416A Retainer, Meter Hood, NO.1
55431A Panel, Instrument Panel Finish
55432D Panel, Instrument Panel Finish, Lower NO.1
55434B Panel, Instrument Panel Finish, Lower Center
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55441 Box, Instrument Panel
55444A Spring, Instrument Panel Box
55446A Base, Switch Hole, NO.1
55459D Cover, Instrument, Lower LH
55474B Garnish, Instrument Cluster Finish Panel
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55512A Plate, Glove Compartment
55524 Cover, Switch Bace Hole
55524B Cover, Switch Base Hole
55536B Cover, Light Control Switch Hole
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55539F Cover, Spare Switch Hole
55547 Cover, Remote Control Mirror Hole
55548A Cover, Instrument Panel Hole
55549B Cover, Instrument Panel Hole, NO.2
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55611 Tray, Instrument Panel Under
55650 Register Assy, Instrument Panel, NO.1
55650C Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
58916D Mat, Box Bottom
61183B Bracket, Instrument Panel Side, NO.2 RH
69065 Cylinder Sub-assy, Airbag Cut Off SW
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
82140 Wire Assy, Instrument Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
