Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

12 part groups · 2 illustrations

Illustrations

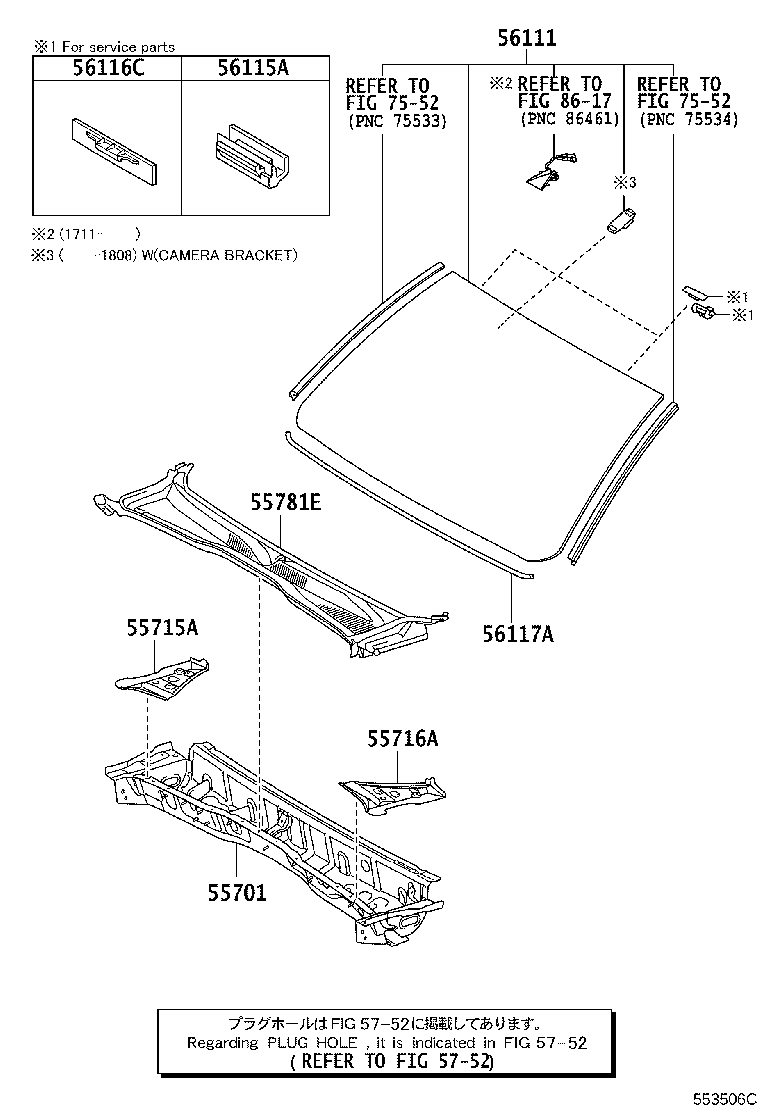

Figure 551375E 551375E 2004-09 → 2015-08 Figure 553506C 553506C 2015-08 → —

Part groups

PNCDescription
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701 Panel Sub-assy, Cowl
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56117D Dam, Windshield Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
