Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09

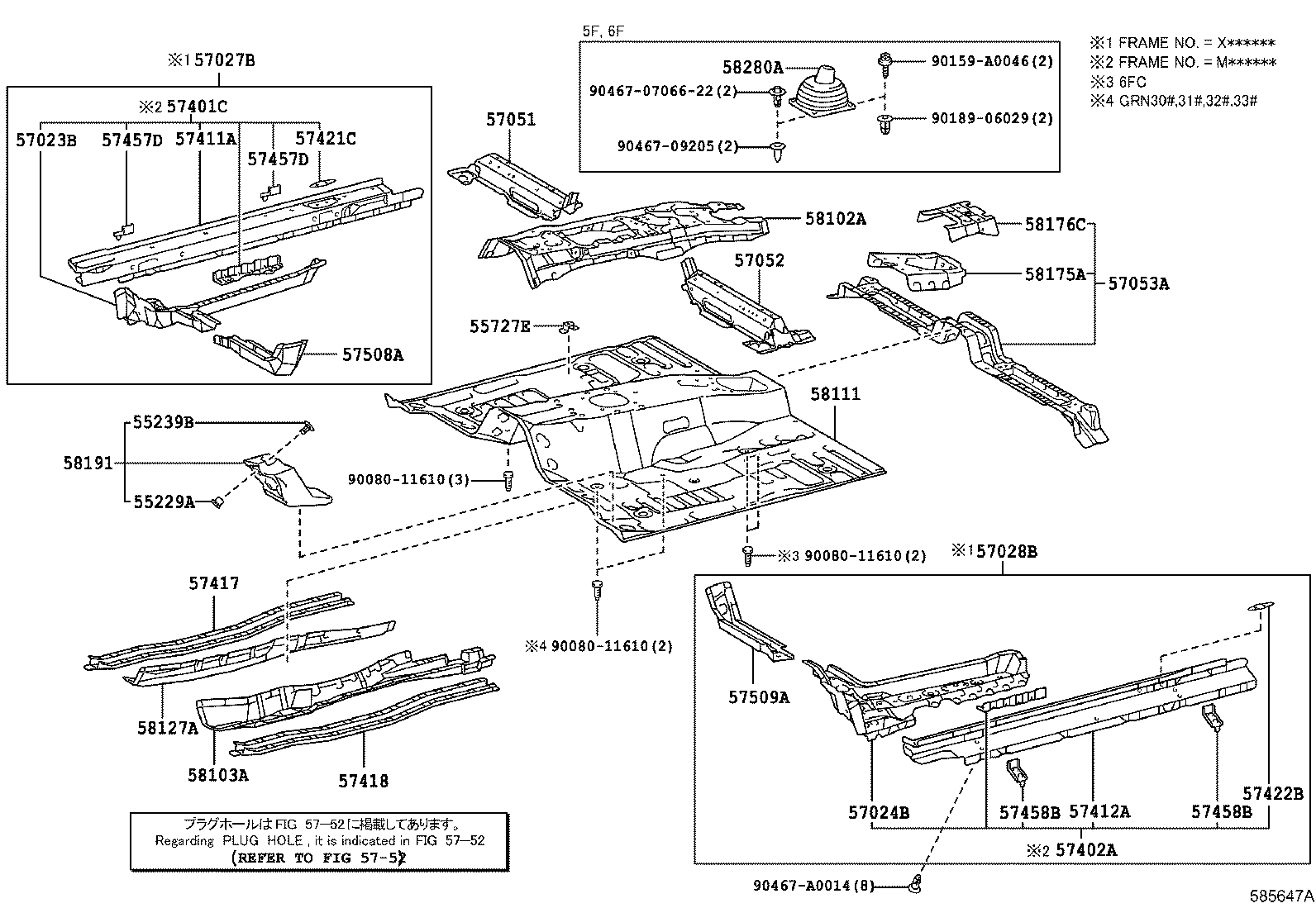

Front Floor Panel & Front Floor Member

36 part groups · 3 illustrations

PNC	Description

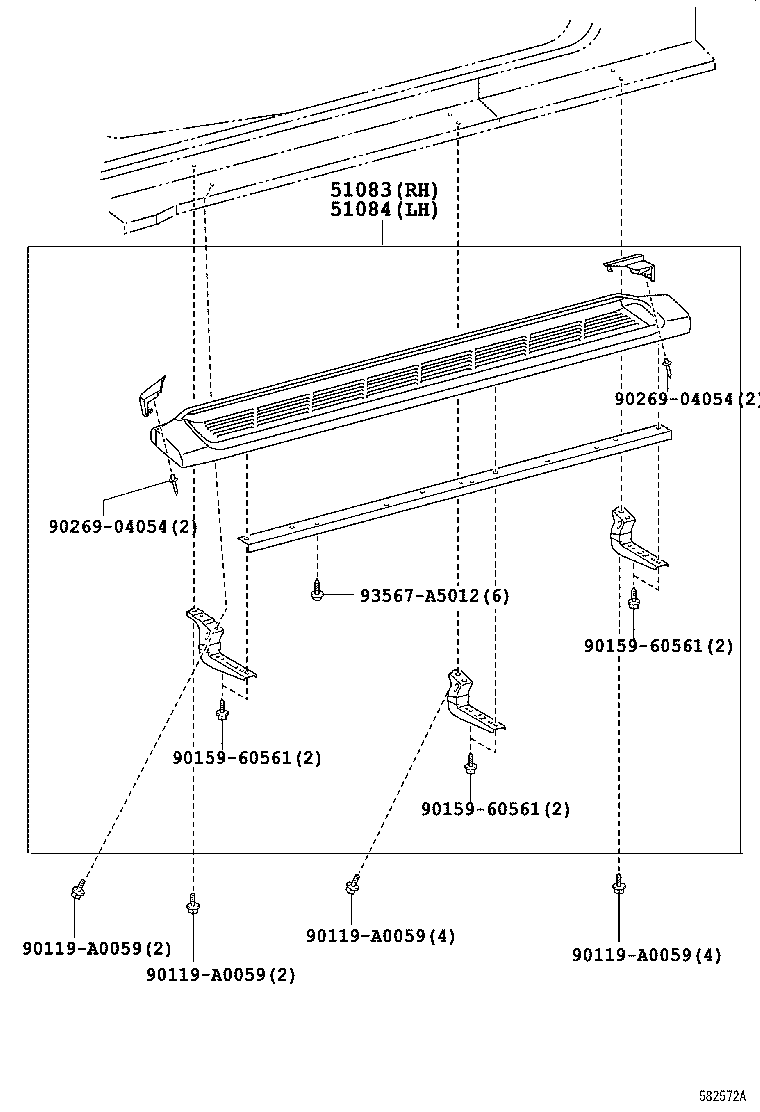

51083	Step Sub-assy, RH
51084	Step Sub-assy, LH
55229A	Plate, Front Floor Footrest, NO.1
55239B	Plate, Front Floor Footrest, NO.2
55727E	Retainer, Front Panel Upper Reinforcement
57023B	Bracket Sub-assy, Body Mounting, NO.2 RH
57024B	Bracket Sub-assy, Body Mounting, NO.2 LH
57027B	Member Sub-assy, Front Side, Inner RH
57028B	Member Sub-assy, Front Side, Inner LH
57051	Member Sub-assy, Front Floor Cross, RH
57052	Member Sub-assy, Front Floor Cross, LH
57053A	Reinforcement Sub-assy, Front Floor Crossmember
57401C	Member Sub-assy, Floor Side, Inner RH
57402A	Member Sub-assy, Floor Side, Inner LH
57411A	Member, Floor Side, Inner RH
57412A	Member, Floor Side, Inner LH
57417	Reinforcement, Front Floor Under, RH
57418	Reinforcement, Front Floor Under, LH
57421C	Plate, Floor Side Rail, RH
57422B	Plate, Floor Side Rail, LH
57457D	Patch, Floor Side Member, Rear RH
57458B	Patch, Floor Side Member, Rear LH
57475C	Plate, Front Floor Crossmember
57508A	Reinforcement Sub-assy, Front Floor, RH
57509	Reinforcement Sub-assy, Front Floor, Center
57509A	Reinforcement Sub-assy, Front Floor, LH
58102A	Reinforcement Sub-assy, Front Floor
58103A	Reinforcement Sub-assy, Front Floor Side, LH
58111	Pan, Front Floor
58127A	Reinforce, Front Cross TO Front Panel Member, RH
58171	Reinforcement, Parking Brake Base
58175A	Reinforcement, Parking Brake Base, NO.1
58176C	Reinforcement, Parking Brake Base, NO.2
58191	Footrest, Front Floor
58198A	Clip, Footrest, NO.1
58280A	Boot Assy, Shift Lever

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
