Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

7 part groups · 4 illustrations

Illustrations

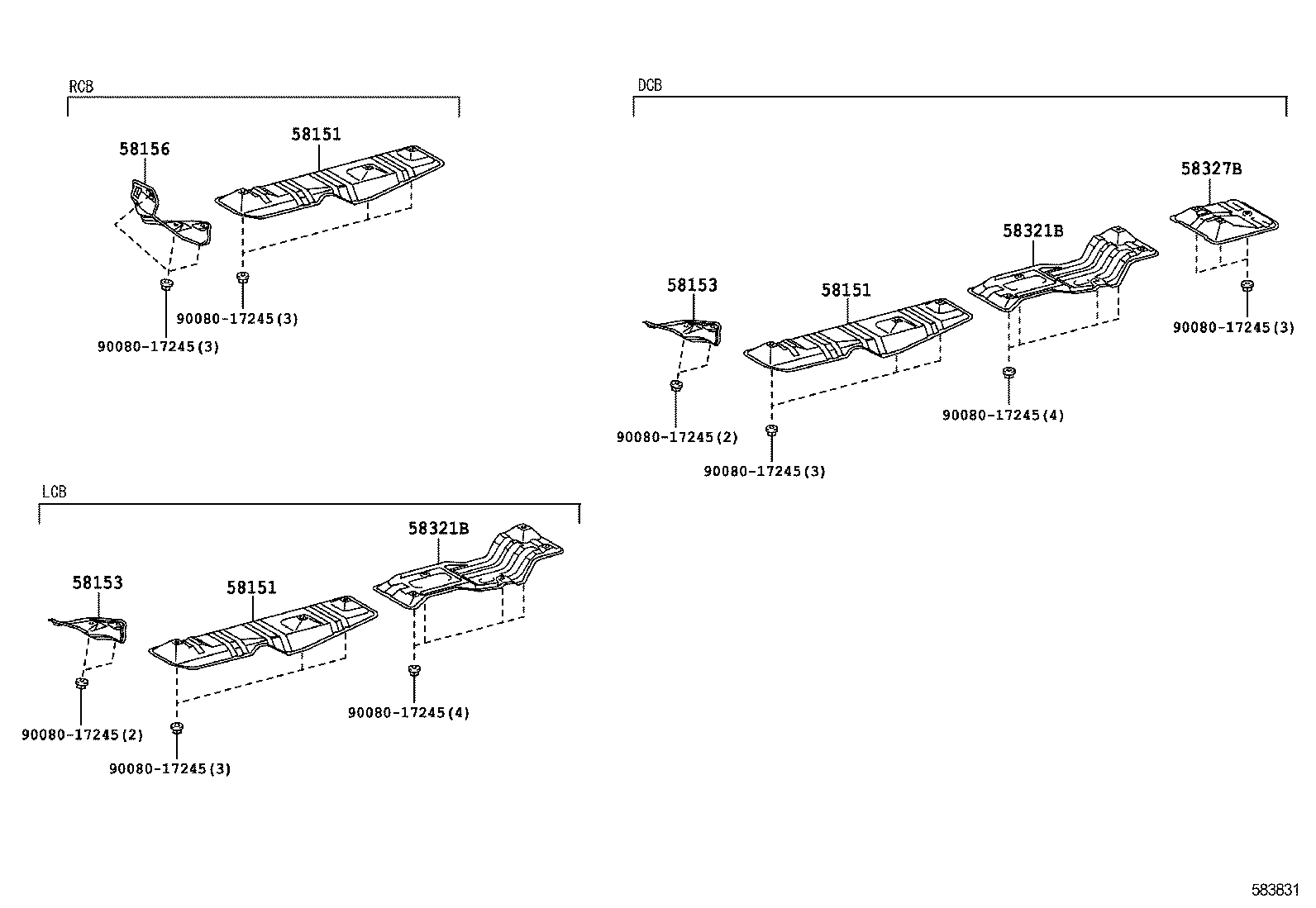

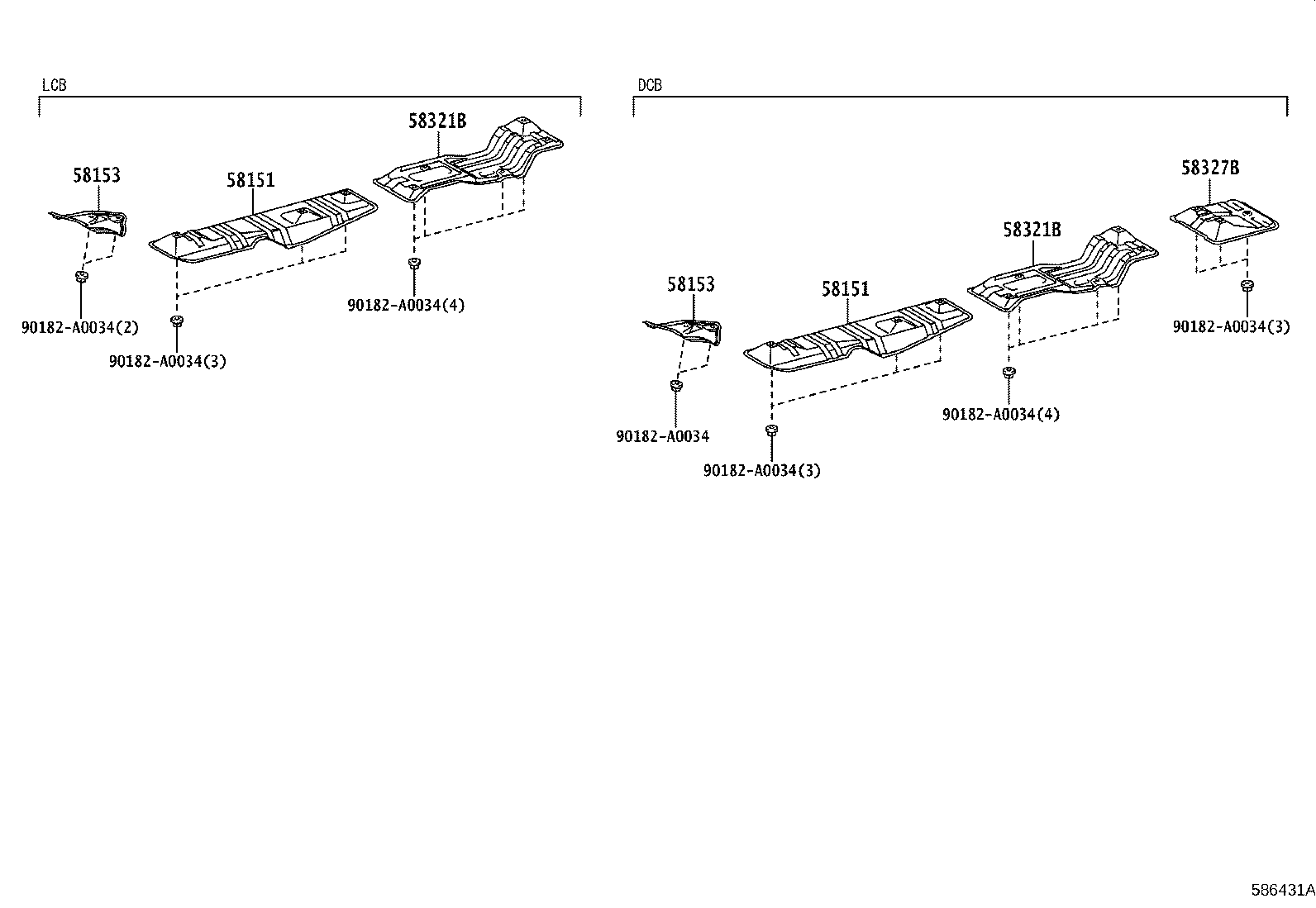

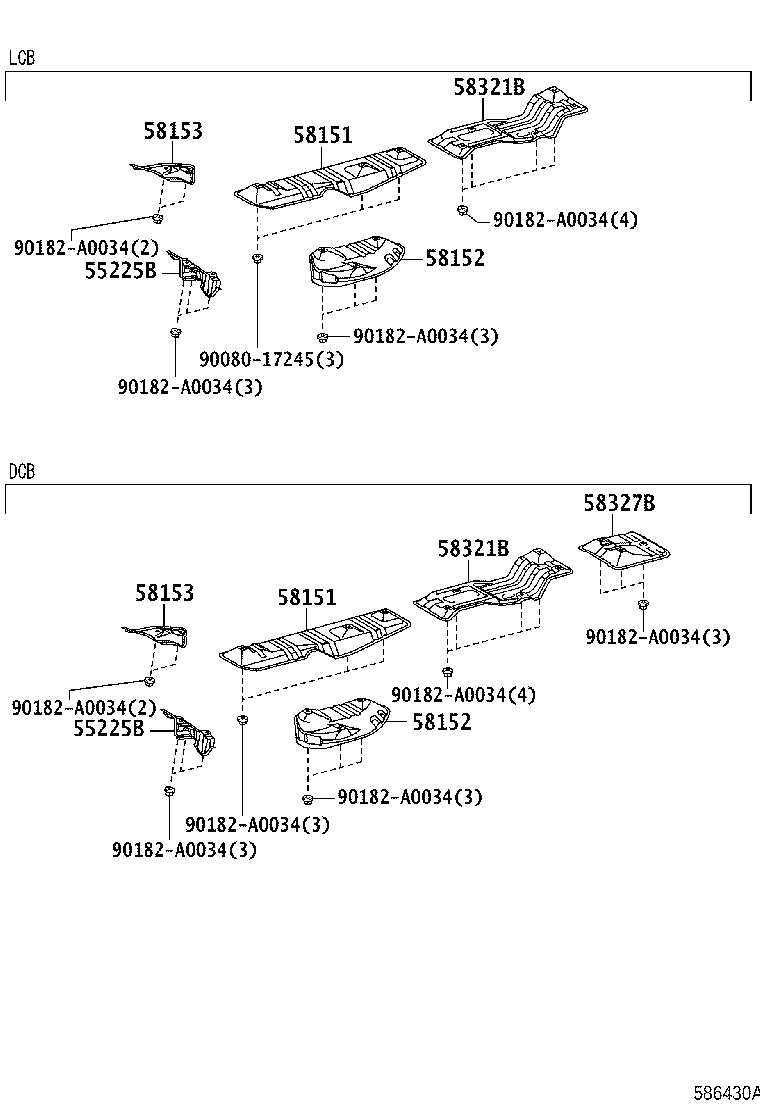

Figure 583836 583836 2004-09 → 2017-11 Figure 583831 583831 2004-09 → 2017-11 Figure 586430A 586430A 2017-11 → — Figure 586431A 586431A 2017-11 → —

Part groups

PNCDescription
55225B Insulator, Dash Panel Heat
58151 Insulator, Front Floor Heat, NO.1
58152 Insulator Sub-assy, Center Floor Heat, NO.2
58153 Insulator, Front Floor Heat, NO.2
58156 Insulator, Front Floor Heat, NO.4
58321B Insulator, Rear Floor Heat, NO.1
58327B Insulator, Main Muffler Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
