Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

16 part groups · 8 illustrations

Illustrations

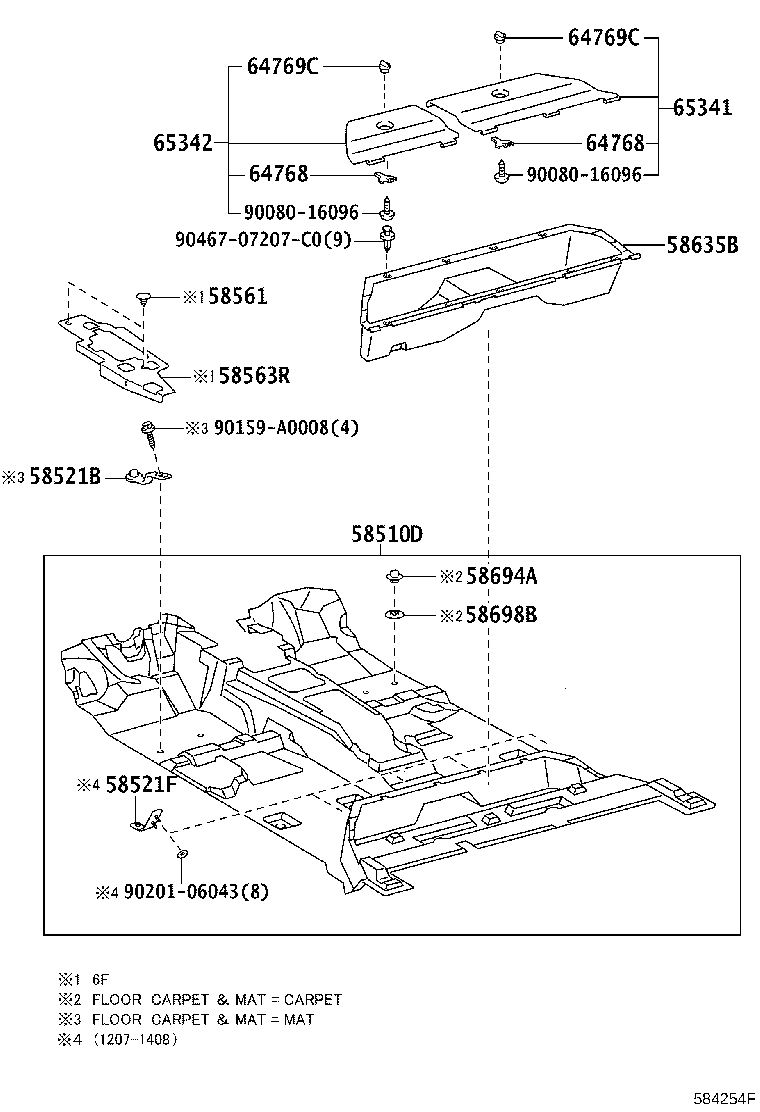

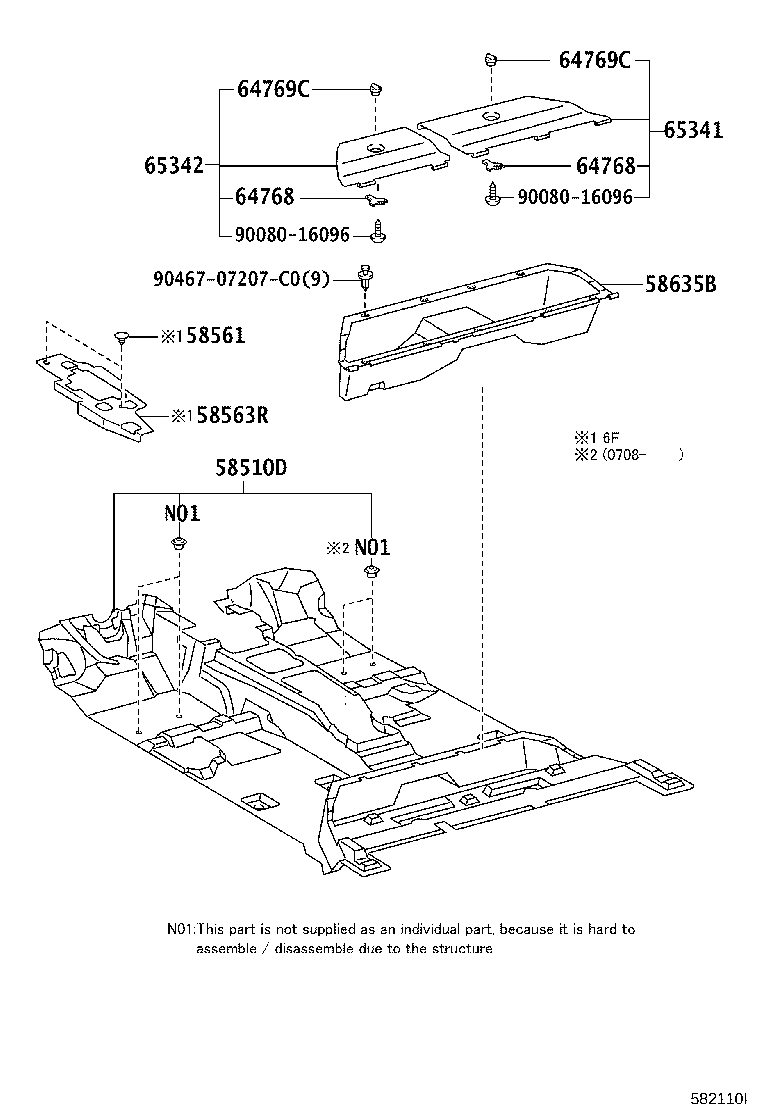

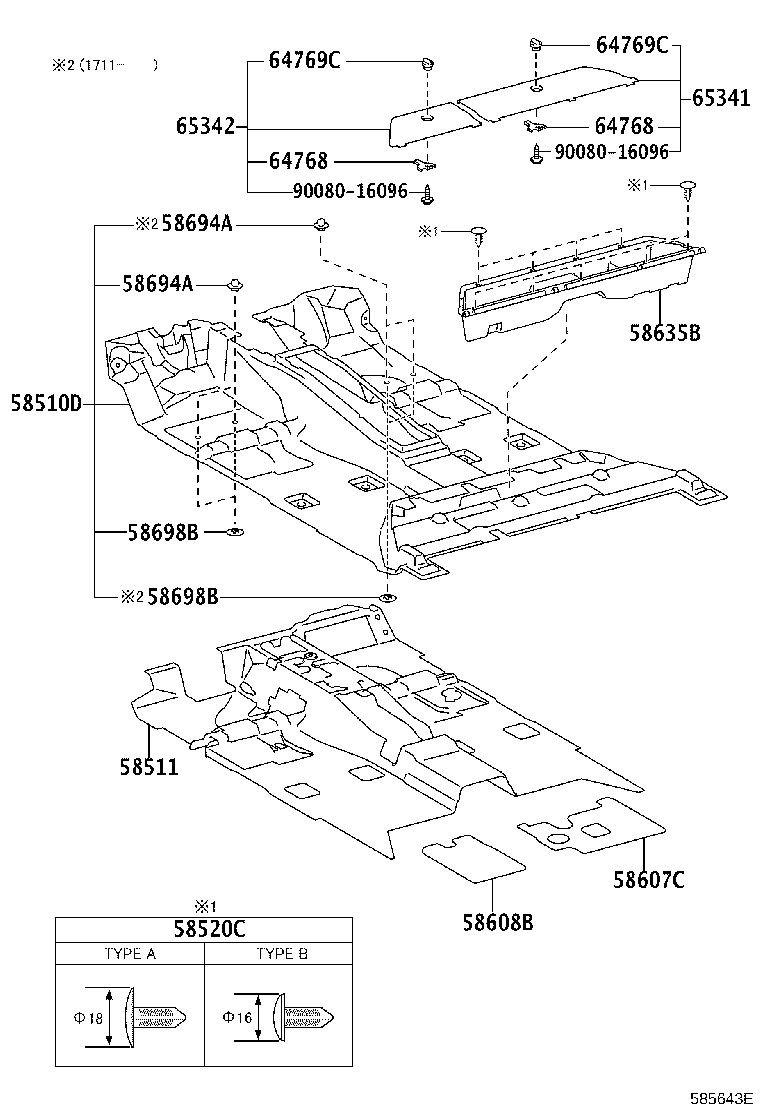

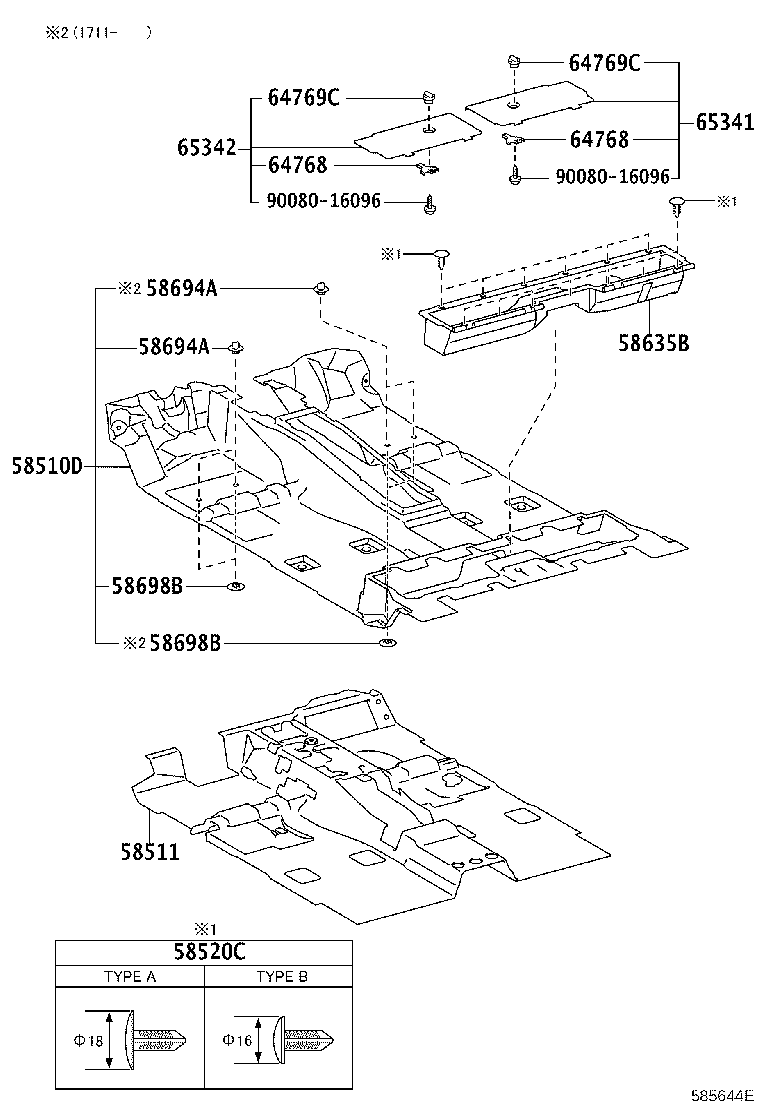

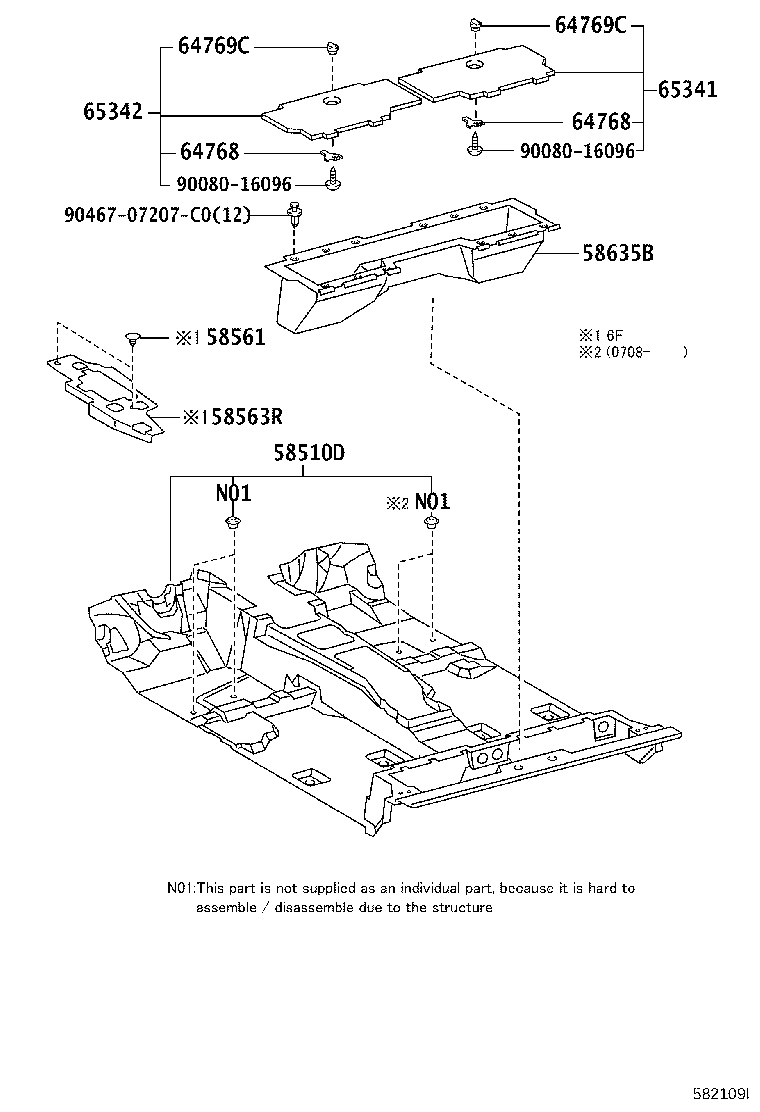

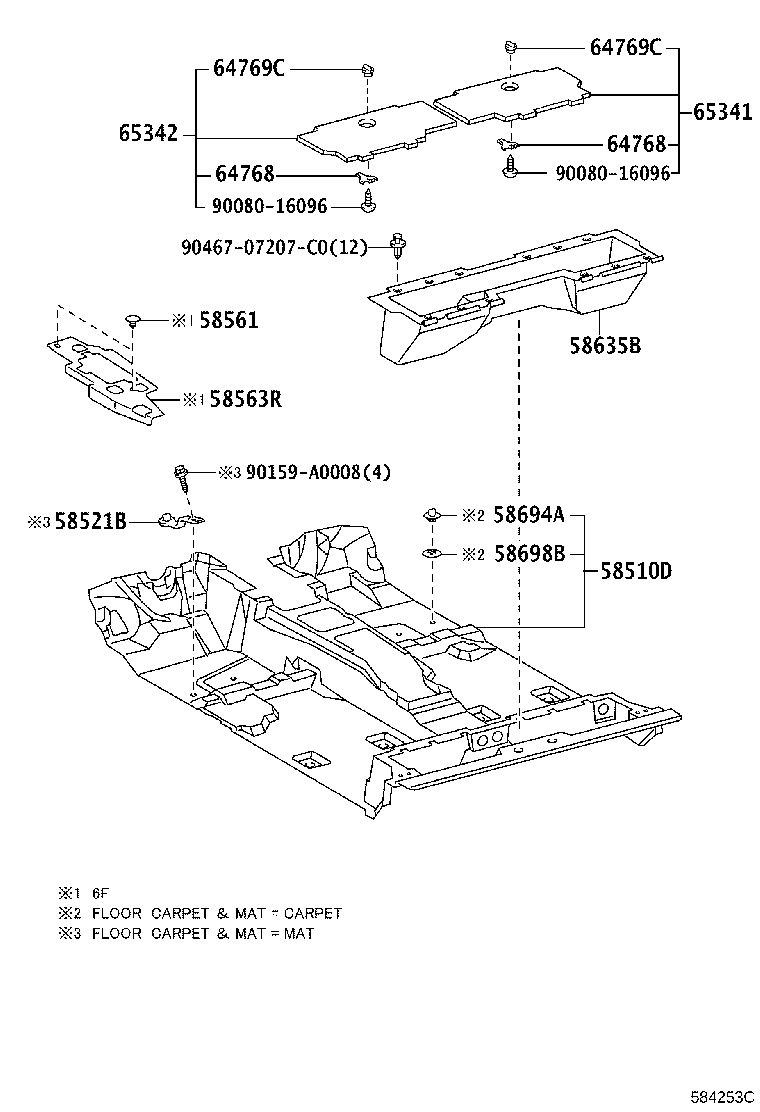

Figure 582108E 582108E 2004-09 → 2011-09 Figure 582109I 582109I 2004-09 → 2011-09 Figure 582110I 582110I 2004-09 → 2011-09 Figure 584252 584252 2011-09 → 2015-08 Figure 584253C 584253C 2011-09 → 2015-08 Figure 584254F 584254F 2011-09 → 2015-08 Figure 585643E 585643E 2015-08 → — Figure 585644E 585644E 2015-08 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58511 Mat, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58521F Hook, Floor Carpet
58561 Retainer, Floor Mat, NO.1
58563R Silencer, Front Floor, NO.3
58607C Pad Sub-assy, Front Floor Silencer, Rear RH
58608B Pad Sub-assy, Front Floor Silencer, Rear LH
58635B Box, Seat Floor
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
64768 Stopper, Jack Cover
64769C Knob, Jack Cover
65341 Board, Floor, NO.1
65342 Board, Floor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
