Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

32 part groups · 7 illustrations

Illustrations

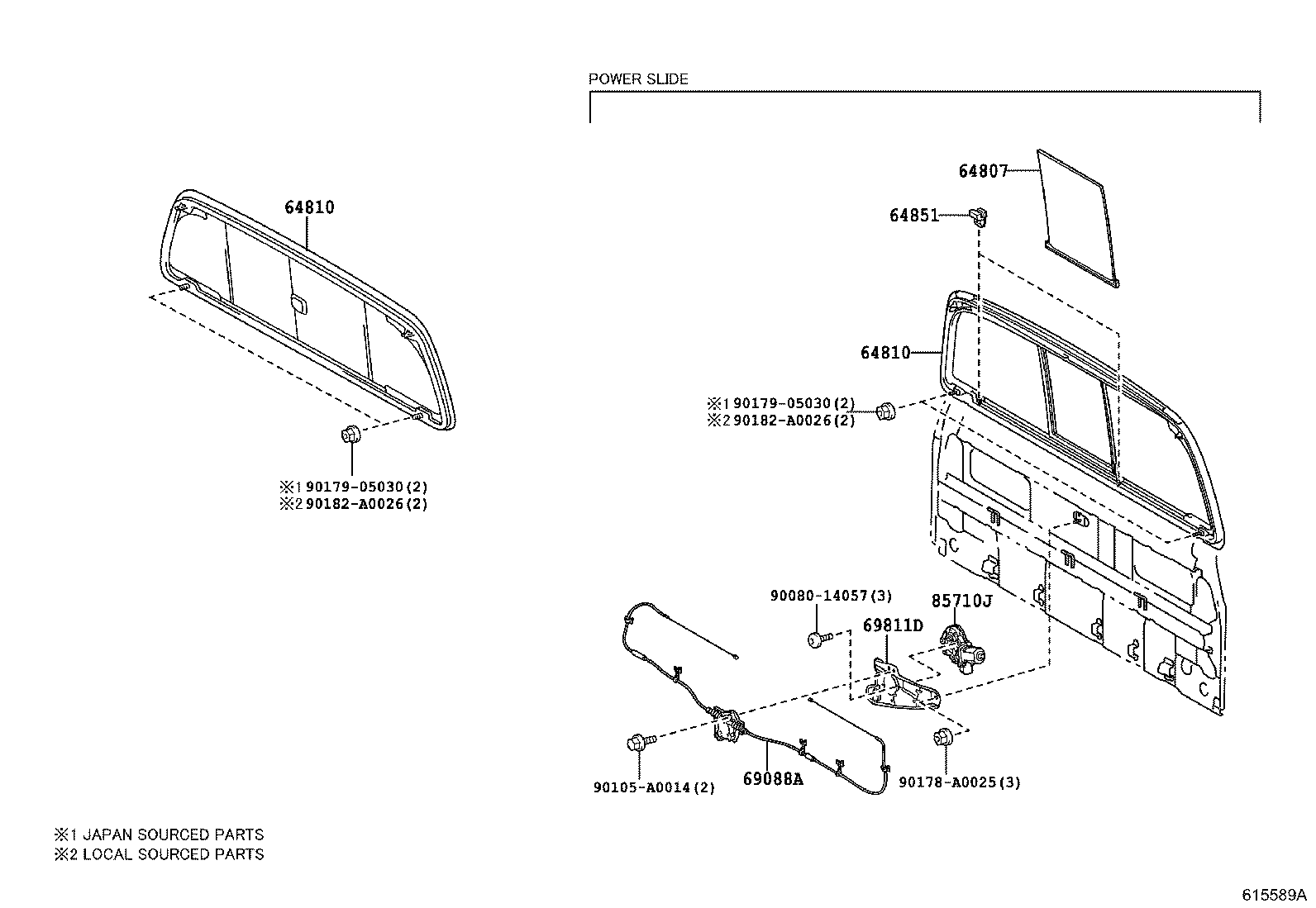

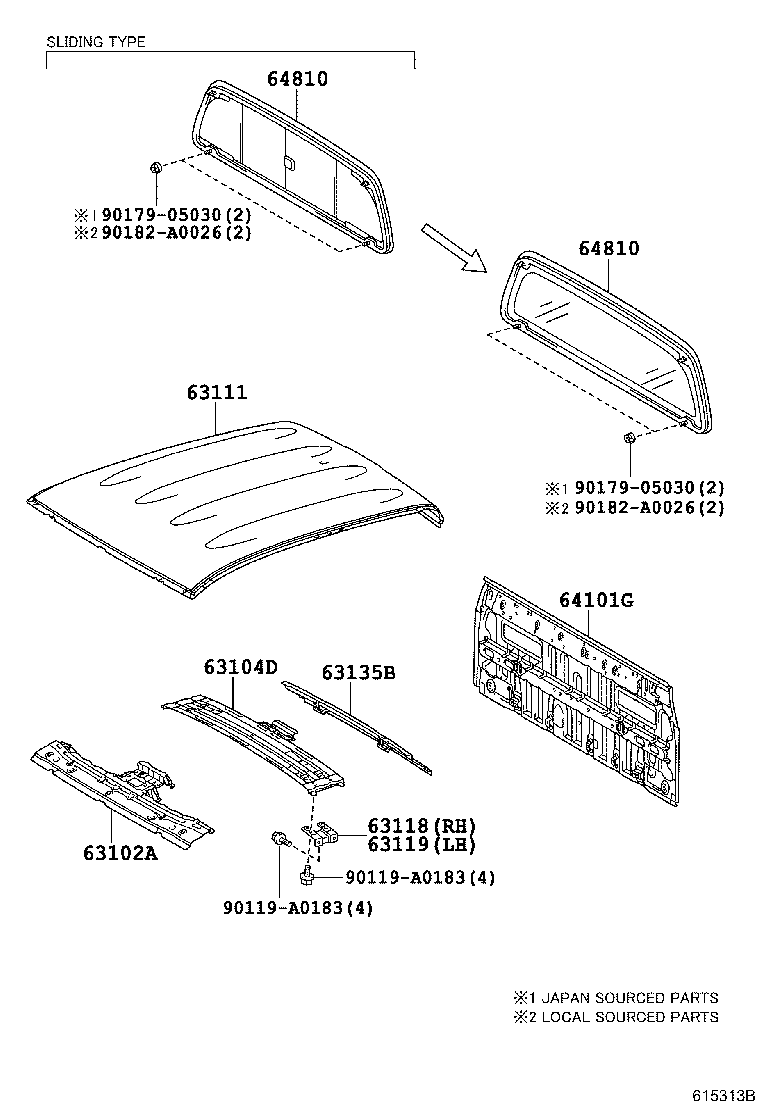

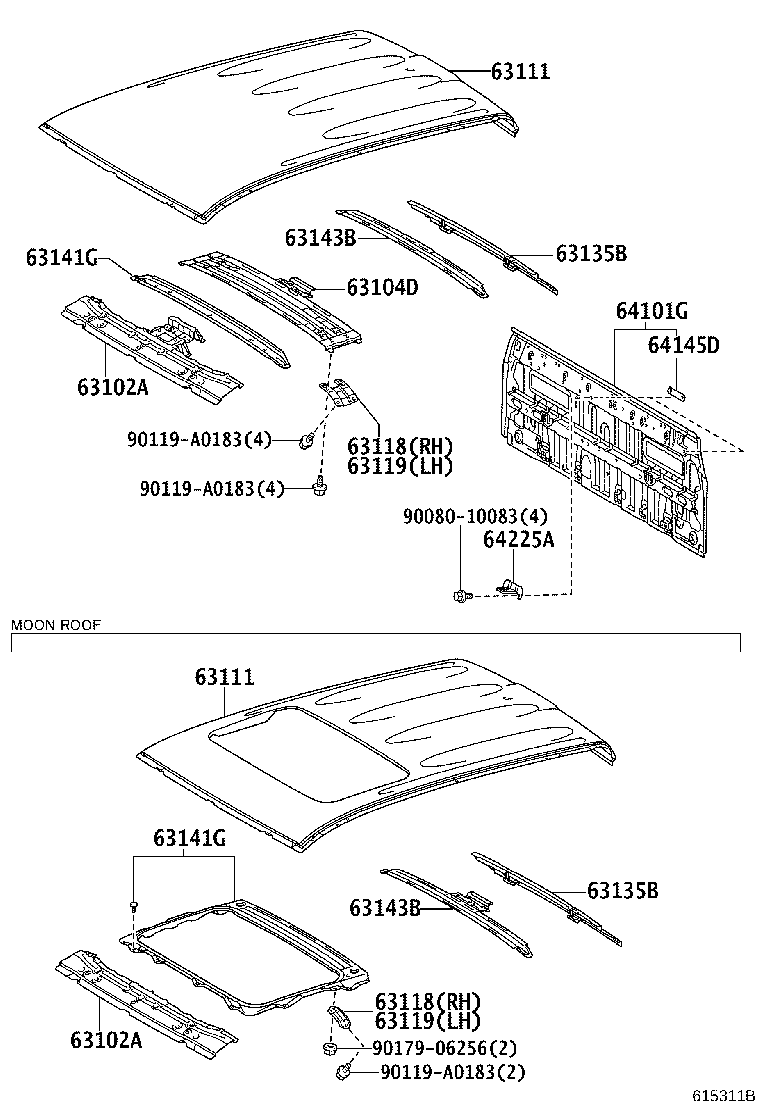

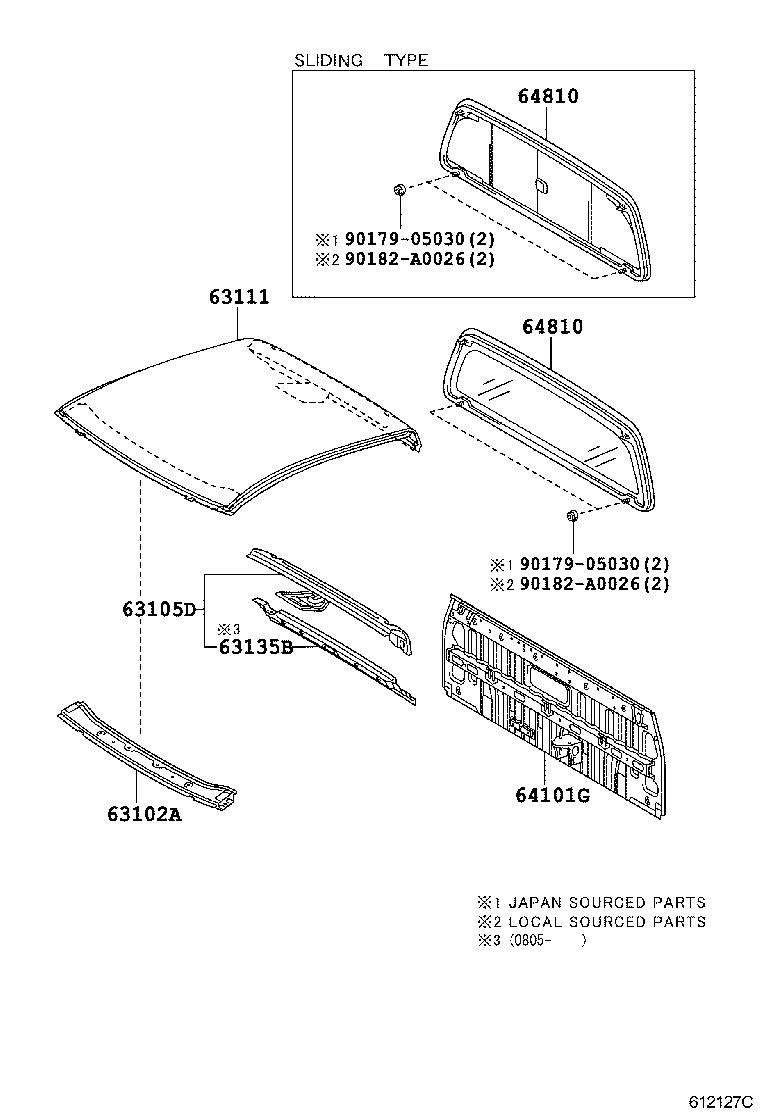

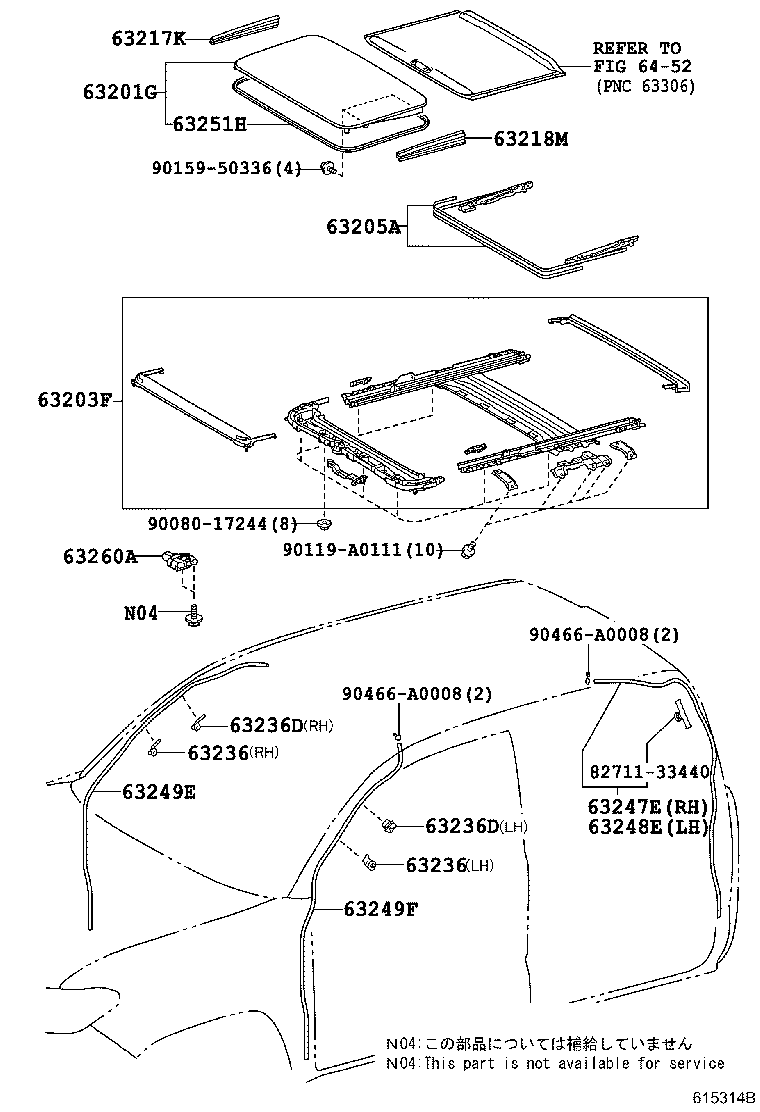

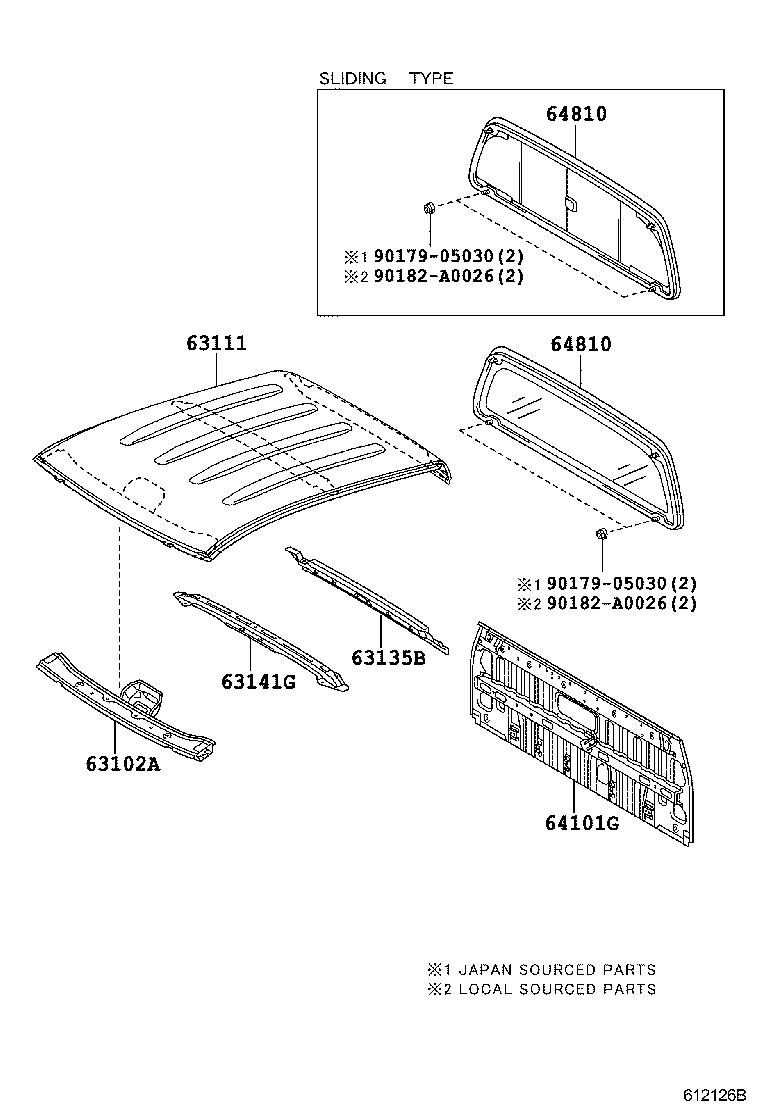

Figure 612125C 612125C 2004-09 → 2015-08 Figure 612126B 612126B 2004-09 → 2015-08 Figure 612127C 612127C 2004-09 → 2015-08 Figure 615311B 615311B 2015-08 → — Figure 615589A 615589A 2015-08 → — Figure 615314B 615314B 2015-08 → — Figure 615313B 615313B 2015-08 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63104D Reinforcement Sub-assy, Roof Panel, NO.2
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63135B Panel, Back Window, Upper Inner
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217K Garnish, Sliding Roof Side, RH
63218M Garnish, Sliding Roof Side, LH
63236 Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D Clamp, Sliding Roof Drain Hose
63247E Hose, Sliding Roof Drain, Rear RH
63248E Hose, Sliding Roof Drain, Rear LH
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
64101G Panel Sub-assy, Back
64145D Bracket, Rear Seatback Set
64225A Hanger, Rear Seat Cushion Support
64807 Glass Sub-assy, Back Window Slide
64810 Window Assy, Back
64851 Stop, Back Window Slide Glass
69088A Cable Sub-assy, Door Window Regulator
69811D Plate, Door Window Regulator Base
85710J Motor Assy, Power Window Regulator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
