Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

75 part groups · 10 illustrations

Illustrations

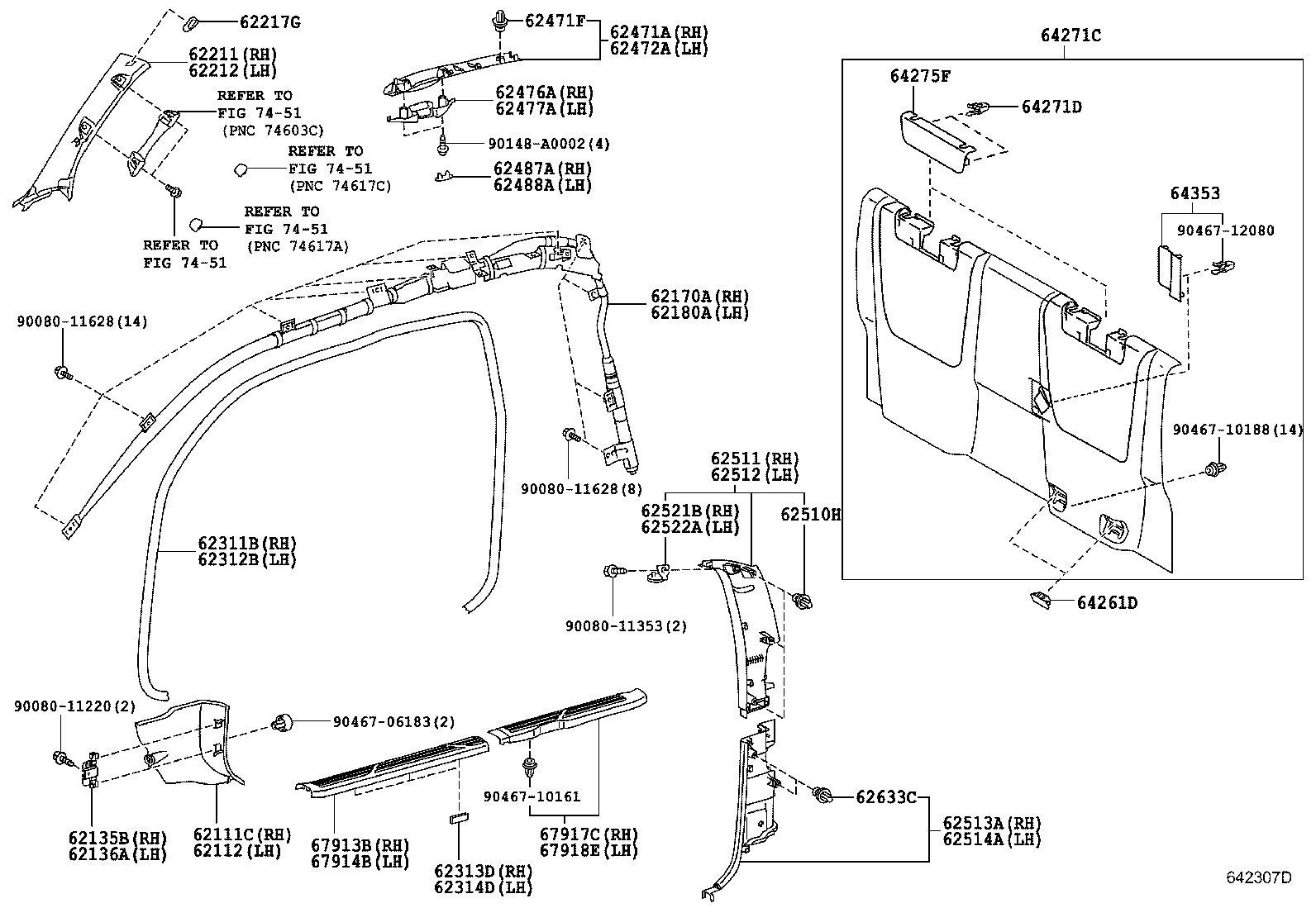

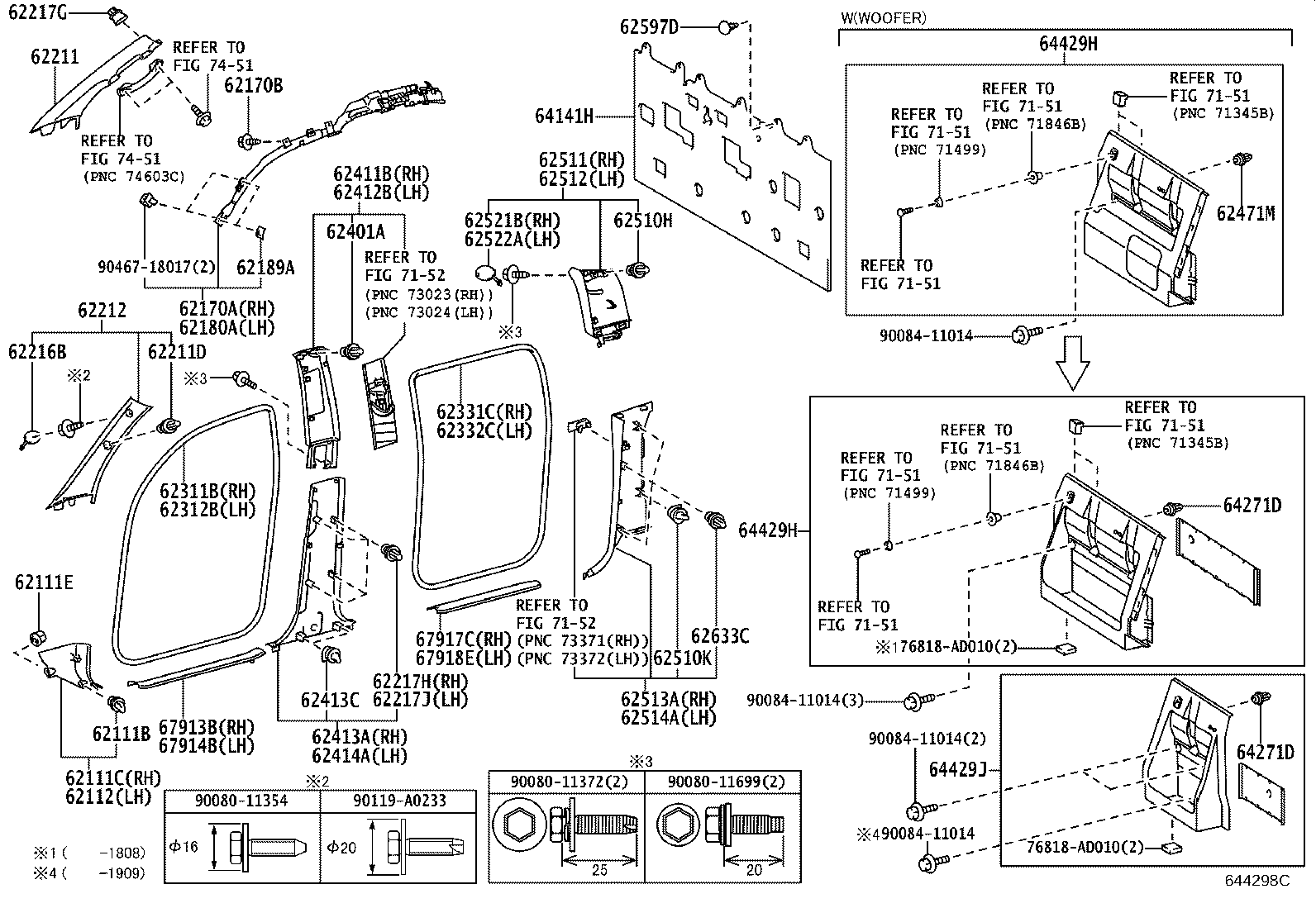

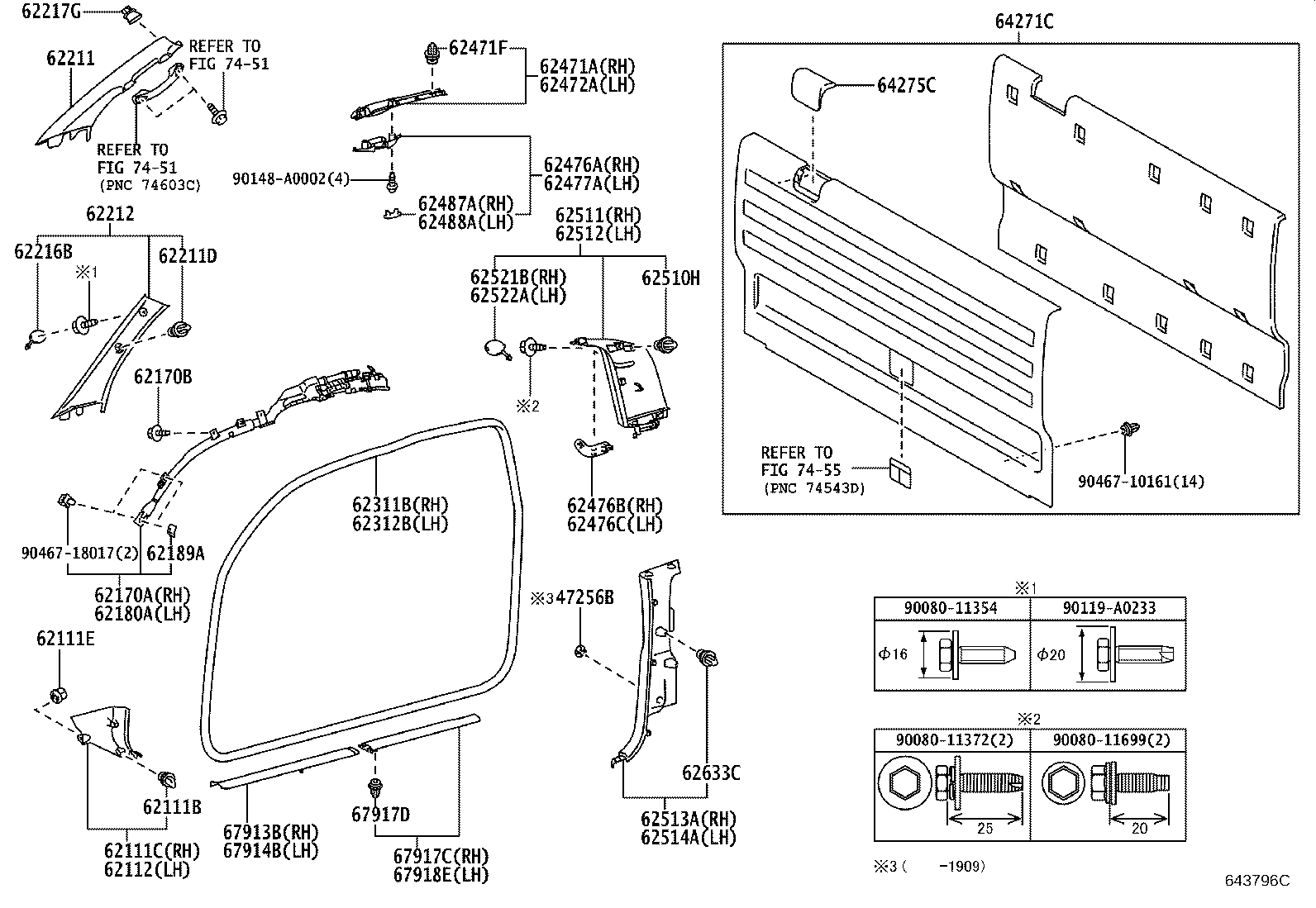

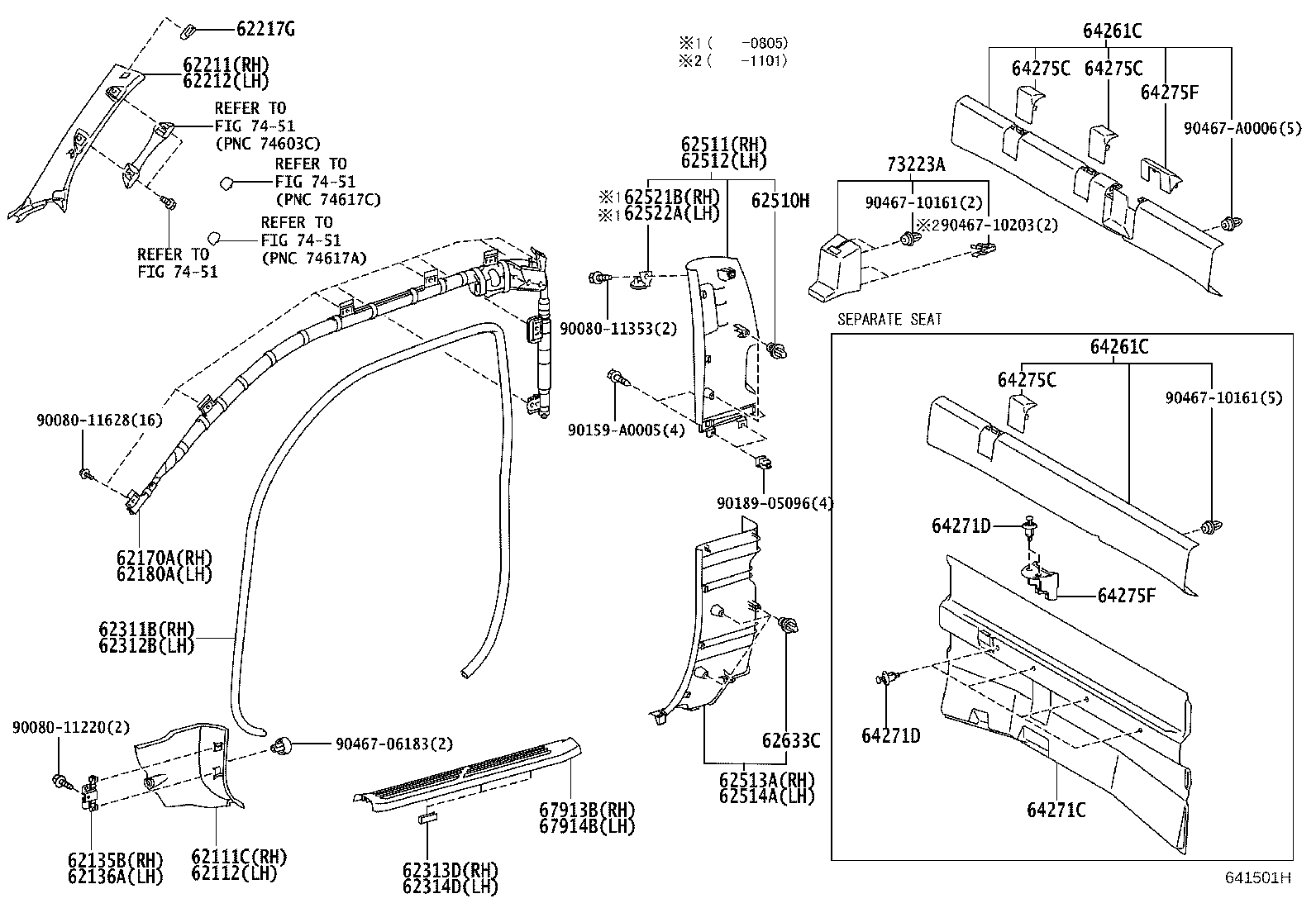

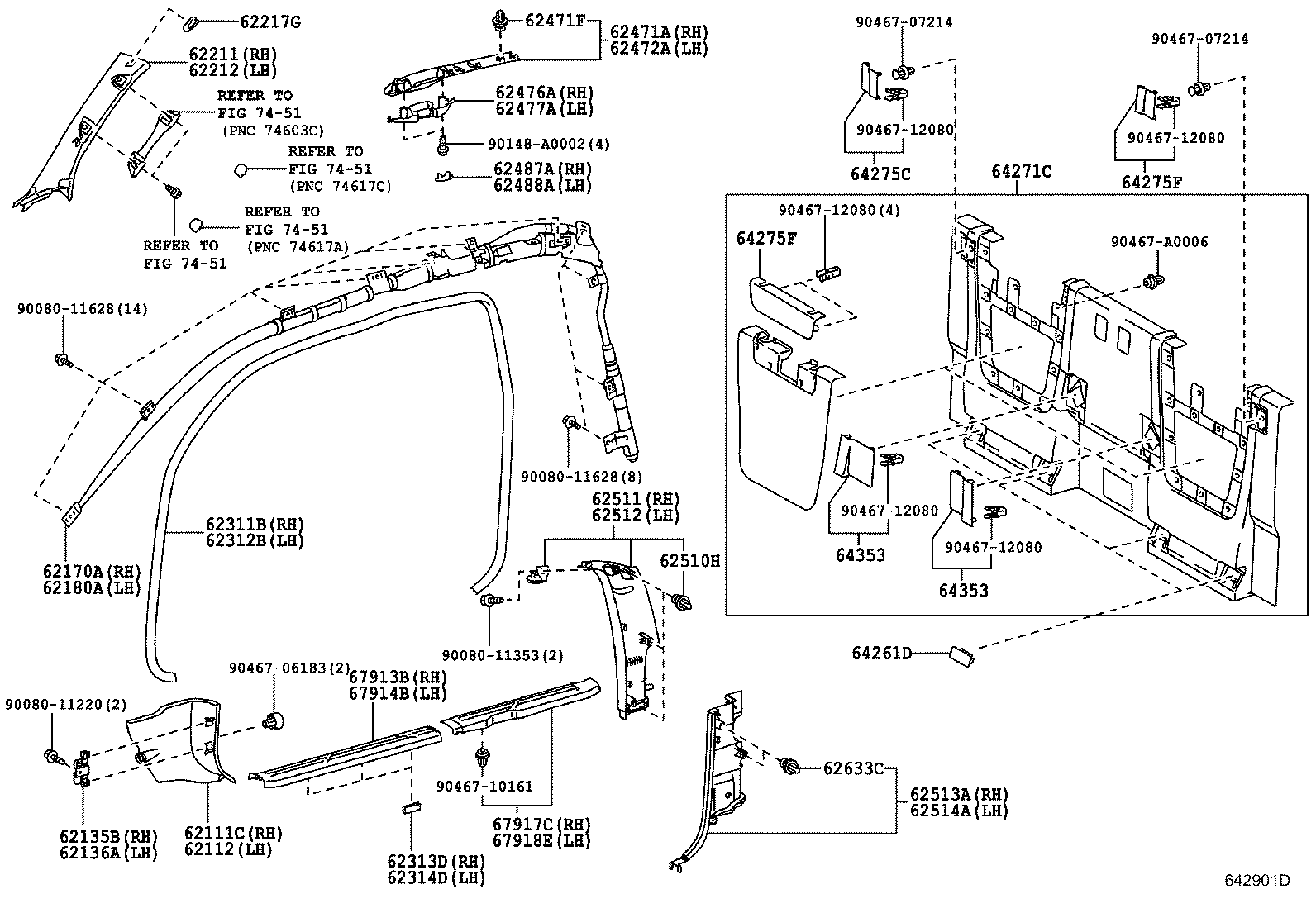

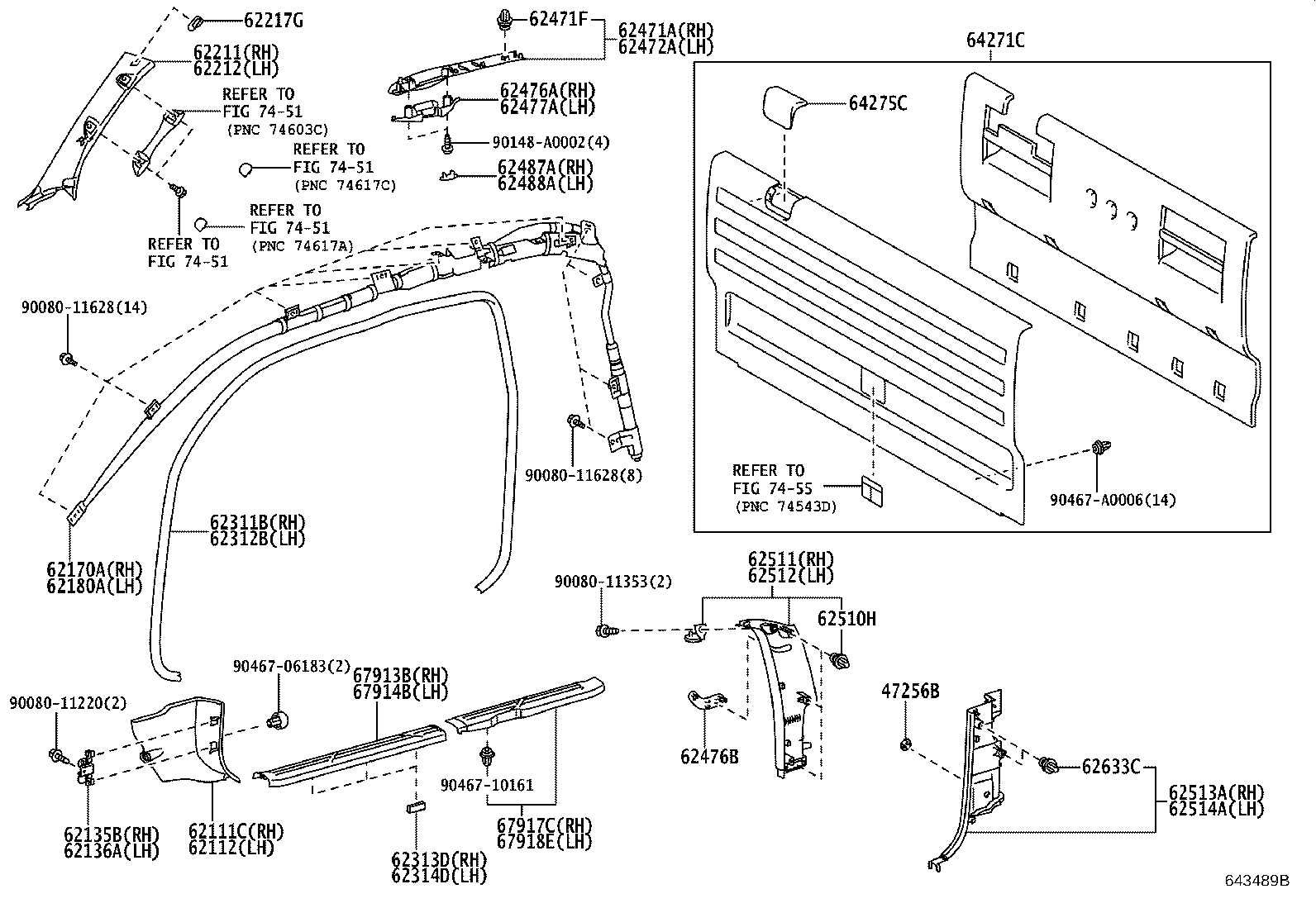

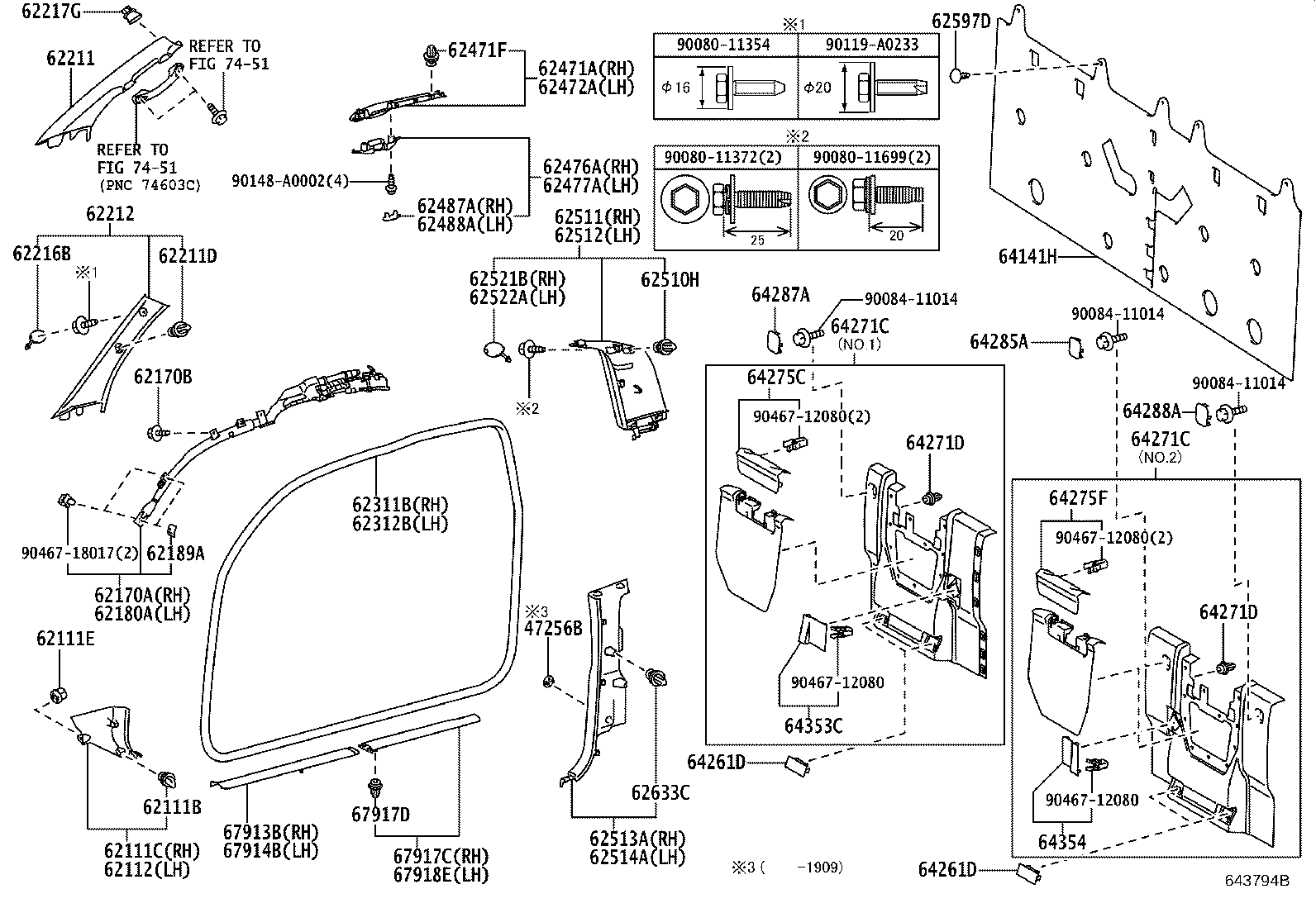

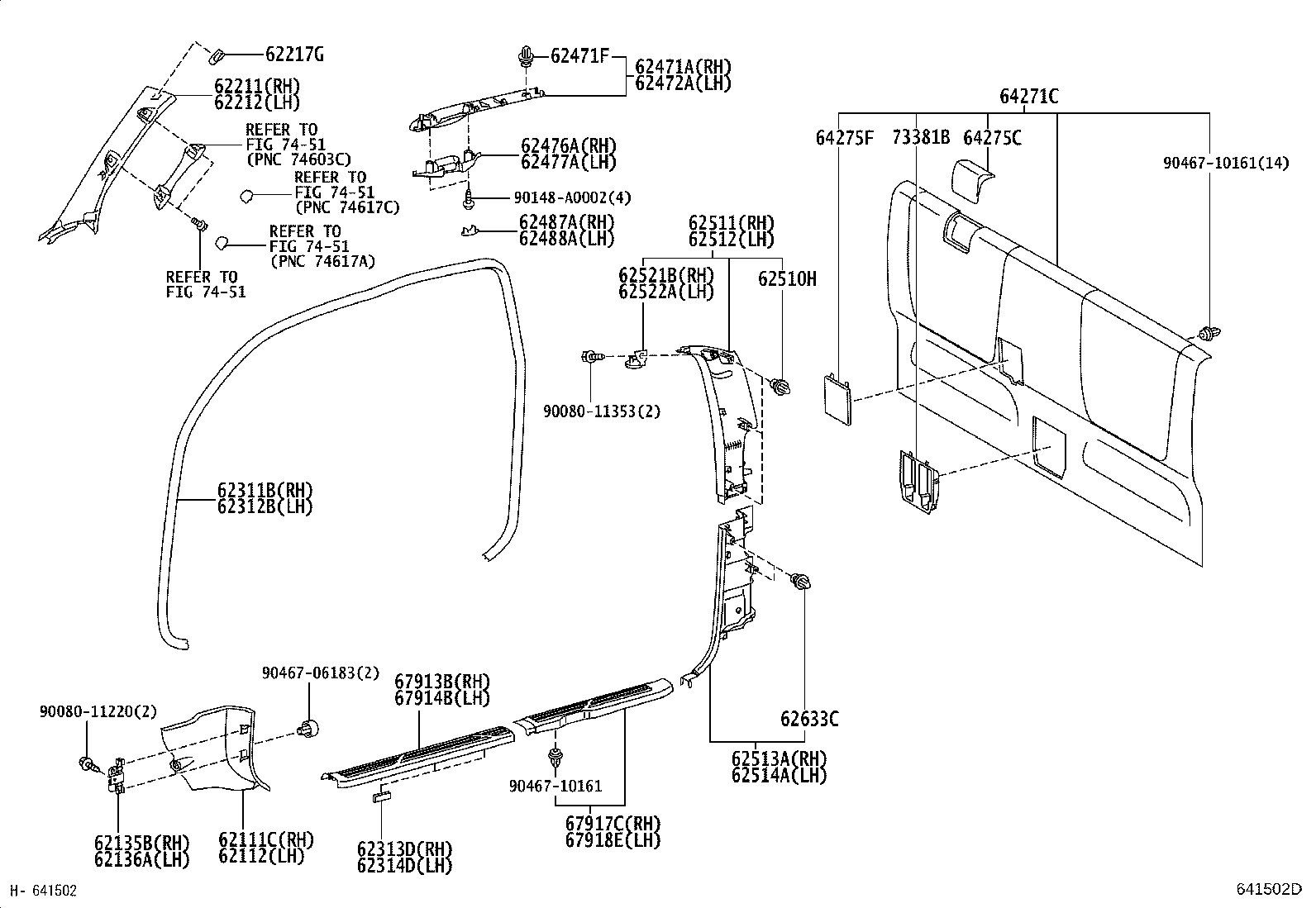

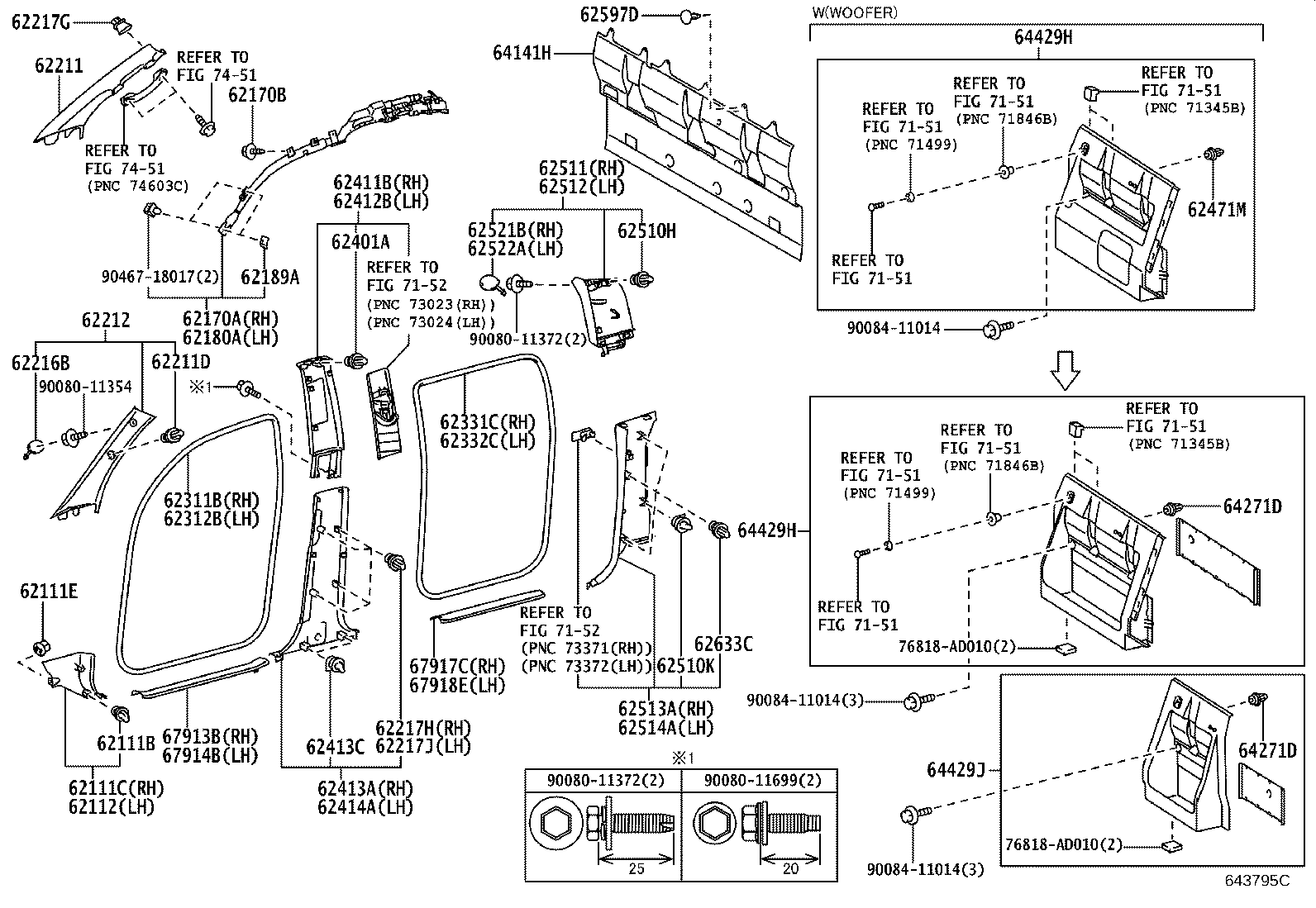

Figure 641503M 641503M 2004-09 → 2015-08 Figure 641501H 641501H 2004-09 → 2015-08 Figure 641502D 641502D 2004-09 → 2008-05 Figure 642307D 642307D 2008-05 → 2011-09 Figure 642901D 642901D 2011-09 → 2015-08 Figure 643489B 643489B 2014-08 → 2015-08 Figure 643795C 643795C 2015-08 → 2017-11 Figure 643794B 643794B 2015-08 → — Figure 643796C 643796C 2015-08 → — Figure 644298C 644298C 2017-11 → —

Part groups

PNCDescription
47256B Grommet, Cap
58299F Net, Baggage Holder
62111B Clip(FOR COWL SIDE TRIM)
62111C Board, Cowl Side Trim, RH
62111E Retainer, Cowl Side Trim
62112 Board, Cowl Side Trim, LH
62135B Retainer, Cowl Side Carpet, RH
62136A Retainer, Cowl Side Carpet, LH
62170A Airbag Assy, Curtain Shield, RH
62170B Bolt, W/Washer
62180A Airbag Assy, Curtain Shield, LH
62189A Spacer, Curtain Shield Airbag Clip
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62216B Cover, Front Pillar Garnish, NO.1 LH
62217G Clip, Front Pillar Garnish
62217H Clip, Center Piller Garnish
62217J Clip, Center Piller Garnish
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62331C Weatherstrip, Rear Door Opening Trim, RH
62332C Weatherstrip, Rear Door Opening Trim, LH
62401A Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411B Garnish, Center Pillar, Upper RH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62471A Garnish, Roof Side, Inner RH
62471F Clip (FOR ROOF SIDE, INNER UPPER GARNISH)
62471M Clip
62472A Garnish, Roof Side, Inner LH
62476A Cap, Roof Side Inner Garnish, RH
62476B Cap, Roof Side Inner Garnish, NO.1
62476C Cap, Roof Side Inner Garnish, NO.1
62477A Cap, Roof Side Inner Garnish, LH
62487A Cover, Roof Side Inner Garnish, RH
62488A Cover, Roof Side Inner Garnish, LH
62510H Clip(FOR QUARTER TRIM FRONT PANEL)
62510K Clip(FOR QUARTER TRIM FRONT PANEL)
62511 Board, Quarter Inside Trim, RH
62512 Board, Quarter Inside Trim, LH
62513A Panel, Quarter Trim, Lower RH
62514A Panel, Quarter Trim, Lower LH
62521B Cover, Quarter Trim, RH
62522A Cover, Quarter Trim, LH
62597D Clip
62633C Clip (FOR QUARTER TRIM GARNISH)
62649 Bracket, Side Trim
64141H Silencer, Back Panel, NO.1
64261C Garnish, Back Panel, Upper
64261D Plug, Hole(FOR BACK PANEL GARNISH)
64271C Trim, Back Panel
64271D Clip(FOR BACK PANEL TRIM)
64275C Cover, Back Panel Trim
64275F Cover, Back Panel Trim
64285A Cover, Room Partition, NO.3
64287A Cover, Room Partition, NO.4 RH
64288A Cover, Room Partition, NO.4 LH
64353 Cover, Package Tray Trim Belt Hole
64353C Cover, Package Tray Trim Belt Hole, RH
64354 Cover, Package Tray Trim Belt Hole, LH
64424 Separator, Luggage Room Box
64429H Tray, Luggage Compartment Side
64429J Tray, Luggage Compartment Side
67913B Plate, Front Door Scuff, RH
67914B Plate, Front Door Scuff, LH
67917C Plate, Rear Door Scuff, RH
67917D Clip, Rear Door Scuff Plate
67918E Plate, Rear Door Scuff, LH
73223A Cover, Seat Belt Retractor
73381B Holder, Rear Seat Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
