Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 9 illustrations

Illustrations

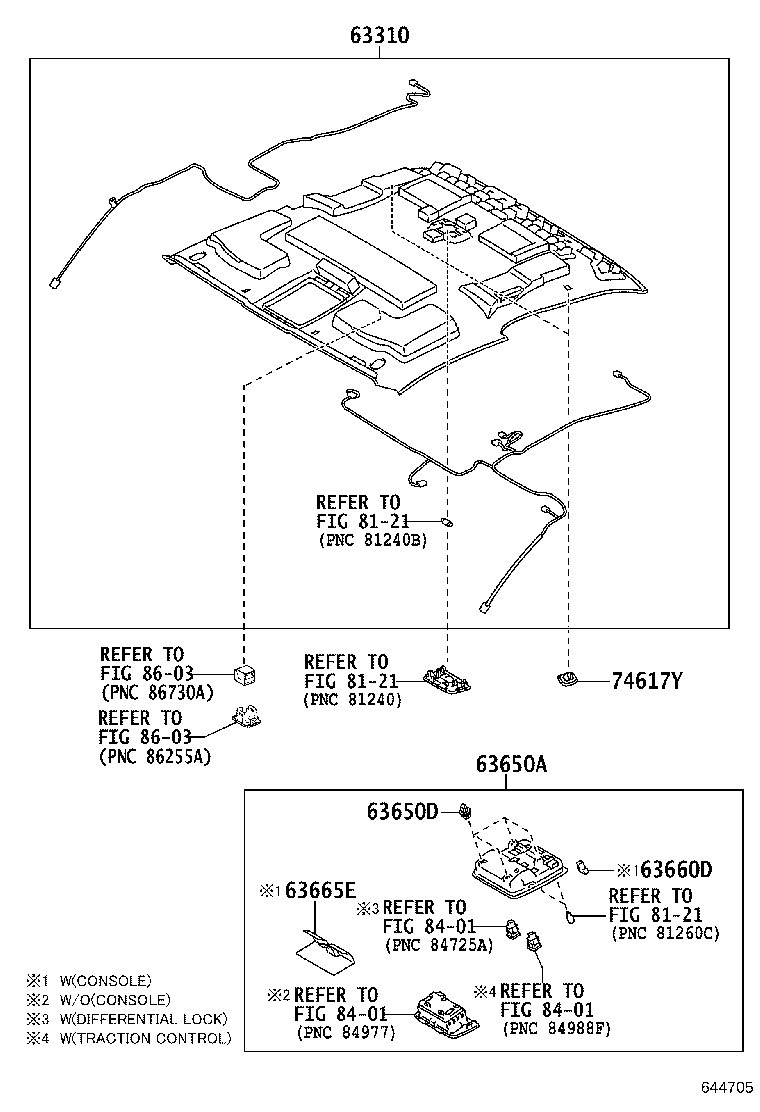

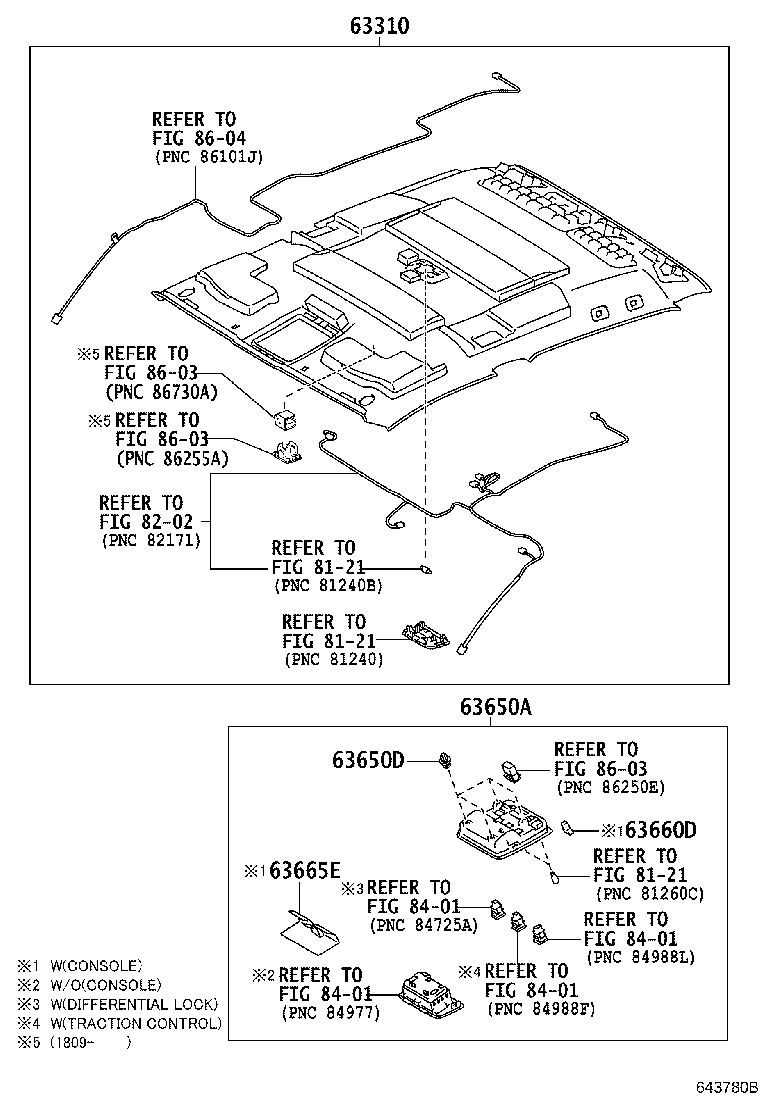

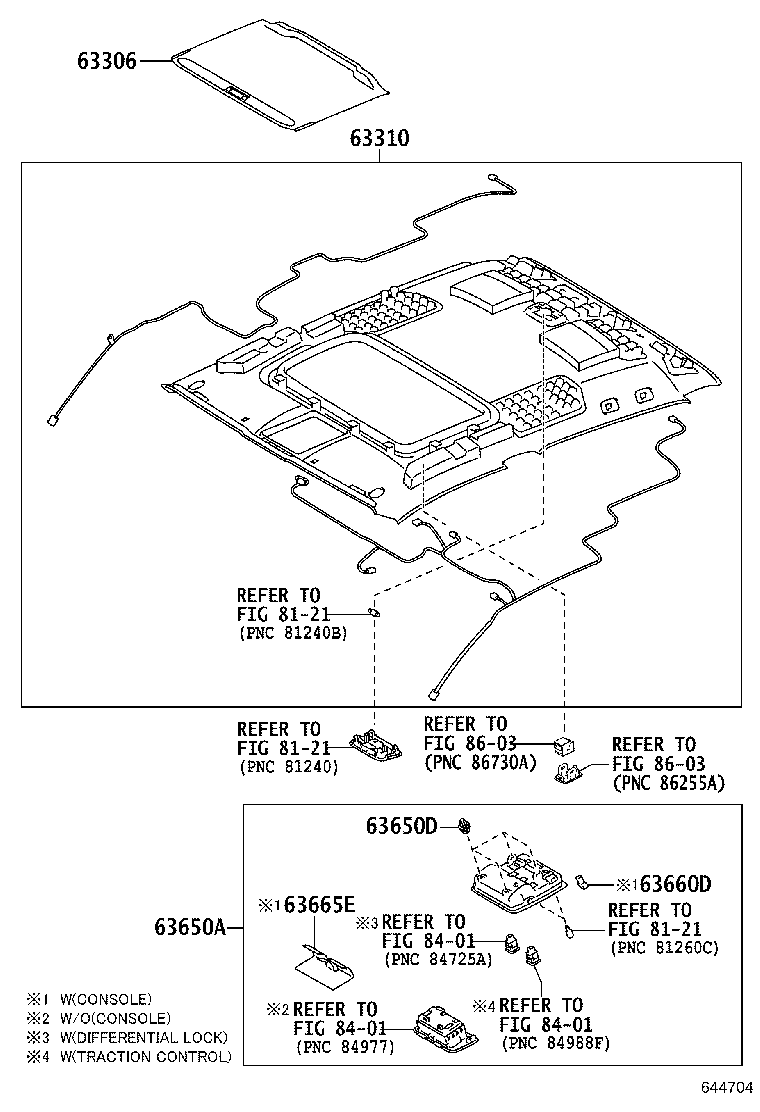

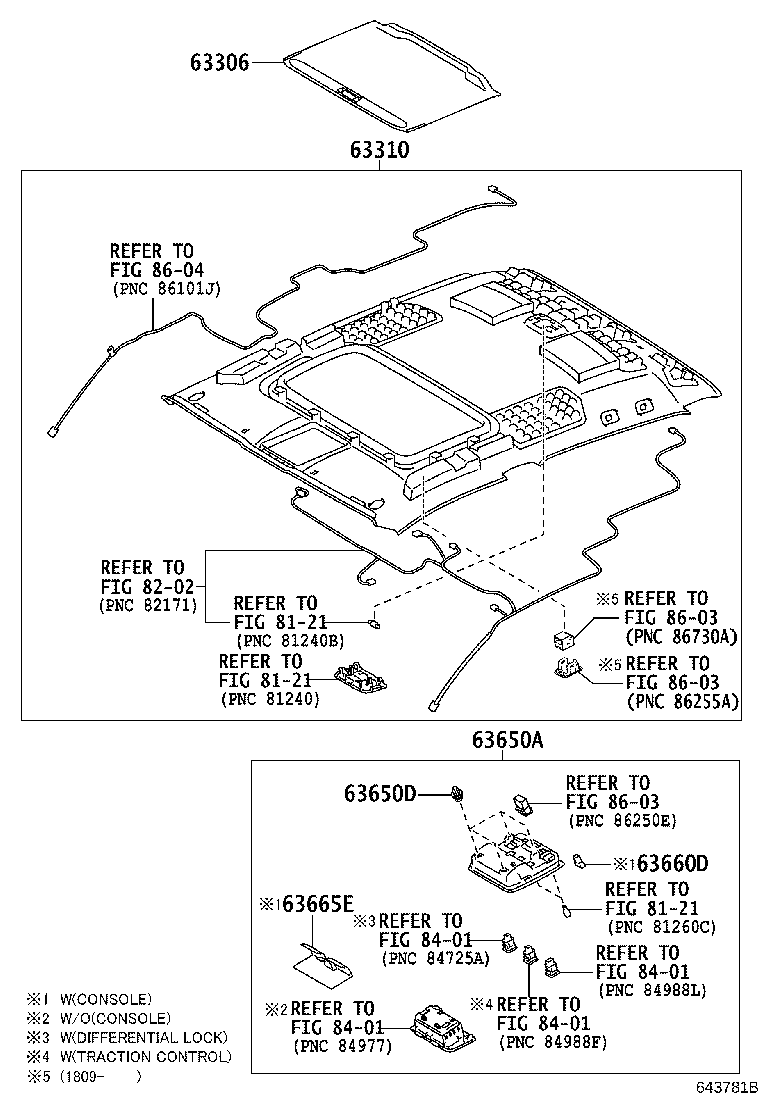

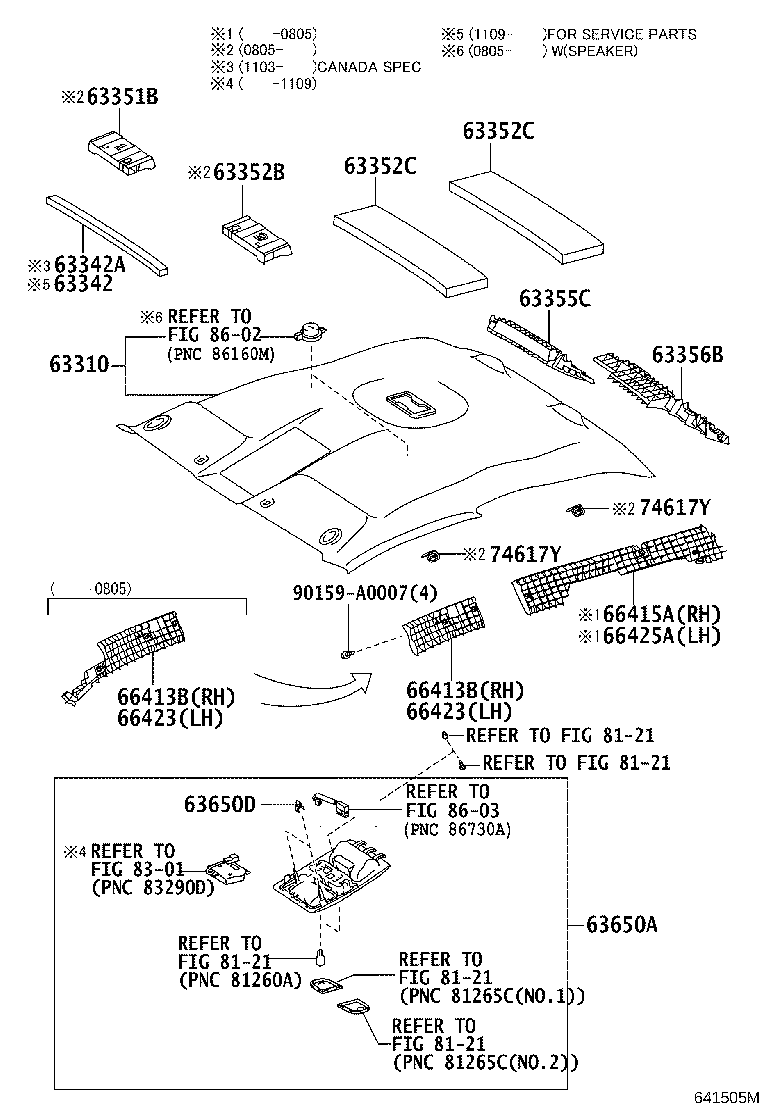

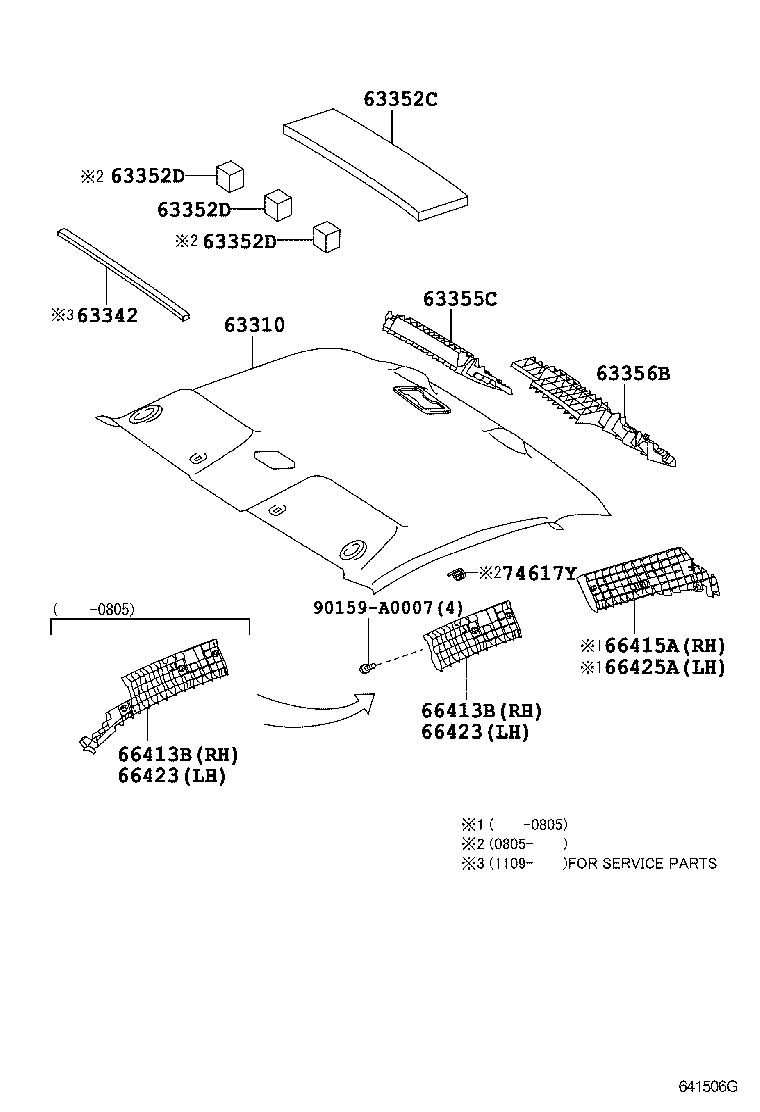

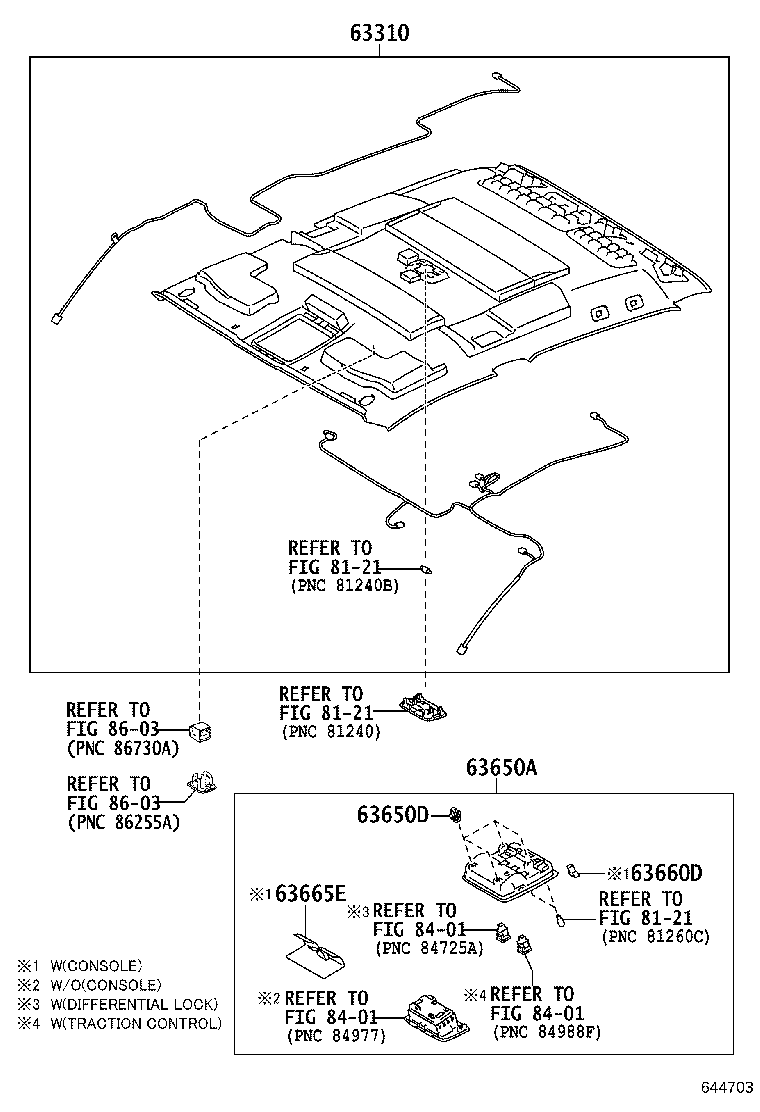

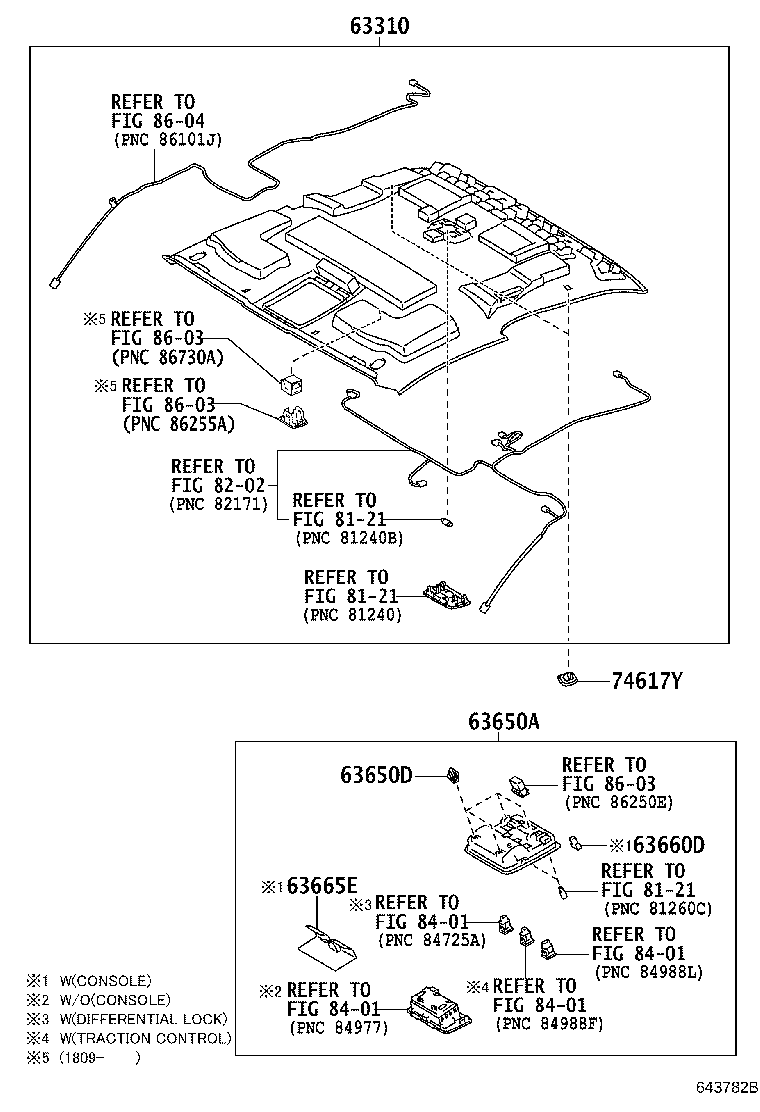

Figure 641504K 641504K 2004-09 → 2015-08 Figure 641505M 641505M 2004-09 → 2015-08 Figure 641506G 641506G 2004-09 → 2015-08 Figure 643780B 643780B 2015-08 → 2019-09 Figure 643781B 643781B 2015-08 → 2019-09 Figure 643782B 643782B 2015-08 → 2019-09 Figure 644703 644703 2019-09 → — Figure 644704 644704 2019-09 → — Figure 644705 644705 2019-09 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63342 Pad, Roof Silencer, NO.2
63342A Silencer, Roof, NO.2
63345B Pad, Roof Silencer, Center
63351B Pad, Roof Headlining
63352B Pad, Roof Headlining, Side
63352C Pad, Roof Headlining, End
63352D Pad, Roof Headlining, NO.2
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
63650A Box Assy, Roof Console
63650D Clip(FOR ROOF CONSOLE BOX)
63660D Lock Assy, Roof Console
63665E Mat, Roof Console Box
66413B Spacer, Side Rail, Front RH
66415A Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66425A Spacer, Side Rail, Rear NO.2 LH
74617Y Plug, Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
