Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

46 part groups · 6 illustrations

Illustrations

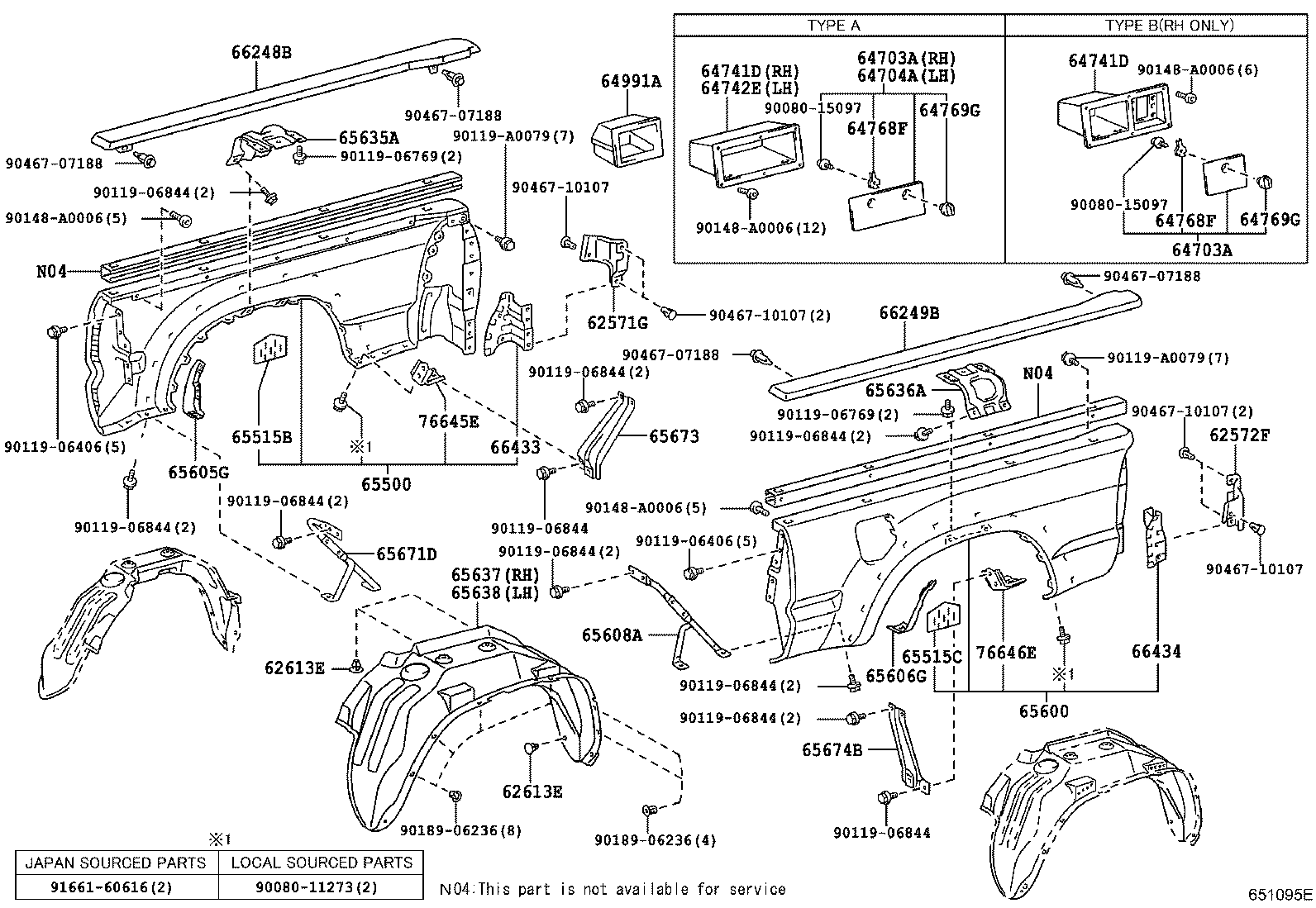

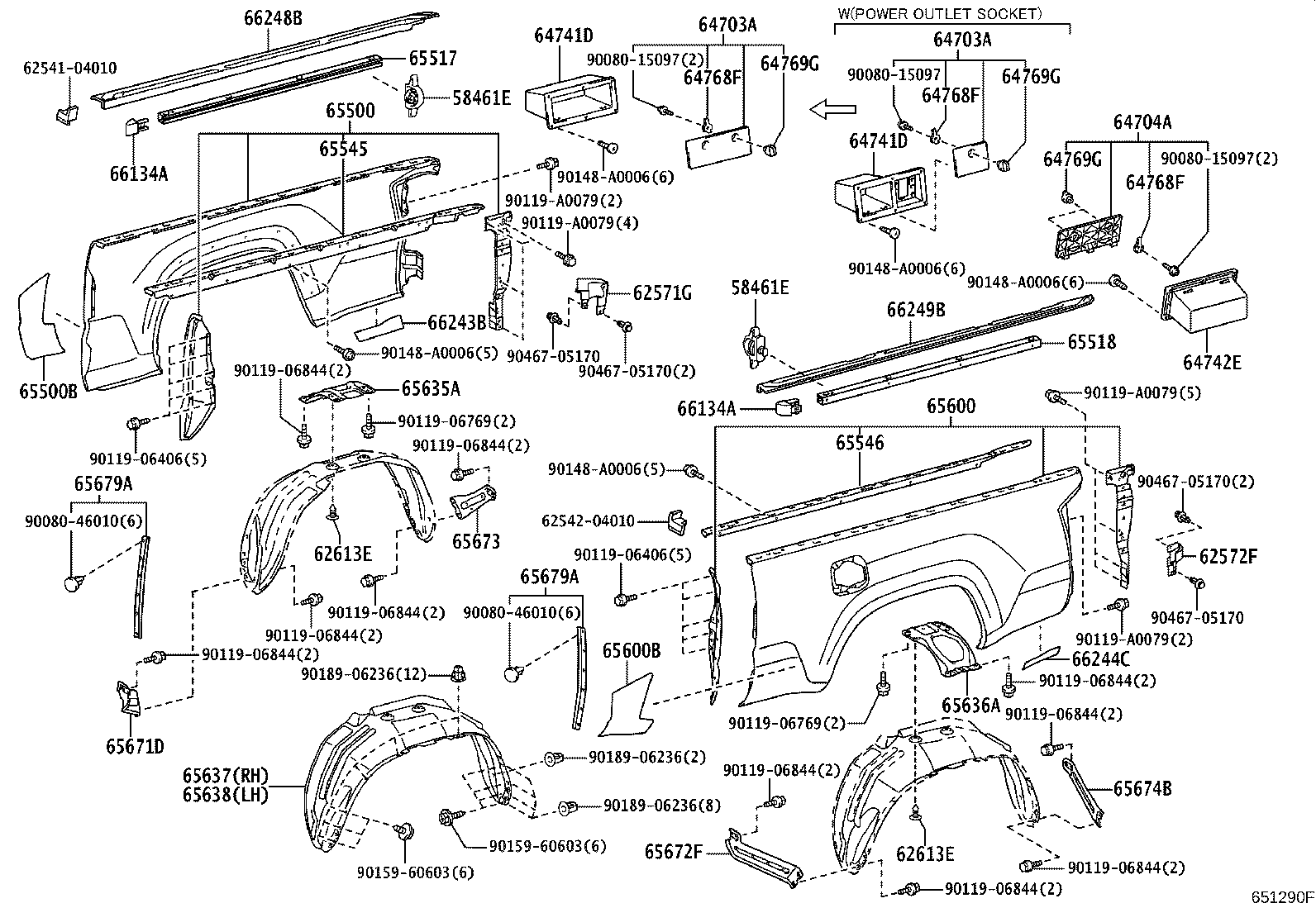

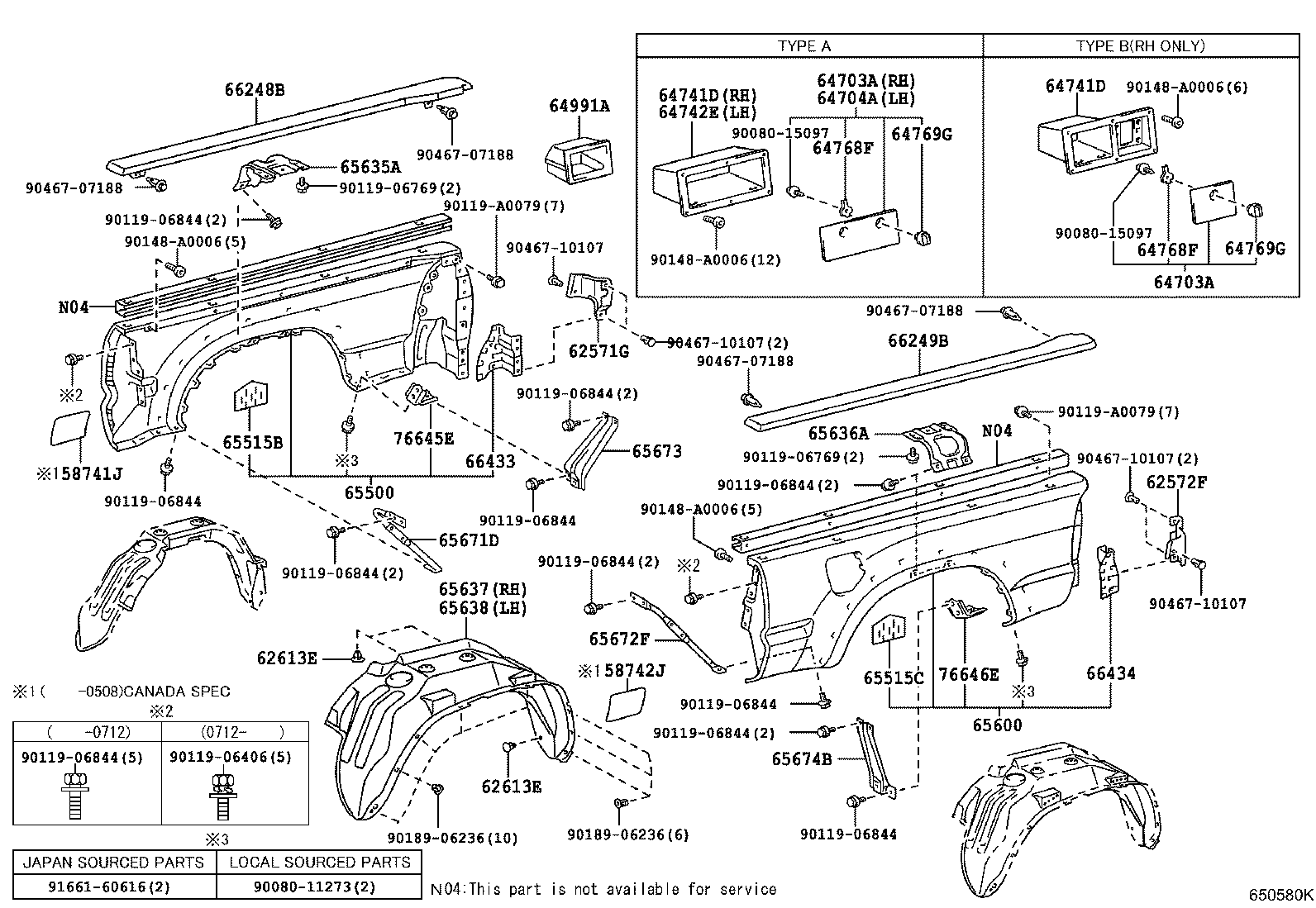

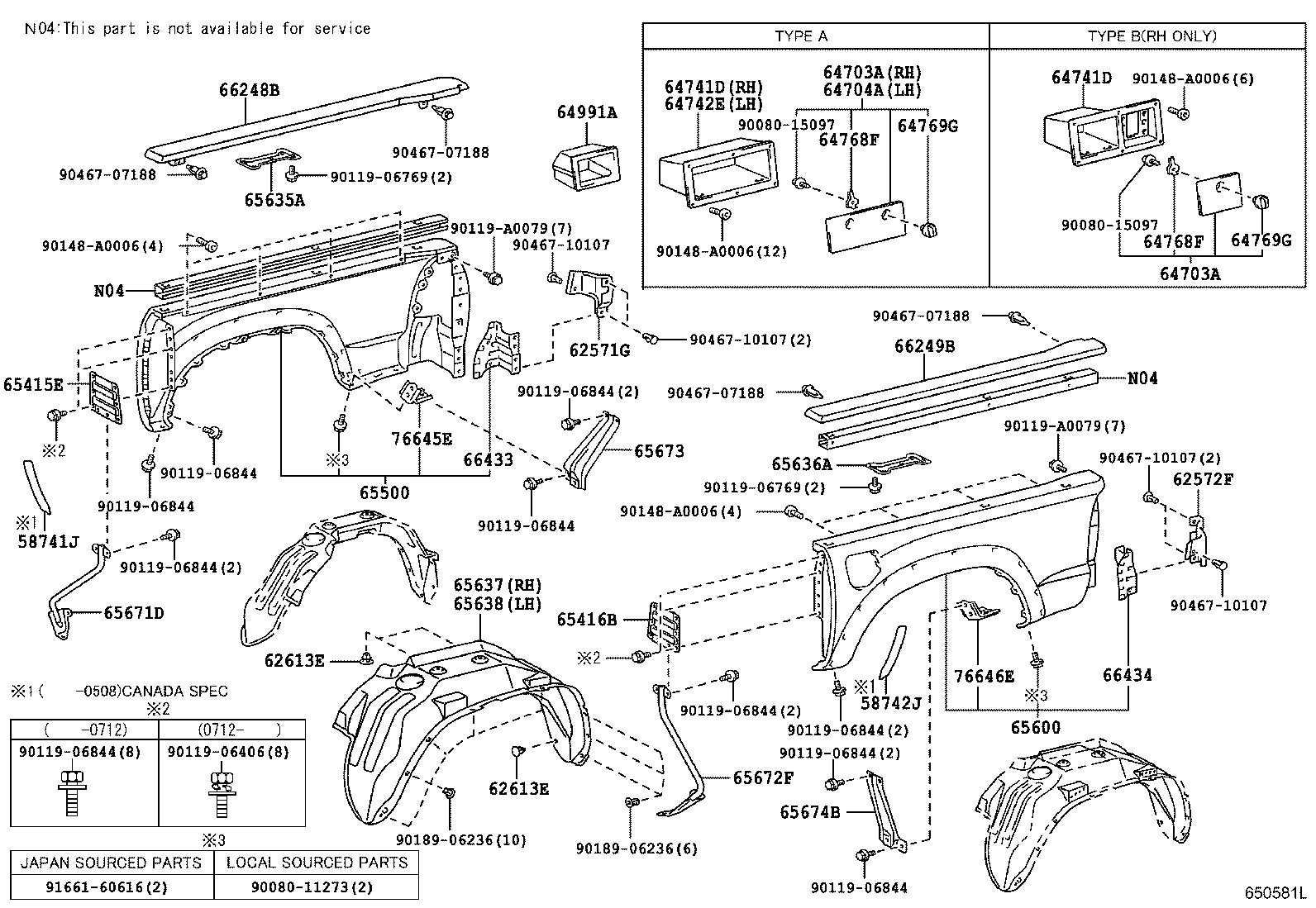

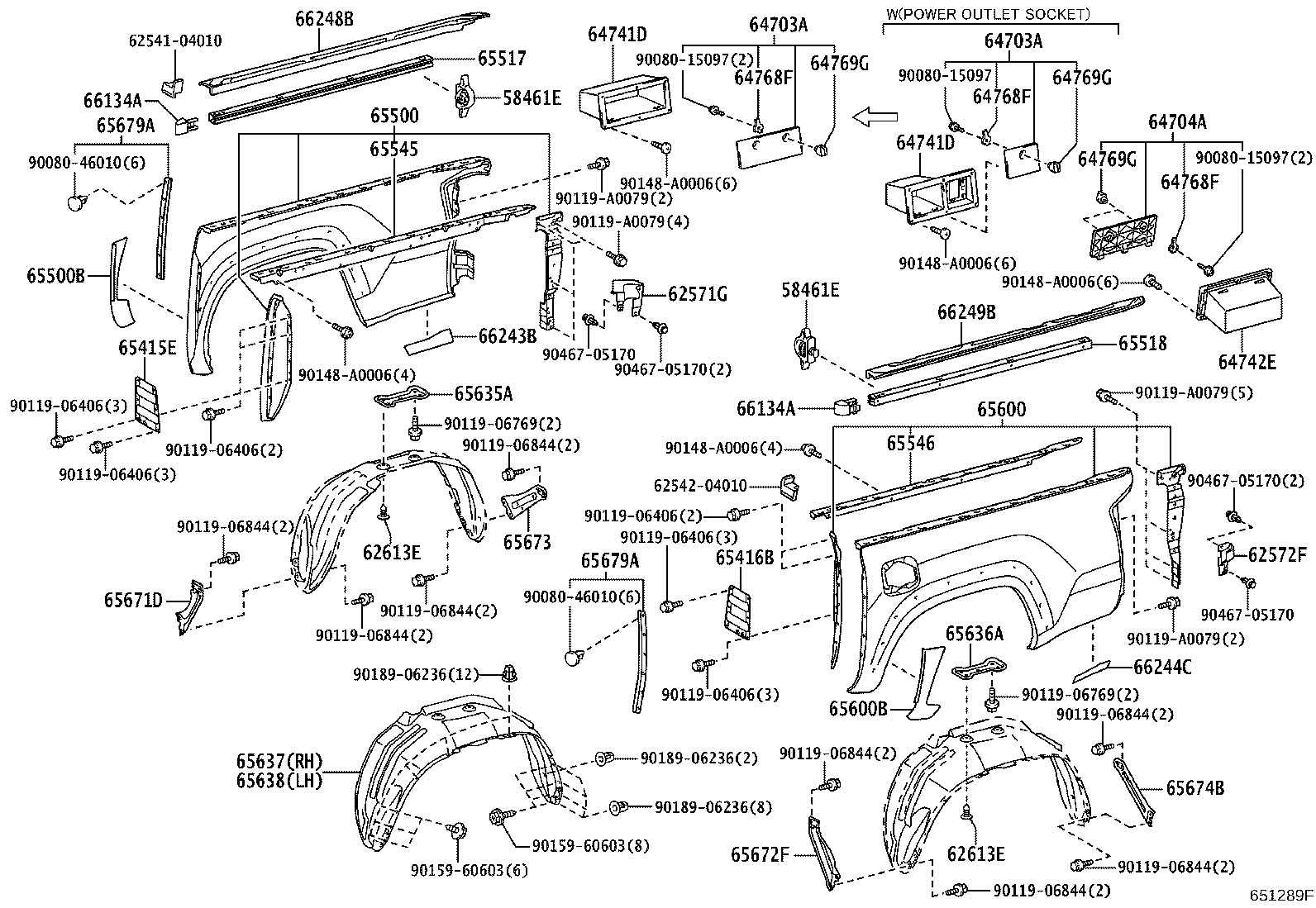

Figure 650579J 650579J 2004-09 → 2015-08 Figure 650580K 650580K 2004-09 → 2015-08 Figure 650581L 650581L 2004-09 → 2015-08 Figure 651095E 651095E 2011-09 → 2015-08 Figure 651289F 651289F 2015-08 → — Figure 651290F 651290F 2015-08 → —

Part groups

PNCDescription
58461E Striker, Luggage Hold Belt
58741J Protector, Rear Wheel Extension, RH
58742J Protector, Rear Wheel Extension, LH
62571G Garnish, Rear Pillar, Lower RH
62572F Garnish, RR Pillar, Lwr LH
62613E Clip (FOR QUARTER WHEEL HOUSE COVER)
64703A Cover Sub-assy, Deck Side Trim, RH
64704A Cover Sub-assy, Deck Side Trim, LH
64741D Box, Deck Side Trim, RH
64742E Box, Deck Side Trim, LH
64768F Stopper, Jack Cover
64769G Knob, Jack Cover
64991A Box, Deck Floor, FR
65415E Panel, Rear Body, FR RH
65416B Panel, Rear Body, Front LH
65500 Panel Assy, Rear Body Side, RH
65500B Protector, Rear Body Side Panel, RH
65515B Stiffener, Rear Body Side Panel, NO.1
65515C Stiffener, Rear Body Side Panel, NO.2
65517 Rail, Side Panel Top, Rear RH
65518 Rail, Side Panel Top, Rear LH
65545 Reinforcement, Side Panel, NO.1
65546 Reinforcement, Side Panel, NO.2
65600 Panel Assy, Rear Body Side, LH
65600B Protector, Rear Body Side Panel, LH
65605G Panel Sub-assy, Wheel House, RH
65606G Panel Sub-assy, Wheel House, LH
65608A Skirt Sub-assy, Side Panel, Rear LH
65635A Panel, Wheel House, Rear RH
65636A Panel, Wheel House, Rear LH
65637 Liner, Rear Wheel House, RH
65638 Liner, Rear Wheel House, LH
65671D Brace, Side Panel Skirt, Front RH
65672F Brace, Side Panel Skirt, Front LH
65673 Brace, Side Panel Skirt, Rear
65674B Brace, Side Panel Skirt, RR LH
65679A Seal, Side Gate
66134A Cap, Side Gate Support
66243B Protector, Rear Body, NO.1
66244C Protector, Rear Body, NO.2
66248B Protector, Rear Body Side Panel, RH
66249B Protector, Rear Body Side Panel, LH
66433 Brace, Side Rear Step, RH
66434 Brace, Side Rear Step, LH
76645E Bracket, RR Body Mudguard, RH
76646E Bracket, RR Body Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
