Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

62 part groups · 11 illustrations

Illustrations

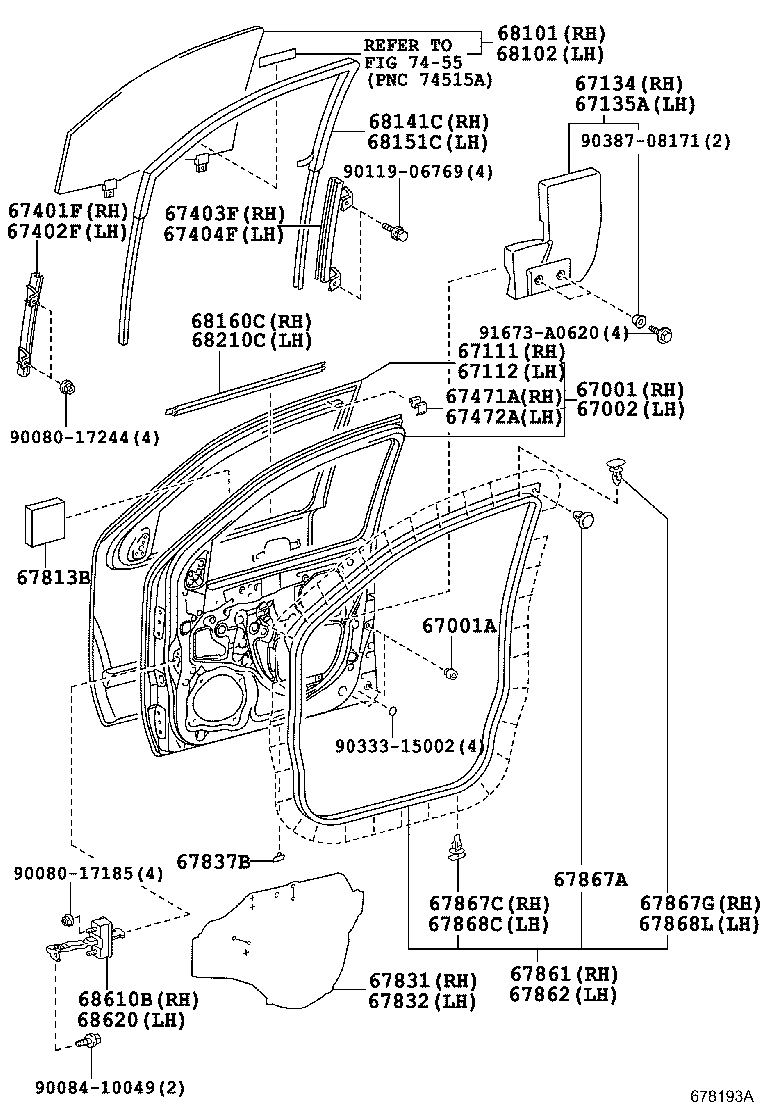

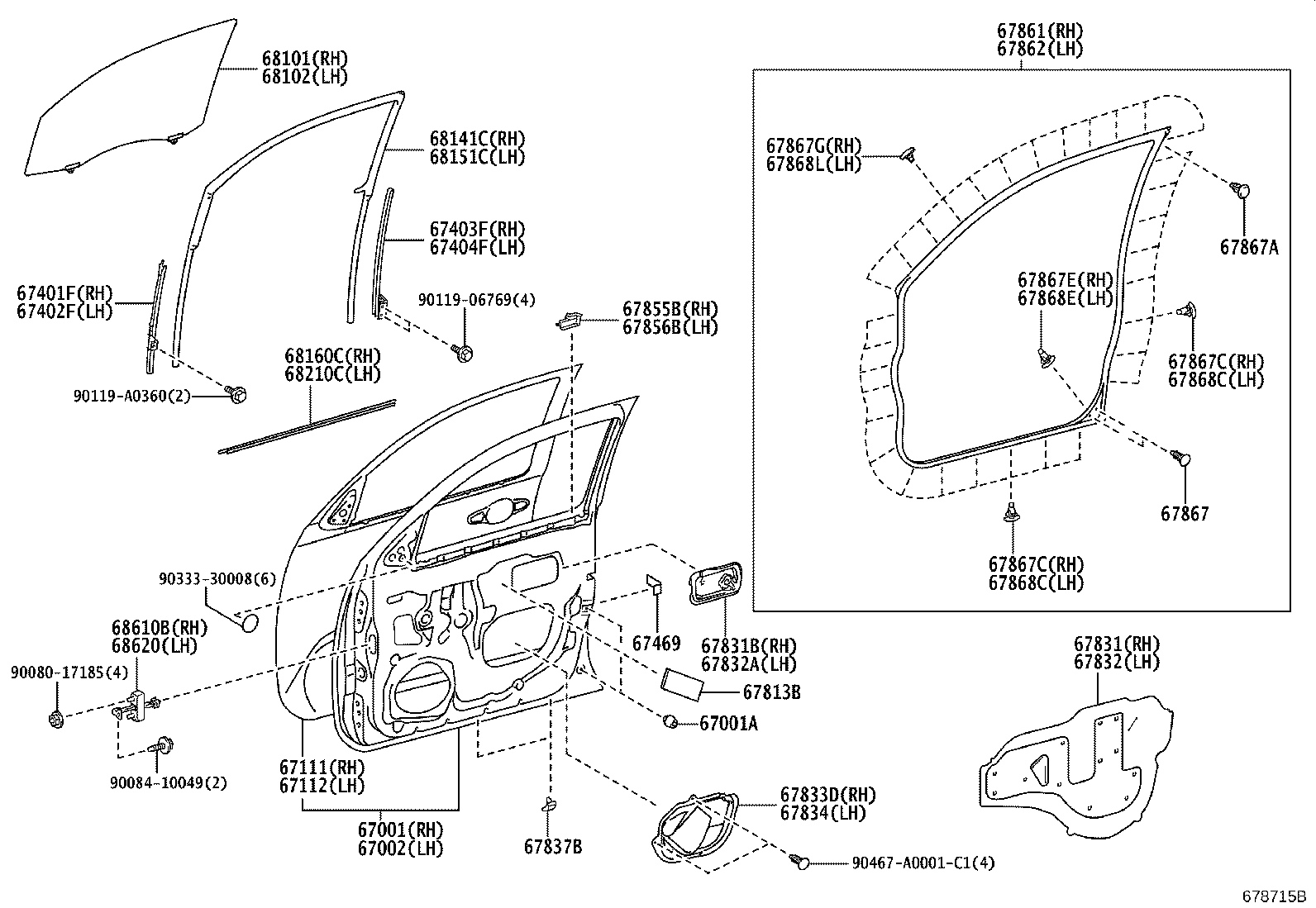

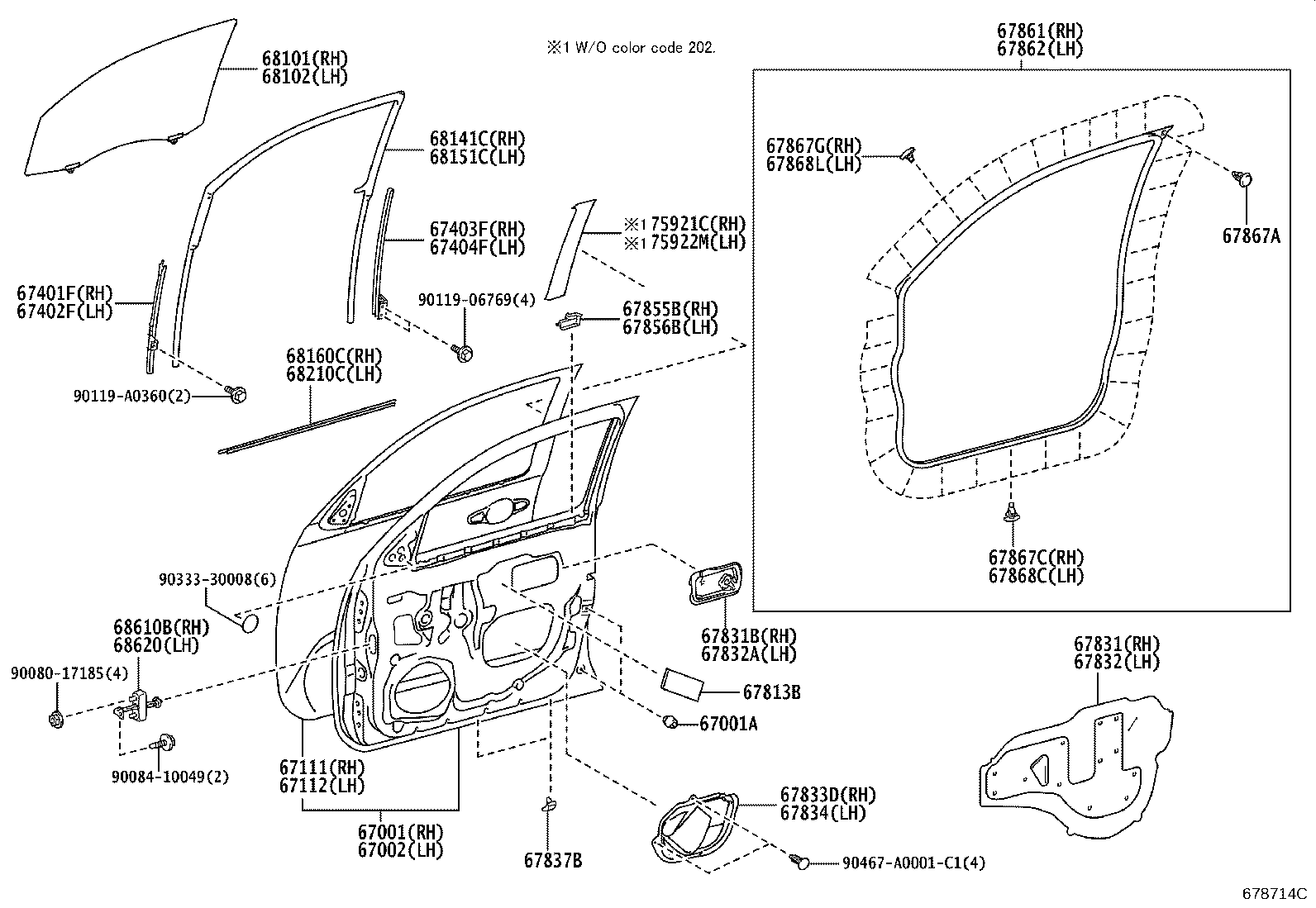

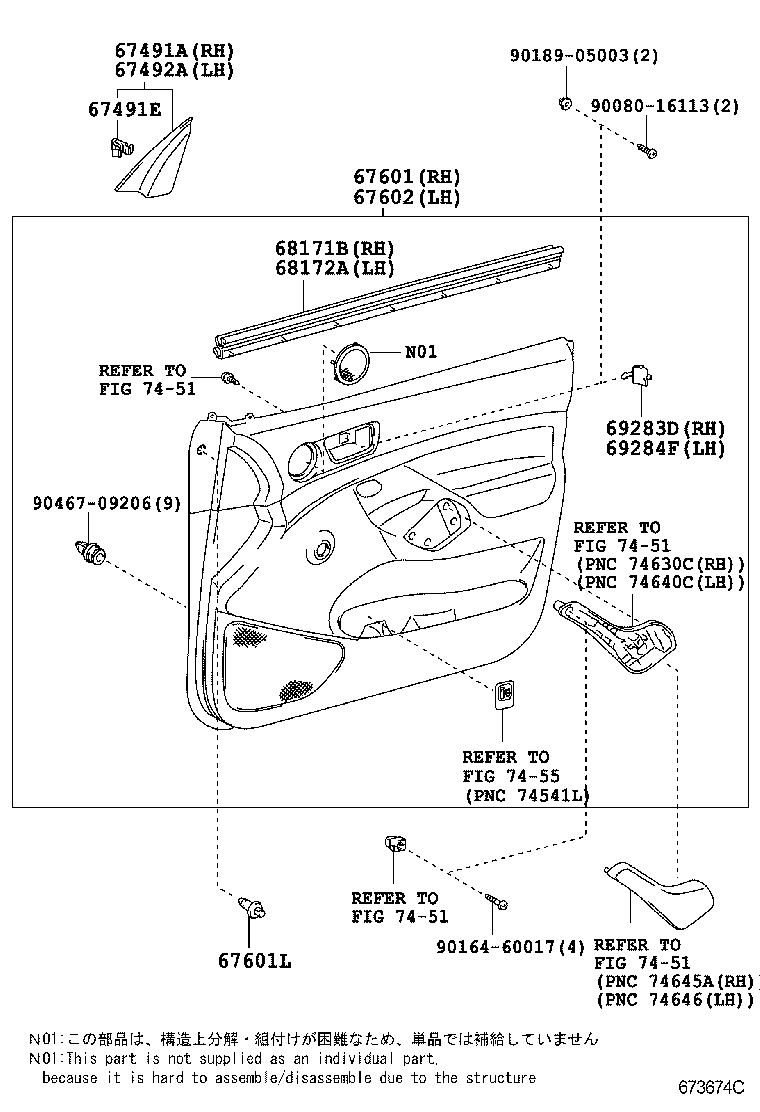

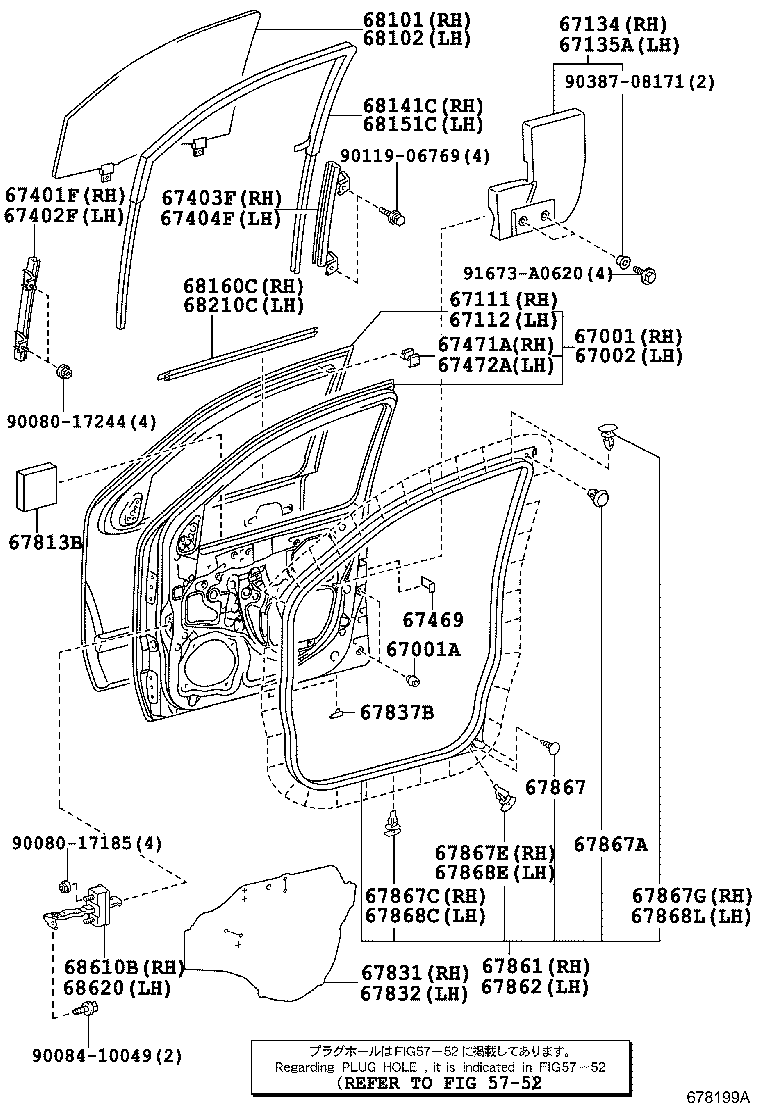

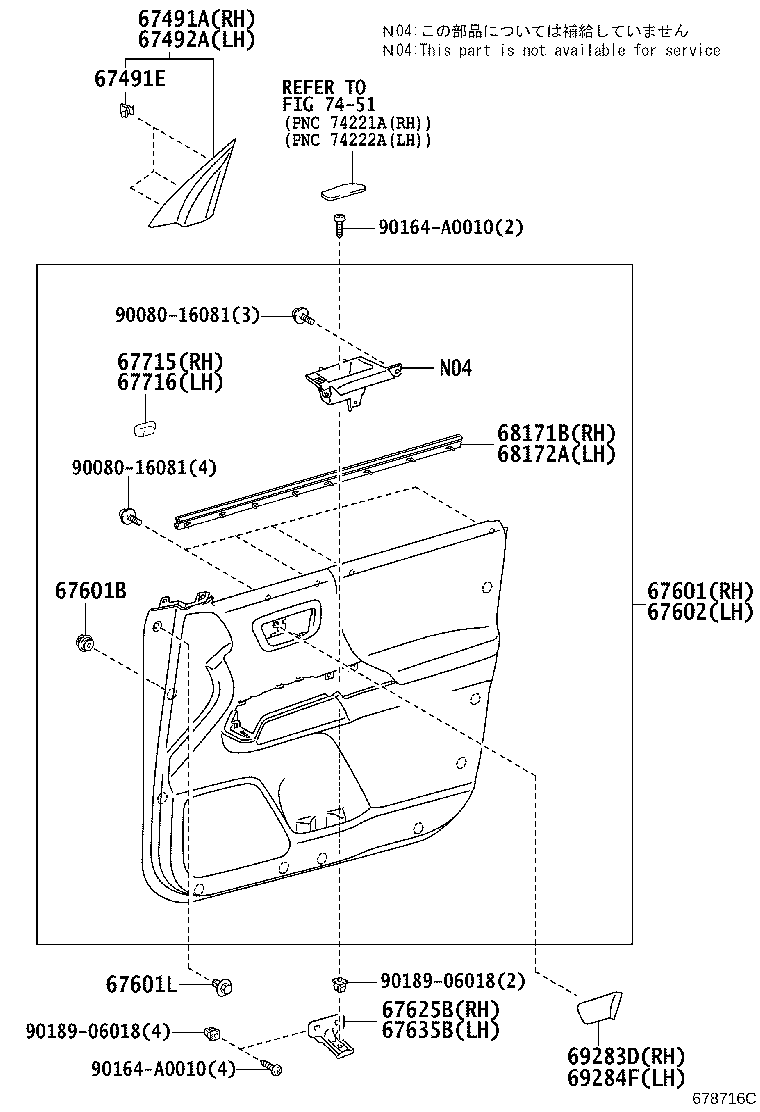

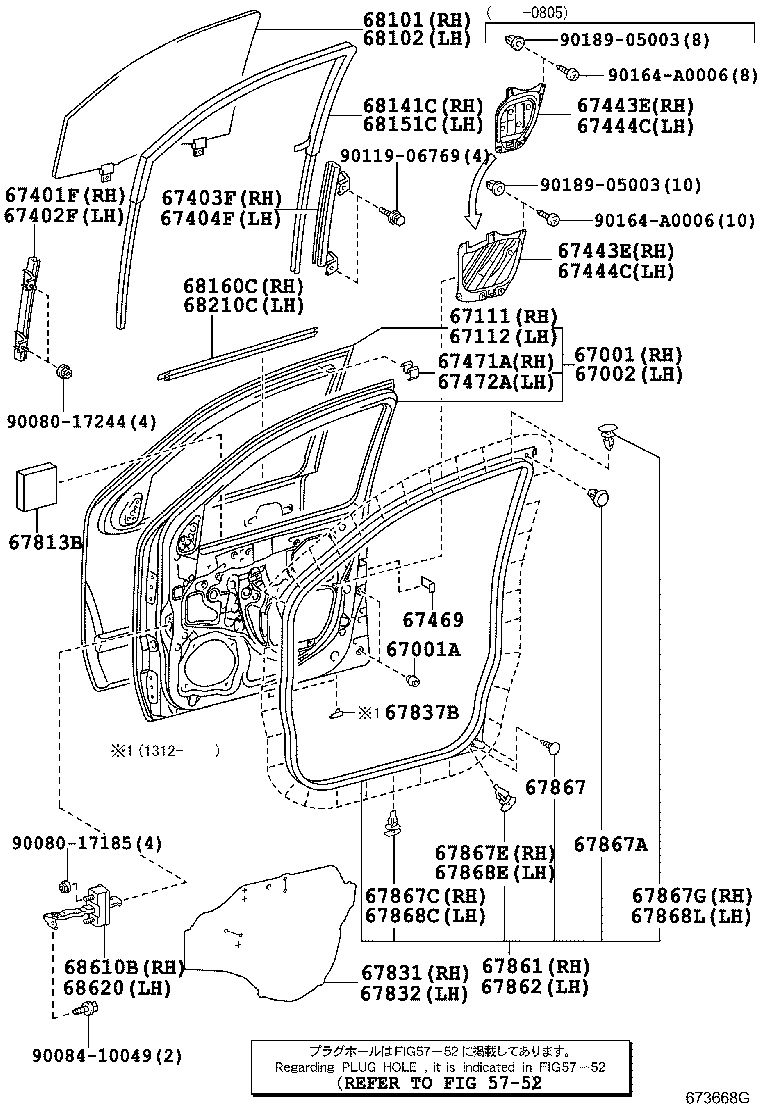

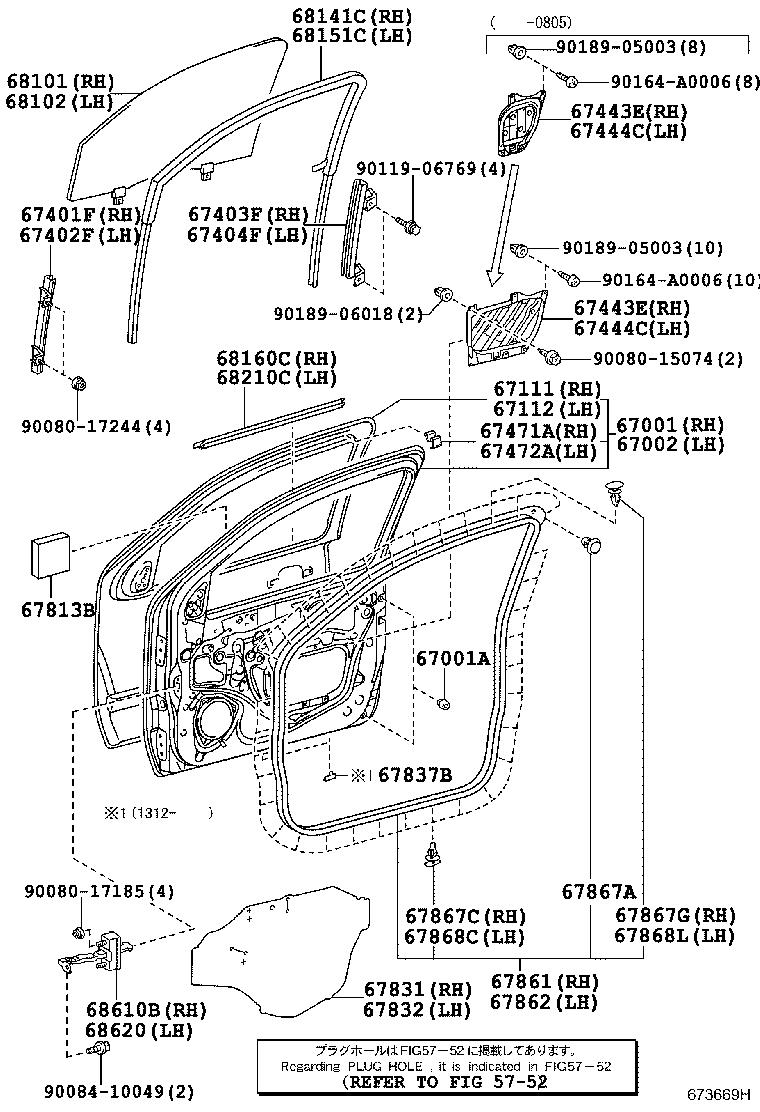

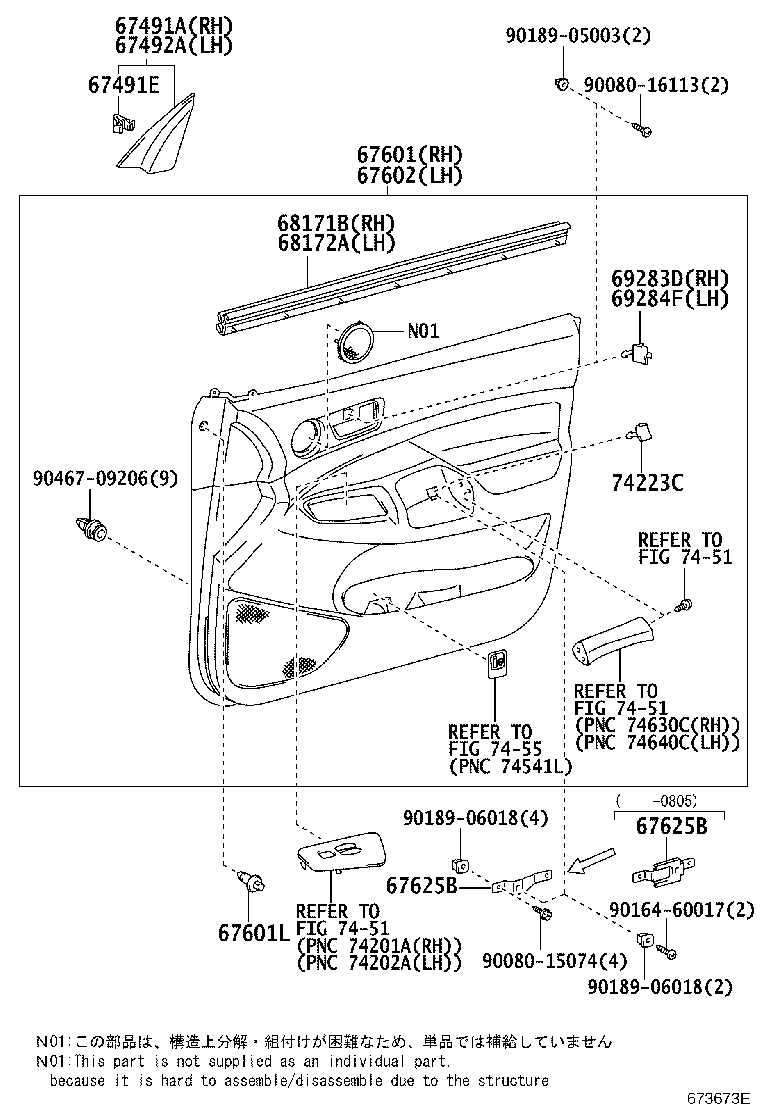

Figure 673667J 673667J 2004-09 → 2014-08 Figure 673668G 673668G 2004-09 → 2014-08 Figure 673669H 673669H 2004-09 → 2014-08 Figure 678193A 678193A 2014-08 → 2015-08 Figure 678199A 678199A 2014-08 → 2015-08 Figure 678714C 678714C 2015-08 → — Figure 678715B 678715B 2015-08 → — Figure 673674C 673674C 2004-09 → 2015-08 Figure 673673E 673673E 2004-09 → 2015-08 Figure 678716C 678716C 2015-08 → — Figure 675187 675187 2004-09 → 2007-02

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67134 Pad, Front Door Outer Panel, RH
67135A Pad, Front Door Outer Panel, LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67443E Plate, Front Door Inside Panel, RH
67444C Plate, Front Door Inside Panel, LH
67469 Protector, Front Door Guide
67471A Bracket, Front Door Window, Front Upper RH
67472A Bracket, Front Door Window, Front Upper LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67491E Retainer, Door Trim
67492A Garnish, Front Door Lower Frame Bracket, LH
67601 Board Sub-assy, Front Door Trim, RH
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67601L Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67625B Bracket, Door Trim, NO.1 RH
67635B Bracket, Door Trim, NO.1 LH
67715 Pad, Door Trim, NO.1
67716 Pad, Door Trim, NO.2
67813B Packing, Door Protector
67831 Cover, Front Door Service Hole, RH
67831B Cover, Front Door Service Hole, NO.2 RH
67832 Cover, Front Door Service Hole, LH
67832A Cover, Front Door Service Hole, NO.2 LH
67833D Cover, Front Door Service Hole, NO.2 RH
67834 Cover, Front Door Service Hole, NO.2 LH
67837B Seal, Front Door Dust Proof
67855B Protector, Front Door Panel, RH
67856B Protector, Front Door Panel, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867 Clip, Door Weatherstrip
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
67867C Retainer, Front Door Weatherstrip, RH
67867E Retainer, Front Door Lower Protector, RH
67867G Retainer, Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67868E Retainer, Front Door Lower Protector, LH
67868L Retainer, Door Weatherstrip, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
69283D Plug, Front Door Inside Handle Bezel, RH
69284F Plug, Front Door Inside Handle Bezel, LH
74223C Cap, Door Armrest
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
