Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

161 part groups · 31 illustrations

Illustrations

713432M 2004-09 → 2005-08

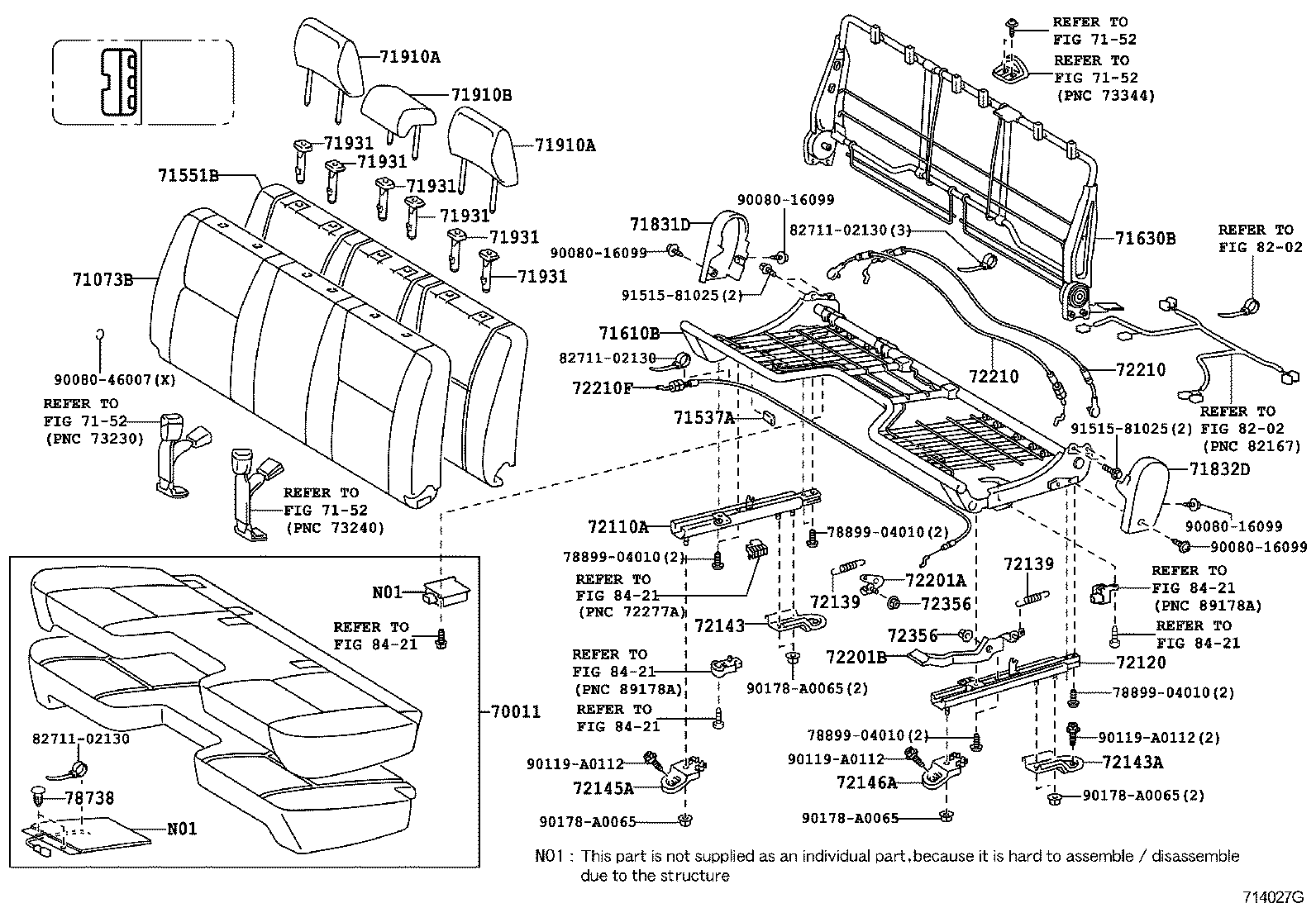

714027G 2005-08 → 2008-05

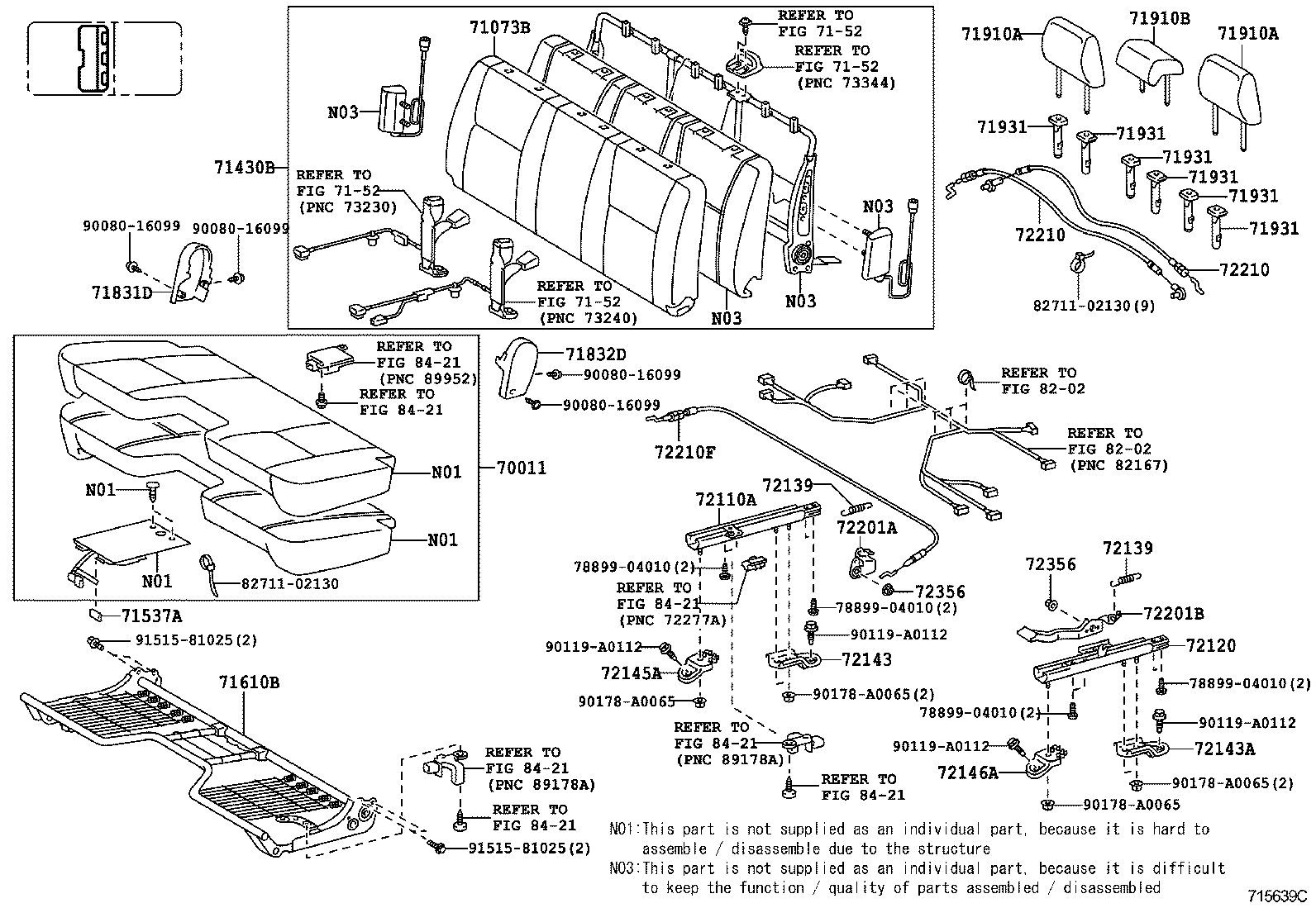

715639C 2008-05 → —

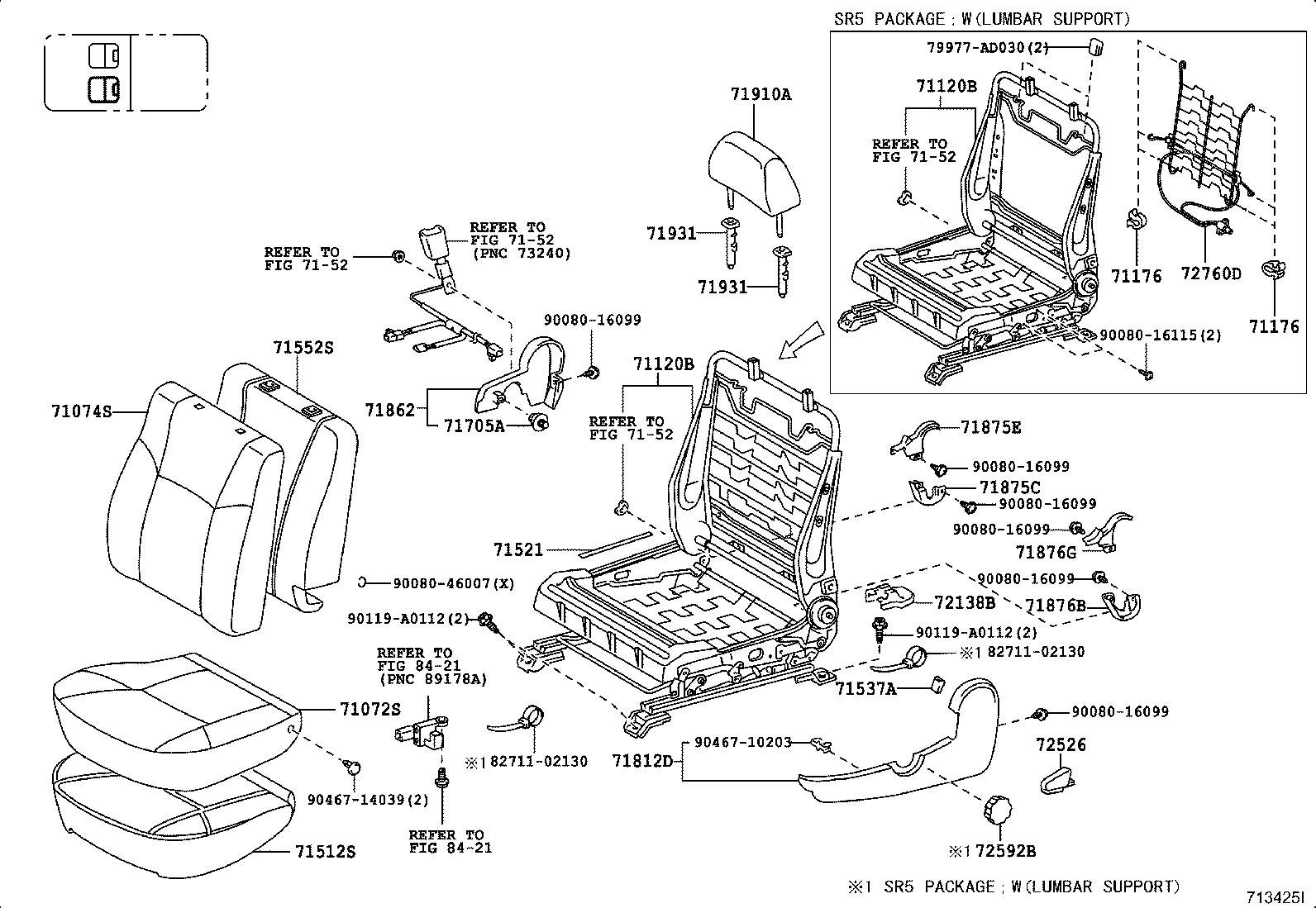

713425I 2004-09 → 2008-05

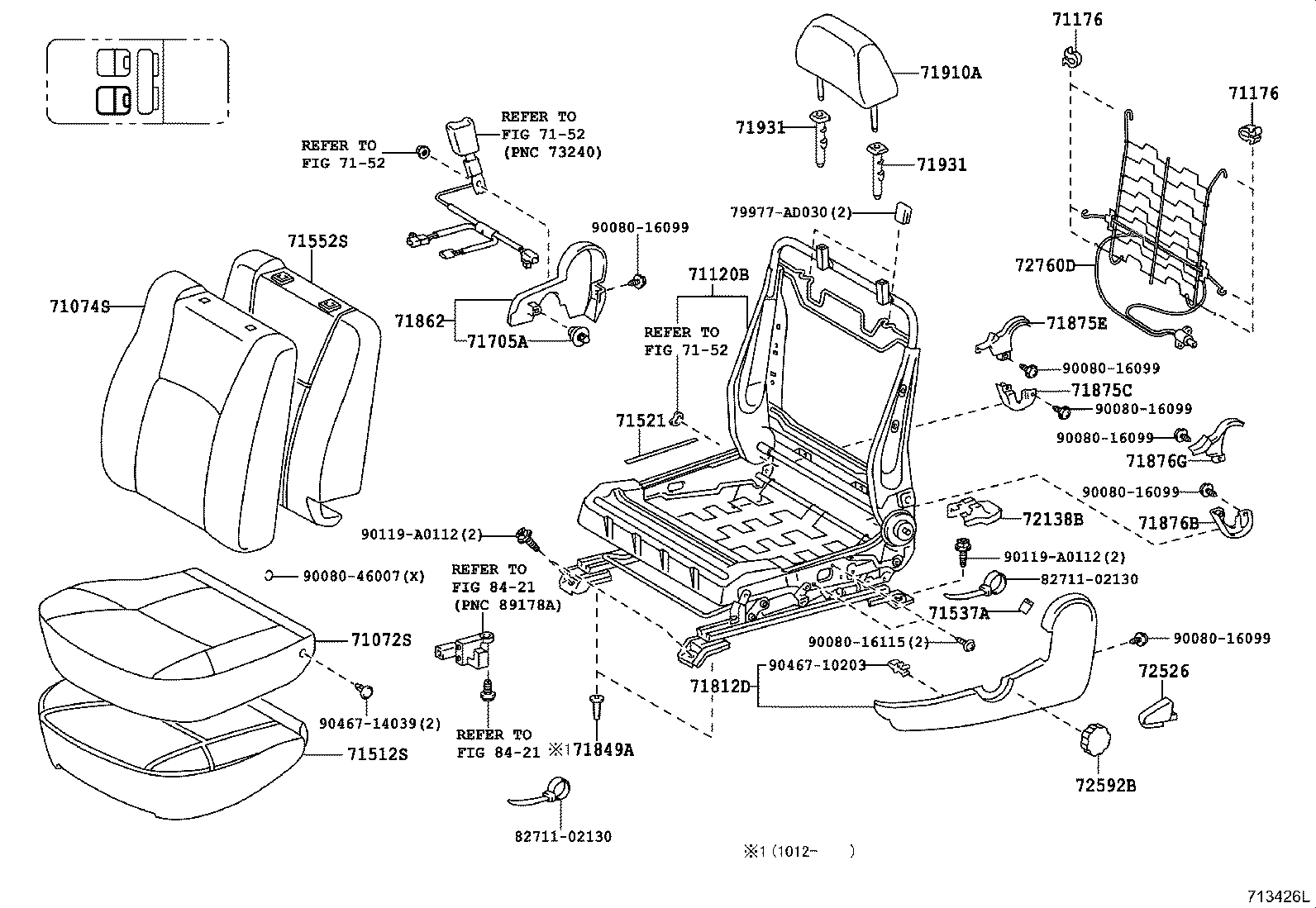

713426L 2004-09 → 2008-05

713426L 2009-08 → 2011-09

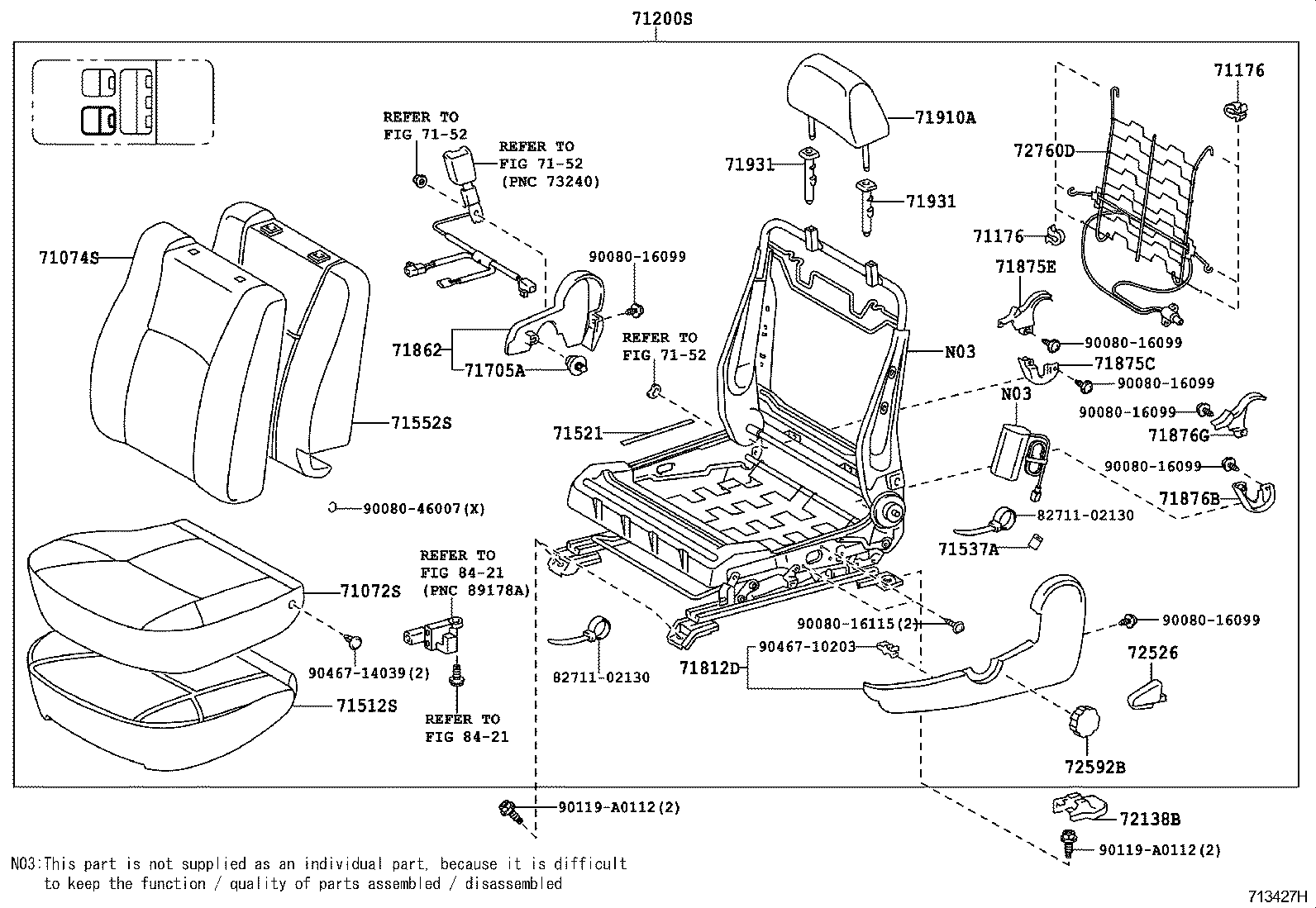

713427H 2004-09 → 2008-05

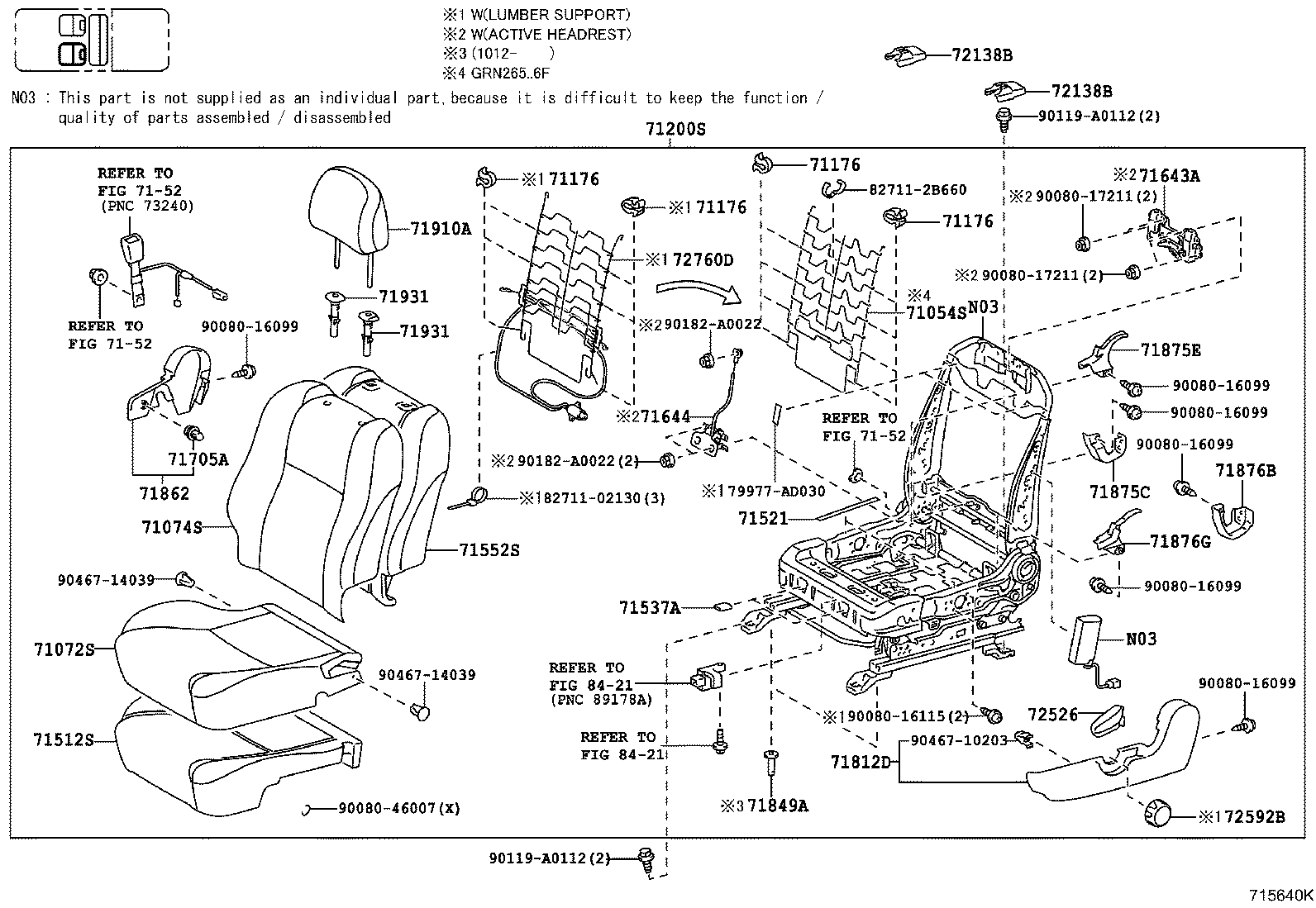

715640K 2008-05 → 2011-09

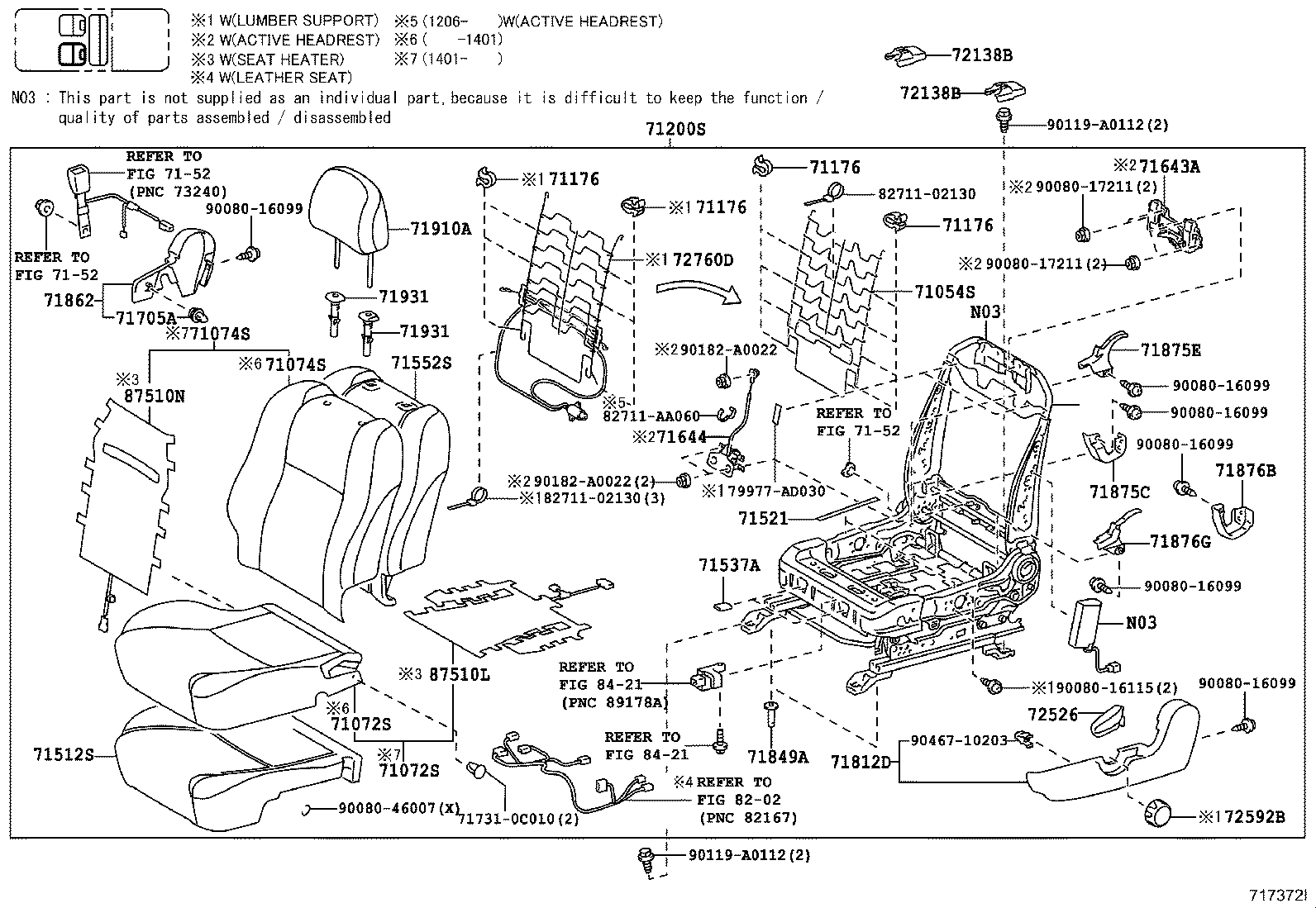

717372I 2011-09 → 2015-08

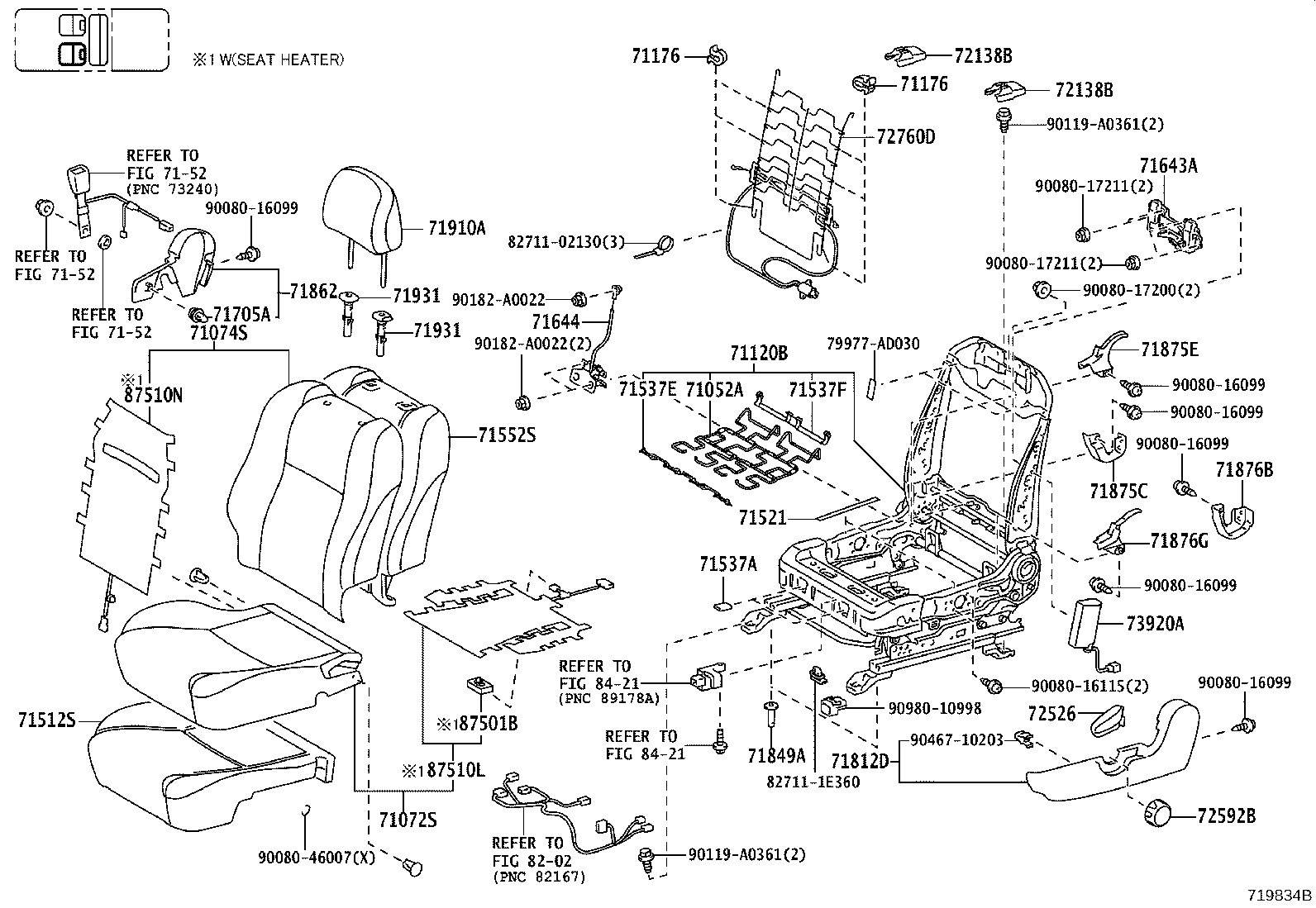

719834B 2015-08 → 2017-11

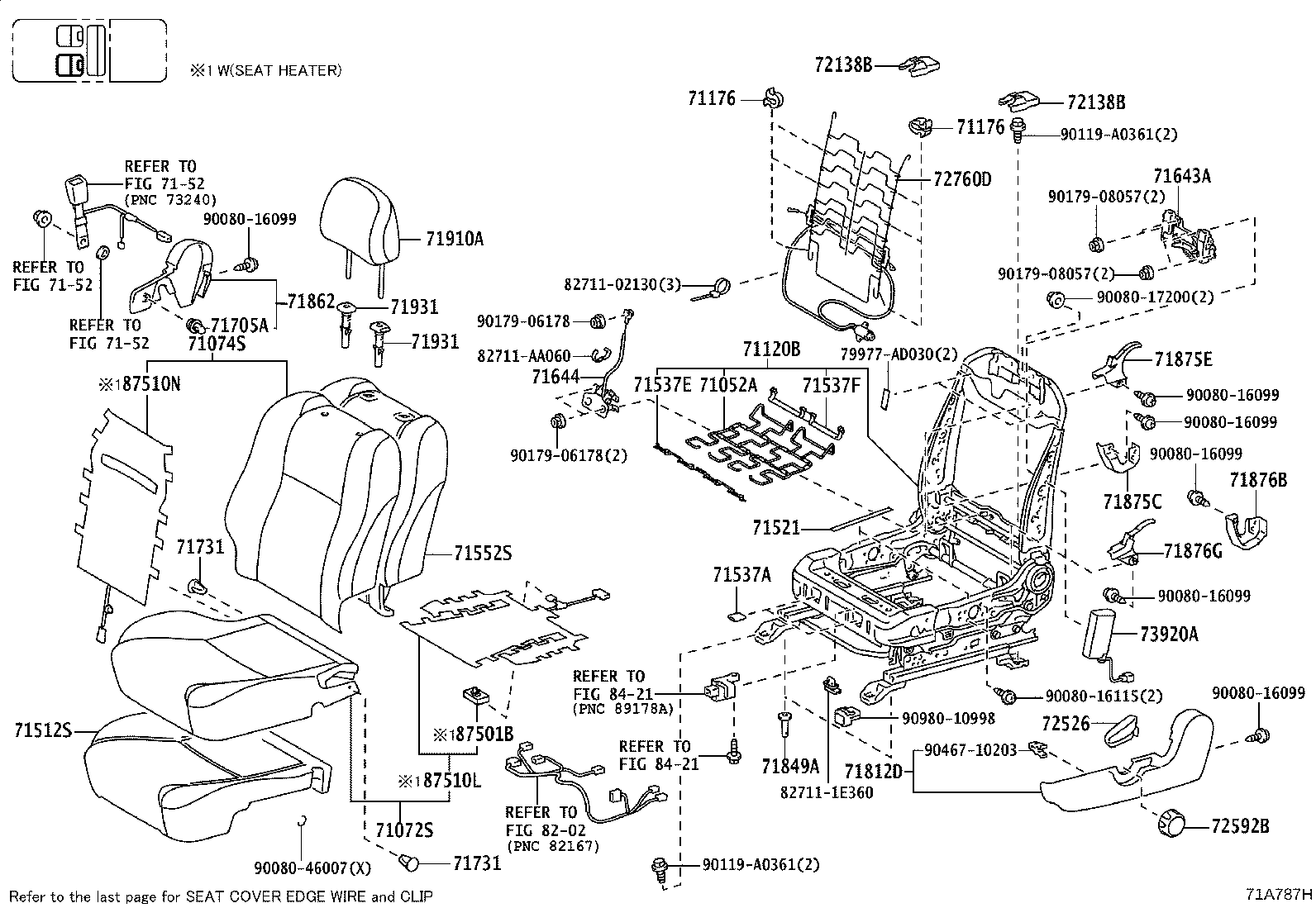

71A787H 2017-11 → 2019-09

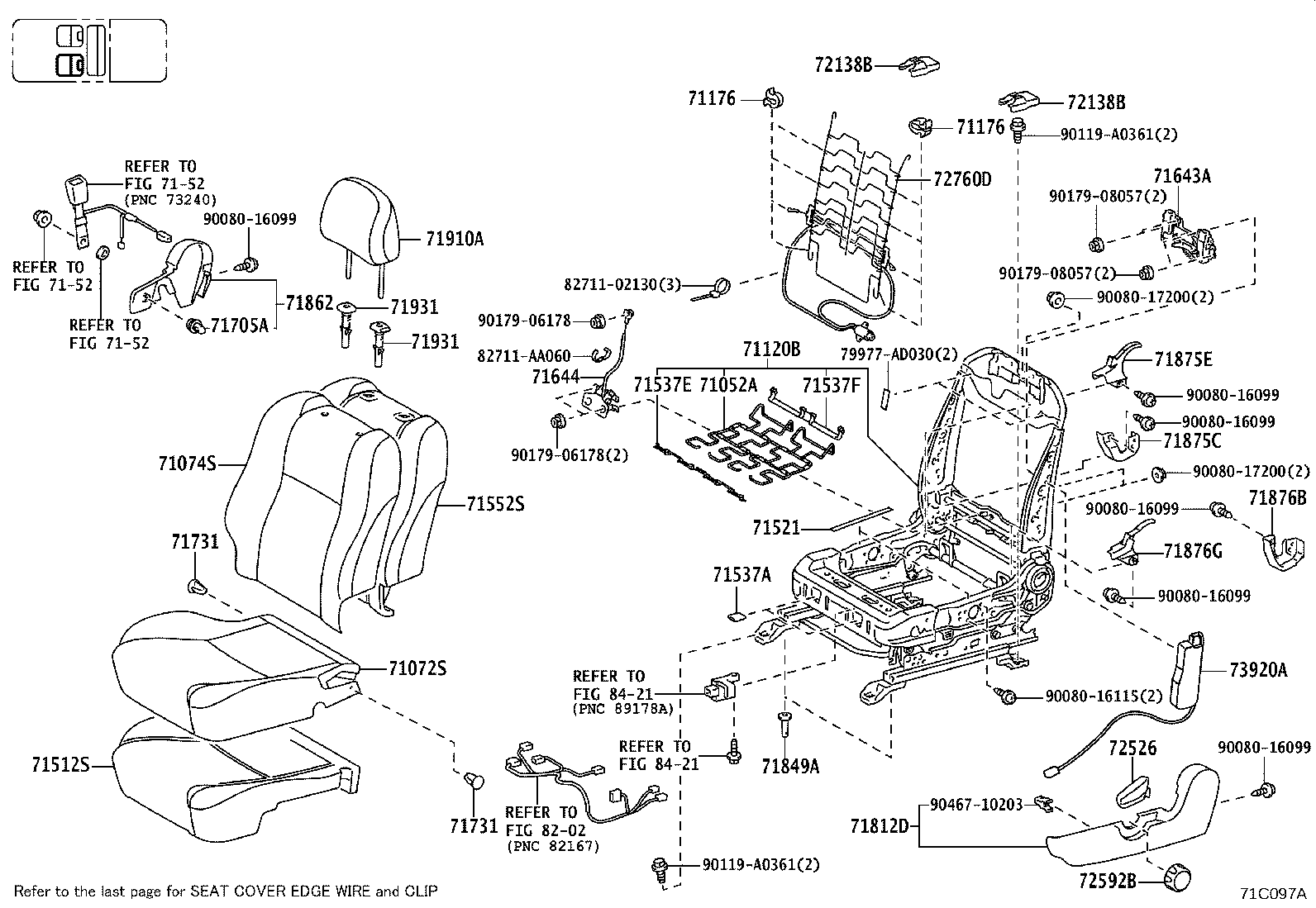

71C097A 2019-09 → —

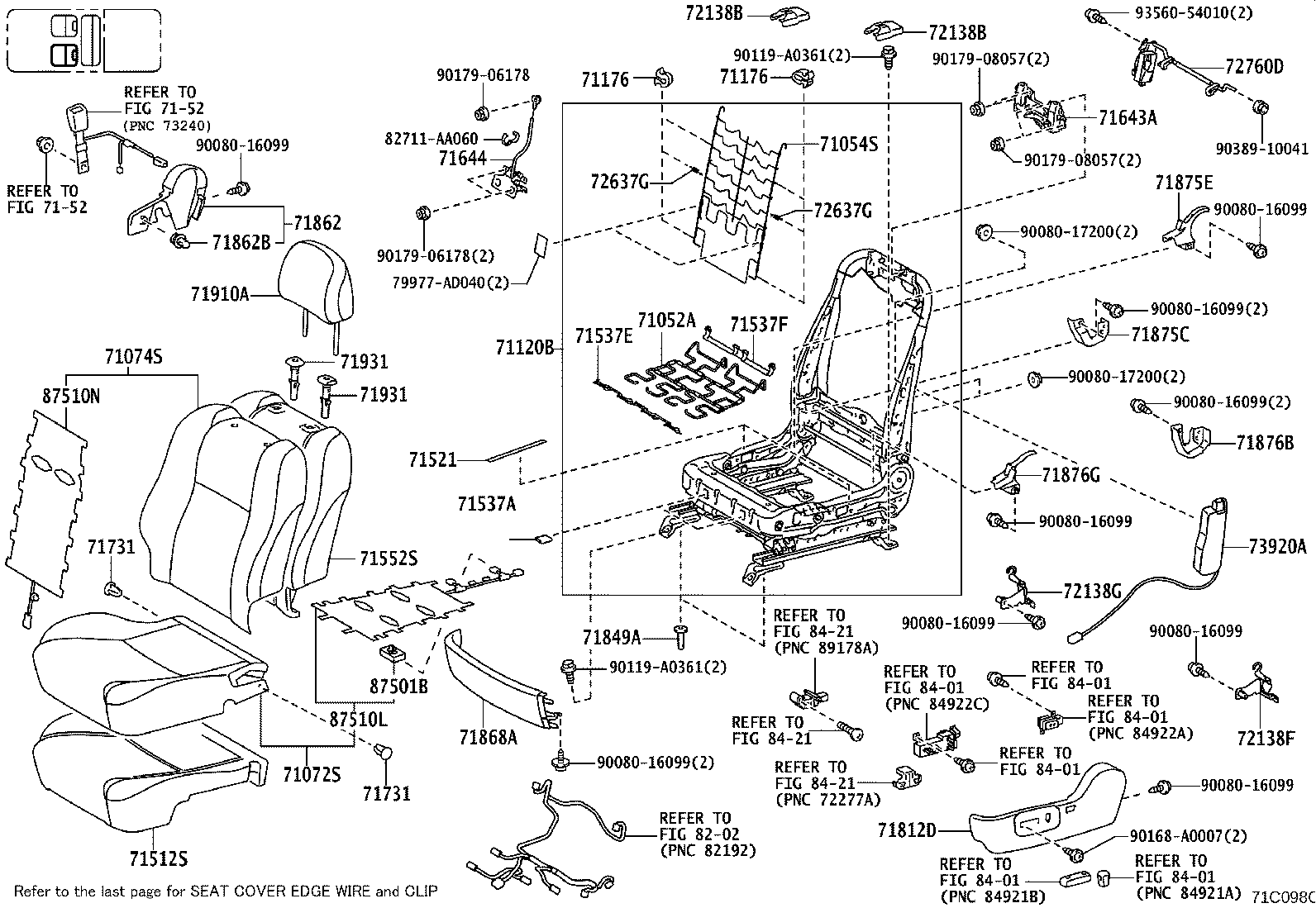

71C098C 2019-09 → —

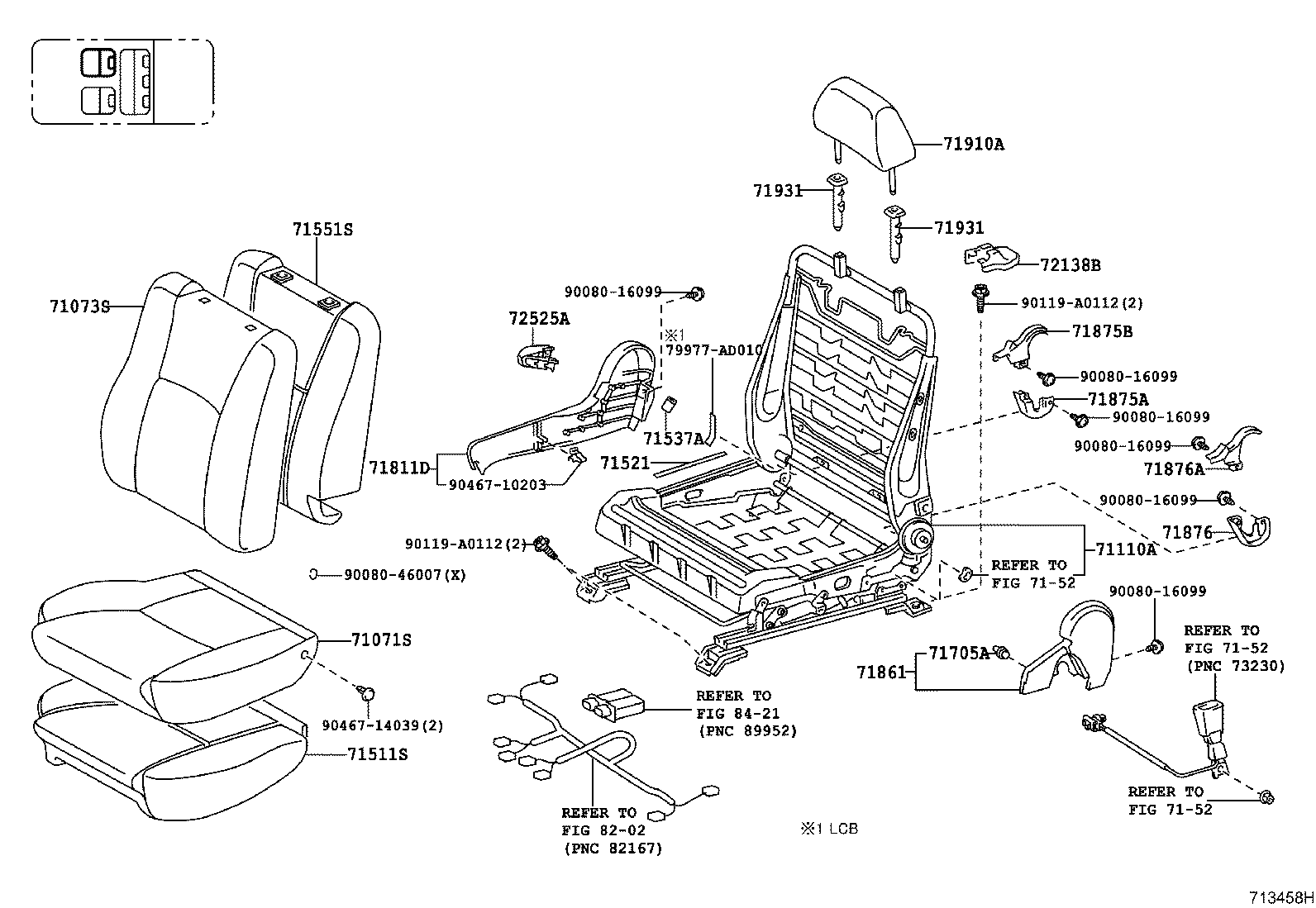

713458H 2004-09 → 2008-05

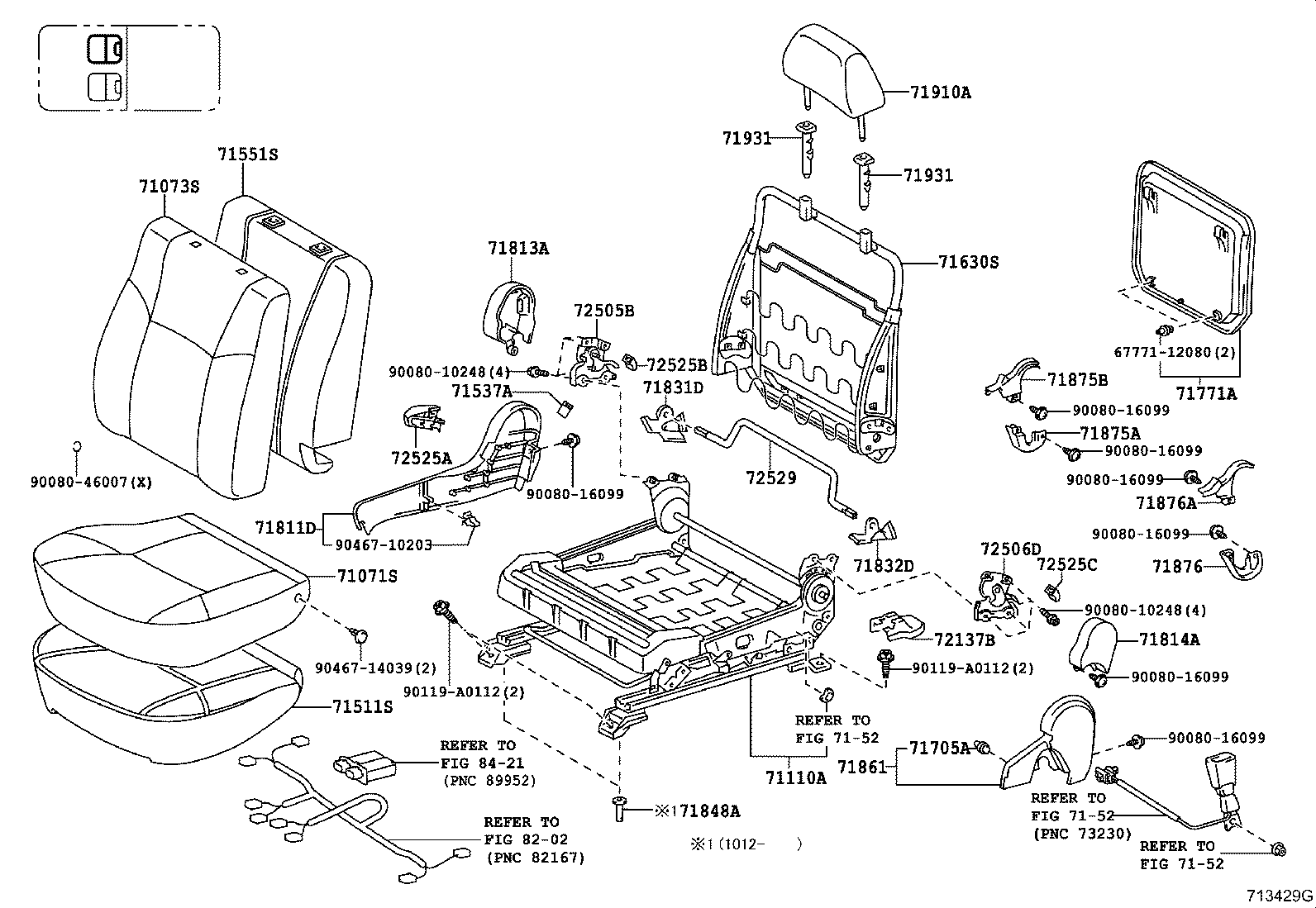

713429G 2004-09 → 2008-05

713429G 2009-08 → 2011-09

713429G 2010-06 → 2011-09

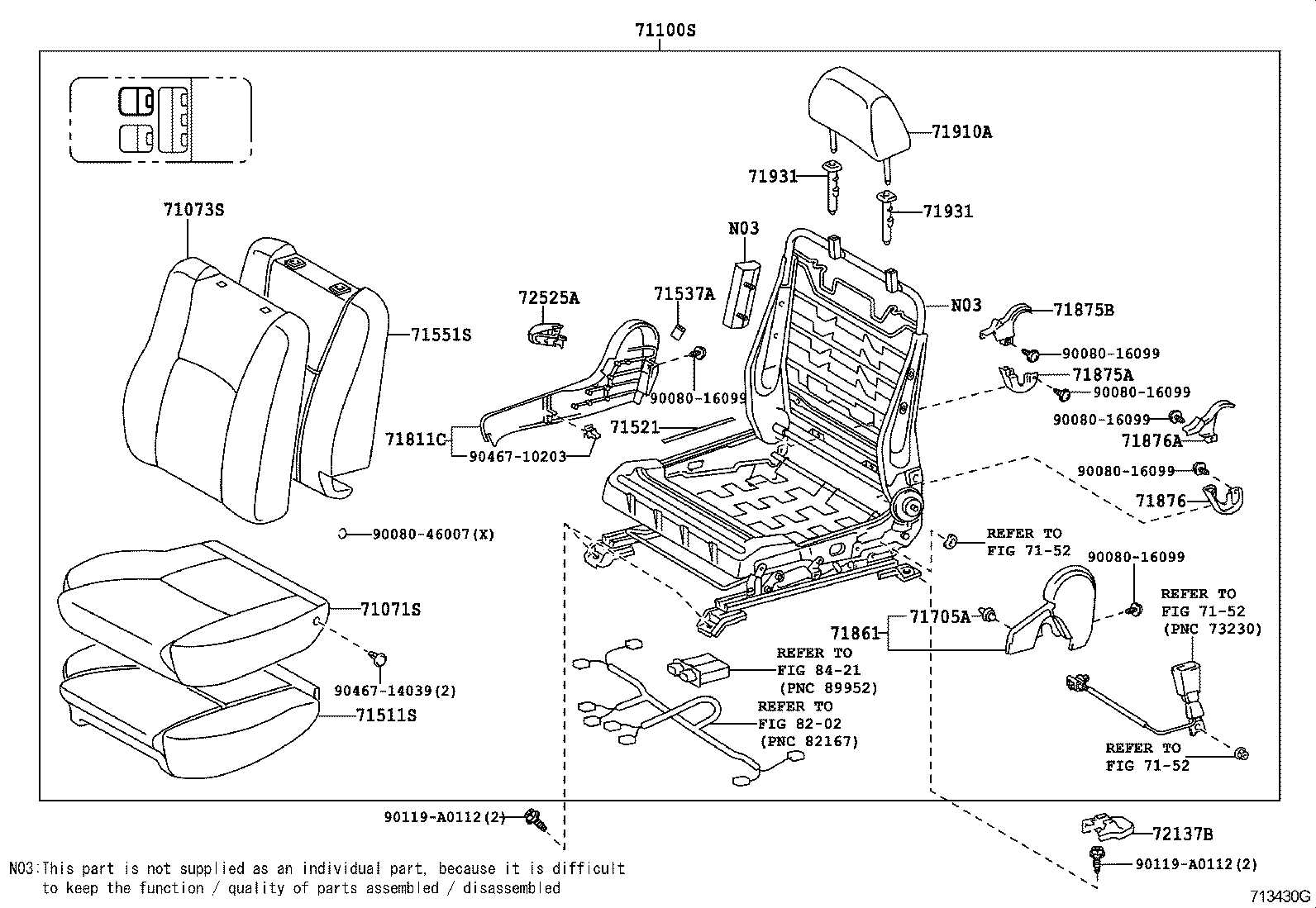

713430G 2004-09 → 2008-05

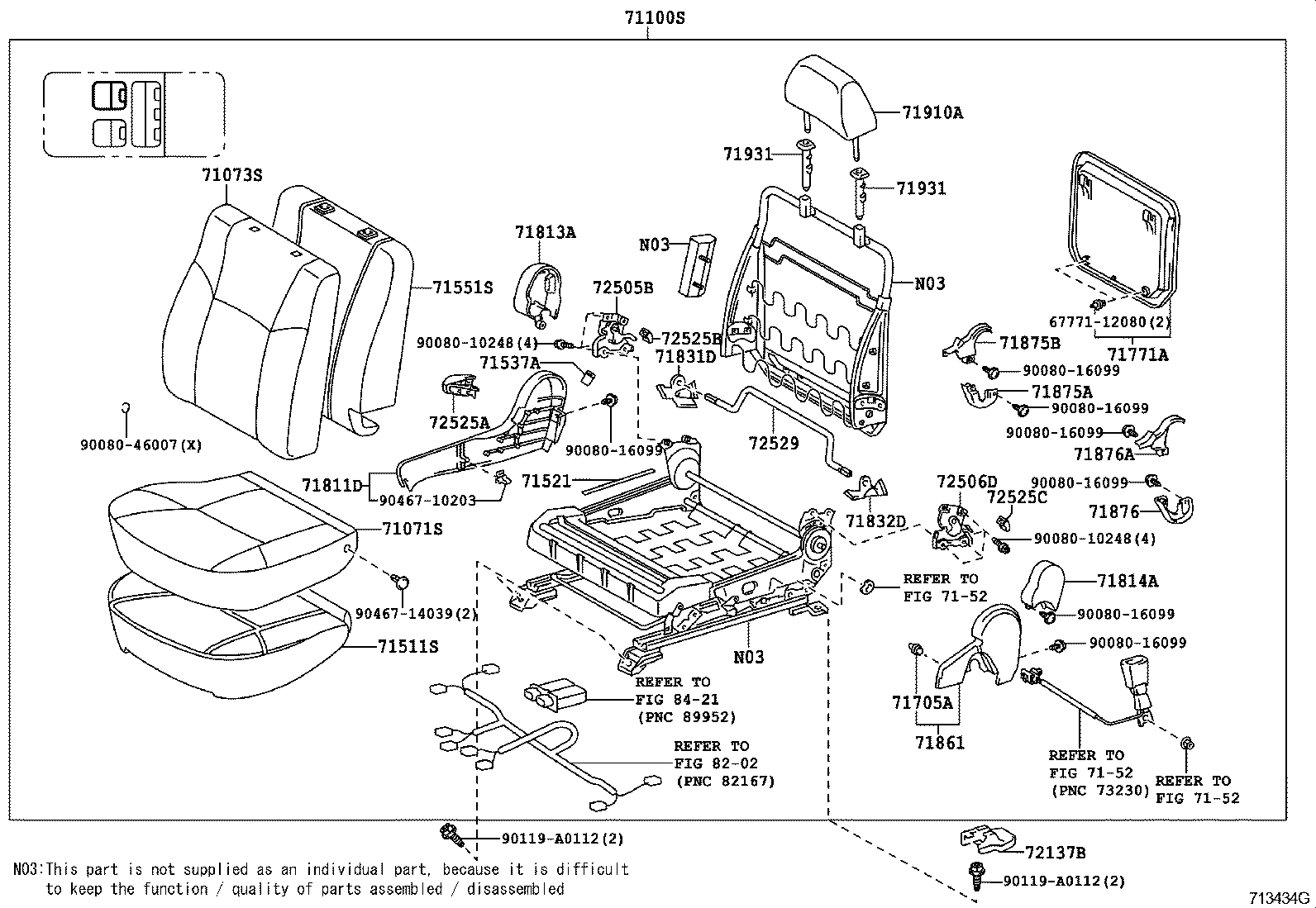

713434G 2004-09 → 2008-05

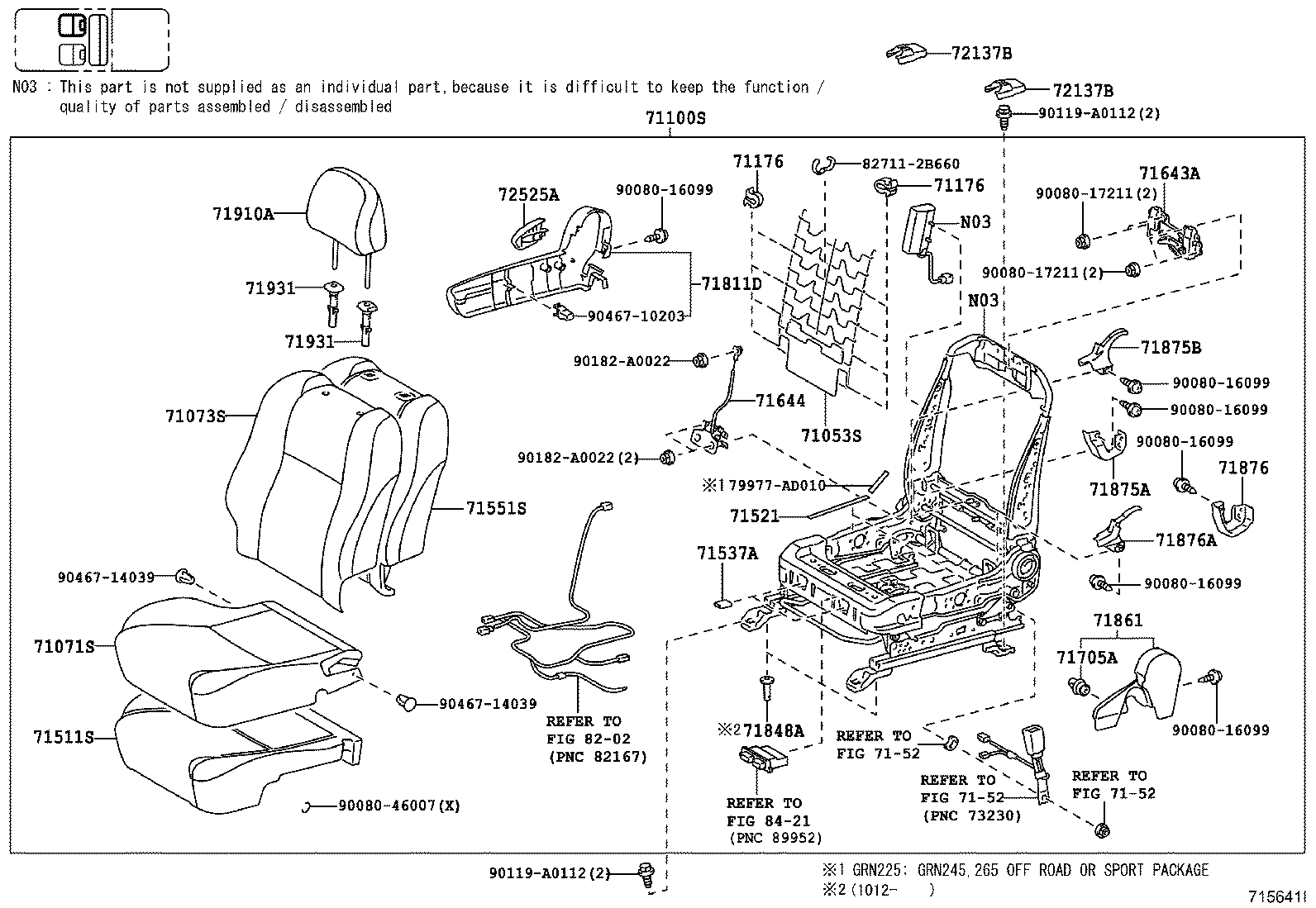

715641I 2008-05 → 2011-09

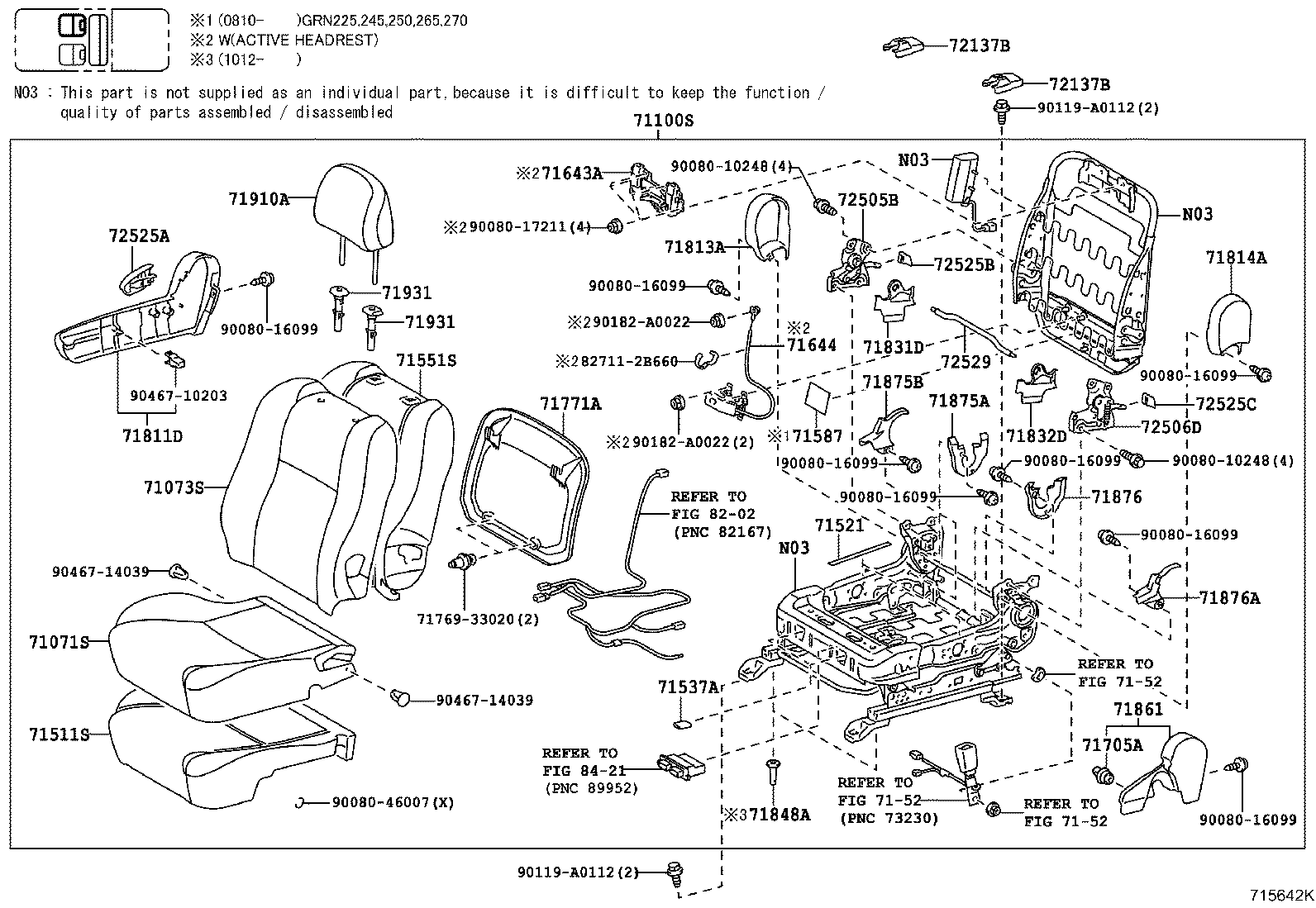

715642K 2008-05 → 2011-09

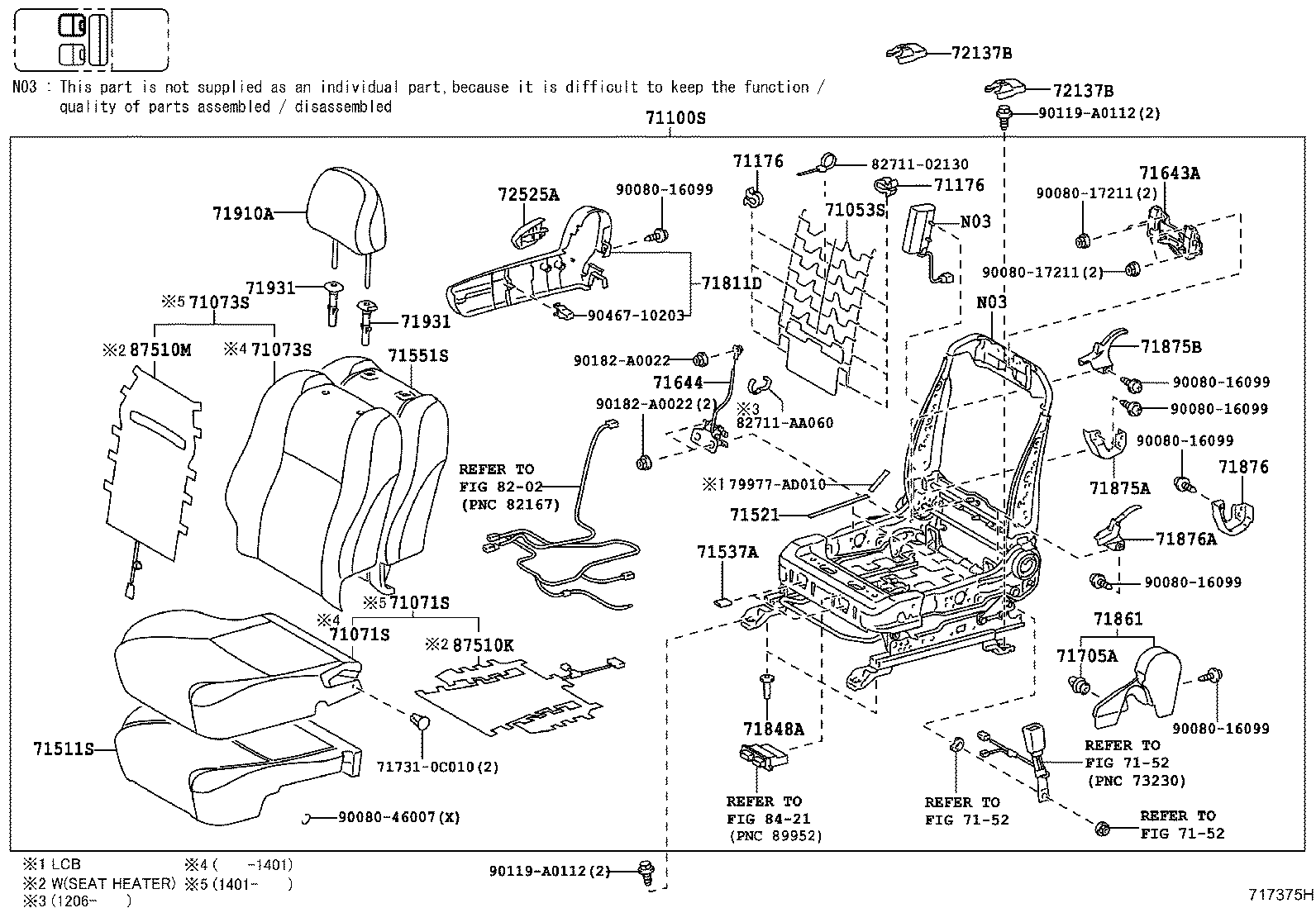

717375H 2011-09 → 2015-08

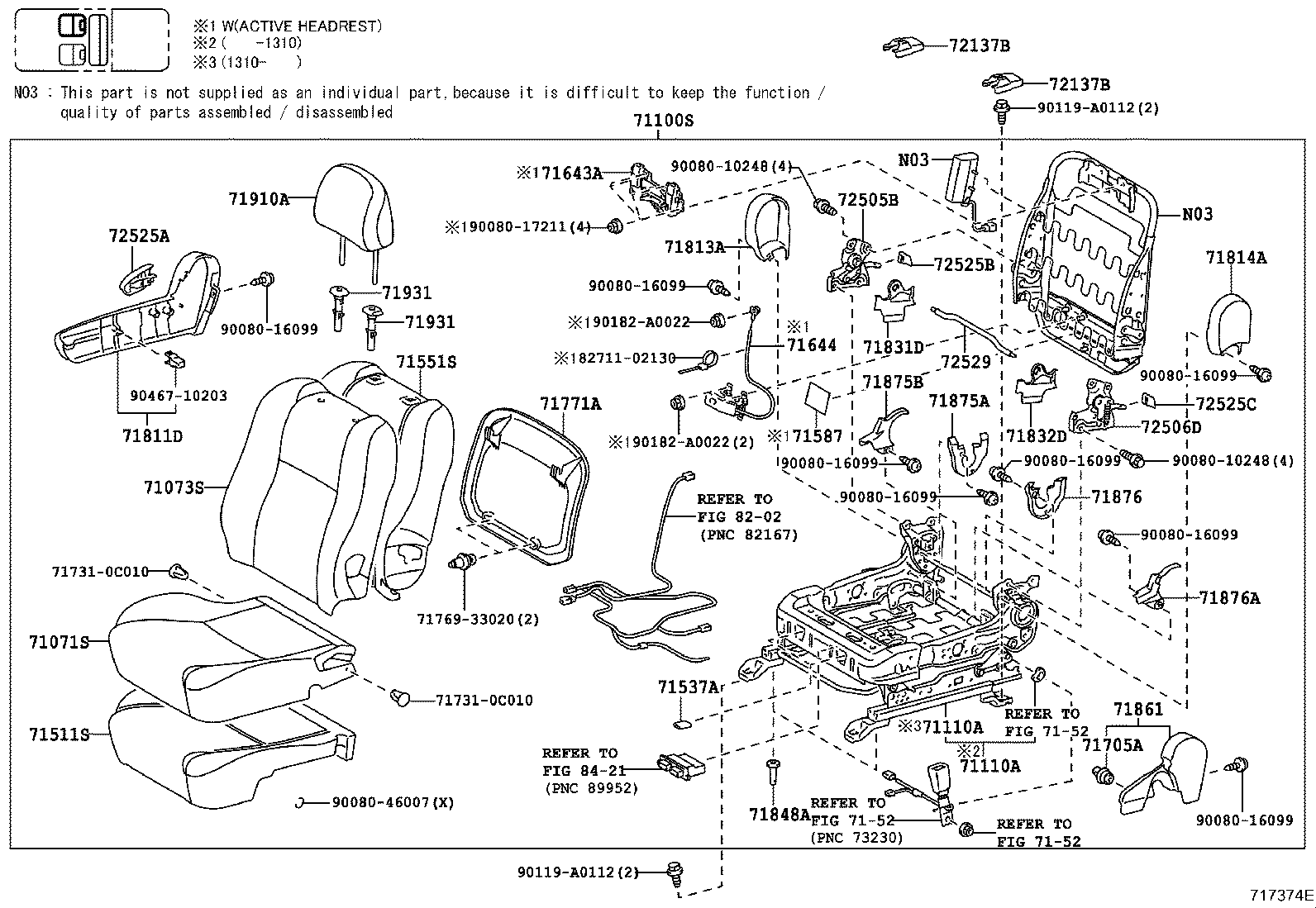

717374E 2011-09 → 2015-08

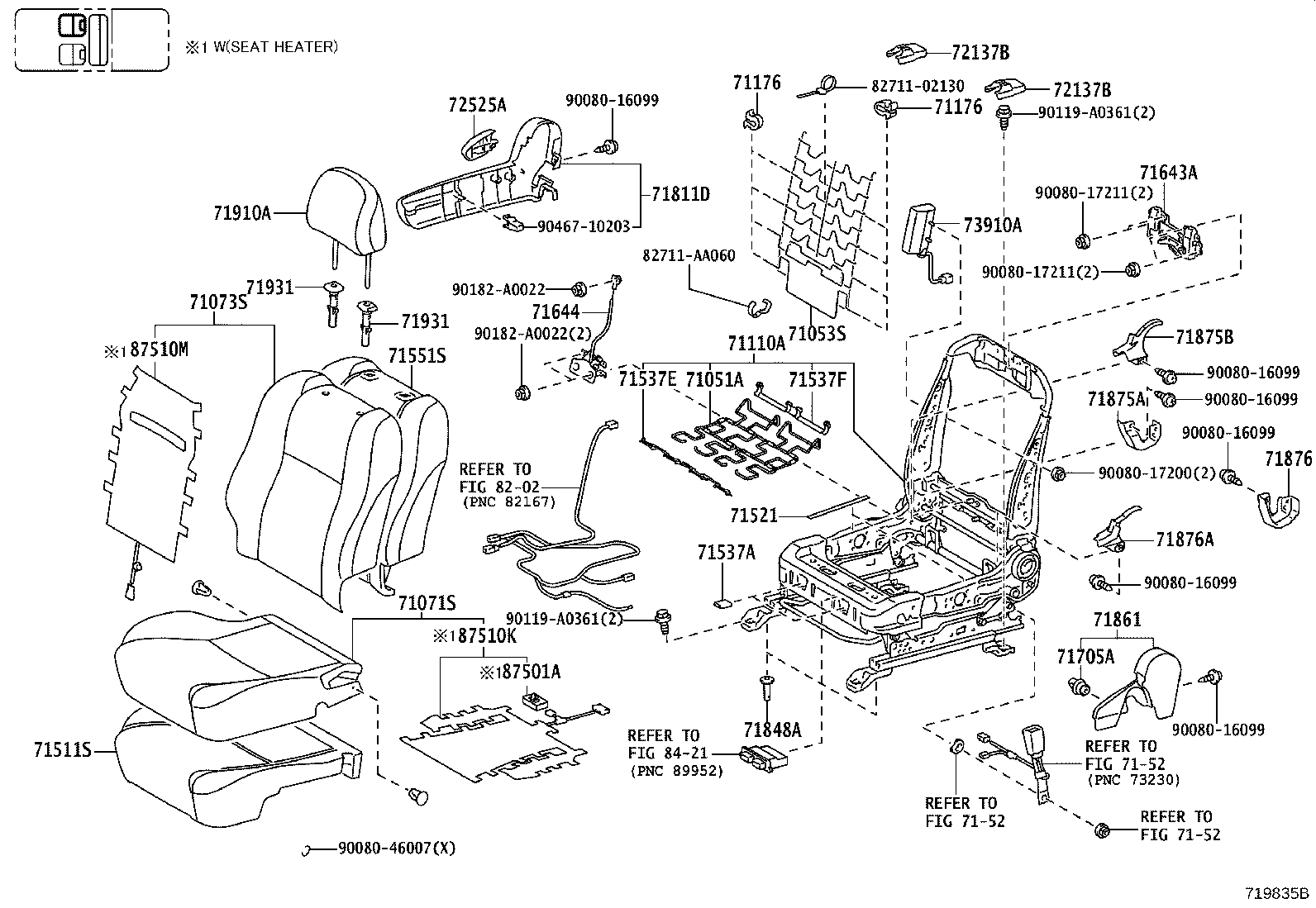

719835B 2015-08 → 2017-11

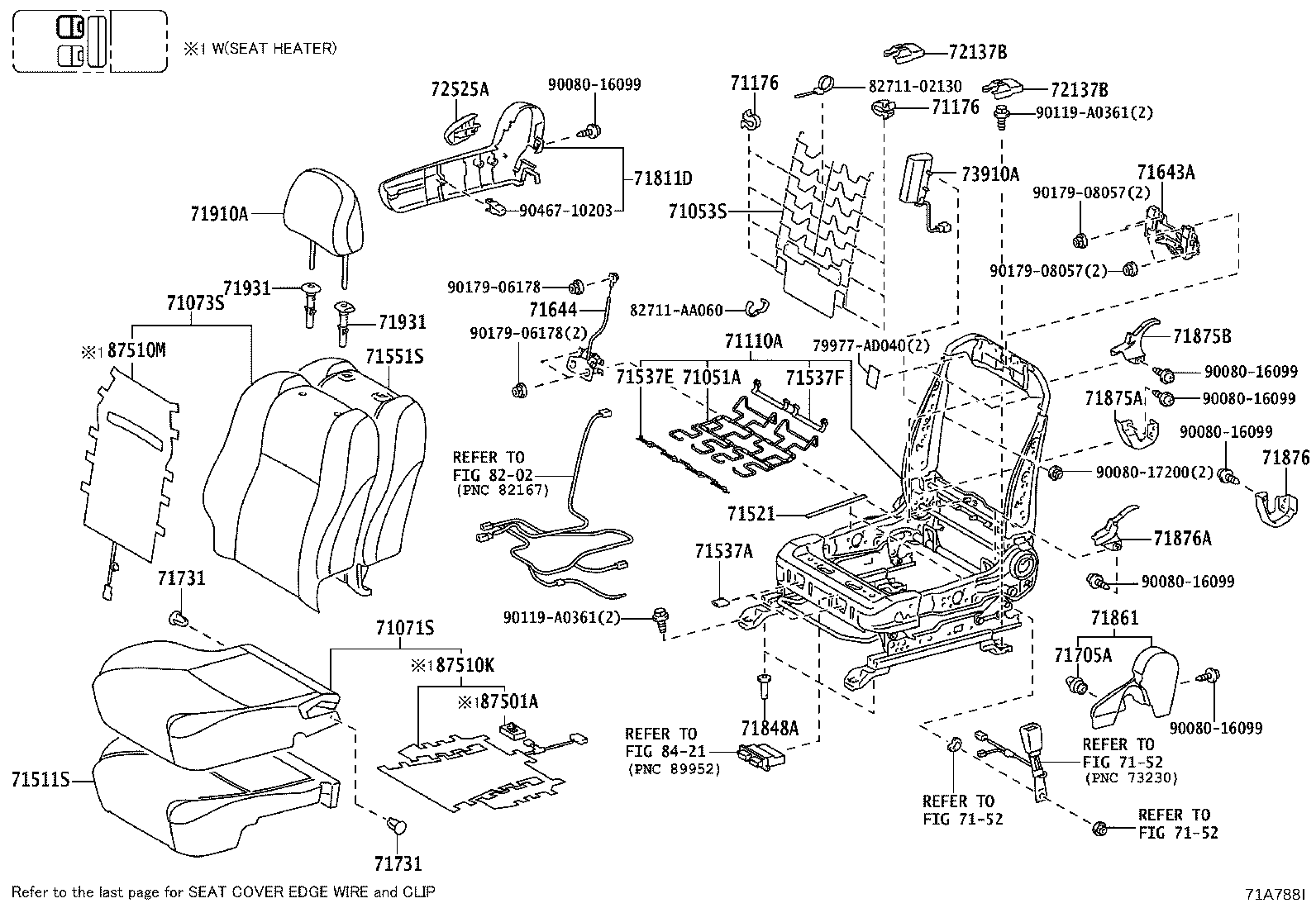

71A788I 2017-11 → 2019-09

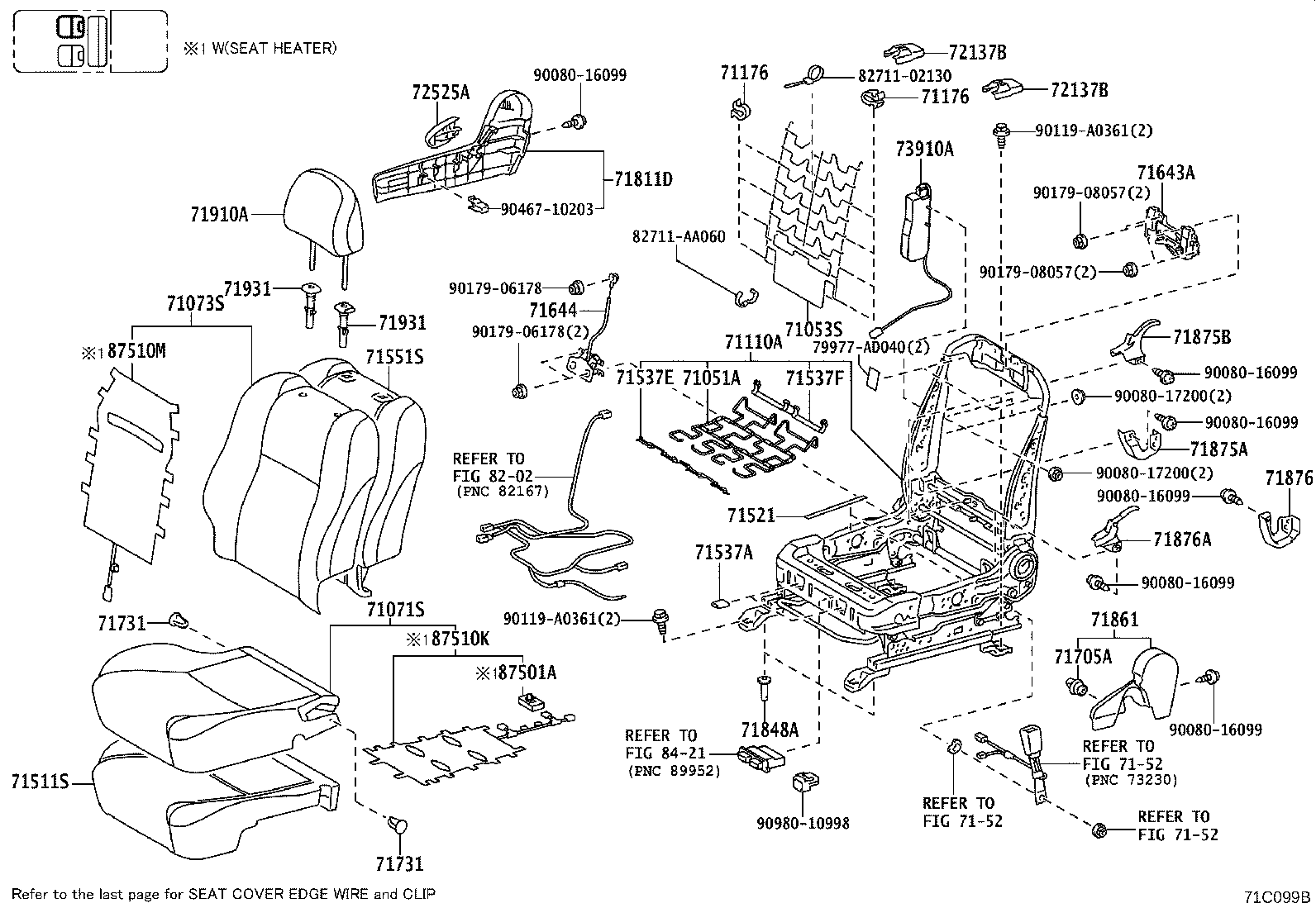

71C099B 2019-09 → —

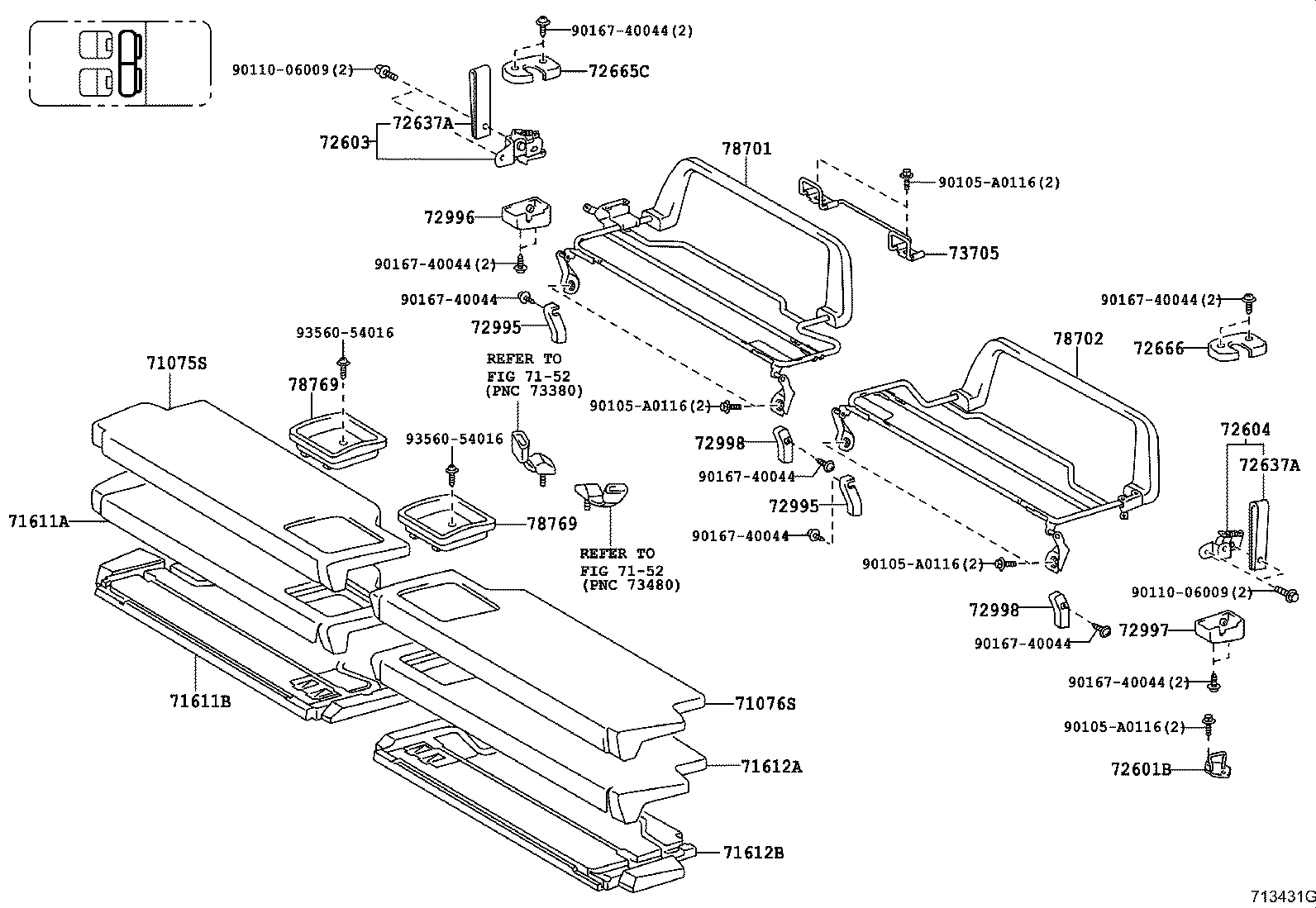

713431G 2004-09 → 2008-05

Part groups

PNC	Description
70011	Cushion Assy, NO.1 Seat
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71051A	Spring Sub-assy, Front Seat Cushion, RH
71052A	Spring Sub-assy, Front Seat Cushion, LH
71053S	Spring Sub-assy, Front Seatback, RH
71054S	Spring Sub-assy, Front Seatback, LH
71071B	Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B	Cover, Front Seatback(FOR BENCH TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71100S	Seat Assy, Front RH
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71176	Plate, Front Seatback Spring Set, Inside LH
71200S	Seat Assy, Front LH
71301A	Hinge Sub-assy, Rear Seat Cushion
71301D	Hinge Sub-assy, Rear Seat, RH
71302D	Hinge Sub-assy, Rear Seat, LH
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71307D	Bracket Sub-assy, Rear Seat Cushion Support, RH
71308D	Bracket Sub-assy, Rear Seat Cushion Support, LH
71345B	Support, Rear Seat, RH
71349C	Cover, Rear Seatback Hinge
71349E	Cover, Rear Seatback Hinge
71365S	Pad, Center Seatback
71393A	Band, Rear Seat Cushion, RH
71393B	Band, Rear Seat Cushion, LH
71430B	Back Assy, Front Seat(FOR BENCH TYPE)
71499	Stopper, Rear Seatback
71511B	Pad, Front Seat Cushion(FOR BENCH TYPE)
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521	Pad, Front Seat Cushion Silencer, A
71537A	Protector, Front Seat Cushion
71537E	Protector, Front Seat Cushion, NO.1
71537F	Protector, Front Seat Cushion, NO.2
71551B	Pad, Front Seatback(FOR BENCH TYPE)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71587A	Protector, Rear Seatback Edge
71587C	Protector, Rear Seatback Edge NO.2
71610B	Spring Assy, Front Seat Cushion(FOR BENCH TYPE)
71611A	Pad, Rear Seat Cushion, RH
71611B	Pad, Rear NO.1 Seat Cushion
71612A	Pad, Rear Seat Cushion, LH
71612B	Pad, Rear Seat Cushion, B
71630B	Spring Assy, Front Seatback(FOR BENCH TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71643A	Unit, Active Headrest, Upr
71644	Unit, Active Headrest, Lwr
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71665	Pad, Rear Seatback Side, RH
71665A	Pad, Rear Seatback, Side A
71665B	Pad, Rear Seatback, Side B
71701B	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71705A	Clip(FOR FRONT SEATBACK BOARD)
71731	Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
71771A	Board, Front Seatback
71811C	Cover, Reclining Adjuster, RH
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71813A	Shield, Front Seatback, RH
71814A	Shield, Front Seatback, LH
71831D	Cover, Front Seat Hinge, RH
71832D	Cover, Front Seat Hinge, LH
71846B	Cap, Rear Seatback Board, NO.1
71848A	Cap, Seat Adjuster Cover, RH
71849A	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71862B	Clip(FOR FRONT SEAT SHIELD, LH)
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876G	Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A	Headrest Assy, Front Seat
71910B	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71940A	Headrest Assy, Rear Seat
71959	Holder, Rear Seat Headrest
71960B	Headrest Assy, Rear Seat, Center
72110A	Track Assy, Front Seat, Outer RH
72120	Track Assy, Front Seat, Outer LH
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72138F	Cover, Front Seat Track, LH Front Outer
72138G	Cover, Front Seat Track, LH Front Inner
72139	Spring, Seat Track Cover
72143	Bracket, Front Seat Track, Lower Rear RH(FOR RH SEAT)
72143A	Bracket, Front Seat Track, Lower Rear(FOR LH SEAT)
72145A	Bracket, Front Inner Seat Track, Lower Front RH
72146A	Bracket, Front Inner Seat Track, Lower Front LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72210	Cable Assy, Seat Track Control
72210F	Cable Assy, Seat Track Control
72356	Nut, Side Support, RH
72505B	Lock Sub-assy, Front Seatback, RH
72506D	Lock Sub-assy, Front Seatback, LH
72525A	Handle, Reclining Adjuster Release, RH
72525B	Handle, Reclining Adjuster Release, RH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72526	Handle, Reclining Adjuster Release, LH
72529	Rod, Front Seat Backlock Handle
72592B	Knob,Reclining Adjuster, LH
72601B	Striker Sub-assy, Rear Seatback Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72630C	Lock Assy, Rear Seatback, RH
72637A	Handle, Rear Seat Lock
72637E	Handle, Rear Seat Lock, RH
72637G	Spring, Seatback, LH
72638	Handle, Rear Seat Lock, LH
72640A	Lock Assy, Rear Seatback, LH
72650A	Lock Assy, Rear Seat, RH
72660F	Lock Assy, Rear Seat, LH
72665C	Cover, Rear Seat Lock, RH
72666	Cover, Rear Seatback Lock, LH
72760D	Adjuster Assy, Lumbar Support, LH
72927C	Cover, Rear Seat Cushion Under RH
72928	Cover, Rear Seat Cushion Under, LH
72995	Cover, Rear Seat Cushion, RH
72996	Cover, Rear Seatback, RH
72997	Cover, Rear Seatback, LH
72998	Cover, Rear Seat Cushion, LH
73705	Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706	Bracket Sub-assy, Child Restraint Seat Anchor, LH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
78701	Frame Sub-assy, Sub Seat Cushion, RH
78702	Frame Sub-assy, Sub Seat Cushion, LH
78738	Pin, Sub Seat Cushion Pin
78769	Tray, Sub Seatback
78827	Board, Sub Seat Cover
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
