Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

11 part groups · 3 illustrations

Illustrations

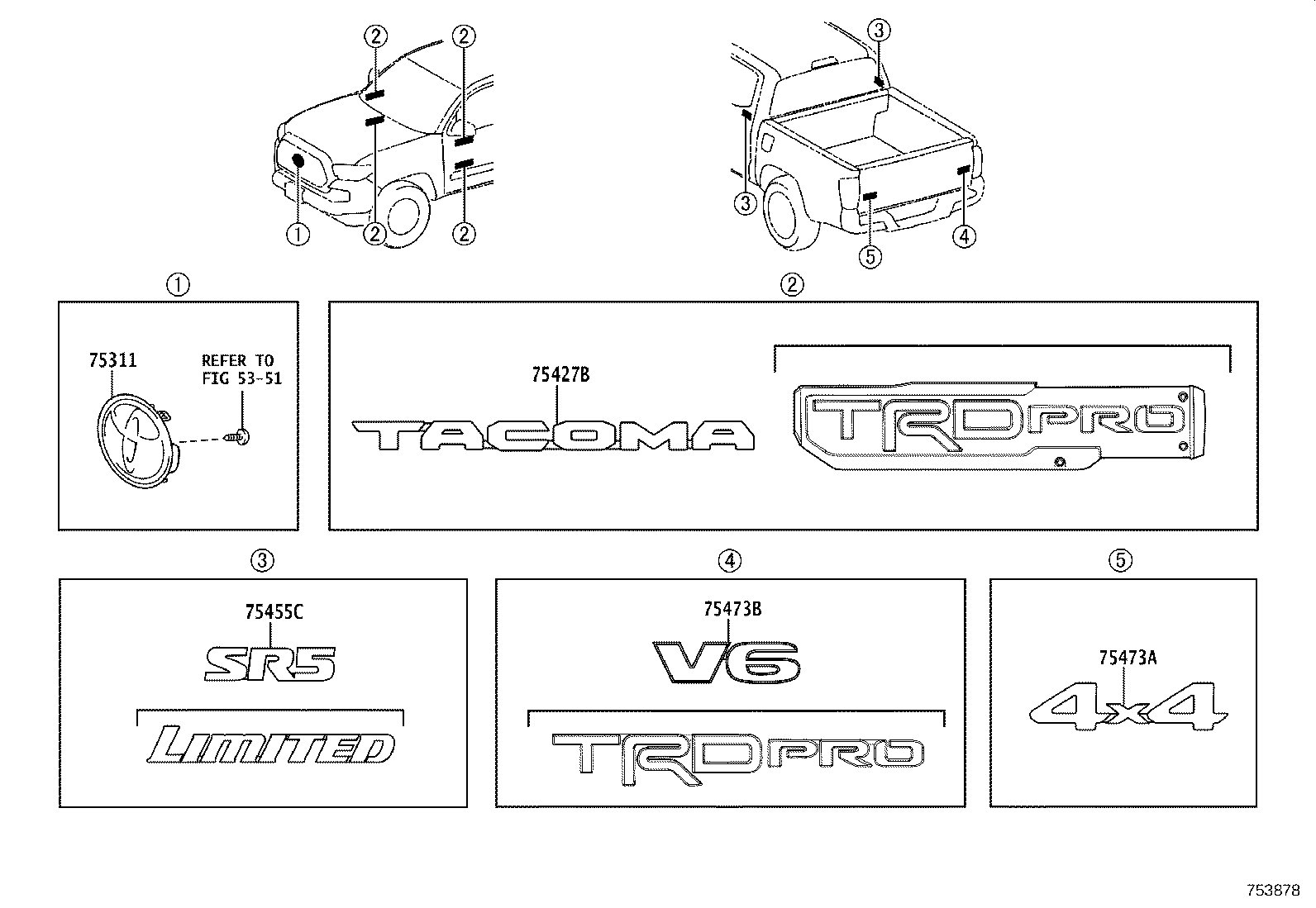

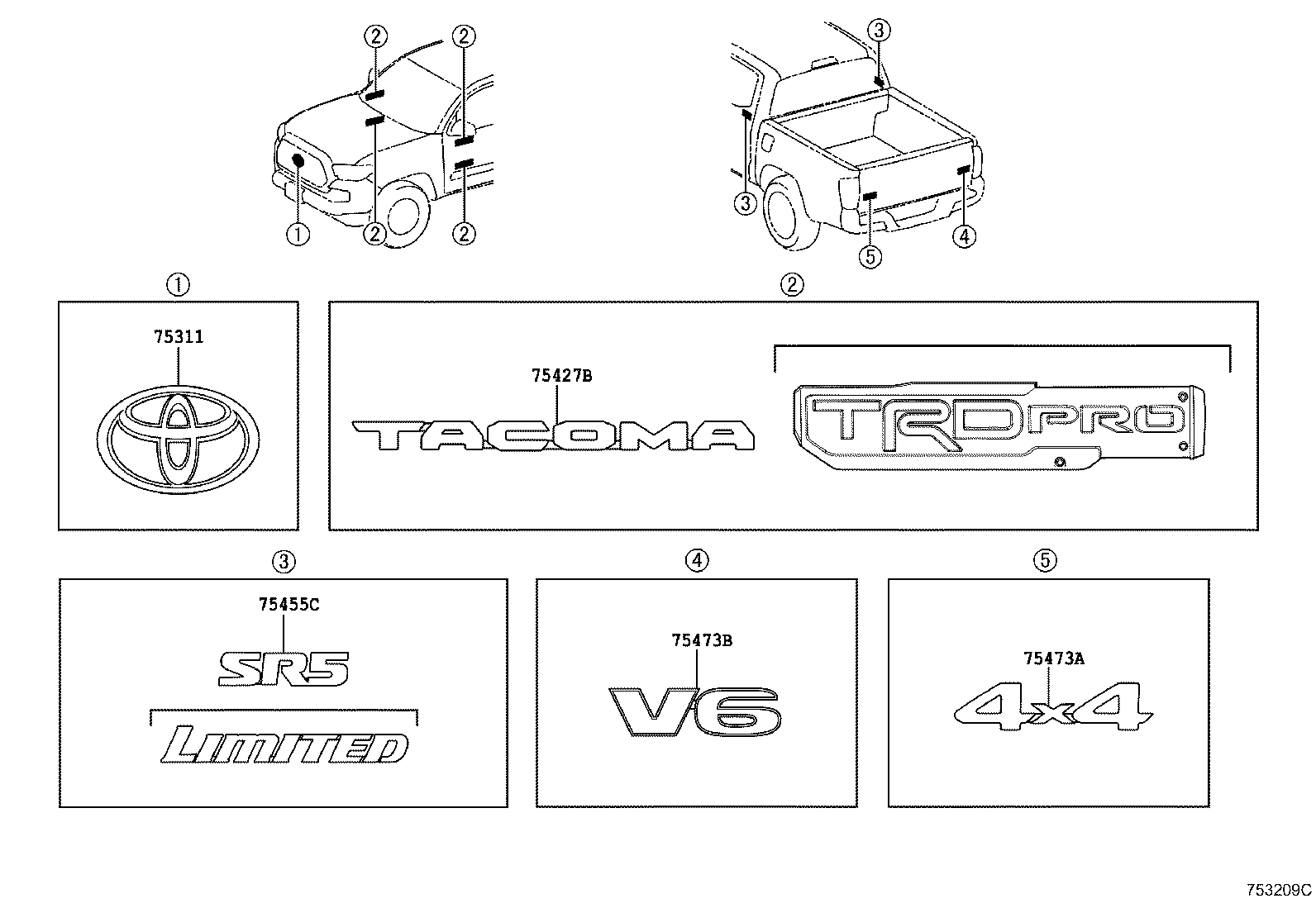

Figure 751414C 751414C 2004-09 → 2015-08 Figure 753209C 753209C 2015-08 → 2019-09 Figure 753878 753878 2019-09 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75427B Plate, Front Door Name, NO.1
75428B Plate, Front Door Name, NO.2
75455C Plate, Roof Side Name, NO.1
75459 Mark, Tail Gate
75471B Plate, Rear Body Name, NO.1
75472A Plate, Rear Body Name, NO.2
75473A Plate, Rear Body Name, NO.2
75473B Plate, Rear Body Name, NO.3
75474A Plate, Rear Body Name, NO.4
75475A Plate, Rear Body Name, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
