Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

49 part groups · 8 illustrations

Illustrations

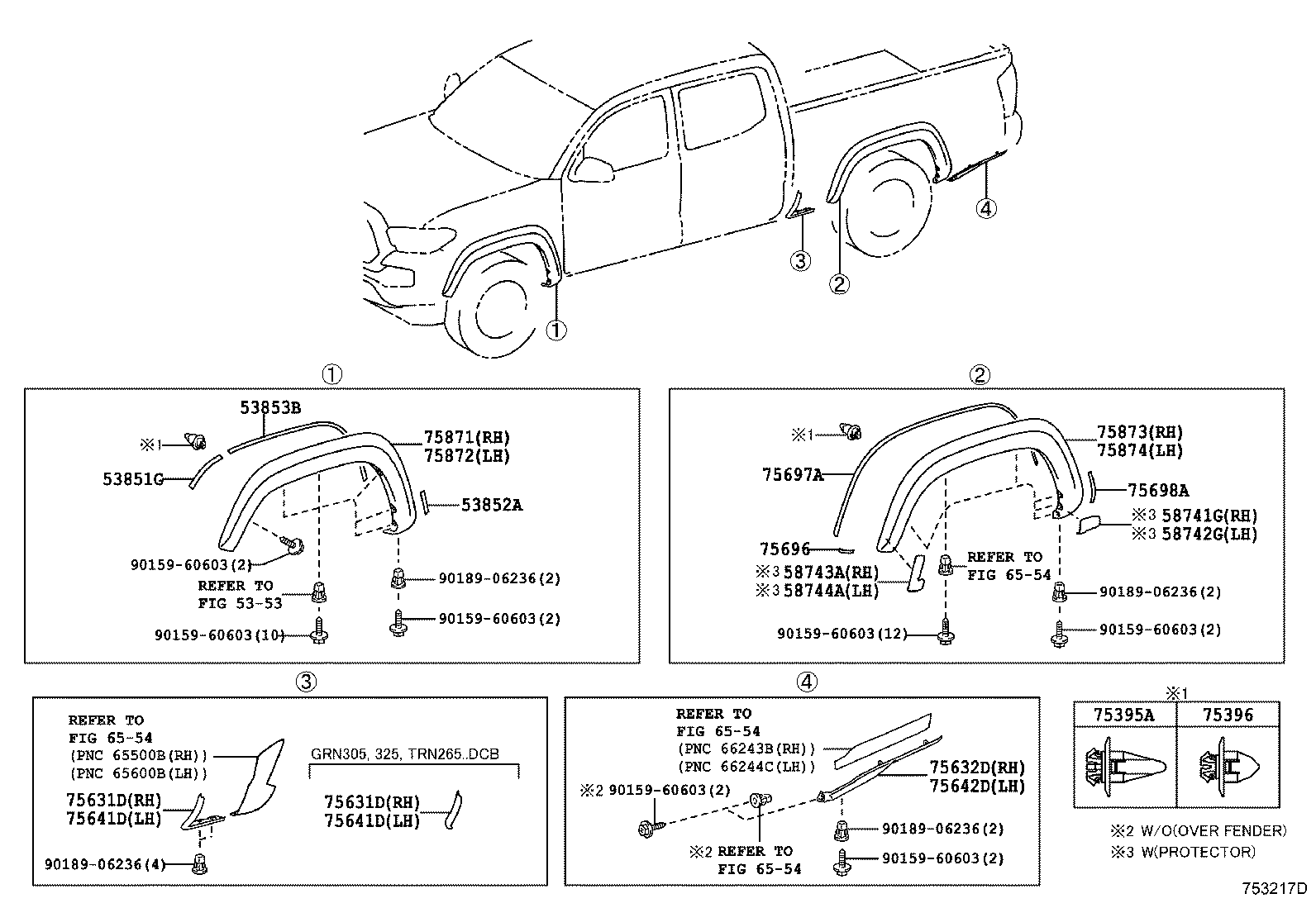

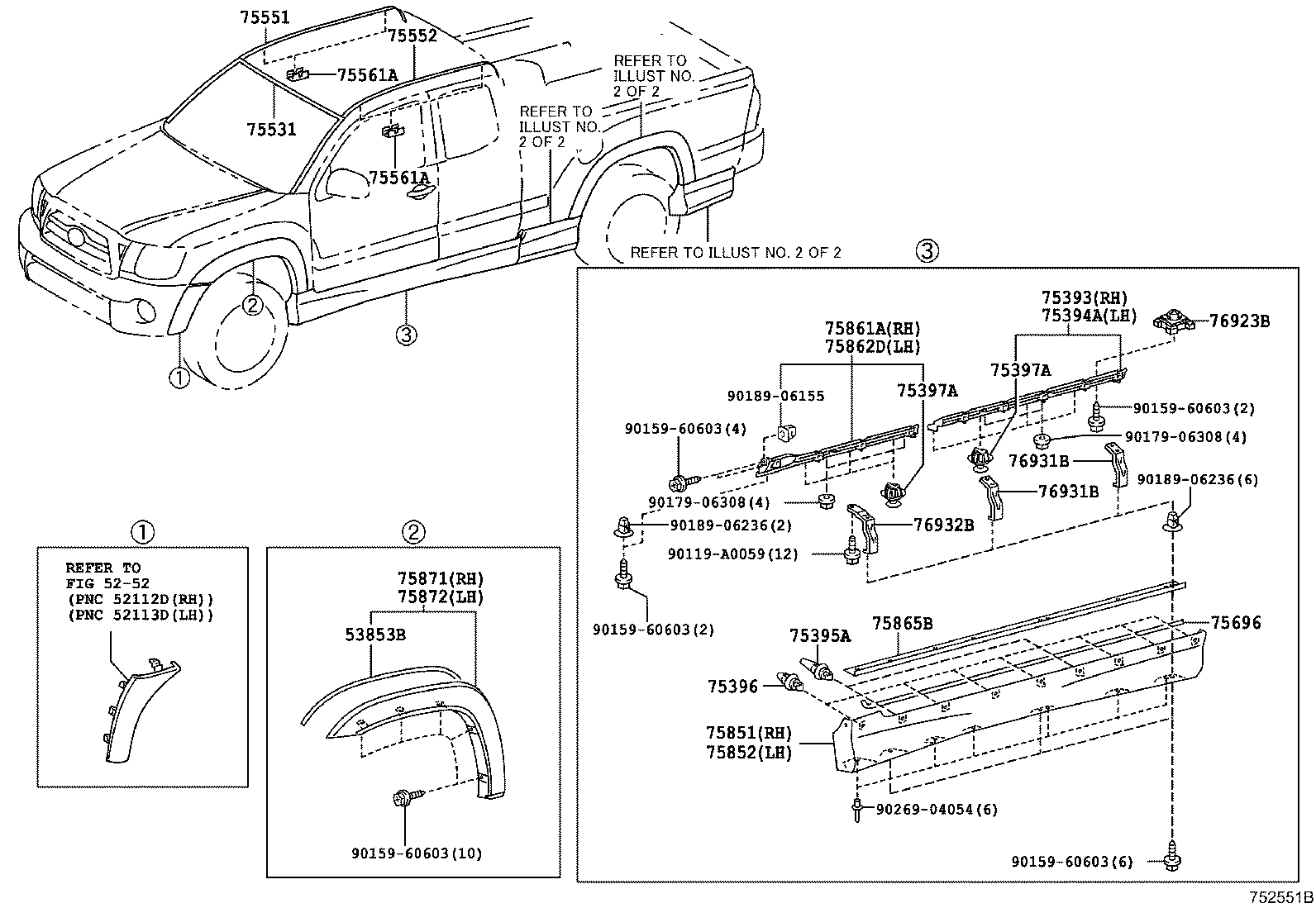

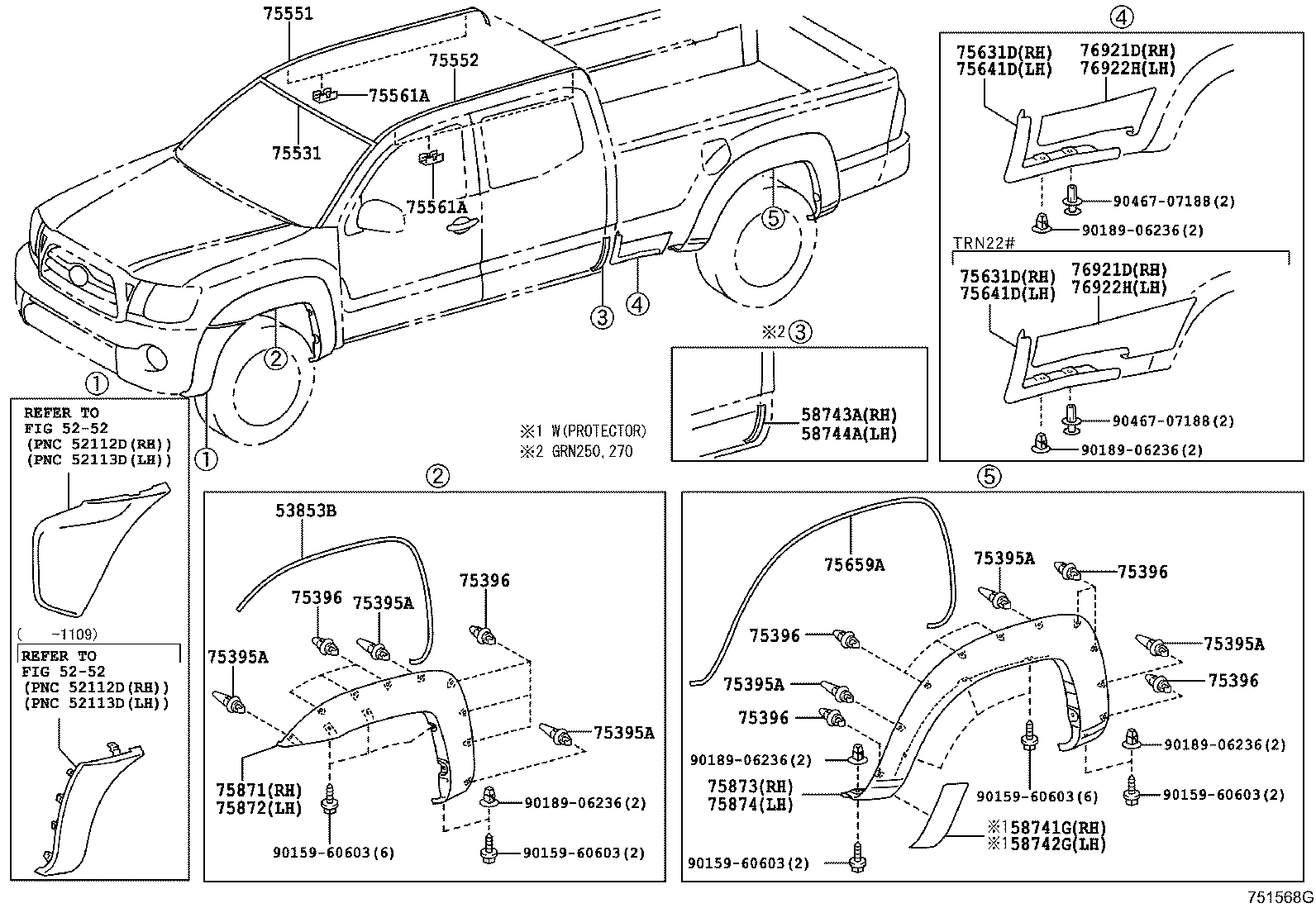

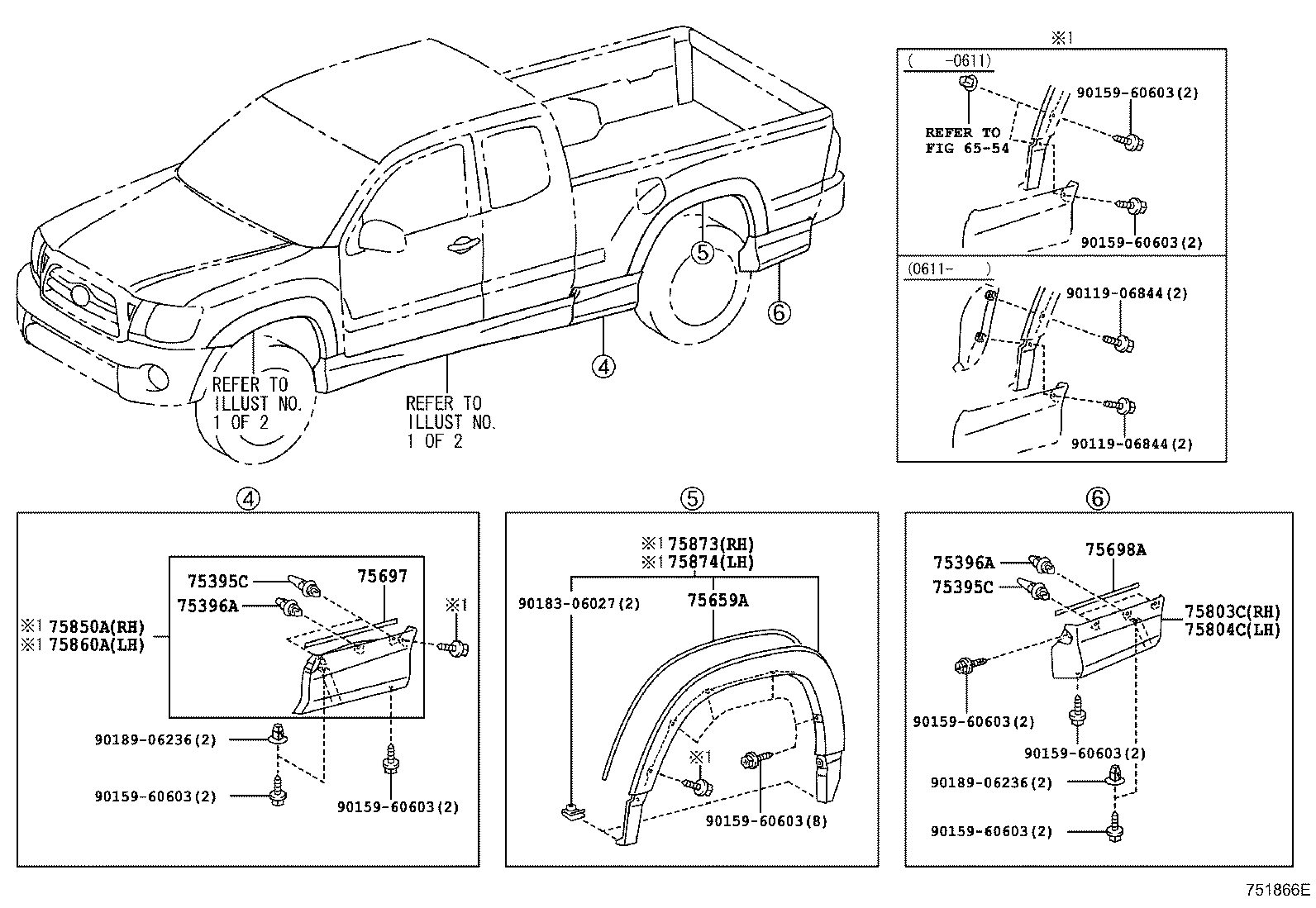

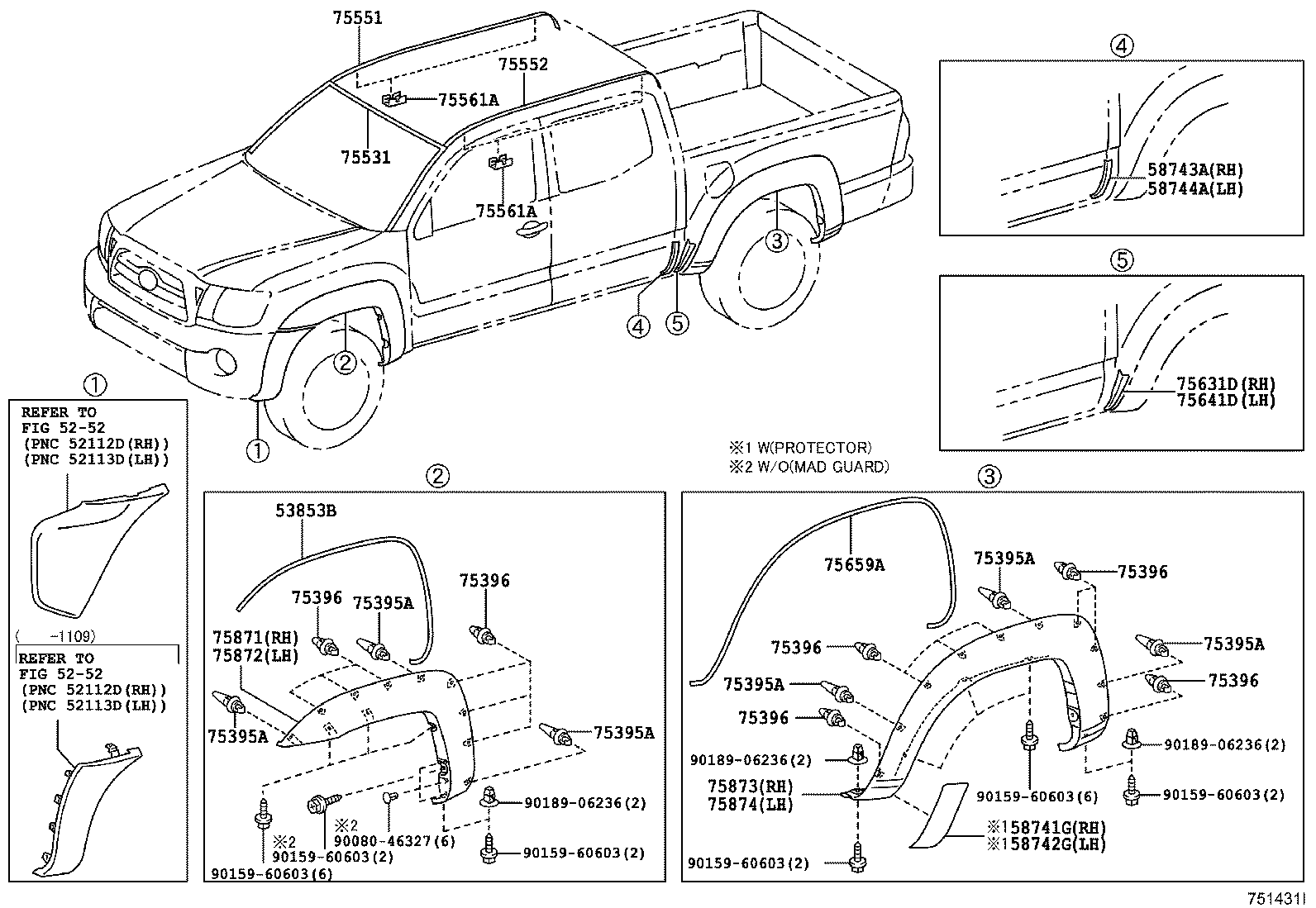

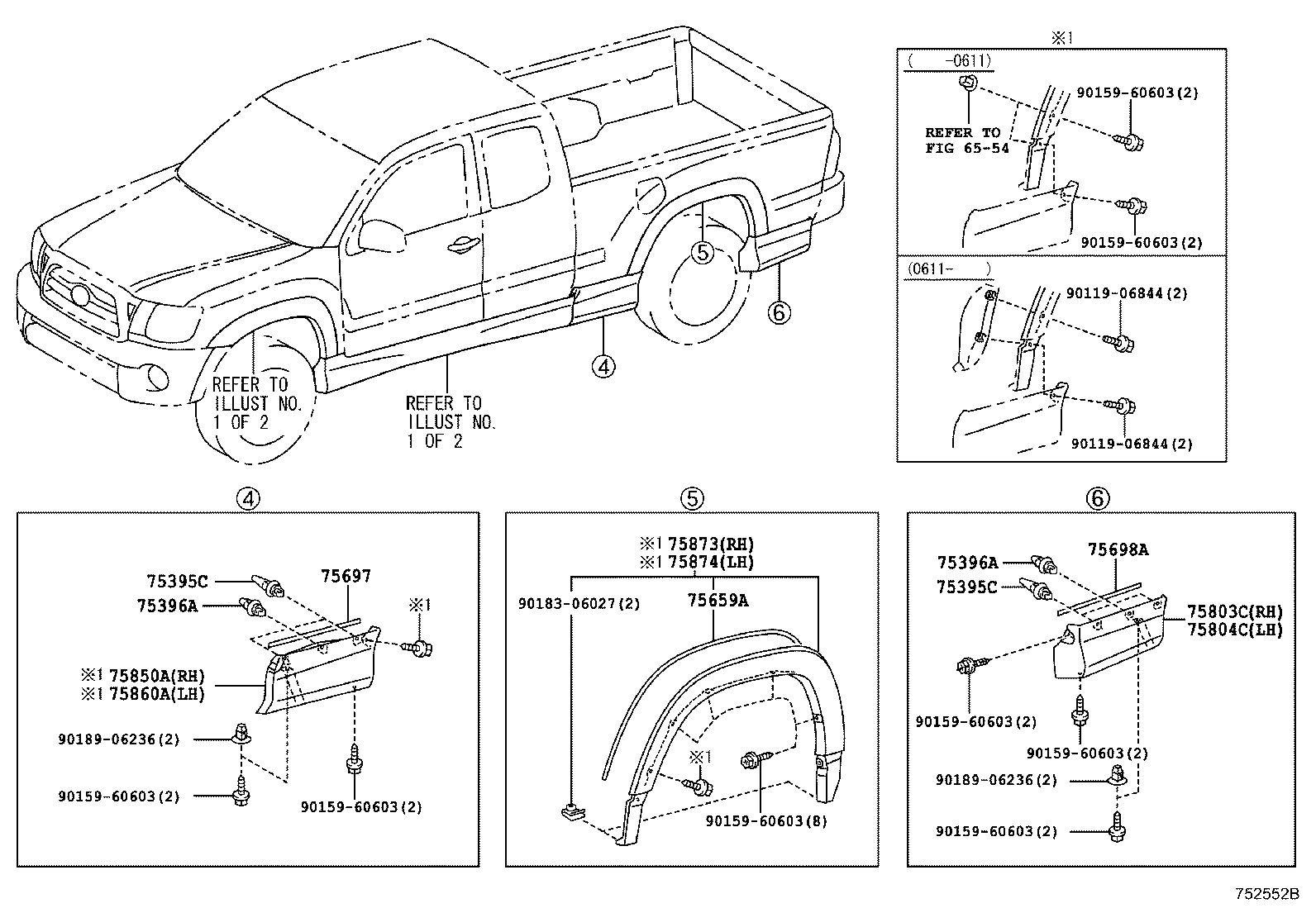

Figure 751430H 751430H 2004-09 → 2015-08 Figure 751866E 751866E 2004-09 → 2015-08 Figure 751431I 751431I 2004-09 → 2015-08 Figure 751568G 751568G 2004-09 → 2015-08 Figure 752551B 752551B 2011-09 → 2012-08 Figure 752552B 752552B 2011-09 → 2012-08 Figure 753216 753216 2015-08 → — Figure 753217D 753217D 2015-08 → —

Part groups

PNCDescription
53851G Pad, Front Wheel Opening Extension, RH
53852A Pad, Front Wheel Opening Extension, NO.2
53853B Pad, Front Wheel Opening Extension, NO.1
58741G Protector, Rear Wheel Extension, RH
58742G Protector, Rear Wheel Extension, LH
58743A Protector, Rear Wheel Extension, NO.2 RH
58744A Protector, Rear Wheel Extension, NO.2 LH
75393 Retainer, Outside Moulding, NO.2
75394A Retainer, Outside Moulding, NO.3
75395A Clip, Outside Moulding, NO.1
75395C Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75396A Clip, Outside Moulding, NO.2
75397A Clip, Outside Moulding, NO.3
75531 Moulding, Windshield, Outer Upper
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553A Moulding, Roof Drip Side Finish, Rear RH
75554A Moulding, Roof Drip Side Finish, Rear LH
75561A Clip, Roof Drip Side Finish Moulding
75631D Moulding, Side Panel, Lower NO.1 RH
75632D Moulding, Side Panel, Lower NO.2 RH
75641D Moulding, Side Panel, Lower NO.1 LH
75642D Moulding, Side Panel, Lower NO.2 LH
75659A Pad, Quarter Panel Moulding, NO.1
75696 Pad, Body Outside Moulding, NO.1
75697 Pad, Body Outside Moulding, NO.2
75697A Pad, Body Outside Moulding, NO.2
75698A Pad, Body Outside Moulding, NO.3
75803C Moulding Sub-assy, Back Door, Outside RH
75804C Moulding Sub-assy, Back Door, Outside LH
75850A Moulding Assy, Body Rocker Panel, RH
75851 Moulding, Rocker Panel, RH
75852 Moulding, Rocker Panel, LH
75860A Moulding Assy, Body Rocker Panel, LH
75861A Protector, Rocker Panel Moulding, NO.1
75862D Retainer, Rocker Panel Moulding, LH
75865B Retainer, Rocker Panel Moulding, NO.2
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
76921D Protector, Side Mudguard, NO.1
76922H Protector, Side Mudguard, NO.2
76923B Retainer, Side Mudguard
76931B Bracket, Side Mudguard, NO.1 RH
76932B Bracket, Side Mudguard, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
