Fuel Tank & Tube

59 part groups · 15 illustrations

Illustrations

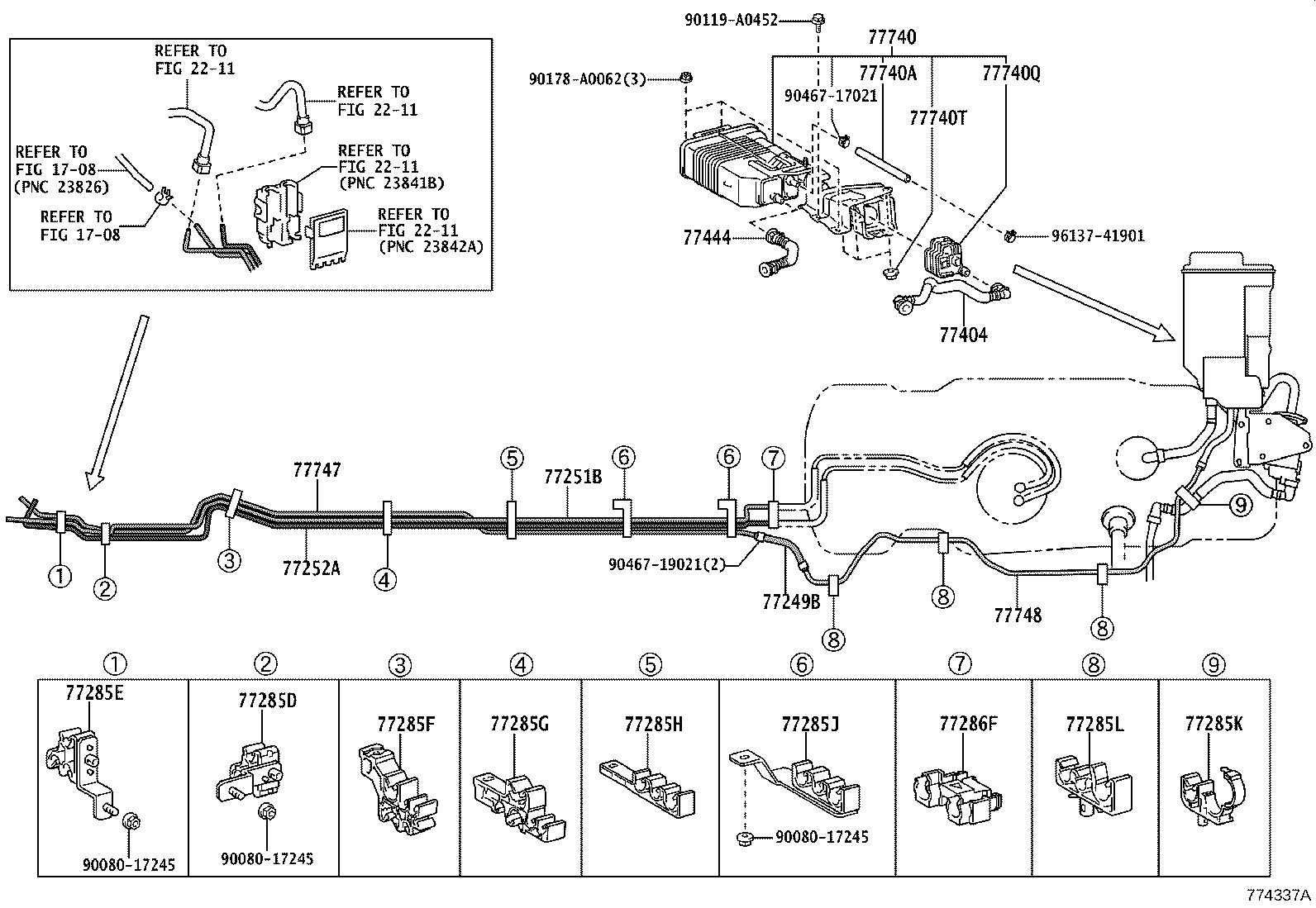

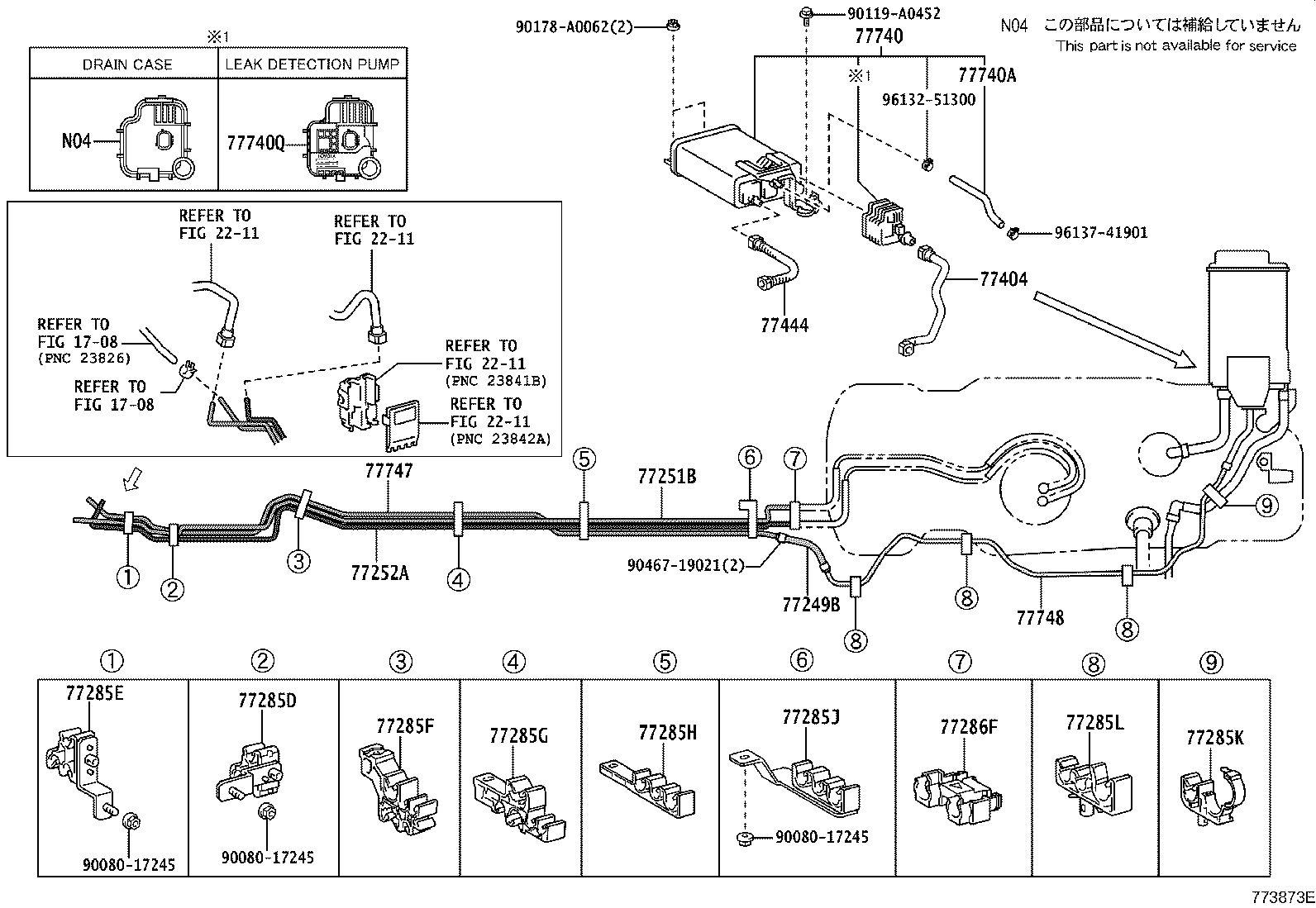

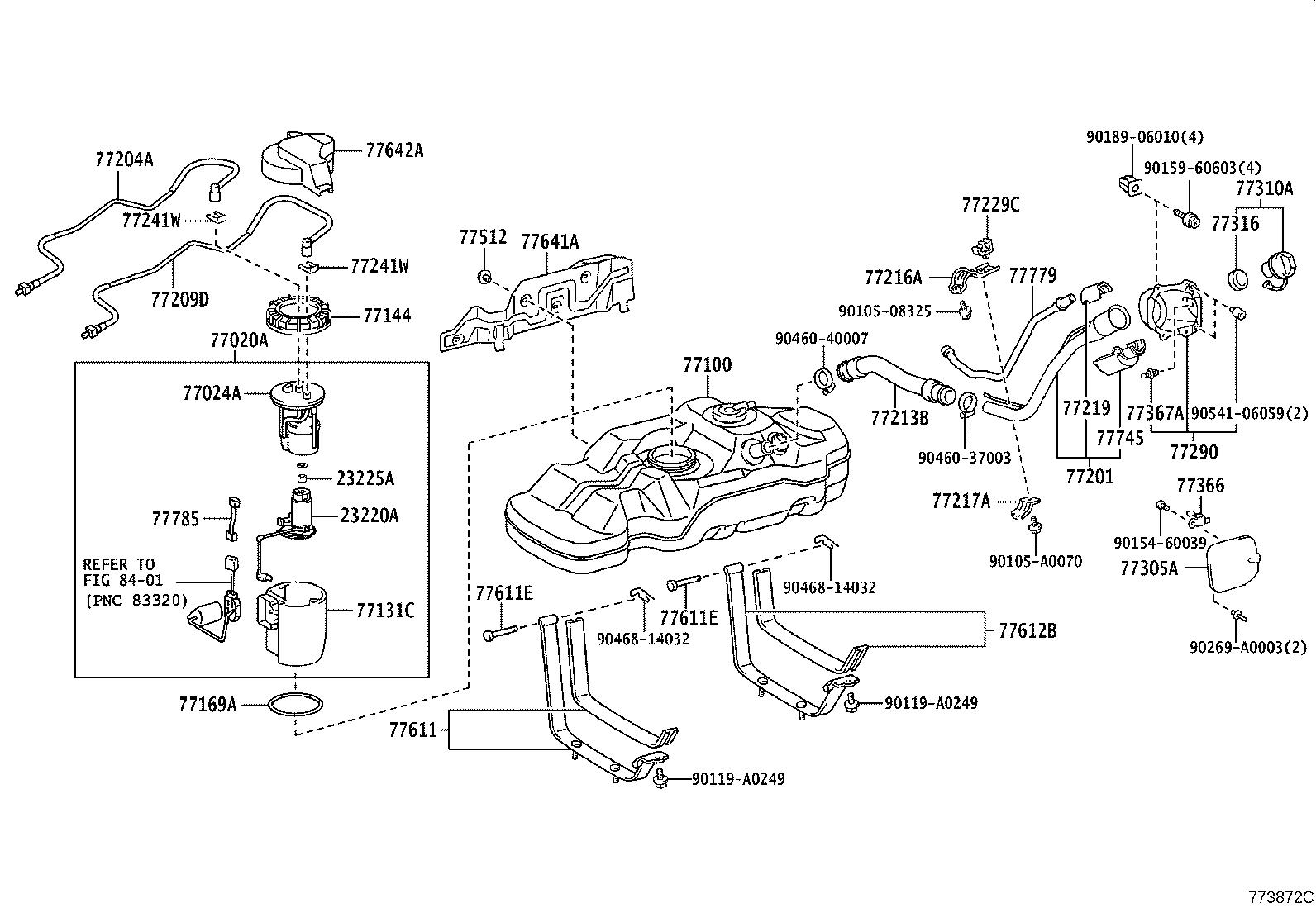

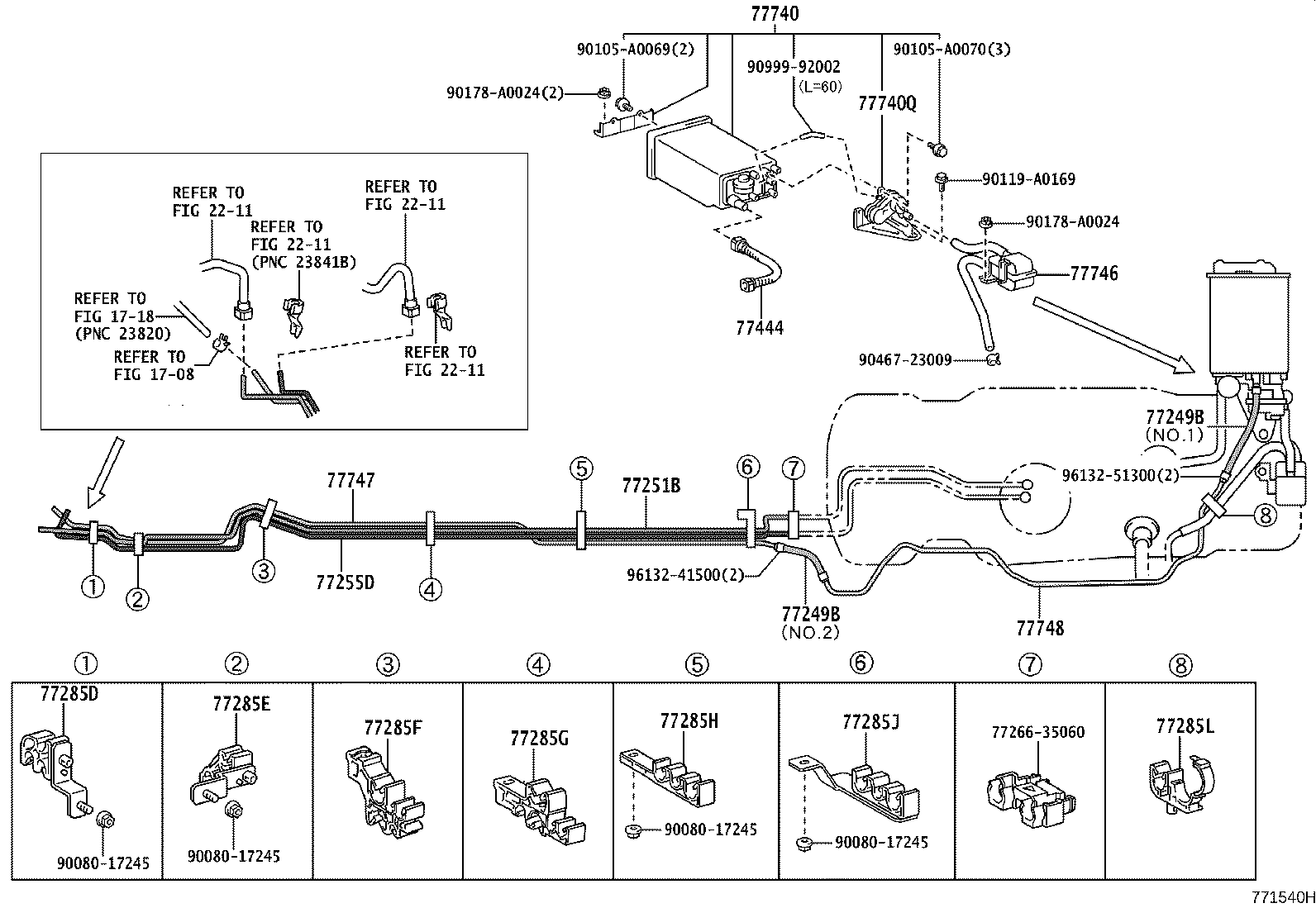

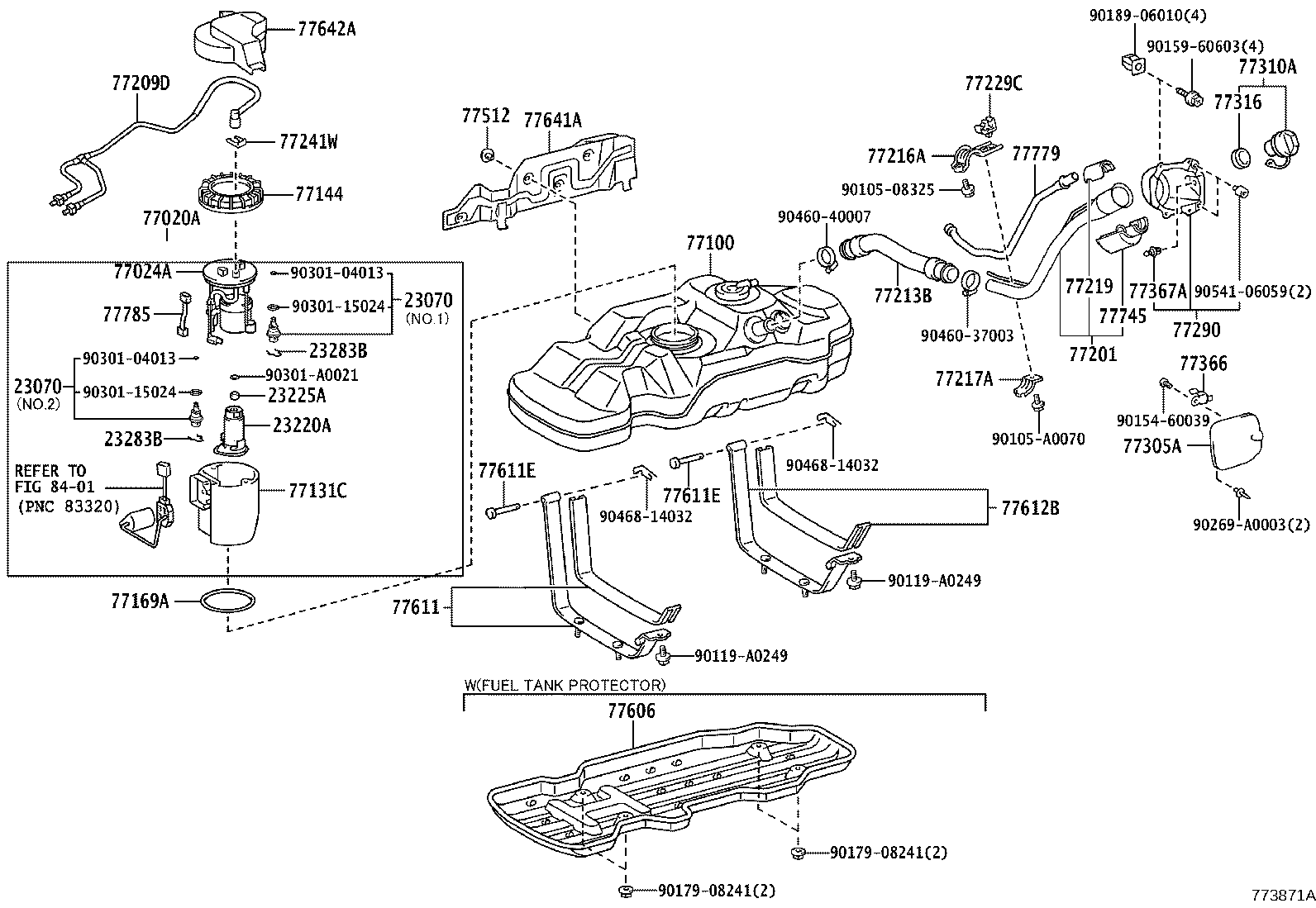

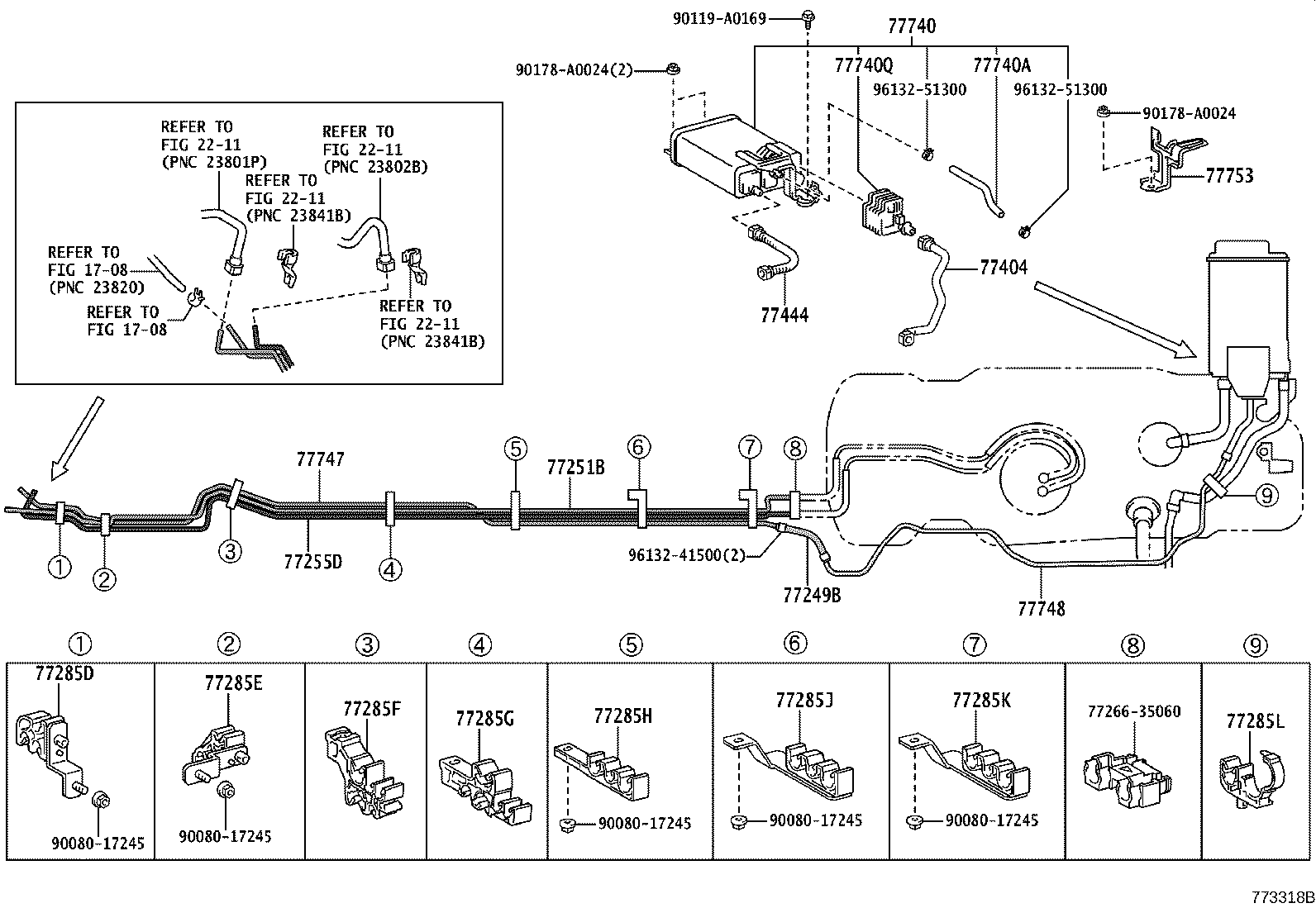

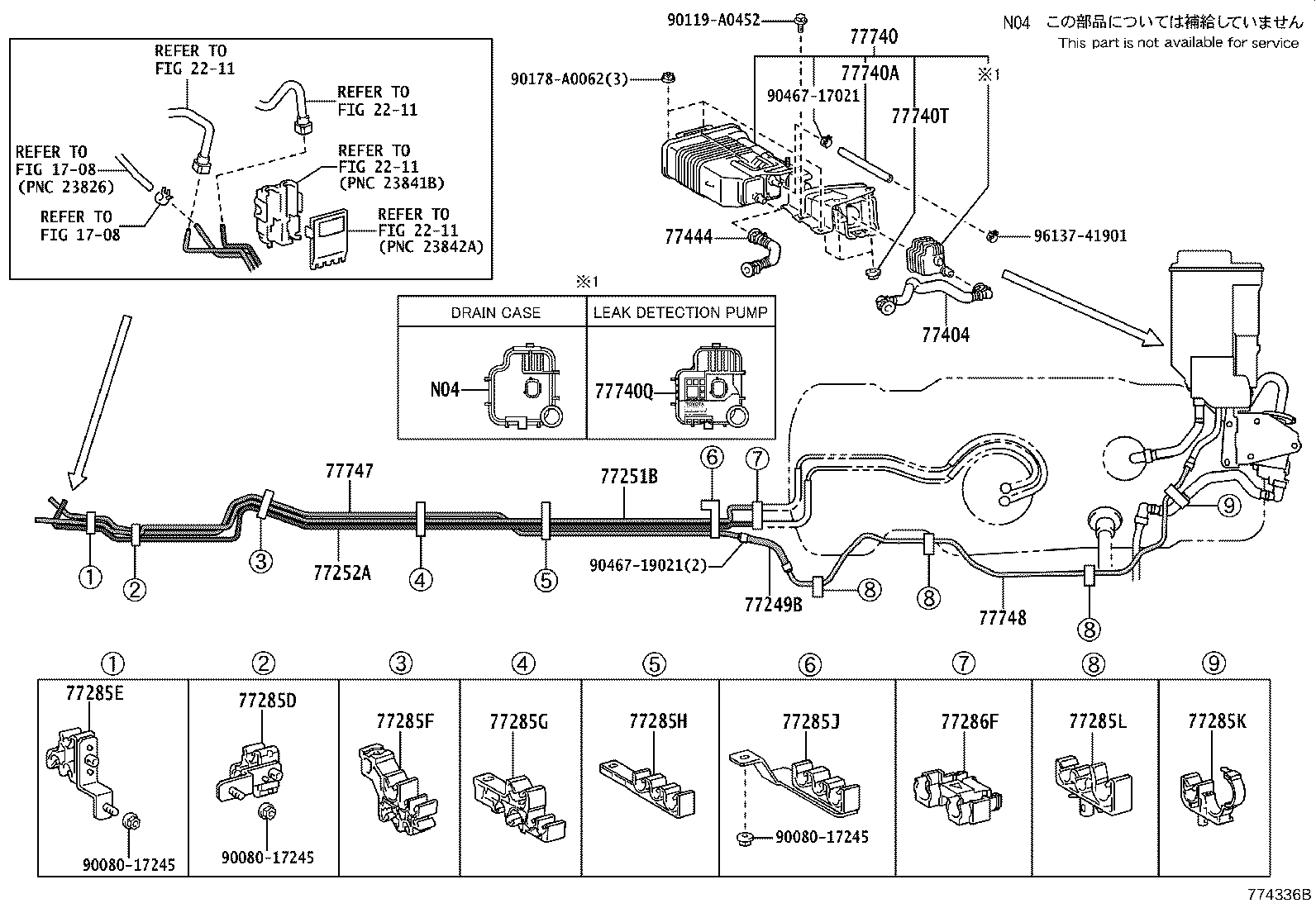

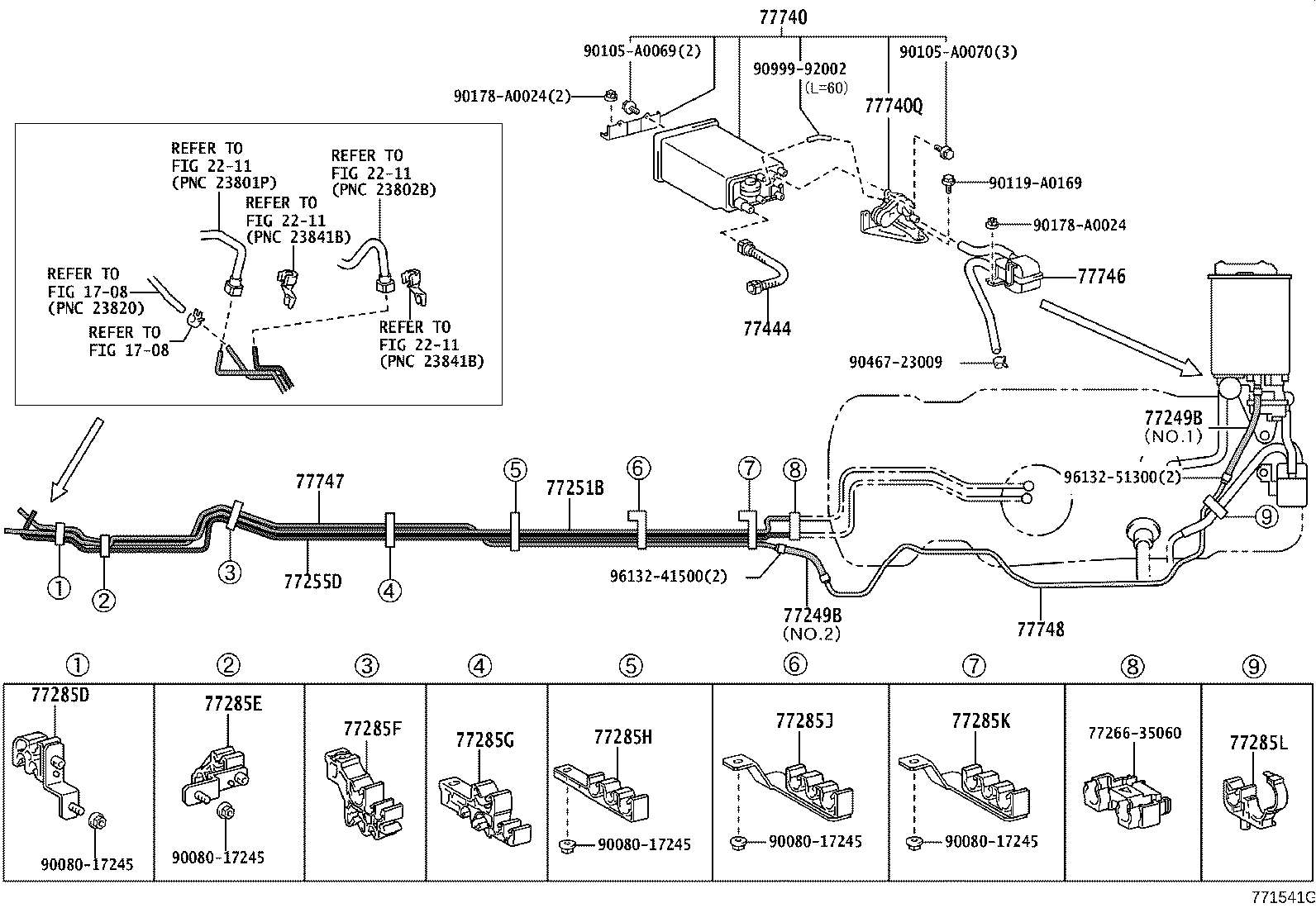

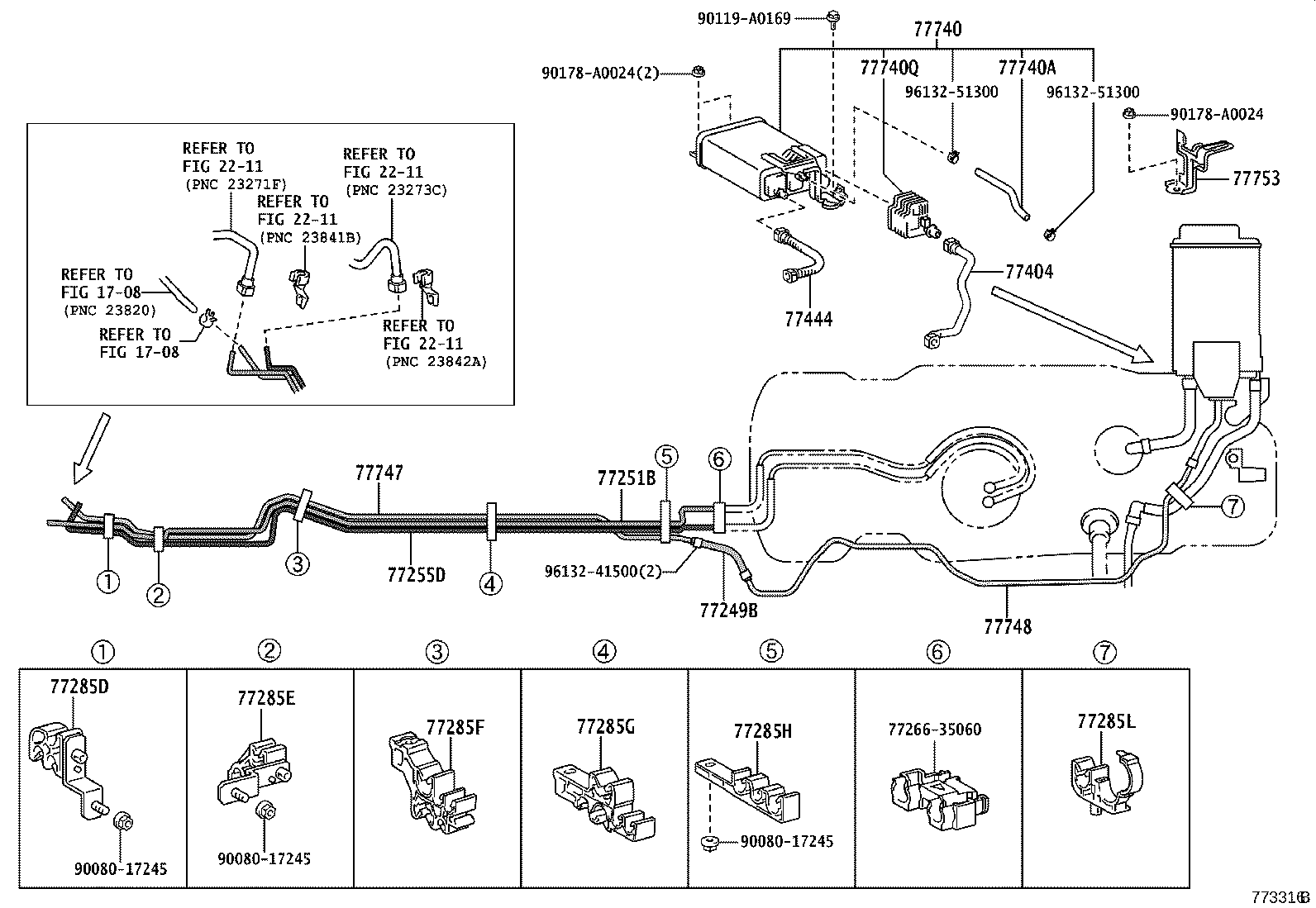

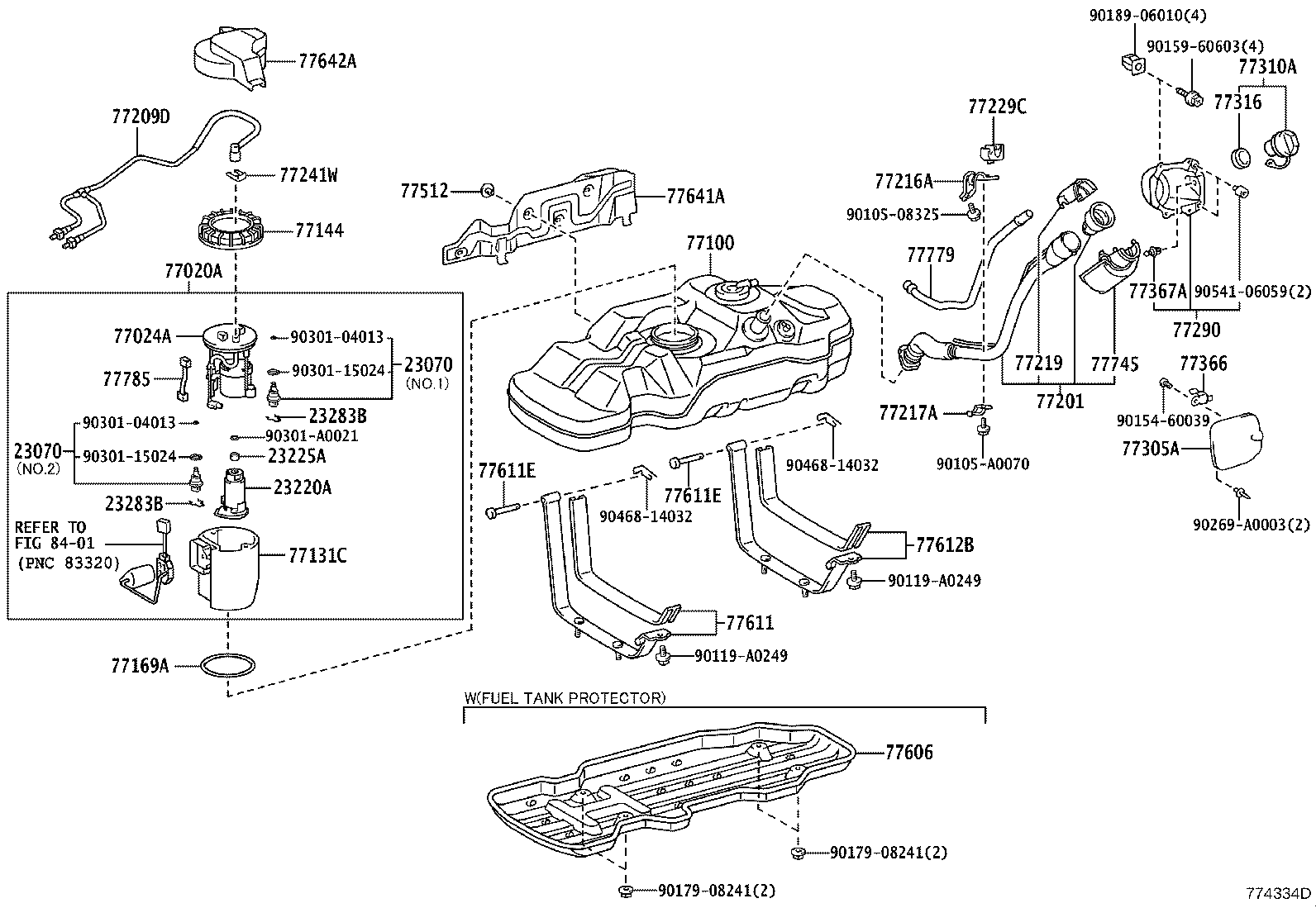

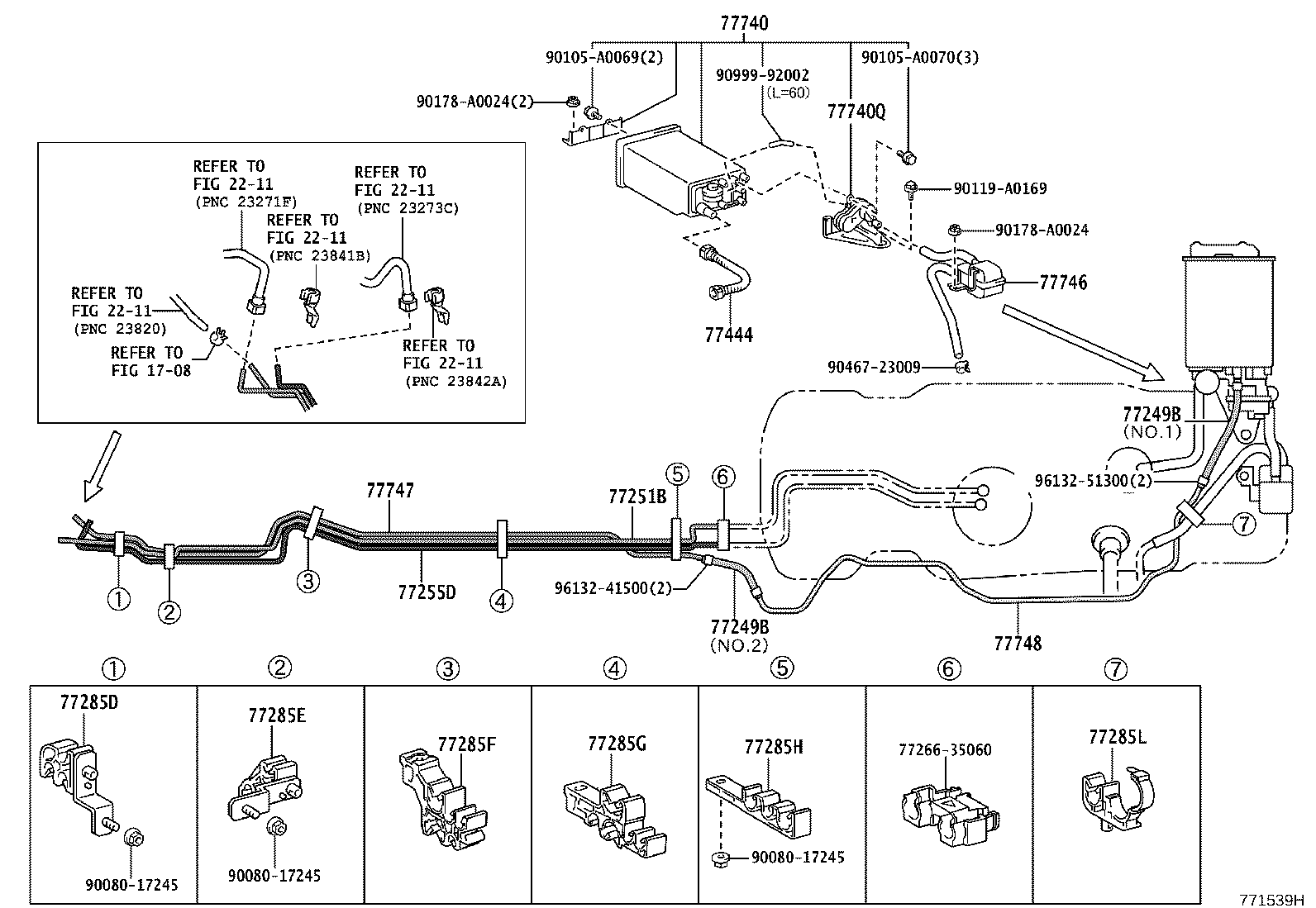

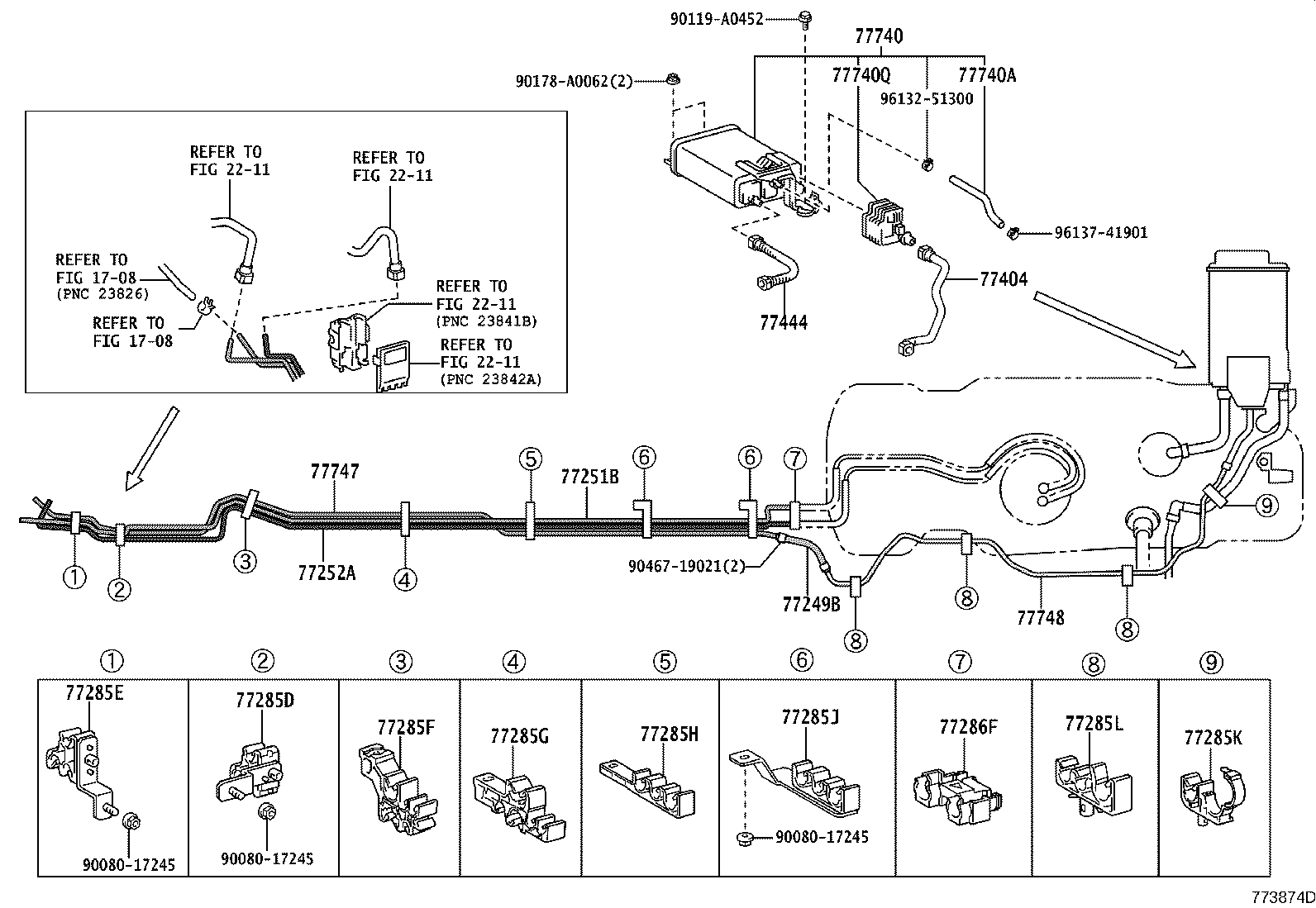

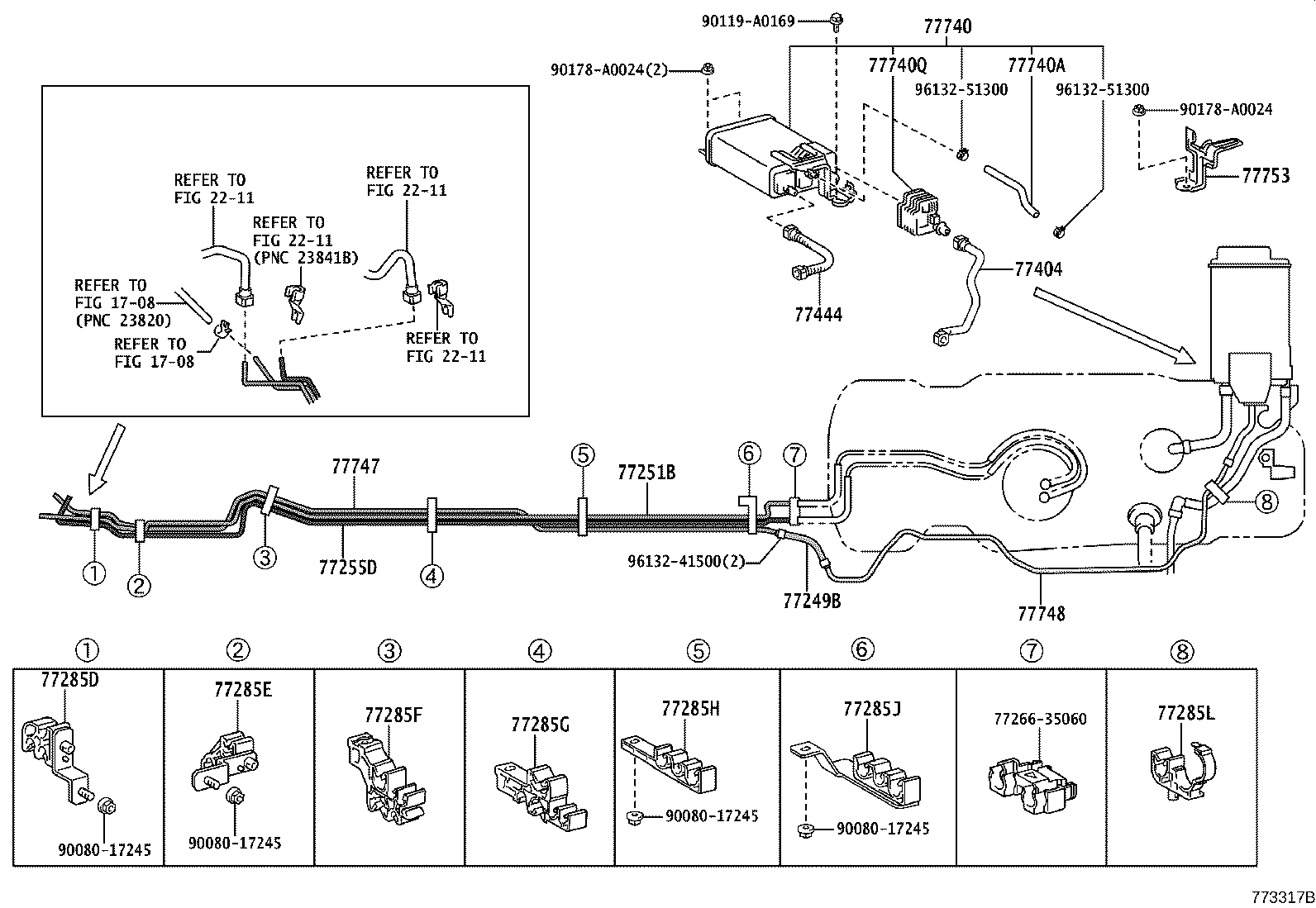

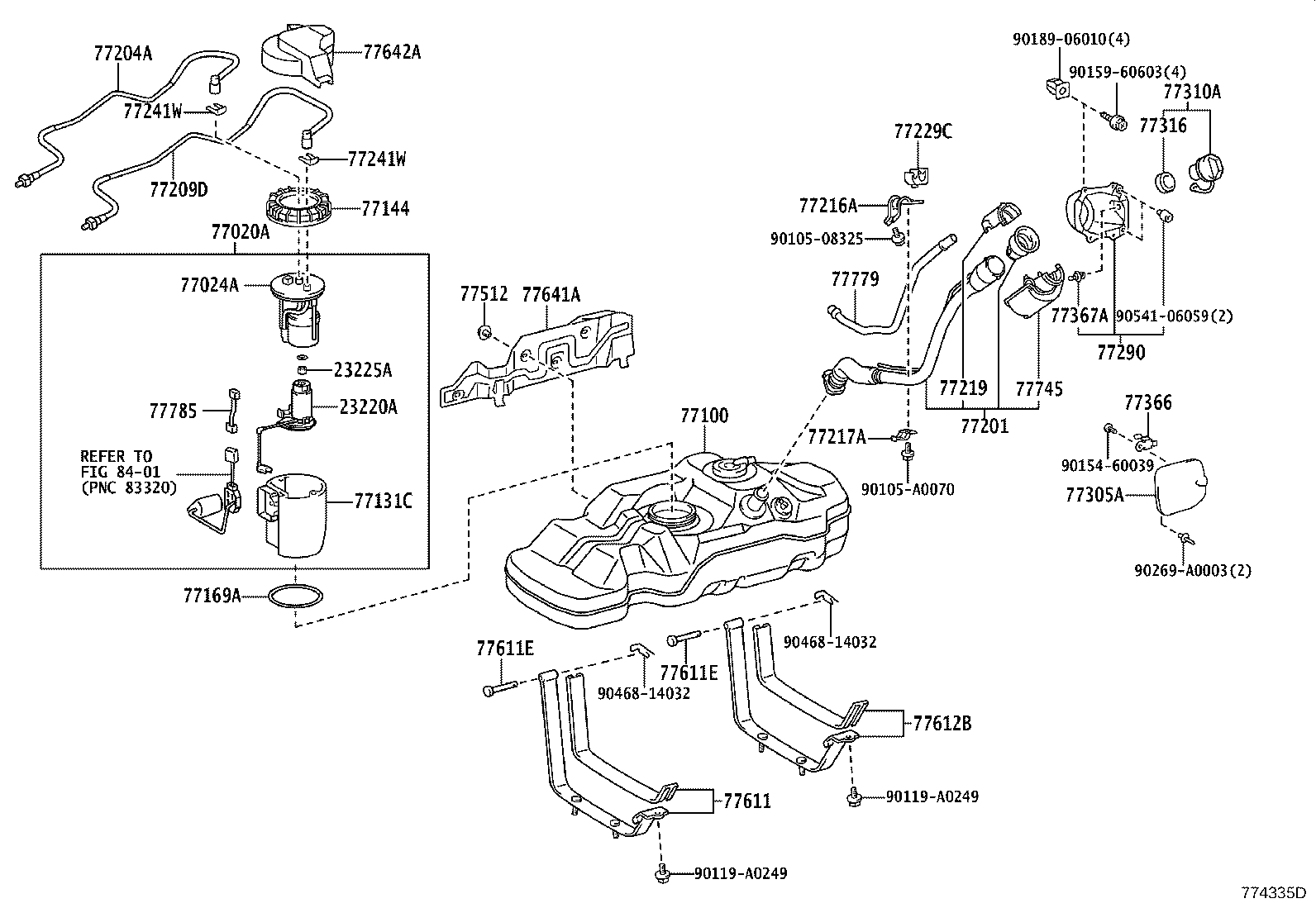

Figure 771538O 771538O 2004-09 → 2015-08 Figure 773871A 773871A 2015-08 → 2017-11 Figure 773872C 773872C 2015-08 → 2017-11 Figure 774334D 774334D 2017-11 → — Figure 774335D 774335D 2017-11 → — Figure 771539H 771539H 2004-09 → 2012-08 Figure 773316B 773316B 2012-08 → — Figure 771540H 771540H 2004-09 → 2012-08 Figure 773317B 773317B 2012-08 → 2015-08 Figure 773873E 773873E 2015-08 → 2017-11 Figure 774336B 774336B 2017-11 → — Figure 771541G 771541G 2004-09 → 2012-08 Figure 773318B 773318B 2012-08 → 2015-08 Figure 773874D 773874D 2015-08 → 2017-11 Figure 774337B 774337B 2017-11 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23220A Pump Assy, Fuel W/Filter
23225A Spacer, Fuel Pump
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23283B Holder, Fuel Pressure Regulator
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77100 Tank Assy, Fuel
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77201 Pipe Sub-assy, Fuel Tank Inlet
77204A Tube, Fuel Tank Return
77209D Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77219 Cover, Fuel Tank Filler Pipe
77229C Clamp, Breather Tube
77241W Clip, Tube Joint
77249B Hose, Fuel
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77255D Tube, Fuel Return
77285D Clamp, Fuel Tube, NO.1
77285E Clamp, Fuel Tube W/Grommet, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77285J Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77285L Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77290 Shield Assy, Fuel Tank Filler Pipe
77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77366 Spring, Fuel Filler Opening Lid Hinge
77367A Clamp, Fuel Filler Lid Pin, NO.1
77404 Hose Sub-assy, Fuel Tank Vent
77444 Hose, Fuel Tank Vent
77512 Bracket, Fuel Tank, Rear
77606 Protector Sub-assy, Fuel Tank, NO.1
77611 Band, Fuel Tank
77611E Pin, Fuel Tank Band
77612B Band, Fuel Tank, NO.2
77641A Protector, Fuel Tank, NO.1
77642A Protector, Fuel Tank, NO.2
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740Q Leak Detection Pump Sub-assy, Charcoal Canister
77740T Nut, Flange(FOR CHARCOAL CANISTER)
77745 Filter, Charcoal Canister, NO.1
77746 Filter, Charcoal Canister, NO.2
77747 Pipe, Charcoal Canister, NO.1
77748 Pipe, Charcoal Canister, NO.2
77753 Bracket, Charcoal Canister, NO.3
77779 Tube, Charcoal Canister Outlet
77785 Harness, Fuel Pump
