Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

62 part groups · 22 illustrations

Illustrations

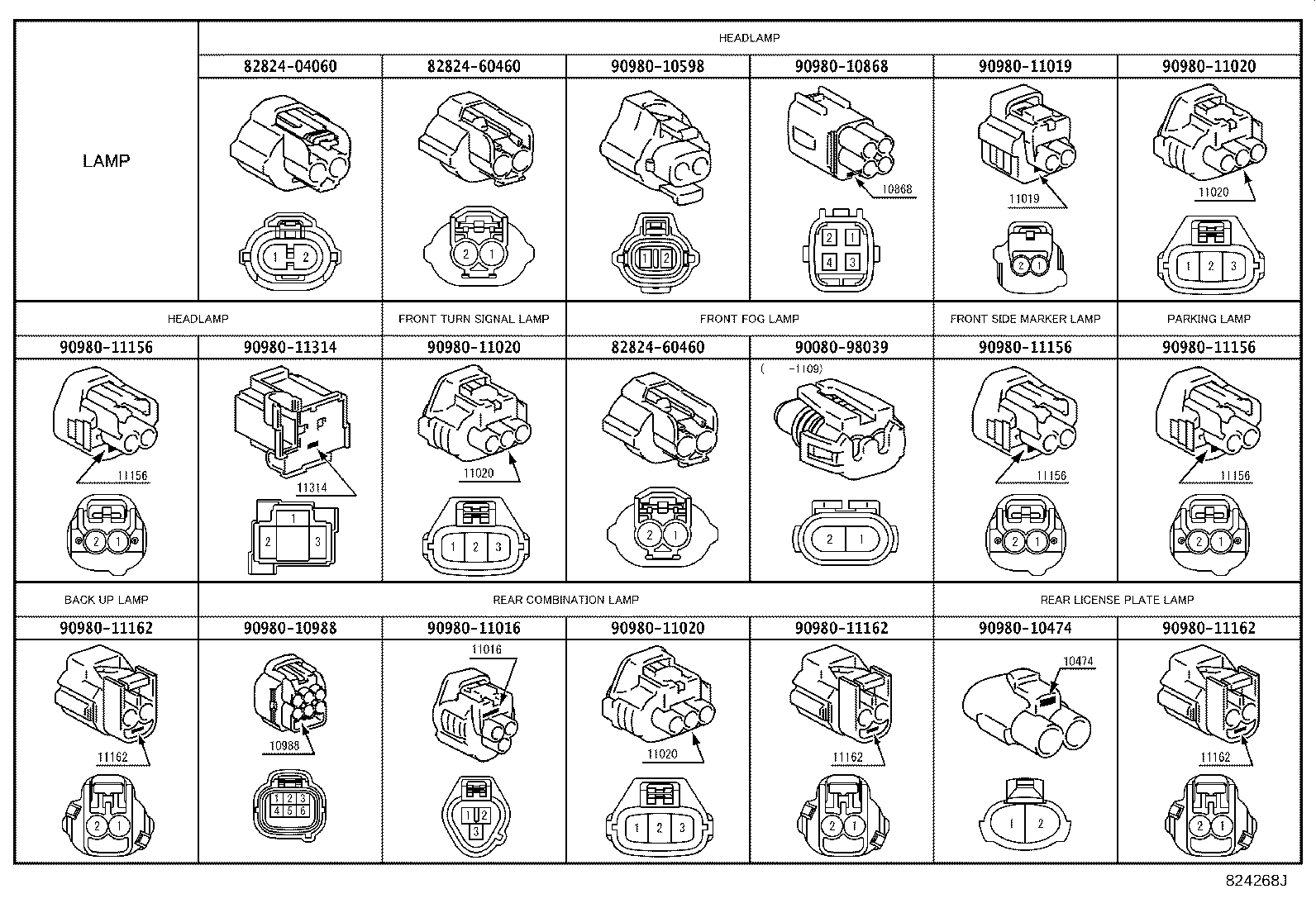

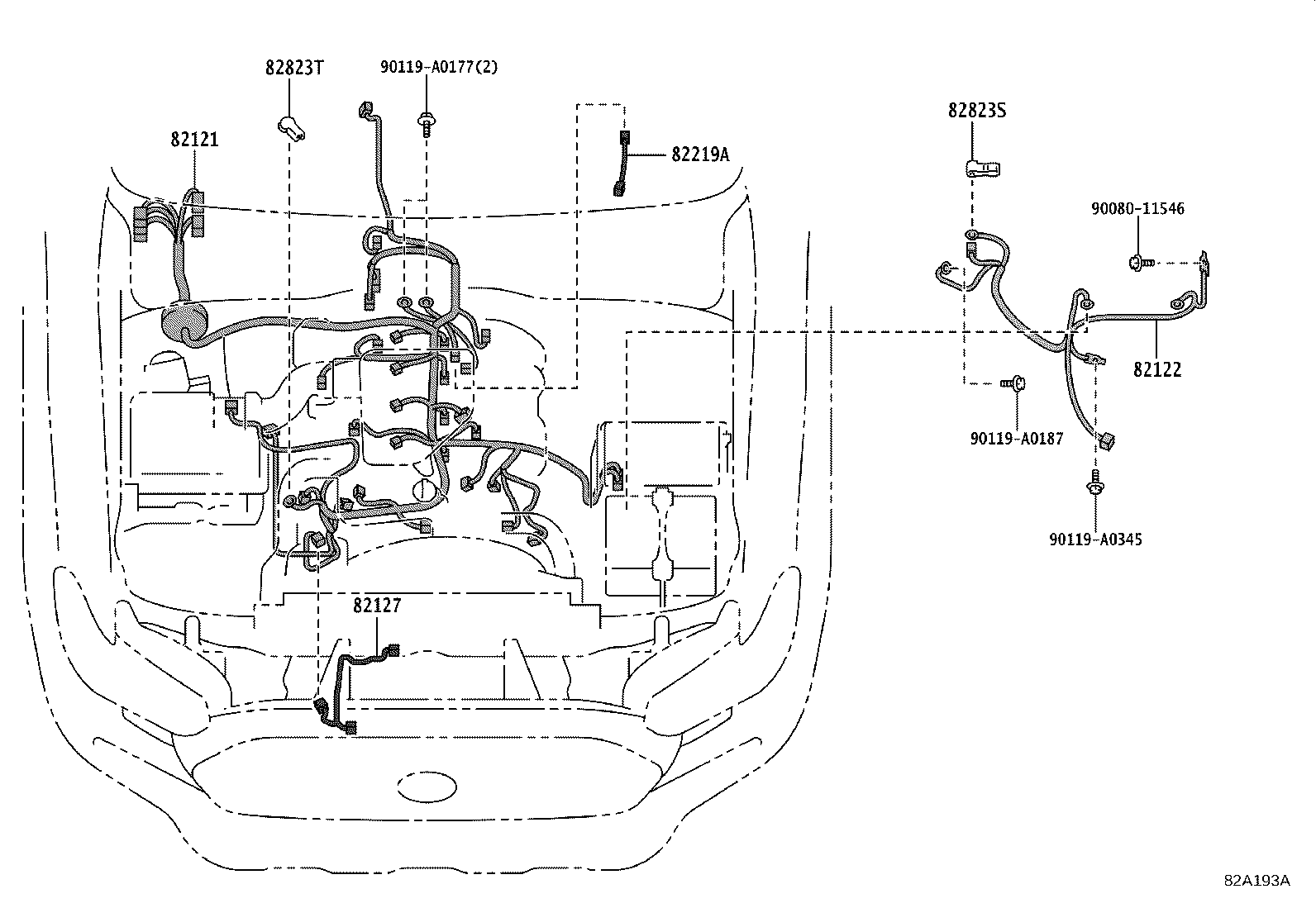

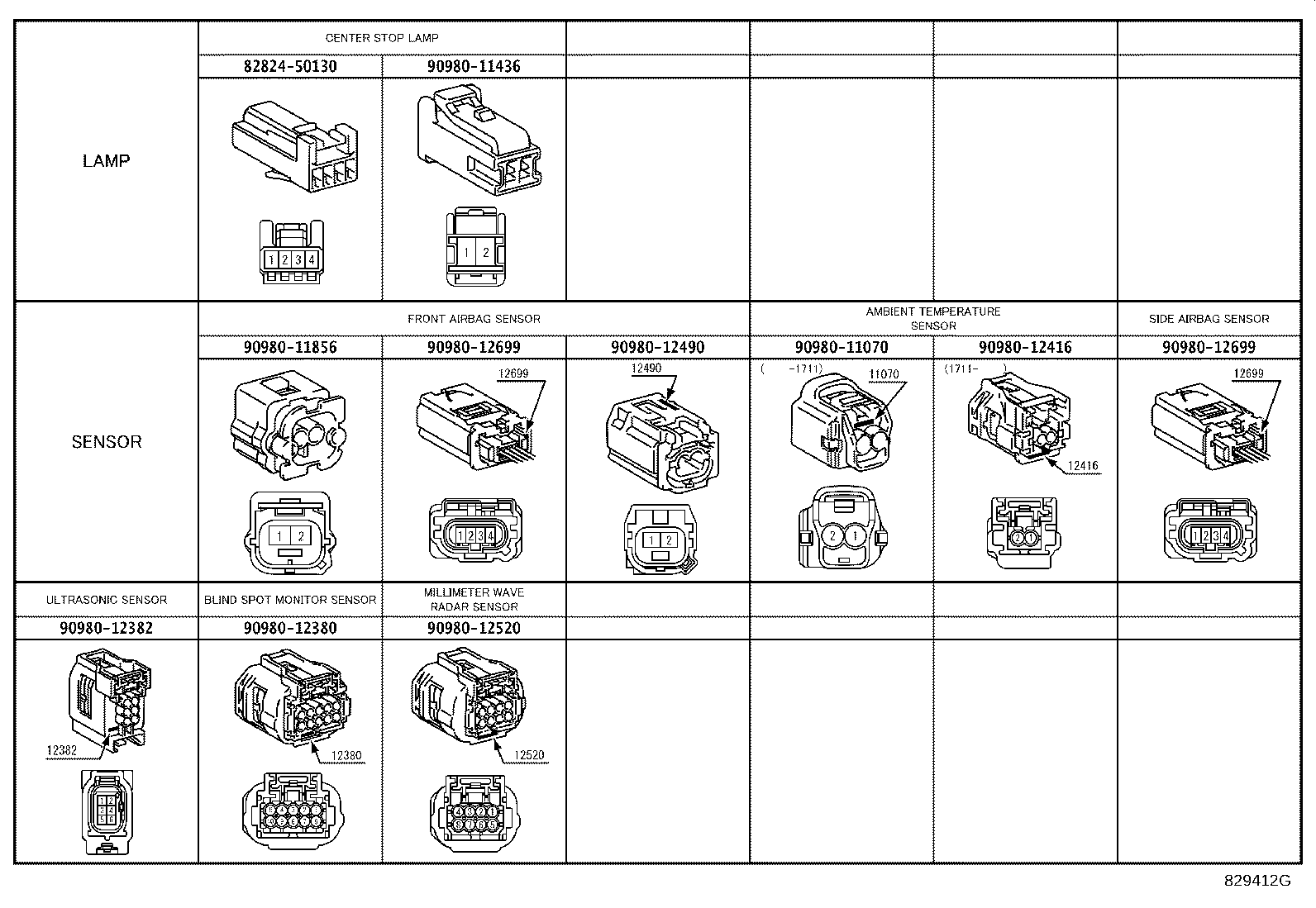

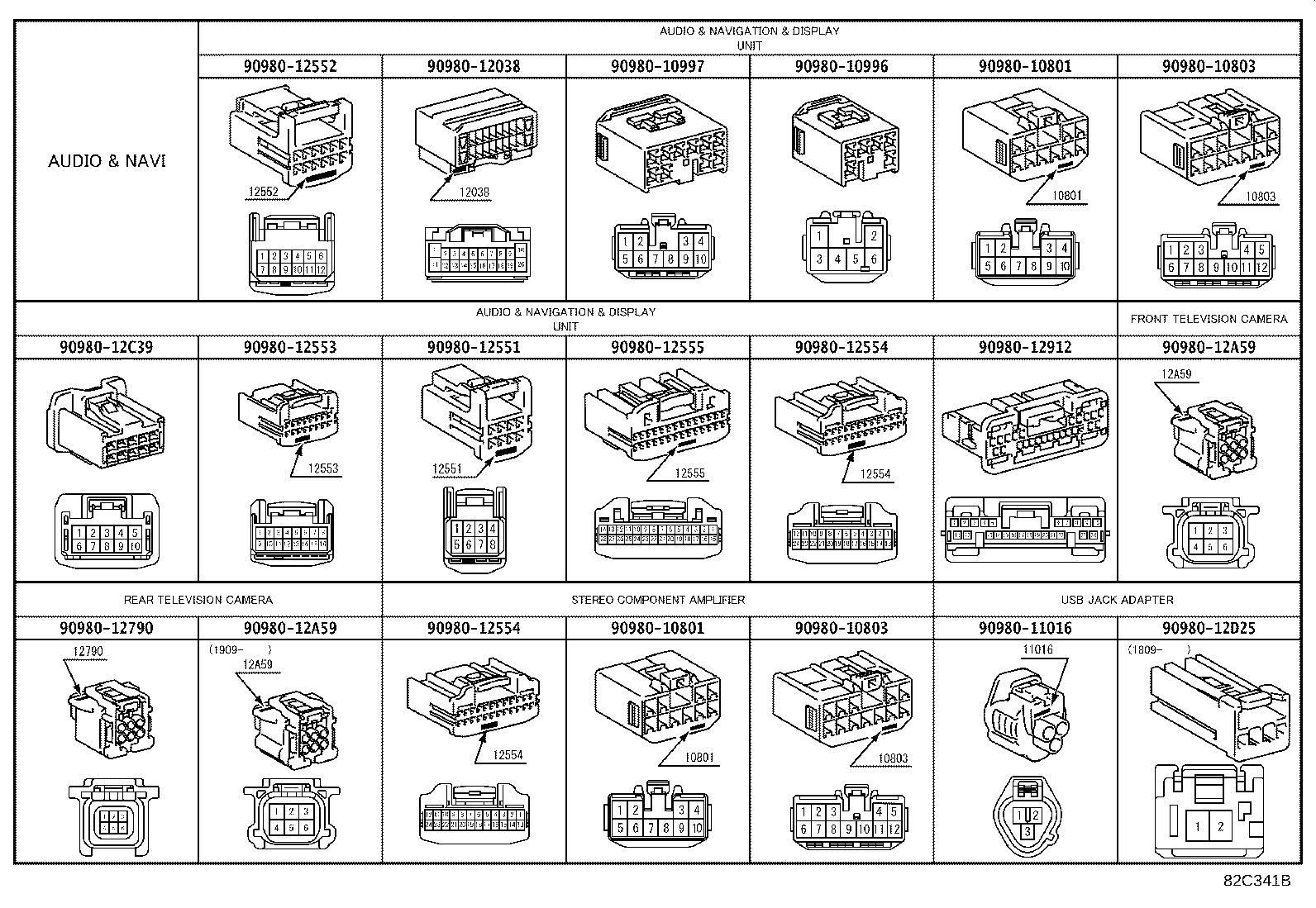

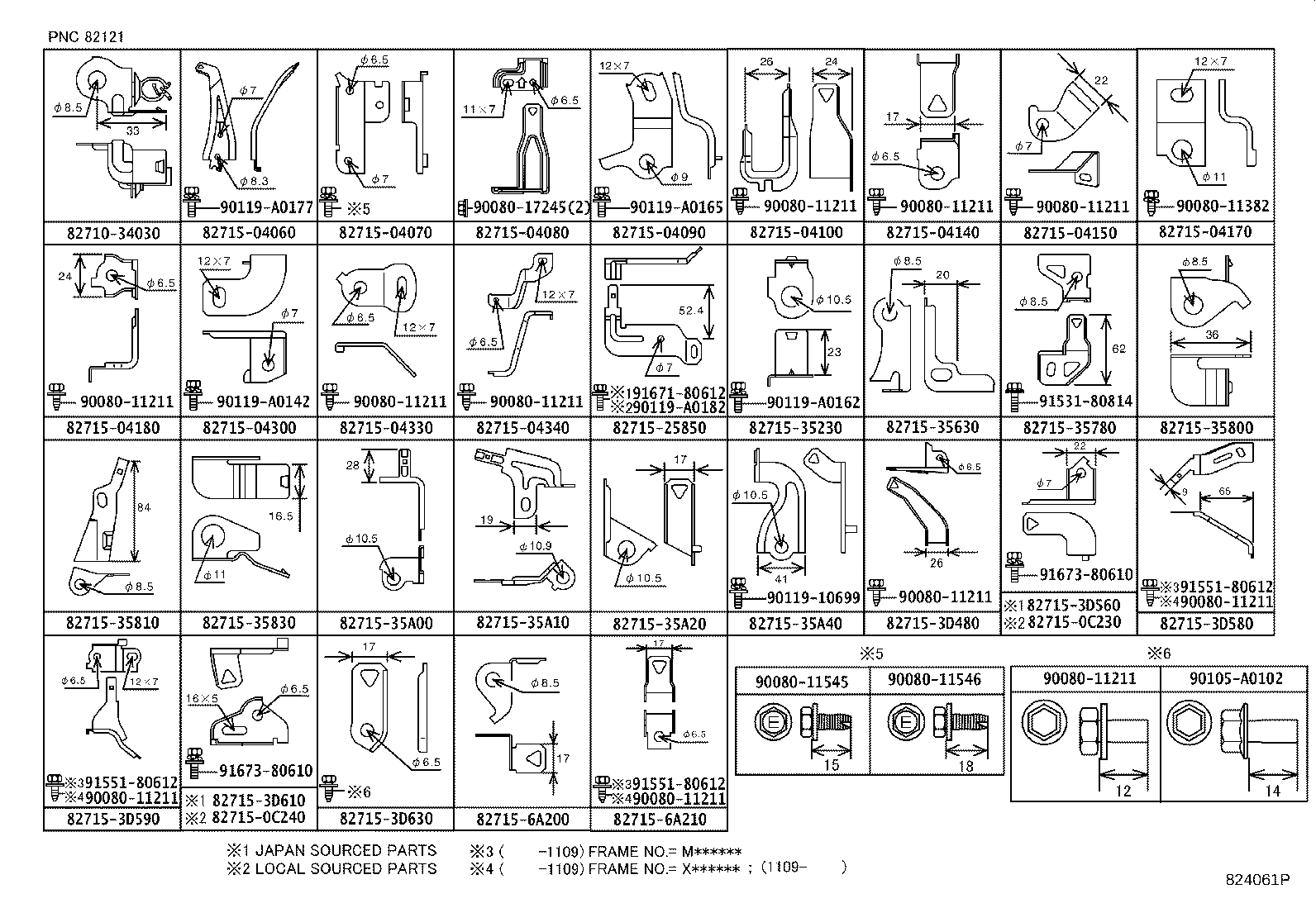

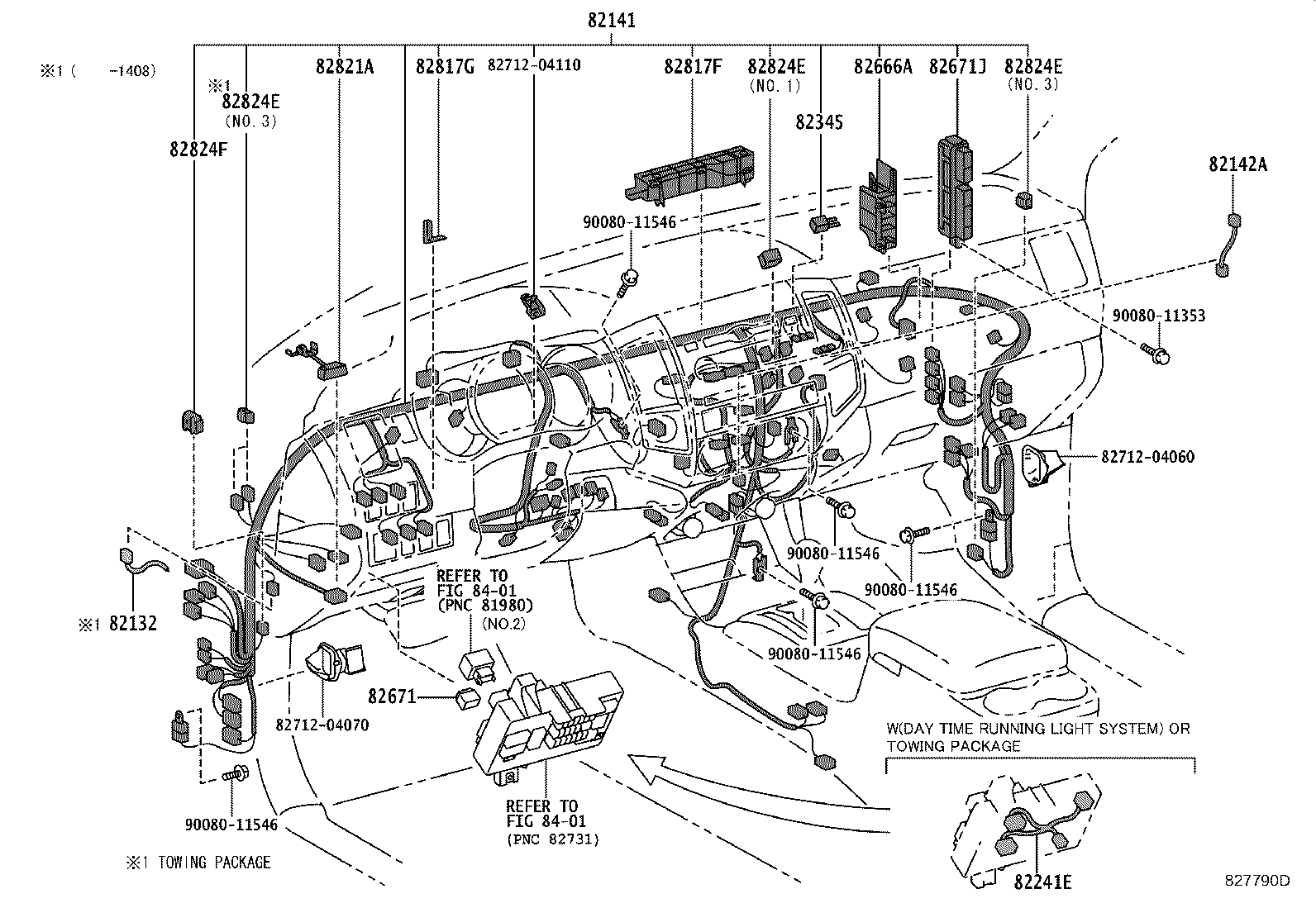

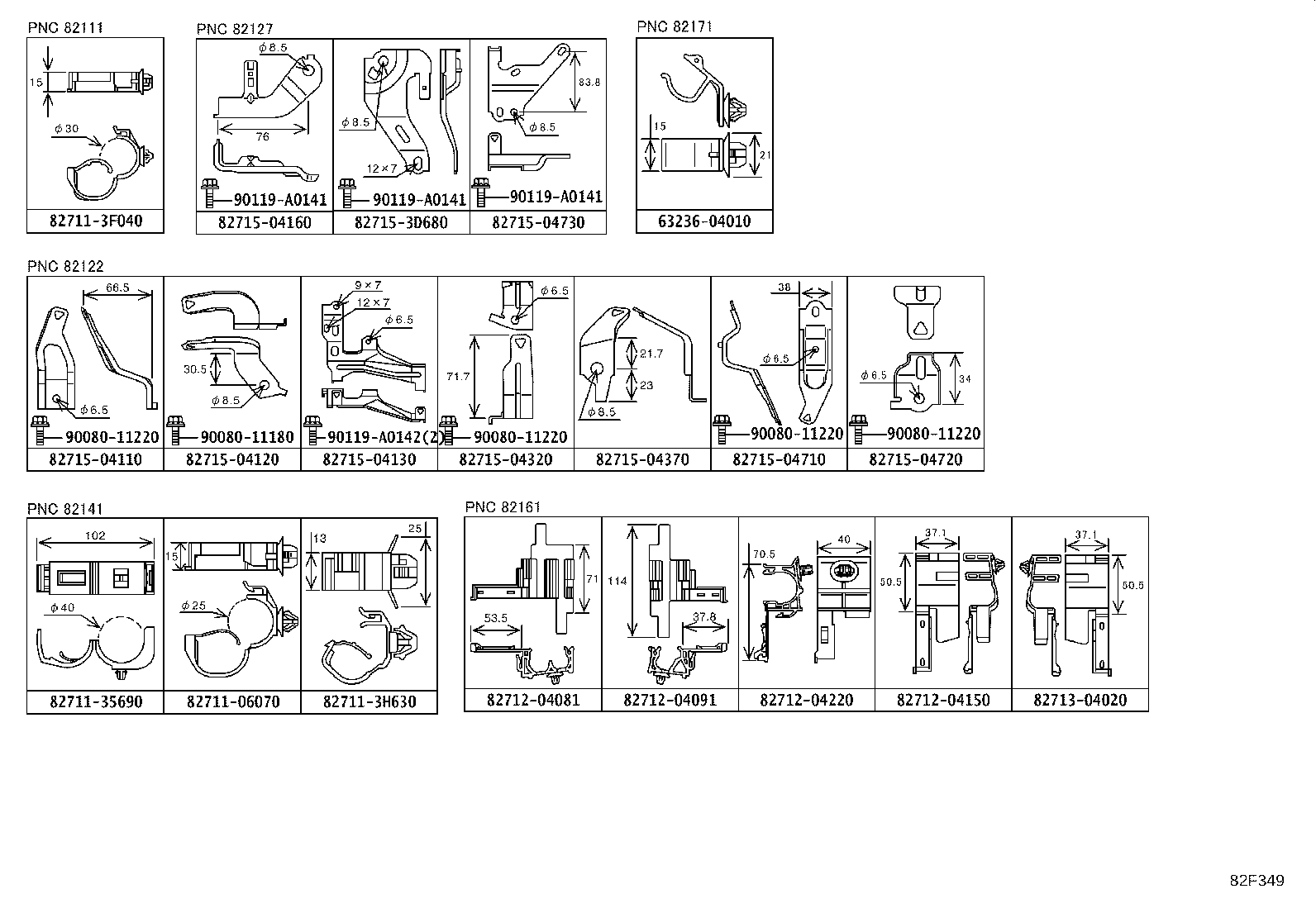

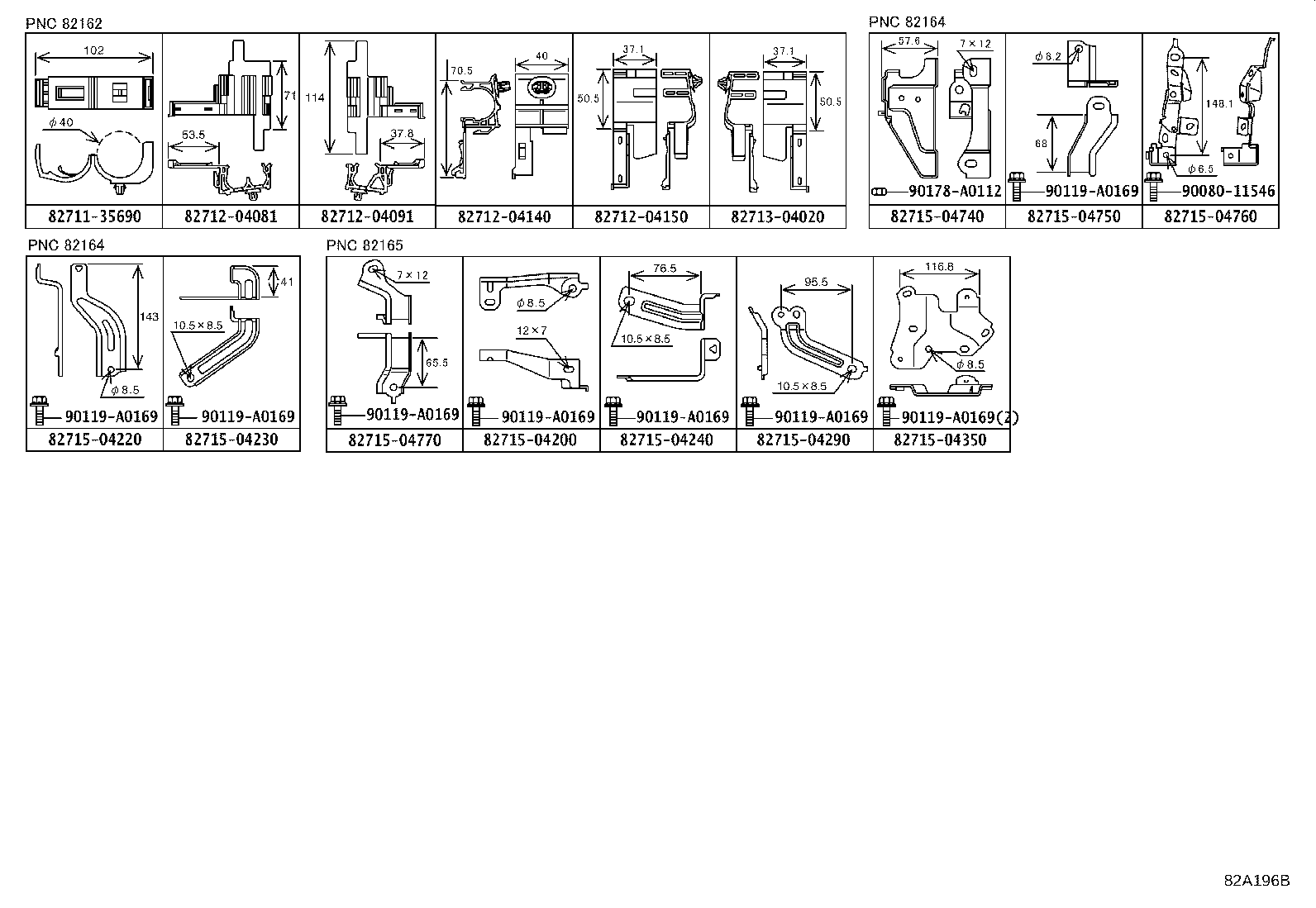

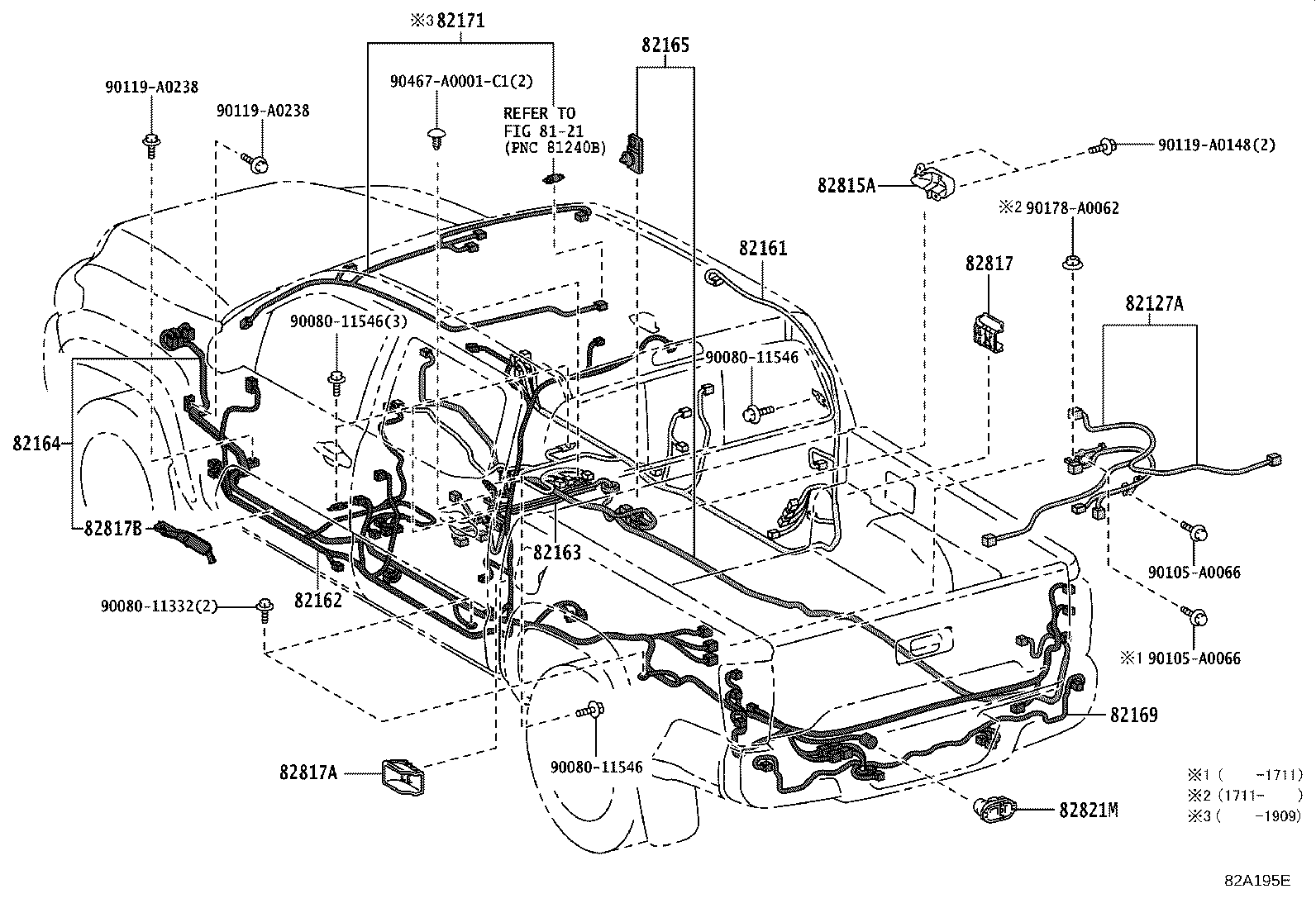

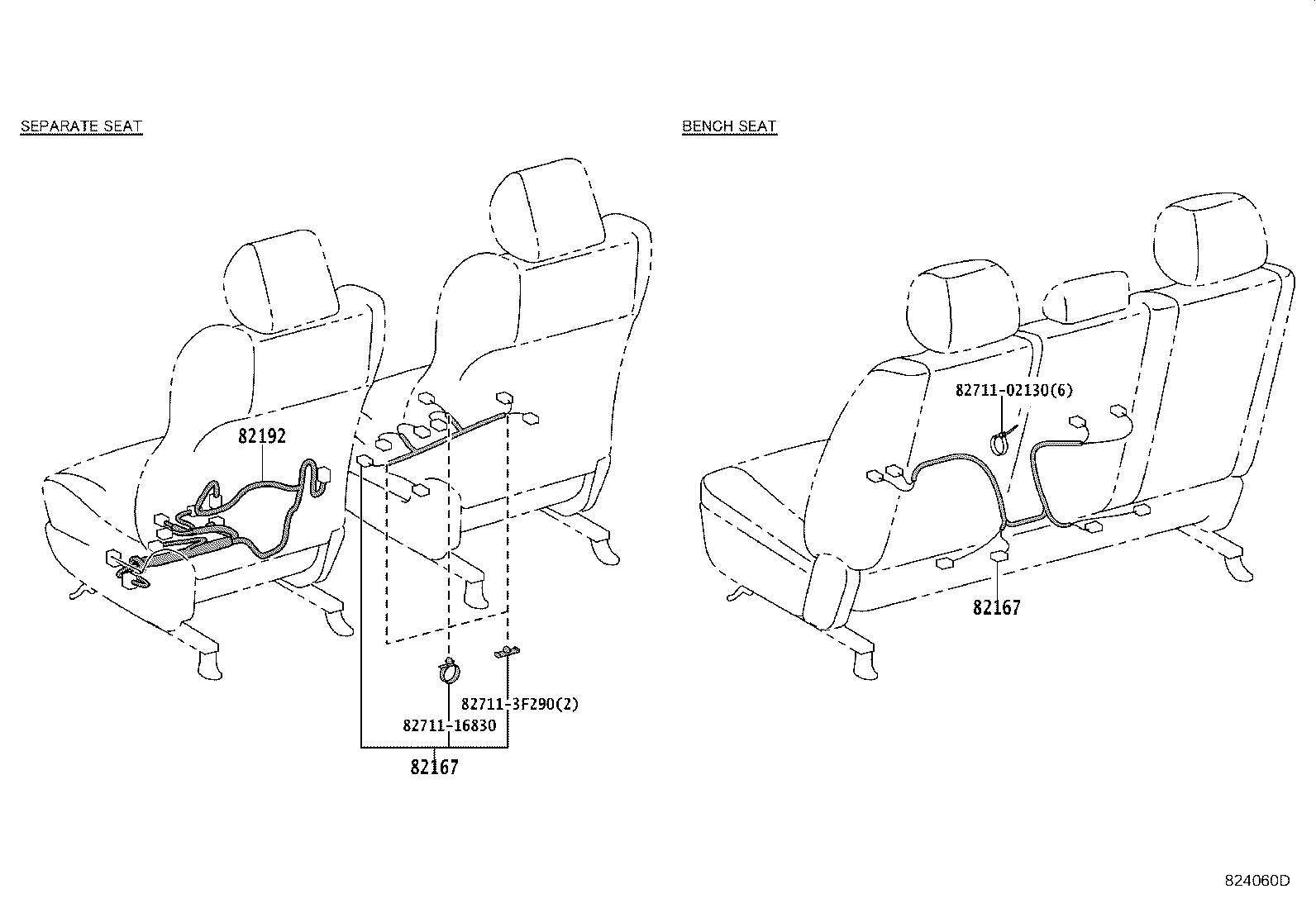

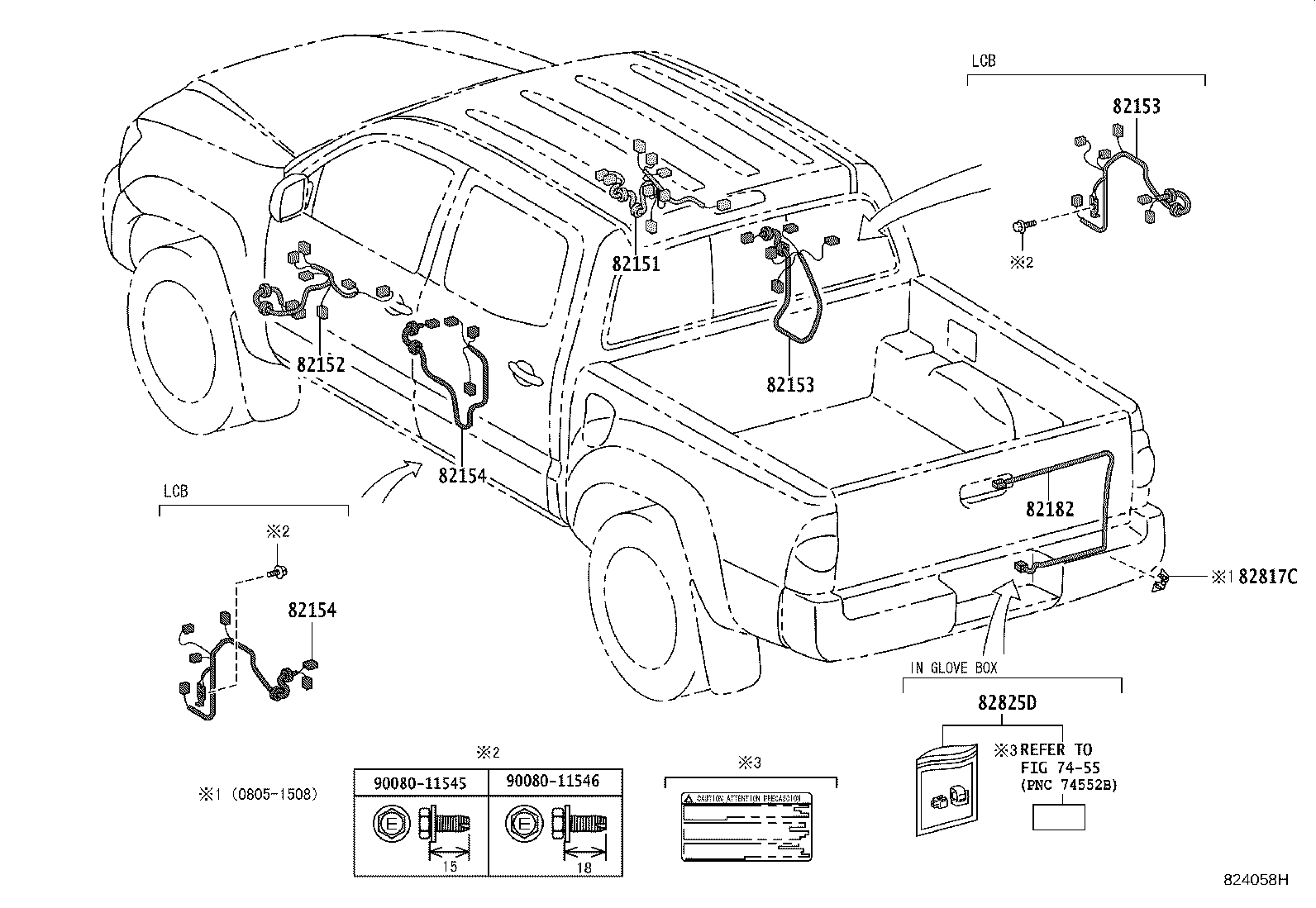

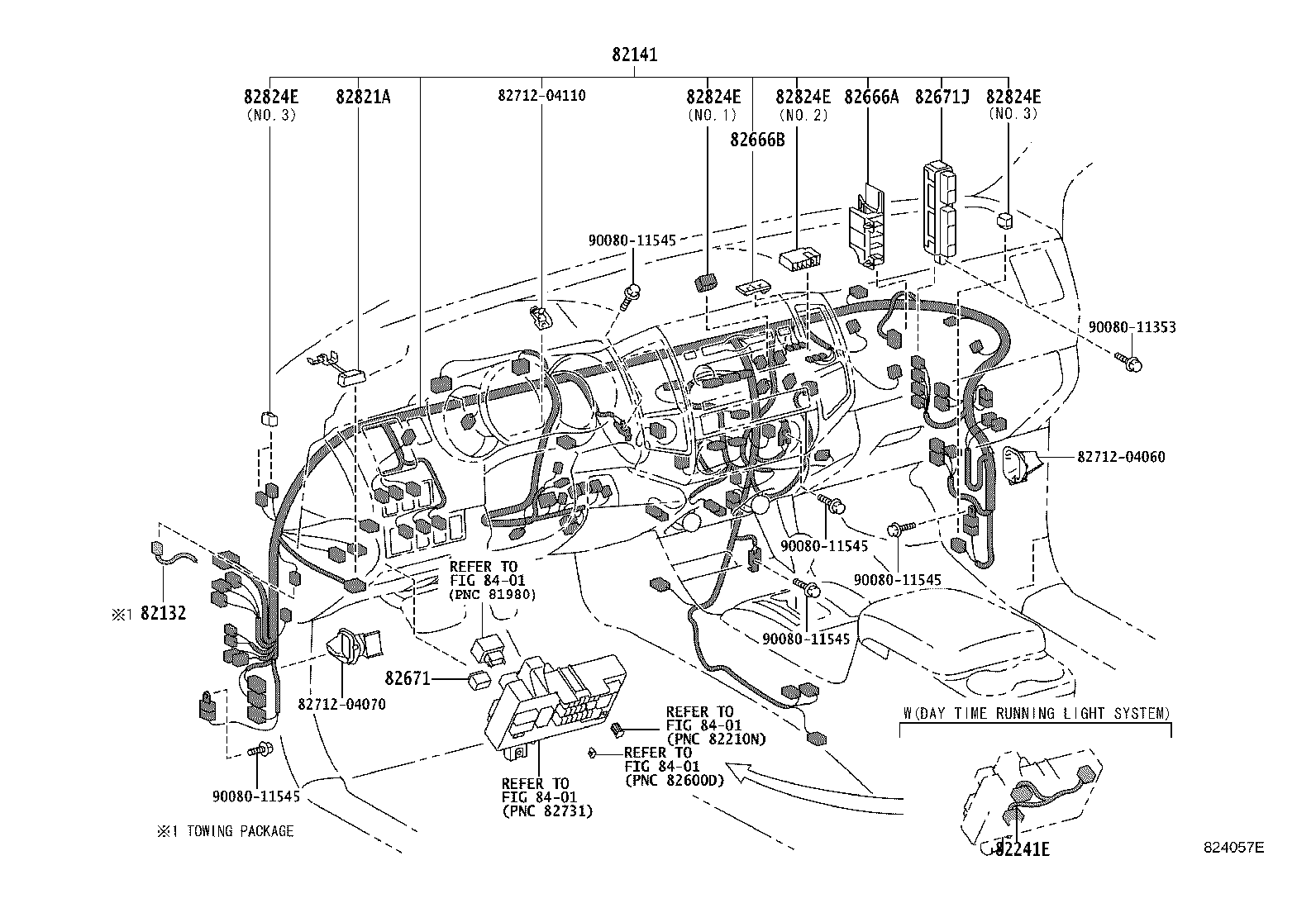

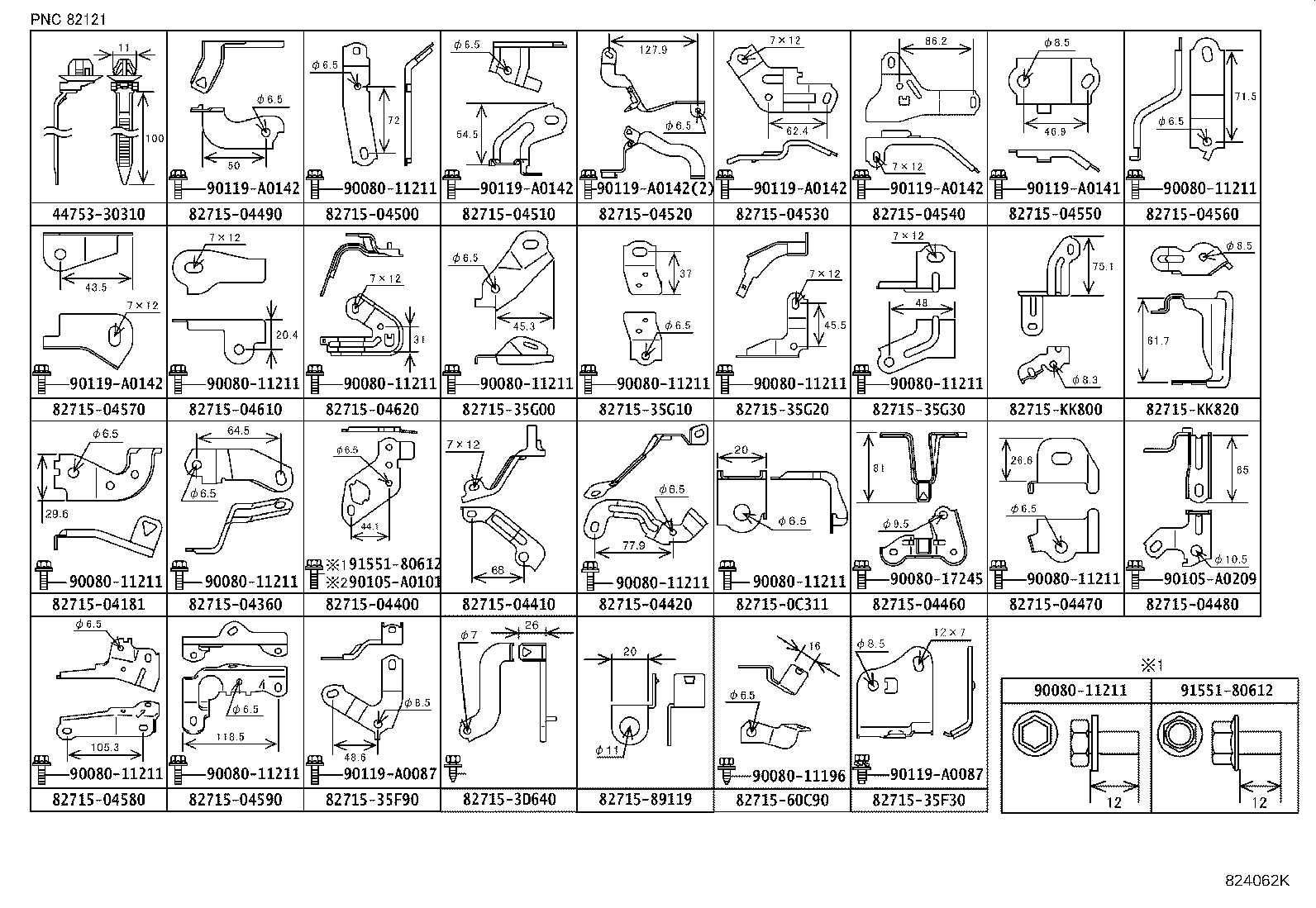

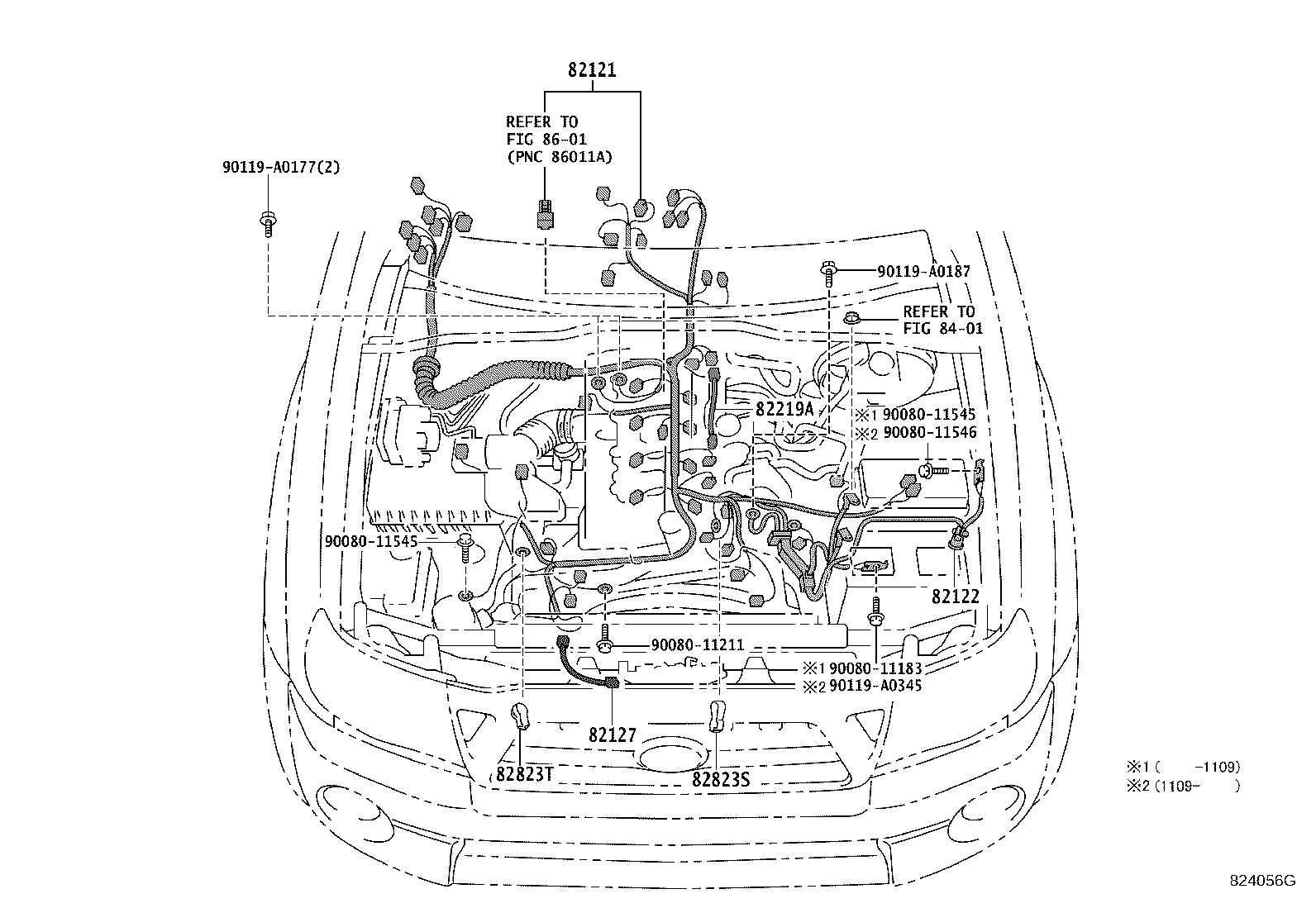

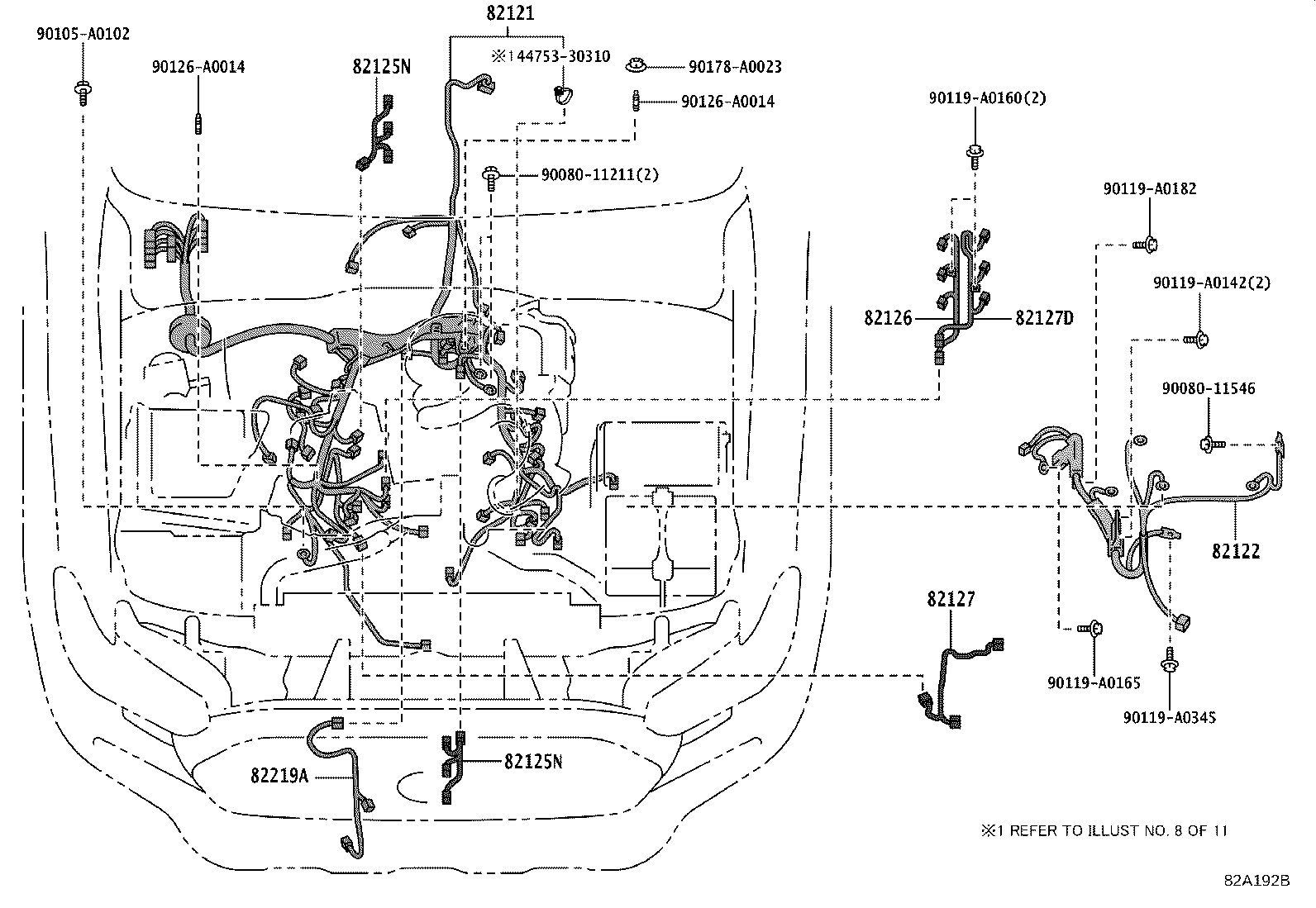

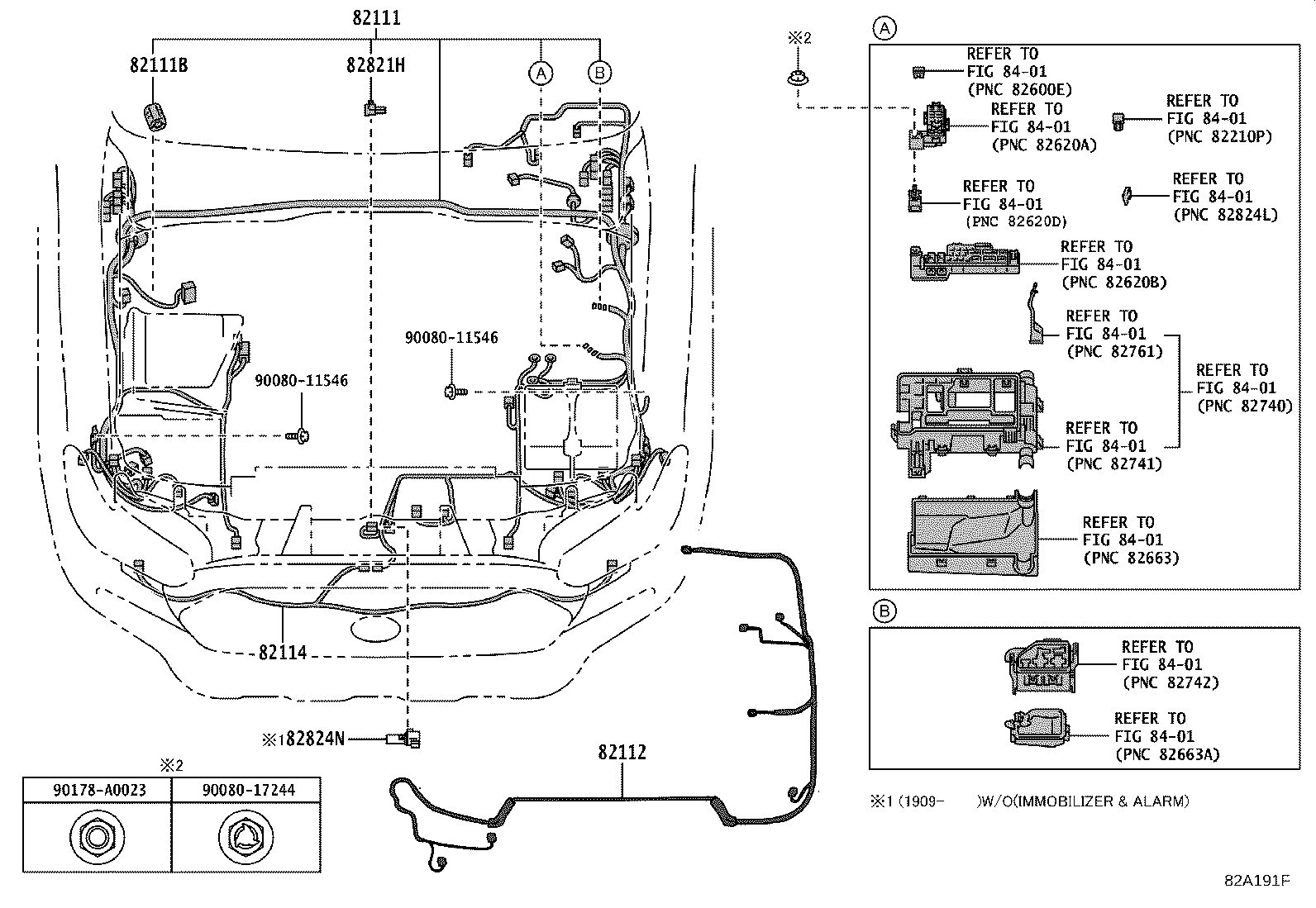

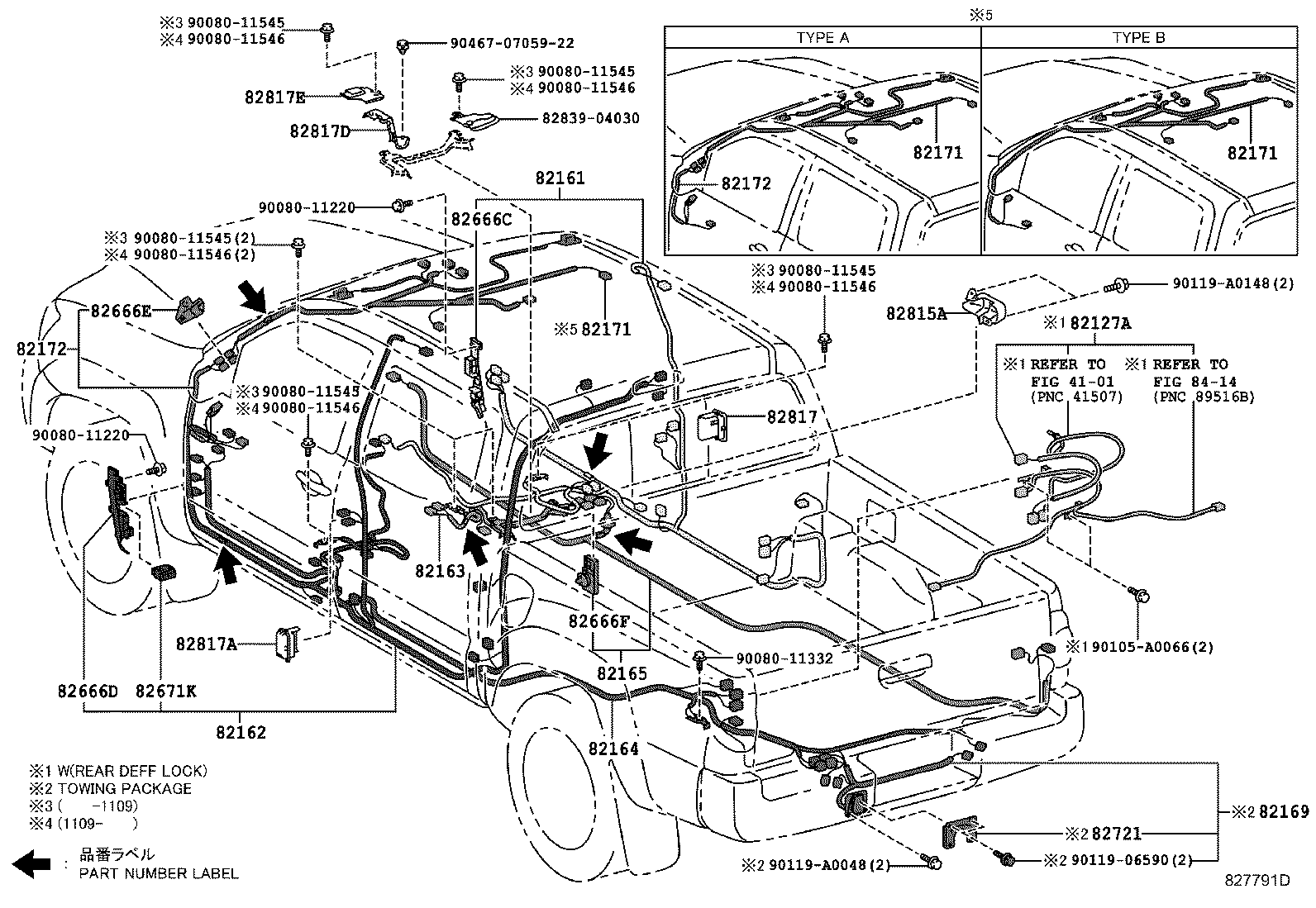

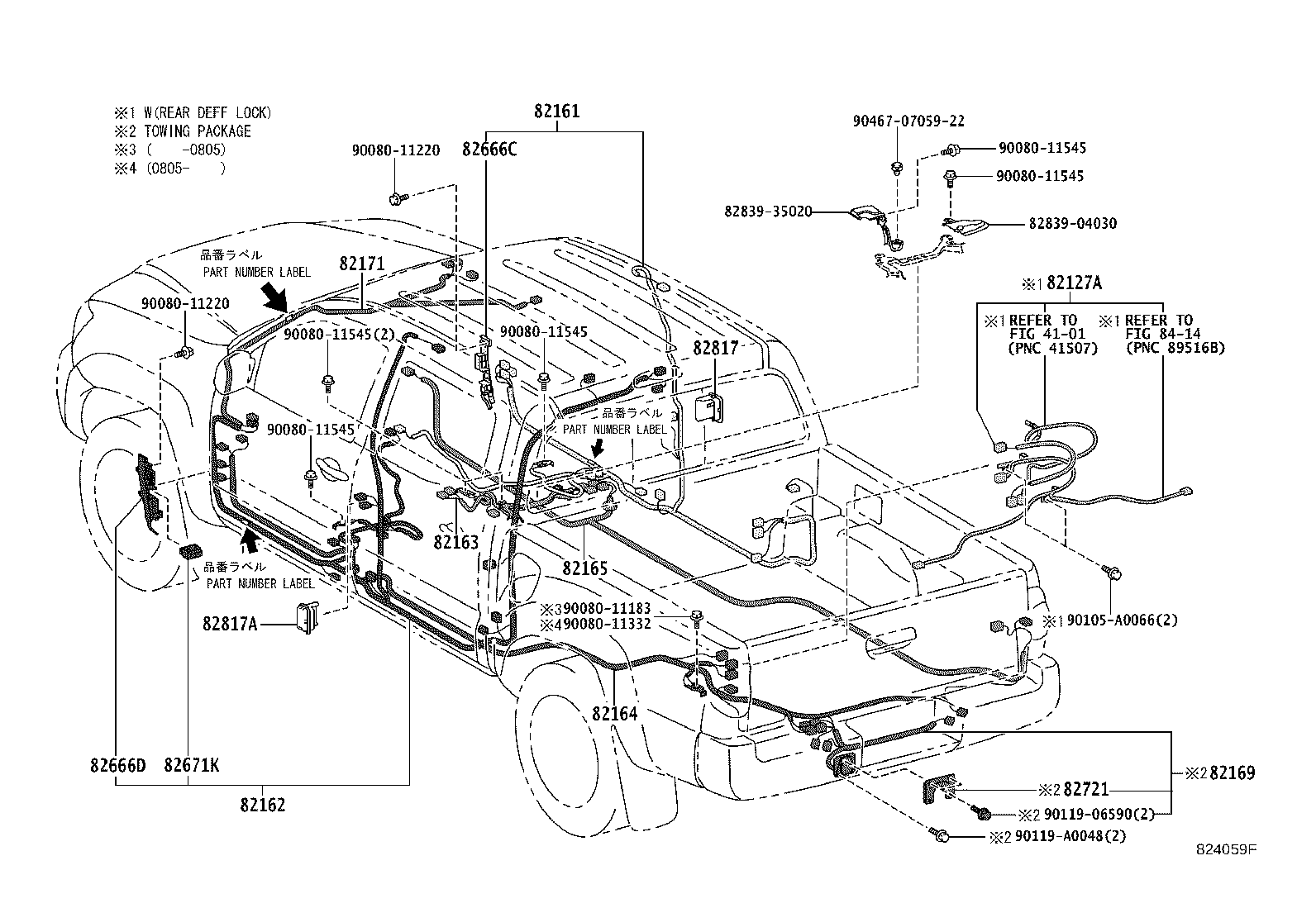

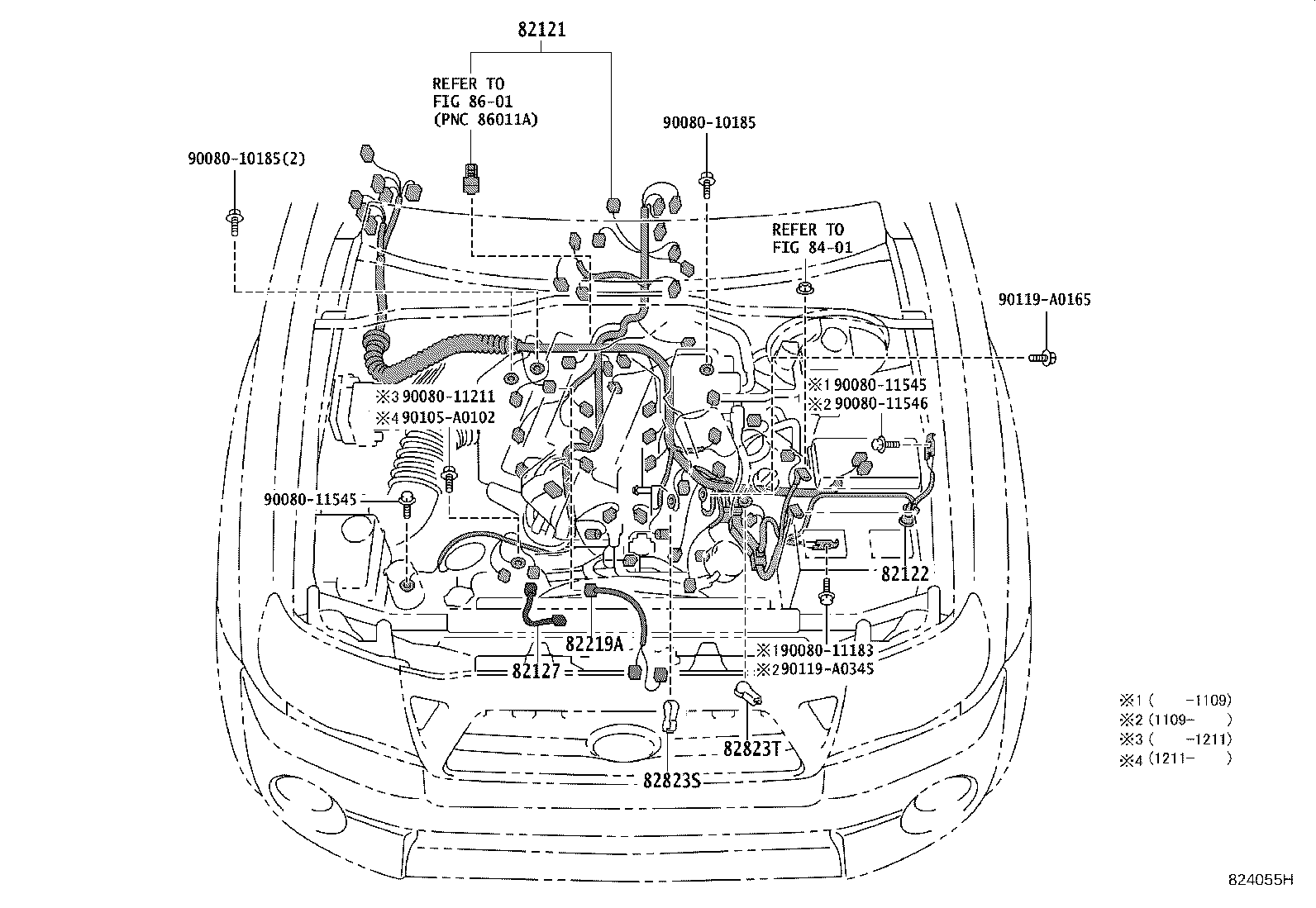

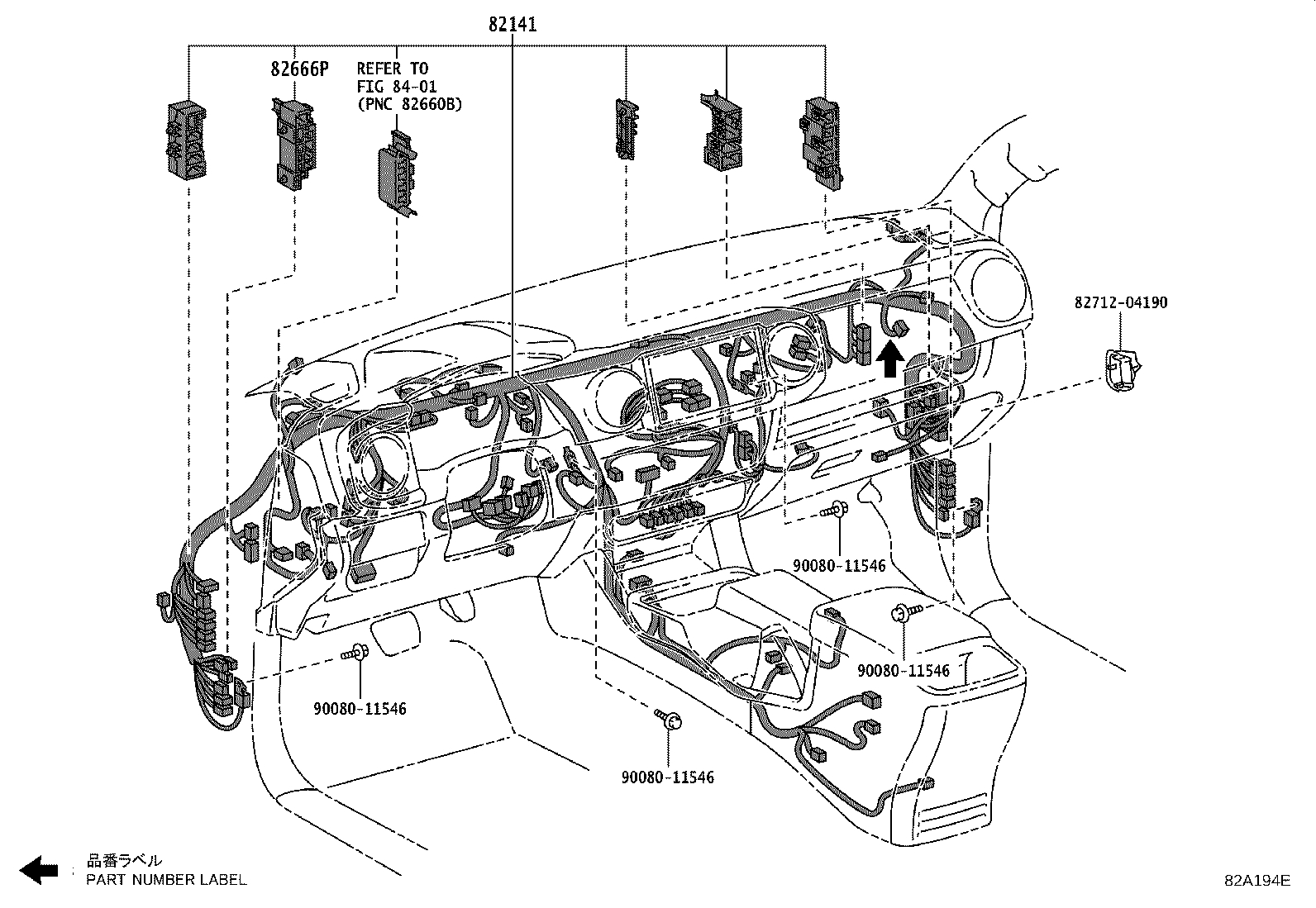

Figure 824054H 824054H 2004-09 → 2015-08 Figure 82A191F 82A191F 2015-08 → — Figure 824055H 824055H 2004-09 → 2015-08 Figure 824056G 824056G 2004-09 → 2015-08 Figure 82A192B 82A192B 2015-08 → — Figure 82A193A 82A193A 2015-08 → — Figure 824057E 824057E 2004-09 → 2011-09 Figure 827790D 827790D 2011-09 → 2015-08 Figure 82A194E 82A194E 2015-08 → — Figure 824058H 824058H 2004-09 → — Figure 824059F 824059F 2004-09 → 2010-06 Figure 827791D 827791D 2010-06 → 2015-08 Figure 82A195E 82A195E 2015-08 → — Figure 824060D 824060D 2004-09 → — Figure 824061P 824061P 2004-09 → — Figure 824062K 824062K 2004-09 → — Figure 82F349 82F349 2004-09 → — Figure 82A196B 82A196B 2004-09 → — Figure 824268J 824268J 2004-09 → — Figure 829412G 829412G 2004-09 → — Figure 82C341B 82C341B 2004-09 → — Figure 82F288 82F288 2004-09 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82111B Condenser
82112 Wire, Engine Room, NO.2
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82125N Wire, Engine, NO.5
82126 Wire, Engine
82127 Wire, Differential
82127A Wire, Differential (TO WIRE FRAME)
82127D Wire, Engine, NO.7
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82182 Wire, Luggage Room, NO.2
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82241E Wire Relay
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666P Holder, Connector NO.11
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82721 Bracket, Wiring Harness, NO.1
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824N Connector, Wiring Harness
82825D Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
