Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

150 part groups · 31 illustrations

Illustrations

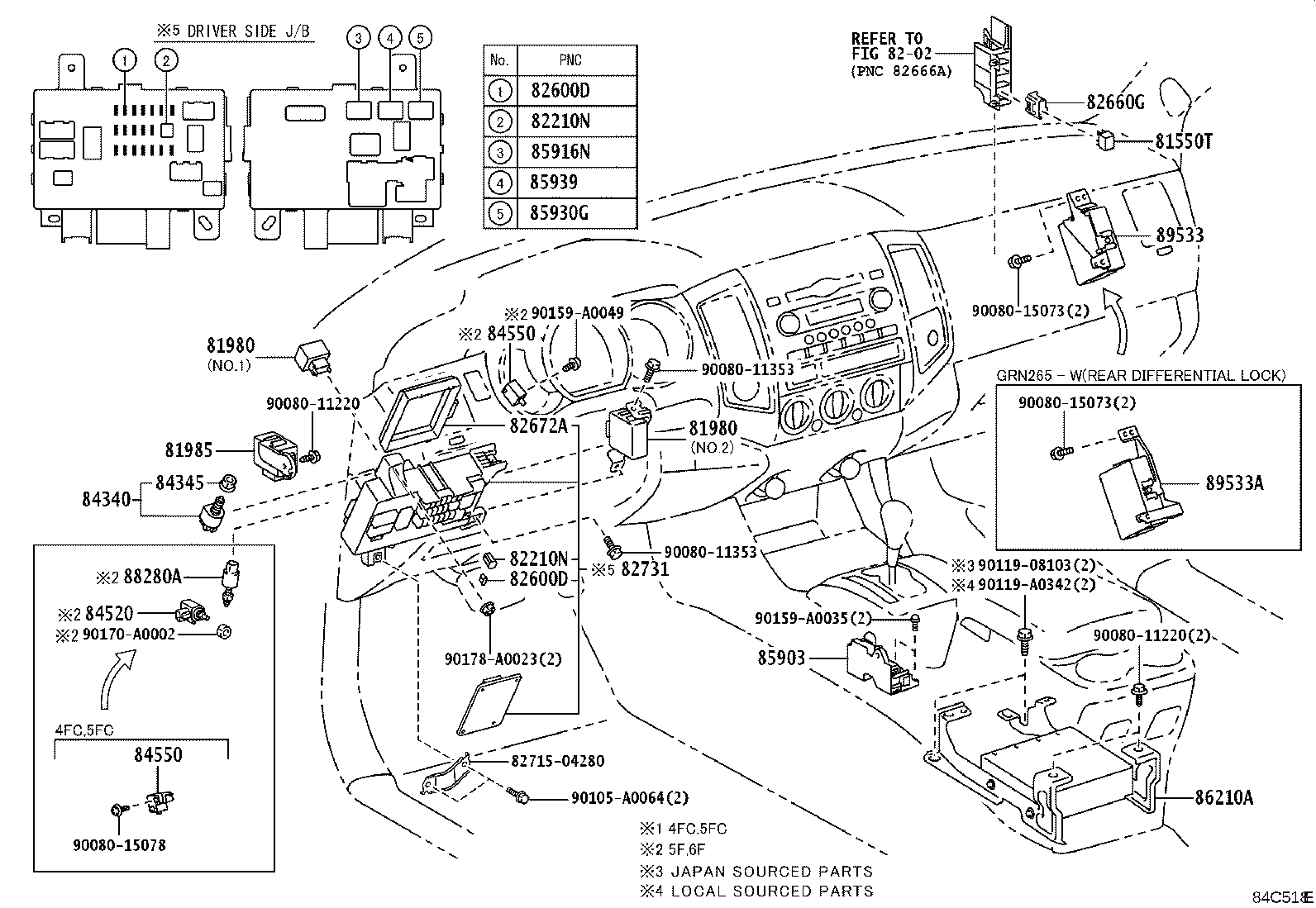

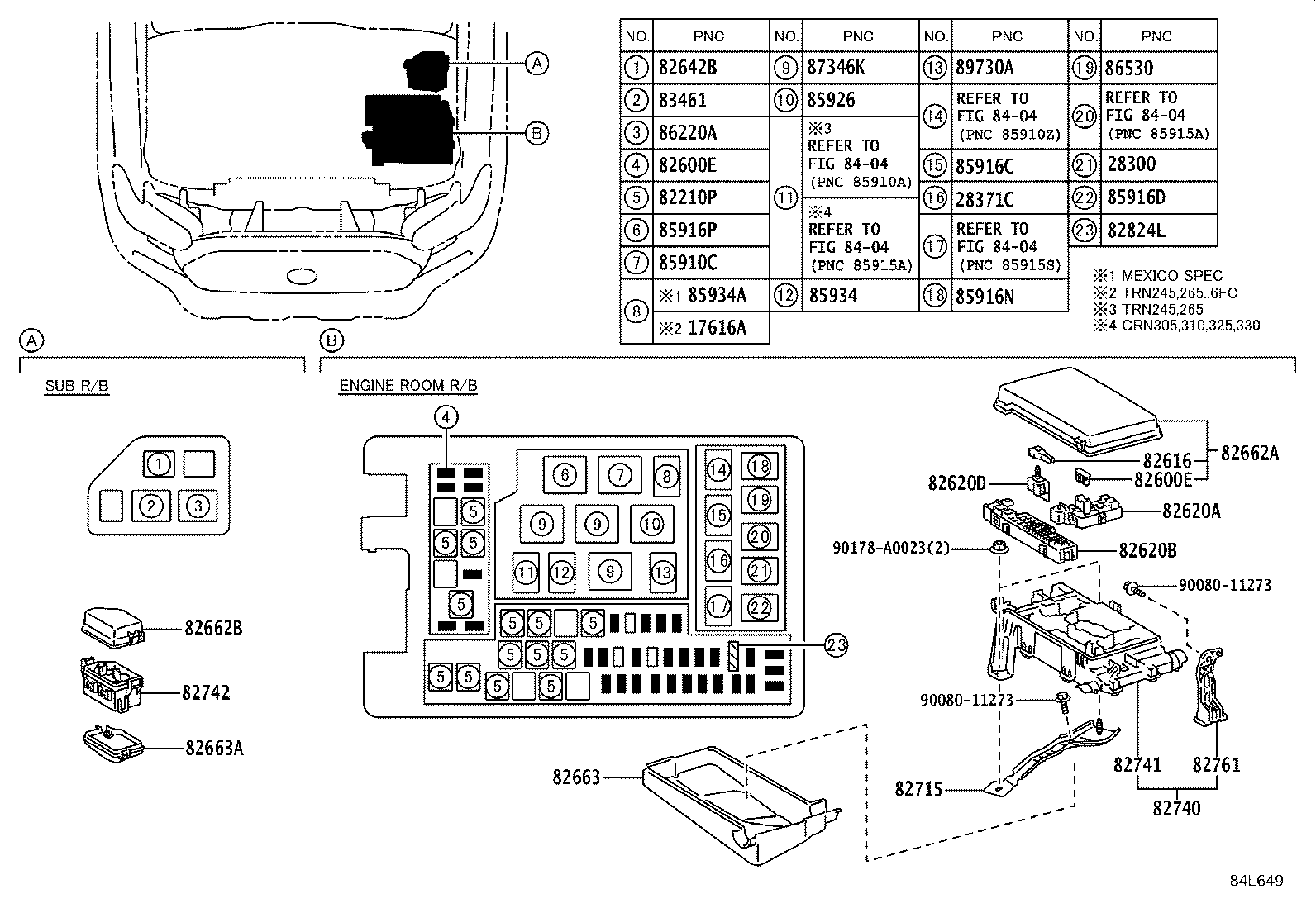

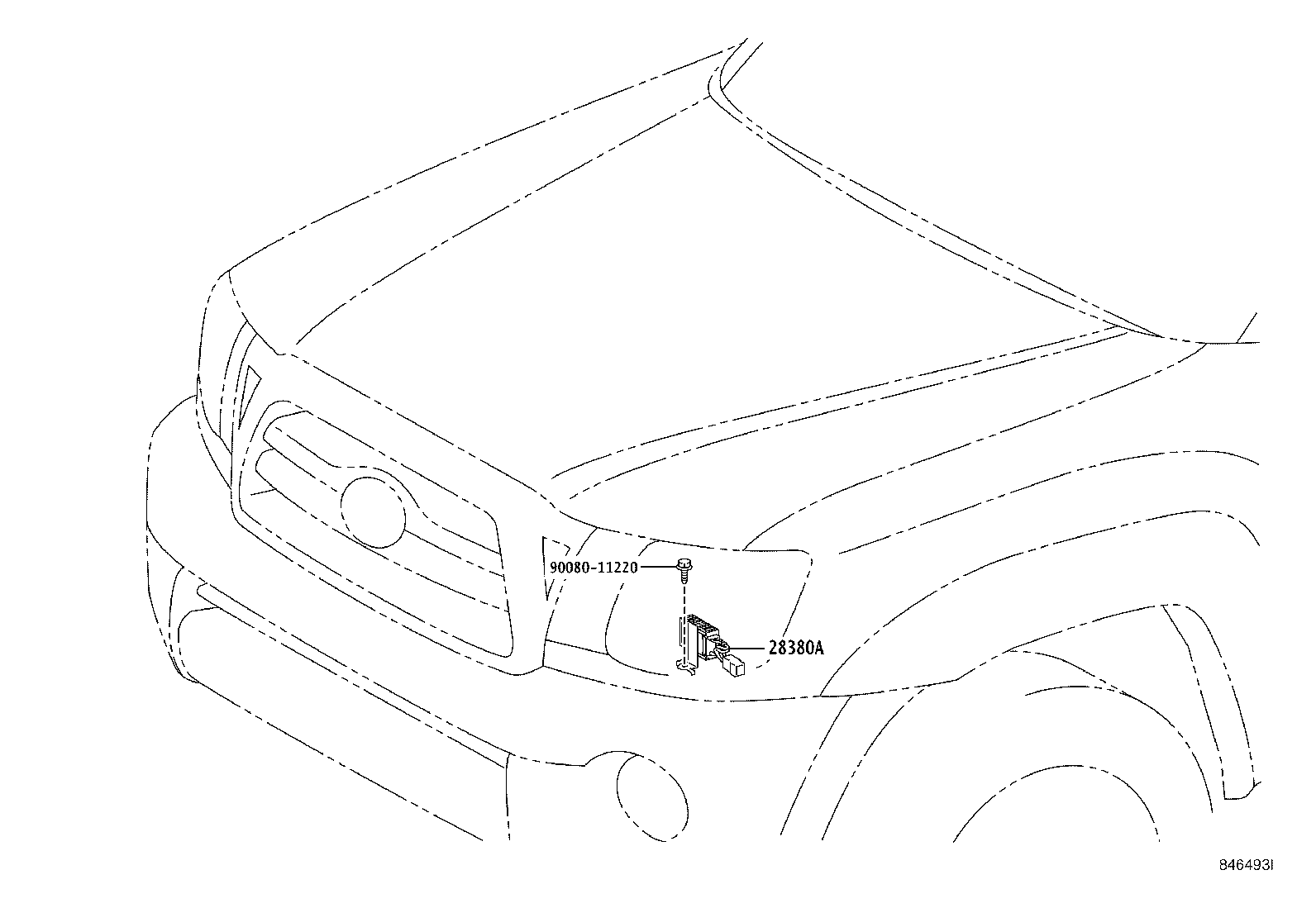

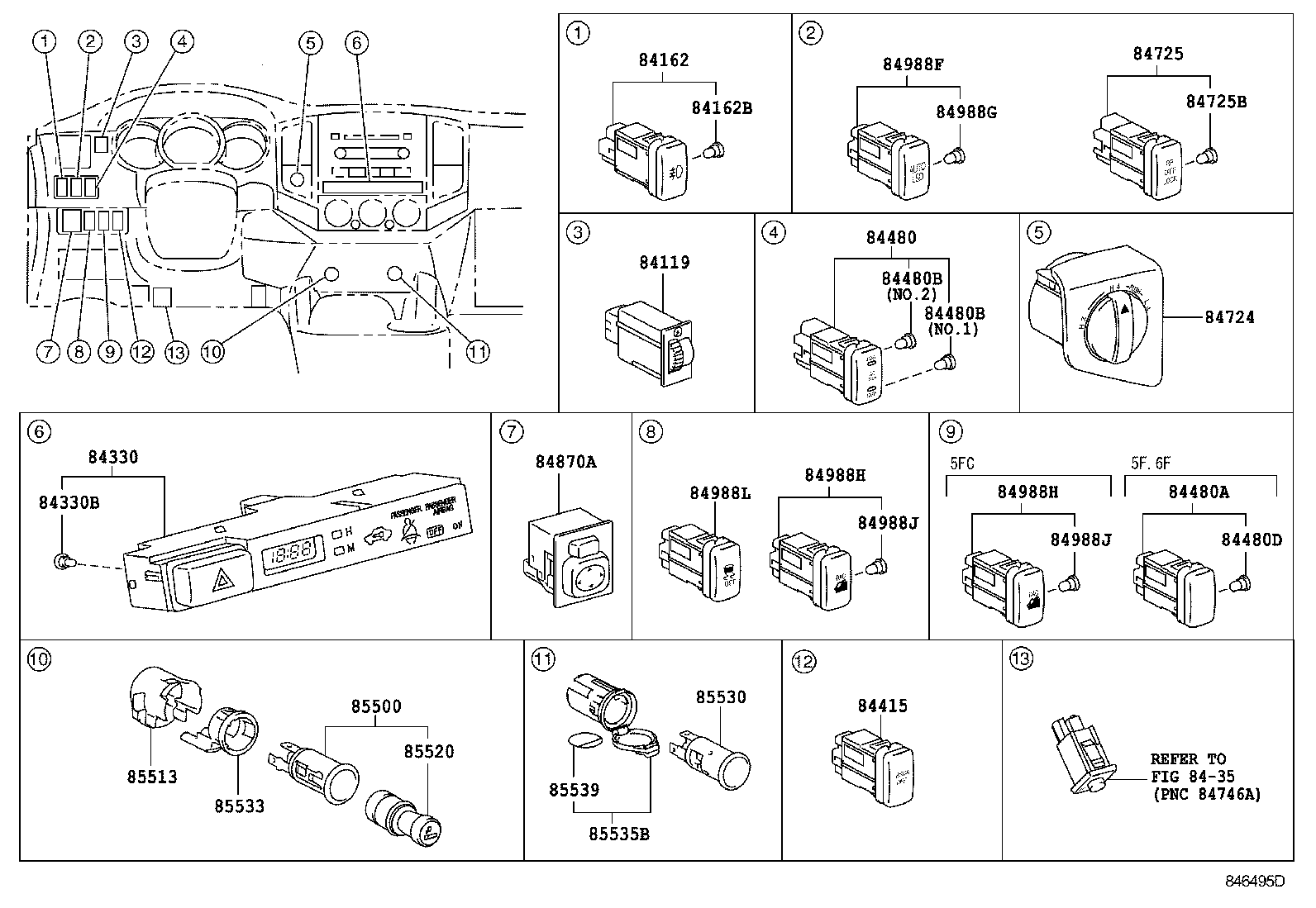

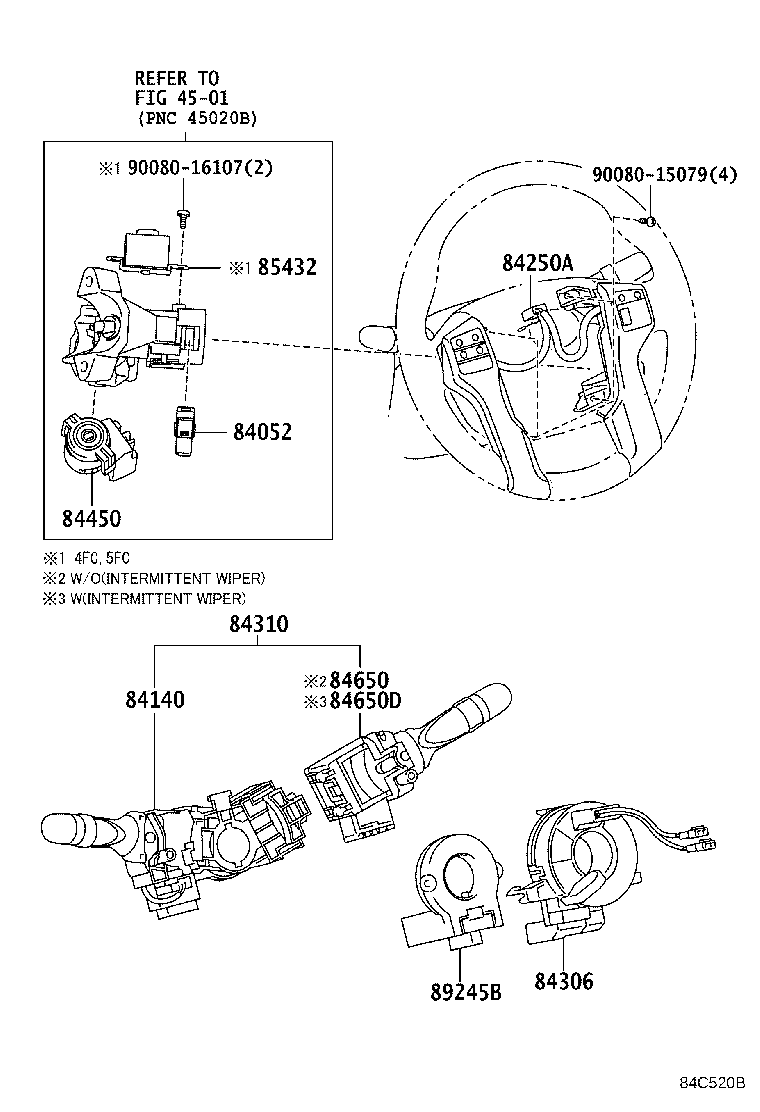

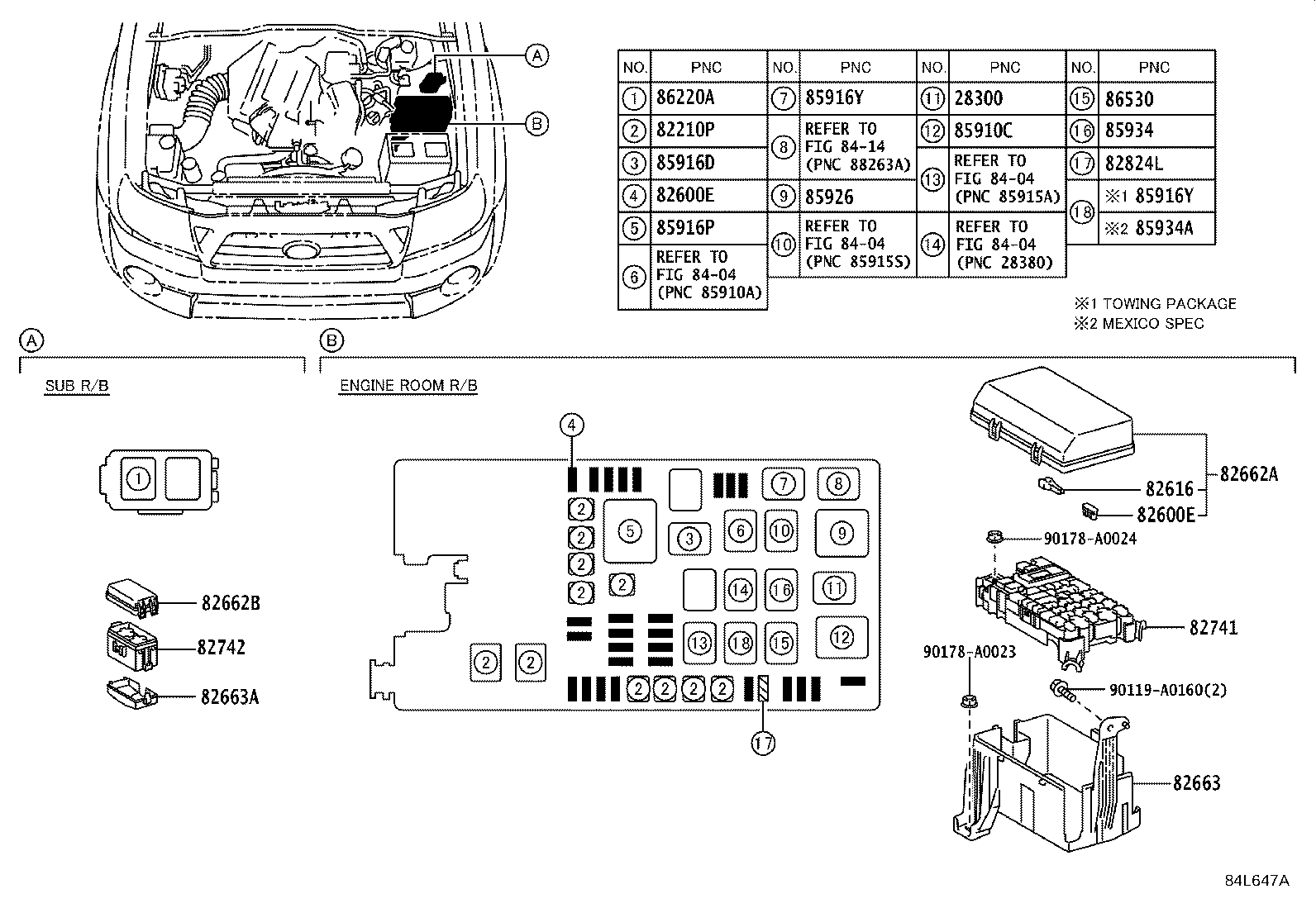

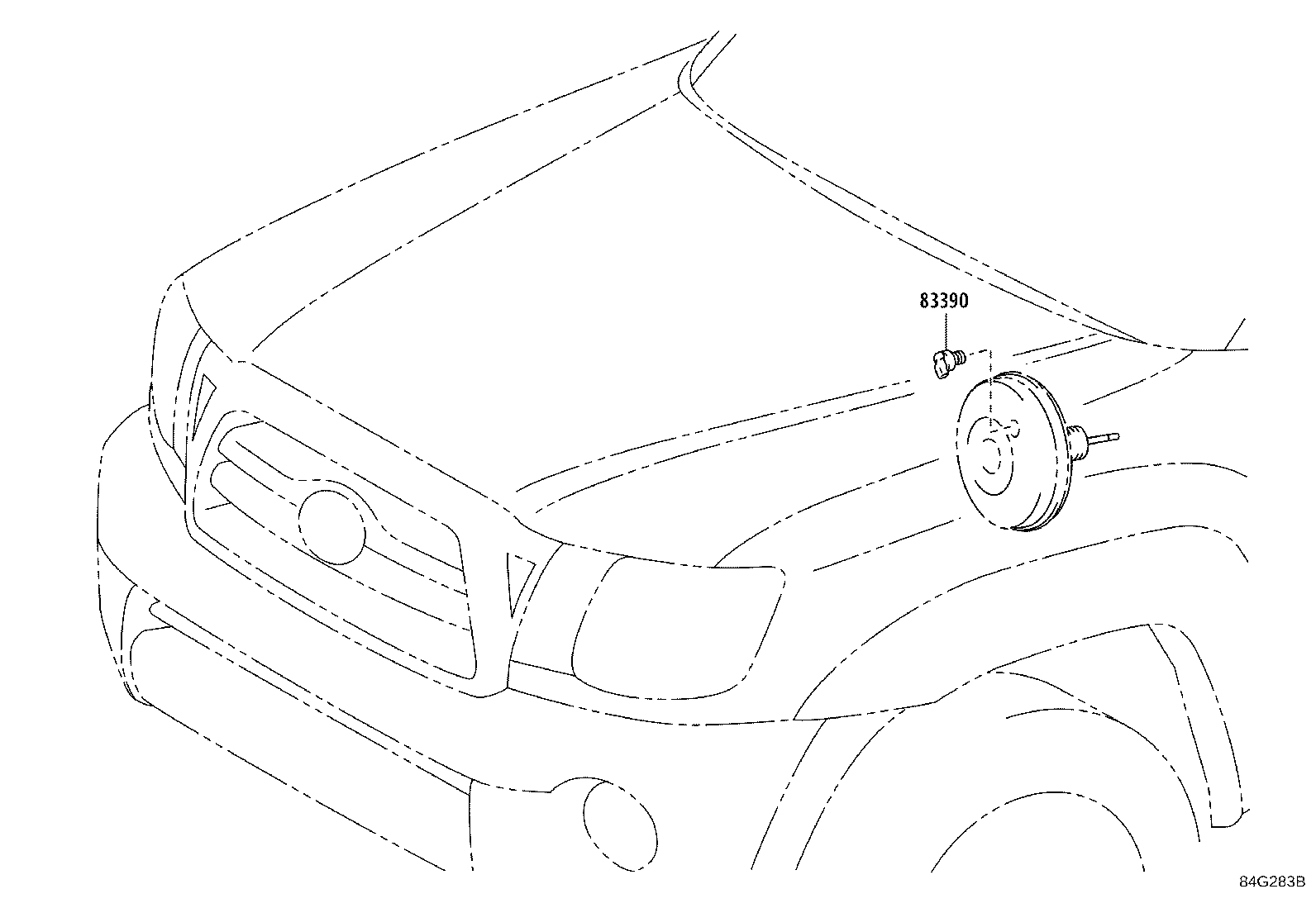

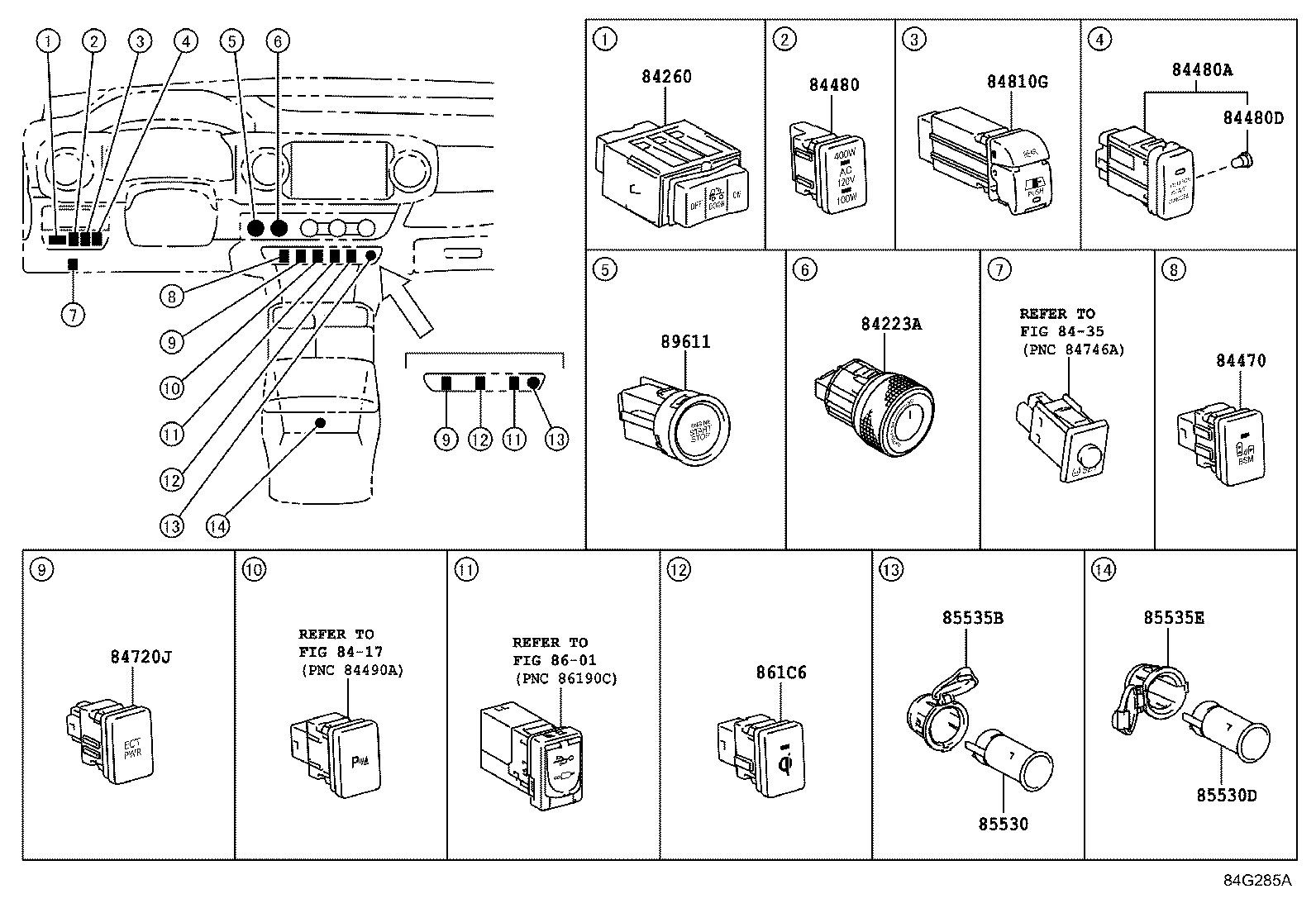

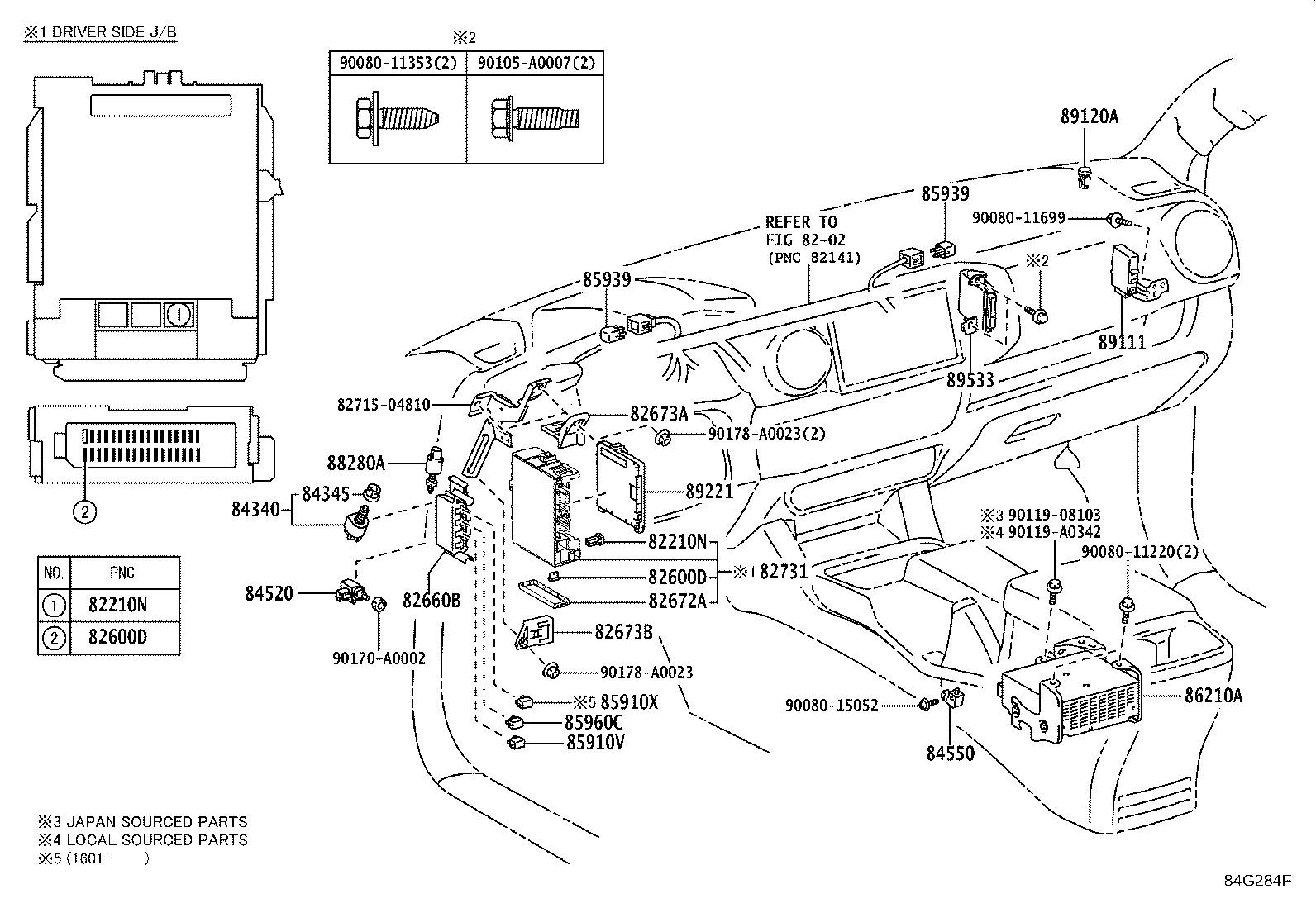

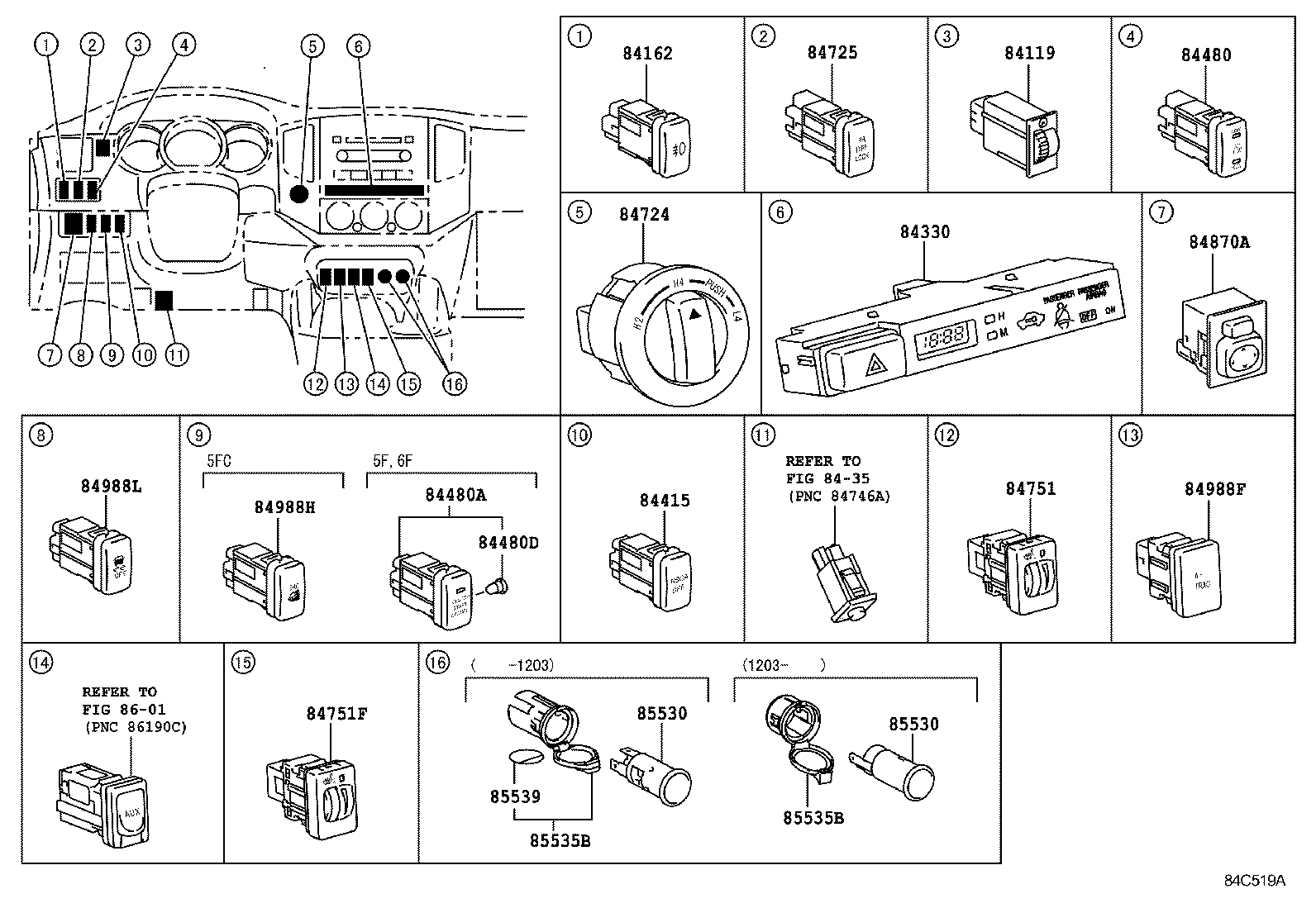

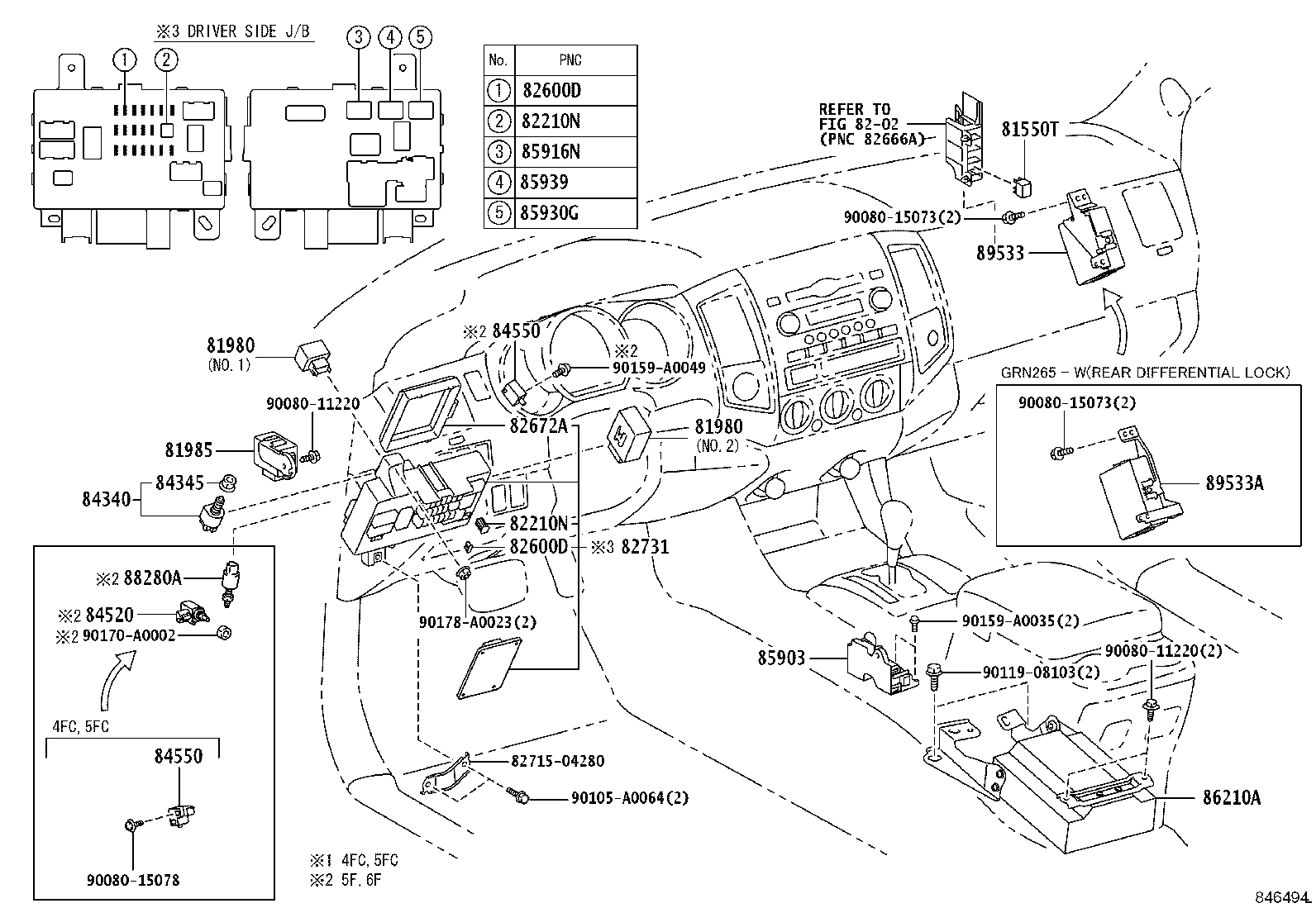

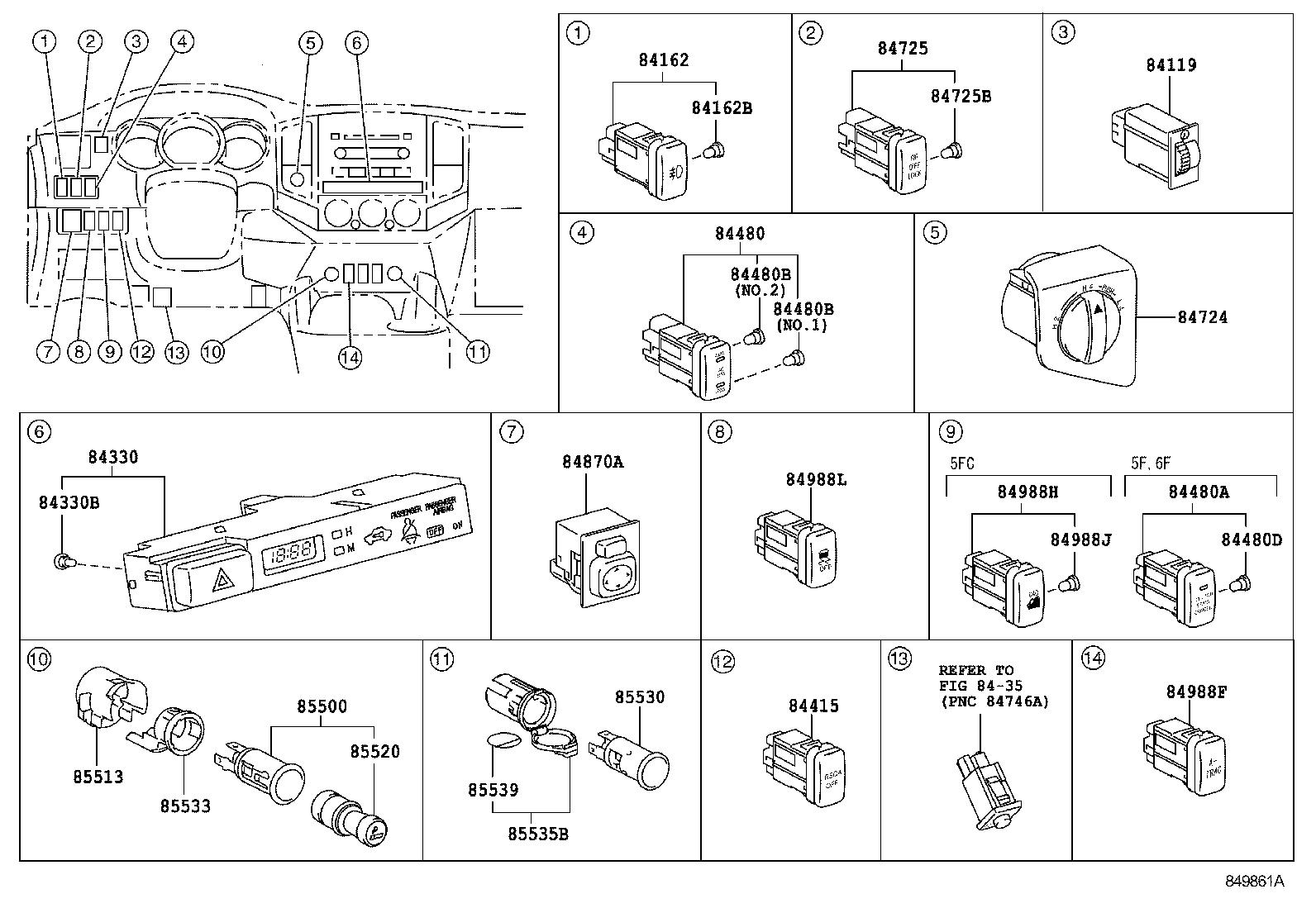

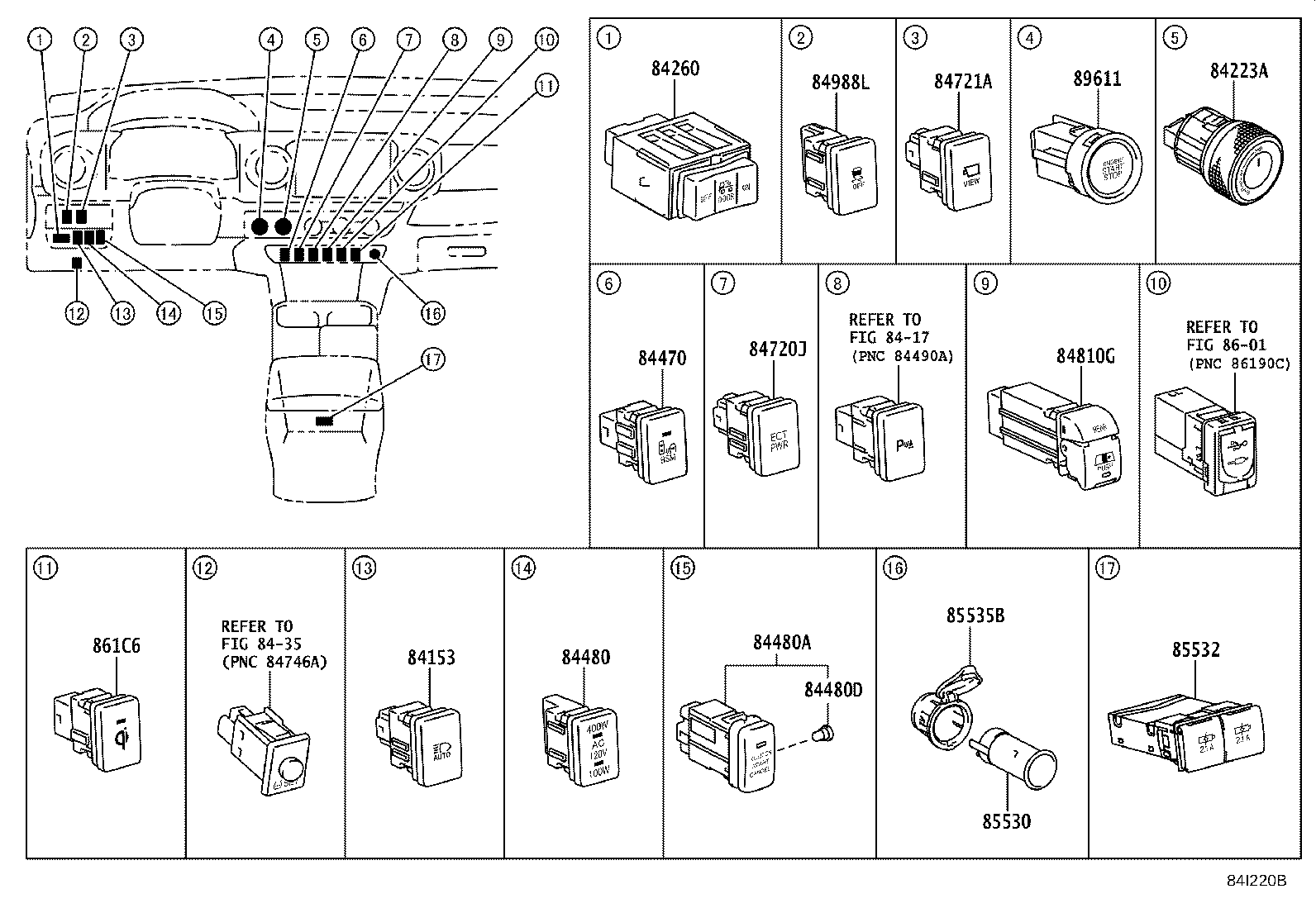

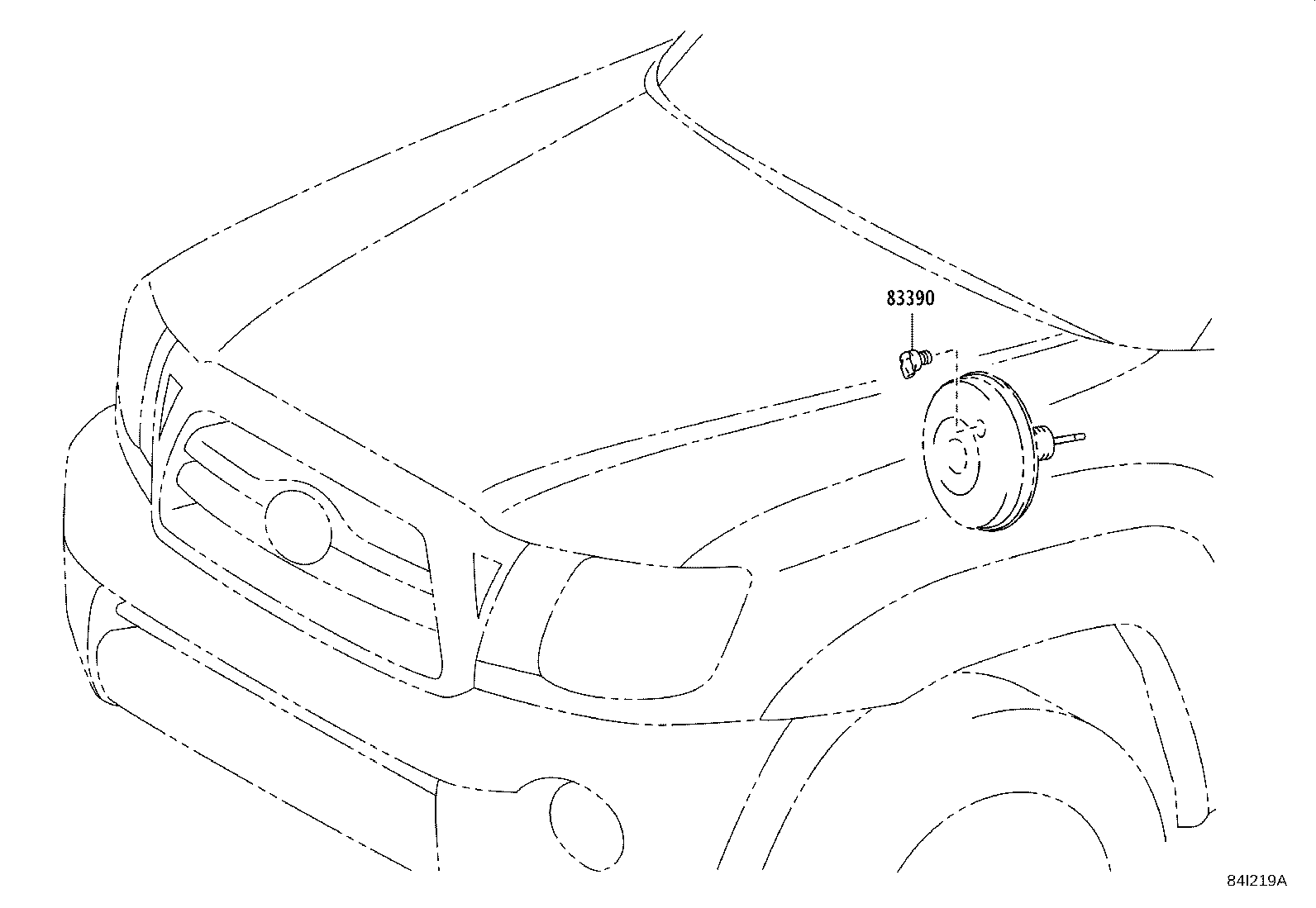

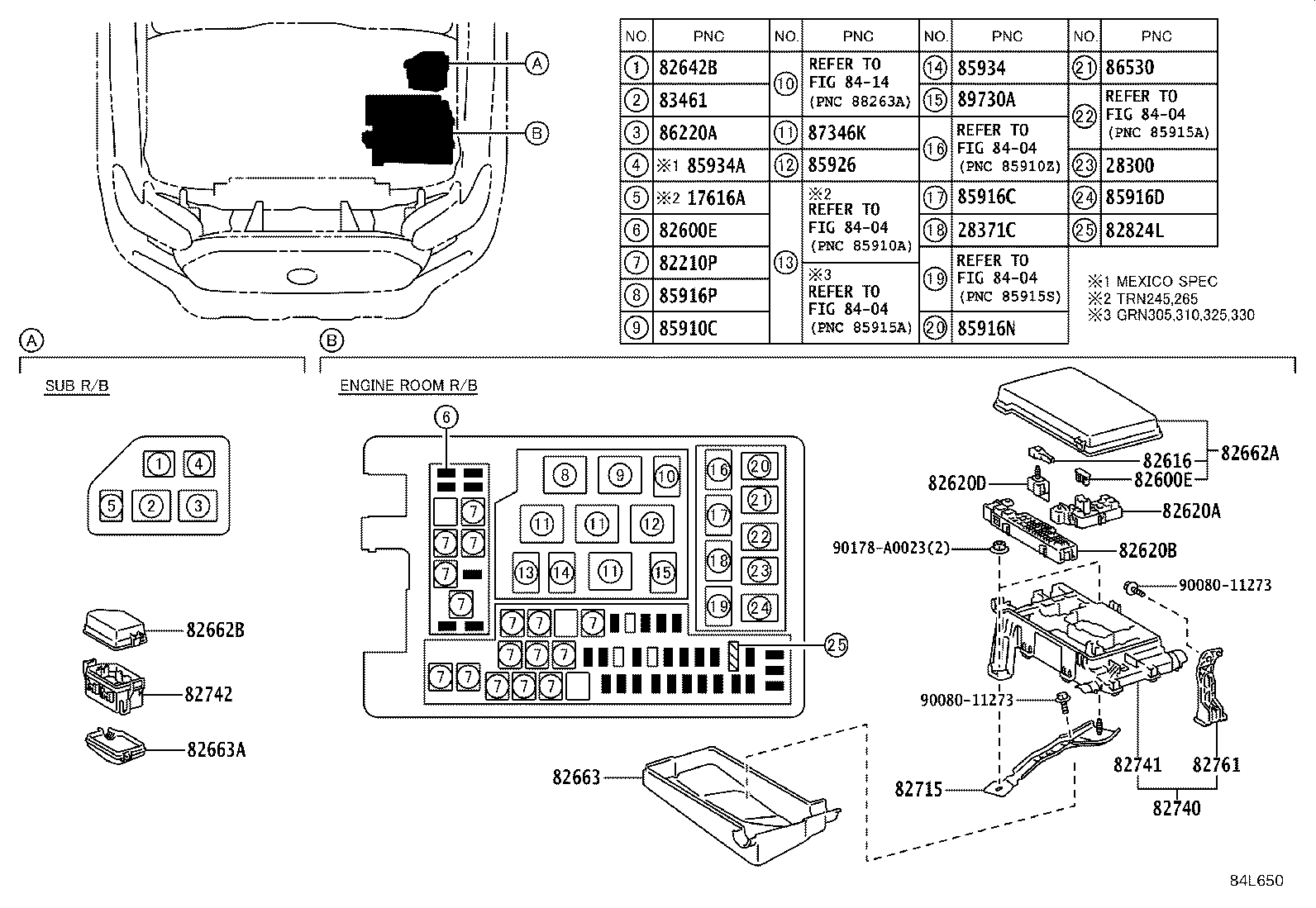

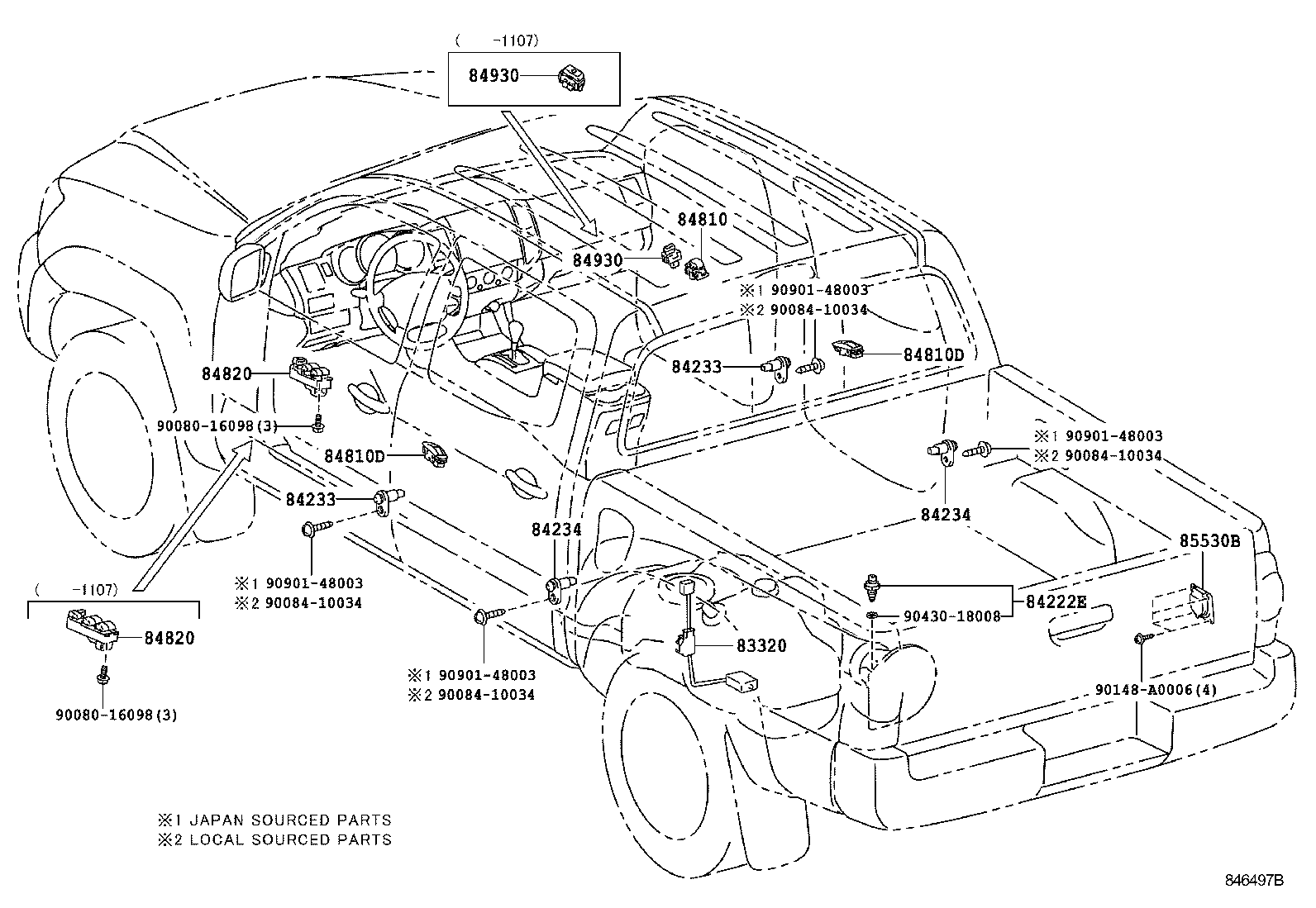

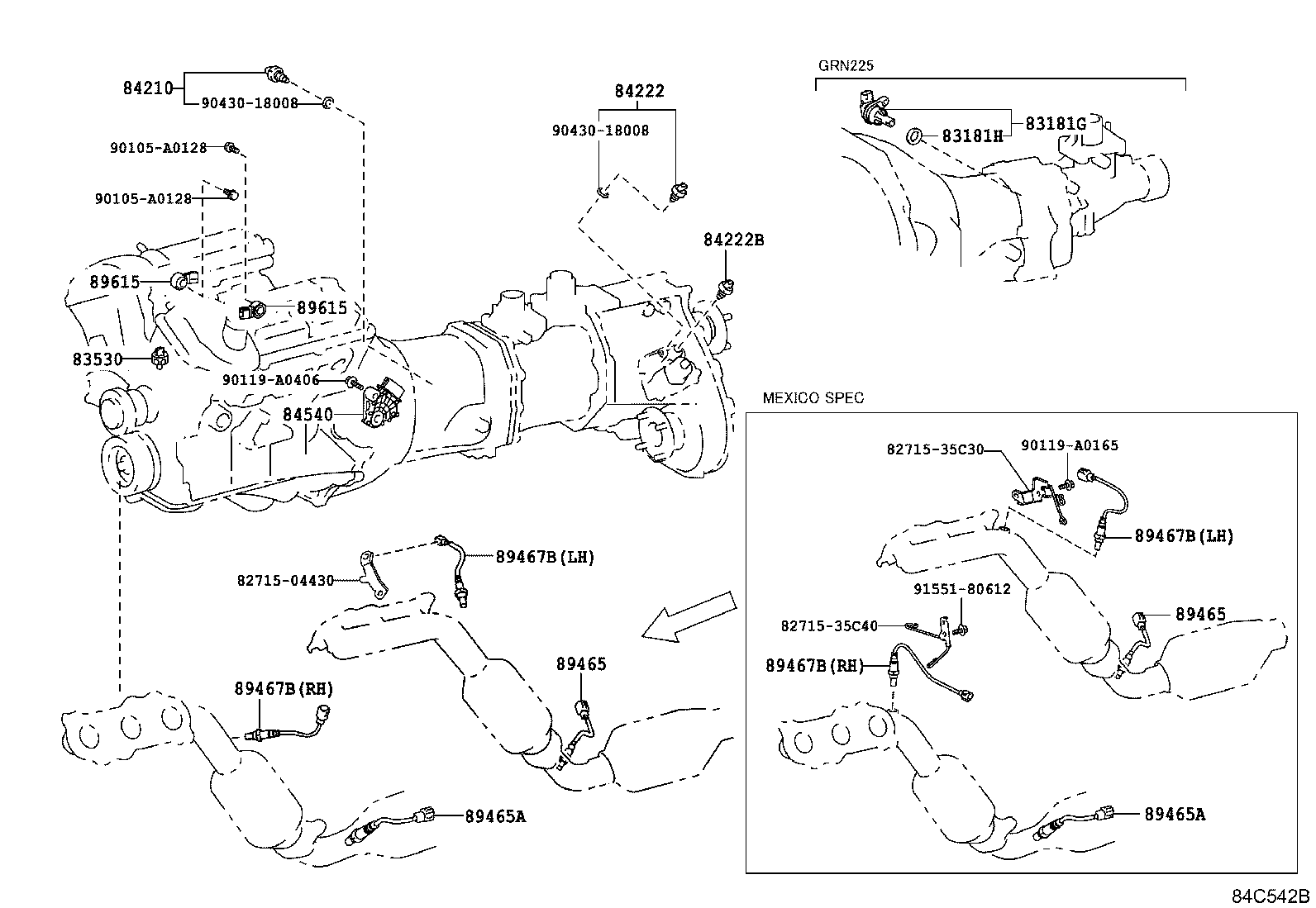

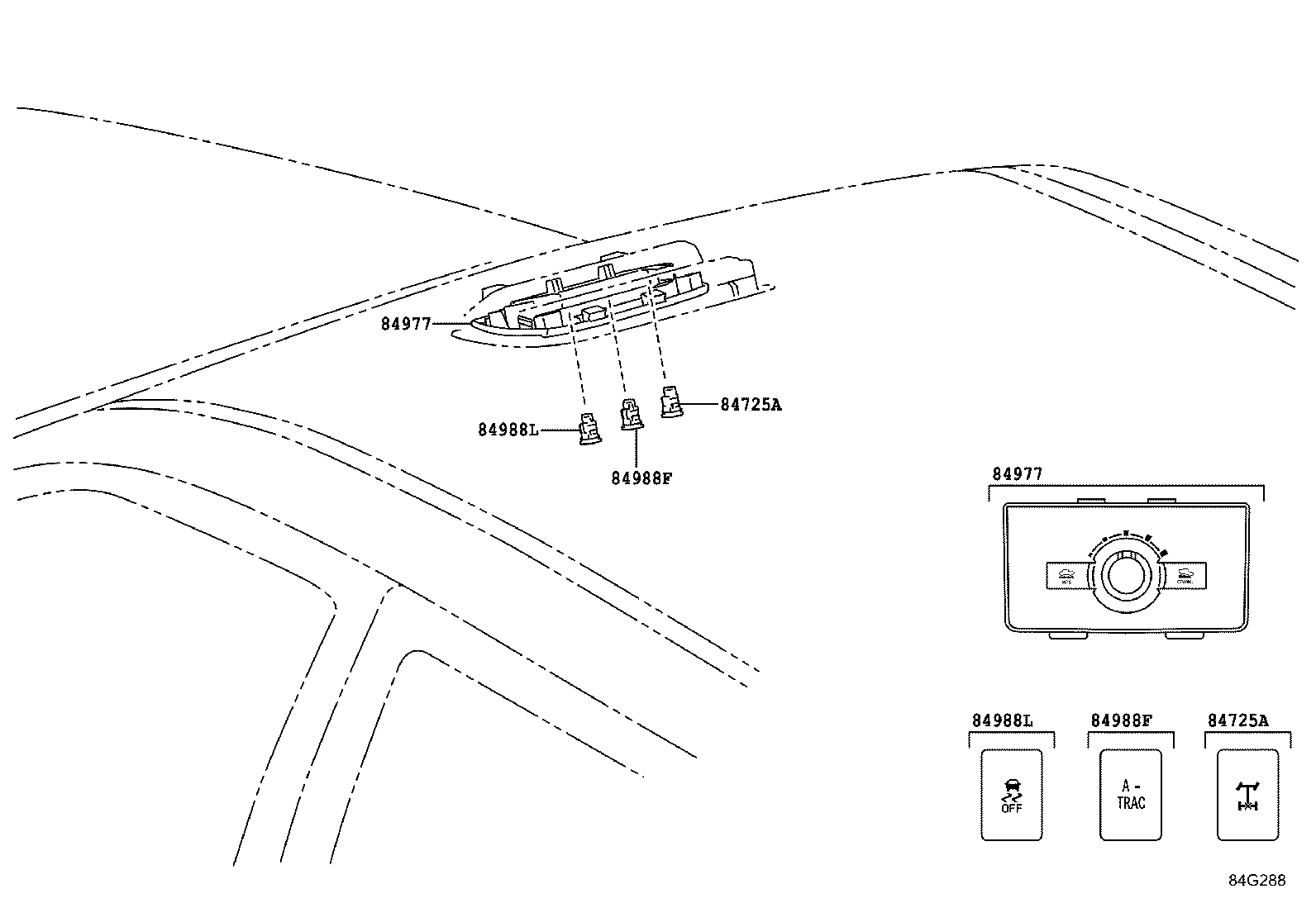

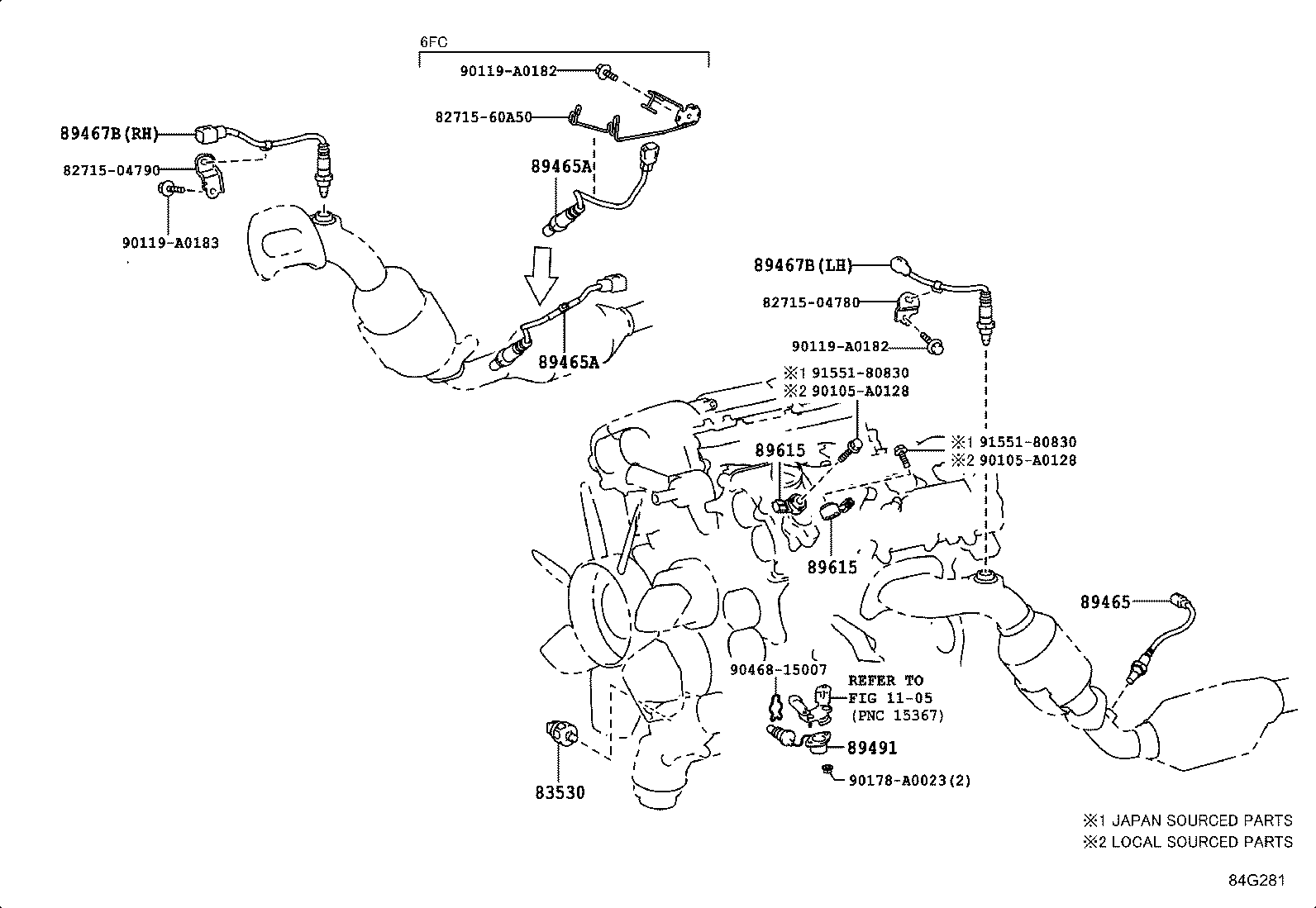

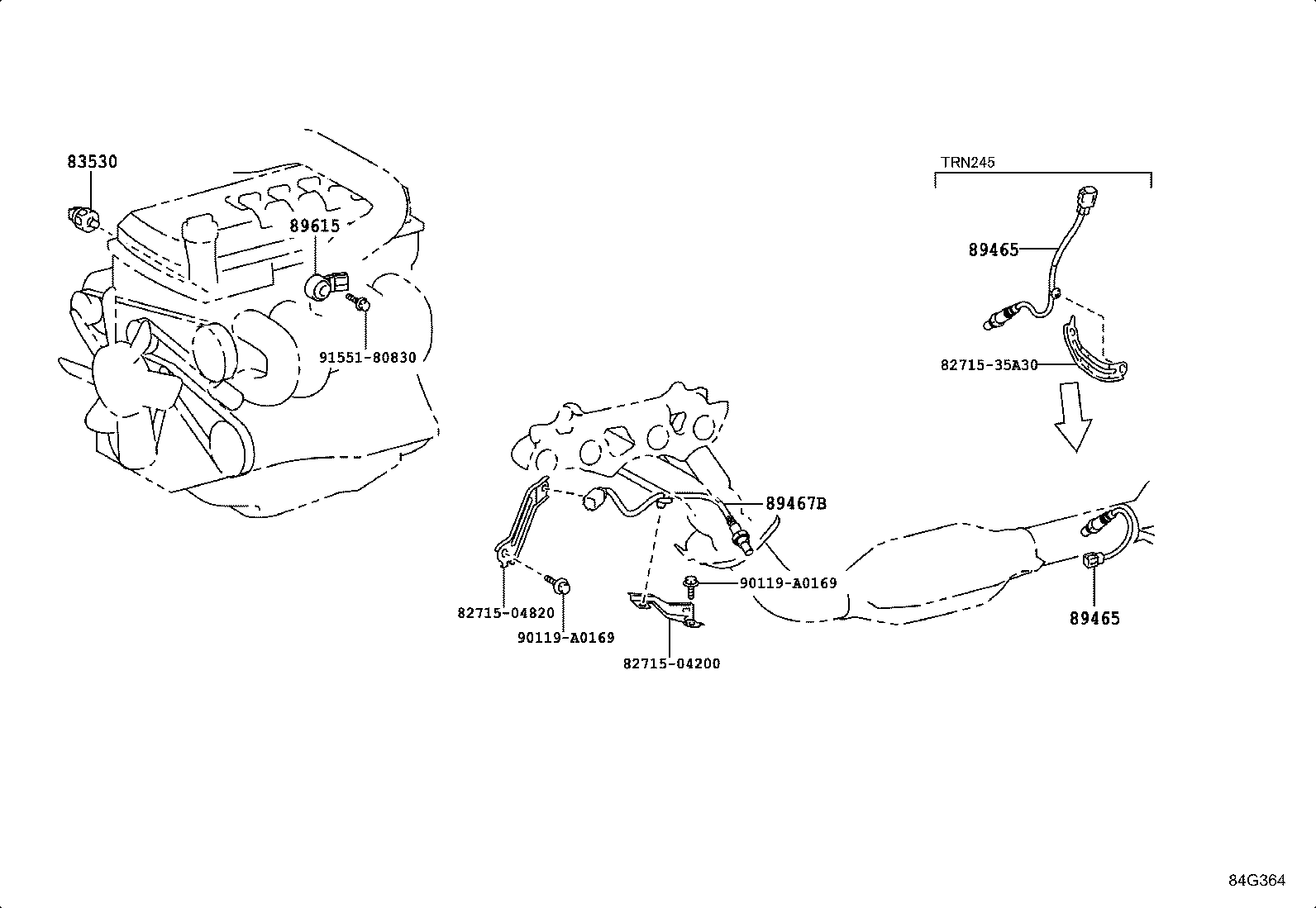

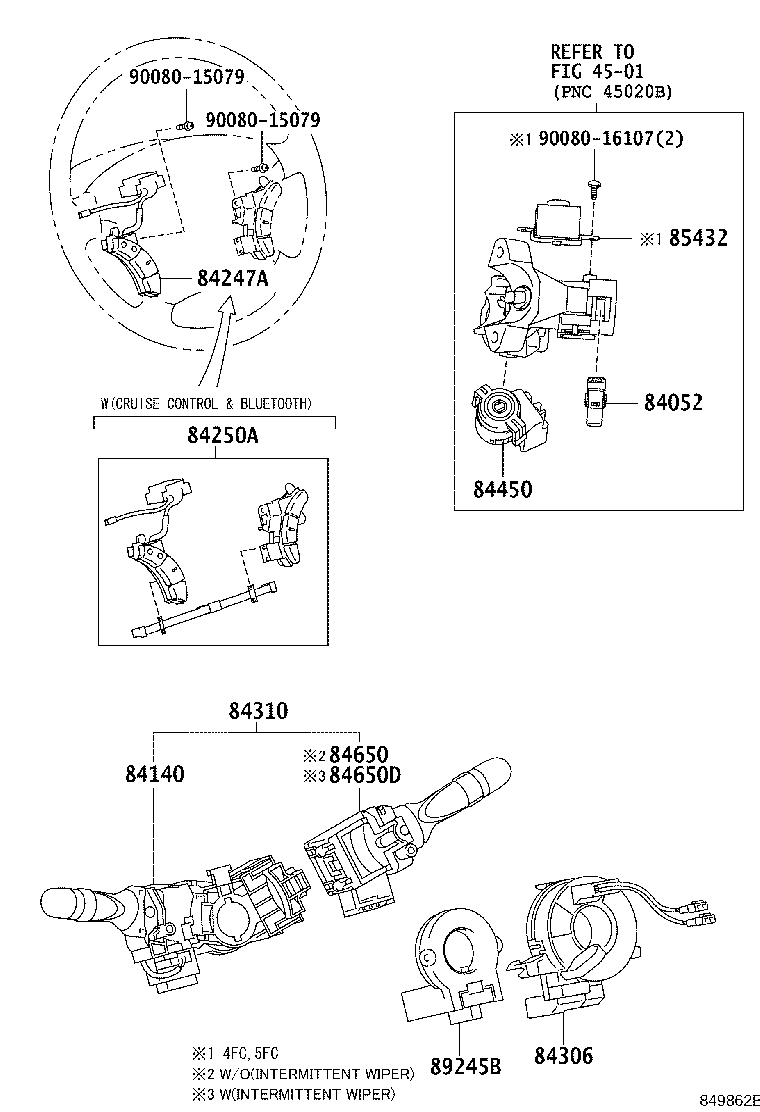

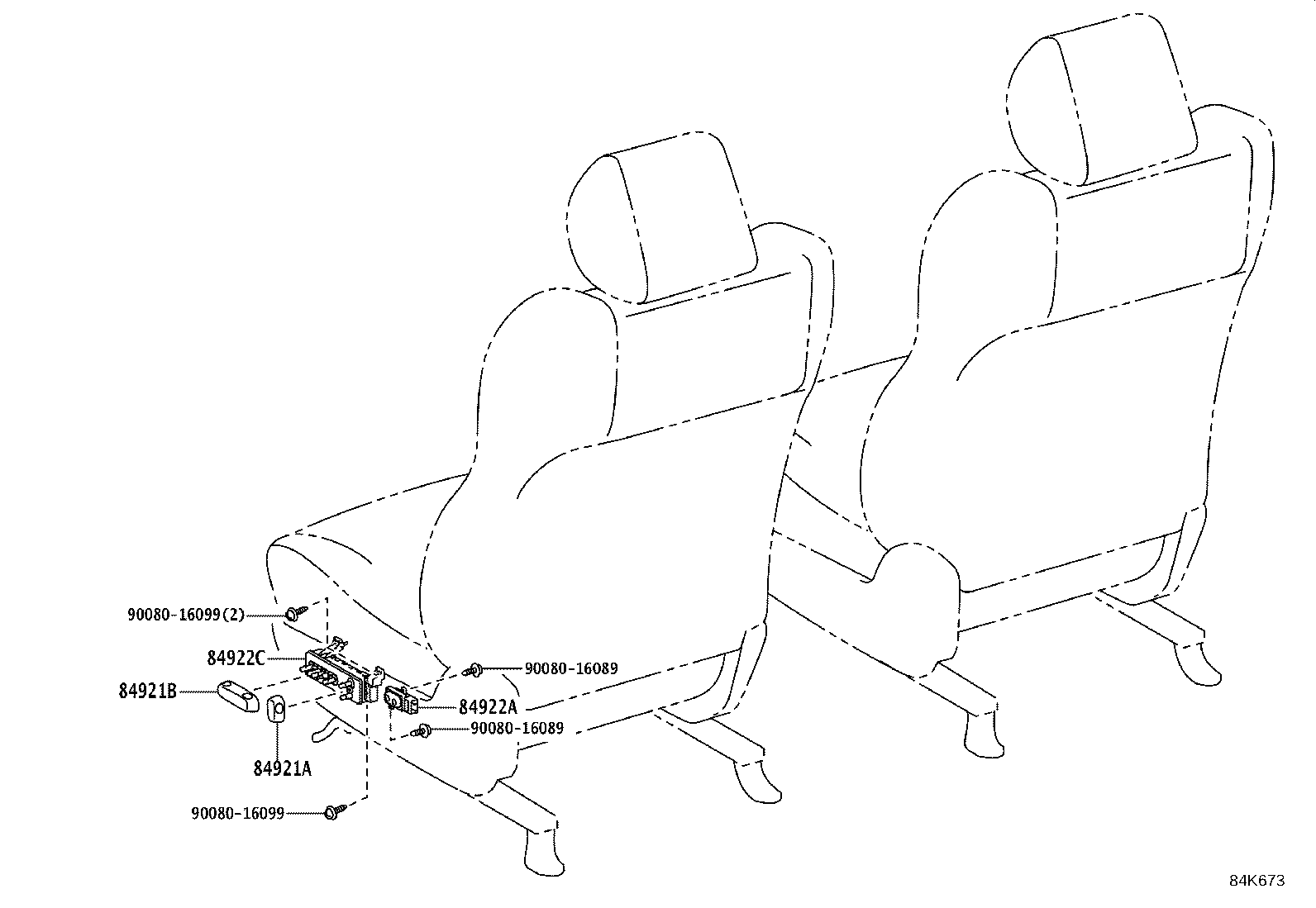

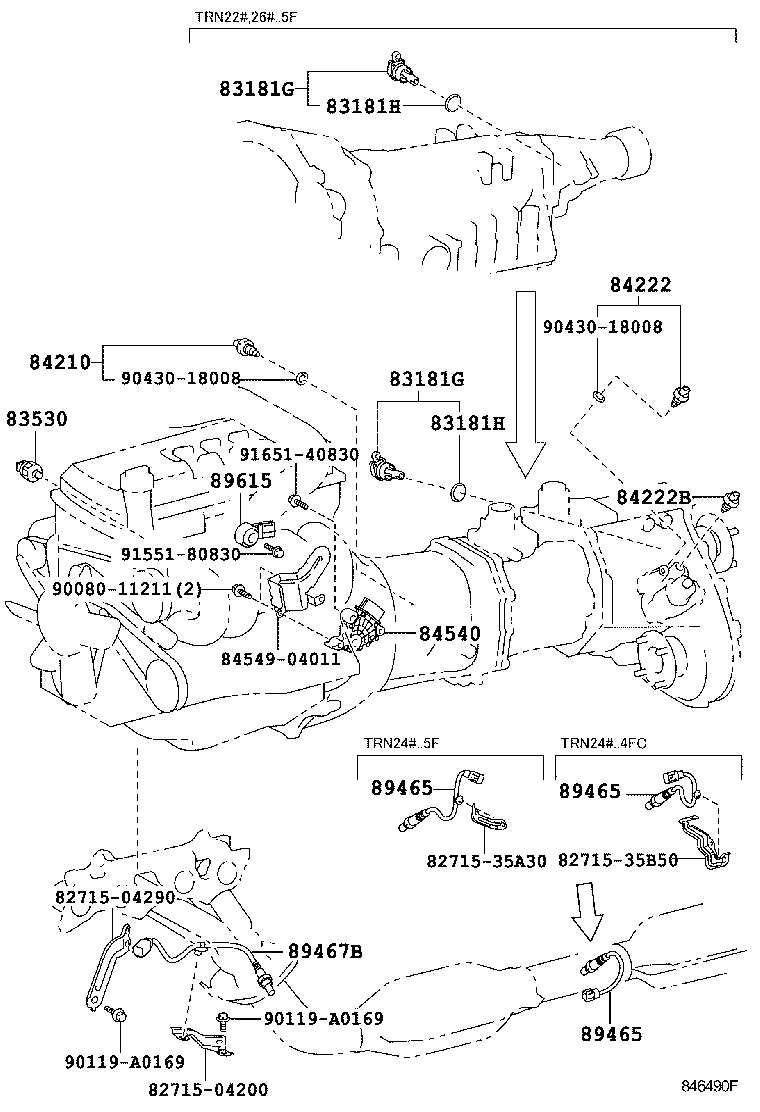

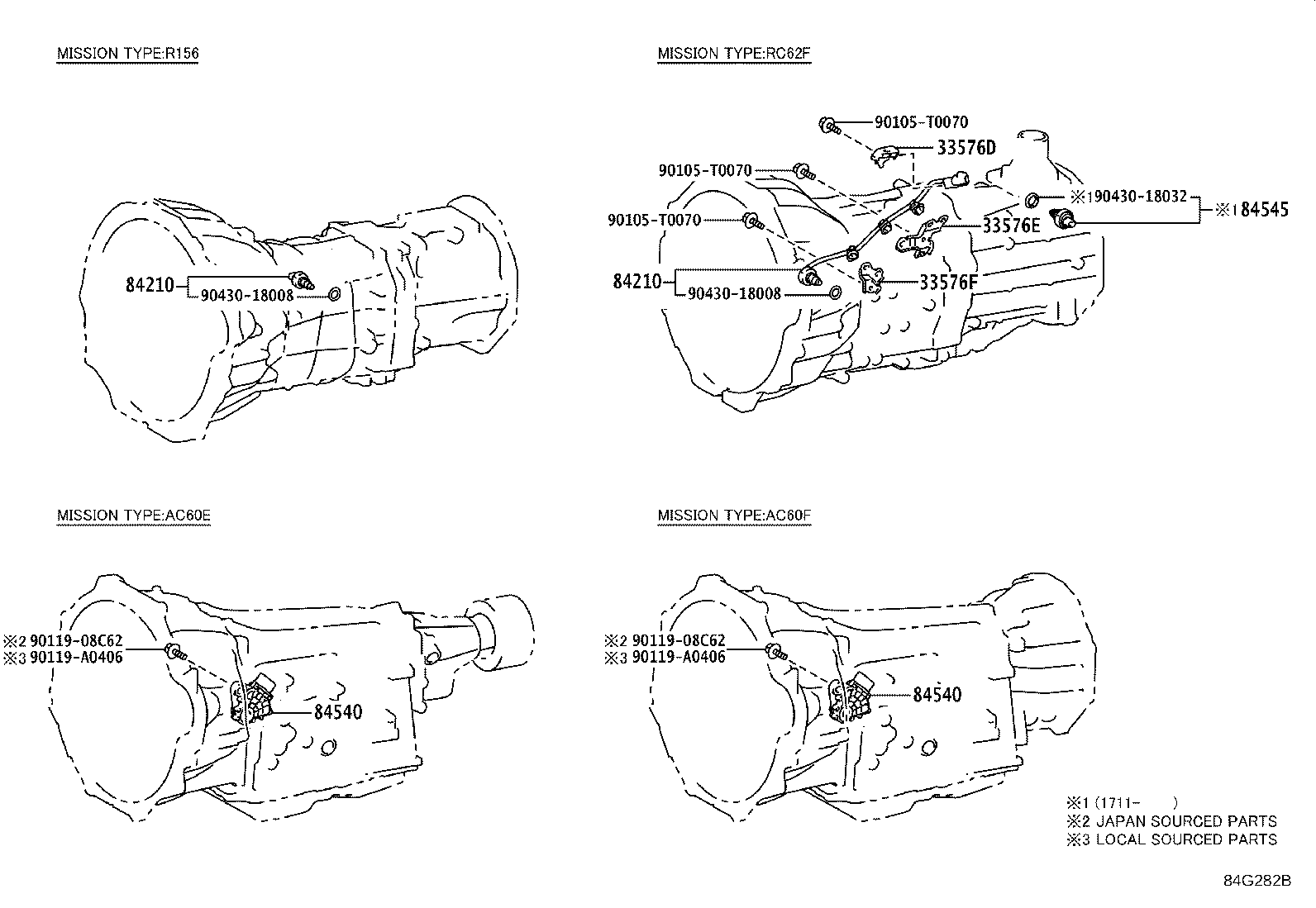

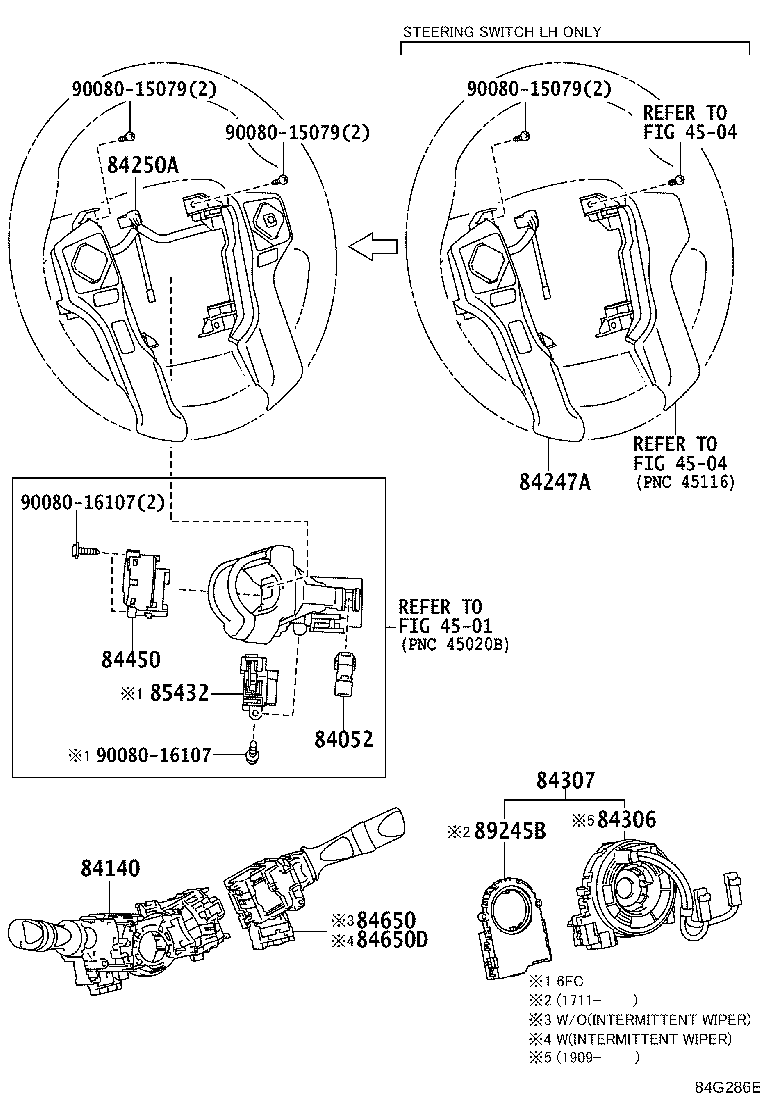

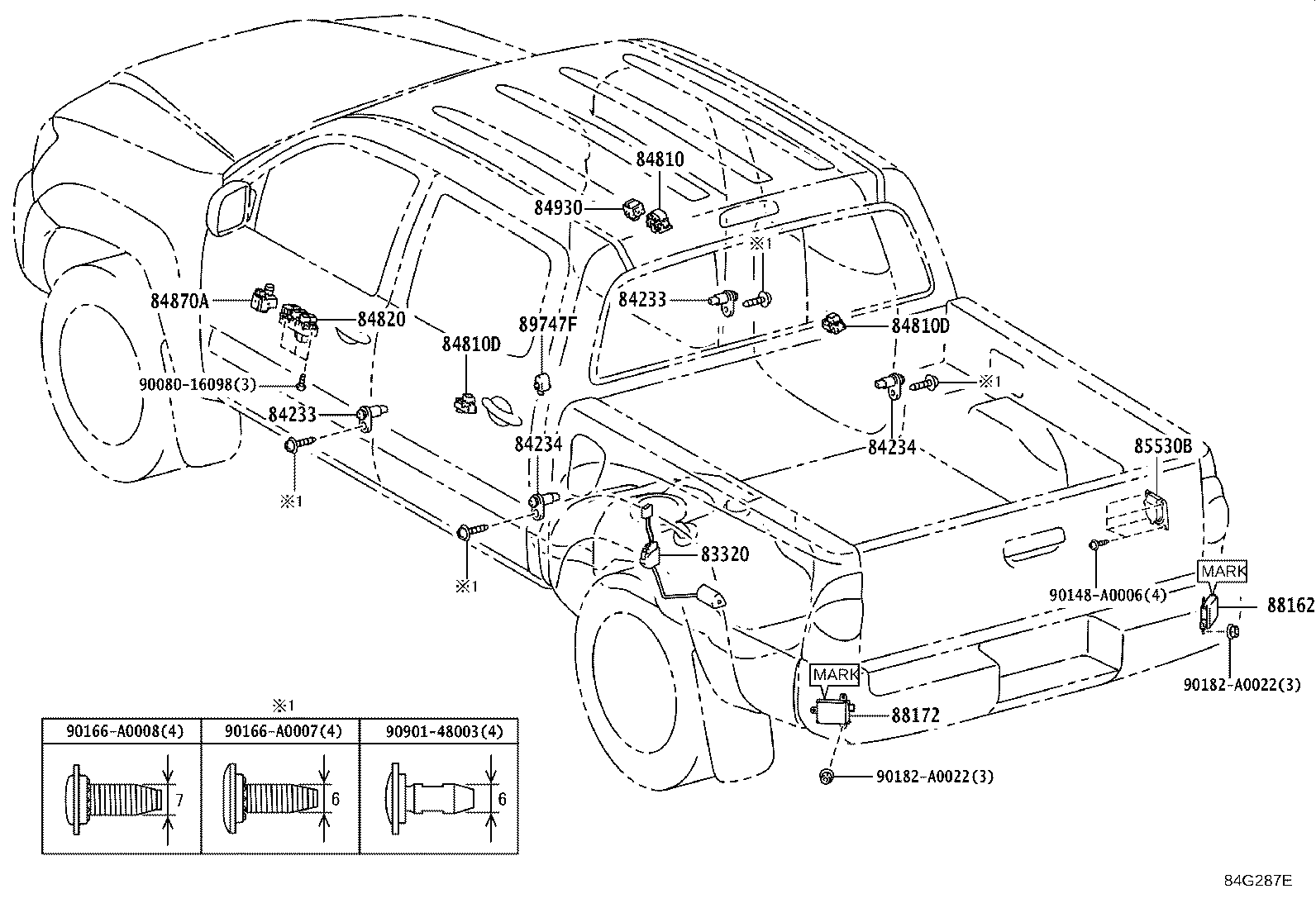

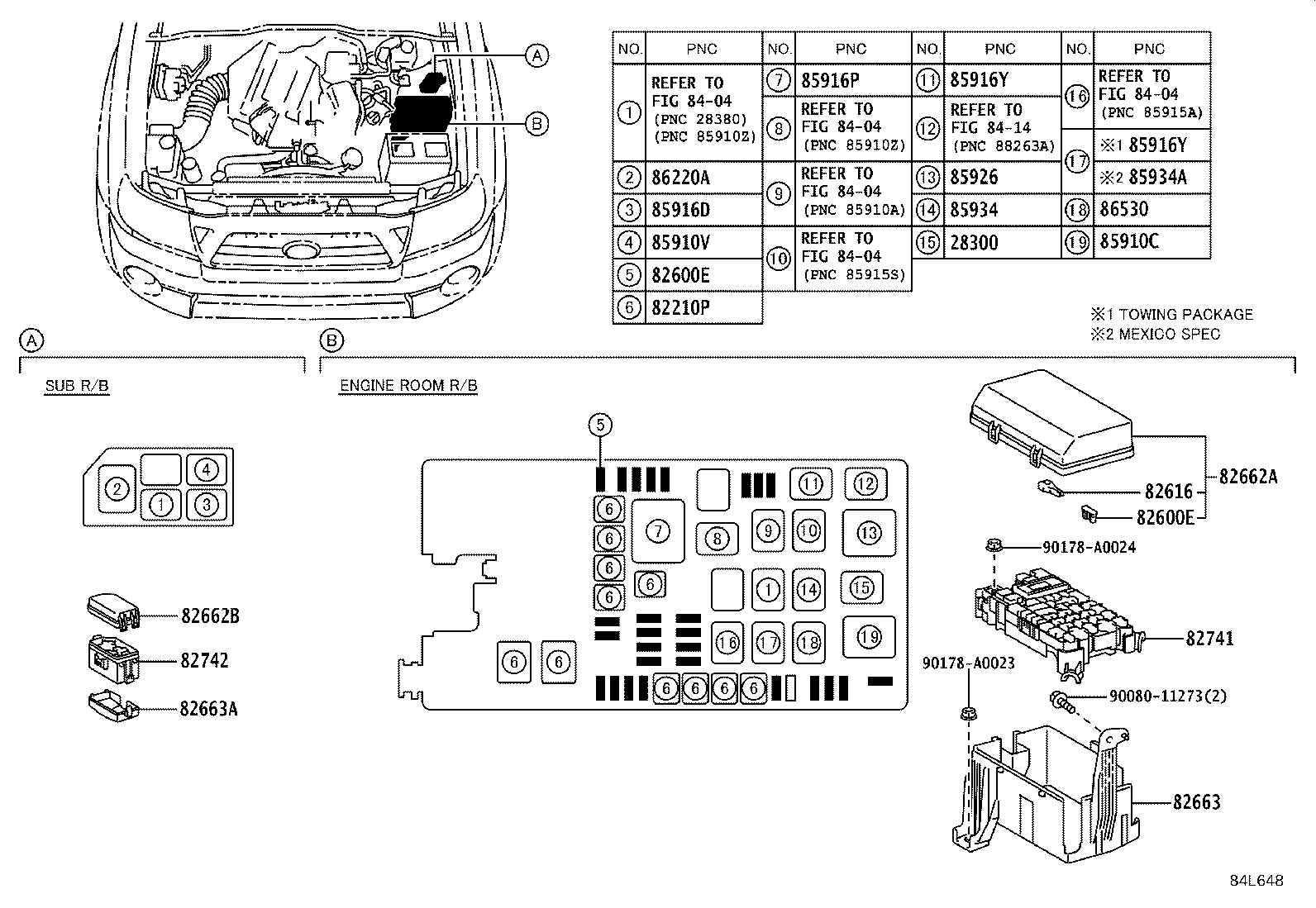

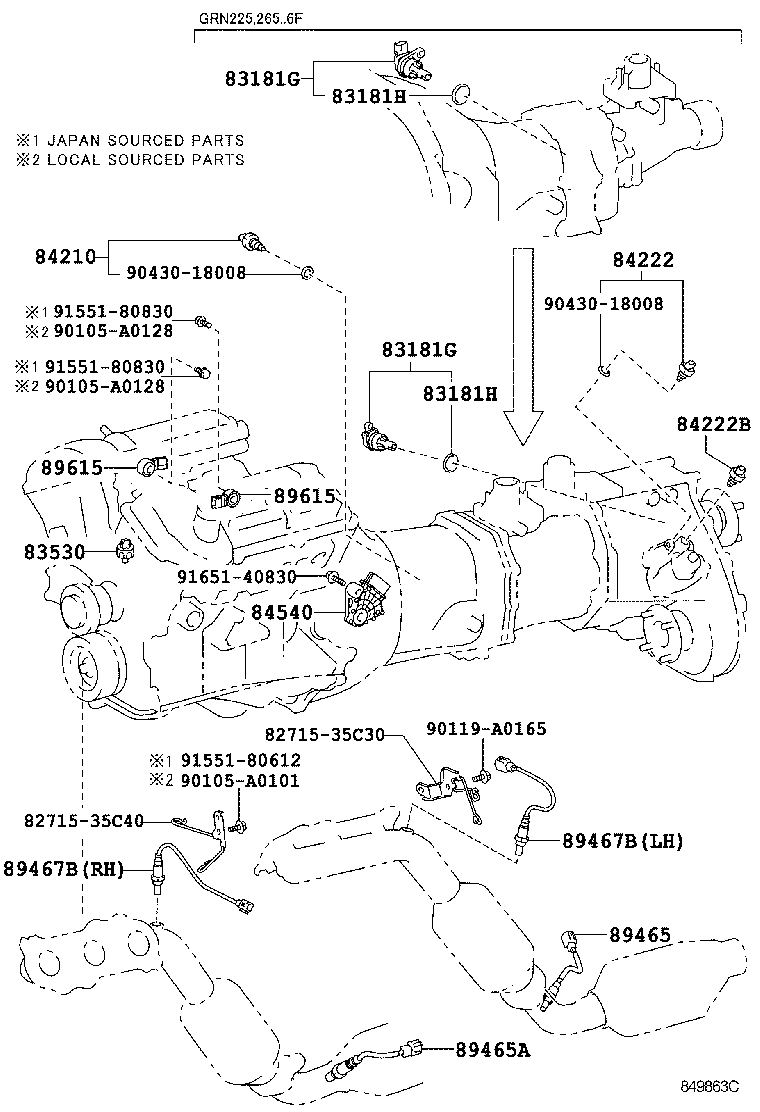

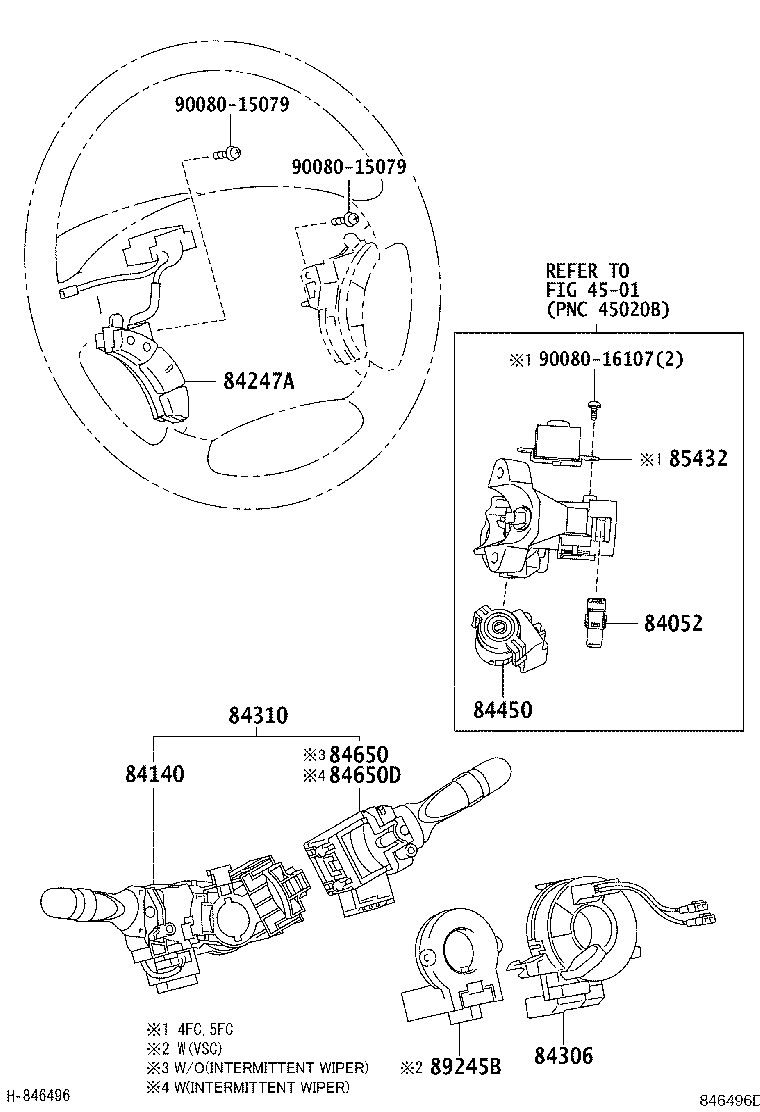

Figure 846489D 846489D 2004-09 → 2008-05 Figure 849863C 849863C 2008-05 → 2011-09 Figure 84C542B 84C542B 2011-09 → 2015-08 Figure 846490F 846490F 2004-09 → 2015-08 Figure 84G281 84G281 2015-08 → — Figure 84G364 84G364 2015-08 → — Figure 84G282B 84G282B 2015-08 → — Figure 846493I 846493I 2004-09 → 2011-09 Figure 84C516F 84C516F 2011-09 → 2015-08 Figure 84G283B 84G283B 2015-08 → 2017-11 Figure 84I219A 84I219A 2017-11 → — Figure 84L647A 84L647A 2004-09 → 2011-09 Figure 84L648 84L648 2011-09 → 2015-08 Figure 84L649 84L649 2015-08 → 2017-11 Figure 84L650 84L650 2017-11 → — Figure 846494L 846494L 2004-09 → 2011-09 Figure 84C518E 84C518E 2011-09 → 2015-08 Figure 84G284F 84G284F 2015-08 → — Figure 846495D 846495D 2004-09 → 2008-05 Figure 849861A 849861A 2008-05 → 2011-09 Figure 84C519A 84C519A 2011-09 → 2015-08 Figure 84G285A 84G285A 2015-08 → 2017-11 Figure 84I220B 84I220B 2017-11 → — Figure 846496D 846496D 2004-09 → 2008-05 Figure 849862B 849862B 2008-05 → 2011-09 Figure 84C520B 84C520B 2011-09 → 2015-08 Figure 84G286E 84G286E 2015-08 → — Figure 846497B 846497B 2004-09 → 2015-08 Figure 84G287E 84G287E 2015-08 → — Figure 84K673 84K673 2019-09 → — Figure 84G288 84G288 2015-08 → —

Part groups

PNCDescription
17616A Relay, Air Pump
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28380A Resister, Fuel Pump
33576D Bracket, Back-up Lamp Switch, NO.1
33576E Bracket, Back-up Lamp Switch, NO.2
33576F Bracket, Back-up Lamp Switch, NO.3
81550T Relay, Back UP Lamp
81980 Flasher Assy, Turn Signal
81985 Relay, Towing Converter
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82642B Relay, Day Time Running Light, NO.1
82660B Block Assy, Relay
82660G Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82715 Bracket,Wiring Harness Clamp
82731 Block, Driver Side Junction
82740 Block Assy, Engine Room Relay
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82761 Bracket, Relay Block, NO.1
82824L Pin, Short
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83461 Relay, Battery Charge
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84153 Switch, Auto High Beam
84162 Switch, Front Fog Lamp
84162B Bulb, Fog Lamp Switch
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222E Switch, Differential Lock Indicator
84223A Switch, Transfer Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84260 Switch Assy, Deck Lamp
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84415 Switch, Curtain Airbag Cutoff
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84480 Switch Assy, Main
84480A Switch Assy, Clutch Start Cancel
84480B Bulb, Main Switch Assy
84480D Bulb, Clutch Start Cancel Switch Assy
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84721A Switch, Front Wide View
84724 Switch, 4 Wheel Drive Control
84725 Switch, Center Differential Lock
84725A Switch, Differential Lock
84725B Blub, Differential Lock Switch
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84810G Switch Assy, Power Window Regulator, Rear NO.2
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control
84977 Switch, Drive Monitor
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
84988H Switch, Downhill Assist Control
84988J Bulb, Downhill Assist Control Switch
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85532 Socket, Usb Charger
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910V Relay, Seat Heater
85910X Relay, Heater Mirror
85916C Relay, Back UP Lamp
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85916Y Relay, Towing Tail
85926 Relay, Headlamp Dimmer
85930G Relay, Acc
85934 Relay, Magnet-clutch
85934A Relay Condenser Fan
85939 Relay, Power Window
85960C Relay, Deck Lamp
861C6 Switch, Mobile Wireless Charger
86210A Inverter Assy, Voltage
86220A Relay, Inverter
86530 Relay Assy, Horn
87346K Relay, Ptc Heater
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89491 Sensor, Engine Oil Level
89533 Computer, 4 Wheel Drive Control
89533A Computer, 4 Wheel Drive Control, NO.2
89611 Switch, Push Start
89615 Sensor, Knock Control
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
