Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 8 illustrations

Illustrations

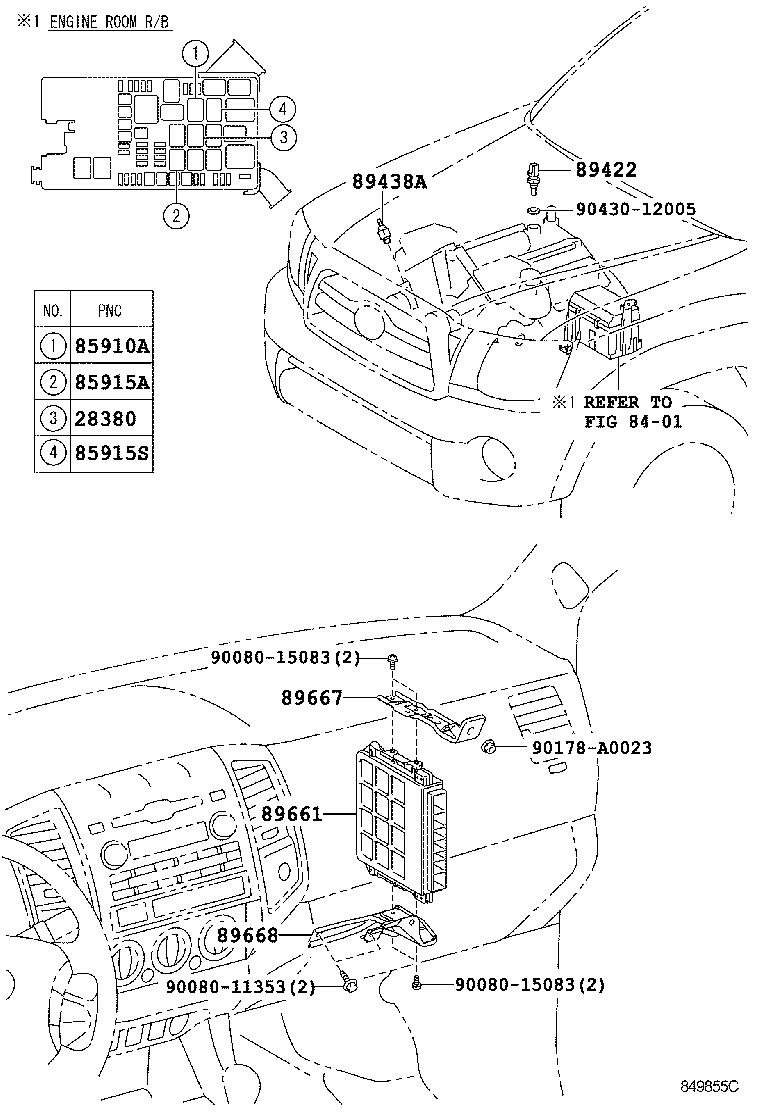

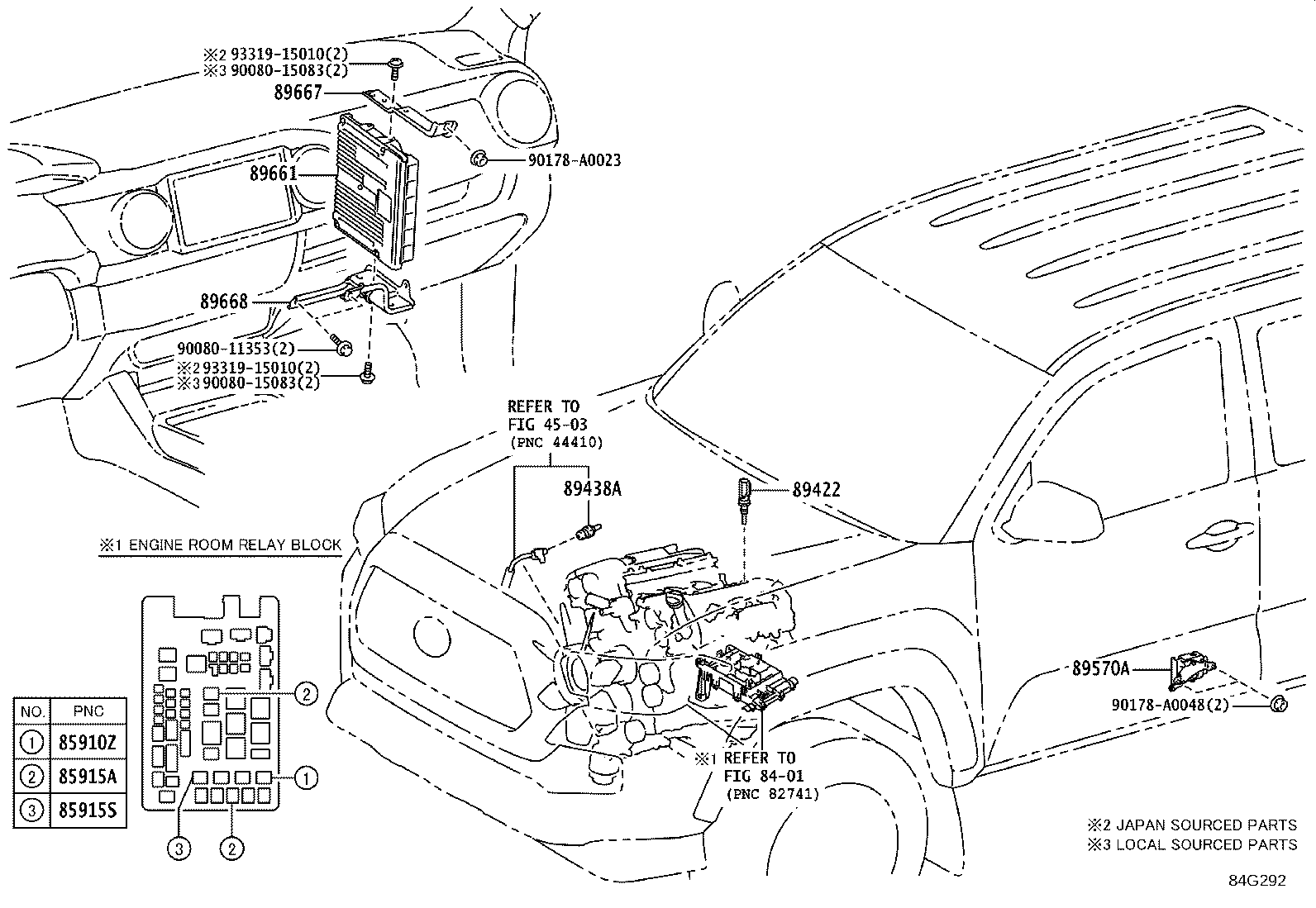

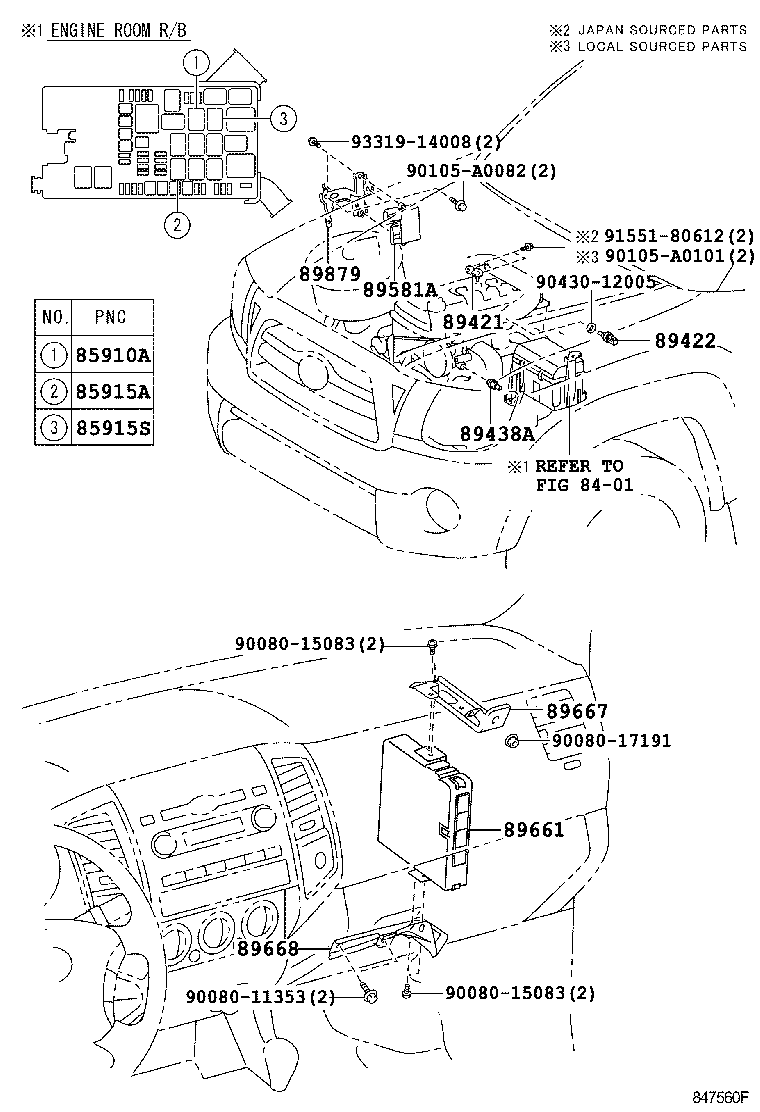

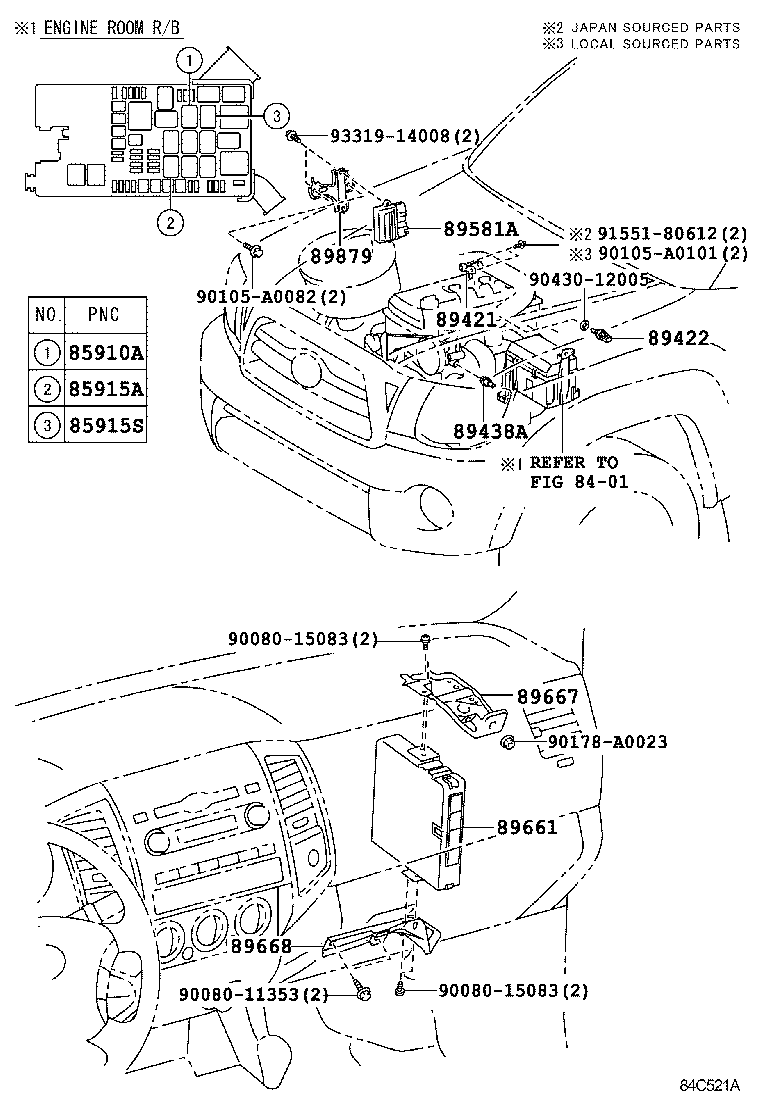

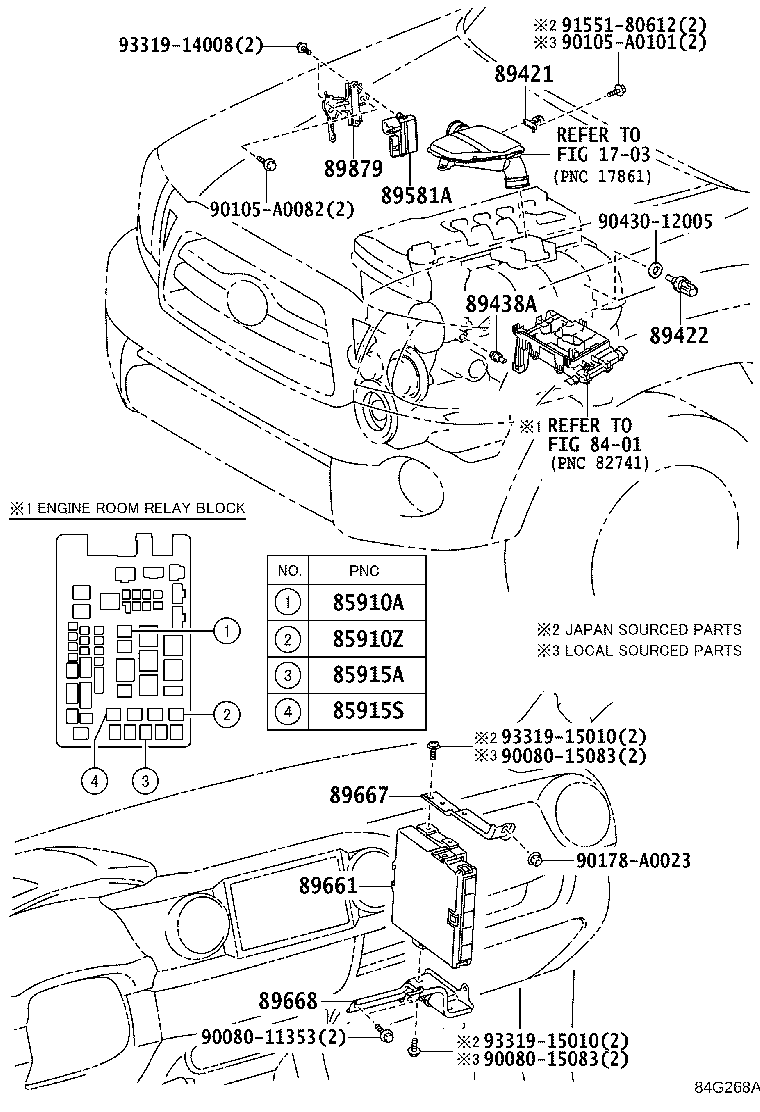

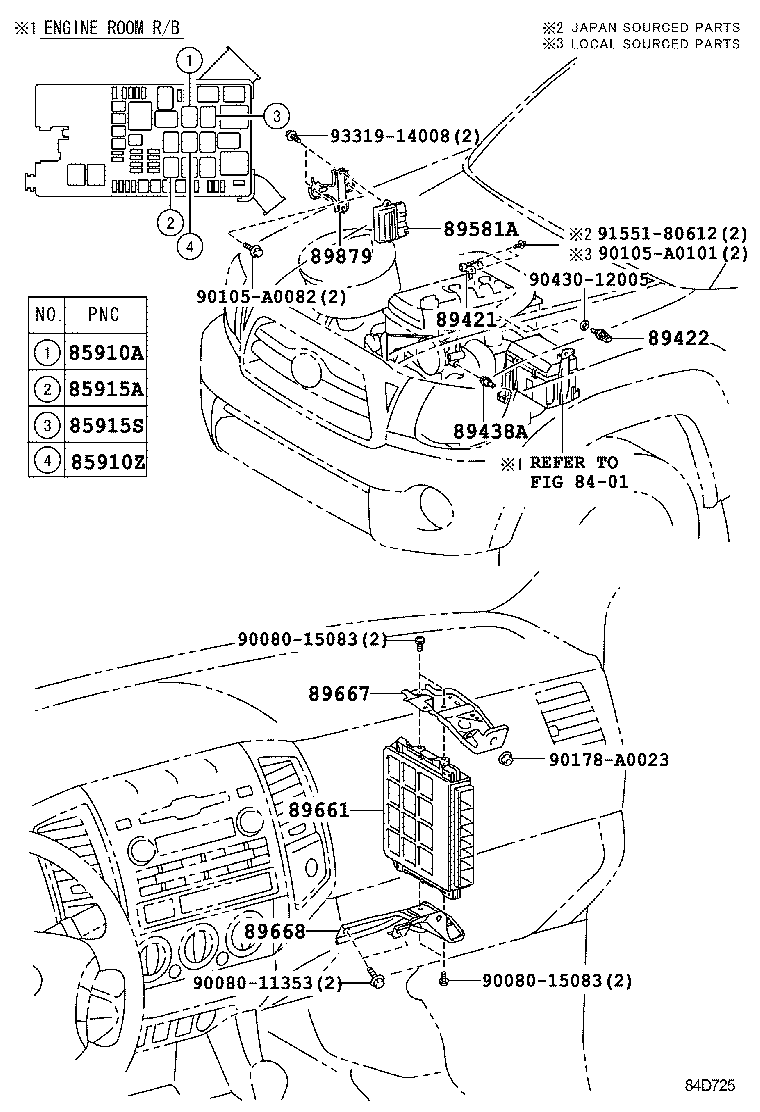

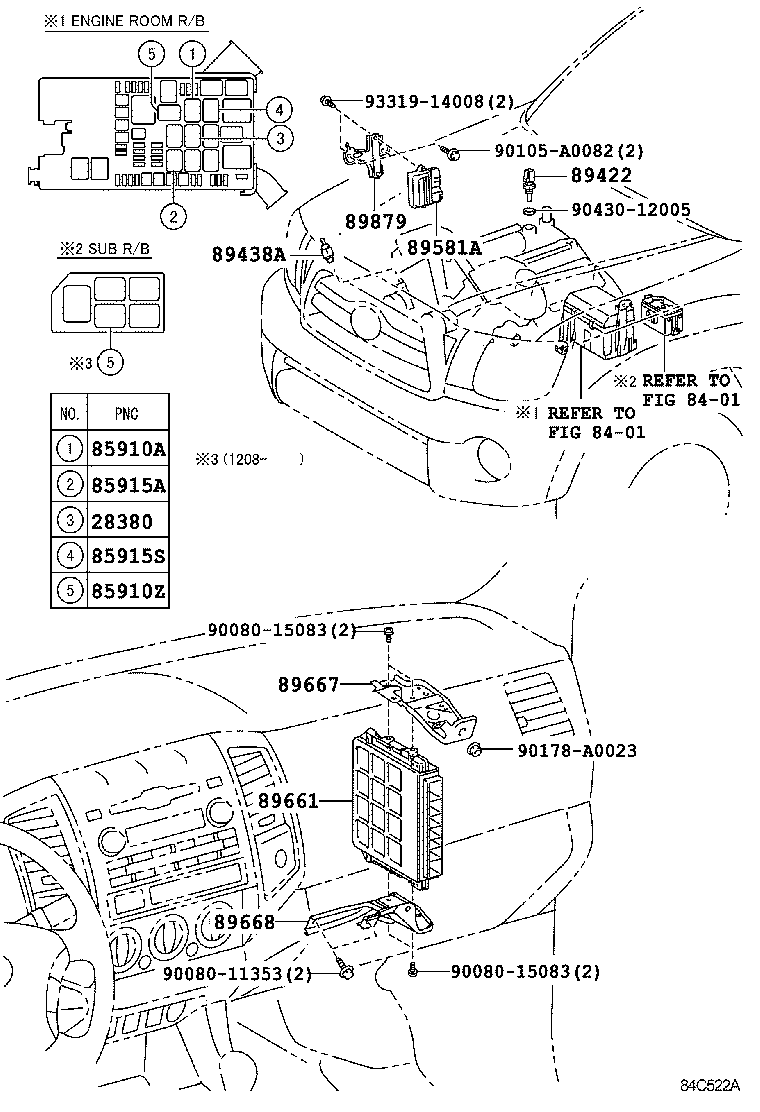

Figure 846479C 846479C 2004-09 → 2008-05 Figure 847560F 847560F 2004-09 → 2011-09 Figure 849855C 849855C 2008-05 → 2011-09 Figure 84C521A 84C521A 2011-09 → 2012-08 Figure 84C522A 84C522A 2011-09 → 2015-08 Figure 84D725 84D725 2012-08 → 2015-08 Figure 84G292A 84G292A 2015-08 → — Figure 84G268A 84G268A 2015-08 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
85910A Relay Assy, Circuit Opening (FOR EFI)
85910Z Relay, Injection (FOR EFI)
85915A Relay, Main
85915S Relay, Heater (FOR AIR FUEL RATIO SENSOR)
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89438A Switch, Power Steering Oil Pressure
89570A Computer Assy, Fuel Pump Control
89581A Driver, Air Injection Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89879 Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
