Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 7 illustrations

Illustrations

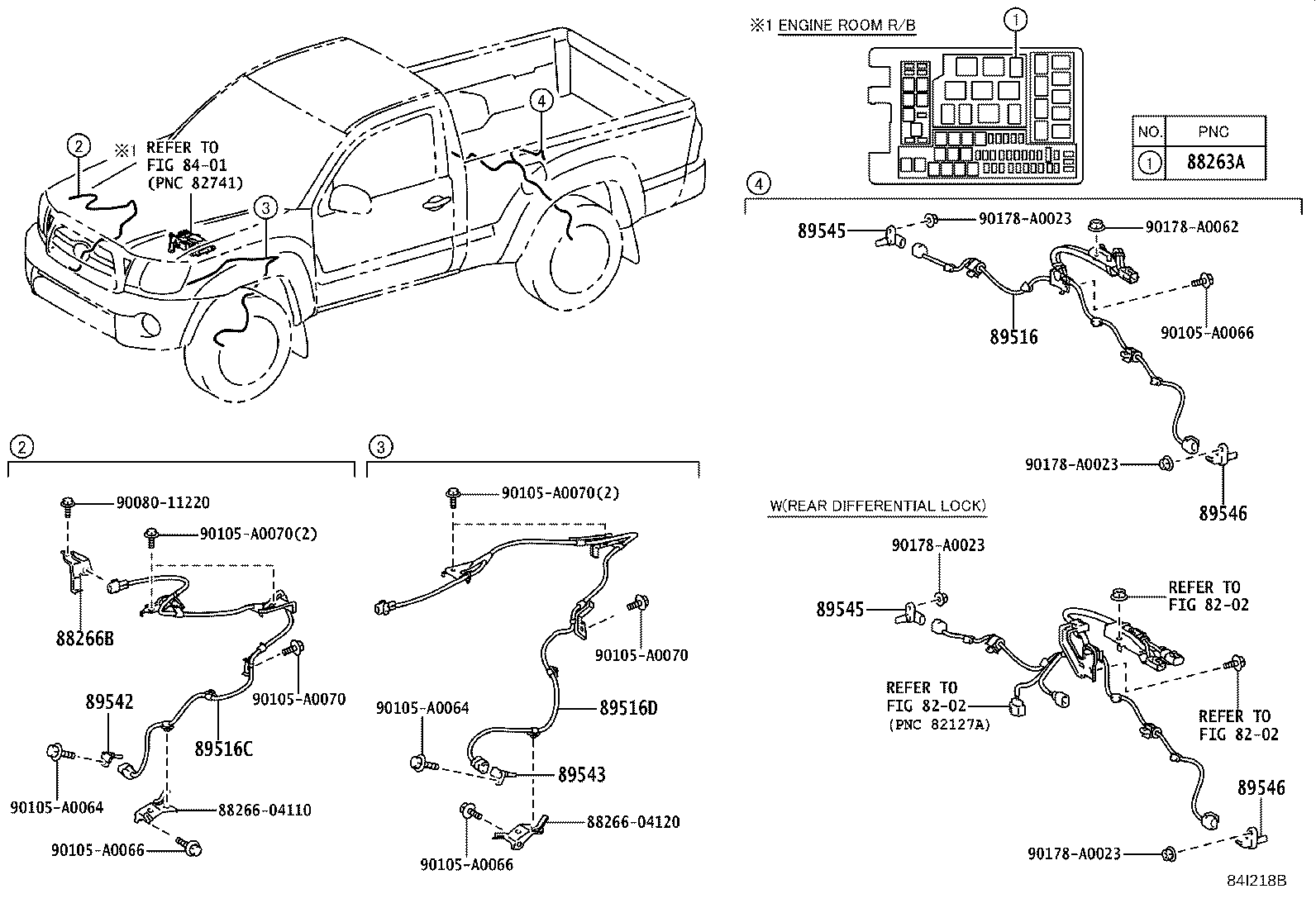

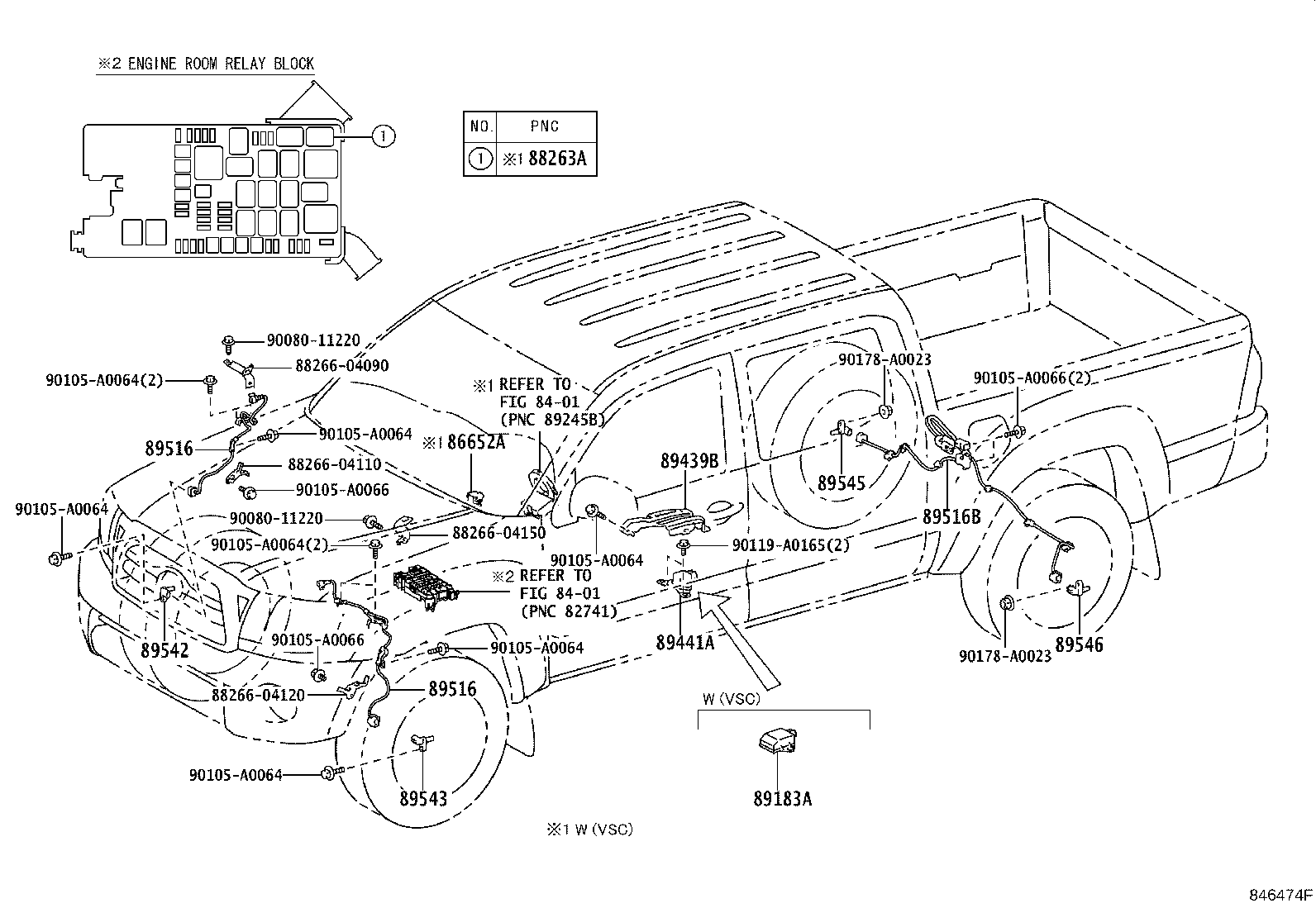

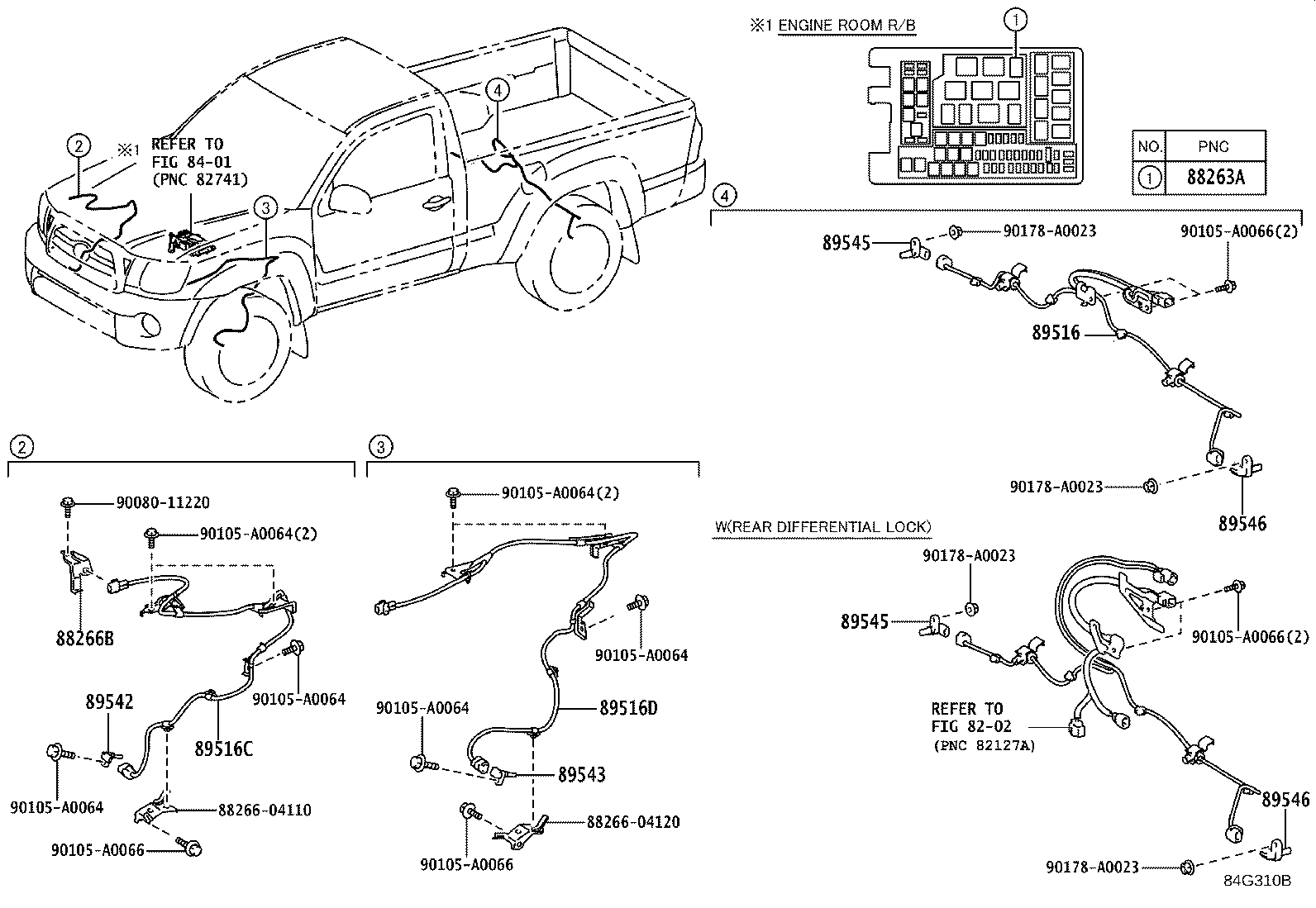

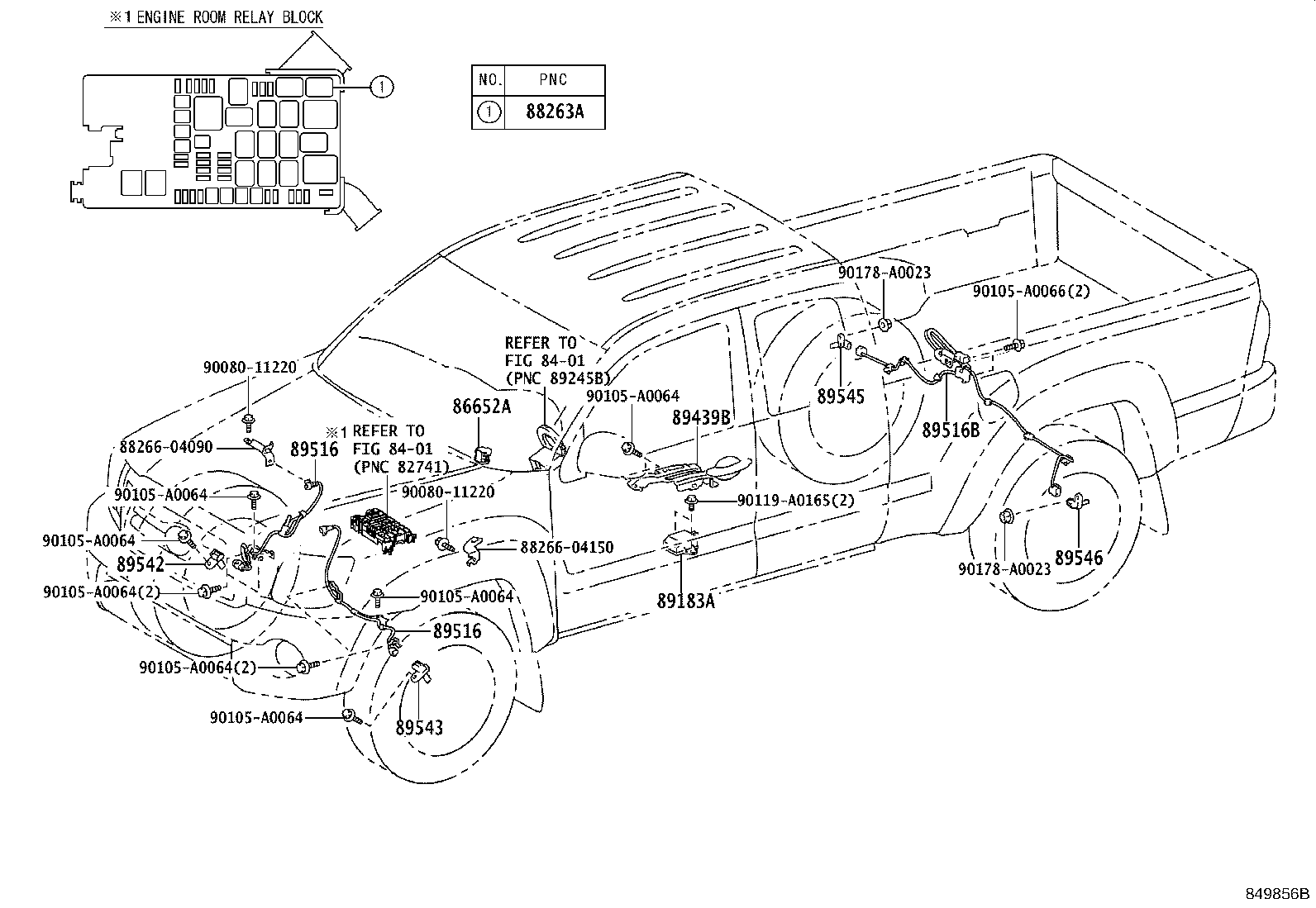

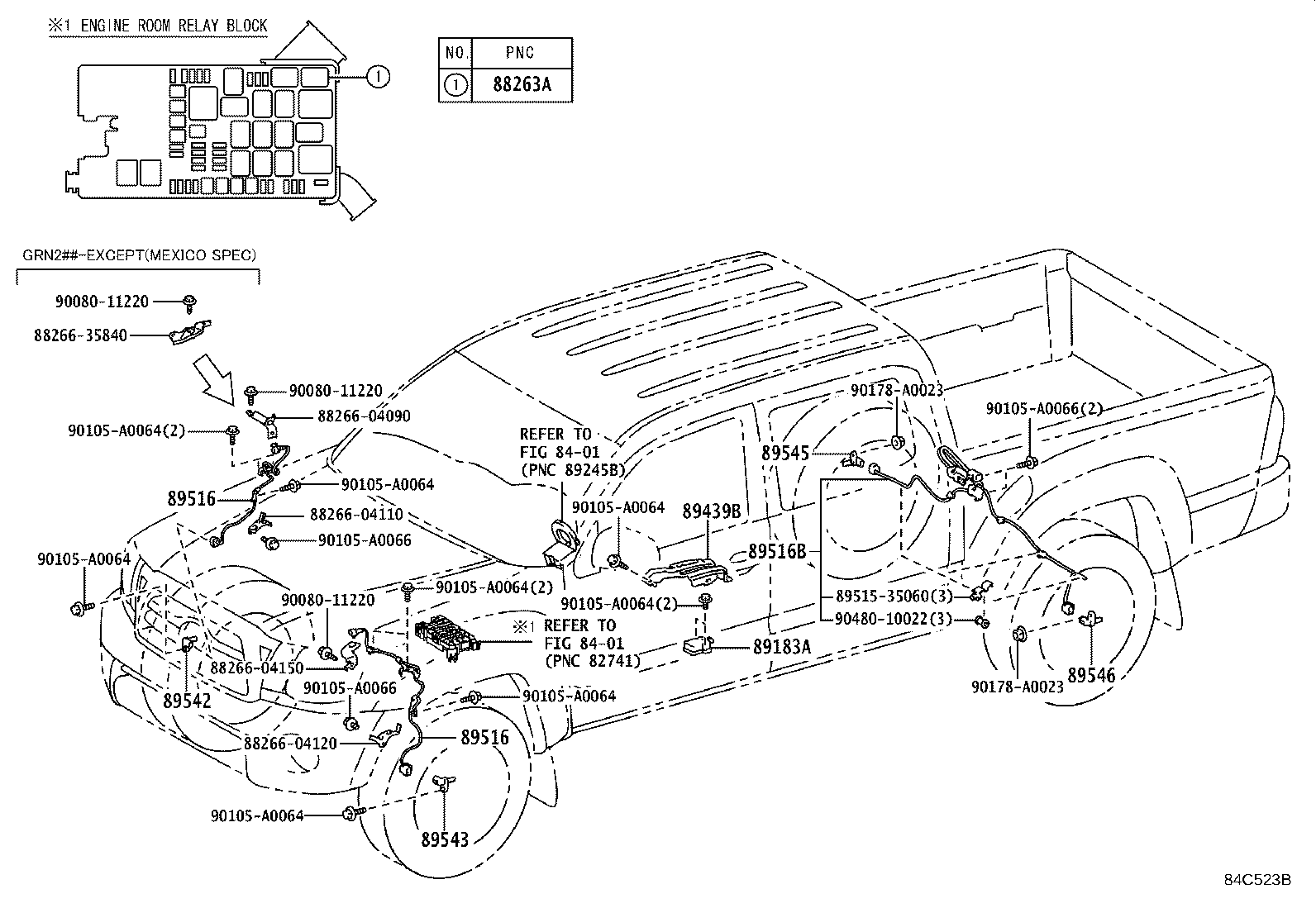

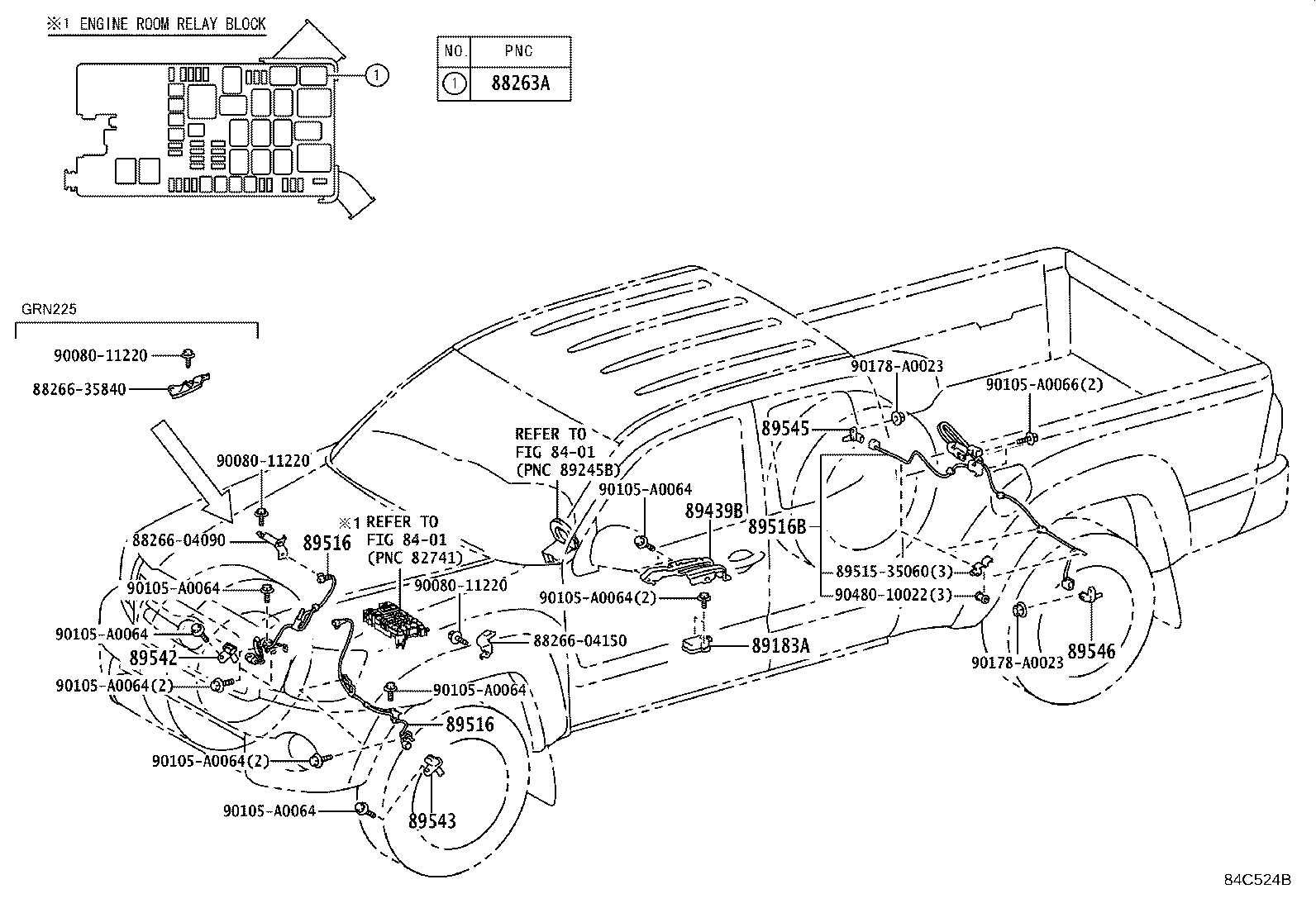

Figure 846473F 846473F 2004-09 → 2008-05 Figure 846474F 846474F 2004-09 → 2011-09 Figure 849856B 849856B 2008-05 → 2011-09 Figure 84C524B 84C524B 2011-09 → 2015-08 Figure 84C523B 84C523B 2011-09 → 2015-08 Figure 84G310B 84G310B 2015-08 → 2017-11 Figure 84I218B 84I218B 2017-11 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88266B Clamp, Skid Control Sensor, NO.1
89183A Sensor, Yawrate
89439B Bracket, Sensor
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
