Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 3 illustrations

Illustrations

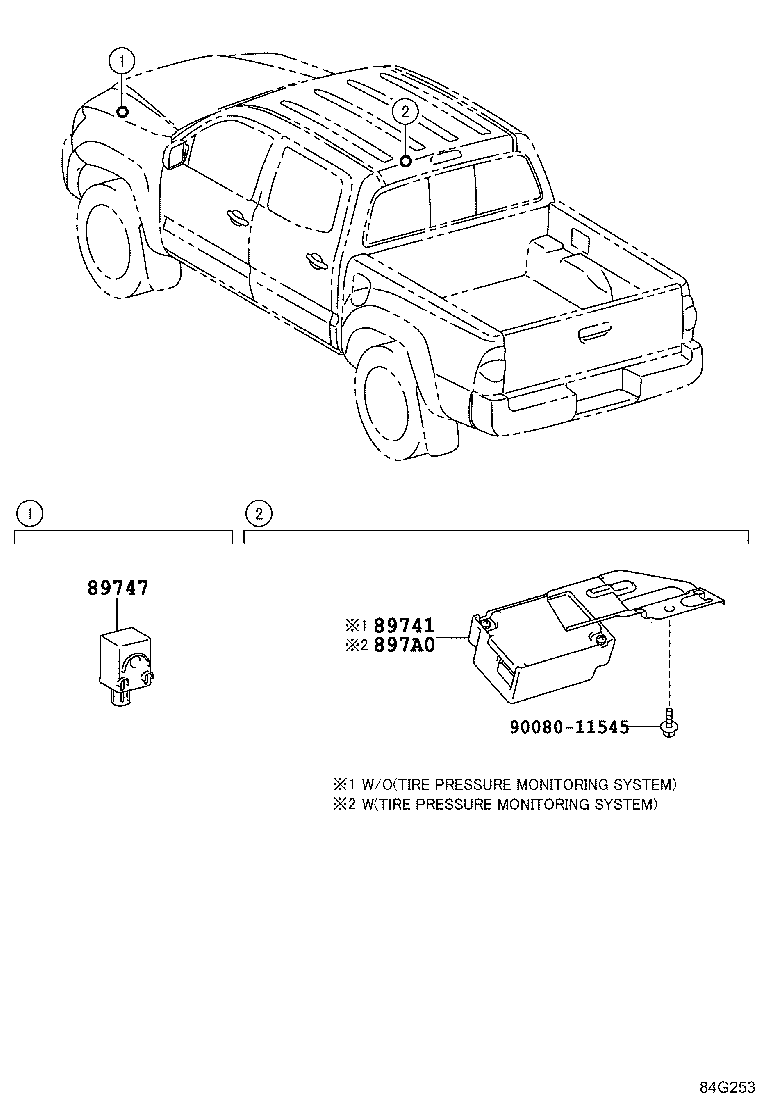

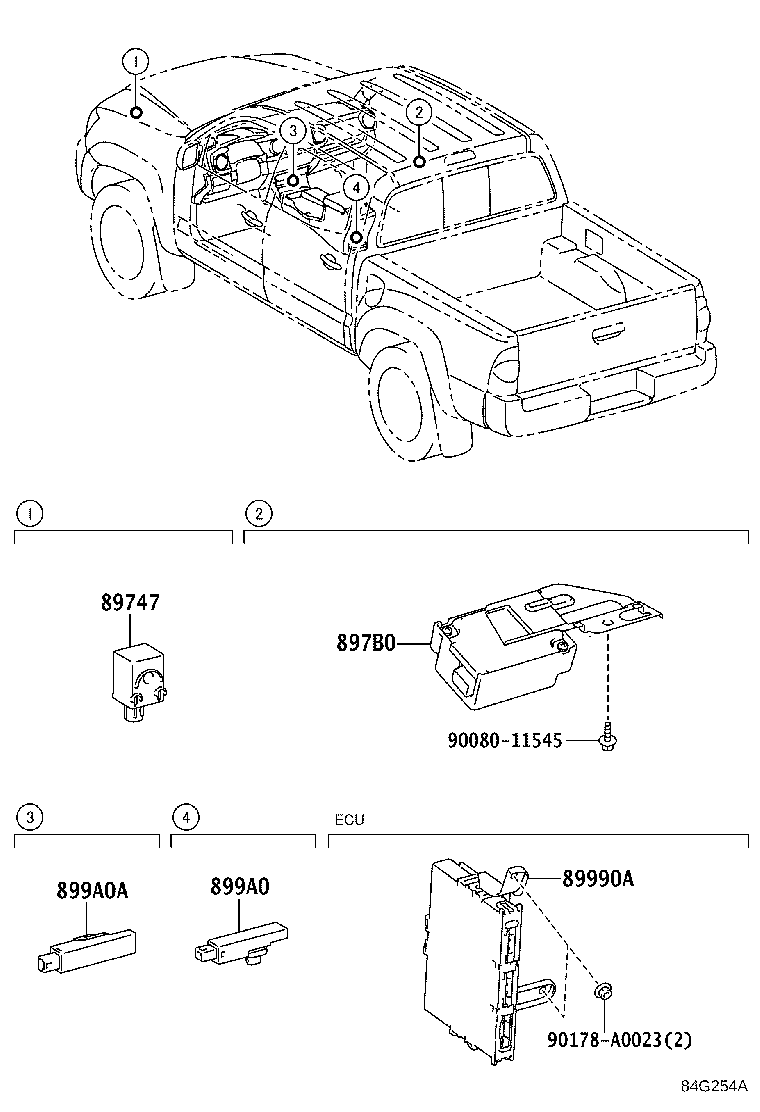

Figure 846487A 846487A 2004-09 → 2015-08 Figure 84G253 84G253 2015-08 → — Figure 84G254A 84G254A 2015-08 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
897A0 Receiver Assy,Door Control & Tire Pressure Monitoring System
897B0 Receiver Assy, Electrical Key & Tpms
89990A Computer Assy, Smart Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
