Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 6 illustrations

Illustrations

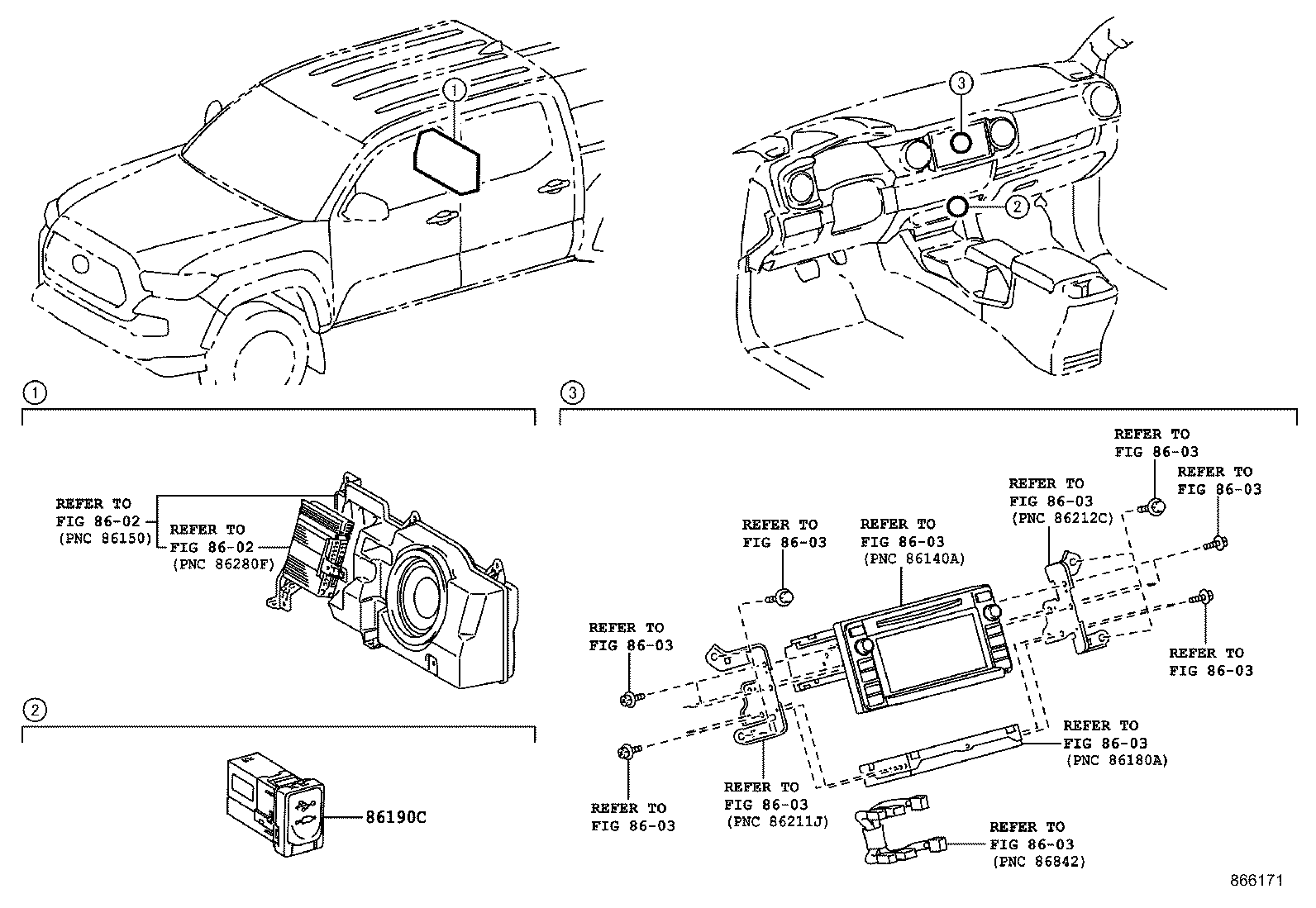

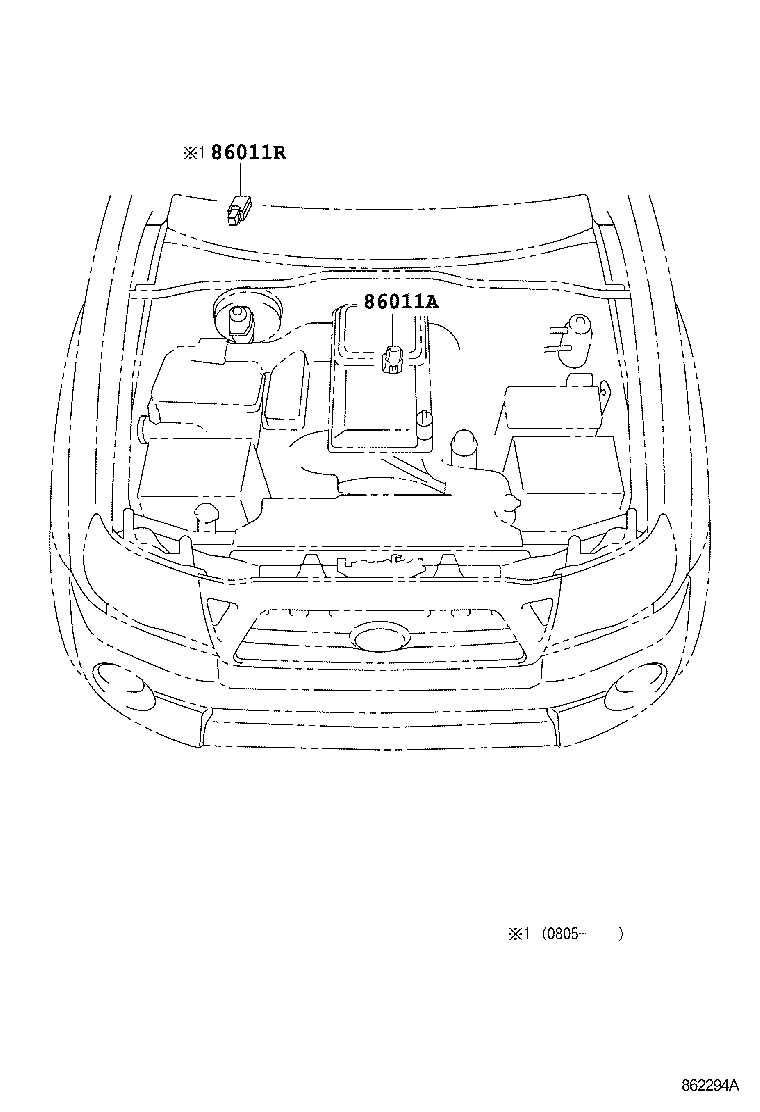

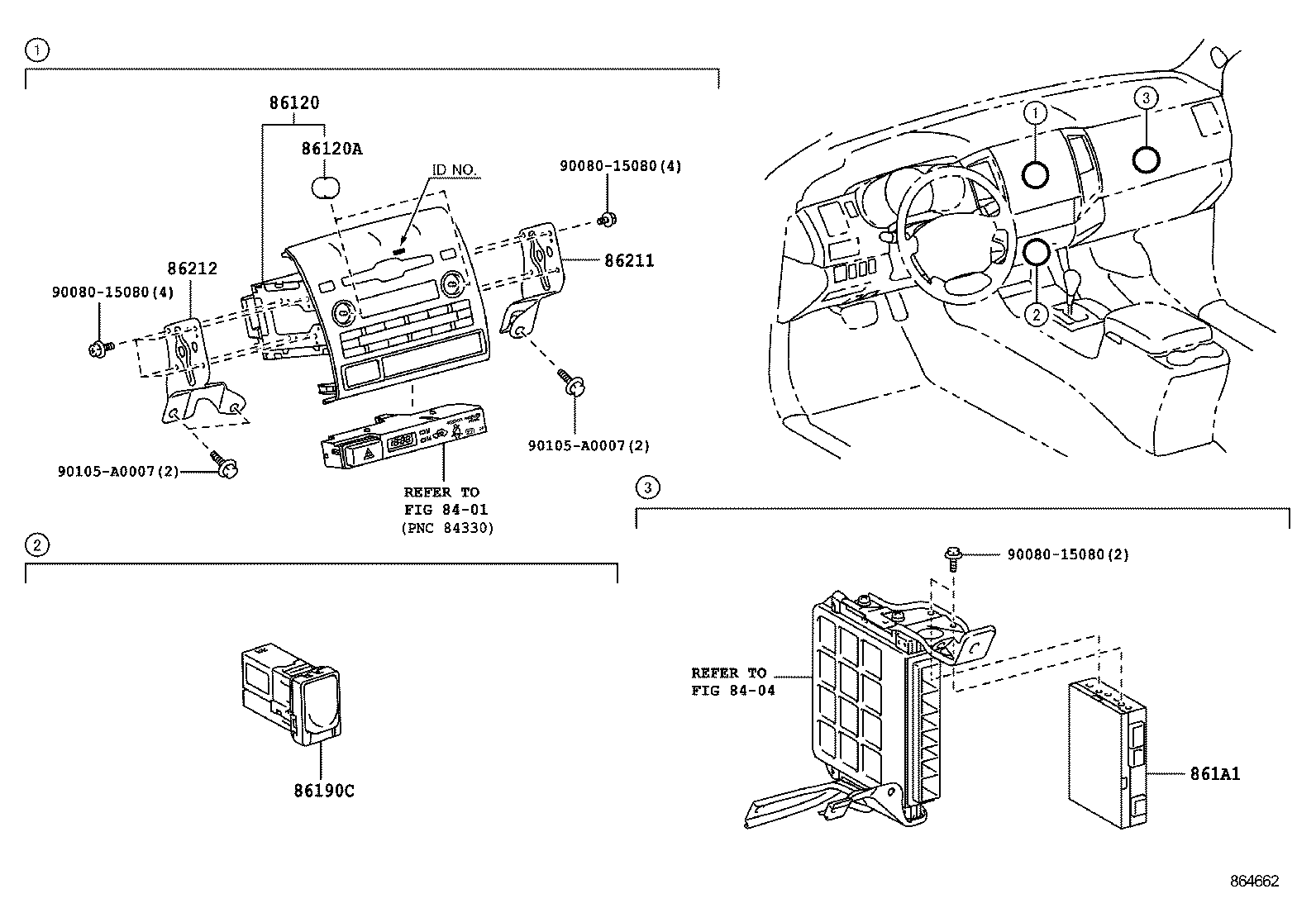

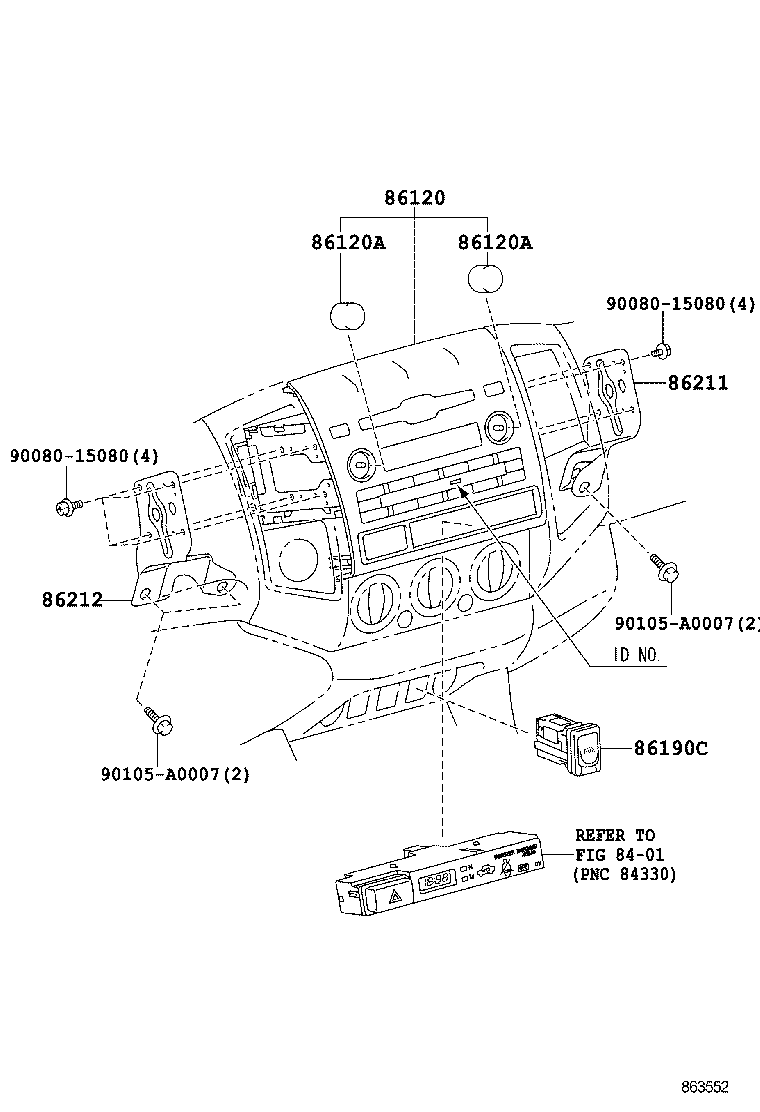

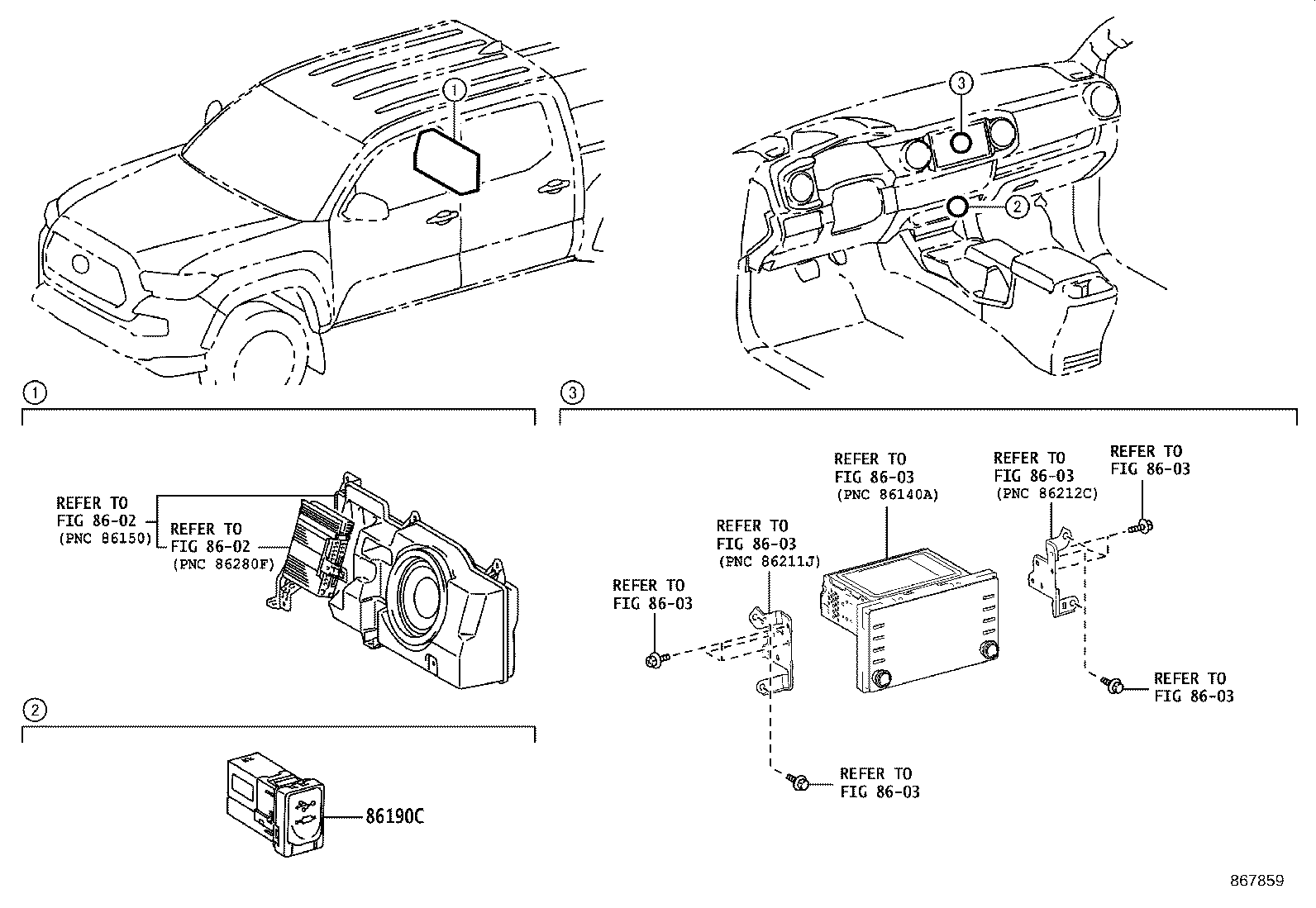

Figure 862293A 862293A 2004-09 → 2008-05 Figure 863552 863552 2008-05 → 2011-09 Figure 864662 864662 2011-09 → 2015-08 Figure 862294A 862294A 2004-09 → 2015-08 Figure 866171 866171 2015-08 → 2019-09 Figure 867859 867859 2019-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
