Heating & Air Conditioning - Water Piping

5 part groups · 3 illustrations

Illustrations

Figure 876953E

876953E 2004-09 → 2015-08

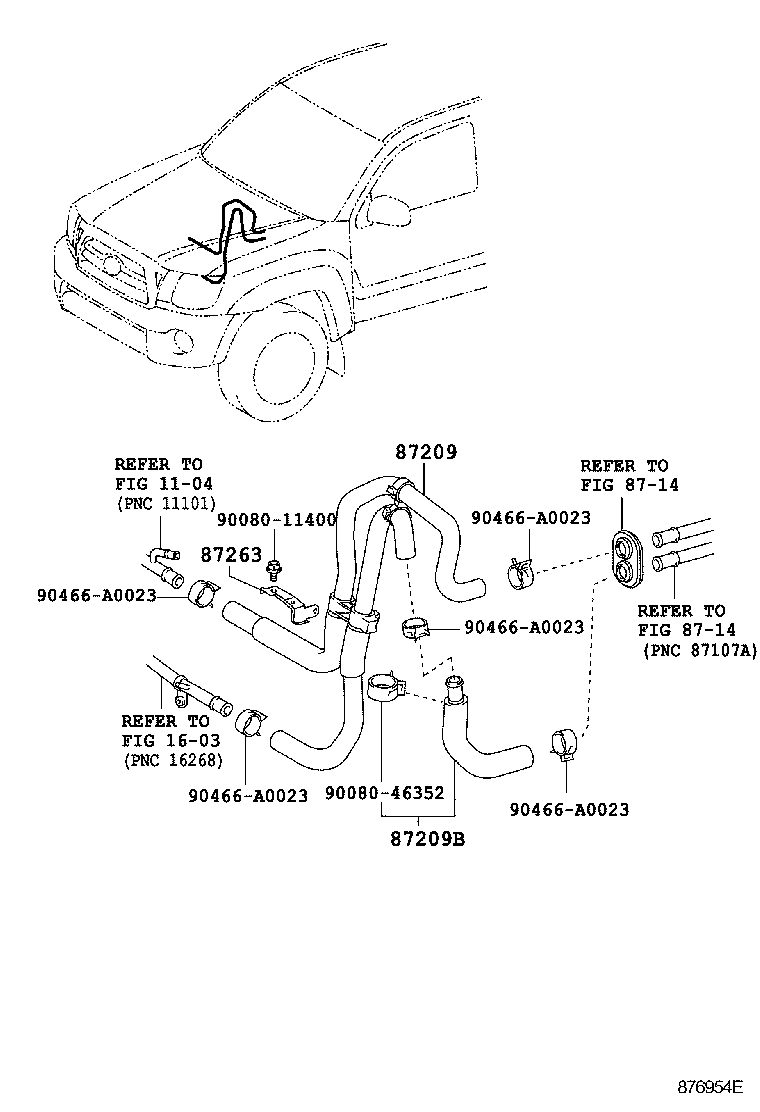

Figure 876954E

876954E 2004-09 → —

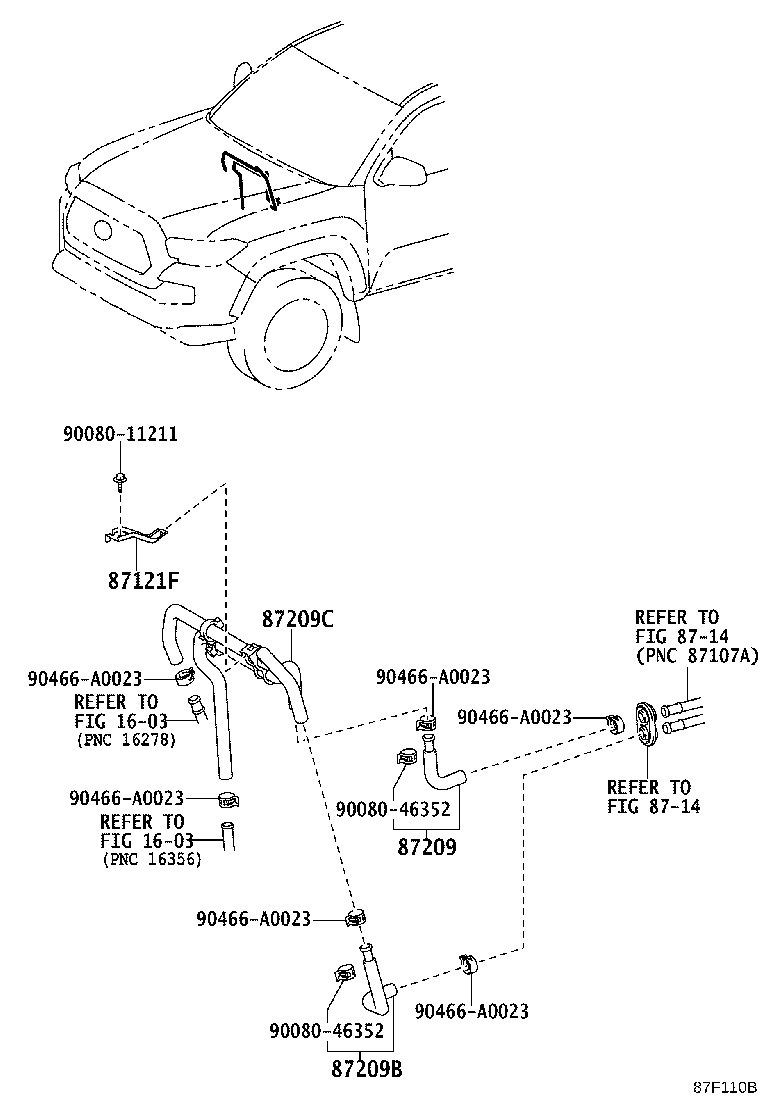

Figure 87F110B

87F110B 2015-08 → —

Part groups

PNC	Description
87121F	Bracket, Heater
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87209C	Hose Sub-assy, Water, C
87263	Bracket, Heater Water Pipe, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
