Toyota Tacoma

2004-09 → present · chassis GRN2##,3##,TRN2## · catalogue 674470 · United States

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

19 part groups · 9 illustrations

Illustrations

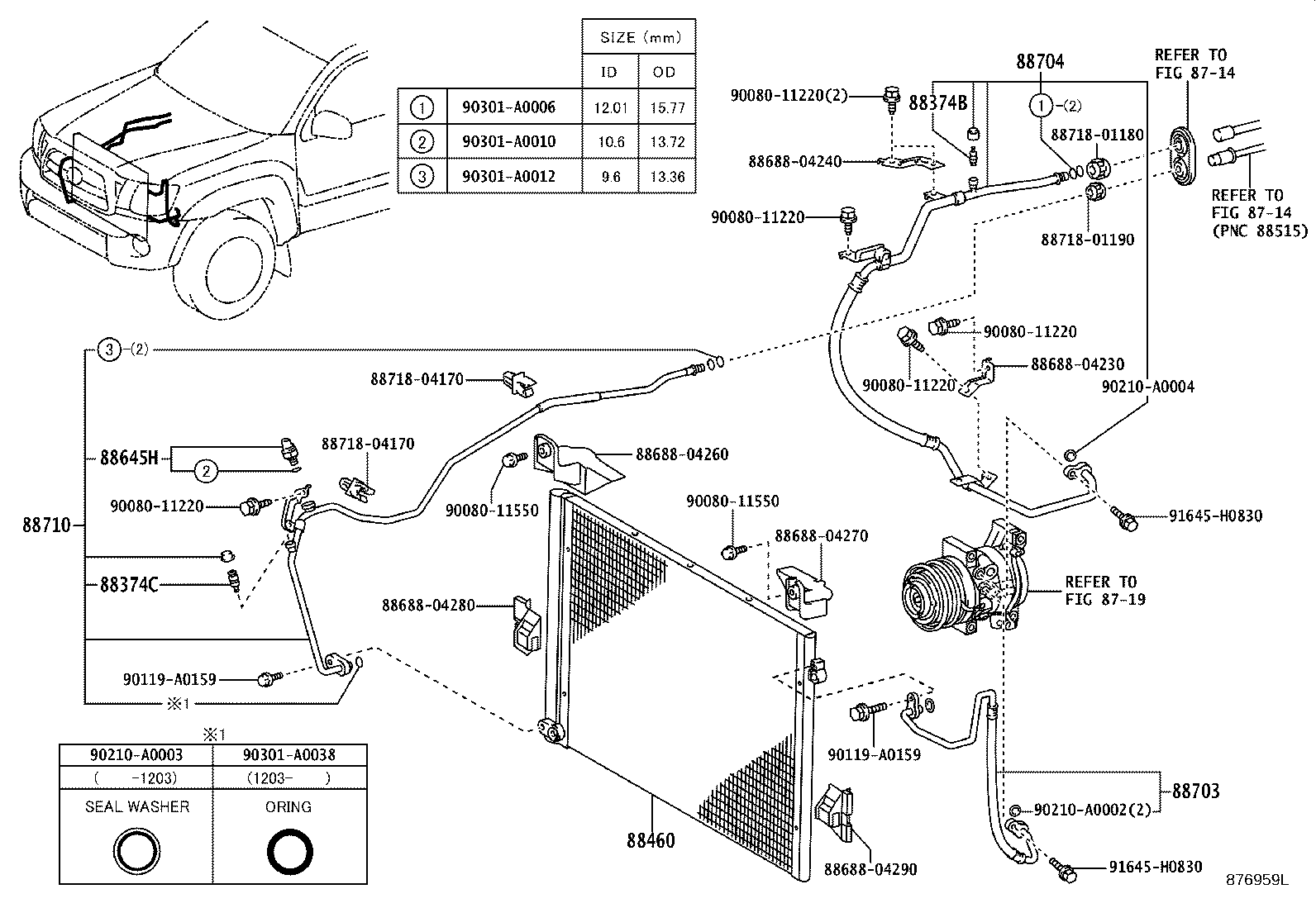

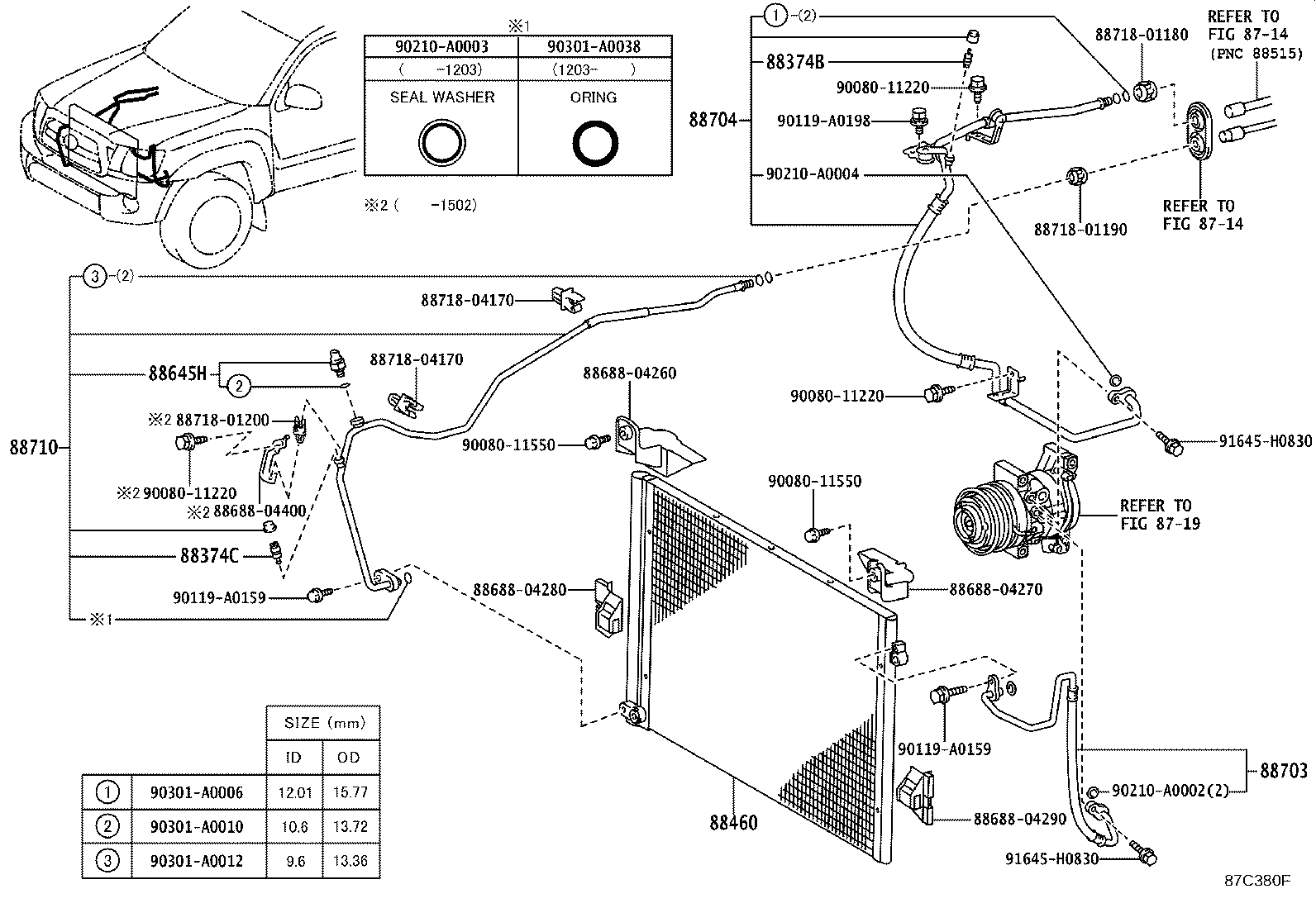

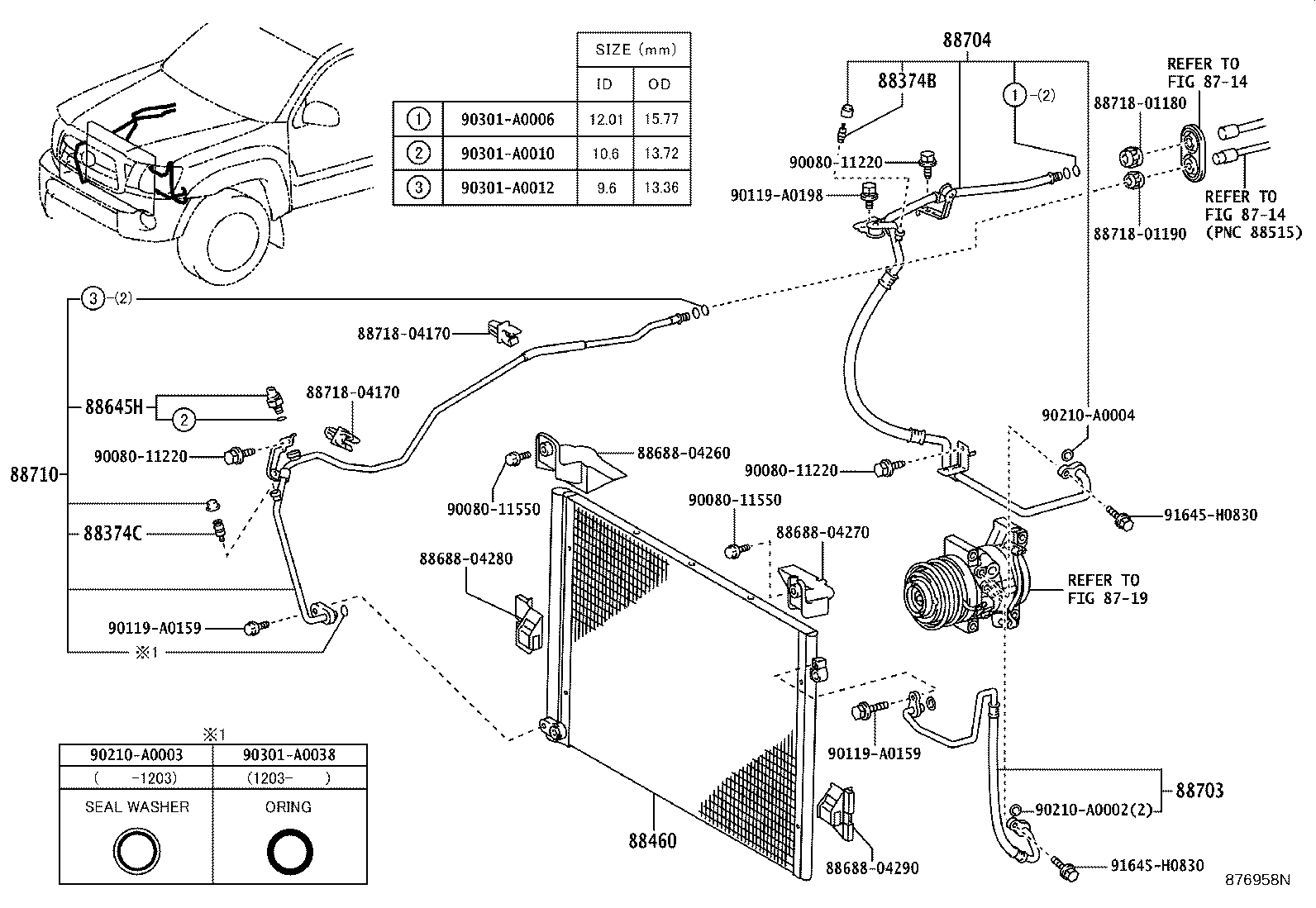

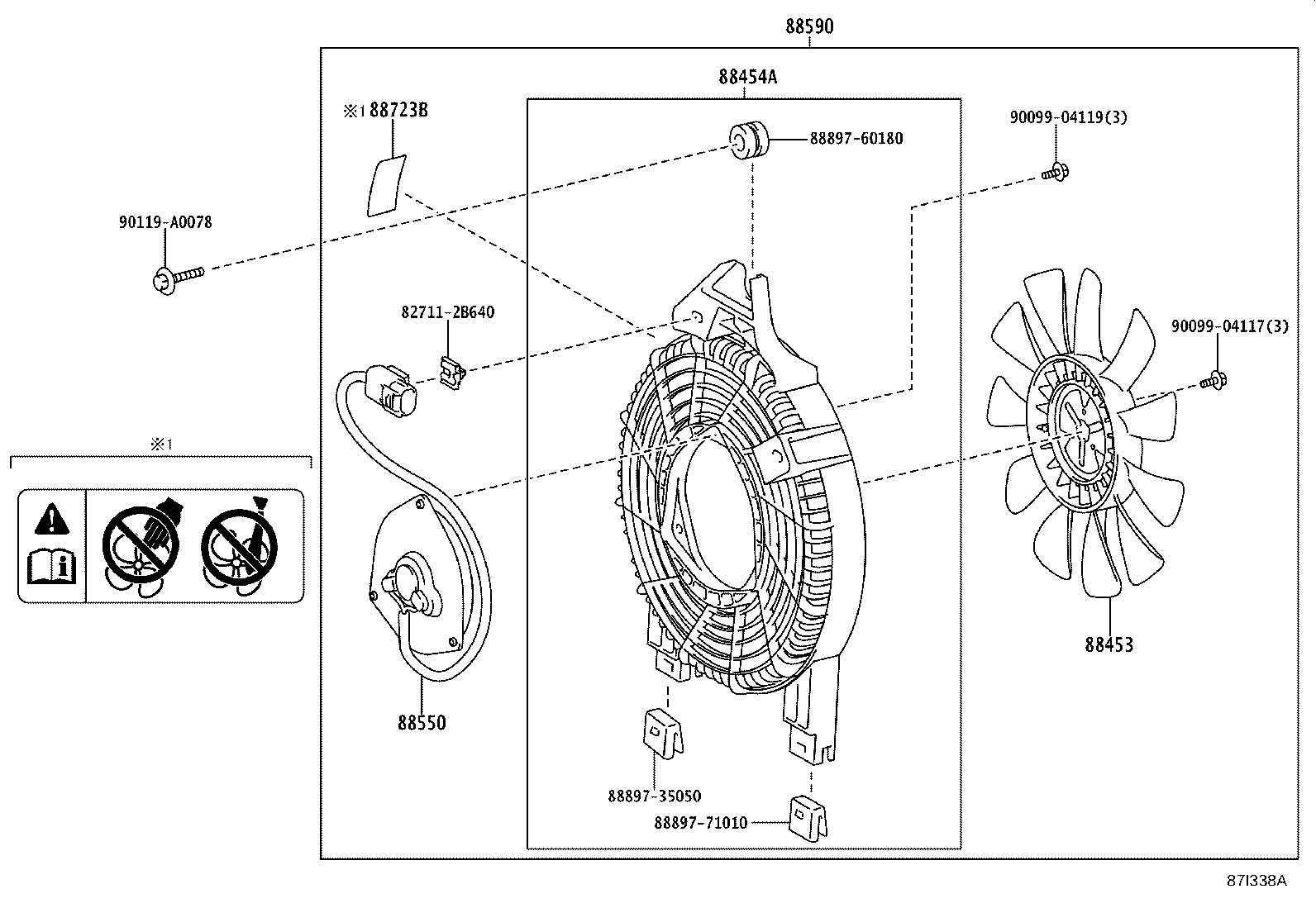

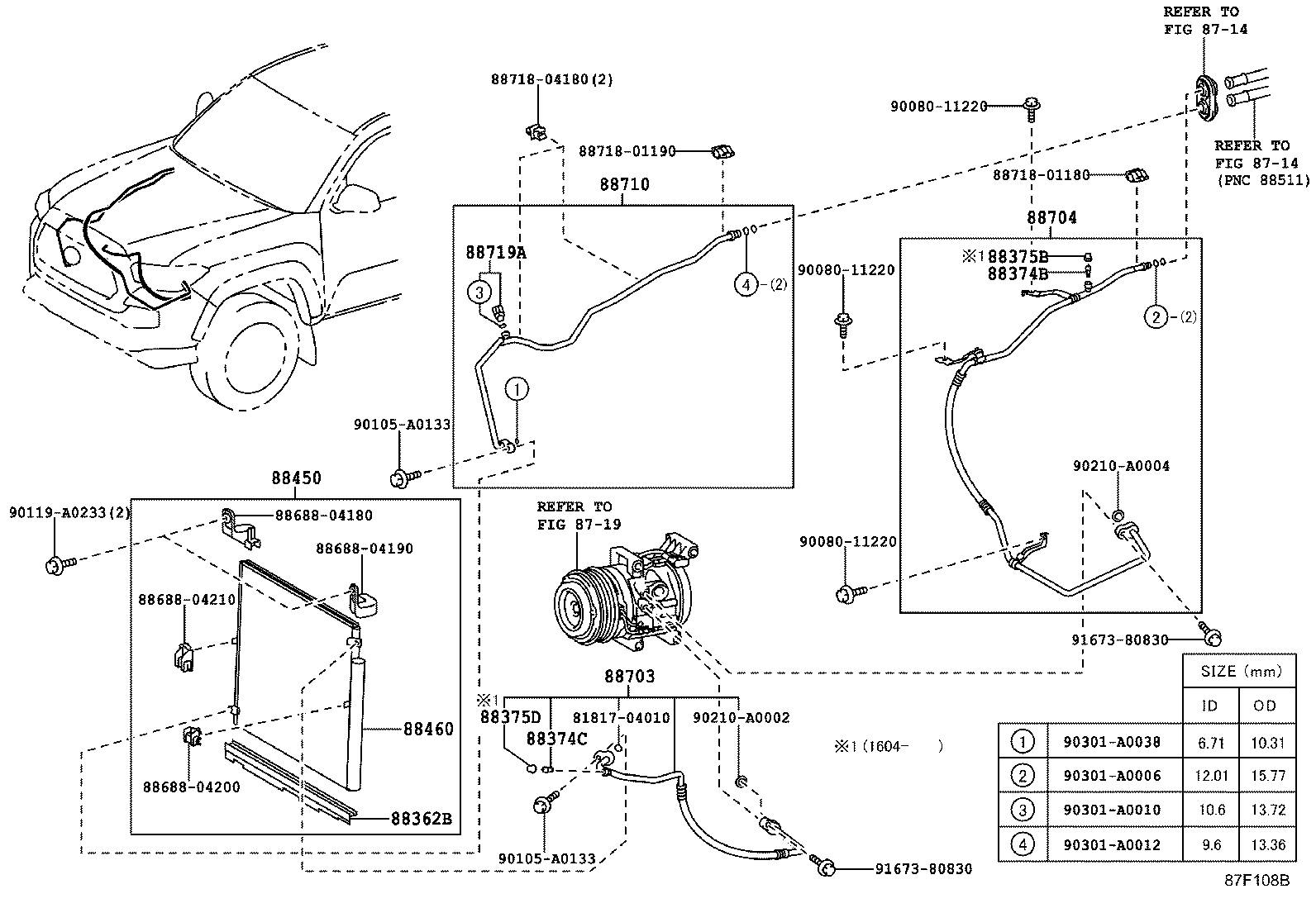

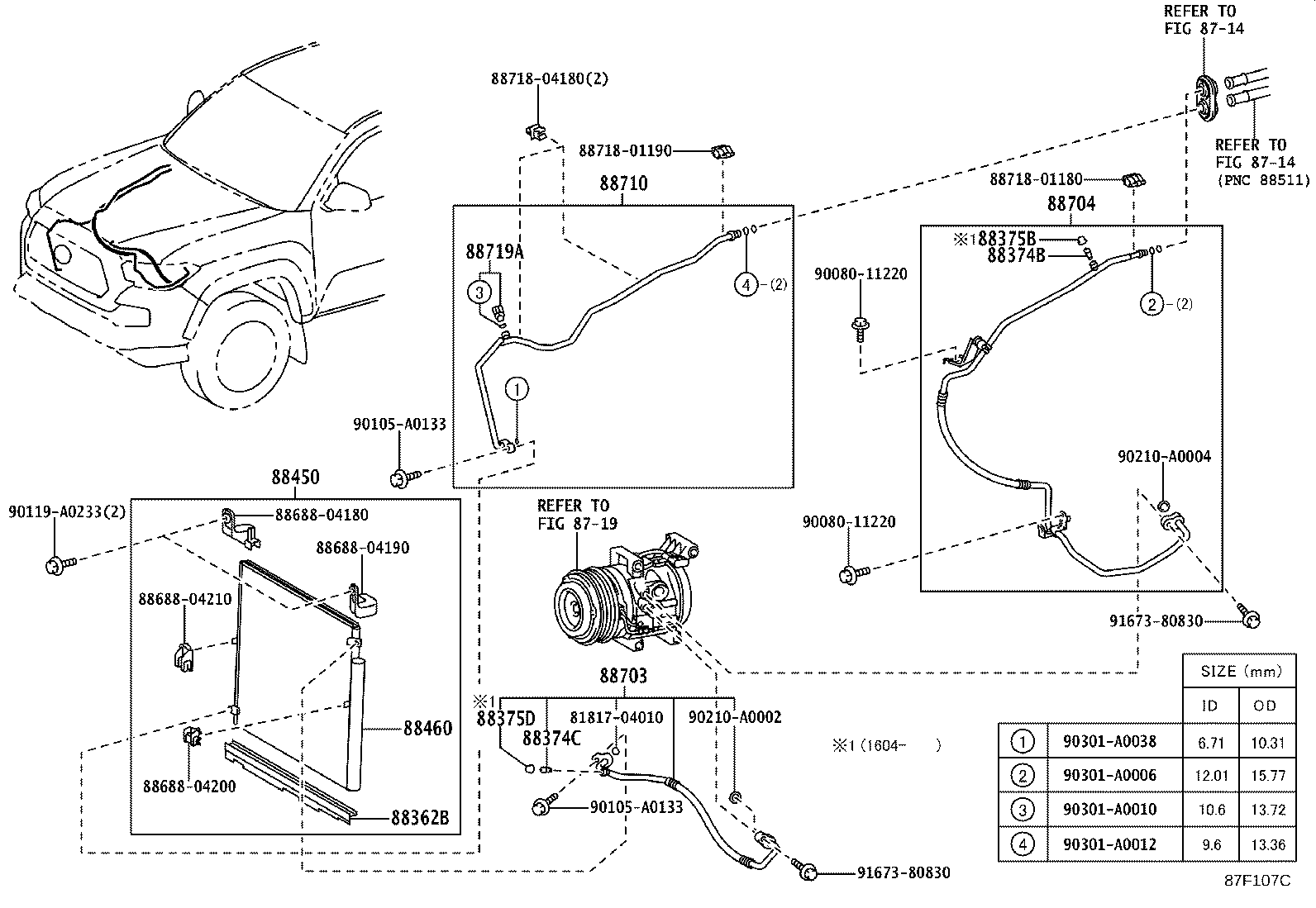

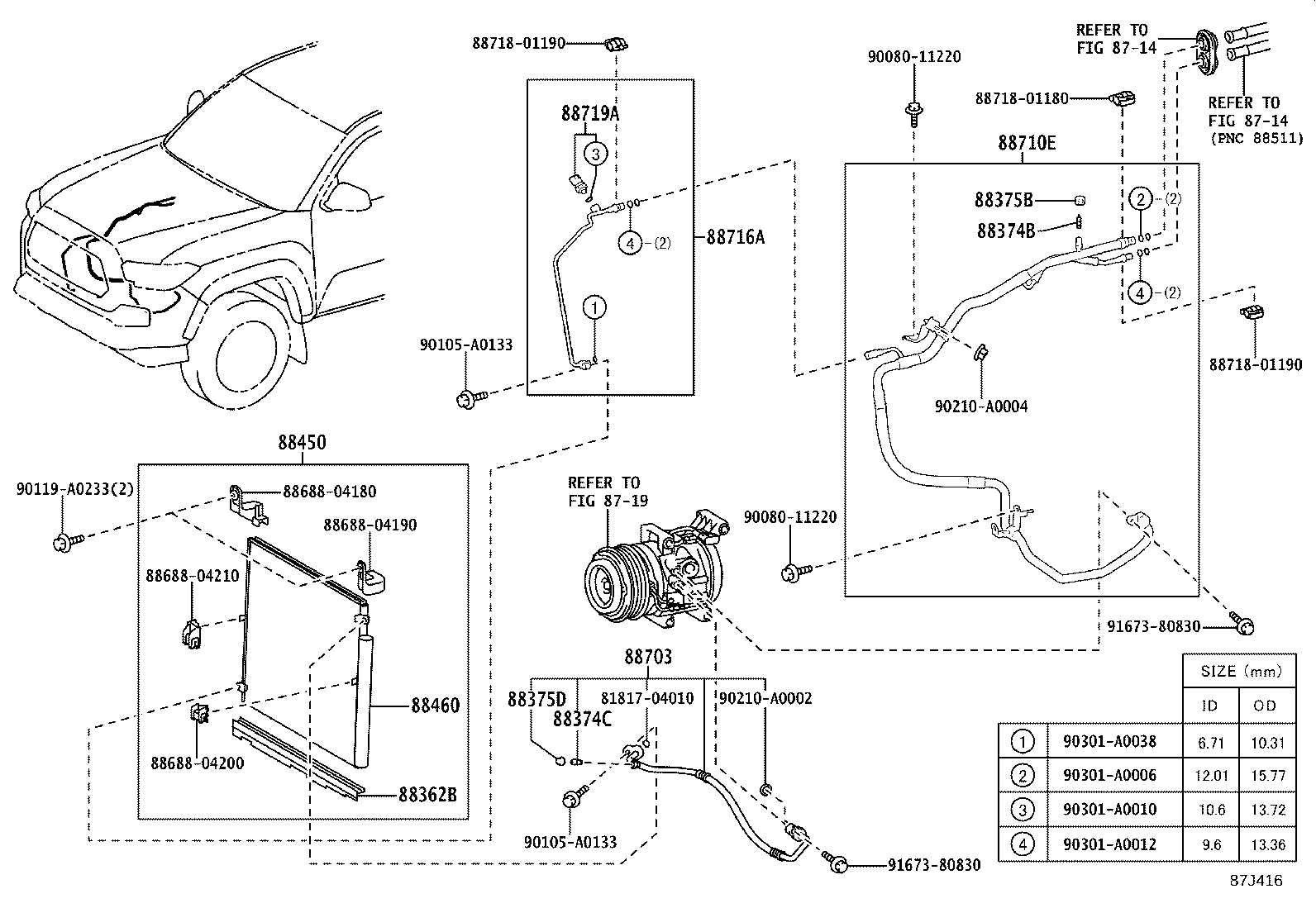

Figure 87F006C 87F006C 2010-06 → 2019-09 Figure 87I338A 87I338A 2019-09 → — Figure 876958N 876958N 2004-09 → 2015-08 Figure 876959L 876959L 2004-09 → 2015-08 Figure 87C380F 87C380F 2010-06 → 2015-08 Figure 87F107C 87F107C 2015-08 → 2020-09 Figure 87F108B 87F108B 2015-08 → — Figure 87J416 87J416 2020-09 → — Figure 87J417 87J417 2020-09 → —

Part groups

PNCDescription
88362B Plate, Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88710E Tube & Accessory Assy, Air Conditioner
88716A Pipe, Cooler Refrigerant Liquid, A
88719A Sensor, Air Conditioner Pressure
88723B Label, Cooler Service Caution
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
