Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

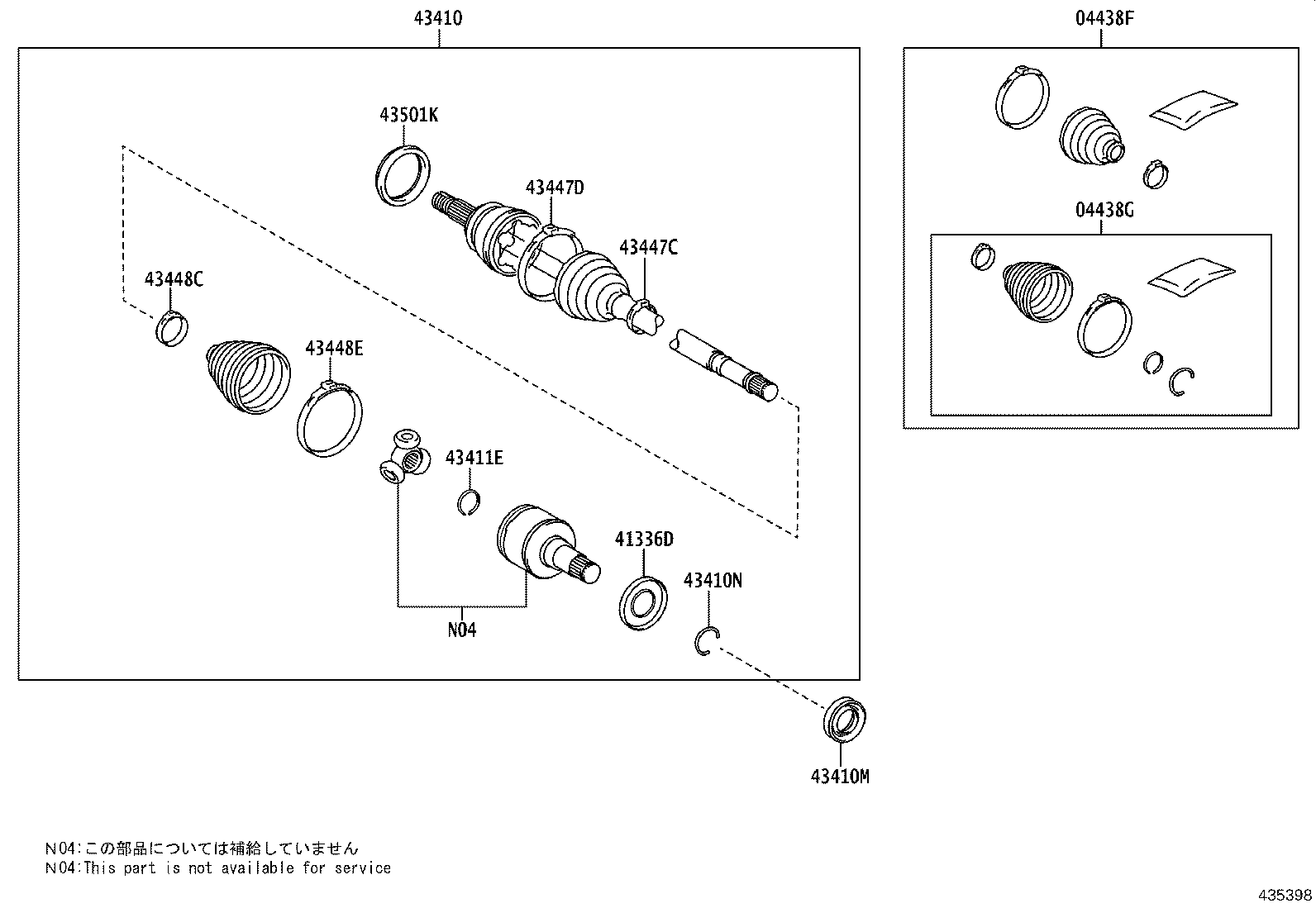

Exploded illustration 435398 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (1 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (7 parts) 43410N — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) (2 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (1 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (7 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (7 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (7 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (7 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (1 parts) 43501K — SEAL, DUST (FOR FRONT AXLE HUB RH) (1 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (12 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (12 parts)
435398 · 12 callouts Full size ↗
65 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-0C050 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2023-12 → 2024-10 ended
TZNA45 6F —
04427-0C050 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2023-12 → 2024-10 ended
TZNA45 6F —
04427-0C050 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-04 → 2024-10 ended
TZNH47 —
04427-0C050 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2023-12 → 2024-10 ended
TZNA45 DCB 8FC —
04427-0C051 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-12 → —
TZNA45 DCB 8FC —
04427-0C051 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-12 → —
TZNA45 DCB 8FC —
04427-0C051 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-10 → —
TZNA45 DCB 8FC —
04427-0C051 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-10 → —
TZNA45 6F —
04427-0C051 note Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-10 → —
TZNA45 6F —
04427-0C051 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-10 → —
TZNH47 —
04427-0K080 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2023-12 → 2024-10 ended
TZNA45,46 —
04427-0K081 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2024-10 → —
TZNA45,46 —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-0C050 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2023-12 → 2024-10 ended
TZNA45 6F —
04437-0C050 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2023-12 → 2024-10 ended
TZNA45 6F —
04437-0C050 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2023-12 → 2024-10 ended
TZNA45 DCB 8FC —
04437-0C050 Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-04 → 2024-10 ended
TZNH47 —
04437-0C051 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-10 → —
TZNA45 6F —
04437-0C051 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-12 → —
TZNA45 DCB 8FC —
04437-0C051 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-12 → —
TZNA45 DCB 8FC —
04437-0C051 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-10 → —
TZNA45 DCB 8FC —
04437-0C051 note Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-10 → —
TZNA45 6F —
04437-0C051 Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-10 → —
TZNH47 —
04437-0K080 Boot Kit, Front Drive Shaft Inboard Joint, RH
2023-12 → 2024-10 ended
TZNA45,46 —
04437-0K081 Boot Kit, Front Drive Shaft Inboard Joint, RH
2024-10 → —
TZNA45,46 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-0K080 Cover, Front Drive Shaft Dust, RH
2023-12 → —
TZNA45,46,TZNH47 —
43410 — Shaft Assy, Front Drive, RH
43410-AK010 Shaft Assy, Front Drive, RH
2023-12 → —
TZNA45,46 —
43410-AK020 note Shaft Assy, Front Drive, RH
2023-12 → —
TZNA45 6F —
43410-AK020 note Shaft Assy, Front Drive, RH
2023-12 → —
TZNA45 6F —
43410-AK020 note Shaft Assy, Front Drive, RH
2023-12 → —
TZNA45 DCB 8FC —
43410-AK020 Shaft Assy, Front Drive, RH
2024-04 → —
TZNH47 —
43410-AK020 note Shaft Assy, Front Drive, RH
2024-12 → —
TZNA45 DCB 8FC —
43410-AK020 note Shaft Assy, Front Drive, RH
2024-12 → —
TZNA45 DCB 8FC —
43410M — Oil Seal, Front Drive Shaft, RH
90311-47039 Oil Seal, Front Drive Shaft, RH
2023-12 → —
TZNA45,46,TZNH47 —
43410N — Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43425-0K080 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2023-12 → 2024-10 ended
TZNA45,46,TZNH47 —
43425-AK040 Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
2024-10 → —
TZNA45,46,TZNH47 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-0C020 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2023-12 → —
TZNA45 6F —
43425-0C020 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2023-12 → —
TZNA45 6F —
43425-0C020 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2023-12 → —
TZNA45 DCB 8FC —
43425-0C020 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-04 → —
TZNH47 —
43425-0C020 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-12 → —
TZNA45 DCB 8FC —
43425-0C020 note Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2024-12 → —
TZNA45 DCB 8FC —
43425-0C080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2023-12 → —
TZNA45,46 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0C130 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-12 → —
TZNA45,46,TZNH47 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-0K120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-12 → —
TZNA45 DCB 8FC —
42345-0K120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-12 → —
TZNA45 DCB 8FC —
42345-0K120 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2024-04 → —
TZNH47 —
42345-0K120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 DCB 8FC —
42345-0K120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 6F —
42345-0K120 note Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 6F —
42345-AK030 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2023-12 → —
TZNA45,46 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-04060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45,46 —
42345-0C170 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-12 → —
TZNA45 DCB 8FC —
42345-0C170 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-12 → —
TZNA45 DCB 8FC —
42345-0C170 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-04 → —
TZNH47 —
42345-0C170 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 DCB 8FC —
42345-0C170 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 6F —
42345-0C170 note Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 6F —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-0C160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 6F —
42345-0C160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 6F —
42345-0C160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45 DCB 8FC —
42345-0C160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-04 → —
TZNH47 —
42345-0C160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-12 → —
TZNA45 DCB 8FC —
42345-0C160 note Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2024-12 → —
TZNA45 DCB 8FC —
42345-0K030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2023-12 → —
TZNA45,46 —
43501K — Seal, Dust (FOR FRONT AXLE HUB RH)
90304-83003 Seal, Dust (FOR FRONT AXLE HUB RH)
2023-12 → —
TZNA45,46,TZNH47 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
