Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

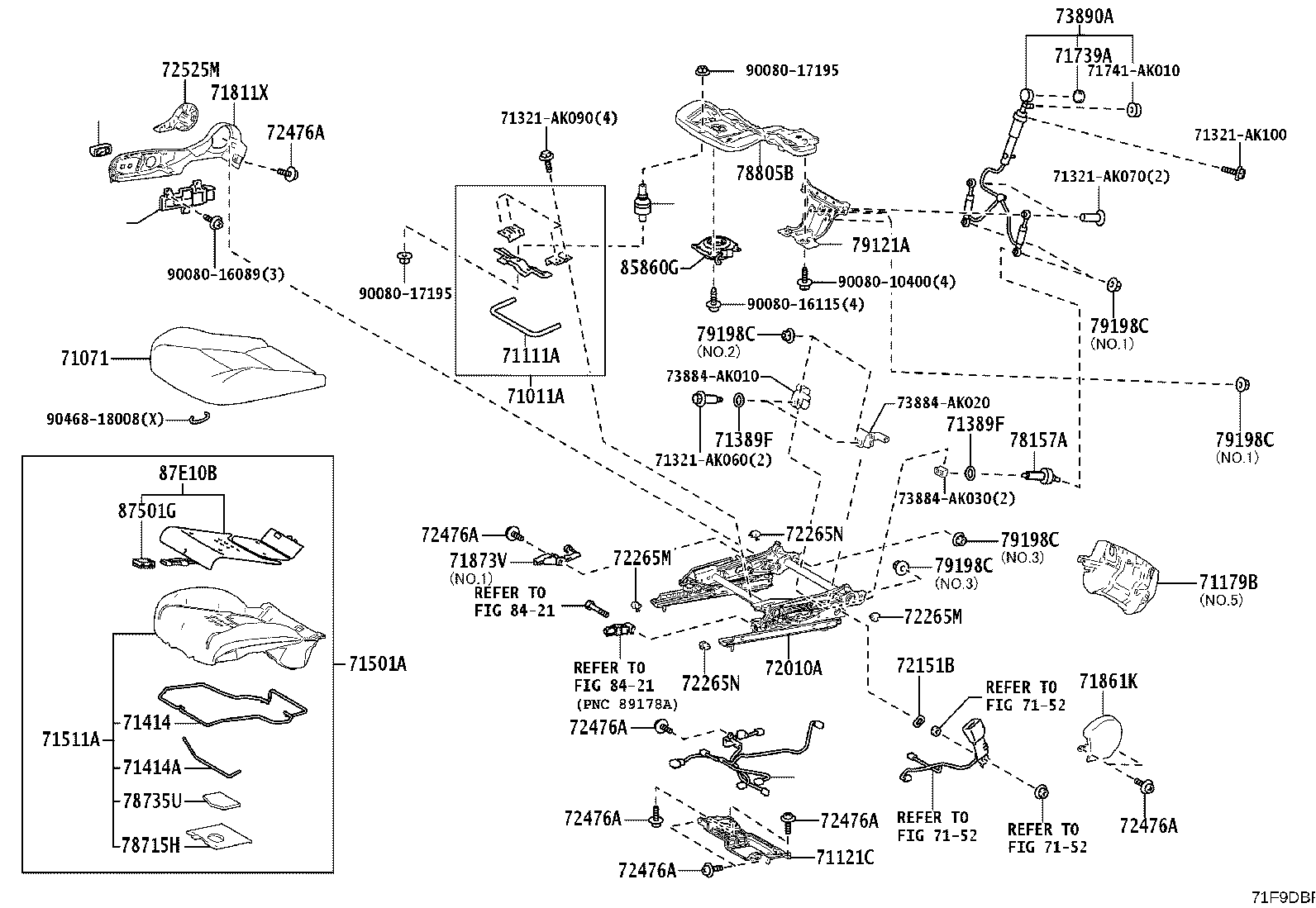

Exploded illustration 71F9DBF 73884AK010 — not listed in this catalogue 73884AK020 — not listed in this catalogue 73884AK030 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 71111A — FRAME, FRONT SEAT CUSHION, FRONT (1 parts) 71011A — FRAME SUB-ASSY, FRONT SEAT CUSHION, RH (1 parts) 71121C — BRACKET, FRONT SEAT CUSHION, RH (10 parts) 71389F — SPACER, CENTER SEAT HINGE (1 parts) 71389F — SPACER, CENTER SEAT HINGE (1 parts) 78157A — BALL, ACCELERATOR JOINT (2 parts) 71811X — SHIELD, FRONT SEAT CUSHION, RH (23 parts) 71861K — SHIELD, FRONT SEAT CUSHION, INNER RH (6 parts) 72010A — ADJUSTER ASSY, FRONT SEAT, RH (1 parts) 72151B — RAIL, SEAT TRACK, LOWER RH (1 parts) 72265M — COVER, SEAT TRACK UPPER RAIL, RH (1 parts) 72265M — COVER, SEAT TRACK UPPER RAIL, RH (1 parts) 72265N — COVER, SEAT TRACK UPPER RAIL, LH (3 parts) 72265N — COVER, SEAT TRACK UPPER RAIL, LH (3 parts) 72476A — SCREW, HORIZONTAL JACK, INNER (21 parts) 72476A — SCREW, HORIZONTAL JACK, INNER (21 parts) 72476A — SCREW, HORIZONTAL JACK, INNER (21 parts) 72476A — SCREW, HORIZONTAL JACK, INNER (21 parts) 72476A — SCREW, HORIZONTAL JACK, INNER (21 parts) 72476A — SCREW, HORIZONTAL JACK, INNER (21 parts) 78805B — FRAME SUB-ASSY, ASSISTANT SEAT CUSHION (1 parts) 79121A — BRACKET, FRONT SEAT CUSHION, RH (1 parts) 85860G — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH (6 parts) 72476A — SCREW, HORIZONTAL JACK, INNER (21 parts) 72525M — HANDLE, RECLINING ADJUSTER RELEASE, RH (11 parts) 71321AK060 — not listed in this catalogue 71321AK070 — not listed in this catalogue 71321AK090 — not listed in this catalogue 73890A — ABSORBER ASSY, SEAT SUSPENSION (2 parts) 71739A — BEZEL, FRONT SEATBACK (1 parts) 71741AK010 — not listed in this catalogue 9008017195 — not listed in this catalogue 9008017195 — not listed in this catalogue 9008010400 — not listed in this catalogue 9008016089 — not listed in this catalogue 9008016115 — not listed in this catalogue 9046818008 — not listed in this catalogue 71071 — COVER SUB-ASSY, FRONT SEAT CUSHION, RH (61 parts) 79198C — RETAINER, SEATBACK COVER HOOK, RH (3 parts) 79198C — RETAINER, SEATBACK COVER HOOK, RH (3 parts) 79198C — RETAINER, SEATBACK COVER HOOK, RH (3 parts) 79198C — RETAINER, SEATBACK COVER HOOK, RH (3 parts) 79198C — RETAINER, SEATBACK COVER HOOK, RH (3 parts) 71179B — COVER, FRONT SEATBACK SUPPORT, RH (4 parts) 71321AK100 — not listed in this catalogue 71501A — PAD SUB-ASSY, FRONT SEAT CUSHION, RH (23 parts) 71511A — PAD, FRONT SEAT CUSHION, RH (23 parts) 87501G — CONTROL SUB-ASSY, SEAT HEATER, RH (16 parts) 78715H — PANEL, SUB SEAT CUSHION (7 parts) 78735U — PAD, SUB SEAT CUSHION (7 parts) 71414 — WIRE, FRONT SEAT CUSHION PAD INSERT (1 parts) 87E10B — HEATER ASSY, FRONT SEAT CUSHION, RH (21 parts) 71873V — SHIELD, FRONT SEAT CUSHION, LOWER RH (30 parts) 8421 — not listed in this catalogue 8421 — not listed in this catalogue 71414A — WIRE, FRONT SEAT CUSHION PAD INSERT NO.2 (1 parts)
71F9DBF · 43 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
290 parts on this figure
Part number Description Fitment Price
71011A — Frame Sub-assy, Front Seat Cushion, RH
71011-AK030 note Frame Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71071 — Cover Sub-assy, Front Seat Cushion, RH
71071-AK010-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA40,45 DCB 8FC —
71071-AK010-C6 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA4# DCB —
71071-AK020-C4 note Cover Sub-assy, Front Seat Cushion, RH
2024-03 → 2025-06 ended
TZNA4# LCB —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 DCB 8FC —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 DCB 8FC —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA40,45 DCB 8FC —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA40,45 DCB 8FC —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 6F —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 6F —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 6F —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 6F —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 DCB 8FC —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 DCB 8FC —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA40,45 DCB 8FC —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA40,45 DCB 8FC —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK030-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK040-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-03 → 2025-06 ended
TZNA40 LCB —
71071-AK050-B0 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK050-B0 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK050-B0 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK050-B0 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA40,45 DCB 8FC —
71071-AK050-B0 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 DCB 8FC —
71071-AK050-B0 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK050-C4 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 6F —
71071-AK050-C4 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 6F —
71071-AK050-C4 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA45 DCB 8FC —
71071-AK050-C4 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12 ended
TZNA40,45 DCB 8FC —
71071-AK050-C4 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK050-C4 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12 ended
TZNH47 —
71071-AK060-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA40,45 DCB 8FC —
71071-AK060-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK060-C5 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK060-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK060-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 6F —
71071-AK060-C5 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 DCB 8FC —
71071-AK070-B1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK070-B1 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 DCB 8FC —
71071-AK070-C9 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK070-C9 note Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06 ended
TZNA45 DCB 8FC —
71071-AK080-G1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06 ended
TZNH47 —
71071-AK090-C1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71071-AK090-D1 note Cover Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71111A — Frame, Front Seat Cushion, Front
71111-AK010 note Frame, Front Seat Cushion, Front
2024-04 → —
TZNH47 —
71121C — Bracket, Front Seat Cushion, RH
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71121-AK010 Bracket, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71121-AK010 note Bracket, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71179B — Cover, Front Seatback Support, RH
71179-AK020-C0 note Cover, Front Seatback Support, RH
2024-04 → —
TZNH47 —
71179-AK030-C0 note Cover, Front Seatback Support, RH
2024-04 → —
TZNH47 —
71179-AK040-C0 note Cover, Front Seatback Support, RH
2024-04 → —
TZNH47 —
71179-AK080 note Cover, Front Seatback Support, RH
2024-04 → —
TZNH47 —
71389F — Spacer, Center Seat Hinge
71389-AK040 note Spacer, Center Seat Hinge
2024-04 → —
TZNH47 —
71414 — Wire, Front Seat Cushion Pad Insert
71414-AK080 note Wire, Front Seat Cushion Pad Insert
2024-04 → —
TZNH47 —
71414A — Wire, Front Seat Cushion Pad Insert NO.2
71414-AK090 note Wire, Front Seat Cushion Pad Insert NO.2
2024-04 → —
TZNH47 —
71501A — Pad Sub-assy, Front Seat Cushion, RH
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK010 note Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK020 Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK020 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71501-AK020 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71501-AK020 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71501-AK020 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71501-AK020 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71501-AK030 note Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK040 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71501-AK040 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71501-AK040 note Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK040 note Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71501-AK040 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71501-AK040 note Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71501-AK050 note Pad Sub-assy, Front Seat Cushion, RH
2024-03 → —
TZNA40,45 LCB —
71511A — Pad, Front Seat Cushion, RH
71511-AK010 Pad, Front Seat Cushion, RH
2023-12 → —
TZNA4# DCB —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK010 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK020 Pad, Front Seat Cushion, RH
2024-03 → —
TZNA4# LCB —
71511-AK030 Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK030 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71511-AK030 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71511-AK030 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71511-AK030 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71511-AK030 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71511-AK040 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK050 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK050 note Pad, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71511-AK050 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71511-AK050 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71511-AK050 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71511-AK050 note Pad, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71739A — Bezel, Front Seatback
71739-AK010 note Bezel, Front Seatback
2024-04 → —
TZNH47 —
71811X — Shield, Front Seat Cushion, RH
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA41,46 DCB —
71811-AK010-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB —
71811-AK020-C0 note Shield, Front Seat Cushion, RH
2024-03 → —
TZNA40,45 LCB —
71811-AK020-C0 note Shield, Front Seat Cushion, RH
2024-03 → —
TZNA41,46 LCB —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
71811-AK030-C0 note Shield, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
71811-AK040-C0 note Shield, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
71861K — Shield, Front Seat Cushion, Inner RH
71861-AK010-C0 note Shield, Front Seat Cushion, Inner RH
2024-03 → —
TZNA40,45 LCB —
71861-AK010-C0 note Shield, Front Seat Cushion, Inner RH
2024-03 → —
TZNA41,46 LCB —
71861-AK020-C0 note Shield, Front Seat Cushion, Inner RH
2024-04 → —
TZNH47 —
71861-AK030-C0 note Shield, Front Seat Cushion, Inner RH
2024-04 → —
TZNH47 —
71861-AK030-C0 note Shield, Front Seat Cushion, Inner RH
2023-12 → —
TZNA41,46 DCB —
71861-AK030-C0 note Shield, Front Seat Cushion, Inner RH
2023-12 → —
TZNA40,45 DCB —
71873V — Shield, Front Seat Cushion, Lower RH
71873-AK010-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA40,45 —
71873-AK010-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA41,46 —
71873-AK010-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA40,45 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA41,46 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71873-AK030-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA45 DCB 8FC —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA40,45 DCB 8FC —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA40,45 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA45 DCB 8FC —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA45 DCB 8FC —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA45 6F —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA45 6F —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA45 6F —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA45 6F —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA41,46 —
71874-AK020-C0 note Shield, Front Seat Cushion, Lower RH
2023-12 → —
TZNA40,45 DCB 8FC —
71874-AK060-C0 note Shield, Front Seat Cushion, Lower RH
2024-04 → —
TZNH47 —
72010A — Adjuster Assy, Front Seat, RH
72010-AK042 note Adjuster Assy, Front Seat, RH
2024-04 → —
TZNH47 —
72151B — Rail, Seat Track, Lower RH
72151-06010 Rail, Seat Track, Lower RH
2023-12 → —
TZNA4#,TZNH47 —
72265M — Cover, Seat Track Upper Rail, RH
72265-06010 Cover, Seat Track Upper Rail, RH
2023-12 → —
TZNA4#,TZNH47 —
72265N — Cover, Seat Track Upper Rail, LH
72266-06010 Cover, Seat Track Upper Rail, LH
2023-12 → —
TZNA4#,TZNH47 DCB —
72266-06010 Cover, Seat Track Upper Rail, LH
2024-03 → —
TZNA4# LCB —
72266-06010 note Cover, Seat Track Upper Rail, LH
2024-04 → —
TZNH47 —
72476A — Screw, Horizontal Jack, Inner
72476-06020 Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2024-04 → —
TZNH47 —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA40,45 DCB 8FC —
72476-06020 Screw, Horizontal Jack, Inner
2024-03 → —
TZNA4# LCB —
72476-06020 Screw, Horizontal Jack, Inner
2023-12 → —
TZNA4# DCB —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA45 6F —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA45 6F —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA45 6F —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA45 DCB 8FC —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA45 6F —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA40,45 DCB 8FC —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA45 DCB 8FC —
72476-06020 note Screw, Horizontal Jack, Inner
2023-12 → —
TZNA45 DCB 8FC —
72525M — Handle, Reclining Adjuster Release, RH
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2024-04 → —
TZNH47 —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2023-12 → —
TZNA40,45 DCB —
72525-AK010-C0 note Handle, Reclining Adjuster Release, RH
2023-12 → —
TZNA41,46 DCB —
73890A — Absorber Assy, Seat Suspension
73890-AK010 note Absorber Assy, Seat Suspension
2024-04 → —
TZNH47 —
73890-AK020 note Absorber Assy, Seat Suspension
2024-04 → —
TZNH47 —
78157A — Ball, Accelerator Joint
78157-AK010 note Ball, Accelerator Joint
2024-04 → —
TZNH47 —
78157-AK020 note Ball, Accelerator Joint
2024-04 → —
TZNH47 —
78715H — Panel, Sub Seat Cushion
78715-AK020 note Panel, Sub Seat Cushion
2024-04 → —
TZNH47 —
78715-AK040 note Panel, Sub Seat Cushion
2023-12 → —
TZNA45 6F —
78715-AK040 note Panel, Sub Seat Cushion
2023-12 → —
TZNA45 DCB 8FC —
78715-AK040 note Panel, Sub Seat Cushion
2023-12 → —
TZNA45 DCB 8FC —
78715-AK040 note Panel, Sub Seat Cushion
2023-12 → —
TZNA40,45 DCB 8FC —
78715-AK040 Panel, Sub Seat Cushion
2024-04 → —
TZNH47 —
78715-AK040 note Panel, Sub Seat Cushion
2023-12 → —
TZNA45 6F —
78735U — Pad, Sub Seat Cushion
78735-AK020 note Pad, Sub Seat Cushion
2024-04 → —
TZNH47 —
78735-AK030 note Pad, Sub Seat Cushion
2023-12 → —
TZNA45 DCB 8FC —
78735-AK030 Pad, Sub Seat Cushion
2024-04 → —
TZNH47 —
78735-AK030 note Pad, Sub Seat Cushion
2023-12 → —
TZNA40,45 DCB 8FC —
78735-AK030 note Pad, Sub Seat Cushion
2023-12 → —
TZNA45 DCB 8FC —
78735-AK030 note Pad, Sub Seat Cushion
2023-12 → —
TZNA45 6F —
78735-AK030 note Pad, Sub Seat Cushion
2023-12 → —
TZNA45 6F —
78805B — Frame Sub-assy, Assistant Seat Cushion
78805-AK010 note Frame Sub-assy, Assistant Seat Cushion
2024-04 → —
TZNH47 —
79121A — Bracket, Front Seat Cushion, RH
71187-AK010 note Bracket, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
79198C — Retainer, Seatback Cover Hook, RH
79198-AK010 Retainer, Seatback Cover Hook, RH
2024-03 → —
TZNA4# LCB —
79198-AK020 note Retainer, Seatback Cover Hook, RH
2024-04 → —
TZNH47 —
79198-AK030 note Retainer, Seatback Cover Hook, RH
2024-04 → —
TZNH47 —
85860G — Blower Assy, Seat Cushion Climate Control, RH
85862-AK010 note Blower Assy, Seat Cushion Climate Control, RH
2023-12 → —
TZNA45 6F —
85862-AK010 note Blower Assy, Seat Cushion Climate Control, RH
2023-12 → —
TZNA45 DCB 8FC —
85862-AK010 note Blower Assy, Seat Cushion Climate Control, RH
2023-12 → —
TZNA45 DCB 8FC —
85862-AK010 note Blower Assy, Seat Cushion Climate Control, RH
2023-12 → —
TZNA40,45 DCB 8FC —
85862-AK010 Blower Assy, Seat Cushion Climate Control, RH
2024-04 → —
TZNH47 —
85862-AK010 note Blower Assy, Seat Cushion Climate Control, RH
2023-12 → —
TZNA45 6F —
87501G — Control Sub-assy, Seat Heater, RH
87501-07010 note Control Sub-assy, Seat Heater, RH
2024-04 → —
TZNH47 —
87501-07010 Control Sub-assy, Seat Heater, RH
2024-04 → —
TZNH47 —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA40,45 8FC —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA40,45 DCB 8FC —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA40,45 DCB 8FC —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA40,45 DCB 8FC —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 DCB 8FC —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 DCB 8FC —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 DCB 8FC —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 6F —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 6F —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 6F —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 6F —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 6F —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 6F —
87501-07010 note Control Sub-assy, Seat Heater, RH
2023-12 → —
TZNA45 DCB 8FC —
87E10B — Heater Assy, Front Seat Cushion, RH
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
87510-AK010 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
87510-AK020 Heater Assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA40,45 DCB 8FC —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 DCB 8FC —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
87510-AK020 note Heater Assy, Front Seat Cushion, RH
2023-12 → —
TZNA45 6F —
87510-AK030 note Heater Assy, Front Seat Cushion, RH
2024-04 → —
TZNH47 —
87510-AK050 note Heater Assy, Front Seat Cushion, RH
2024-03 → —
TZNA40,45 LCB —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
