Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

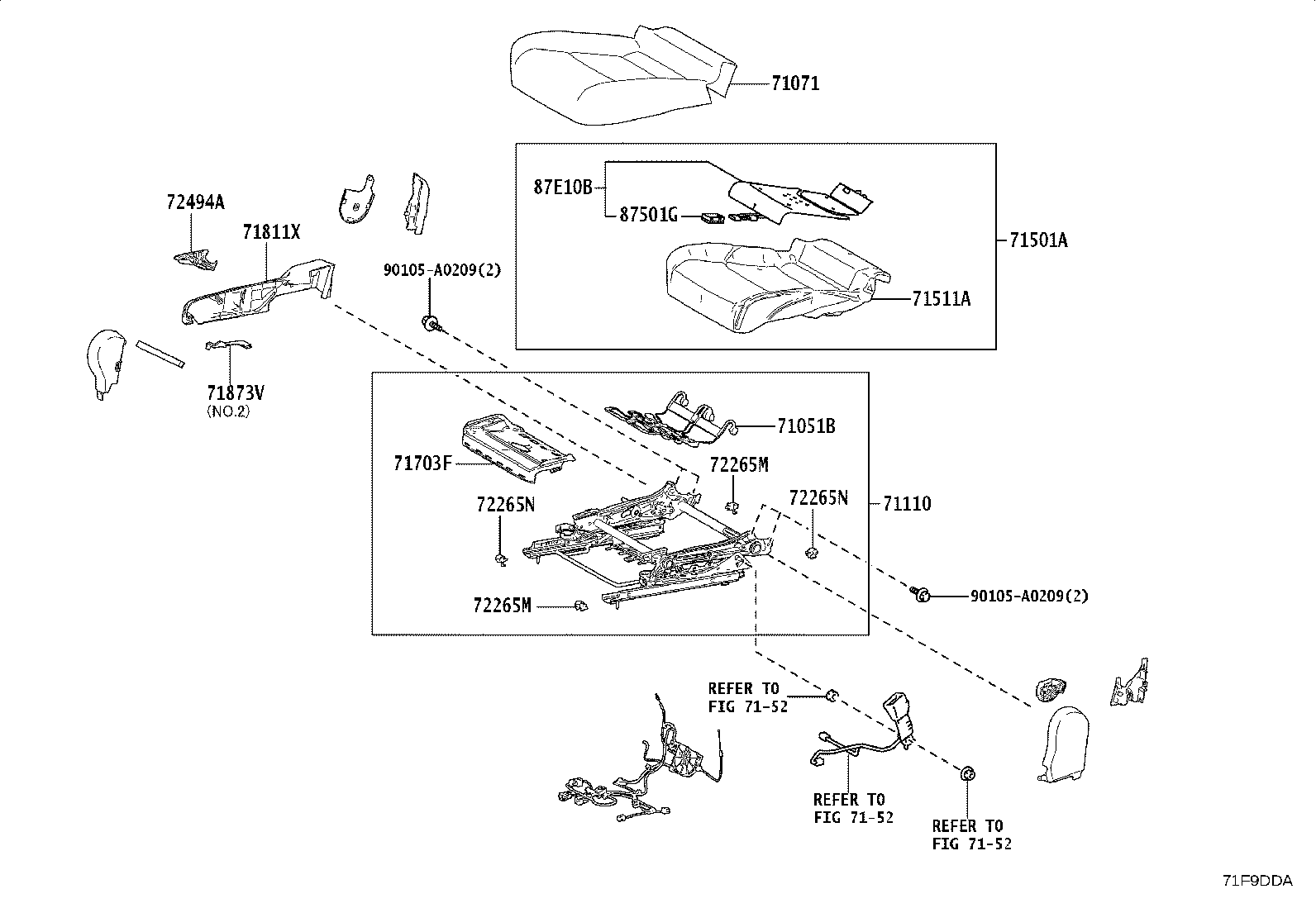

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71051B — Spring Sub-assy, Front Seat Cushion, RH | ||||
| 71051-AK010 note |
Spring Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71051-AK010 |
Spring Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 71071 — Cover Sub-assy, Front Seat Cushion, RH | ||||
| 71071-AK010-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK010-C6 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA4# DCB | — | |
| 71071-AK020-C4 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-03 → 2025-06
ended
|
TZNA4# LCB | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 6F | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 6F | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 6F | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 6F | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK030-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK040-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-03 → 2025-06
ended
|
TZNA40 LCB | — | |
| 71071-AK050-B0 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK050-B0 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK050-B0 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK050-B0 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK050-B0 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK050-B0 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK050-C4 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 6F | — | |
| 71071-AK050-C4 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK050-C4 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 6F | — | |
| 71071-AK050-C4 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK050-C4 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 71071-AK050-C4 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2024-12
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK060-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK060-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK060-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA40,45 DCB 8FC | — | |
| 71071-AK060-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK060-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK060-C5 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 6F | — | |
| 71071-AK070-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK070-B1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK070-C9 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK070-C9 note |
Cover Sub-assy, Front Seat Cushion, RH
2023-12 → 2025-06
ended
|
TZNA45 DCB 8FC | — | |
| 71071-AK080-G1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → 2025-06
ended
|
TZNH47 | — | |
| 71071-AK090-C1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71071-AK090-D1 note |
Cover Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71110 — Frame Assy, Front Seat W/Adjuster, RH | ||||
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK020 |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA4# | — | |
| 71110-AK030 |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK030 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71110-AK030 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71110-AK030 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71110-AK030 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71110-AK030 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71110-AK040 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71110-AK040 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK040 note |
Frame Assy, Front Seat W/Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 71110-AK040 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71110-AK040 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71110-AK040 note |
Frame Assy, Front Seat W/Adjuster, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71501A — Pad Sub-assy, Front Seat Cushion, RH | ||||
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71501-AK010 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71501-AK020 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71501-AK020 |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK020 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71501-AK020 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71501-AK020 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71501-AK020 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71501-AK030 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK040 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71501-AK040 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK040 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71501-AK040 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71501-AK040 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71501-AK040 note |
Pad Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71501-AK050 note |
Pad Sub-assy, Front Seat Cushion, RH
2024-03 → —
|
TZNA40,45 LCB | — | |
| 71511A — Pad, Front Seat Cushion, RH | ||||
| 71511-AK010 |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA4# DCB | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK010 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK020 |
Pad, Front Seat Cushion, RH
2024-03 → —
|
TZNA4# LCB | — | |
| 71511-AK030 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71511-AK030 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71511-AK030 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71511-AK030 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71511-AK030 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71511-AK030 |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK040 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK050 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71511-AK050 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71511-AK050 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK050 note |
Pad, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71511-AK050 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71511-AK050 note |
Pad, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71703F — Panel Sub-assy, Front Seat Cushion, RH | ||||
| 71703-AK010 |
Panel Sub-assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 71811X — Shield, Front Seat Cushion, RH | ||||
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB | — | |
| 71811-AK010-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA41,46 DCB | — | |
| 71811-AK020-C0 note |
Shield, Front Seat Cushion, RH
2024-03 → —
|
TZNA40,45 LCB | — | |
| 71811-AK020-C0 note |
Shield, Front Seat Cushion, RH
2024-03 → —
|
TZNA41,46 LCB | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71811-AK030-C0 note |
Shield, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 71811-AK040-C0 note |
Shield, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 71873V — Shield, Front Seat Cushion, Lower RH | ||||
| 71873-AK010-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK010-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA41,46 | — | |
| 71873-AK010-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA40,45 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA40,45 | — | |
| 71873-AK030-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA41,46 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA40,45 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA41,46 | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA45 6F | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA45 6F | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA45 6F | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA45 6F | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71874-AK020-C0 note |
Shield, Front Seat Cushion, Lower RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 71874-AK060-C0 note |
Shield, Front Seat Cushion, Lower RH
2024-04 → —
|
TZNH47 | — | |
| 72265M — Cover, Seat Track Upper Rail, RH | ||||
| 72265-06010 |
Cover, Seat Track Upper Rail, RH
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 72265N — Cover, Seat Track Upper Rail, LH | ||||
| 72266-06010 |
Cover, Seat Track Upper Rail, LH
2023-12 → —
|
TZNA4#,TZNH47 DCB | — | |
| 72266-06010 note |
Cover, Seat Track Upper Rail, LH
2024-04 → —
|
TZNH47 | — | |
| 72266-06010 |
Cover, Seat Track Upper Rail, LH
2024-03 → —
|
TZNA4# LCB | — | |
| 72494A — Handle, Front Seat Vertical Adjuster, RH | ||||
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2023-12 → —
|
TZNA40;TZNA45 DCB | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2024-04 → —
|
TZNH47 | — | |
| 72494-AK010-C0 note |
Handle, Front Seat Vertical Adjuster, RH
2023-12 → —
|
TZNA41,46;TZNA45 LCB | — | |
| 87501G — Control Sub-assy, Seat Heater, RH | ||||
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2024-04 → —
|
TZNH47 | — | |
| 87501-07010 |
Control Sub-assy, Seat Heater, RH
2024-04 → —
|
TZNH47 | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA40,45 8FC | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87501-07010 note |
Control Sub-assy, Seat Heater, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87E10B — Heater Assy, Front Seat Cushion, RH | ||||
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87510-AK010 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87510-AK020 |
Heater Assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87510-AK020 note |
Heater Assy, Front Seat Cushion, RH
2023-12 → —
|
TZNA45 6F | — | |
| 87510-AK030 note |
Heater Assy, Front Seat Cushion, RH
2024-04 → —
|
TZNH47 | — | |
| 87510-AK050 note |
Heater Assy, Front Seat Cushion, RH
2024-03 → —
|
TZNA40,45 LCB | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
