Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

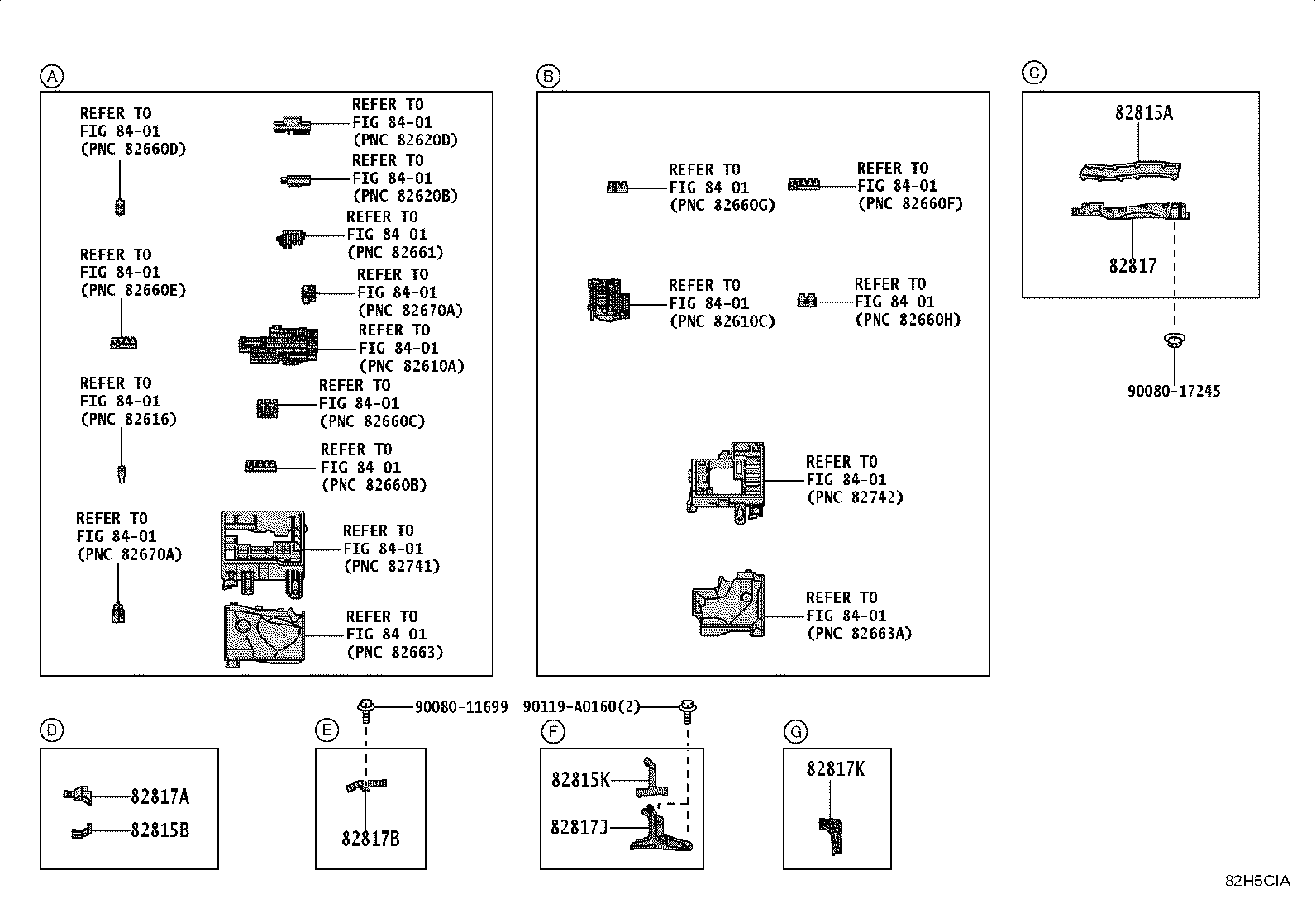

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-04270 |
Cover, Wiring Harness Protector
2024-04 → —
|
TZNH47 | — | |
| 82815-04280 |
Cover, Wiring Harness Protector
2023-12 → —
|
TZNA4# | — | |
| 82815B — Cover, Wiring Harness Protector | ||||
| 82815-04290 |
Cover, Wiring Harness Protector
2024-04 → —
|
TZNH47 | — | |
| 82815K — Cover, Wiring Harness Protector, NO.8 | ||||
| 82815-04260 |
Cover, Wiring Harness Protector, NO.8
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-04630 |
Protector, Wiring Harness, NO.1
2024-04 → —
|
TZNH47 | — | |
| 82817-04640 |
Protector, Wiring Harness, NO.1
2023-12 → —
|
TZNA4# | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-04650 |
Protector, Wiring Harness, NO.2
2024-04 → —
|
TZNH47 | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-0C330 |
Protector, Wiring Harness, NO.3
2024-04 → —
|
TZNH47 | — | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82817-04620 |
Protector, Wiring Harness, NO.9
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 82817K — Protector, Wiring Harness, NO.10 | ||||
| 82817-0C460 |
Protector, Wiring Harness, NO.10
2023-12 → —
|
TZNA4#,TZNH47 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
