Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03

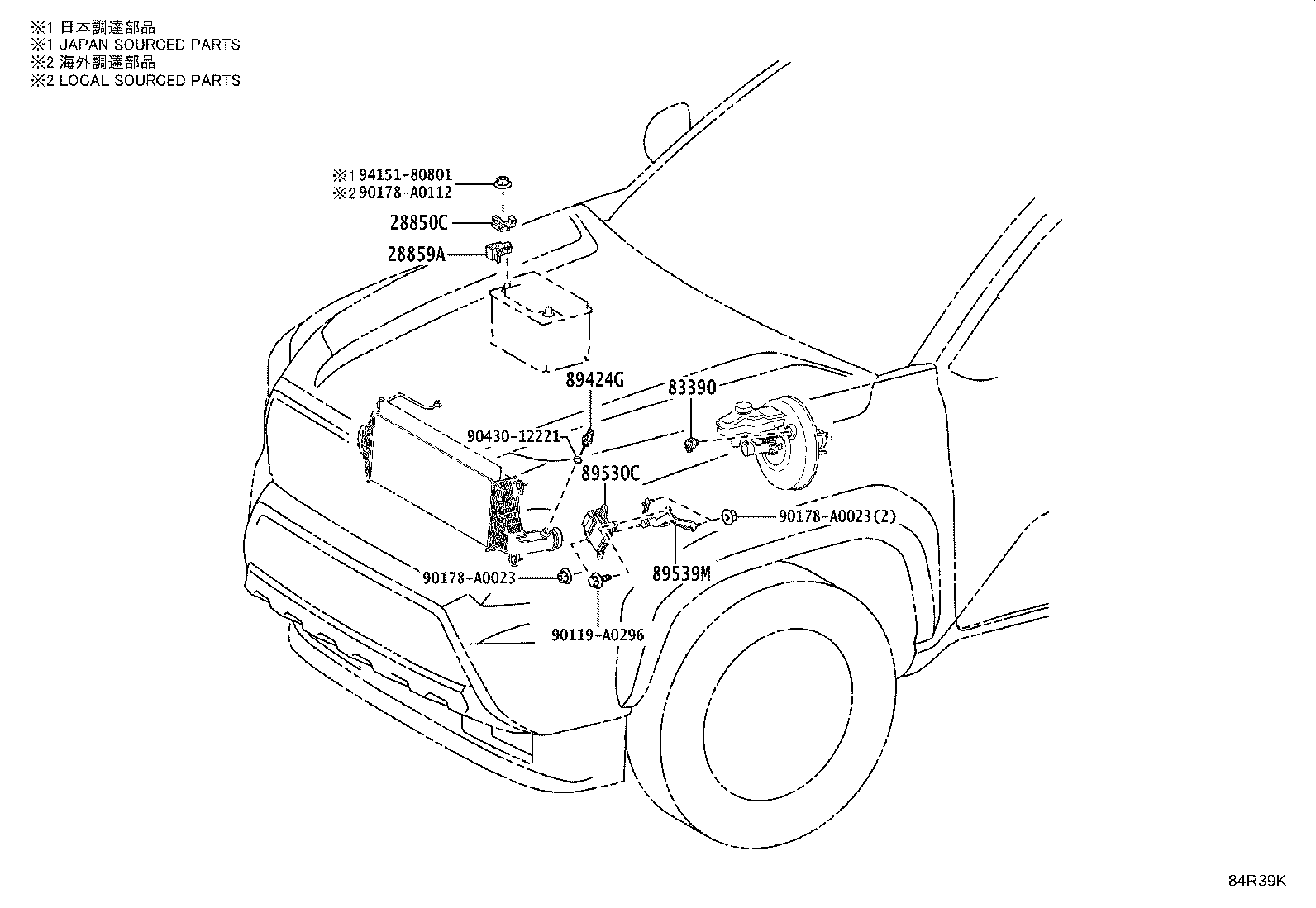

Exploded illustration 84R39K 28850C — SENSOR ASSY, BATTERY STATE (2 parts) 28859A — HOLDER, BATTERY CURRENT SENSOR (2 parts) 83390 — SWITCH ASSY, VACUUM WARNING (2 parts) 89424G — SENSOR, INLET AIR TEMPERATURE (1 parts) 9043012221 — not listed in this catalogue 90178A0112 — not listed in this catalogue 9415180801 — not listed in this catalogue 89530C — COMPUTER ASSY, TRANSMISSION CONTROL (2 parts) 89539M — BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 (1 parts) 90119A0296 — not listed in this catalogue 90178A0023 — not listed in this catalogue 90178A0023 — not listed in this catalogue
84R39K · 6 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
10 parts on this figure
Part number Description Fitment Price
28850C — Sensor Assy, Battery State
28850-F0090 Sensor Assy, Battery State
2023-12 → —
T24 TZNA40,TZNH47 —
28850-F0090 note Sensor Assy, Battery State
2023-12 → —
T24 TZNA45 DCB 8FC —
28859A — Holder, Battery Current Sensor
28859-F0290 Holder, Battery Current Sensor
2023-12 → —
T24 TZNA40,TZNH47 —
28859-F0290 note Holder, Battery Current Sensor
2023-12 → —
T24 TZNA45 DCB 8FC —
83390 — Switch Assy, Vacuum Warning
83390-28120 Switch Assy, Vacuum Warning
2023-12 → —
TZNA41,45,46 —
83390-28120 note Switch Assy, Vacuum Warning
2023-12 → —
TZNA45 DCB 8FC —
89424G — Sensor, Inlet Air Temperature
89424-60020 Sensor, Inlet Air Temperature
2023-12 → —
TZNA4#,TZNH47 —
89530C — Computer Assy, Transmission Control
89532-35010 Computer Assy, Transmission Control
2023-12 → —
TZNA4# 8FC —
89532-35020 Computer Assy, Transmission Control
2024-04 → —
TZNH47 —
89539M — Bracket, Transmission Control Computer, NO.1
89539-04010 Bracket, Transmission Control Computer, NO.1
2023-12 → —
TZNA4#,TZNH47 ATM,CVT —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
