Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

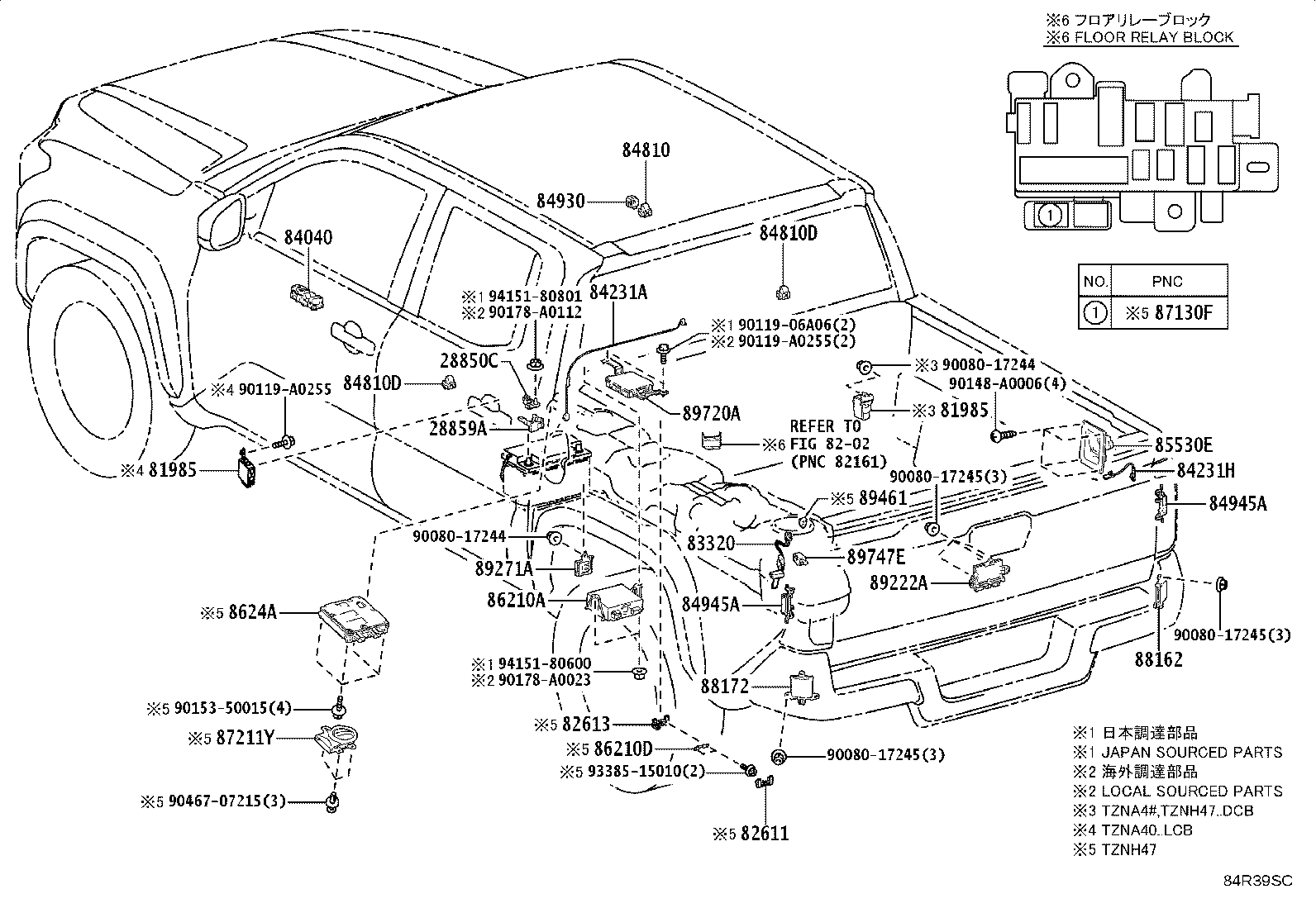

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-F0090 note |
Sensor Assy, Battery State
2023-12 → —
|
T24 TZNA45 DCB 8FC | — | |
| 28850-F0090 |
Sensor Assy, Battery State
2023-12 → —
|
T24 TZNA40,TZNH47 | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-F0290 |
Holder, Battery Current Sensor
2023-12 → —
|
T24 TZNA40,TZNH47 | — | |
| 28859-F0290 note |
Holder, Battery Current Sensor
2023-12 → —
|
T24 TZNA45 DCB 8FC | — | |
| 81985 — Relay, Towing Converter | ||||
| 81985-A1010 note |
Relay, Towing Converter
2023-12 → —
|
TZNA45 6F | — | |
| 81985-A1010 note |
Relay, Towing Converter
2023-12 → —
|
TZNA45 6F | — | |
| 81985-A1010 note |
Relay, Towing Converter
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 81985-A1010 note |
Relay, Towing Converter
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 81985-A1010 note |
Relay, Towing Converter
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 81985-A1010 |
Relay, Towing Converter
2024-04 → —
|
TZNH47 | — | |
| 81985-A1020 note |
Relay, Towing Converter
2024-03 → —
|
TZNA40 LCB | — | |
| 82611 — Cover, Fuse Block | ||||
| 82611-47060 |
Cover, Fuse Block
2024-04 → —
|
TZNH47 | — | |
| 82613 — Cover, Fuse Block | ||||
| 82613-47020 |
Cover, Fuse Block
2024-04 → —
|
TZNH47 | — | |
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-04060 |
Gage Assy, Fuel Sender
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 84040 — Master Switch Assy,Multiplex Network | ||||
| 84040-AK010 |
Master Switch Assy,Multiplex Network
2024-03 → —
|
TZNA4# LCB | — | |
| 84040-AK020 |
Master Switch Assy,Multiplex Network
2023-12 → —
|
TZNA4#,TZNH47 DCB | — | |
| 84231A — Switch, Courtesy Lamp | ||||
| 84237-A1010 note |
Switch, Courtesy Lamp
2023-12 → —
|
TZNA40,45 DCB | — | |
| 84237-A1010 |
Switch, Courtesy Lamp
2024-04 → —
|
TZNH47 | — | |
| 84237-A1010 note |
Switch, Courtesy Lamp
2024-04 → —
|
TZNH47 | — | |
| 84231H — Switch, Tail Gate Courtesy | ||||
| 84231-0C030 |
Switch, Tail Gate Courtesy
2024-11 → —
|
TZNA45 6F;TZNA41,46 DCB | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F;TZNA41,46 DCB | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F;TZNA41,46 DCB | — | |
| 84231-0C030 |
Switch, Tail Gate Courtesy
2023-12 → —
|
TZNA40,45 8FC;TZNA41,46 LCB | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2024-04 → —
|
TZNH47 | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2024-11 → —
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA40,45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-11
ended
|
TZNA45 6F | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA40,45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA40,45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA40,45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA40,45 8FC | — | |
| 84231-0C030 note |
Switch, Tail Gate Courtesy
2023-12 → 2024-01
ended
|
TZNA40,45 8FC | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-AK010 |
Switch Assy, Power Window Regulator
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-AK010 |
Switch Assy, Power Window Regulator, Rear
2023-12 → —
|
TZNA4#,TZNH47 DCB | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-AK010 |
Switch Assy, Door Control
2023-12 → —
|
TZNA4#,TZNH47 | — | |
| 84945A — Switch, Luggage Electrical Key | ||||
| 84945-0C010 |
Switch, Luggage Electrical Key
2024-11 → —
|
TZNH47 | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2024-11 → —
|
TZNH47 | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2024-11 → —
|
TZNH47 | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2023-12 → —
|
TZNA40,45 DCB 8FC | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2023-12 → —
|
TZNA45 6F | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2023-12 → —
|
TZNA45 6F | — | |
| 84945-0C010 note |
Switch, Luggage Electrical Key
2024-04 → 2024-11
ended
|
TZNH47 | — | |
| 85530E — Socket Assy, Power Outlet, NO.3 | ||||
| 85530-0C081 note |
Socket Assy, Power Outlet, NO.3
2023-12 → —
|
TZNA40,45 DCB | — | |
| 85530-AK010 |
Socket Assy, Power Outlet, NO.3
2024-04 → —
|
TZNH47 | — | |
| 86210A — Inverter Assy, Voltage | ||||
| 86210-04061 note |
Inverter Assy, Voltage
2023-12 → —
|
TZNA40,45 DCB | — | |
| 86210D — Fuse, High Voltage | ||||
| 90982-11060 |
Fuse, High Voltage
2024-04 → —
|
TZNH47 | — | |
| 8624A — Inverter, Voltage | ||||
| 8624A-60020 |
Inverter, Voltage
2024-04 → —
|
TZNH47 | — | |
| 87130F — Relay, Battery Blower, NO.1 | ||||
| 90080-87026 note |
Relay, Battery Blower, NO.1
2024-04 → —
|
TZNH47 | — | |
| 90987-02027 note |
Relay, Battery Blower, NO.1
2024-04 → —
|
TZNH47 | — | |
| 87211Y — Duct, Air | ||||
| 87211-04130 |
Duct, Air
2024-04 → —
|
TZNH47 | — | |
| 88162 — Sensor, Blind Spot Monitor, RH | ||||
| 88162-AK020 note |
Sensor, Blind Spot Monitor, RH
2023-12 → 2024-07
ended
|
TZNA45 6F | — | |
| 88162-AK020 note |
Sensor, Blind Spot Monitor, RH
2023-12 → 2024-07
ended
|
TZNA45 6F | — | |
| 88162-AK020 note |
Sensor, Blind Spot Monitor, RH
2023-12 → 2024-07
ended
|
TZNA41,46;TZNA45 6F | — | |
| 88162-AK020 |
Sensor, Blind Spot Monitor, RH
2023-12 → 2024-07
ended
|
TZNA40,45,TZNH47 ATM,CVT | — | |
| 88162-AK021 |
Sensor, Blind Spot Monitor, RH
2024-08 → —
|
TZNA40,45,TZNH47 ATM,CVT | — | |
| 88162-AK021 note |
Sensor, Blind Spot Monitor, RH
2024-08 → —
|
TZNA45 6F | — | |
| 88162-AK021 note |
Sensor, Blind Spot Monitor, RH
2024-08 → —
|
TZNA45 6F | — | |
| 88162-AK021 note |
Sensor, Blind Spot Monitor, RH
2024-08 → —
|
TZNA41,46;TZNA45 6F | — | |
| 88172 — Sensor, Blind Spot Monitor, LH | ||||
| 88162-AK020 note |
Sensor, Blind Spot Monitor, LH
2023-12 → 2024-07
ended
|
TZNA45 6F | — | |
| 88162-AK020 note |
Sensor, Blind Spot Monitor, LH
2023-12 → 2024-07
ended
|
TZNA41,46;TZNA45 6F | — | |
| 88162-AK020 note |
Sensor, Blind Spot Monitor, LH
2023-12 → 2024-07
ended
|
TZNA45 6F | — | |
| 88162-AK020 |
Sensor, Blind Spot Monitor, LH
2023-12 → 2024-07
ended
|
TZNA40,45,TZNH47 ATM,CVT | — | |
| 88162-AK021 |
Sensor, Blind Spot Monitor, LH
2024-08 → —
|
TZNA40,45,TZNH47 ATM,CVT | — | |
| 88162-AK021 note |
Sensor, Blind Spot Monitor, LH
2024-08 → —
|
TZNA45 6F | — | |
| 88162-AK021 note |
Sensor, Blind Spot Monitor, LH
2024-08 → —
|
TZNA45 6F | — | |
| 88162-AK021 note |
Sensor, Blind Spot Monitor, LH
2024-08 → —
|
TZNA41,46;TZNA45 6F | — | |
| 89222A — Computer, Multiplex Network Door | ||||
| 89222-AK010 note |
Computer, Multiplex Network Door
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 89222-AK010 |
Computer, Multiplex Network Door
2024-04 → 2024-12
ended
|
TZNH47 | — | |
| 89222-AK010 note |
Computer, Multiplex Network Door
2023-12 → 2024-12
ended
|
TZNA40,45 DCB | — | |
| 89222-AK011 |
Computer, Multiplex Network Door
2024-12 → —
|
TZNH47 | — | |
| 89222-AK011 note |
Computer, Multiplex Network Door
2024-12 → —
|
TZNA40,45 DCB | — | |
| 89222-AK011 note |
Computer, Multiplex Network Door
2024-12 → —
|
TZNH47 | — | |
| 89271A — Computer, Stabilizer Control | ||||
| 89271-35010 note |
Computer, Stabilizer Control
2023-12 → —
|
TZNA45,TZNH47 DCB | — | |
| 89461 — Sensor, Vapor Pressure | ||||
| 89461-47010 |
Sensor, Vapor Pressure
2024-04 → —
|
TZNH47 | — | |
| 89720A — Computer Assy, Side Auto Step Controller | ||||
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 |
Computer Assy, Side Auto Step Controller
2024-04 → —
|
TZNH47 | — | |
| 89720-AK010 note |
Computer Assy, Side Auto Step Controller
2023-12 → —
|
TZNA45 DCB 8FC | — | |
| 89747E — Buzzer, Power Back Door Warning | ||||
| 89747-0R020 note |
Buzzer, Power Back Door Warning
2023-12 → —
|
TZNA40,45 DCB | — | |
| 89747-0R020 |
Buzzer, Power Back Door Warning
2024-04 → —
|
TZNH47 | — | |
| 89747-0R020 note |
Buzzer, Power Back Door Warning
2024-04 → —
|
TZNH47 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
