Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

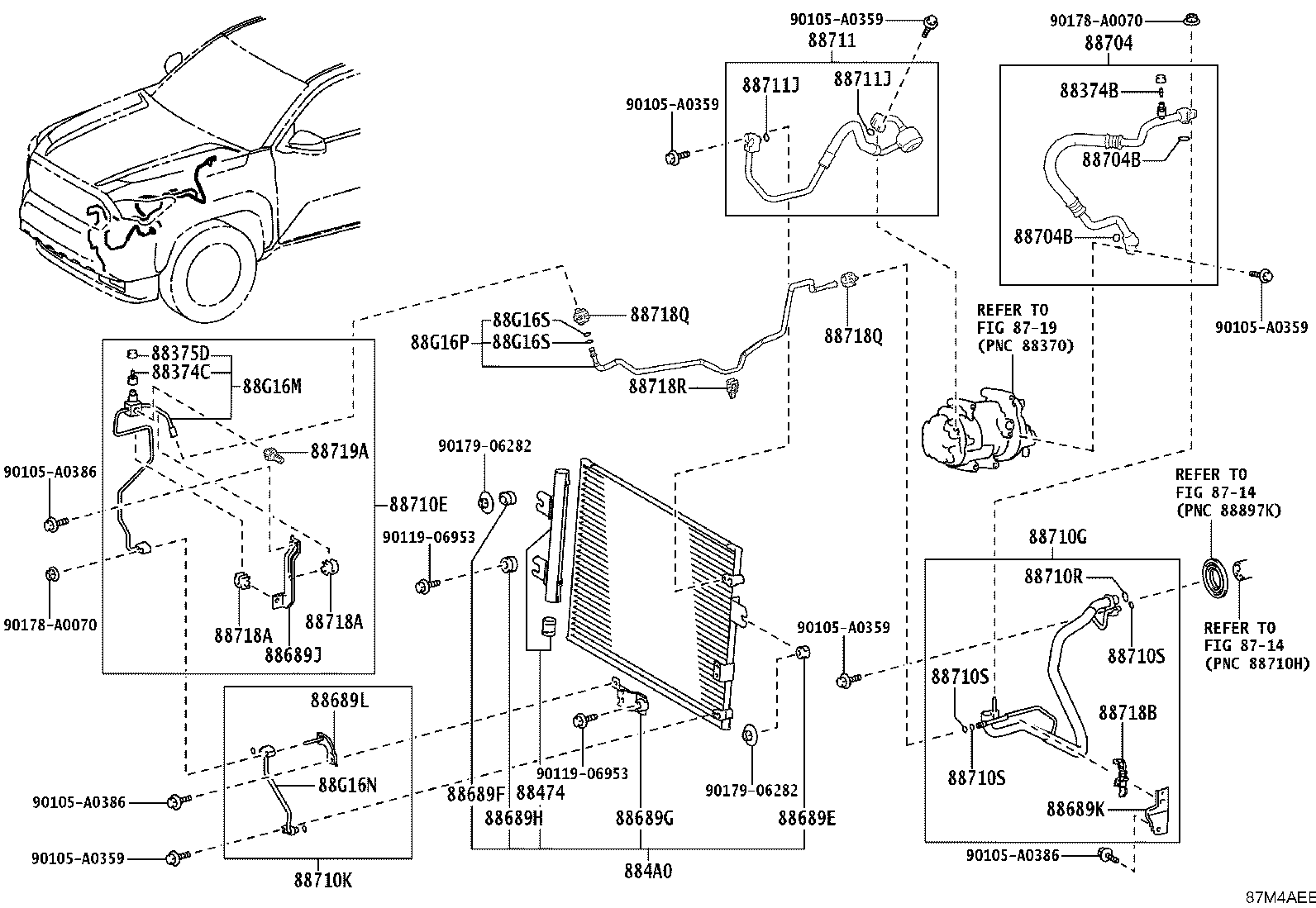

Exploded illustration 87M4AEE 90105A0359 — not listed in this catalogue 884A0 — CONDENSER ASSY, COOLER (2 parts) 88689F — BRACKET, COOLER, NO.2 (1 parts) 88689G — BRACKET, COOLER, NO.3 (1 parts) 88689E — BRACKET, COOLER, NO.1 (2 parts) 88689H — BRACKET, COOLER, NO.4 (1 parts) 9017906282 — not listed in this catalogue 9011906953 — not listed in this catalogue 9011906953 — not listed in this catalogue 9017906282 — not listed in this catalogue 90105A0386 — not listed in this catalogue 88689J — BRACKET, COOLER, NO.5 (1 parts) 88718A — CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) (1 parts) 88689L — BRACKET, COOLER, NO.7 (1 parts) 88710K — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3 (1 parts) 88G16N — TUBE, LIQUID, NO.2 (1 parts) 88G16M — TUBE, LIQUID, NO.1 (1 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (1 parts) 88718A — CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) (1 parts) 88G16S — RING, O, NO.3(FOR LIQUID TUBE) (1 parts) 88G16P — TUBE, LIQUID, NO.3 (1 parts) 88718Q — CLAMP, PIPING (1 parts) 88718B — CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) (2 parts) 88689K — BRACKET, COOLER, NO.6 (1 parts) 88710S — RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) (1 parts) 88710S — RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) (1 parts) 88710S — RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) (1 parts) 88710R — RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2) (1 parts) 88710G — TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 (1 parts) 88718R — CLAMP, PIPING (1 parts) 88718Q — CLAMP, PIPING (1 parts) 88G16S — RING, O, NO.3(FOR LIQUID TUBE) (1 parts) 88711J — RING, O, NO.1(FOR DISCHARGE HOSE) (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 88704B — RING, O(FOR SUCTION HOSE) (1 parts) 90105A0359 — not listed in this catalogue 90105A0359 — not listed in this catalogue 90105A0359 — not listed in this catalogue 90105A0386 — not listed in this catalogue 90105A0386 — not listed in this catalogue 90178A0070 — not listed in this catalogue 8714 — not listed in this catalogue 8719 — not listed in this catalogue 8714 — not listed in this catalogue 88711J — RING, O, NO.1(FOR DISCHARGE HOSE) (1 parts) 90105A0359 — not listed in this catalogue 88374B — VALVE, SERVICE, NO.1 (1 parts) 90178A0070 — not listed in this catalogue 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (2 parts) 88374C — VALVE, SERVICE, NO.2 (1 parts) 88375D — CAP, SERVICE VALVE, NO.2 (1 parts) 88710E — TUBE & ACCESSORY ASSY, AIR CONDITIONER (1 parts) 88704 — HOSE SUB-ASSY, SUCTION (2 parts) 88474 — DRYER, COOLER (1 parts)
87M4AEE · 37 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 Valve, Service, NO.1
2023-12 → —
TZNA4#,TZNH47 —
88374C — Valve, Service, NO.2
88374-30020 Valve, Service, NO.2
2023-12 → —
TZNA4#,TZNH47 —
88375D — Cap, Service Valve, NO.2
88375-30320 Cap, Service Valve, NO.2
2023-12 → —
TZNA4#,TZNH47 —
88474 — Dryer, Cooler
88474-12010 Dryer, Cooler
2023-12 → —
TZNA4#,TZNH47 —
884A0 — Condenser Assy, Cooler
884A0-AK010 Condenser Assy, Cooler
2023-12 → —
TZNA4# —
884A0-AK020 Condenser Assy, Cooler
2024-04 → —
TZNH47 —
88689E — Bracket, Cooler, NO.1
88688-AK010 Bracket, Cooler, NO.1
2023-12 → 2024-04 ended
TZNA4# —
88688-AK010 Bracket, Cooler, NO.1
2024-04 → —
TZNA4#,TZNH47 —
88689F — Bracket, Cooler, NO.2
88688-AK020 Bracket, Cooler, NO.2
2023-12 → —
TZNA4#,TZNH47 —
88689G — Bracket, Cooler, NO.3
88688-AK030 Bracket, Cooler, NO.3
2023-12 → —
TZNA4#,TZNH47 —
88689H — Bracket, Cooler, NO.4
88688-AK040 Bracket, Cooler, NO.4
2023-12 → —
TZNA4#,TZNH47 —
88689J — Bracket, Cooler, NO.5
88688-AK140 Bracket, Cooler, NO.5
2023-12 → —
TZNA4#,TZNH47 —
88689K — Bracket, Cooler, NO.6
88688-AK090 Bracket, Cooler, NO.6
2023-12 → —
TZNA4#,TZNH47 —
88689L — Bracket, Cooler, NO.7
88688-AK100 Bracket, Cooler, NO.7
2023-12 → —
TZNA4#,TZNH47 —
88704 — Hose Sub-assy, Suction
88704-AK010 Hose Sub-assy, Suction
2023-12 → —
TZNA4# —
88704-AK020 Hose Sub-assy, Suction
2024-04 → —
TZNH47 —
88704B — Ring, O(FOR SUCTION HOSE)
90069-08009 note Ring, O(FOR SUCTION HOSE)
2023-12 → —
TZNA4#,TZNH47 —
88710E — Tube & Accessory Assy, Air Conditioner
88710-AK010 Tube & Accessory Assy, Air Conditioner
2023-12 → —
TZNA4#,TZNH47 —
88710G — Tube & Accessory Assy, Air Conditioner, NO.2
88710-AK020 Tube & Accessory Assy, Air Conditioner, NO.2
2023-12 → —
TZNA4#,TZNH47 —
88710K — Tube & Accessory Assy, Air Conditioner, NO.3
88710-AK030 Tube & Accessory Assy, Air Conditioner, NO.3
2023-12 → —
TZNA4#,TZNH47 —
88710R — Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
90069-08009 note Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
2023-12 → —
TZNA4#,TZNH47 —
88710S — Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
90069-08011 note Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
2023-12 → —
TZNA4#,TZNH47 —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-AK010 Hose, Cooler Refrigerant Discharge, NO.1
2023-12 → —
TZNA4# —
88711-AK020 Hose, Cooler Refrigerant Discharge, NO.1
2024-04 → —
TZNH47 —
88711J — Ring, O, NO.1(FOR DISCHARGE HOSE)
90069-08007 note Ring, O, NO.1(FOR DISCHARGE HOSE)
2023-12 → —
TZNA4#,TZNH47 —
88718A — Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-58050 Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
2023-12 → —
TZNA4#,TZNH47 —
88718B — Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-06600 Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
2023-12 → 2024-04 ended
TZNA4# —
88718-42120 Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
2024-04 → —
TZNA4#,TZNH47 —
88718Q — Clamp, Piping
88718-02170 Clamp, Piping
2023-12 → —
TZNA4#,TZNH47 —
88718R — Clamp, Piping
88718-0C300 Clamp, Piping
2023-12 → —
TZNA4#,TZNH47 —
88719A — Sensor, Air Conditioner Pressure
88719-11010 Sensor, Air Conditioner Pressure
2023-12 → —
TZNA4#,TZNH47 —
88G16M — Tube, Liquid, NO.1
88716-AK050 Tube, Liquid, NO.1
2023-12 → —
TZNA4#,TZNH47 —
88G16N — Tube, Liquid, NO.2
88716-AK020 Tube, Liquid, NO.2
2023-12 → —
TZNA4#,TZNH47 —
88G16P — Tube, Liquid, NO.3
88716-AK010 Tube, Liquid, NO.3
2023-12 → —
TZNA4#,TZNH47 —
88G16S — Ring, O, NO.3(FOR LIQUID TUBE)
90069-08011 note Ring, O, NO.3(FOR LIQUID TUBE)
2023-12 → —
TZNA4#,TZNH47 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
