Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

24 part groups · 2 illustrations

Illustrations

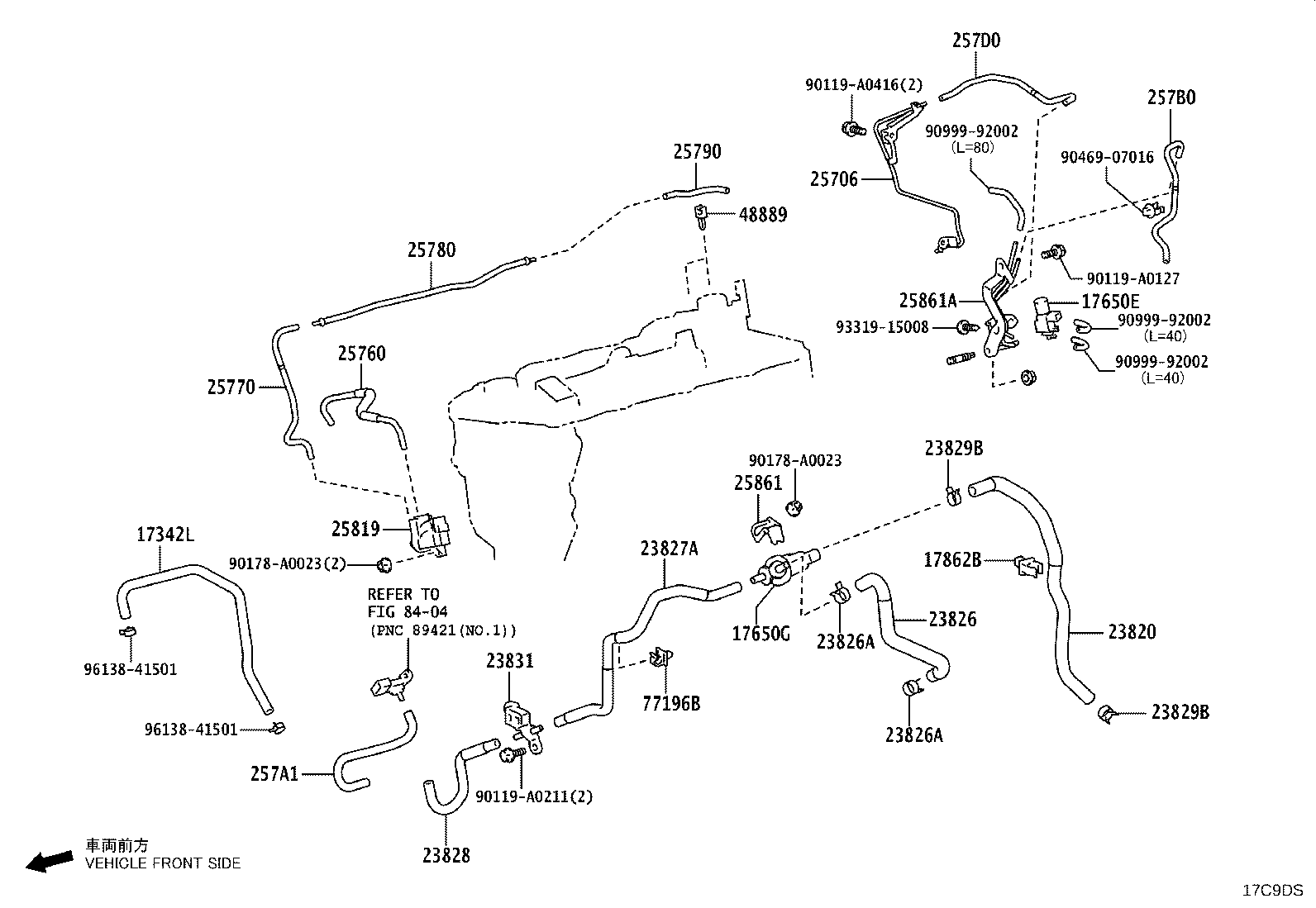

Figure 17C9B2B 17C9B2B 2023-12 → — Figure 17C9DS 17C9DS 2024-04 → —

Part groups

PNCDescription
17342L Hose, Air, NO.2
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17862B Clamp, Hose
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23828 Hose, Fuel Vapor Feed, NO.3
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23831 Connector, Fuel Vapor Feed, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25790 Hose Assy, Vacuum Transmitting, NO.4
257A1 Hose, Vacuum Transmitting, NO.5
257B0 Hose Assy, Vacuum Transmitting, NO.6
257D0 Hose Assy, Vacuum Transmitting, NO.8
25819 Valve Assy, Vacuum Regulating
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
48889 Clamp, Stabilizer Control Tube
77196B Clamp, Evaporation Vent Tube, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
