Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

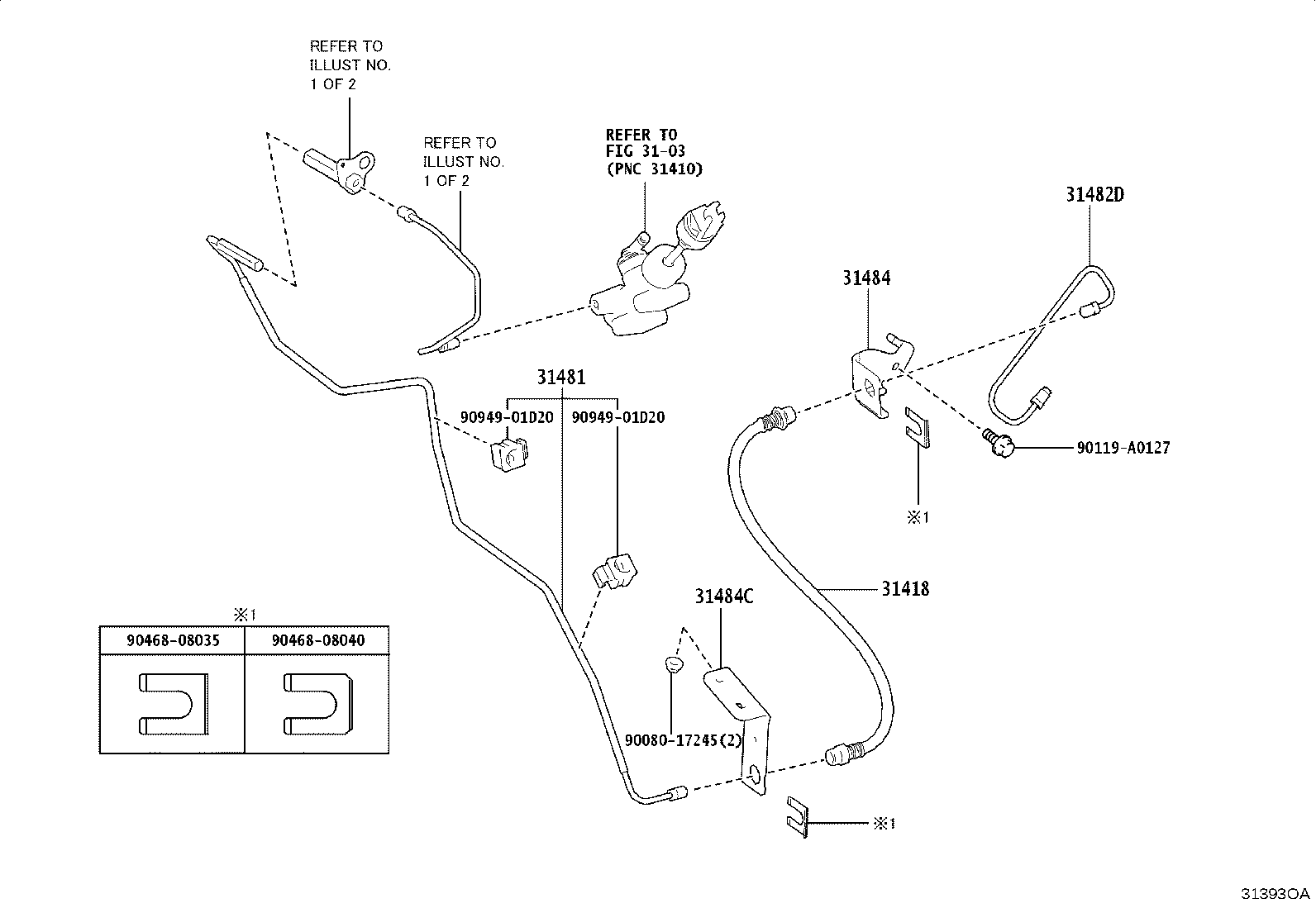

Clutch Pedal & Flexible Hose
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301P | Bush(FOR CLUTCH PEDAL TURNOVER) |
| 31301S | Cushion, NO.2(FOR CLUTCH PEDAL) |
| 31321 | Pad, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31331B | Way, Clutch Pedal Support |
| 31332 | Grommet, Clutch Pedal Support |
| 31353 | Holder, Clutch Pedal Spring |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481J | Tube, Clutch Master Cylinder TO 2 Way |
| 31482D | Tube, Clutch Release Cylinder TO Accumulator |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31484C | Bracket, Clutch Tube, NO.1 |
| 31495 | Way, Clutch Tube |
| 55105D | Bracket Sub-assy, Clutch Pedal |
| 55107A | Support Sub-assy, Clutch Pedal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
