Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

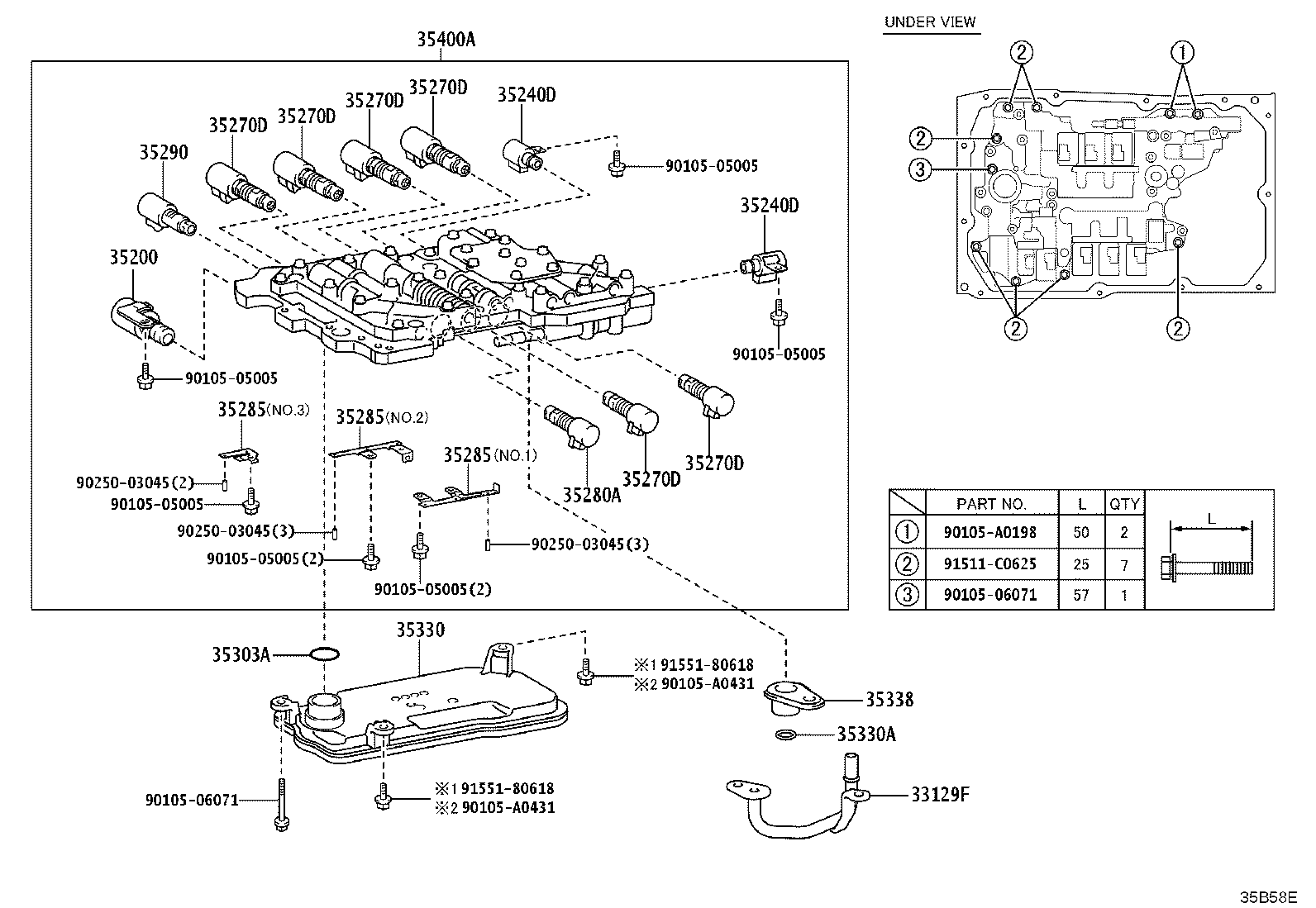

Valve Body & Oil Strainer (ATM)
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33129F | Pipe, Transmission Oil |
| 35200 | Pump Assy, Oil, W/Solenoid |
| 35240D | Valve, Solenoid(SL) |
| 35270D | Valve, Solenoid(SL) |
| 35280A | Valve, Solenoid(SLU) |
| 35285 | Plate, Solenoid Lock |
| 35290 | Solenoid Assy, Line Pressure Control |
| 35303A | Ring, O (FOR OIL STRAINER) |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35338 | Spacer, Oil Strainer |
| 35400A | Body Assy, Transmission Valve W/Solenoid |
| 35482B | Clamp, Temperature Sensor |
| 82125J | Wire, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
