Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

11 part groups · 2 illustrations

Illustrations

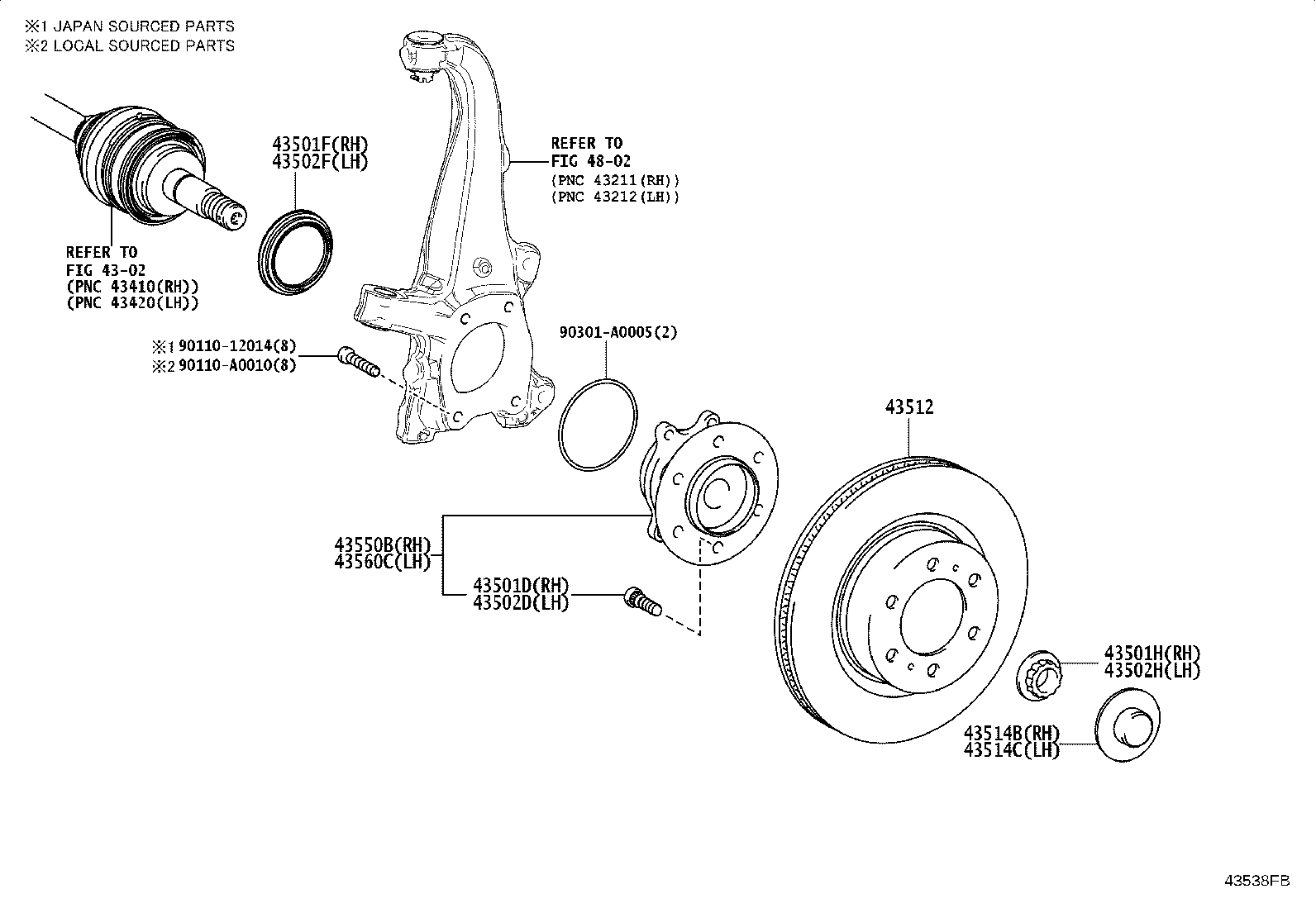

Figure 43538DB 43538DB 2023-12 → — Figure 43538FB 43538FB 2023-12 → —

Part groups

PNCDescription
43501D Bolt, Hub (FOR FRONT AXLE RH)
43501F Seal, Oil (FOR FRONT AXLE HUB RH)
43501H Nut (FOR FRONT AXLE SHAFT RH)
43502D Bolt, Hub (FOR FRONT AXLE LH)
43502F Seal, Oil (FOR FRONT AXLE HUB LH)
43502H Nut (FOR FRONT AXLE SHAFT LH)
43512 Disc, Front
43514B Cap, Front Axle Hub Grease, RH
43514C Cap, Front Axle Hub Grease, LH
43550B Hub & Bearing Assy, Front Axle W/Abs Sensor, RH
43560C Hub & Bearing Assy, Front Axle W/Abs Sensor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
