Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

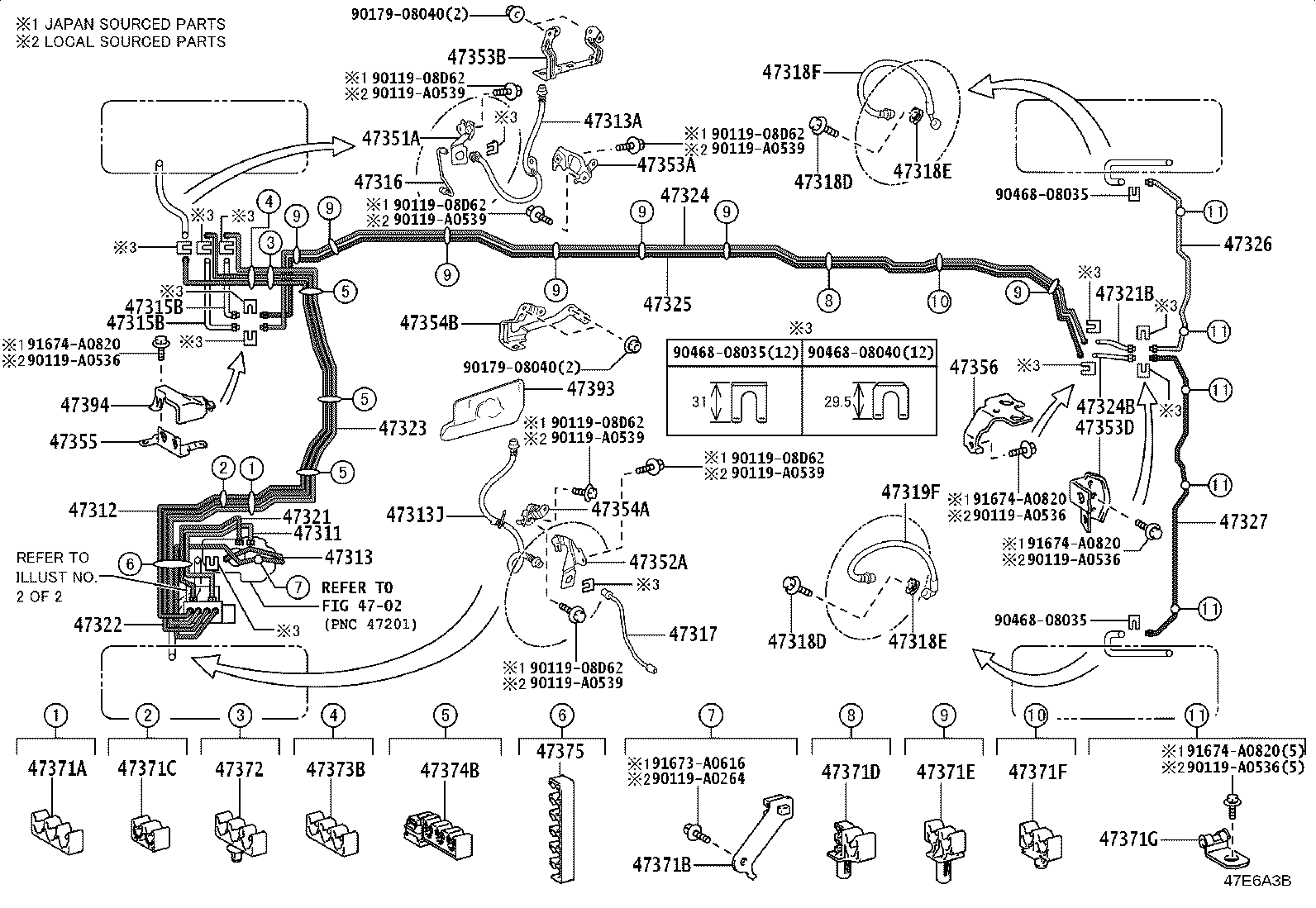

Brake Tube & Clamp
48 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|

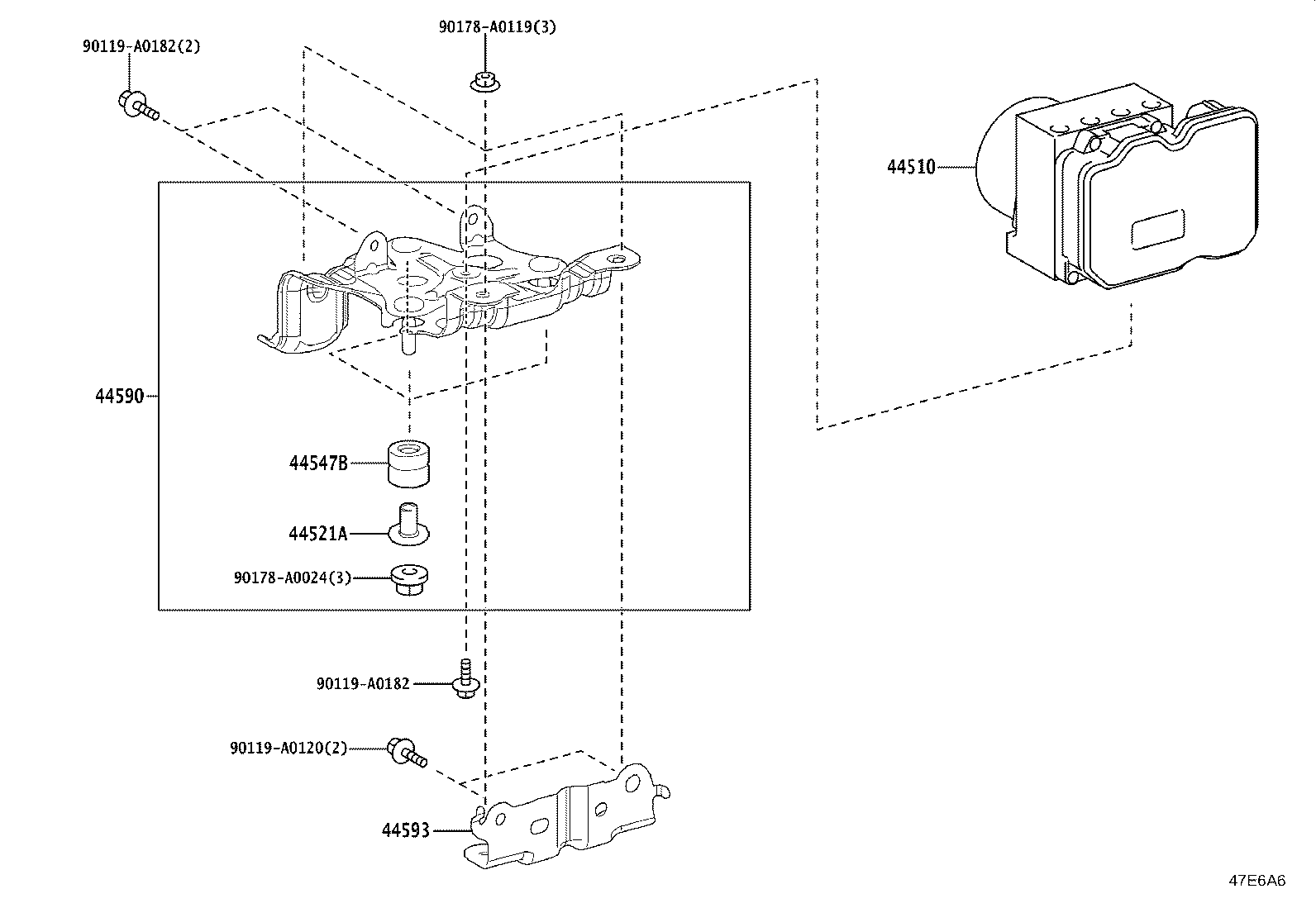

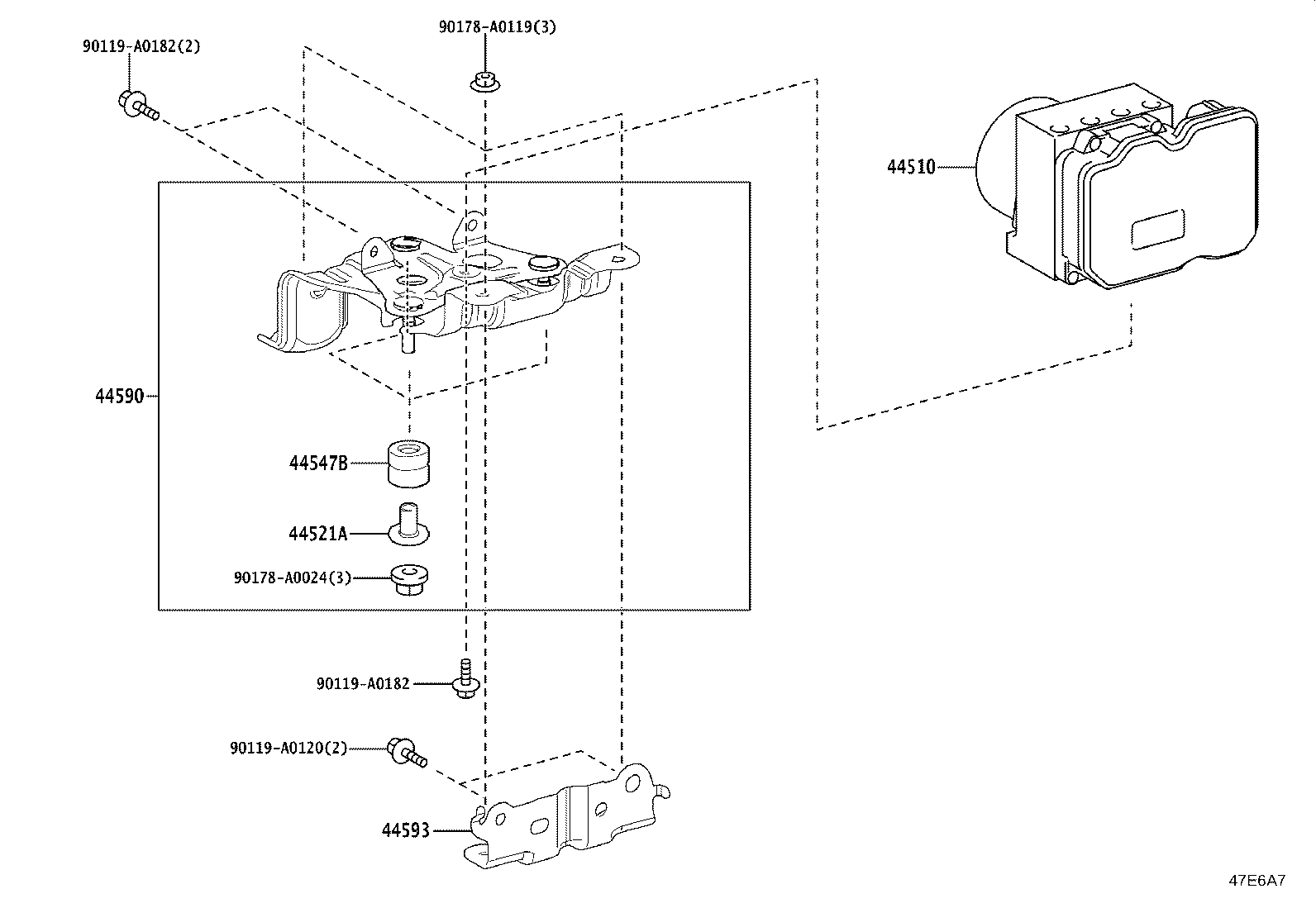

| 44510 | Actuator Assy, Brake |
| 44521A | Collar, Brake Actuator Case, NO.1 |
| 44547B | Cushion, Brake Actuator Bracket |
| 44590 | Bracket Assy, Brake Actuator |
| 44593 | Bracket, Brake Actuator, NO.3 |
| 47311 | Tube, Front Brake, NO.1 |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313J | Hose, Flexible, NO.2(FOR FRONT) |
| 47315B | Hose, Flexible(FOR BRAKE TUBE) |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321B | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47324B | Hose, Flexible(FOR REAR BRAKE TUBE, NO.2) |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |
| 47351A | Bracket, Flexible Hose, Front RH NO.1 |
| 47352A | Bracket, Flexible Hose, Front LH NO.1 |
| 47353A | Bracket, Flexible Hose, Front RH NO.2 |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47353D | Bracket, Flexible Hose, NO.7 |
| 47354A | Bracket, Flexible Hose, Front LH NO.2 |
| 47354B | Bracket, Flexible Hose, NO.4 |
| 47355 | Bracket, Flexible Hose, NO.2(FOR FRONT) |
| 47356 | Bracket, Flexible Hose, NO.6 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47371D | Clamp, Brake Tube, NO.8 |
| 47371E | Clamp, Brake Tube, NO.9 |
| 47371F | Clamp, Brake Tube, NO.10 |
| 47371G | Clamp, Brake Tube, NO.11 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47393 | Insulator, Brake Tube Heat |
| 47394 | Insulator, Brake Tube Heat, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
