Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

23 part groups · 3 illustrations

Illustrations

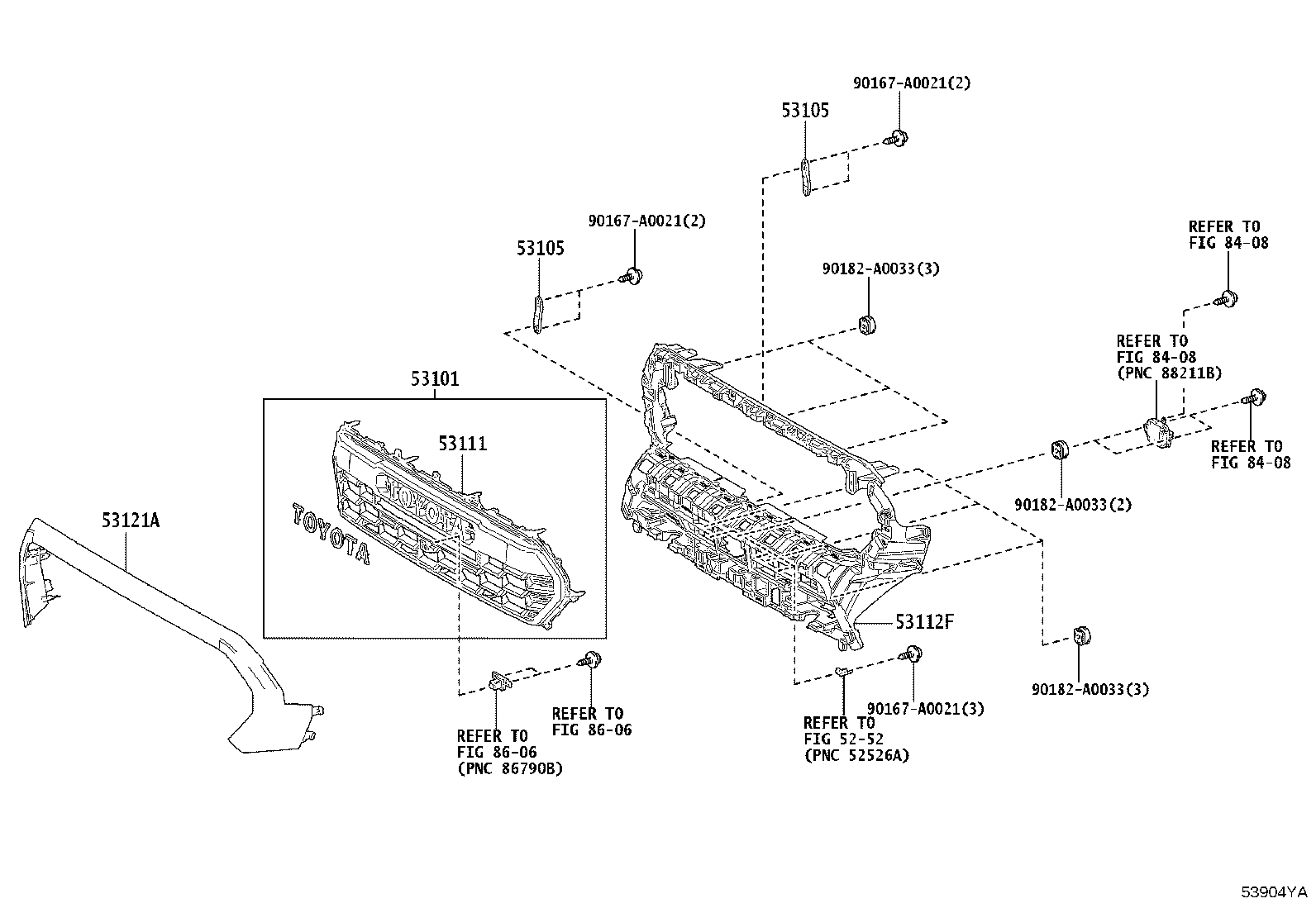

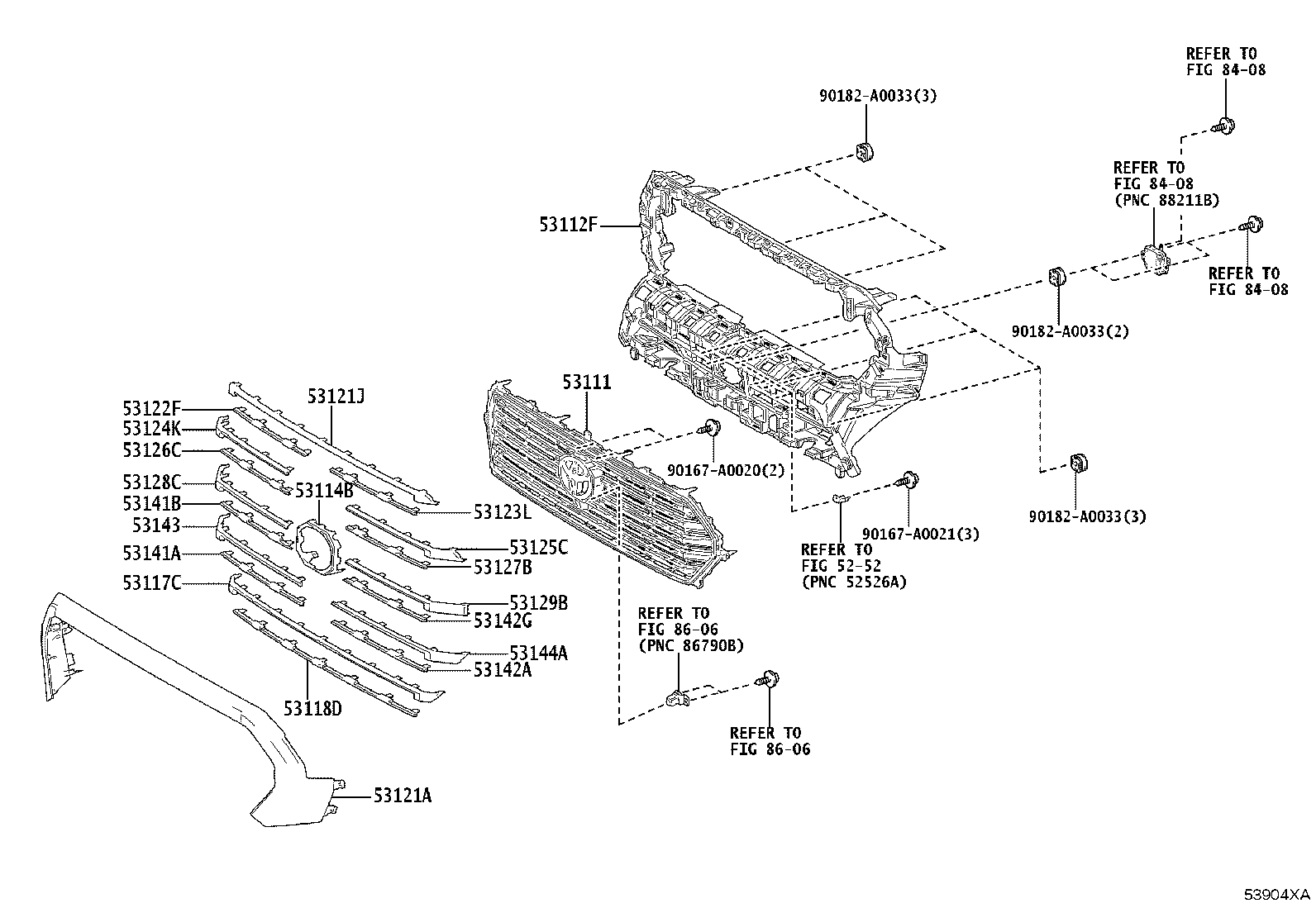

Figure 53904WA 53904WA 2023-12 → — Figure 53904XA 53904XA 2023-12 → — Figure 53904YA 53904YA 2024-04 → —

Part groups

PNCDescription
53101 Grille Sub-assy, Radiator
53105 Stay, Radiator Grille, Center
53111 Grille, Radiator
53112F Grille, Radiator, Inside
53114B Grille, Radiator, Upper
53117C Retainer, Radiator Grille, NO.1
53118D Retainer, Radiator Grille, NO.2
53121A Moulding, Radiator Grille
53121J Moulding, Radiator Grille, NO.1
53122F Moulding, Radiator Grille, NO.2
53123L Moulding, Radiator Grille, NO.3
53124K Moulding, Radiator Grille, NO.4
53125C Moulding, Radiator Grille, NO.5
53126C Moulding, Radiator Grille, NO.6
53127B Moulding, Radiator Grille, NO.7
53128C Moulding, Radiator Grille, NO.8
53129B Moulding, Radiator Grille, NO.9
53141A Garnish, Radiator Grille, Lower RH
53141B Garnish, Radiator Grille, NO.1
53142A Garnish, Radiator Grille, Lower LH
53142G Garnish, Radiator Grille, NO.2
53143 Garnish, Radiator Grille, NO.3
53144A Garnish, Radiator Grille, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
