Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

23 part groups · 3 illustrations

Illustrations

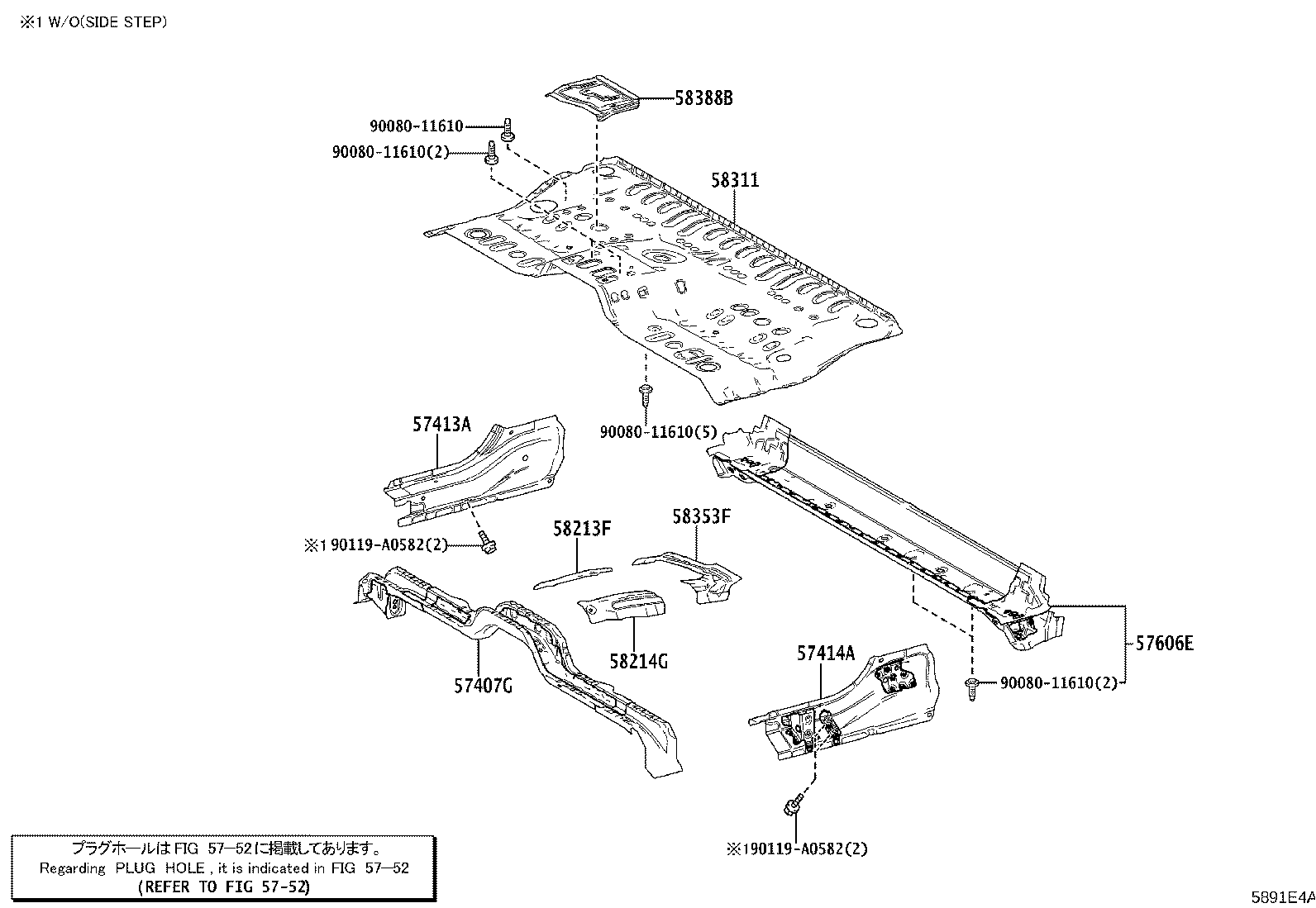

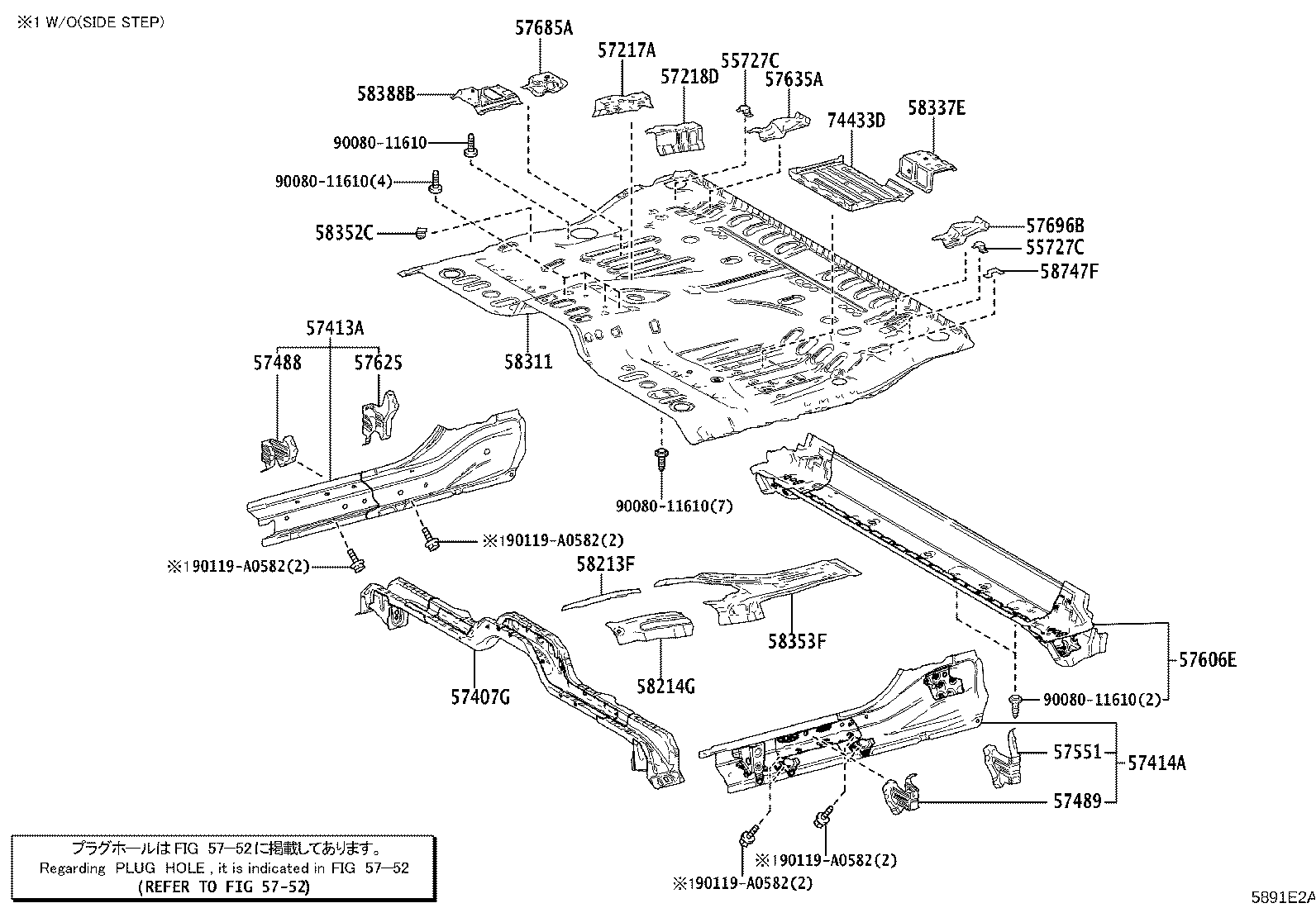

Figure 5891E3A 5891E3A 2023-12 → — Figure 5891E4A 5891E4A 2024-03 → — Figure 5891E2A 5891E2A 2024-04 → —

Part groups

PNCDescription
55727C Retainer, Front Panel Upper Reinforcement
57217A Bracket, Body Mounting, NO.4 RH
57218D Bracket, Body Mounting, NO.4 LH
57407G Member Sub-assy, Center Floor Cross
57413A Member, Floor Side, Inner Rear RH
57414A Member, Floor Side, Inner Rear LH
57488 Reinforcement, Floor Side Member, NO.2 RH
57489 Reinforcement, Floor Side Member, NO.2 LH
57551 Reinforcement, Center Floor, NO.1
57606E Member Sub-assy, Rear Floor Cross, NO.2
57625 Reinforcement, Rear Floor Side Member, RH
57635A Reinforcement, Rear Floor Side Member, Rear RH
57685A Bracket, Rear Floor Mounting, NO.1 RH
57696B Bracket, Rear Floor Mounting, NO.2 LH
58213F Reinforcement, Center Floor Panel
58214G Reinforcement, Center Floor Panel, LH
58311 Pan, Rear Floor
58337E Reinforcement, Rear Floor End, Lower LH
58352C Reinforcement, Rear Floor Panel, NO.2
58353F Reinforcement, Rear Floor Panel, NO.3
58388B Bracket, Plate Rear Floor
58747F Guide, Jack
74433D Support, Battery Tray,NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
