Toyota Tacoma

2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States

Supported model Data version 2024-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

37 part groups · 6 illustrations

Illustrations

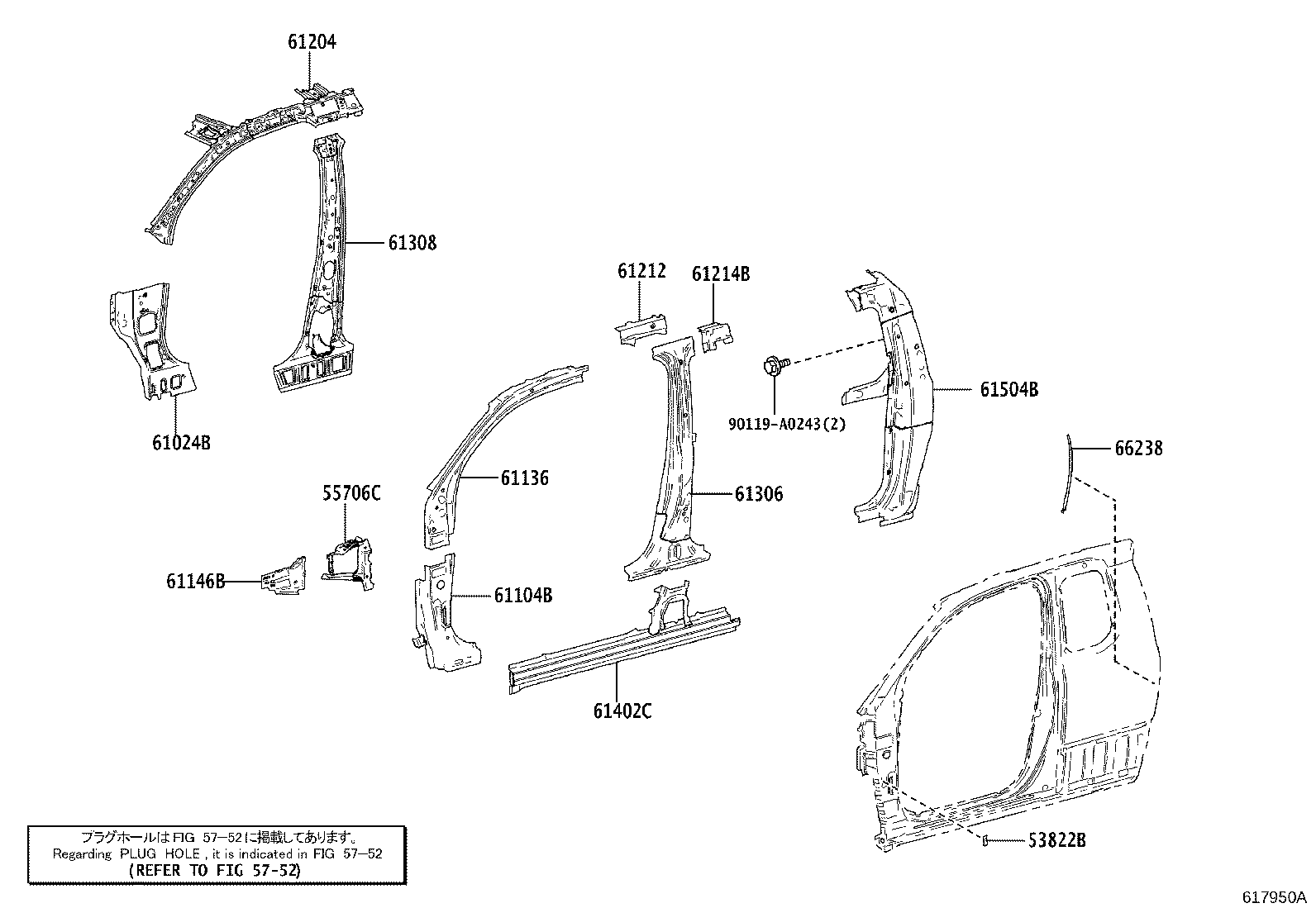

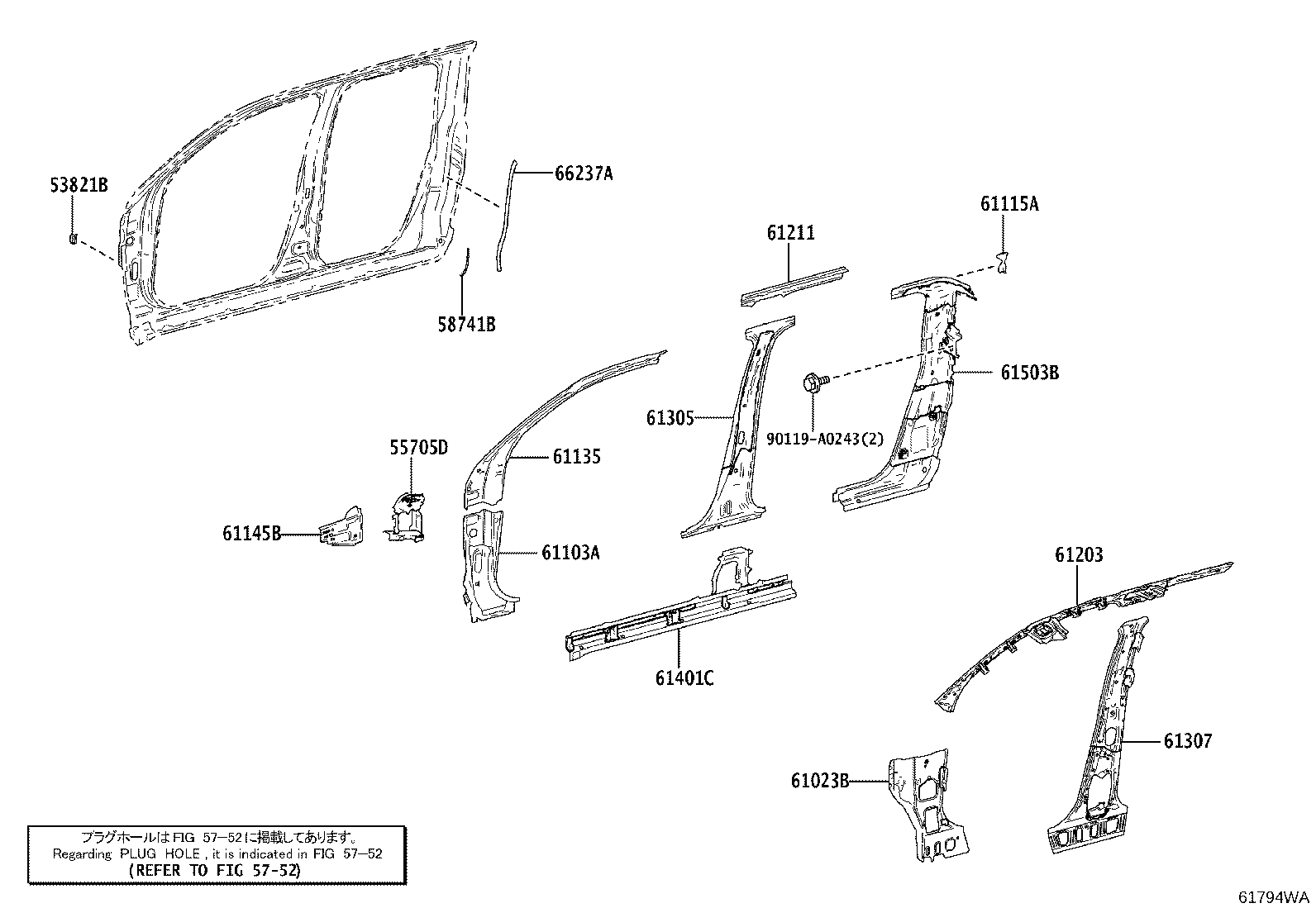

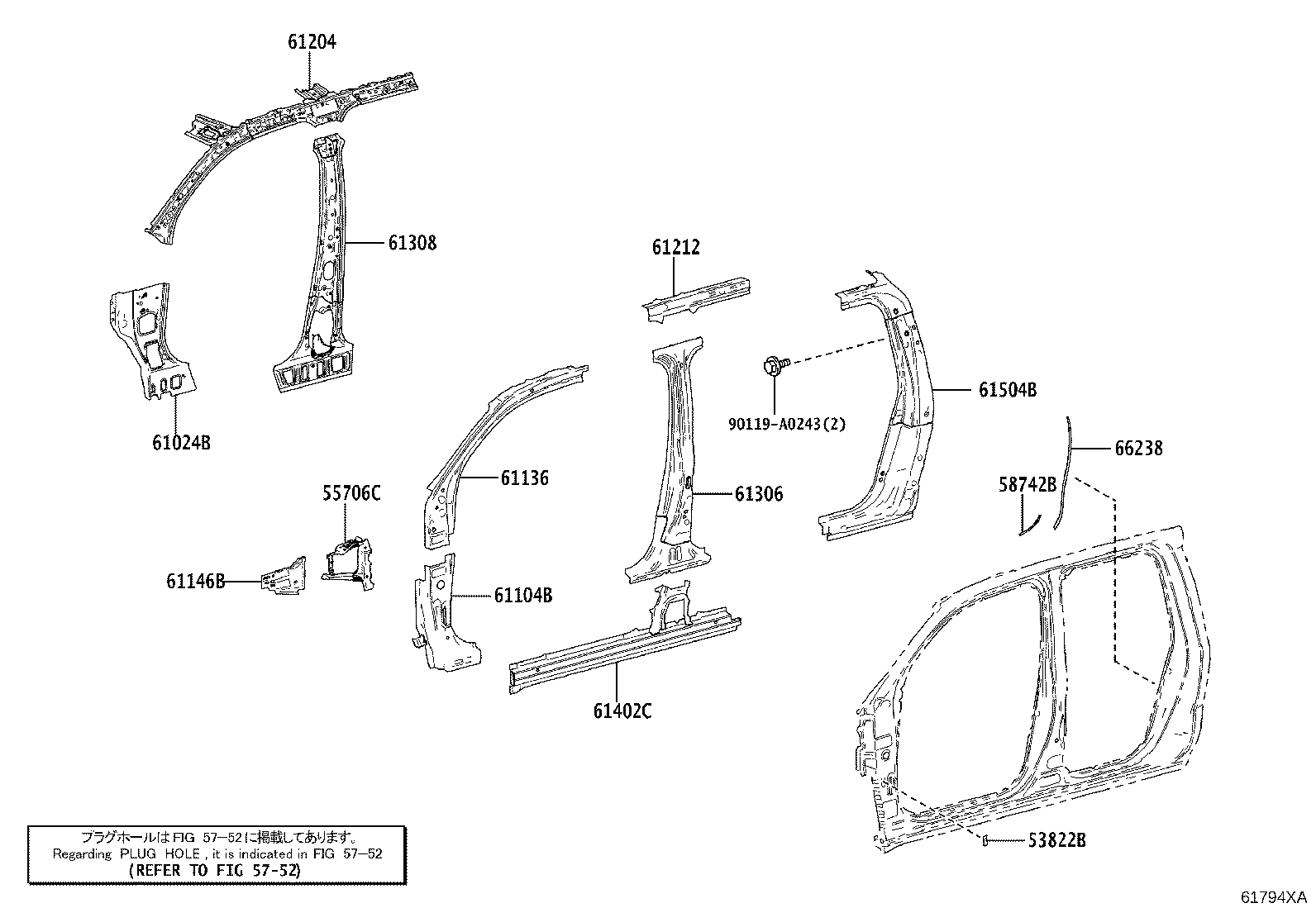

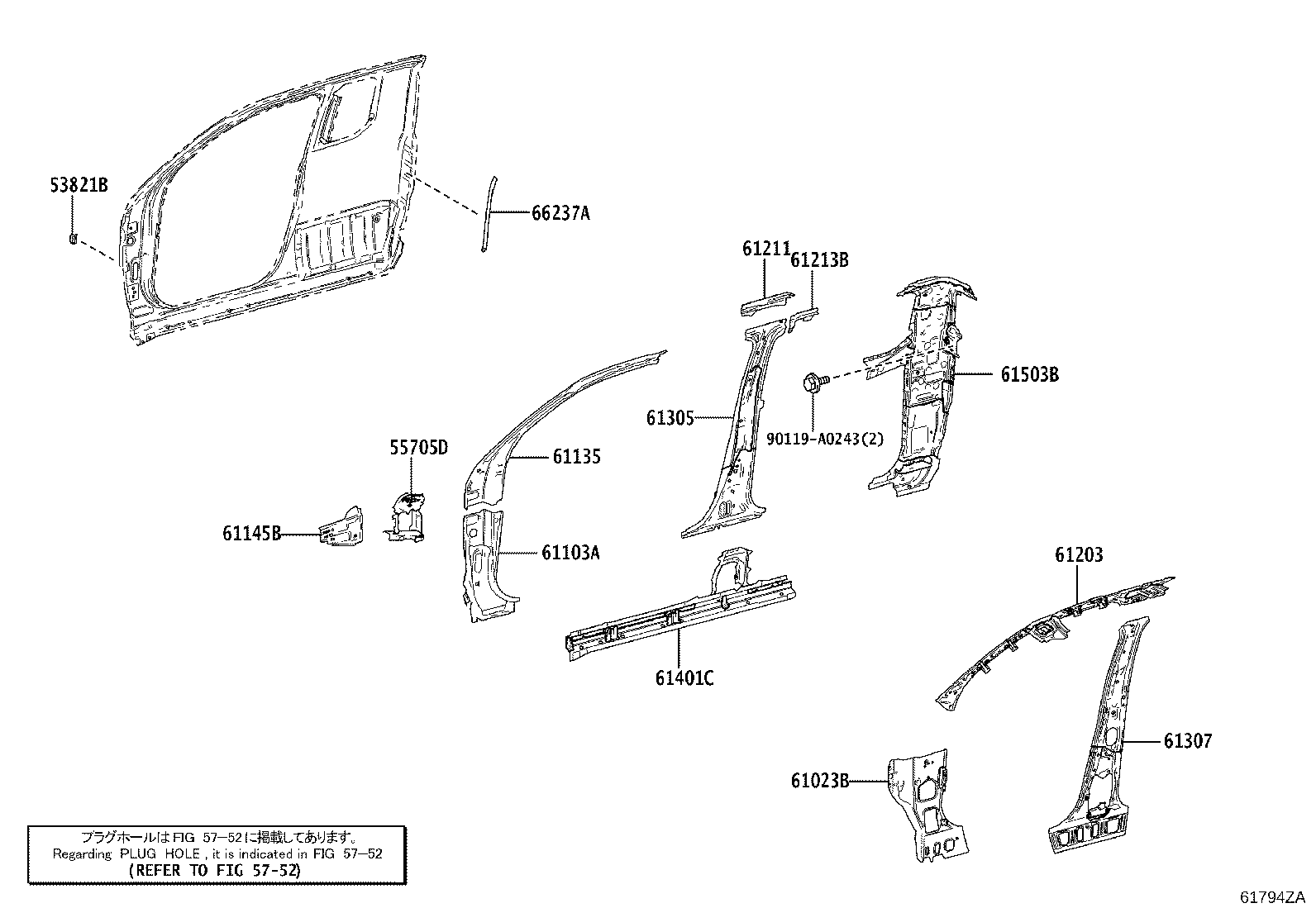

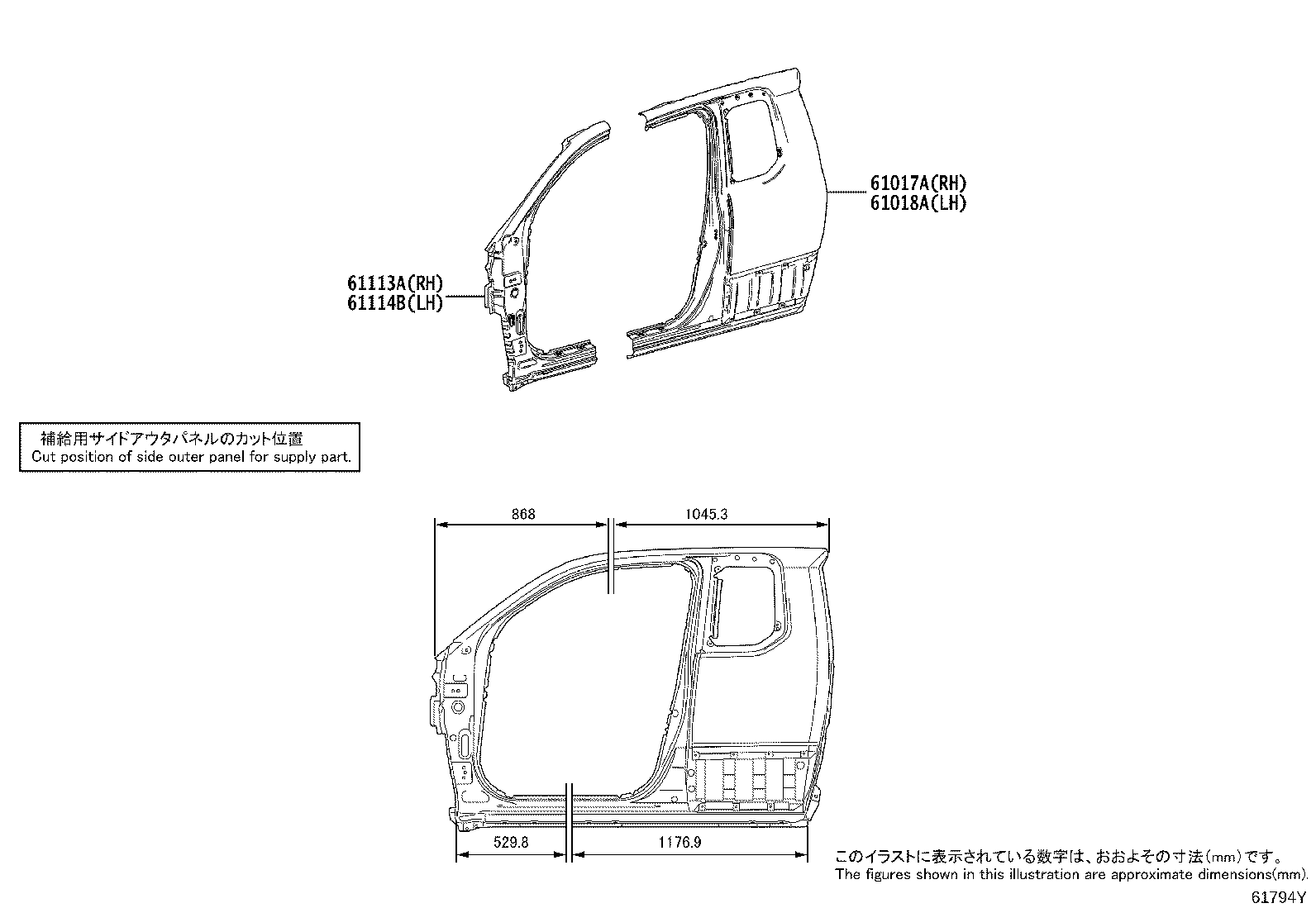

Figure 61794V 61794V 2023-12 → — Figure 61794WA 61794WA 2023-12 → — Figure 61794XA 61794XA 2023-12 → — Figure 61794Y 61794Y 2024-03 → — Figure 61794ZA 61794ZA 2024-03 → — Figure 617950A 617950A 2024-03 → —

Part groups

PNCDescription
53821B Bracket, Front Fender, Rear RH
53822B Bracket, Front Fender, Rear LH
55705D Panel Sub-assy, Cowl Top Side, RH,
55706C Panel Sub-assy, Cowl Top Side, LH
58741B Protector, Quarter Panel, RH
58742B Protector, Quarter Panel, LH
61017A Member Sub-assy, Side, Rear RH
61018A Member Sub-assy, Side, Rear LH
61023B Pillar Sub-assy, Front Body, Inner RH
61024B Pillar Sub-assy, Front Body, Inner LH
61103A Reinforcement Sub-assy, Cowl Side, RH
61104B Reinforcement Sub-assy, Cowl Side, LH
61113A Panel, Side, Outer NO.2 RH
61114B Panel, Side, Outer NO.2 LH
61115A Panel, NO.4 Side, RH
61135 Reinforcement, Front Body Pillar, Upper RH
61136 Reinforcement, Front Body Pillar, Upper LH
61145B Gusset, Front Body Pillar, Lower RH
61146B Gusset, Front Body Pillar, Lower LH
61203 Rail Sub-assy, Roof Side, Inner RH
61204 Rail Sub-assy, Roof Side, Inner LH
61211 Rail, Roof Side, Outer RH
61212 Rail, Roof Side, Outer LH
61213B Rail, Roof Side, Outer NO.2 RH
61214B Rail, Roof Side, Outer NO.2 LH
61305 Reinforce Sub-assy, Center Body Pillar, Lower RH
61306 Reinforce Sub-assy, Center Body Pillar, Lower LH
61307 Pillar Sub-assy, Center Body, Inner RH
61308 Pillar Sub-assy, Center Body, Inner LH
61311B Pillar, Center Body, Outer RH
61312B Pillar, Center Body, Outer LH
61401C Panel Sub-assy, Rocker, Outer RH
61402C Panel Sub-assy, Rocker, Outer LH
61503B Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B Reinforcement Sub-assy, Quarter Lock Pillar, LH
66237A Protector, Quarter Panel Outer, RH
66238 Protector, Quarter Panel Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
