Toyota Tacoma
2023-12 → present · chassis TZNA4#,TZNH47 · catalogue 674480 · United States
Supported model
Data version 2024-03

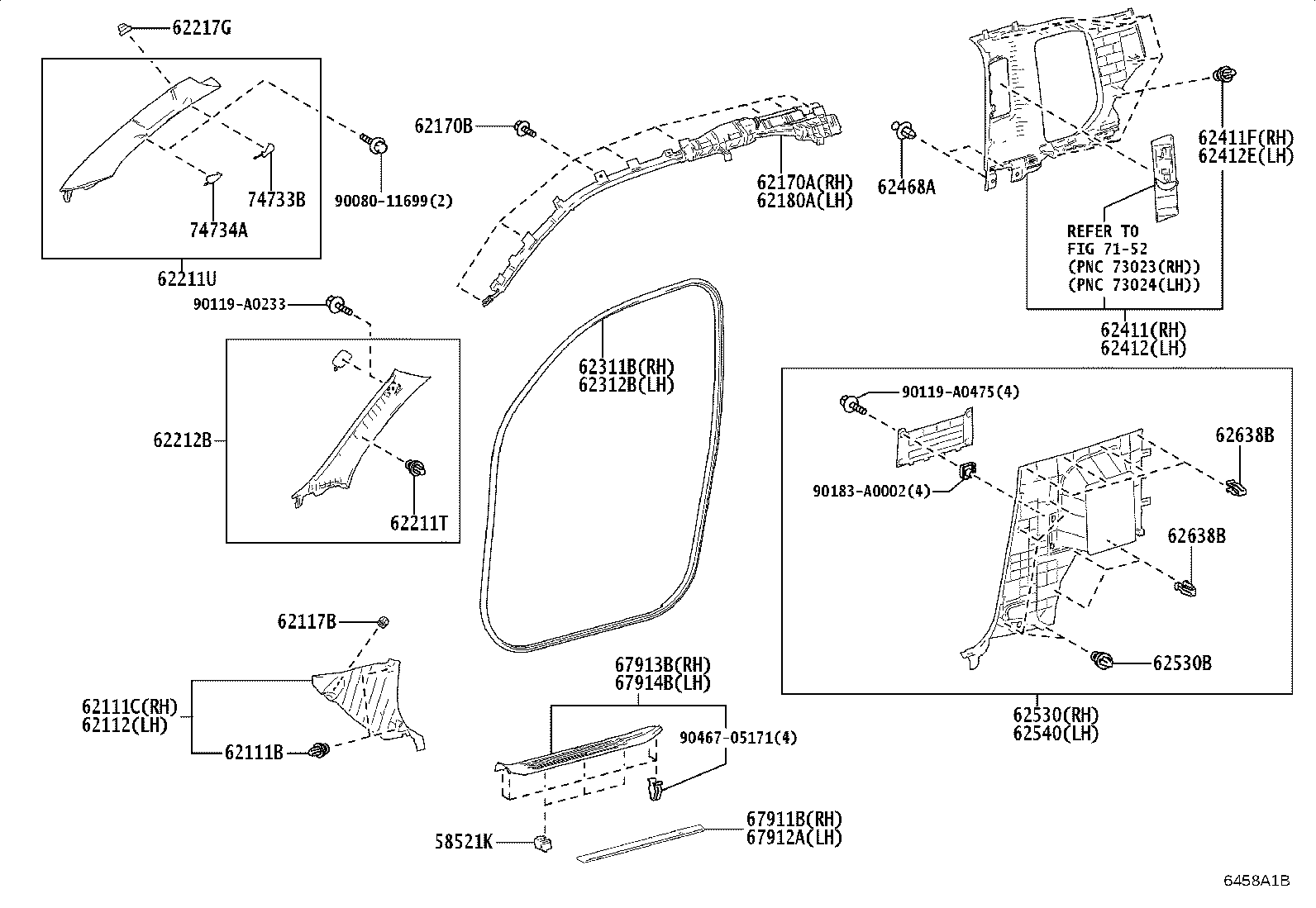

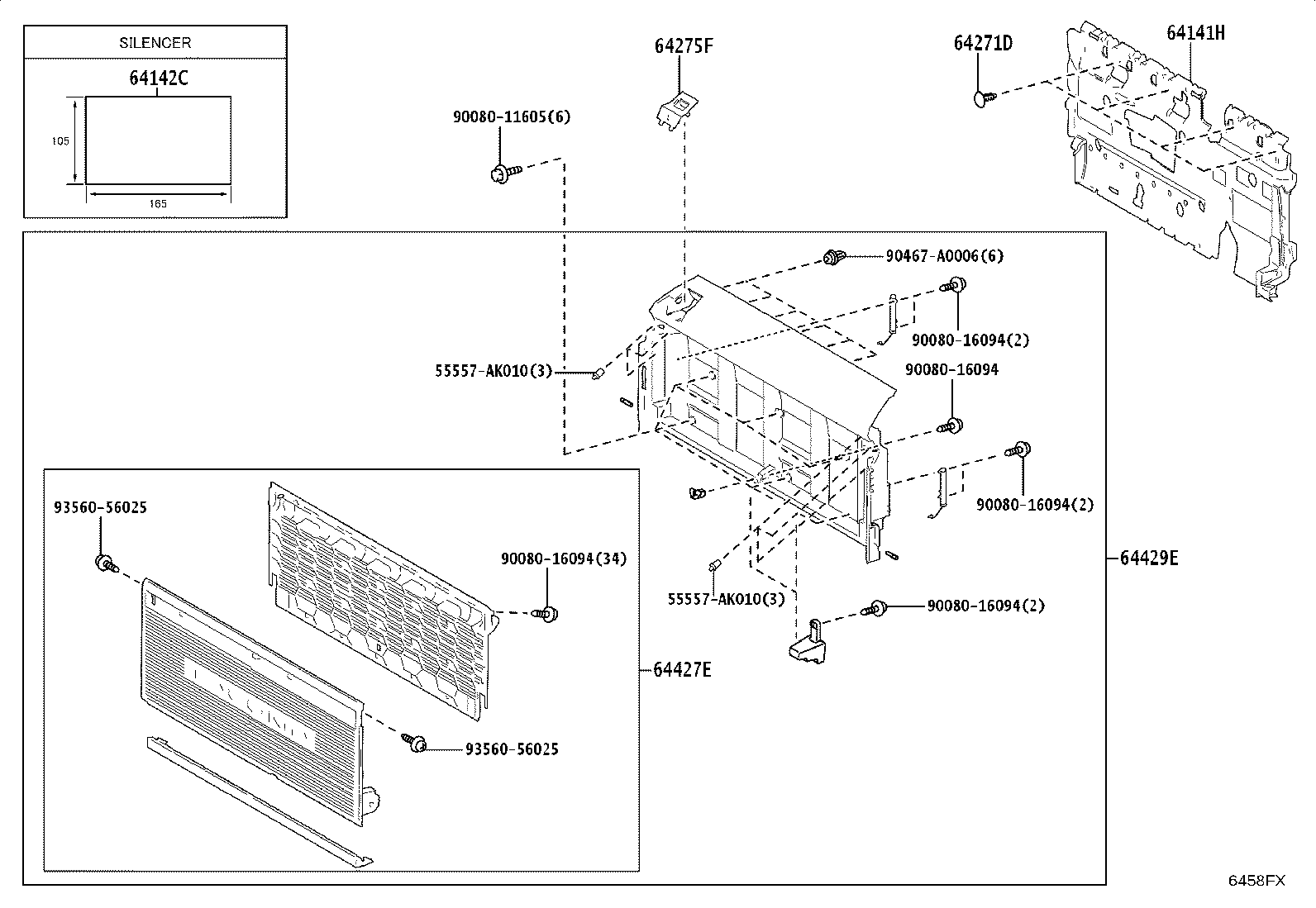

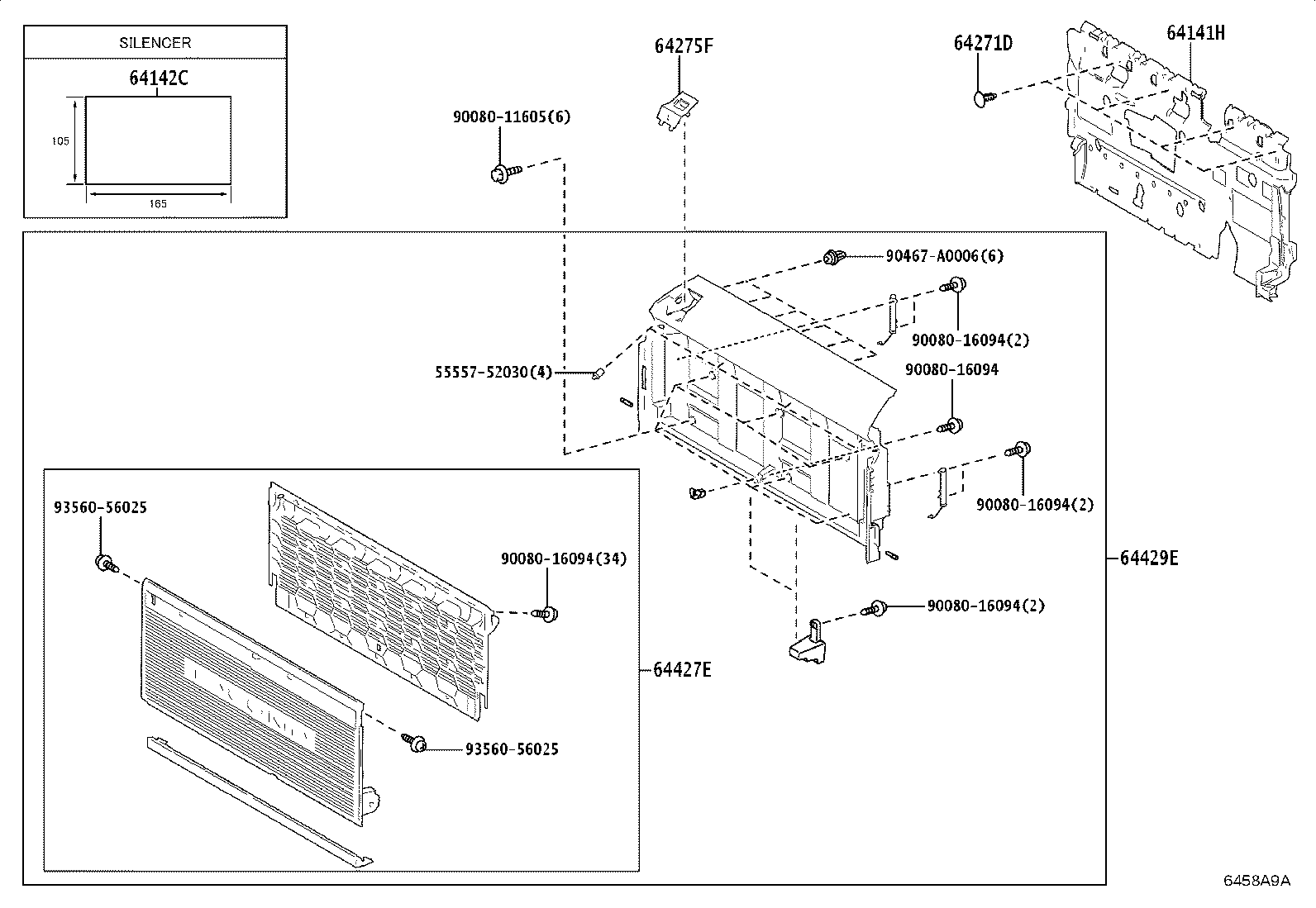

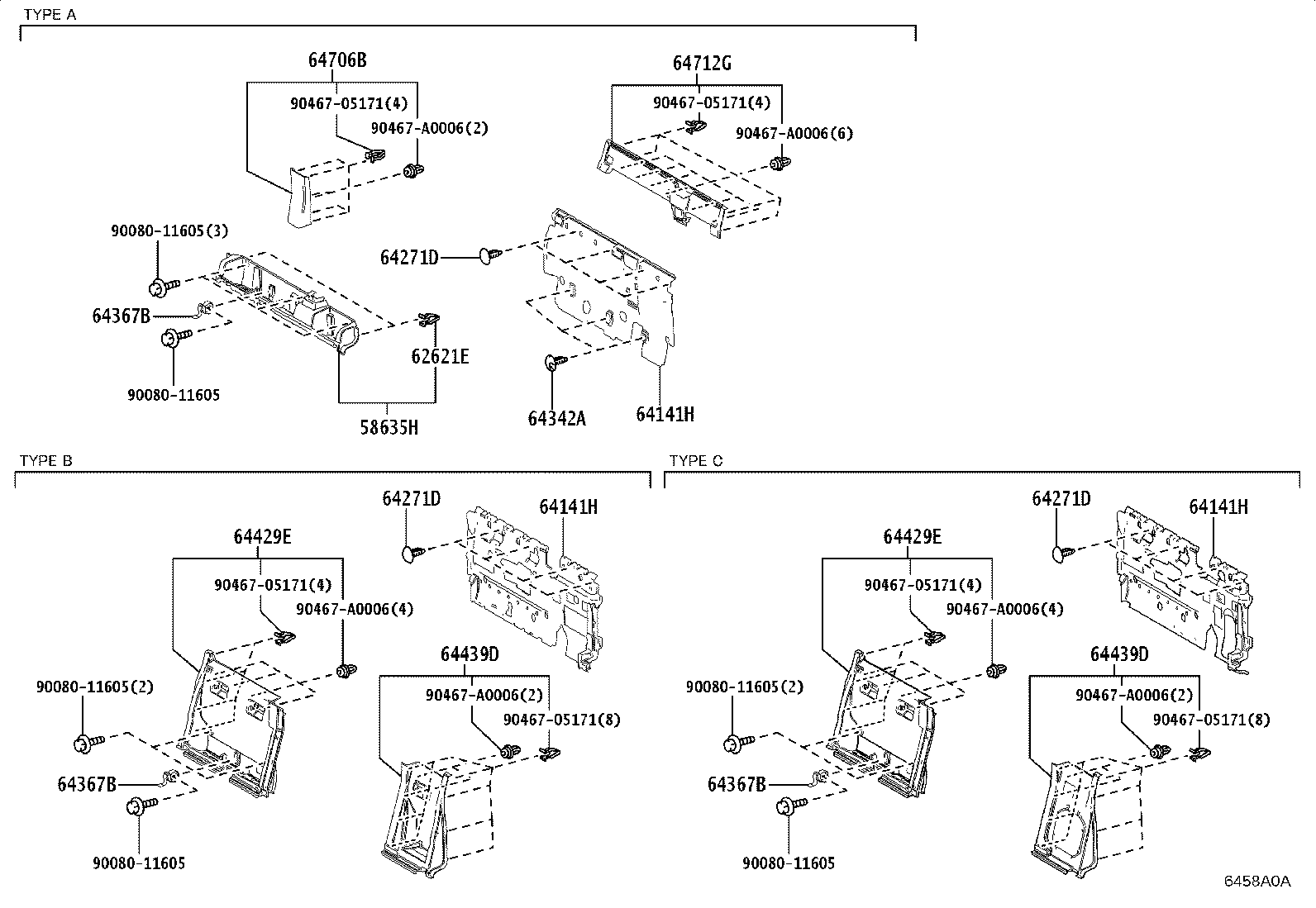

Inside Trim Board
59 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58521K | Hook, Floor Carpet |
| 58635H | Box, Seat Floor |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62211T | Clip(FOR FRONT PILLAR GARNISH) |
| 62211U | Garnish Assy, Front Pillar, RH |
| 62212B | Garnish Assy, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62411F | Clip, Center Pillar Garnish, RH |
| 62411H | Clip |
| 62412 | Garnish, Center Pillar, LH |
| 62412E | Clip, Center Pillar Garnish, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62414B | Clip (FOR CENTER LOWER GARNISH) |
| 62468A | Clip (FOR CENTER PILLAR REAR GARNISH) |
| 62510K | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62530 | Panel Assy, Quarter Trim, Lower RH |
| 62530B | Clip, Quarter Trim NO.1 |
| 62540 | Panel Assy, Quarter Trim, Lower LH |
| 62611E | Retainer, Door Trim |
| 62621E | Clip |
| 62638B | Clip |
| 64141H | Silencer, Back Panel, NO.1 |
| 64142C | Silencer, Back Panel, NO.2 |
| 64271D | Clip(FOR BACK PANEL TRIM) |
| 64275F | Cover, Back Panel Trim |
| 64342A | Clip |
| 64367B | Strap, Package Tray Trim |
| 64427E | Cover, Luggage Compartment Trim Box |
| 64429E | Box, Luggage Compartment, RH |
| 64439D | Box, Luggage Compartment, LH |
| 64706B | Cover Sub-assy, Luggage Compartment Trim, Rear |
| 64712G | Garnish, Luggage Compartment, Upper |
| 67865L | Weatherstrip, Front Door, NO.3 RH |
| 67866J | Weatherstrip, Front Door, NO.3 LH |
| 67911B | Plate, Front Door Scuff, Outside, RH |
| 67912A | Plate, Front Door Scuff, Outside LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67915 | Plate, Rear Door Scuff, Outside RH |
| 67916 | Plate, Rear Door Scuff, Outside LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
| 74733B | Cover, Hand Grip, NO.1 |
| 74734A | Cover, Hand Grip, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
